(2.3) Polynomial Functions and Their Graphs

(2.3) Polynomial Functions and Their Graphs. Identifying End Behavior Finding x-intercepts Using the Intermediate Value Theorem Graphing Polynomial Functions. End Behavior. Leading Coefficient. End Behavior. Best Graph Description. End Behavior. Example. Degree. Up Right.

amaryllis
Download Presentation

(2.3) Polynomial Functions and Their Graphs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. (2.3) Polynomial Functions and Their Graphs Identifying End Behavior Finding x-intercepts Using the Intermediate Value Theorem Graphing Polynomial Functions

  2. End Behavior Leading Coefficient End Behavior Best Graph Description End Behavior Example Degree Up Right Line with a Positive Slope Odd Positive Down Left Down Right Line with a Negative Slope Odd Negative Up Left

  3. End Behavior Leading Coefficient End Behavior Best Graph Description End Behavior Example Degree Quadratic with a Positive Coefficient Up Right Even Positive Up Left Down Right Quadratic with a Negative Coefficient Even Negative Down Left

  4. Identifying End Behavior Odd Positive Up Right; Down Left Even Negative Down Right; Down Left Even Positive Up Right; Up Left Down Right; Up Left Odd Negative

  5. Analyzing Zeros (x-intercepts) x-intercept behavior Graphic Representation Multiplicity Graph goes THROUGH the x-intercept Odd Multiplicity Graph TURNS at the x-intercept Even Multiplicity

  6. Finding and Analyzing x-intercepts Multiplicity of Two Goes Through the x-axis at x-intercept -2 Turns at the x-axis at 2

  7. Finding and Analyzing x-intercepts Multiplicity of Two Goes Through the x-axis at x-intercept -5 Turns at the x-axis at x-intercepts -5 and -1

  8. Intermediate Value Theorem for Polynomials Take f(a) and f(b). If there is a sign change between the two values then there exists a zero between a and b.

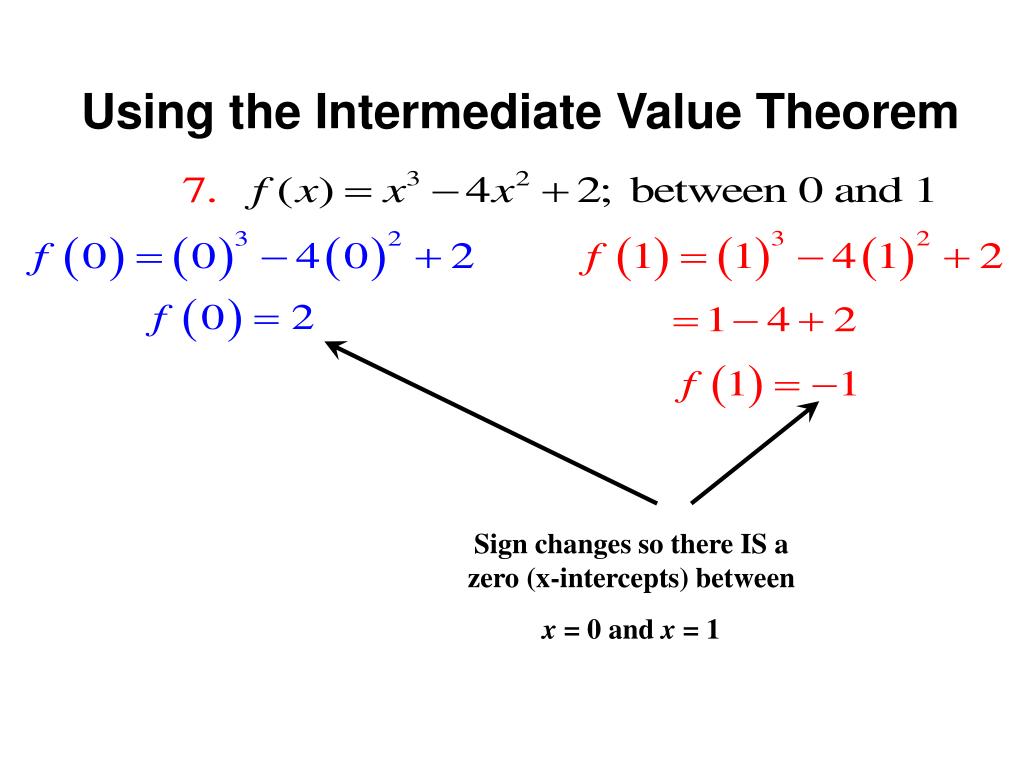

  9. Using the Intermediate Value Theorem Sign changes so there IS a zero (x-intercepts) between x = 0 and x = 1

  10. Using the Intermediate Value Theorem Sign changes so there IS a zero (x-intercepts) between x = 1 and x = 2

  11. Graphing Polynomial Functions • Leading Coefficient Test:Analyze the end behavior. (Ex: #’s 1-4) • Find the x-intercepts:Solve the polynomial and analyze the zeros. (Ex: #’s 5-6) • Find the y-intercept:Substitute 0 in for x • Determine the symmetry:Is the function even (y-axis symmetry), odd (origin) symmetry, or neither. • Find a few addition points and turning points:Use a table of values if needed. The maximum number of turning points will be 1 LESS THAN THE DEGREE of the polynomial.

  12. Odd Negative Down Right; Up Left Graph goes THROUGH x-intercepts 0 and 3

  13. The y-intercept is 0

  14. y 2 -1 x 1 -2

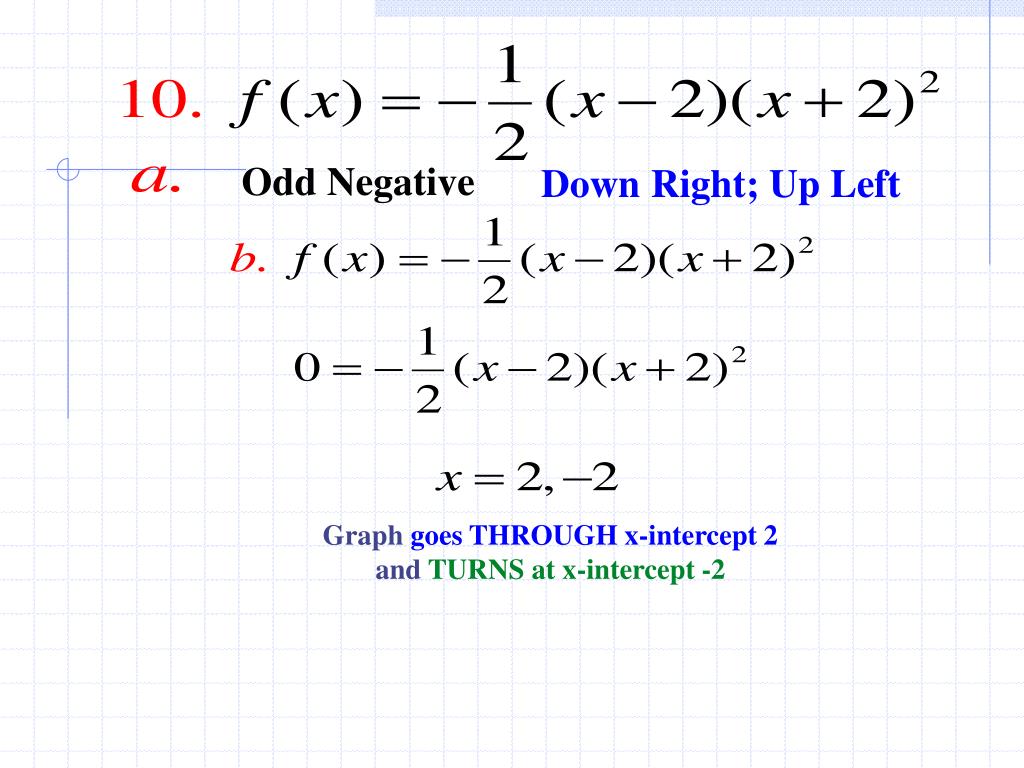

  15. Odd Negative Down Right; Up Left Graphgoes THROUGH x-intercept 2and TURNS at x-intercept -2

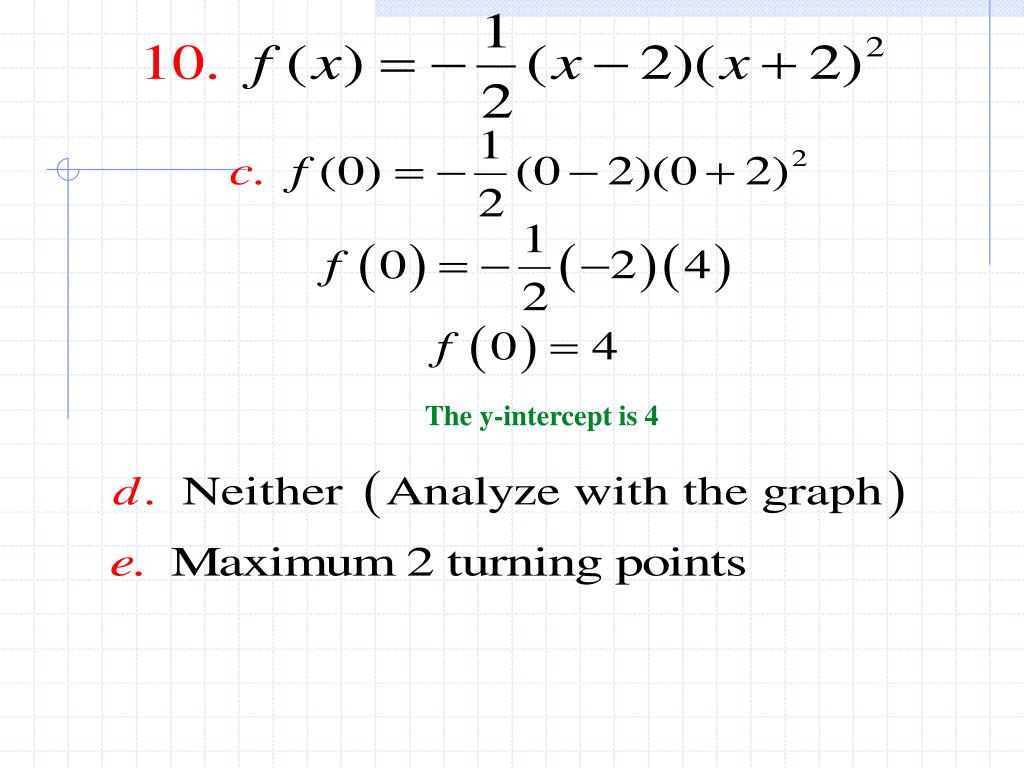

  16. The y-intercept is 4

  17. y 1 -1 x 1 -1

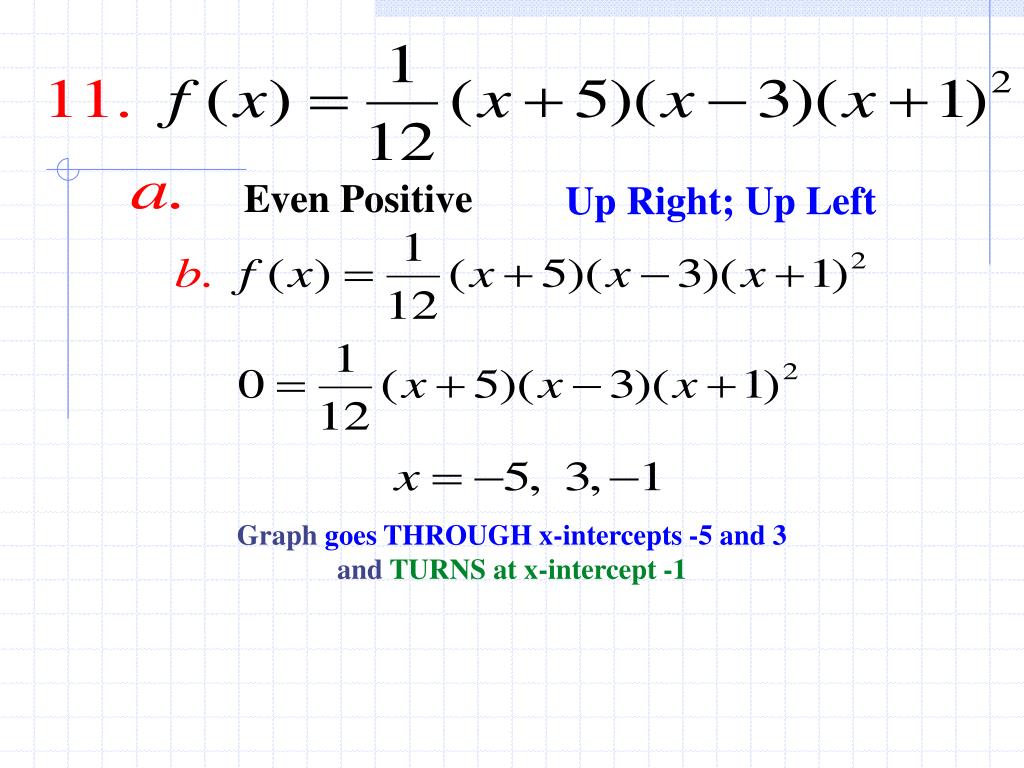

  18. Even Positive Up Right; Up Left Graphgoes THROUGH x-intercepts -5 and 3and TURNS at x-intercept -1

  19. y 1 -1 x 1 -1
