Proton NMR Spectroscopy

Proton NMR Spectroscopy. The NMR Phenomenon. Most nuclei possess an intrinsic angular momentum , P . Any spinning charged particle generates a magnetic field. P = [I(I+1)] 1/2 h/2 p where I = spin quantum # I = 0, 1/2, 1, 3/2, 2, …. Which nuclei have a “spin”?.

alta
Download Presentation

Proton NMR Spectroscopy

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Proton NMR Spectroscopy

  2. The NMR Phenomenon • Most nuclei possess an intrinsic angular momentum, P. • Any spinning charged particle generates a magnetic field. P = [I(I+1)]1/2 h/2p where I = spin quantum # I= 0, 1/2, 1, 3/2, 2, …

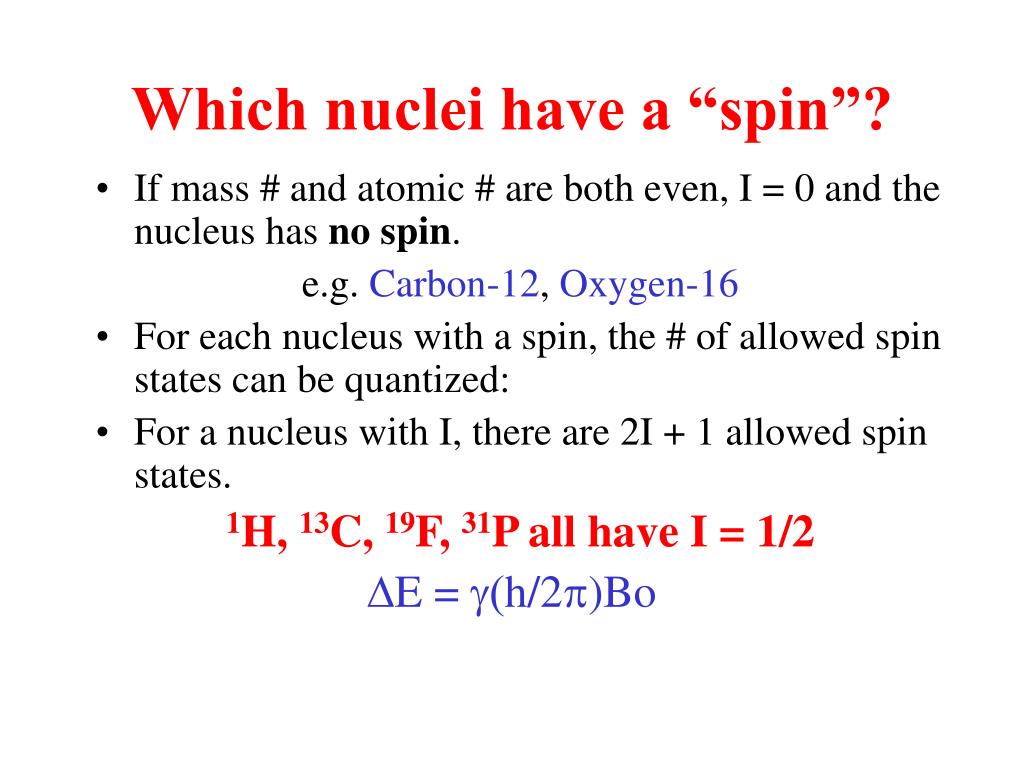

  3. Which nuclei have a “spin”? • If mass # and atomic # are both even, I = 0 and the nucleus has no spin. e.g. Carbon-12, Oxygen-16 • For each nucleus with a spin, the # of allowed spin states can be quantized: • For a nucleus with I, there are 2I + 1 allowed spin states. 1H, 13C, 19F, 31Pall have I = 1/2 DE = g(h/2p)Bo

  4. Spin states split in the presence of B0

  5. When a nucleus aligned with a magnetic field, B0, absorbs radiation frequency (Rf), it can change spin orientation to a higher energy spin state. By relaxing back to the parallel (+1/2) spin state, the nucleus is said to be in resonance. Hence, NMR

  6. Presence of Magnetic Field

  7. NMR instruments typically have a constant Rf and a variable B0. A proton should absorb Rf of 60 MHz in a field of 14,093 Gauss (1.4093 T). Each unique probe nucleus (1H perhaps) will come into resonance at a slightly different - and a very small percentage of - the Rf. All protons come into resonance between0 and 12/1,000,000 (0 – 12 ppm) of the B0.

  8. Nuclei aligned with the magnetic field are lower in energy than those aligned against the field • The nuclei aligned with the magnetic field can be flipped to align against it if the right amount of energy is added (DE) • The amount of energy required depends on the strength of the external magnetic field

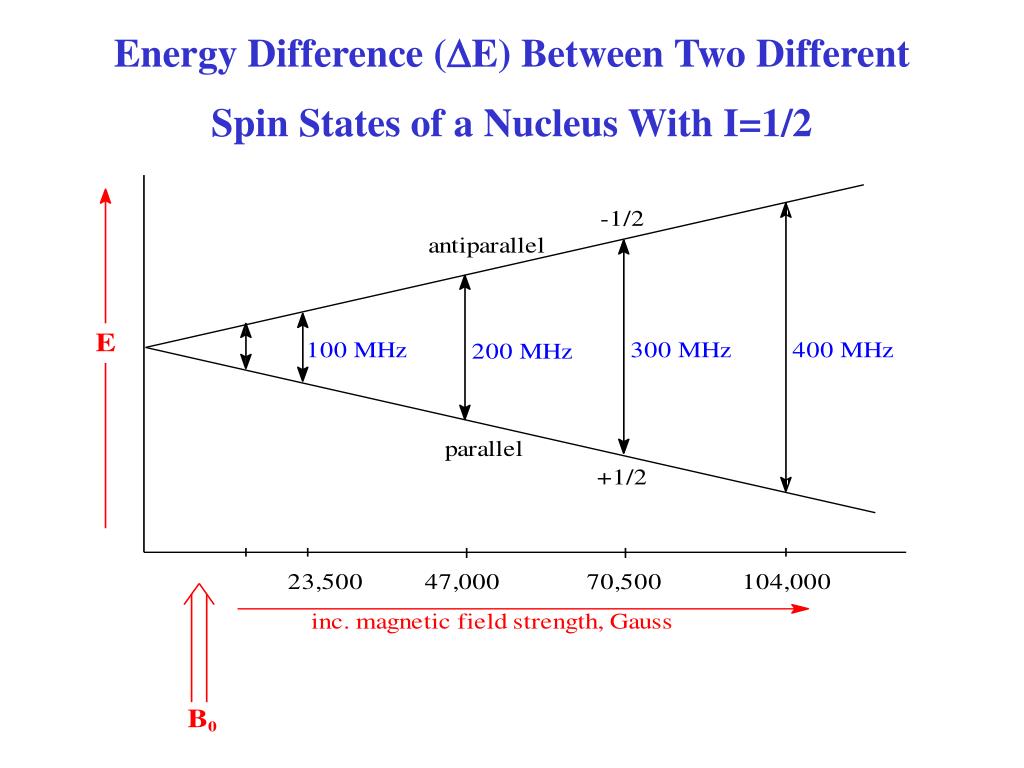

  9. Energy Difference (E) Between Two Different Spin States of a Nucleus With I=1/2

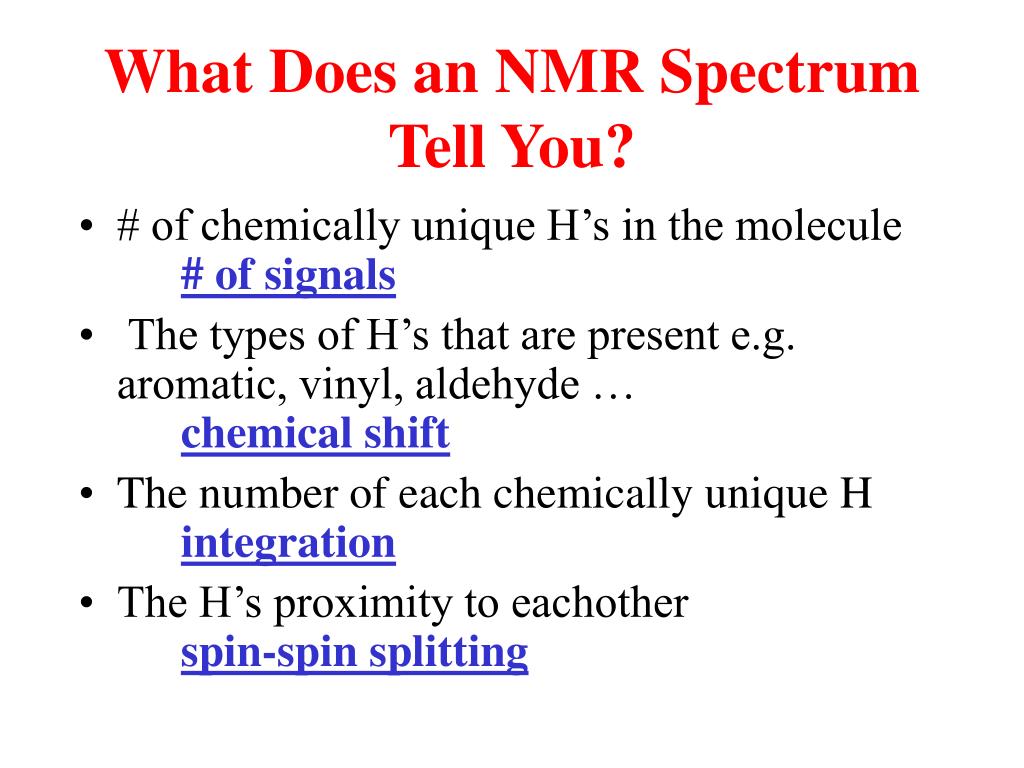

  10. What Does an NMR Spectrum Tell You? • # of chemically unique H’s in the molecule # of signals • The types of H’s that are present e.g. aromatic, vinyl, aldehyde … chemical shift • The number of each chemically unique H integration • The H’s proximity to eachother spin-spin splitting

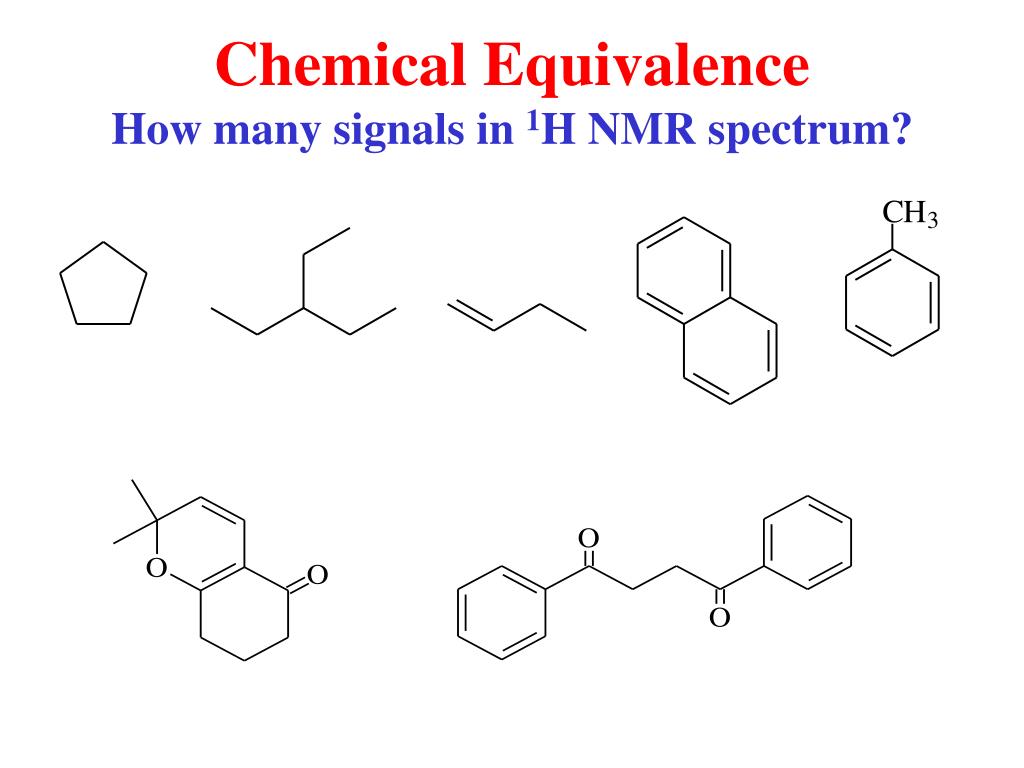

  11. Chemical EquivalenceHow many signals in 1H NMR spectrum?

  12. Number of Equivalent Protons

  13. Homotopic H’s • Homotopic Hydrogens • Hydrogens are chemically equivalent or homotopic if replacing each one in turn by the same group would lead to an identical compound

  14. Enantiotopic H’s • If replacement of each of two hydrogens by some group leads to enantiomers, those hydrogens are enantiotopic

  15. Diastereotopic H’s • If replacement of each of two hydrogens by some group leads to diastereomers, the hydrogens are diastereotopic • Diastereotopic hydrogens have different chemical shifts and will give different signals

  16. Vinyl Protons

  17. Typical 1H NMR Scale is 0-10 ppm

  18. The d Scale

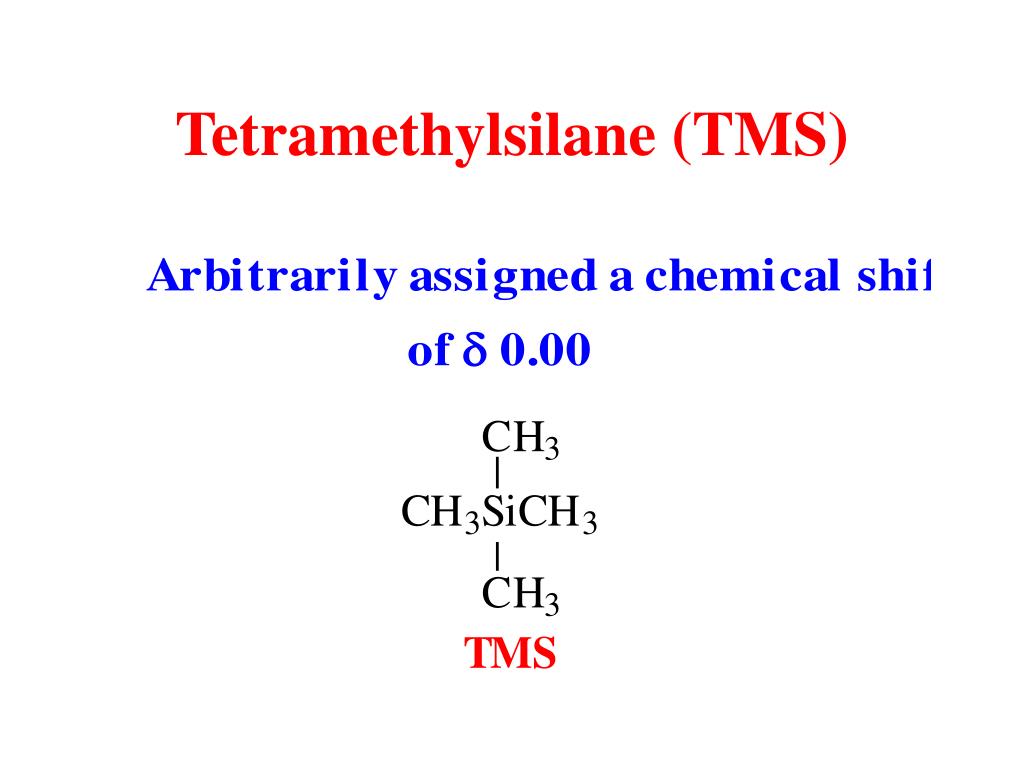

  19. Tetramethylsilane (TMS)

  20. Chemical Shift Ranges, ppm

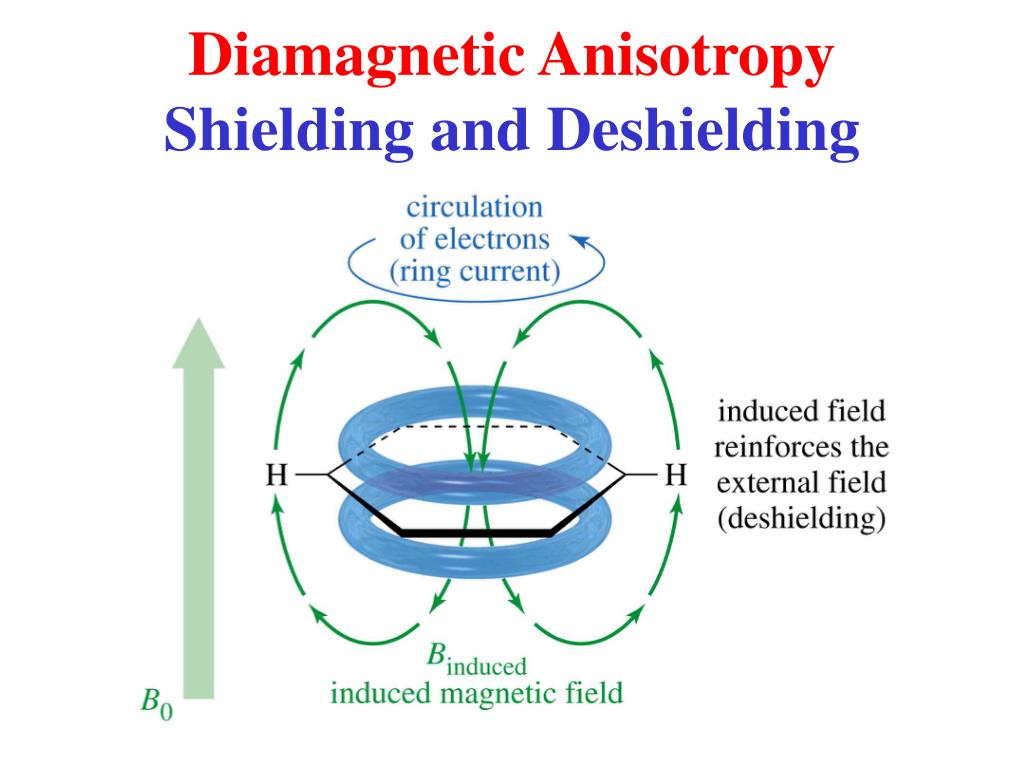

  21. Diamagnetic AnisotropyShielding and Deshielding

  22. Deshielding in Alkenes

  23. Shielding in Alkynes

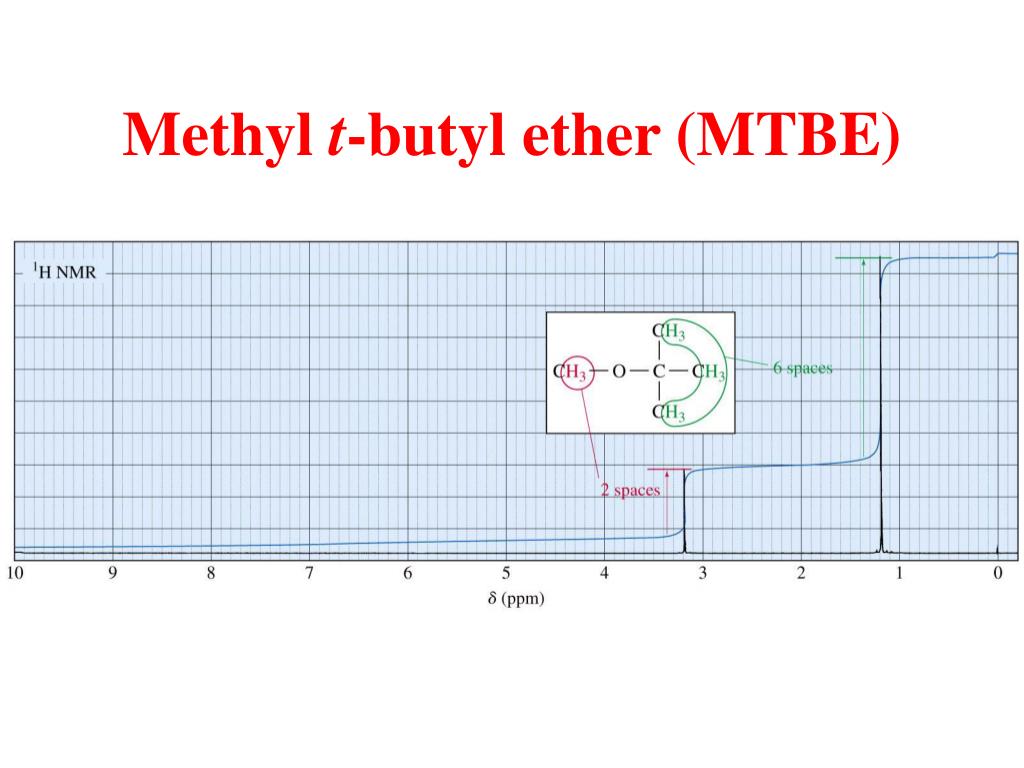

  24. Methyl t-butyl ether (MTBE)

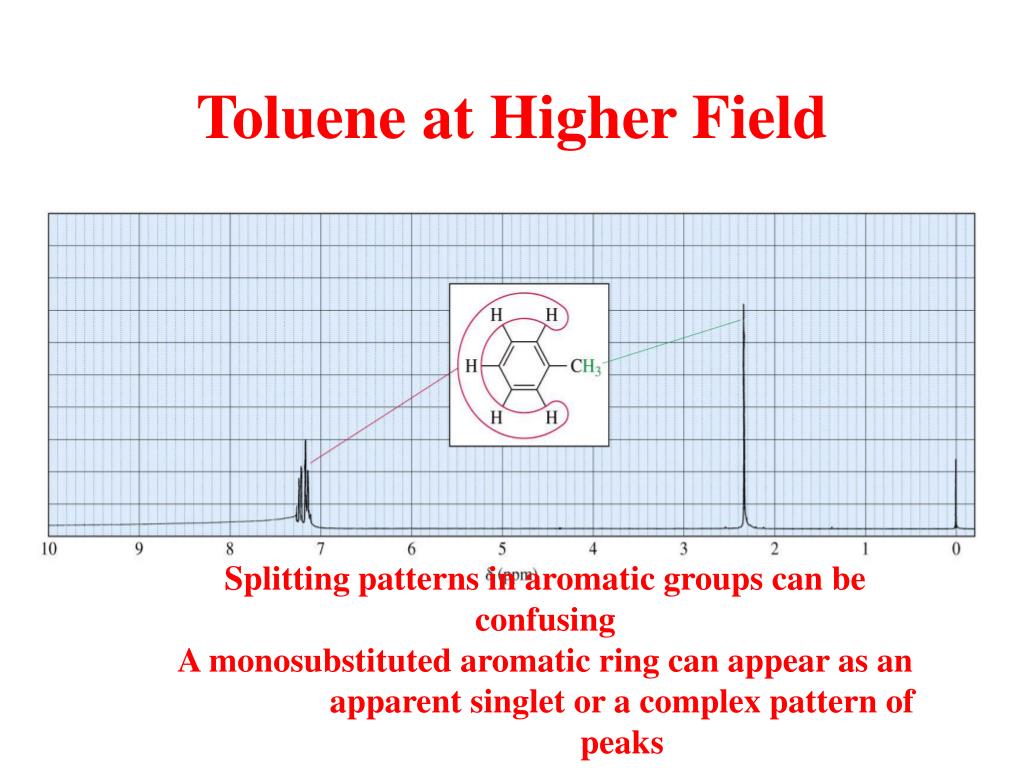

  25. Toluene at Higher Field • Splitting patterns in aromatic groups can be confusing • A monosubstituted aromatic ring can appear as an apparent singlet or a complex pattern of peaks

  26. Integral Trace

  27. Spin-Spin Splitting

  28. The Doublet in 1H NMR

  29. Hb in 1,1,2-Tribromoethane

  30. The Triplet in 1H NMR

  31. Ha in 1,1,2-Tribromoethane

  32. 1,1,2-Tribromoethane

  33. The Quartet in 1HMR

  34. 1,1-Dichloroethane

  35. Ethyl benzene

  36. CH3CH2OCH3

  37. Equivalent Protons do not Couple

  38. Pascal’s Triangle

  39. Methyl Isopropyl Ketone

  40. 1-Nitropropane

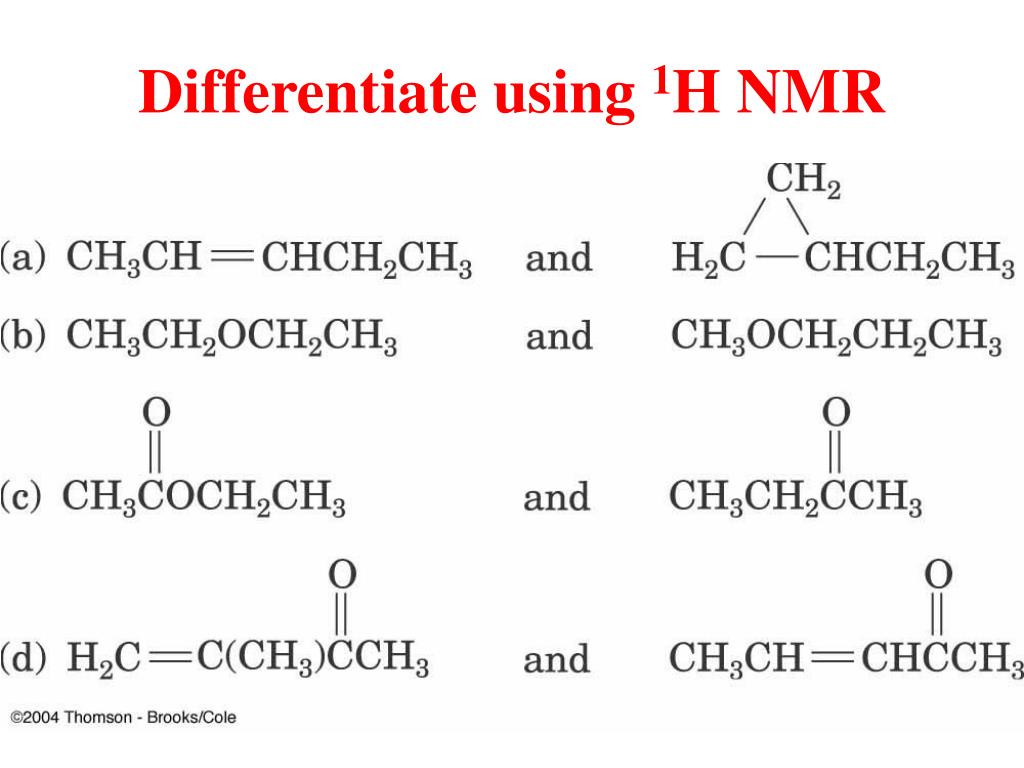

  41. Differentiate using 1H NMR
