Kernel Event-Timers

Our first look at the Linux kernel’s mechanism for managing its dynamic timers


The timer interrupt l.jpg

The timer interrupt

“There is a sense in which the timer interrupt drives

the entire Operating System” -- John O’Gorman


The task struct structure l.jpg

The ‘task_struct’ structure

  • The OS kernel creates a Task Control Block for each task which currently exists

  • In Linux this TCB has type ‘task_struct’

  • There are numerous fields in a task_struct

  • We wrote a module which creates a ‘/proc’ file (named ‘tcbinfo’) to let us see a TCB

  • We wrote a demo-program (dumptcb,cpp) which displays a task’s ‘task_struct’ in hex format, by reading the ‘/proc/tcbinfo’ file


Timer related fields l.jpg

Timer-related fields

  • There are several fields in the ‘task_struct’ which pertain to time-keeping mechanisms

    • ‘it_real_value’ and ‘it_real_incr’

    • ‘it_prof_value’ and ‘it_prof_incr’

    • ‘it_virt_value’ and ‘it_virt_incr’

    • ‘real_timer’

  • The ‘real_timer’ field is actually a structure of type ‘struct timer_list’ (an ‘event timer’)


Struct timer list l.jpg

‘struct timer_list’

  • The ‘real_timer’ field in the ‘task_struct’ is an element of type ‘struct timer_list’.

next

prev

expires

data

function


Demo realtimers c l.jpg

Demo: ‘realtimers.c’

  • We wrote a kernel module which creates a pseudo-file (named ‘/proc/realtimers’) that shows a list of all current tasks that have an active real-time event-timer

  • You can compile this module (using our ‘Makefile’ script) with: $ make realtimers.o

  • Install it with: $ /sbin/insmod realtimers.o

  • Then use it with: $ cat /proc/realtimers


The setitimer function l.jpg

The ‘setitimer()’ function

  • In our lab-exercise on Friday we studied the ‘setitimer()’ library-function, used by applications to implement ‘interval timers’

  • Now we can see how ‘setitimer()’ affects timer-related fields in a task’s ‘task_struct’

  • Our ‘timerinfo.c’ module creates a ‘/proc’ file that displays those timer-related fields

  • Our ‘trytimer.cpp’ demo illustrates this


The kernel s to do list l.jpg

The kernel’s ‘TO DO’ list

  • A multitasking operating system has many timer-related events to keep track of, so it could have lots of work to do each time a timer-interrupt occurs

  • So there needs to be a very efficient way to manage all of the kernel’s event-timers

  • Linux employs a clever mechanism for organizing all of its active event-timers


Doubly linked lists l.jpg

Doubly-Linked Lists

next

prev

A single-element list

next

next

next

next

prev

prev

prev

prev

A multi-element list


Timer list vectors l.jpg

timer-list vectors

index

vec


The tvecs array l.jpg

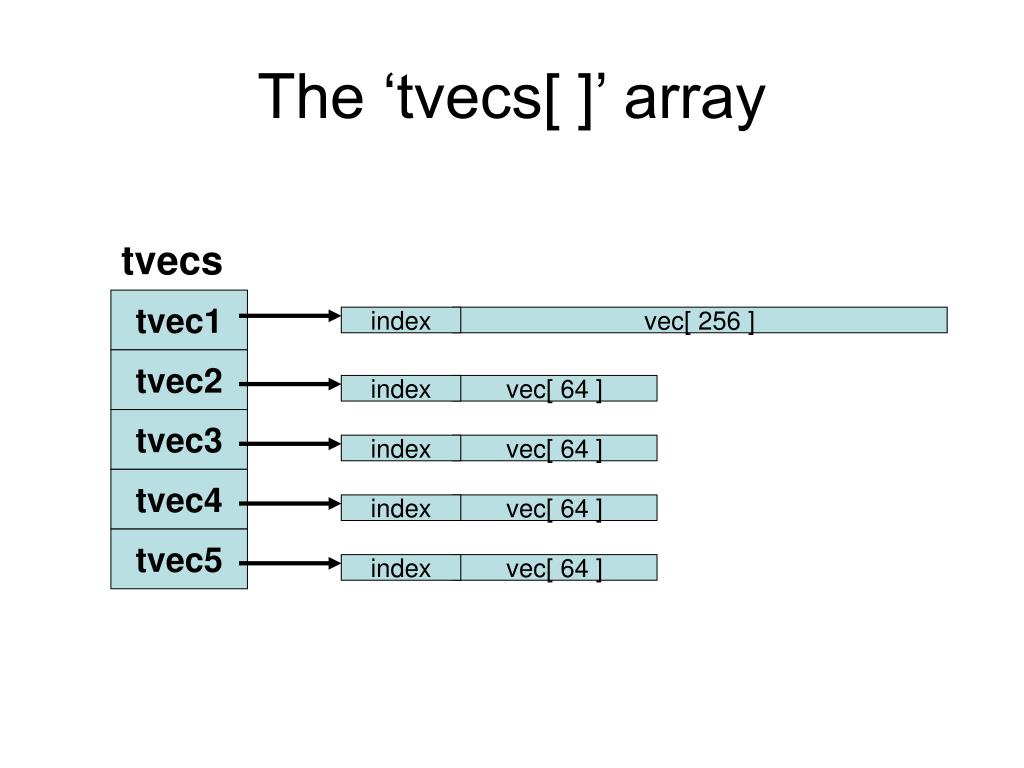

The ‘tvecs[ ]’ array

tvecs

tvec1

index

vec[ 256 ]

tvec2

index

vec[ 64 ]

tvec3

index

vec[ 64 ]

tvec4

index

vec[ 64 ]

tvec5

index

vec[ 64 ]


Where is an event timer put l.jpg

Where is an event-timer put?

  • Each event-timer has an ‘expires’ field

  • ‘expires’ holds a future value for ‘jiffies’

  • It’s a 32-bit unsigned long integer

  • These bits are subdivided: 32=6+6+6+6+8

  • The event-timer is assigned to one of the five timer-list vectors, based on which one of five numeric intervals ‘expires’ falls into

  • This organizes the kernel’s ‘TO DO’ list


The five expires intervals l.jpg

The five ‘expires’ intervals

  • Compute: when = expires – jiffies;

  • Use tvec1[ when>>0 ]: 0  when < 28

  • Use tvec2[ when>>8 ]: 28 when < 214

  • Use tvec3[ when>>14]: 214 when < 220

  • Use tvec4[ when>>20]: 220 when < 226

  • Use tvec5[ when>>26]: 226 when < 232


The work to be done l.jpg

The work to be done

  • When a timer-interrupt occurs, the value of ‘jiffies’ gets incremented, so it is possible that some ‘event-timers’ may have expired

  • The kernel checks the ‘index’ field of the ‘root’ timer-list vector to quickly find the list of event-timers which might have expired

  • It processes the event-timers in that list. then increments the root vector’s ‘index’ (modulo 256)

  • If ( index == 0 ) the tvecs array is ‘cascaded’


In class exercises l.jpg

In-class exercises

  • Try modifying the ‘trytimer.cpp’ program so that it calls ‘setitimer()’ with ITIMER_PROF instead of ITIMER_REAL. What do you observe about the ‘task_struct’ fields?

  • Try modifying the ‘trytimer.cpp’ program so it calls ‘setitimer()’ with ITIMER_VIRTUAL instead of ITIMER_REAL. What do you observe about the ‘task_struct’ fields?


Exercises continued l.jpg

Exercises (continued)

  • Try installing your own signal-handlers for the SIGALRM, the SIGVTALRM, and the SIGPROF signals, to see the effects of using ‘setitimer()’ with the three different types of interval timers.

  • Use our ‘realtimers.c’ module to look at the list of all current tasks that have an active ‘event-timer’
