  1. Chapter Objectives After completing this chapter you will be able to: • Understand remote command execution (Telnet and rlogin) • Understand remote file transfer protocol (FTP, TFTP, RPC) • Understand protocols for mail transfer (SMTP, POP3, IMAP4) • Understand NFS and HTTP protocols

  2. Telnet • Remote terminal protocol which allows a user at one site to establish a TCP connection to a login server at another • Username and password are transferred unsecured (plain text) through the network • Defines a network virtual terminal that provides a standard interface to remote systems • Includes a mechanism that allows the client and server to negotiate options, and it provides a set of standard options • Treats both ends of the connection symmetrically

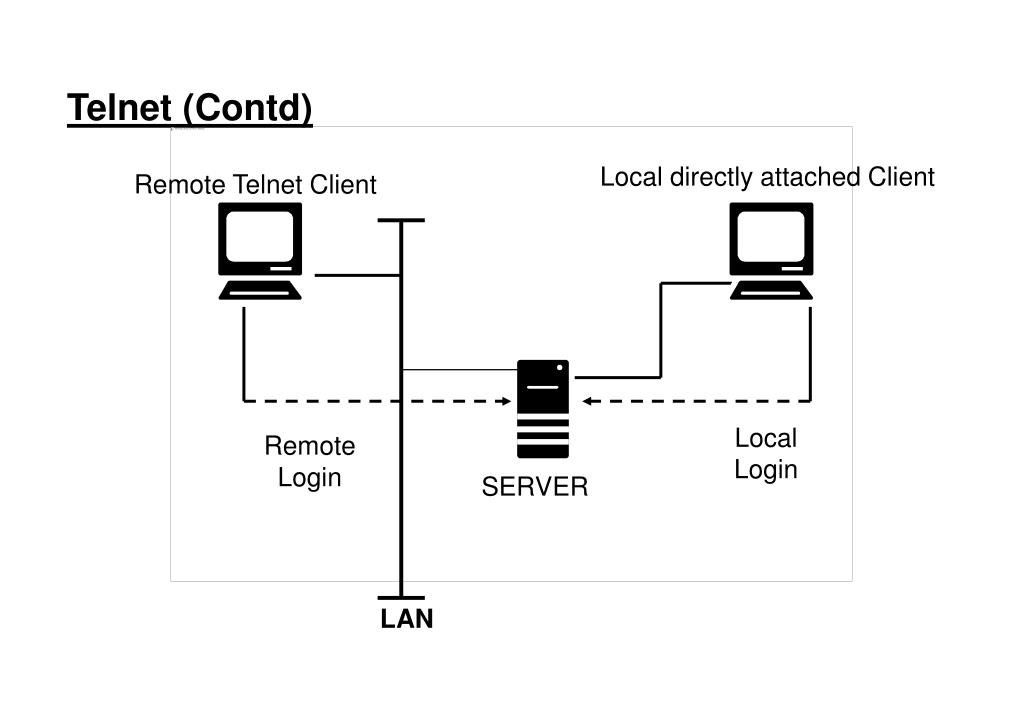

  3. Telnet (Contd) Local directly attached Client Remote Telnet Client Local Login Remote Login SERVER LAN

  4. Network Virtual Terminal (NVT) Telnet Client Telnet Server TCP Connection Client system format used NVT format used Server system format used ASCII Control code Decimal value Assigned meaning NUL 0 No operation (has no effect on output) BEL 7 Produce audible signal BS 8 Move left one character position HT 9 Move right to the next horizontal tab stop LF 10 Move down (vertically) to the next line VT 11 Move down to the next vertical tab stop FF 12 Move to the top of the next page CR 13 Move to the left margin on the current line

  5. Telnet Command Codes Command Decimal Value Assigned Meaning SE 240 End of option sub-negotiation NOP 241 No operation DM 242 Data mark BRK 243 Break IP 244 Interrupt process AO 245 Abort output AYT 246 Are you there EC 247 Erase character EL 248 Erase line GA 249 Go ahead SB 250 Begin sub-negotiation WILL 251 Sender request enabling option WONT 252 Sender rejects enabling option DO 253 Sender requests other side enabling option DONT 254 Sender rejects other side enabling option IAC 255 Interpret next octet as command

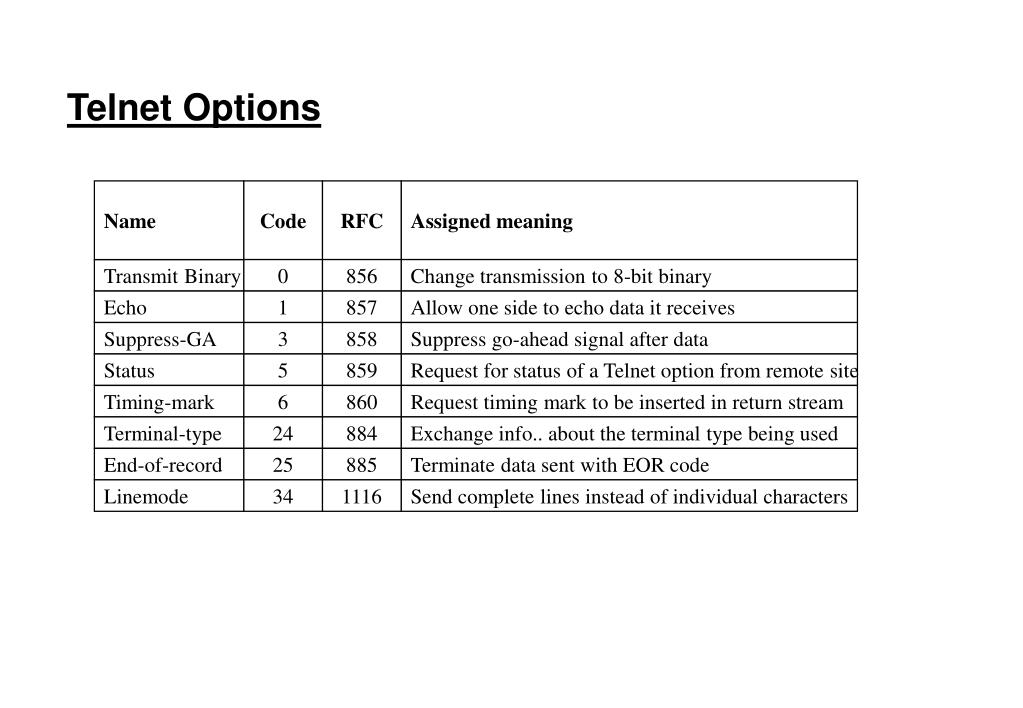

  6. Telnet Options Name Code RFC Assigned meaning Transmit Binary 0 856 Change transmission to 8-bit binary Echo 1 857 Allow one side to echo data it receives Suppress-GA 3 858 Suppress go-ahead signal after data Status 5 859 Request for status of a Telnet option from remote site Timing-mark 6 860 Request timing mark to be inserted in return stream Terminal-type 24 884 Exchange info.. about the terminal type being used End-of-record 25 885 Terminate data sent with EOR code Linemode 34 1116 Send complete lines instead of individual characters

  7. Rlogin • Rlogin is a more flexible implementation of Telnet for UNIX • Rsh invokes a command interpreter on the remote UNIX machine and passes the command line arguments to the command interpreter • The format of a command invocation using rsh is: • rsh <machine> <command> • rsh unixserver1 ps • Rlogin understands the UNIX notions of standard input, standard output, and standard error, and uses TCP to connect them to the remote machine. • “rsh unixserver1 ps > filename

  8. File Transfer Protocol (FTP) • FTP is the Internet standard for file transfer. • FTP is used to copy a complete file from one system to another system. • FTP also offers facilities other than the transfer function itself: • Interactive access • Format specification • Authentication control

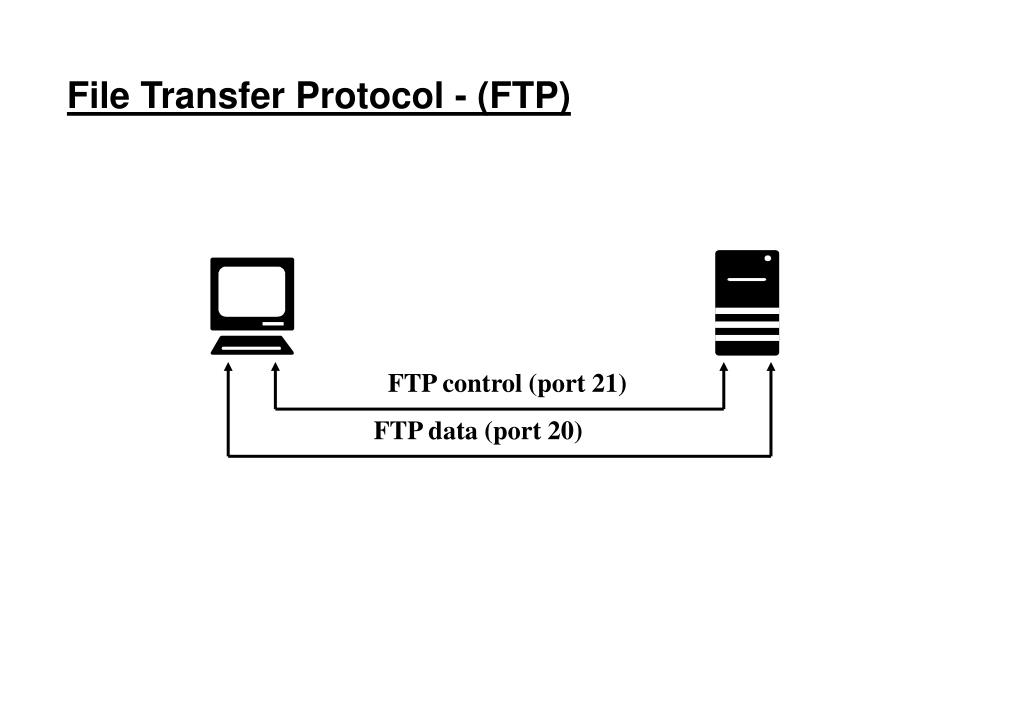

  9. File Transfer Protocol - (FTP) FTP control (port 21) FTP data (port 20)

  10. FTP Commands Command Description open connect to remote FTP disconnect terminate FTP session user send new user info when already connected cd change remote working directory lcd change local working directory pwd print working directory on remote machine get/mget receive file/get multiple files put/mput send file/send multiple files binary set binary transfer type ascii set ascii transfer type dir/ls list contents of remote directory help get help delete delete a file on the remote directory bye terminate ftp session and exit

  11. FTP Replies Reply Description 1yz Positive preliminary reply. The action is being started, but expect another reply, before sending another command. 2yz Positive completion reply. A new command can be sent. 3yz Positive intermediate reply. The command has been accepted but another command must be sent. 4yz Transient negative completion reply.The requested action did not take place, but the error condition is temporary so the command can be reissued later. 5yz Permanent negative completion reply. The command was not accepted and should not be retried. x0z Syntax errors x1z Information x2z Connections; Replies referring to the control or data connections. x3z Authentication and accounting. Replies for the login or accounting commands. x4z Unspecified x5z Filesystem status

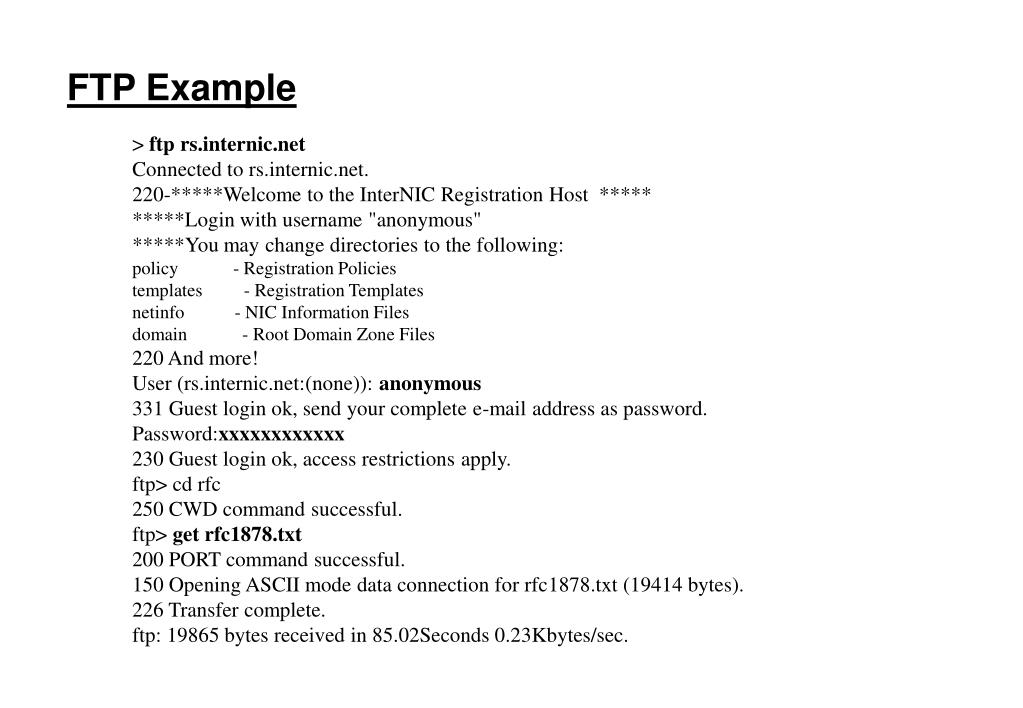

  12. FTP Example > ftp rs.internic.net Connected to rs.internic.net. 220-*****Welcome to the InterNIC Registration Host ***** *****Login with username "anonymous" *****You may change directories to the following: policy - Registration Policies templates - Registration Templates netinfo - NIC Information Files domain - Root Domain Zone Files 220 And more! User (rs.internic.net:(none)): anonymous 331 Guest login ok, send your complete e-mail address as password. Password:xxxxxxxxxxxx 230 Guest login ok, access restrictions apply. ftp> cd rfc 250 CWD command successful. ftp> get rfc1878.txt 200 PORT command successful. 150 Opening ASCII mode data connection for rfc1878.txt (19414 bytes). 226 Transfer complete. ftp: 19865 bytes received in 85.02Seconds 0.23Kbytes/sec.

  13. FTP Example (Contd) Client Server USER anonymous PASS guest 230 User logged in , access restrictions apply TYPE ASCII 200 Command OK MODE STREAM 200 Command OK STRU FILE 200 Command OK RETR 200 Port Command OK 150 Opening data connection for... 226 Transfer complete QUIT

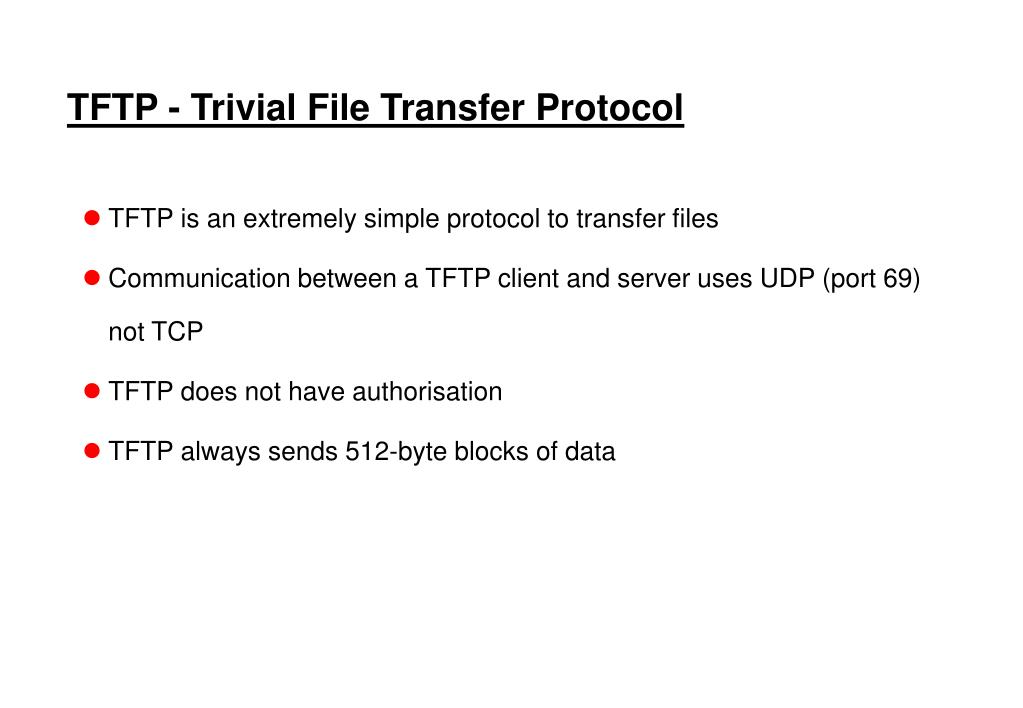

  14. TFTP - Trivial File Transfer Protocol • TFTP is an extremely simple protocol to transfer files • Communication between a TFTP client and server uses UDP (port 69) not TCP • TFTP does not have authorisation • TFTP always sends 512-byte blocks of data

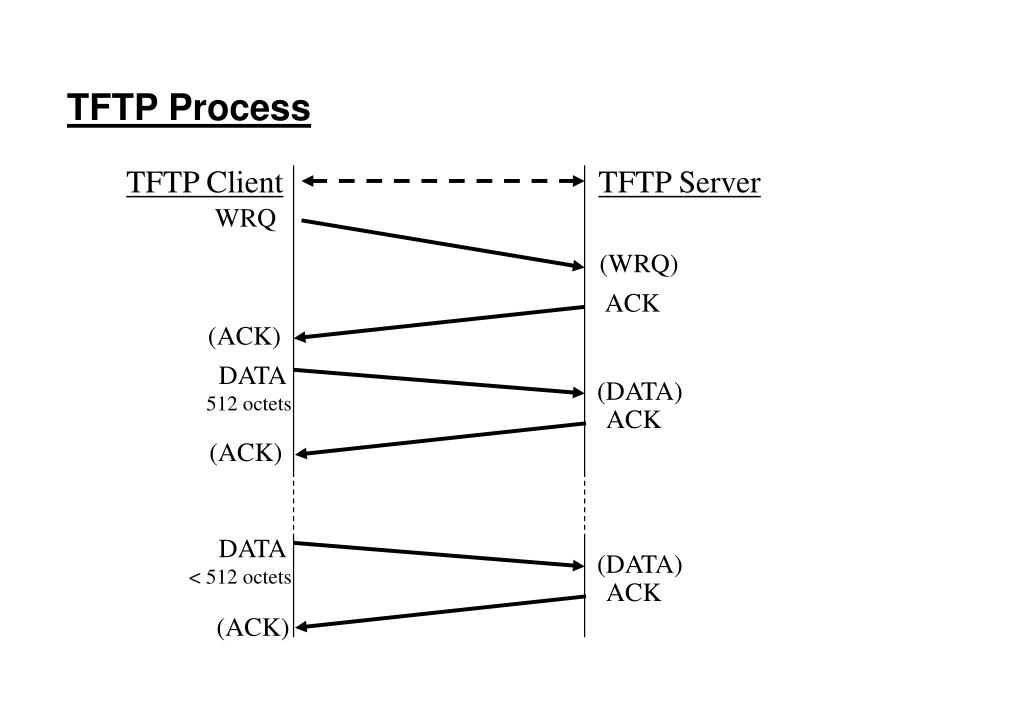

  15. TFTP Process TFTP Client TFTP Server WRQ (WRQ) ACK (ACK) DATA 512 octets (DATA) ACK (ACK) DATA < 512 octets (DATA) ACK (ACK)

  16. Format of TFTP Messages 2 octets n octets 1 octet n octets 1 octet Read request (1) Filename 0 Mode 0 2 octets n octets 1 octet n octets 1 octet Write request (2) Filename 0 Mode 0 Up to 512 octets 2 octets 2 octets Data (3) Block number Data 2 octets 2 octets Ack (4) Block number 2 octets 2 octets n octets Error (5) Error code Error message 0

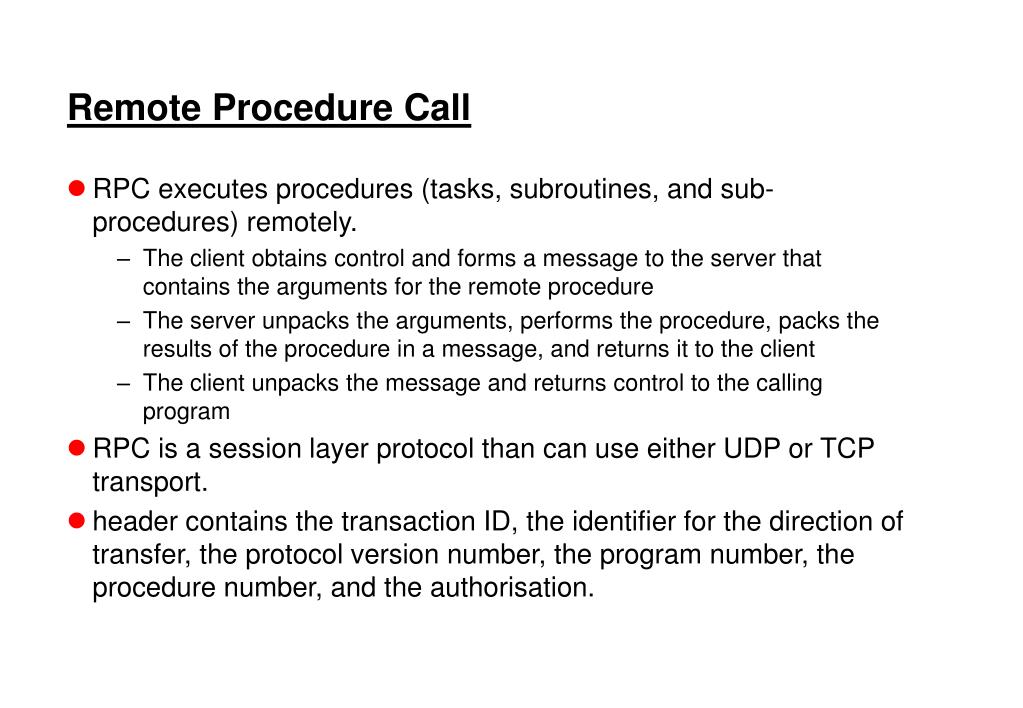

  17. Remote Procedure Call • RPC executes procedures (tasks, subroutines, and sub-procedures) remotely. • The client obtains control and forms a message to the server that contains the arguments for the remote procedure • The server unpacks the arguments, performs the procedure, packs the results of the procedure in a message, and returns it to the client • The client unpacks the message and returns control to the calling program • RPC is a session layer protocol than can use either UDP or TCP transport. • header contains the transaction ID, the identifier for the direction of transfer, the protocol version number, the program number, the procedure number, and the authorisation.

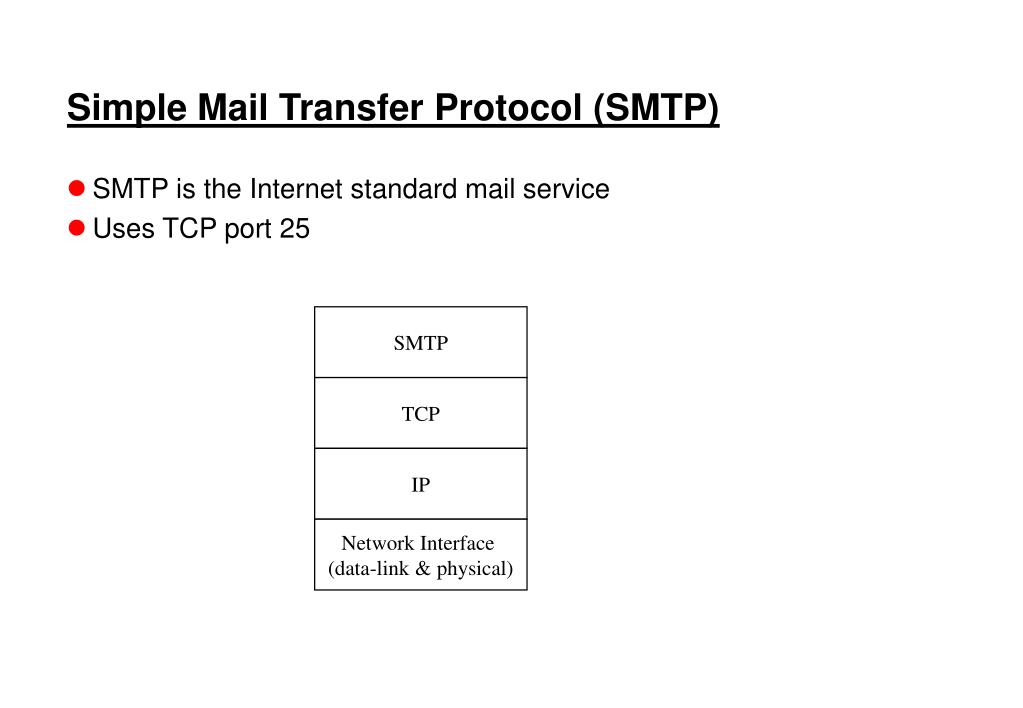

  18. Simple Mail Transfer Protocol (SMTP) • SMTP is the Internet standard mail service • Uses TCP port 25 SMTP TCP IP Network Interface (data-link & physical)

  19. SMTP Process • User • interactively creates the message • User agent • accepts the message and formats it • builds list of destinations • sends list and message to a queue for the client • Client • establishes TCP connection with remote SMTP servers • sends addresses to the relevant servers • sends single copy of message to each server • Server • constructs a header (which includes pointer to user’s text) for each address • places header in the queue of the appropriate mailbox

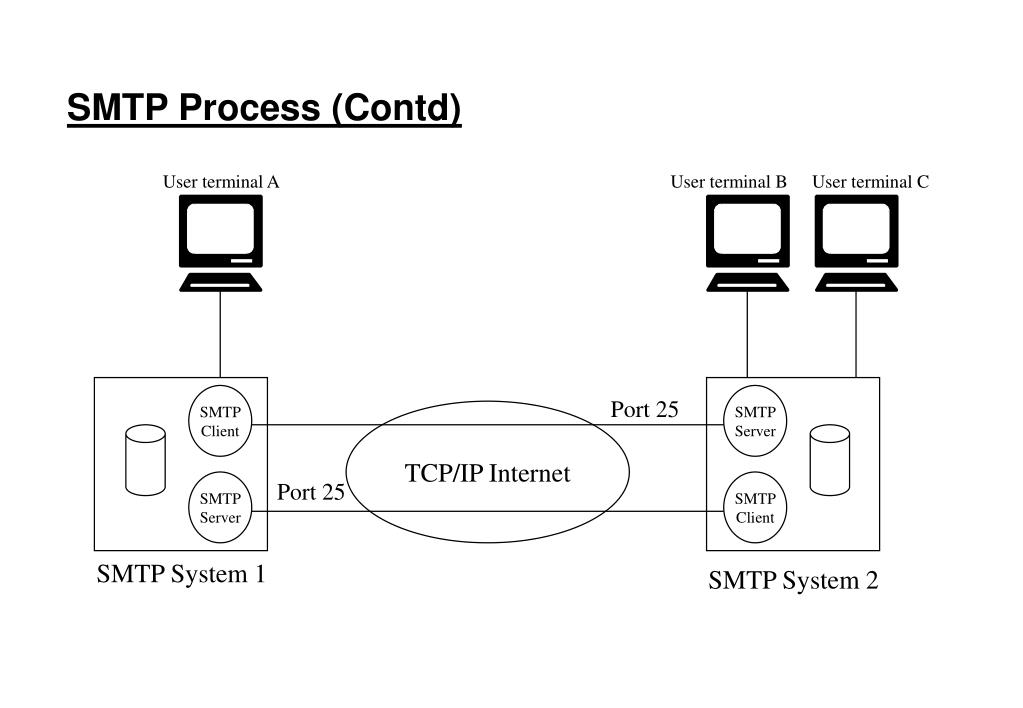

  20. SMTP Process (Contd) User terminal A User terminal B User terminal C SMTP Client SMTP Server Port 25 TCP/IP Internet SMTP Server Port 25 SMTP Client SMTP System 1 SMTP System 2

  21. SMTP Commands and Replies HELO Initialise connection MAIL RCPT SEND DATA QUIT Terminate connection

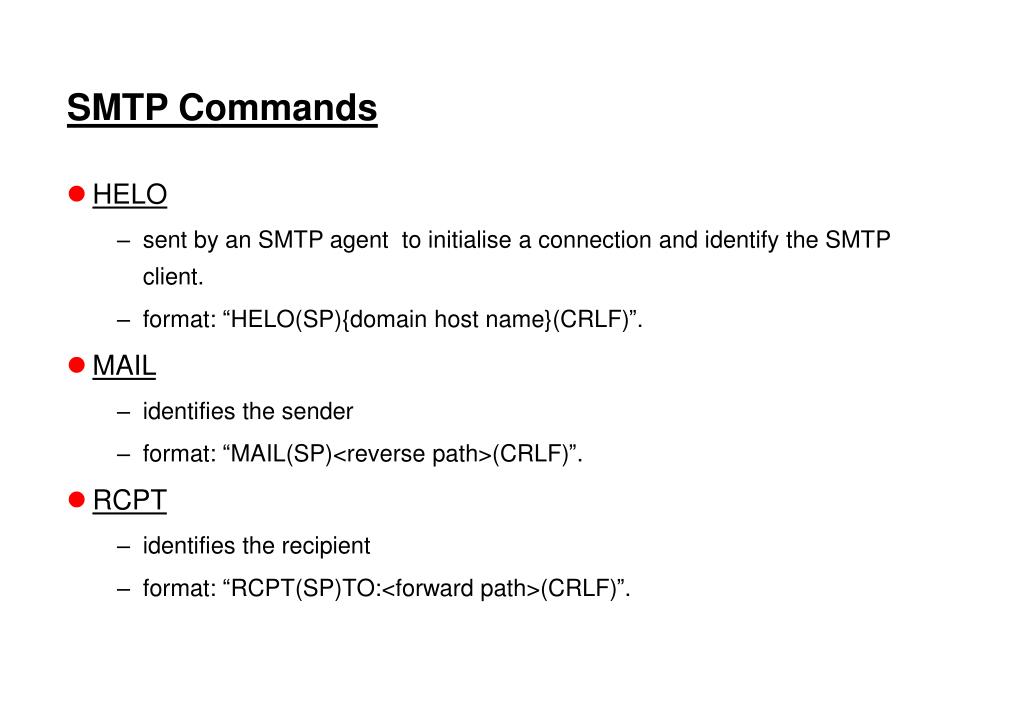

  22. SMTP Commands • HELO • sent by an SMTP agent to initialise a connection and identify the SMTP client. • format: “HELO(SP){domain host name}(CRLF)”. • MAIL • identifies the sender • format: “MAIL(SP)<reverse path>(CRLF)”. • RCPT • identifies the recipient • format: “RCPT(SP)TO:<forward path>(CRLF)”.

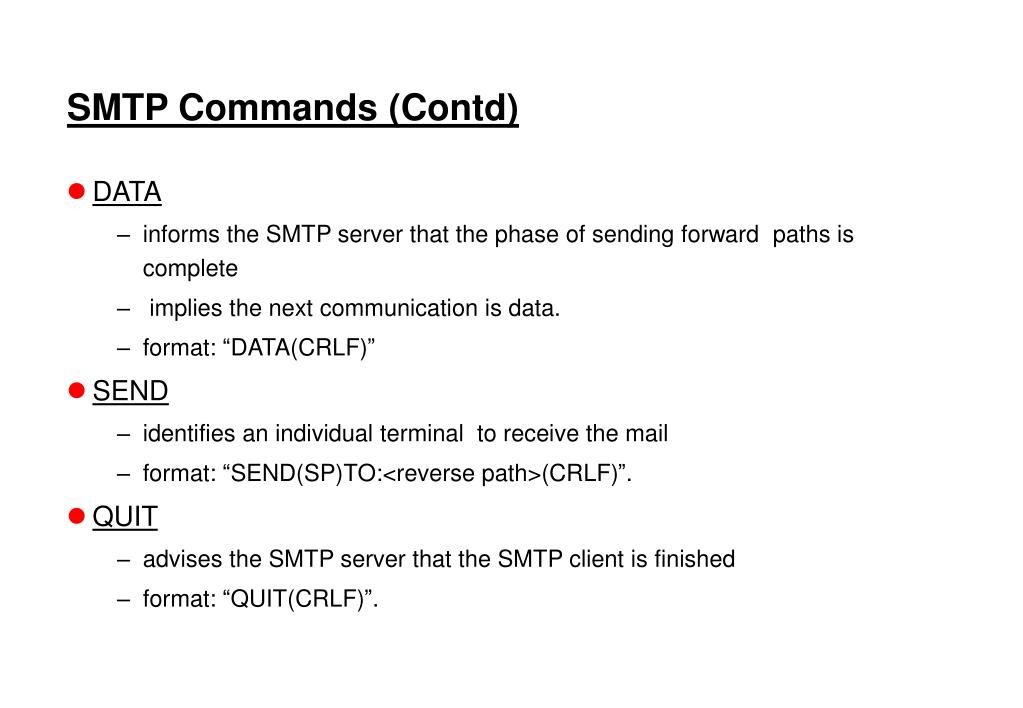

  23. SMTP Commands (Contd) • DATA • informs the SMTP server that the phase of sending forward paths is complete • implies the next communication is data. • format: “DATA(CRLF)” • SEND • identifies an individual terminal to receive the mail • format: “SEND(SP)TO:<reverse path>(CRLF)”. • QUIT • advises the SMTP server that the SMTP client is finished • format: “QUIT(CRLF)”.

  24. Reply Codes Reply Code Meaning Reply Code Meaning 211 System status 500 Syntax error, command unrecognised 214 Human information about how to use SMTP 501 Syntax error, in parameters or arguments 220 <domain> service ready 502 Command not implemented 221 <domain> service closing channel 503 Bad sequence number 250 Requested mail action okay, completed 504 Command parameter not implemented 251 User not local, forwarded to forward path 550 Requested action not taken; mailbox unavailable 354 Start mail input, end with <CRLF>.<CRLF> 551 Requested action not taken; error in processing 421 <domain> Service not available 552 User not local; please try <forward path> 450 Requested action aborted; mailbox unavailable 553 Action not taken; mailbox name not allowed 451 Requested action aborted; error in processing 554 Transaction failed 452 Requested action aborted; insufficient storage

  25. SMTP Protocol Example Number Client/Server Reply code communication 1 Server 220 {Server Name B} Mail Transfer Service Ready 2 Client HELO {Host Name A} 3 Server 250 {Service Name B} 4 Client MAIL FROM:<Smith@Test.sys> 5 Server 250 OK 6 Client RCPT TO:<Jones@Mfg.tst> 7 Server 250 OK

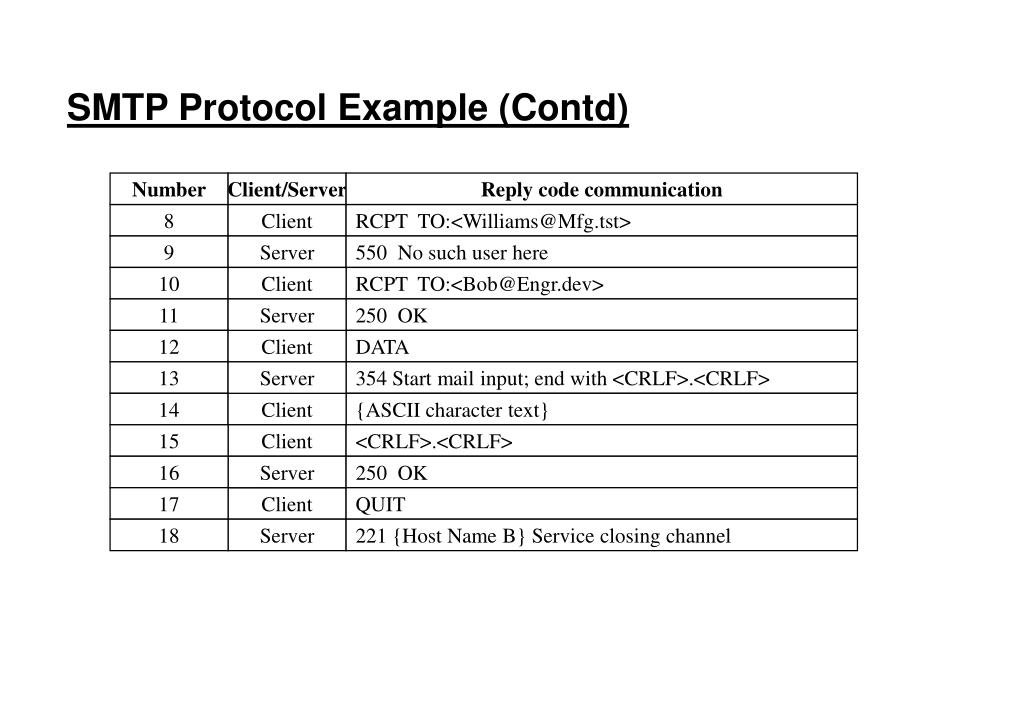

  26. SMTP Protocol Example (Contd) Number Client/Server Reply code communication 8 Client RCPT TO:<Williams@Mfg.tst> 9 Server 550 No such user here 10 Client RCPT TO:<Bob@Engr.dev> 11 Server 250 OK 12 Client DATA 13 Server 354 Start mail input; end with <CRLF>.<CRLF> 14 Client {ASCII character text} 15 Client <CRLF>.<CRLF> 16 Server 250 OK 17 Client QUIT 18 Server 221 {Host Name B} Service closing channel

  27. Post Office Protocol Version 3 (POP3) User terminal A User terminal B POP 3 Client POP 3 Client POP 3 Server Port 110 POP 3 Server Port 110 SMTP Client SMTP Server Port 25 TCP/IP Internet SMTP Server Port 25 SMTP Client SMTP System 1 SMTP System 2

  28. POP3 Basic Operation TCP Connection to port 110 Greeting POP 3 Client POP 3 Server

  29. POP3 Basic Operation (Contd) Commands Replies POP 3 Client POP 3 Server 1. Authorisation State 2. Transaction State 3. Update State

  30. POP3 Commands • Valid in the Authorisation state • USER name • PASS string • QUIT

  31. POP3 Commands (Contd) • Valid in the Transaction state • STAT • LIST [msg] • RETR msg • DELE msg • NOOP • RSET • QUIT

  32. POP3 Commands Example S: +OK mrose's maildrop has 2 messages (320 octets) C: STAT S: +OK 2 320 C: LIST S: +OK 2 messages (320 octets) S: 1 120 S: 2 200 S: . C: RETR 1 S: +OK 120 octets S: <the POP3 server sends message 1> S: . C: DELE 1 S: +OK message 1 deleted C: RETR 2 S: +OK 200 octets S: <the POP3 server sends message 2> S: . C: DELE 2 S: +OK message 2 deleted C: QUIT S: +OK dewey POP3 server signing off (maildrop empty) C: <close connection>

  33. Internet Message Access Protocol - Version 4 (IMAP4) User terminal A User terminal B IMAP4 Client IMAP4 Client IMAP4 Server Port 143 IMAP4 Server Port 143 SMTP Client SMTP Server Port 25 TCP/IP Internet SMTP Server Port 25 SMTP Client SMTP System 1 SMTP System 2

  34. Network File System User process Client Kernel Server kernel Local file access NFS client NFS server Local file access TCP/UDP IP TCP/UDP IP Local disk Local disk NFS provides transparent file access for clients to files and file systems on a server

  35. NFS Procedures • GETATTR • Return the attributes of a file • SETATTR • Set the attributes of a file • STAFS • Return the status of a file system • LOOKUP • Lookup a file • READ • Read from a file • WRITE • Write to a file • CREATE • Create a file

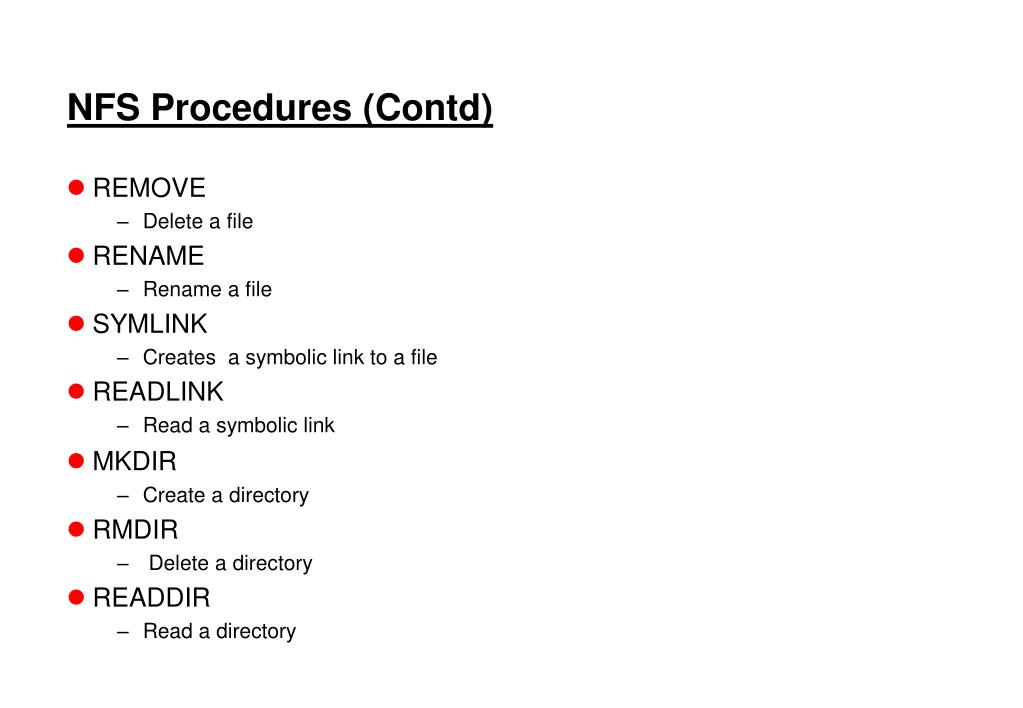

  36. NFS Procedures (Contd) • REMOVE • Delete a file • RENAME • Rename a file • SYMLINK • Creates a symbolic link to a file • READLINK • Read a symbolic link • MKDIR • Create a directory • RMDIR • Delete a directory • READDIR • Read a directory

  37. NFS Example SUN client Unix1 Sun% cd /nfs/unix1/usr/smith Sun% mkdir Mail Source Command 1 sun 104 getatttr 2 Unix1 Reply ok 96 3 sun 104 getattr 4 Unix1 Reply ok 96 5 sun 104 getattr 6 Unix1 Reply ok 96 7 sun 112 lookup “Mail” 8 Unix1 Reply ok 28 9 sun 1144 mkdir “Mail” 10 Unix1 Reply ok 128

  38. Hypertext Transfer Protocol • The standard communication protocol between Web servers and clients is the Hypertext Transfer Protocol (HTTP) • The standard language for writing Web documents is Hypertext Markup Language (HTML) • Every Web page is assigned a unique URL (Uniform Resource Locator), for example: • http://www.ericsson.com/datacom/solutions

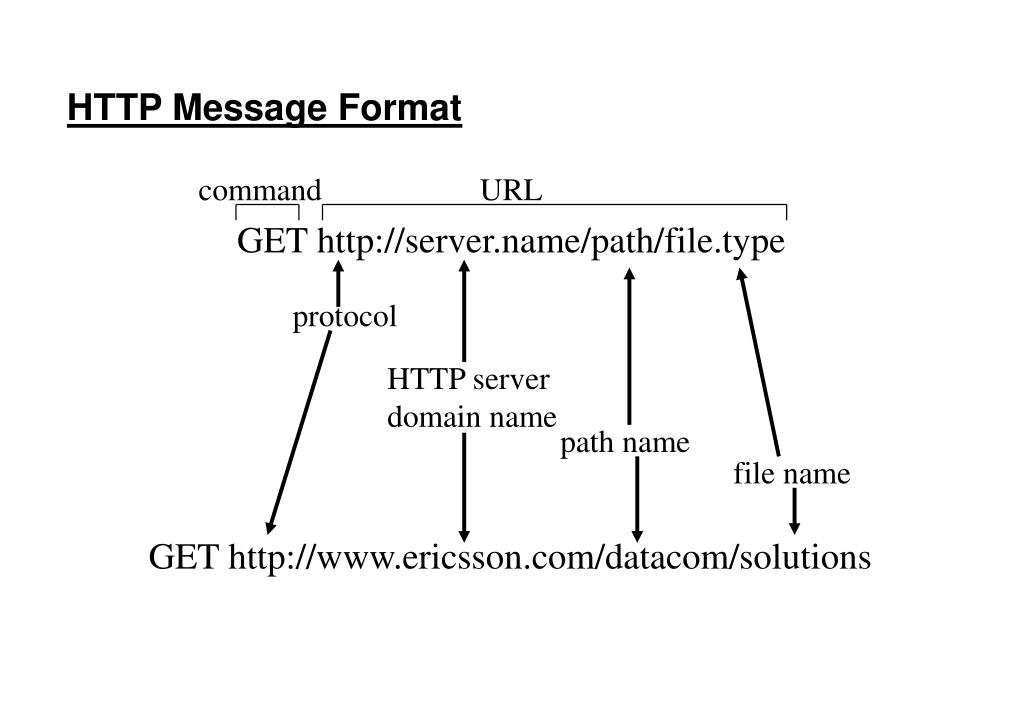

  39. HTTP Message Format command URL GET http://server.name/path/file.type protocol HTTP server domain name path name file name GET http://www.ericsson.com/datacom/solutions

  40. HTTP/1.0 Full Request Method(SP)http://server.name/path/file.type(SP)HTTP/1.0(CR)(LF) General-header (CR)(LF) Request-header (CR)(LF) Entity-header (CR)(LF)(CR)(LF) Body

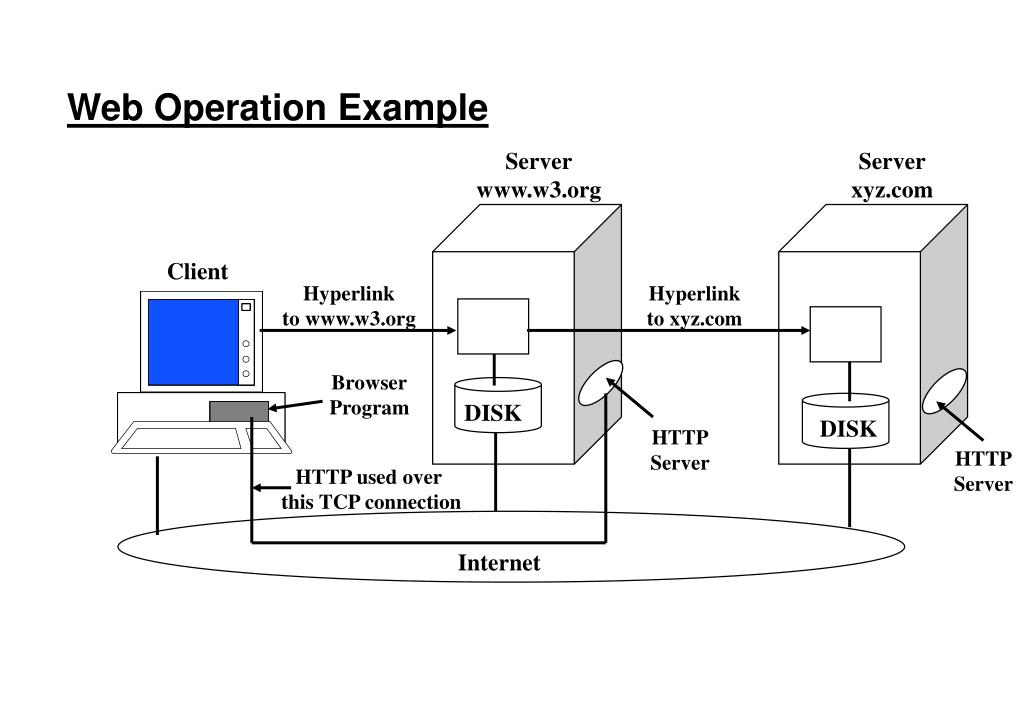

  41. DISK Web Operation Example Server www.w3.org Server xyz.com Client Hyperlink to www.w3.org Hyperlink to xyz.com Browser Program DISK HTTP Server HTTP Server HTTP used over this TCP connection Internet
