  1. Road Traffic Accident Procedures (6) Service Delivery 2

  2. RTA (6) Vehicle Construction Stabilisation Techniques.

  3. Vehicle construction ‘B’ Post ‘A’ Post ‘C’ Post Sill.

  4. Vehicle construction Shut line.

  5. Stabilisation • Stability is of prime importance at any RTA • Should take very little time to establish and be re-assessed periodically during the duration of the extrication • The position of the vehicle should not prevent adequate stabilisation taking place.

  6. Stabilisation A variety of equipment is utilised to achieve stability, for example; • Step chocks • Blocks and wedges • Pneumatic lifting units (air bags) • Hydraulic equipment • Mechanical winches.

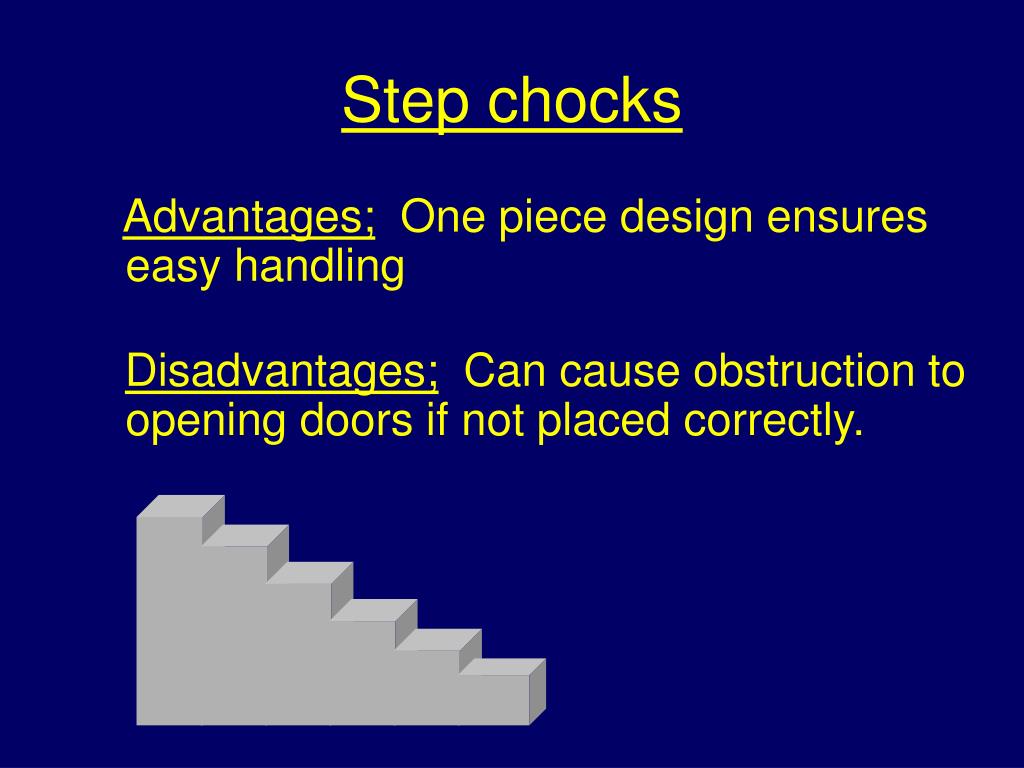

  7. Step chocks • Advantages; One piece design ensureseasy handling • Disadvantages; Can cause obstruction to opening doors if not placed correctly.

  8. Four methods • Step chocks and wedge • Blocks and wedges • Flat tyre method • Lifting method.

  9. . Step chocking

  10. . Block and wedge

  11. . Flat tyre chocking

  12. Extrication routes are limited Do not block when placing packing.

  13. Vehicles on their side Inverted step blocks GP line.

  14. THE END
