Intercepts

Intercepts. Intercepts measure where a crystal face hits a crystal axis. The location on the axes corresponding to unit lengths is arbitrary and chosen for simplicity and convenience. Axes usually radiate from the center in a right hand rule arrangement

Thomas
Download Presentation

Intercepts

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Intercepts • Intercepts measure where a crystal face hits a crystal axis. The location on the axes corresponding to unit lengths is arbitrary and chosen for simplicity and convenience Axes usually radiate from the center in a right hand rule arrangement Axes pass through centers or edges

  2. Intercepts are relative sizes • “The intercepts of a face have no relation to its size, for a face may be moved parallel to itself for any distance without changing the relative values of its intersections with the crystallographic axes.” • K&D p. 133

  3. Miller Indices from Intercepts • “The Miller Indices of a face consist of a series of whole numbers that have been derived from the intercepts by • inverting, and if necessary • by the clearing of fractions.” • “The Miller Indices [also] express a ratio ….” K&D p133

  4. Problem: find the Miller Index for a face with intercepts 2a, 2b, 2/3c • Invert the indices: • ½ ½ 3/2 • 2. This is a ratio. If we multiply all terms by a constant, the ratio remains the same. • Let’s multiply by 2 to clear the fractions: • (1 1 3)

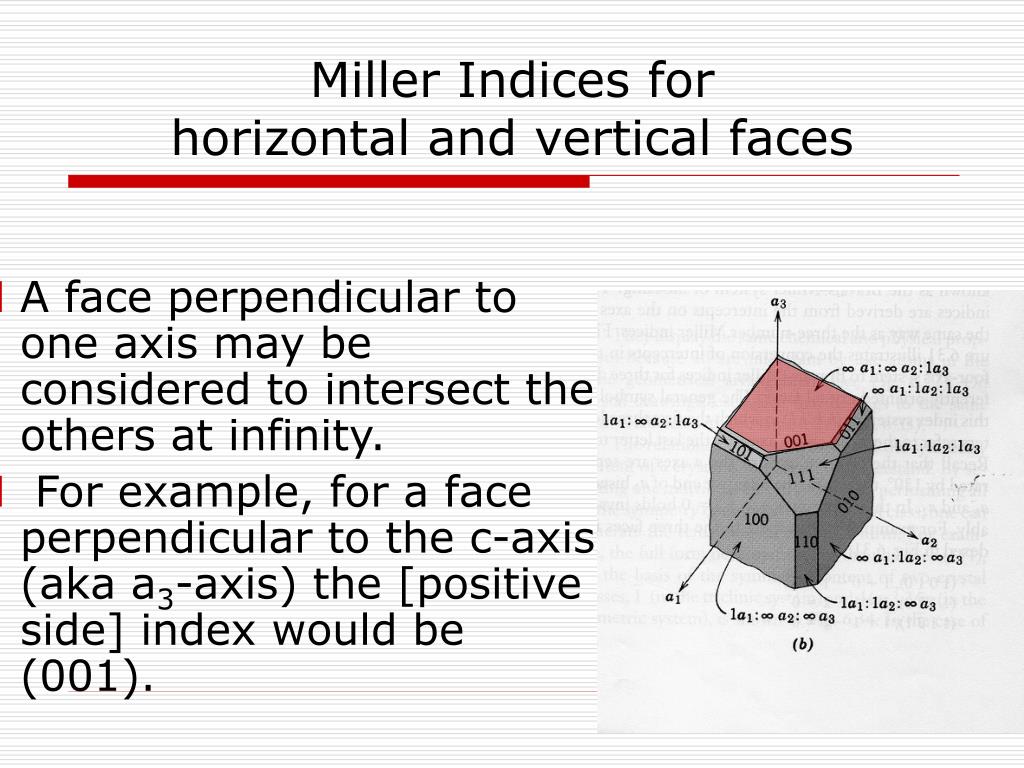

  5. Miller Indices for horizontal and vertical faces • A face perpendicular to one axis may be considered to intersect the others at infinity. • For example, for a face perpendicular to the c-axis (aka a3-axis) the [positive side] index would be (001).

  6. The colored face is parallel to a1 and a2, meeting them only at ∞ Problem: find the Miller Index for this face with intercepts ∞a1, ∞a2, 1a3 • Invert the indices: • Since 1/∞ = 0 and 1/1 = 1 • we have 0/1 0/1 1/1 • 2. Clear fractions by multiplying • through by 1 • (0 0 1)

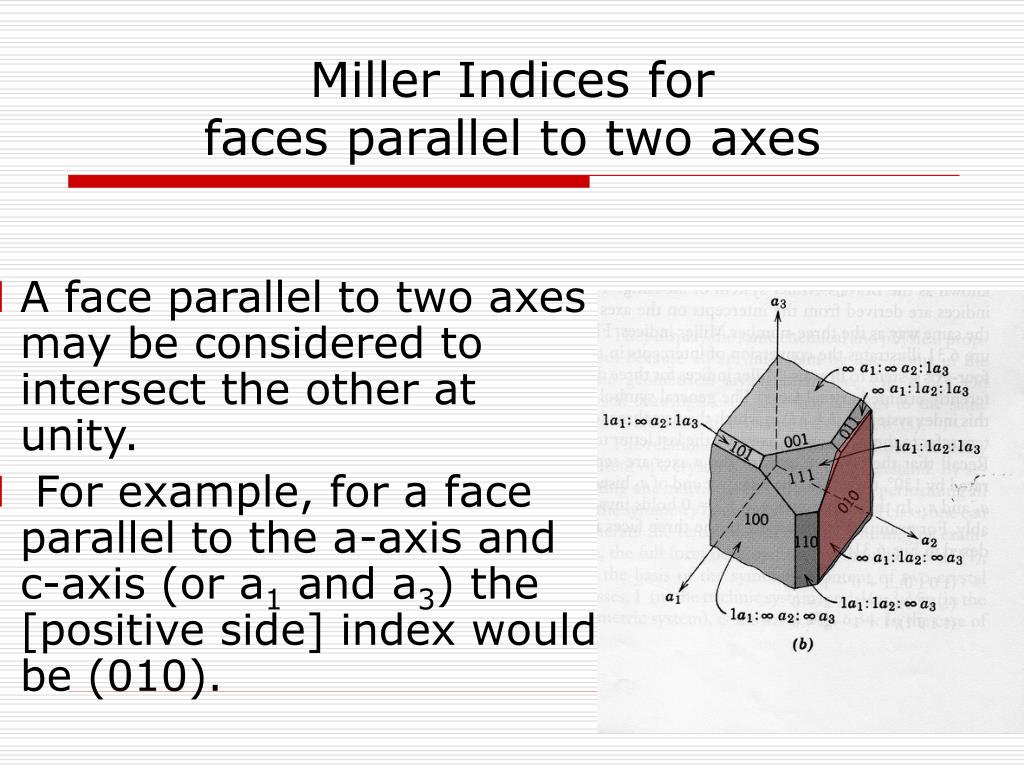

  7. Miller Indices for faces parallel to two axes • A face parallel to two axes may be considered to intersect the other at unity. • For example, for a face parallel to the a-axis and c-axis (or a1 and a3) the [positive side] index would be (010).

  8. Miller Indices for faces parallel to one axis • If a face is parallel to one of the crystallographic axes, a zero “0” is used (because 1/infinity = 0) • For example, for a face parallel to the a-axis, the [positive side] Miller Index could be (011)

  9. Faces that intersect axes on their negative side. • “For faces that intersect negative ends of crystallographic axes, a bar is placed over the appropriate number…. The bar represents the minus sign in a negative number
