Presentation Transcript


4 3 graphing using intercepts

4.3 Graphing Using Intercepts


4 3 graphing using intercepts

  • An x-intercept of a graph is the x-coordinate of a point where the graph crosses the x-axis.

  • An y-intercept of a graph is the y-coordinate of a point where the graph crosses the y-axis.


4 3 graphing using intercepts

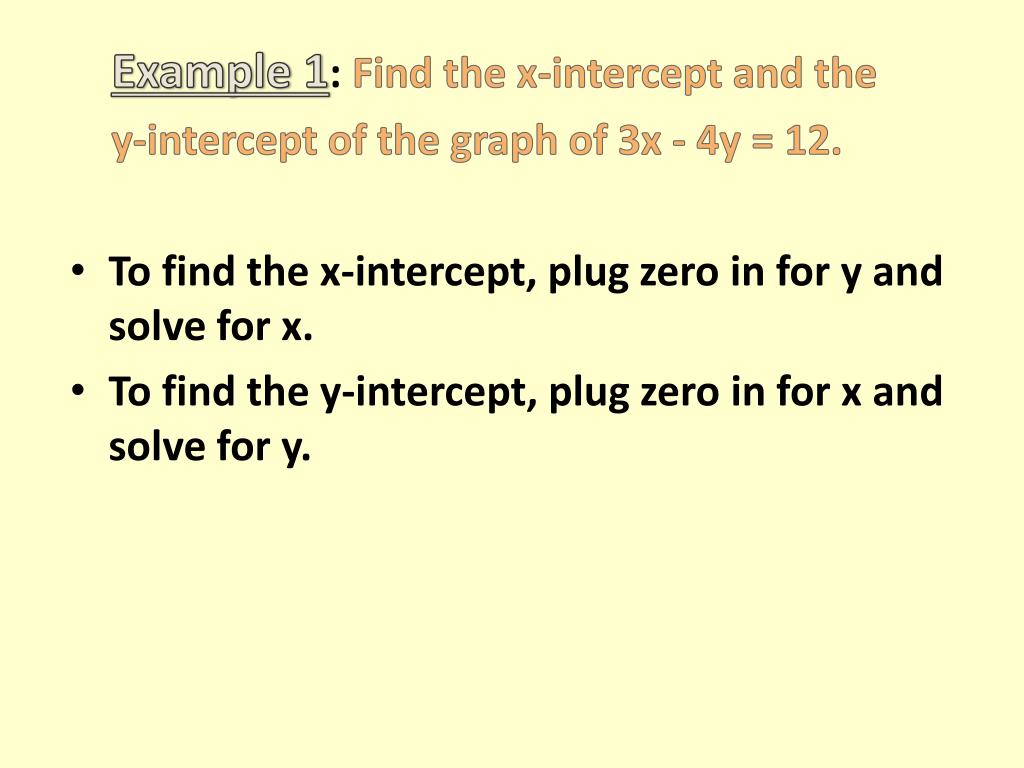

Example 1: Find the x-intercept and the

y-intercept of the graph of 3x - 4y = 12.

  • To find the x-intercept, plug zero in for y and solve for x.

  • To find the y-intercept, plug zero in for x and solve for y.


4 3 graphing using intercepts

  • y-intercept

3x - 4y = 12

x-intercept

3x – 4(0) = 12

3x = 12

x = 4

  • 3(0) – 4y= 12

  • -4y = 12

  • y = -3


  • Example 2 graph the equation 4x 8y 24 using the x and y intercepts

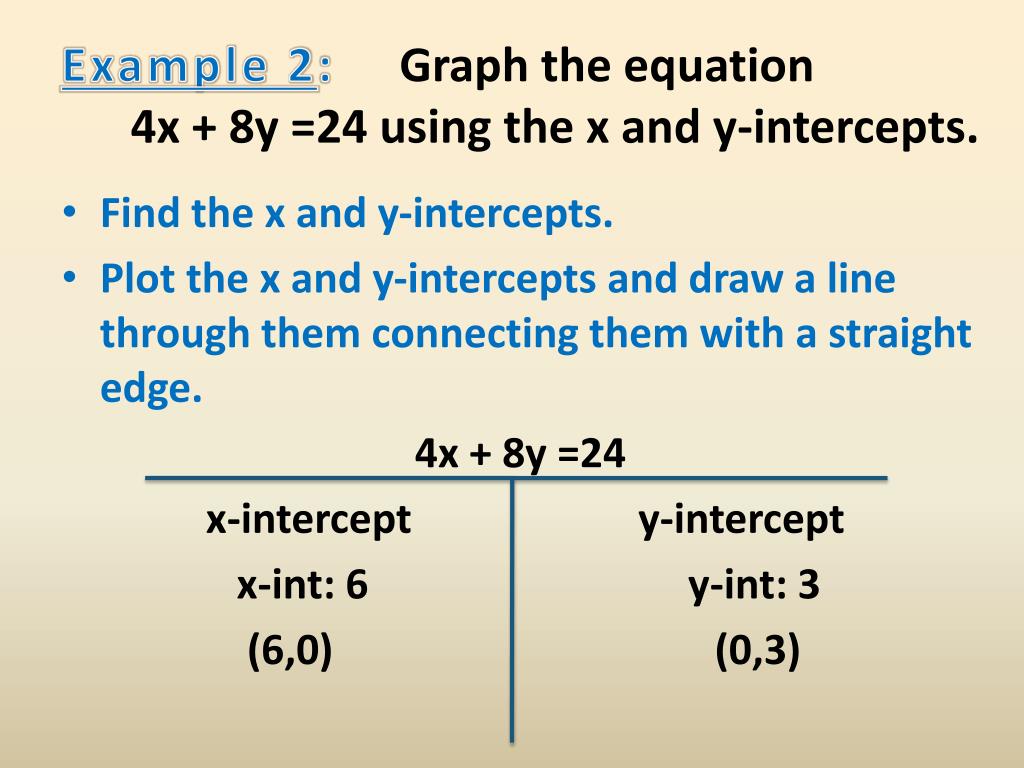

    Example 2: Graph the equation 4x + 8y =24 using the x and y-intercepts.

    • Find the x and y-intercepts.

    • Plot the x and y-intercepts and draw a line through them connecting them with a straight edge.

      4x + 8y =24

      x-intercept y-intercept

      x-int: 6 y-int: 3

      (6,0) (0,3)


    4 3 graphing using intercepts

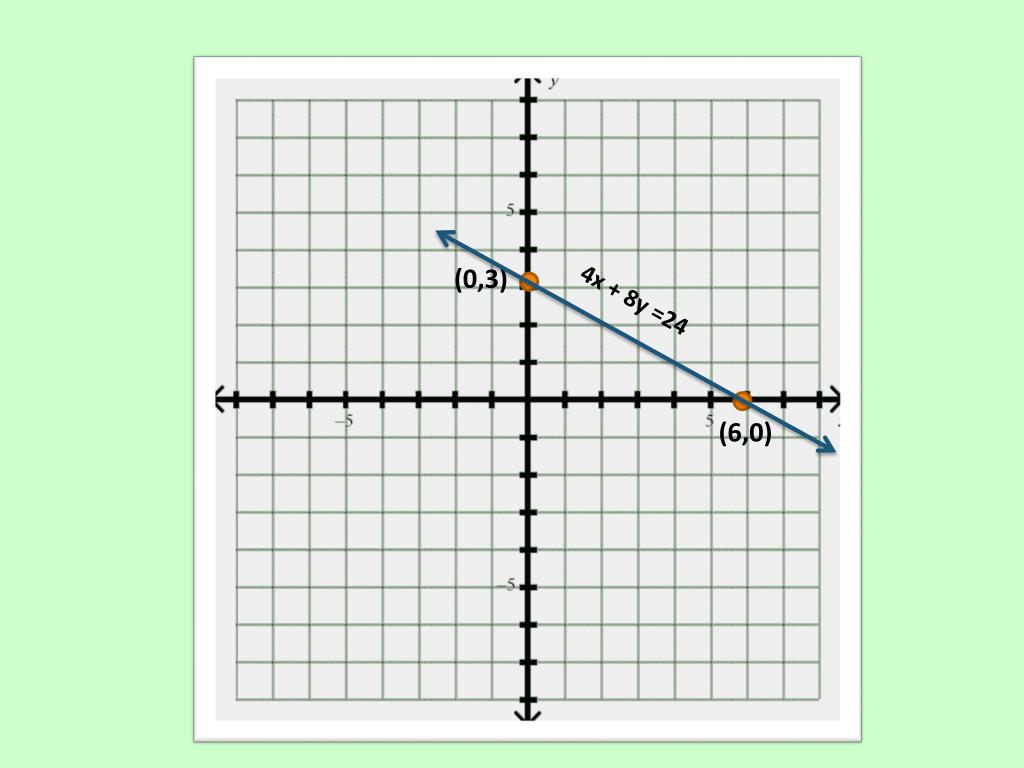

    (0,3)

    4x + 8y =24

    (6,0)


    4 3 graphing using intercepts

    Example 3: Identify the x-intercept and y-intercept

    of the graph.

    x-int: 2

    y-int: -4


    4 3 graphing using intercepts

    Example 4: You make and sell decorative bows. You sell small bows for $3 and large bows for $5. You want to earn $60 per week. This situation can be modeled by 3x + 5y = 60 where the x is the number of small bows and y is the number of large bows.

    a) Find the intercepts of the graph.

    b) Graph the equation.

    c) Give three possibilities for the number of

    each type of bow you can sell to earn $60.


    4 3 graphing using intercepts

    y-intercept

    3(0) + 5y = 60

    5y = 60

    y = 12

    (0,12)

    3x + 5y = 60

    x-intercept

    3x + 5(0) = 60

    3x = 60

    x = 20

    (20,0)


    4 3 graphing using intercepts

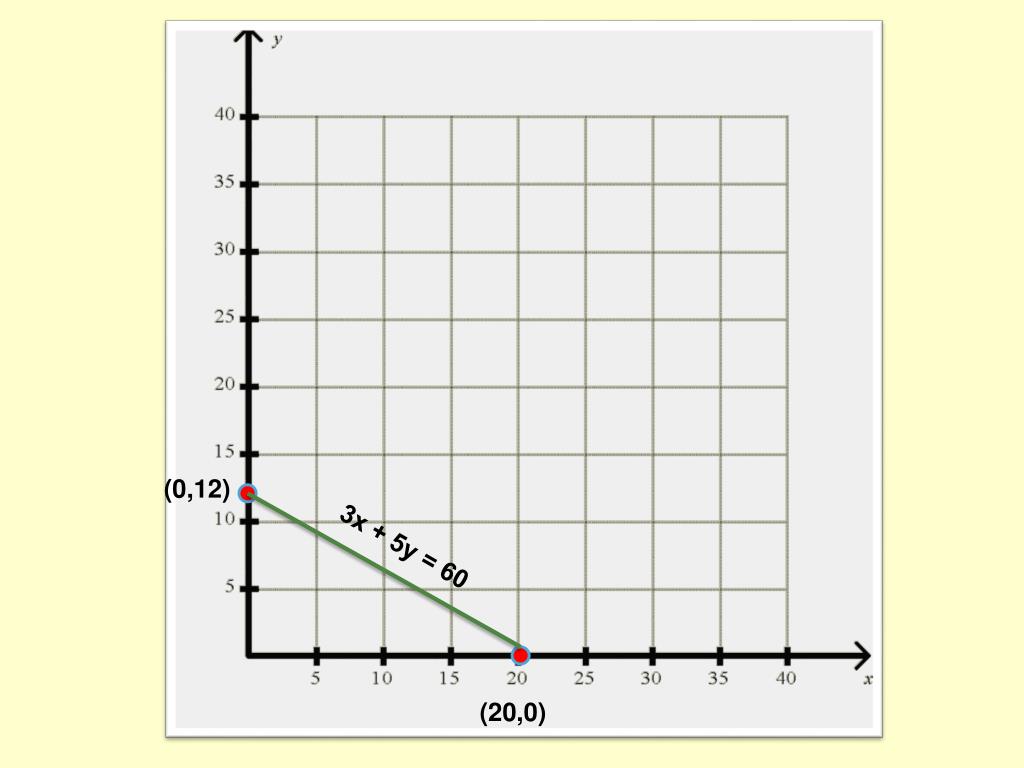

    (0,12)

    3x + 5y = 60

    (20,0)


    3x 5y 60

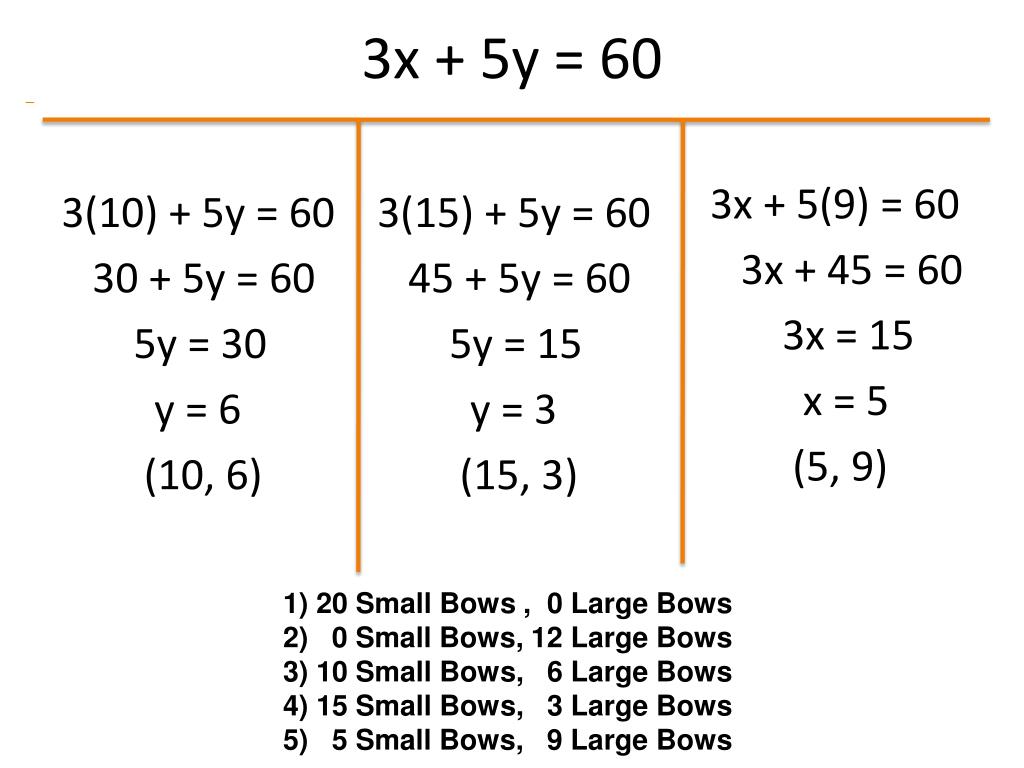

    3x + 5y = 60

    3x + 5(9) = 60

    3x + 45 = 60

    3x = 15

    x = 5

    (5, 9)

    3(10) + 5y = 60

    30 + 5y = 60

    5y = 30

    y = 6

    (10, 6)

    3(15) + 5y = 60

    45 + 5y = 60

    5y = 15

    y = 3

    (15, 3)

    1) 20 Small Bows , 0 Large Bows

    2) 0 Small Bows, 12 Large Bows

    3) 10 Small Bows, 6 Large Bows

    4) 15 Small Bows, 3 Large Bows

    5) 5 Small Bows, 9 Large Bows
