Presentation Transcript

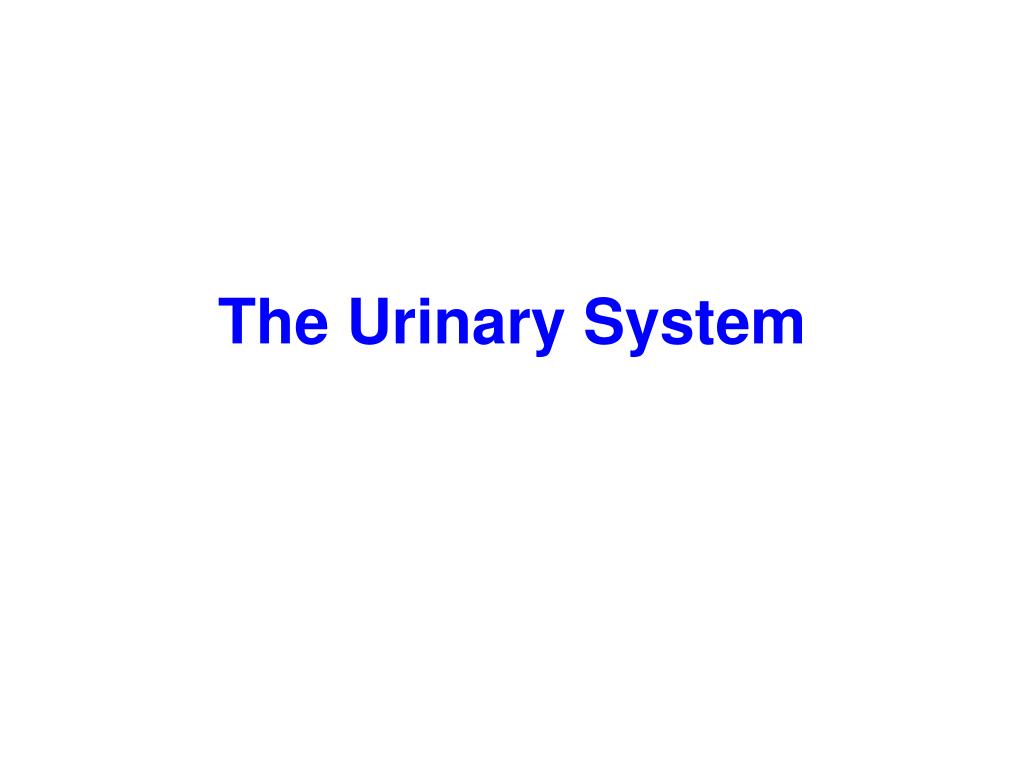

The urinary system l.jpg

The Urinary System

Waste elimination l.jpg

Waste Elimination

  • Management of waste the responsibility of numerous processes and organs

    • Buffers, blood,

    • Liver, lungs, suderiferous glands, GI and kidney

  • The kidney primarily for excess water, ammonia, urea, uric acid, bilirubin, creatine, ions, and some toxins

Kidney function l.jpg

Kidney Function

  • Waste removal

  • Blood composition (osmolarity) - ions

  • Blood volume and - water

  • Blood pressure - secretion of renin which interacts with angiotensinogen

    • Increased aldosterone  water reabsorption and blood volume

    • Increased vasoconstriction  increased BP

  • Blood pH - H+ ions

More kidney function l.jpg

More Kidney Function

  • Hormones secretion

    • Parathyroid hormone stimulates calcitriol secretion  increase GI Ca2+ absorption

    • Erythropoietin  more RBCs

  • Manufactures glucose when fasting - deamination of glutamine

Kidney external anatomy l.jpg

Kidney - External Anatomy

  • Recognizable shape

  • Retroperitoneal along with adrenal glands and ureters

  • Located between T12-L3

  • Three exterior layers that serve to protect and anchor kidneys

    • From inside out - renal capsule, adipose capsule, and renal fascia

  • Renal hilus

Kidney internal macrostructure l.jpg

Kidney - Internal Macrostructure

  • Renal cortex

  • Renal medulla

    • Alternating renal pyramids and renal columns

    • Renal papilla(e)

  • Functional unit, the nephron, found in cortex and pyramids

  • Calyces (major and minor)

  • Renal pelvis

Nephron organization l.jpg

Nephron Organization

  • Renal corpuscle

  • Proximal convoluted tubule

  • Descending and ascending loop of Henle

  • Distal convoluted tubule

  • Collecting duct

  • Papillary duct

Nephron function l.jpg

Nephron Function

  • Renal corpuscle - glomerular filtration

  • Renal tubule - tubular reabsorption and secretion

Renal blood supply l.jpg

Renal Blood Supply

  • Renal arteries - at rest, receive about 20% of cardiac output (1200 ml/min) - 0.5% of body mass

  • Segmental artery  interlobar artery  arcuate artery  interlobular artery  afferent arterioles glomerulus efferent arteriole peritubular capillary and or vasa recta  peritubular venule  interlobular vein  arcuate vein  interlobar vein  segmental vein  renal vein

More renal blood supply l.jpg

More Renal Blood Supply

  • Vasodilation/constriction of afferent and efferent arterioles change vascular resistance

  • Primary nerve supply from celiac ganglion of sympathetic NS

    • Largely vasomotor for regulating blood flow and vascular resistance

Renal corpuscle l.jpg

Renal Corpuscle

  • Located in renal cortex

  • Composed of glomerulus and glomerular (Bowman’s) capsule

  • Capillaries surrounded by specialized cell (podocytes) layer (simple squamous)

    • Together - endothelial-capsular membrane (the filter)

  • Outer parietal layer of capsule (also simple squamous)

More renal corpuscle l.jpg

More Renal Corpuscle

  • Membrane has several filtering layers

    • Endothelial fenestrations - blocks cells & platelets only

    • Basal lamina (glycoprotein fibers) - blocks large proteins

    • Slits between pedicels of podocytes - blocks mid-sized proteins (e.g. only 1% of albumin passes)

  • Mesangial cells among capillaries - regulate filtration surface area

Renal tubule l.jpg

Renal Tubule

  • Convoluted tubes in cortex

  • Loop of Henle and collecting ducts in medulla

  • About 80% of nephrons have a short loop of Henle with superficial renal corpuscle - cortical nephrons

  • Remaining 20% have long loop of Henle and deep renal corpuscle - juxtamedullary nephrons (have vasa recta)

    • Include both thick and thin ascending limb of tubule

Histology of renal tubule l.jpg

Histology of Renal Tubule

  • Proximal convoluted tubule - cuboidal epithelium with microvilli

    • Reabsorption of 65% of water, and up to 100% of some solutes

  • Descending loop of Henle and thin ascending portion - simple squamous epithelium

  • Ascending thick portion of loop of Henle - simple cuboidal to columnar epithelium

More histology l.jpg

More Histology

  • At junction of ascending and distal tubule - juxtaglomerular apparatus including:

    • Macula densa cells of tubule (monitor Na+ and Cl-)

    • Adjacent afferent arteriole surrounded by modified smooth muscle fibers - juxtaglomerular cells

  • Distal tubule - cuboidal with few microvilli

Even more histology l.jpg

Even More Histology

  • Collecting ducts (and last portion of DCT) - two cell types

    • Principal cells that respond to ADH and aldosterone

    • Intercalated cells that secrete H+

  • Papillary ducts - with simple columnar

Renal physiology l.jpg

Renal Physiology

  • Glomerular filtration

  • Tubular reabsorption

  • Tubular secretion

Glomerular filtration l.jpg

Glomerular Filtration

  • Across endothelial-capsular membrane

  • 16-20% of plasma is filter as it passes through kidney (180 liters/48 gals per day (less for females) - all but a liter or two returned)

  • Directly related to state of mesangial cells and hydrostatic & osmotic pressure across membrane

    • Glomerular blood hydrostatic pressure (GBHP) - about 55 mm Hg (usual is 35)

    • Capsular hydrostatic pressure (CHP) - about 15 mm Hg

More glomerular filtration l.jpg

More Glomerular Filtration

  • Blood colloid osmotic pressure (BCOP) - largely due to plasma proteins, at inlet: about 25 mm Hg, at outlet: about 35 mm Hg, average: 30 mm Hg

  • Net filtration pressure (NFP)

    • NFP = GBHP - (CHP + BCOP)

Glomerular filtration rate gfr l.jpg

Glomerular Filtration Rate (GFR)

  • Filtrate formed by both kidneys per minute

  • Directly related to NFP

  • Normal about 125 ml/min or 180 liters/day (less for females)

  • If too high, insufficient reabsorption

  • If to low, insufficient excretion of wastes (anuria - less than 50 ml of urine/day)

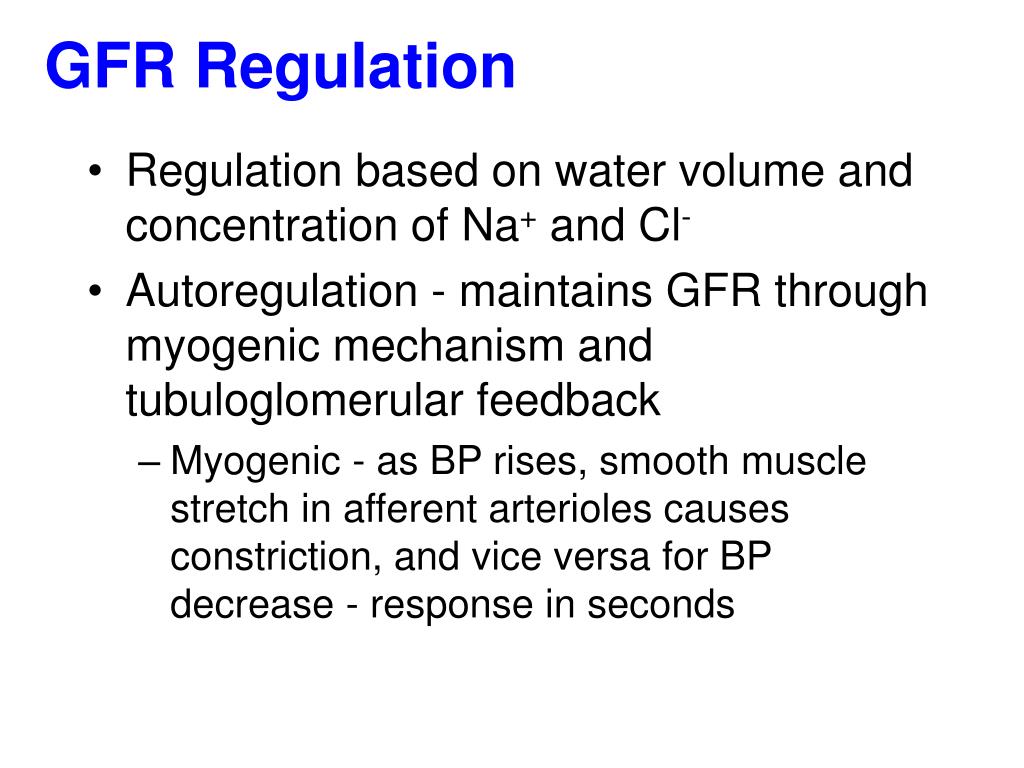

Gfr regulation l.jpg

GFR Regulation

  • Regulation based on water volume and concentration of Na+ and Cl-

  • Autoregulation - maintains GFR through myogenic mechanism and tubuloglomerular feedback

    • Myogenic - as BP rises, smooth muscle stretch in afferent arterioles causes constriction, and vice versa for BP decrease - response in seconds

More gfr regulation l.jpg

More GFR Regulation

  • Tubuloglomerular feedback - JGA produces unknown vasoconstrictor that decreases flow in afferent arterioles in response to high levels of Na+, Cl- and water in thick ascending portion (sensed by macula densa), and vice versa for low levels - slower response

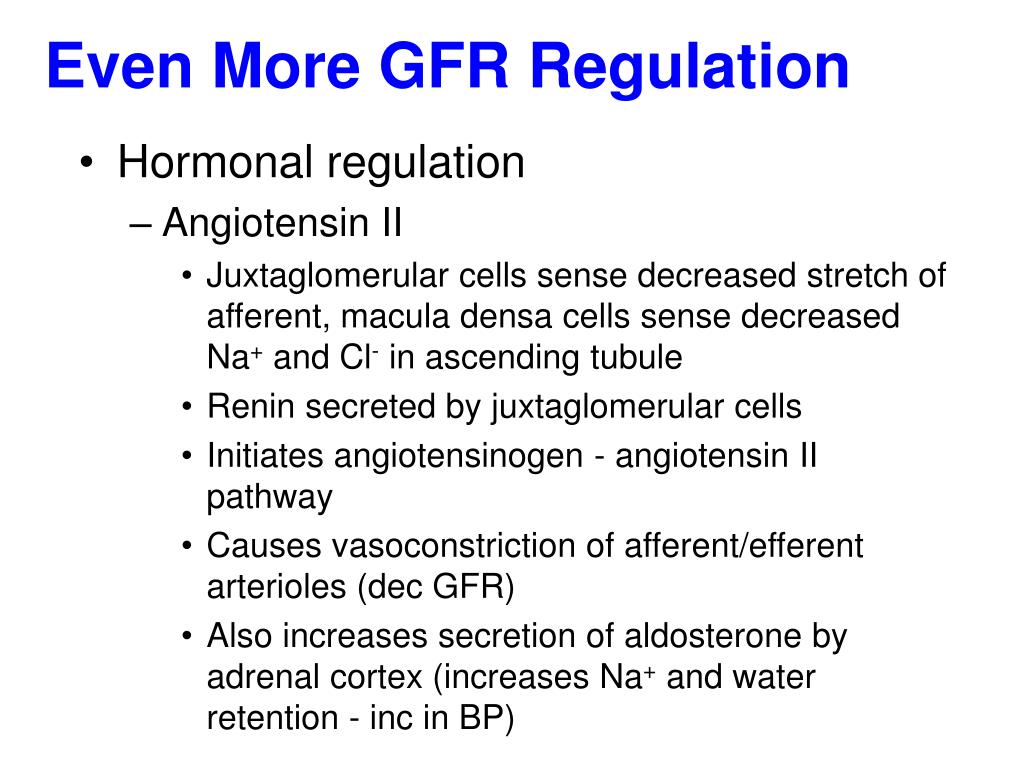

Even more gfr regulation l.jpg

Even More GFR Regulation

  • Hormonal regulation

    • Angiotensin II

      • Juxtaglomerular cells sense decreased stretch of afferent, macula densa cells sense decreased Na+ and Cl- in ascending tubule

      • Renin secreted by juxtaglomerular cells

      • Initiates angiotensinogen - angiotensin II pathway

      • Causes vasoconstriction of afferent/efferent arterioles (dec GFR)

      • Also increases secretion of aldosterone by adrenal cortex (increases Na+ and water retention - inc in BP)

Still more gfr regulation l.jpg

Still More GFR Regulation

  • Atrial natriuretic peptide (ANP)

    • Produced by cells in the heart atria

    • Release stimulated by stretch of atrial walls

    • Increases water loss (diuresis) by relaxation of mesangial cells (inc GFR)

Even more gfr regulation25 l.jpg

Even More GFR Regulation

  • Neural regulation

    • Sympathetic innervation of smooth muscle surrounding afferent and efferent arterioles causing vasoconstriction (dec GFR)

    • Enhanced vasoconstriction in afferents by release of epinephrine from adrenal medulla upon strong sympathetic response

    • Reduces urine production and redirects blood flow

Reabsorption l.jpg


  • About 99% of filtrate reabsorbed

  • Paracellular vs. transcellular reabsorption

  • Solutes by active (primary or secondary) or passive movement

    • Na+ plays major role - sodium pumps on basolateral membrane, not apical

  • Water by osmosis

  • Proteins by pinocytosis

  • Involves renal tubules and collecting ducts

Pct reabsorption l.jpg

PCT Reabsorption

  • Epithelial cells with microvilli - effective transporters

  • 100% of glucose & amino acids, 80-90% of HCO3-, 65% of water, Na+, & K+, 50% of Cl-, Mg2+ & HPO42-

  • Na+ reabsorption

    • Based on low concentration and negative charge in epithelial cells - Na+ leakage channels present on apical side

    • Active Na+ transport on opposite side into interstitial fluid (estimated 6% ATP use at rest)

More pct reabsorption l.jpg

More PCT Reabsorption

  • Passive diffusion into peritubular capillaries

  • Water follows - osmotic gradient created by Na+ transport

  • Increased concentration of remaining molecules in filtrate cause them to diffuse or respond to the movement of the positively charged Na+

  • HCO3- reabsorption related to H+ secretion (later)

  • Even more pct reabsorption l.jpg

    Even More PCT Reabsorption

    • Glucose, amino acids, and lactic acid reabsorbed into epithelial cells by Na+ symporters - transported into interstitial fluid by facilitated diffusion

      • Concept of renal transport maximum (mg/min - normal 300 mg/min for glucose) and renal threshold (mg/ml in plasma - usually 200 mg/100ml for glucose)

      • glucosuria (glycosuria) results from exceeding limits - diabetes mellitus

    Loop of henle reabsorption l.jpg

    Loop of Henle Reabsorption

    • Flow rate about 40-45 ml/min (down from 125 ml/min in PCT)

    • Ionic reabsorption in thick ascending portion - 20-30% of filtered K+, Na+, & Ca2+, 10-20% HCO3- 35% Cl-

      • Symport with Na+ - two Cl- & one K+

      • K+ may flow back into tubule via apical channels causing negative charge - draws cations in from tubule including K+, Na+, Ca2+, & Mg2+

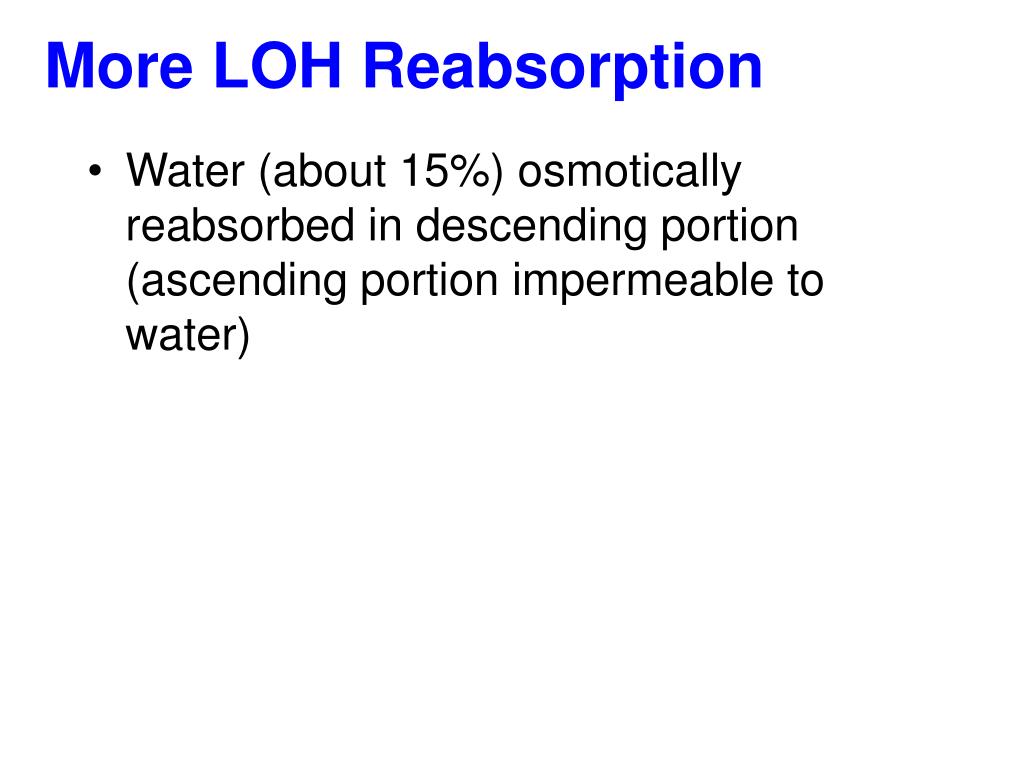

    More loh reabsorption l.jpg

    More LOH Reabsorption

    • Water (about 15%) osmotically reabsorbed in descending portion (ascending portion impermeable to water)

    Dct reabsorption l.jpg

    DCT Reabsorption

    • Flow rate about 25 ml/min

    • Symport reabsorption of Na+ & Cl-

    • Ca2+ reabsorption controlled by parathyroid hormone

    • Little permeability to water

    • By the end of DCT, less than 10% of filtrate remains (18 liters/day)

    Collecting duct reabsorption l.jpg

    Collecting Duct Reabsorption

    • Primarily Na+ and water (includes the last part of DCT)

    • Na+ active transport on basolateral side of principal cells causing leakage on apical side

      • Aldosterone contributes by stimulating Na+/K+ pump activity and number  increased sodium reabsorption

    • Obligatory vs. facultative water reabsorption

    More cd reabsorption l.jpg

    More CD Reabsorption

    • Facultative dependent on principal cell response to ADH and aldosterone

      • Osmoreceptors in hypothalamus sense increased osmolarity  posterior pituitary releases ADH  ADH increases insertion of integral protein water channels  more water is reabsorbed

      • Increased sodium reabsorption  increased water reabsorption

    Tubular secretion l.jpg

    Tubular Secretion

    • H+ for managing blood pH

    • Ammonia (NH3) or ammonium ion (NH4+) for removal after amino acid catabolism

    • K+ for maintaining appropriate concentration

    Tubular secretion of h l.jpg

    Tubular Secretion of H+

    • Secretion process linked with absorption of HCO3- and its manufacture - also contributes to blood pH

    • PCT - CO2 diffuses into PCT cells which convert it to H+ and HCO3- in presence of CA

      • Cells secrete H+ via an antiporter

      • Secreted H+ combines with filtered HCO3-  reverts back to CO2 and H2O  CO2 diffuses into cells….thus filtered is reabsorbed along with more Na+

    More tubular secretion of h l.jpg

    More Tubular Secretion of H+

    • CD - H+ secreted by active transport (proton pump) across apical side of intercalated cells

      • Capable of concentrating 1000 higher than blood

      • Excess HCO3- transported across basolateral surface via Cl-/HCO3- antiporter

      • Other intercalated cells have transport systems in opposite membranes thus secreting HCO3- and absorbing H+

      • H+ may be buffered by monohydrogen phosphate or ammonia within tubule

    Tubular secretion of nh 3 l.jpg

    Tubular Secretion of NH3

    • Ammonia (very poisonous) may be convert to urea (less poisonous) in liver

    • PCT cells also produce more NH3 in conversion to glutamine to glucose

    • NH3 + H+  NH4+ which can be substituted for H+ in apical Na+/H+ antiport in PCT

    • Byproduct of glutamine conversion is HCO3- which enters blood

      • Process can aid in managing blood pH

    Tubular secretion of k l.jpg

    Tubular Secretion of K+

    • Nearly 100% of filtered K+ reabsorbed

    • Homeostasis of K+ maintained by secretion in DCT and CD under the control of aldosterone (increases secretion) and high plasma concentration

    • Principal cells secrete K+ based on Na+/K+ pump on basolateral side with leakage channels on apical side

    Urine concentration l.jpg

    Urine Concentration

    • Varies depending on fluid intake while maintaining a constant blood volume

    • Largely dependent on water reabsorption controlled by ADH in CD and portion of DCT

    • Can be up to 4X more or less concentrated than blood plasma

    • Dependent on renal medullary solute concentration gradient (Na+, Cl-, urea) formed by selective secretion and water permeability, and countercurrent exchange mechanism

    Hormonal control l.jpg

    Hormonal Control

    • Low blood volume/BP in afferent arterioles  renin secretion by juxtaglomerular cells  angiotensin II

      • Decreased GFR by vasoconstriction of afferents

      • Increased reabsorption of Na+, Cl- and water due to enhanced activity of Na+/H+ antiporters in PCT

      • Stimulates release of aldosterone  principal cells reabsorb more Na+ and Cl- and thus more water reabsorption

    More hormonal control l.jpg

    More Hormonal Control

    • Stimulates ADH  increased water permeability of apical membrane of principal cells in CD (facultative reabsorption) - other stimulating factors for ADH

  • Stretch of atrial wall  ANP secretion  reduces Na+ and water reabsorption in PCT and CD and inhibits secretion of ADH and aldosterone

  • Urinalysis l.jpg


    • Volume, appearance, odor, density (specific gravity), pH, solutes, abnormal solutes

    • On your own

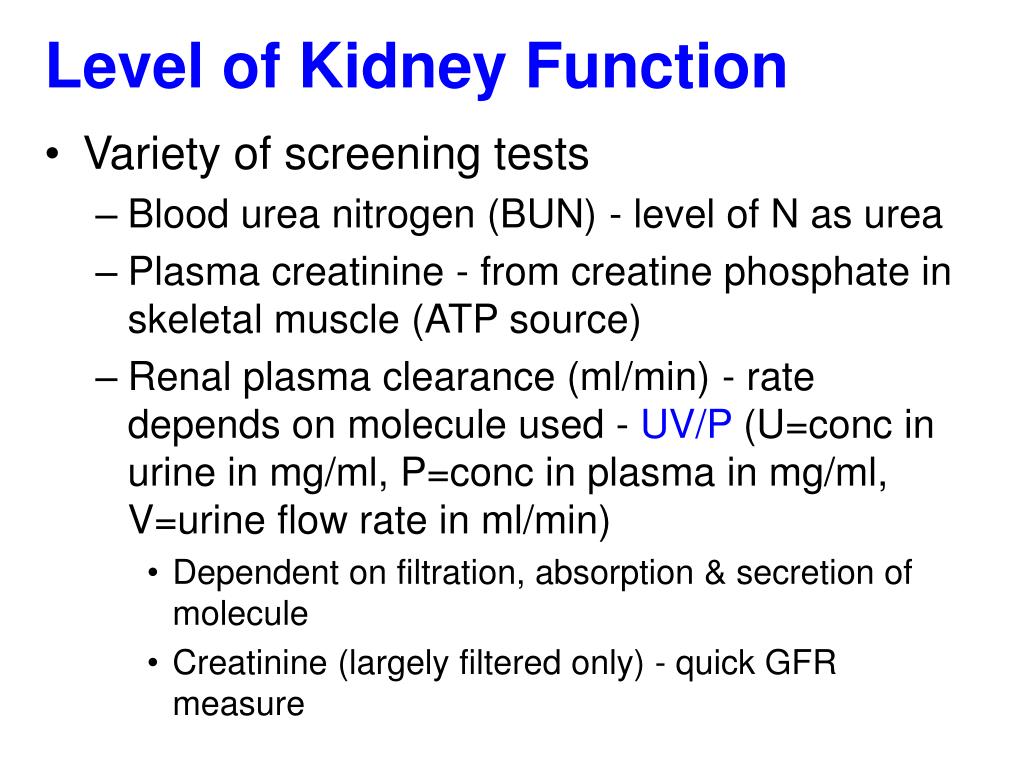

    Level of kidney function l.jpg

    Level of Kidney Function

    • Variety of screening tests

      • Blood urea nitrogen (BUN) - level of N as urea

      • Plasma creatinine - from creatine phosphate in skeletal muscle (ATP source)

      • Renal plasma clearance (ml/min) - rate depends on molecule used - UV/P (U=conc in urine in mg/ml, P=conc in plasma in mg/ml, V=urine flow rate in ml/min)

        • Dependent on filtration, absorption & secretion of molecule

        • Creatinine (largely filtered only) - quick GFR measure

    Dialysis l.jpg


    • On your own

    Ureters l.jpg


    • Kidney to bladder

    • Arrangement of openings into bladder prevent backflow

    • Three layers - inside to outside

      • Mucosa - transitional epithelium that produces mucous (protective)

      • Muscularis - peristaltic movement of urine along with hydrostatic pressure and gravity

      • Adventitia - areolar connective tissue, blood and nerve supply, also stabilizes position

    Urinary bladder l.jpg

    Urinary Bladder

    • All three layers

      • Muscularis called detrusor

      • Adventitia enclosed in visceral peritoneum

    • 700-800 ml capacity

    • Internal (smooth) and external (skeletal) urethral sphincters

    • Voiding of urine - micturition - combined relaxation of internal and external sphincters

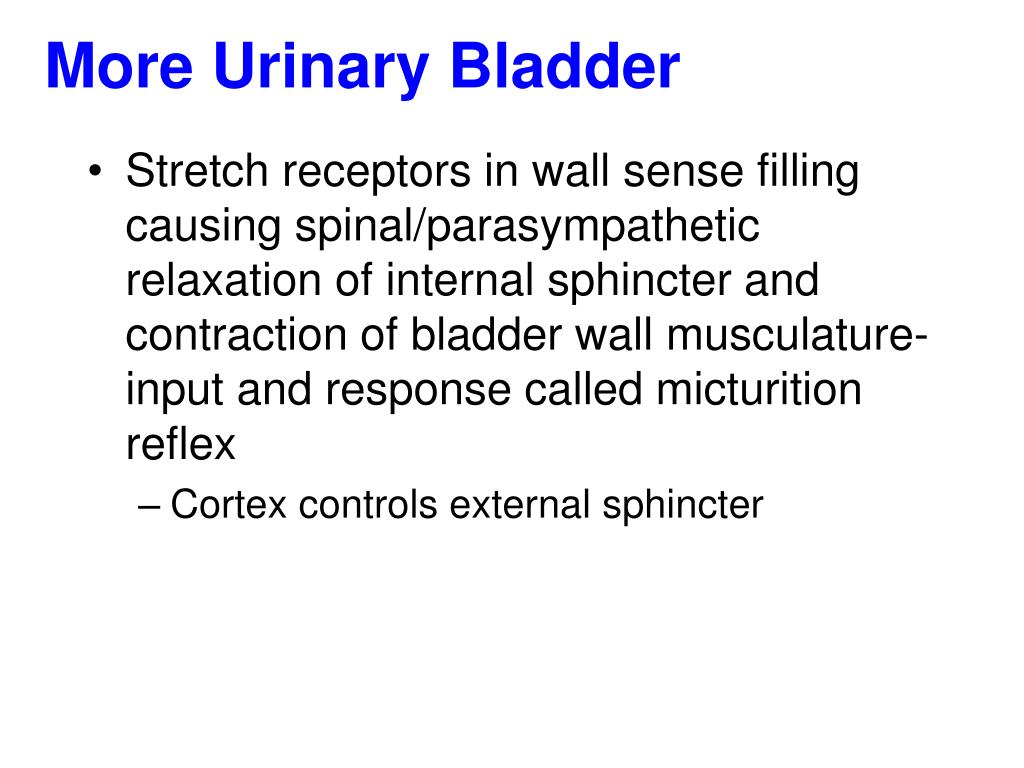

    More urinary bladder l.jpg

    More Urinary Bladder

    • Stretch receptors in wall sense filling causing spinal/parasympathetic relaxation of internal sphincter and contraction of bladder wall musculature- input and response called micturition reflex

      • Cortex controls external sphincter

    Urethra l.jpg


    • Mucosal layer - transition of epithelial type

      • transitional  pseudostratified  nonkeratinized

    • Muscularis layer - simplified layering (circular only)

    Effects of aging and disorders l.jpg

    Effects of Aging and Disorders

    • On your own

  • Login
