Hardware-in-the-Loop (HIL) Software Testing

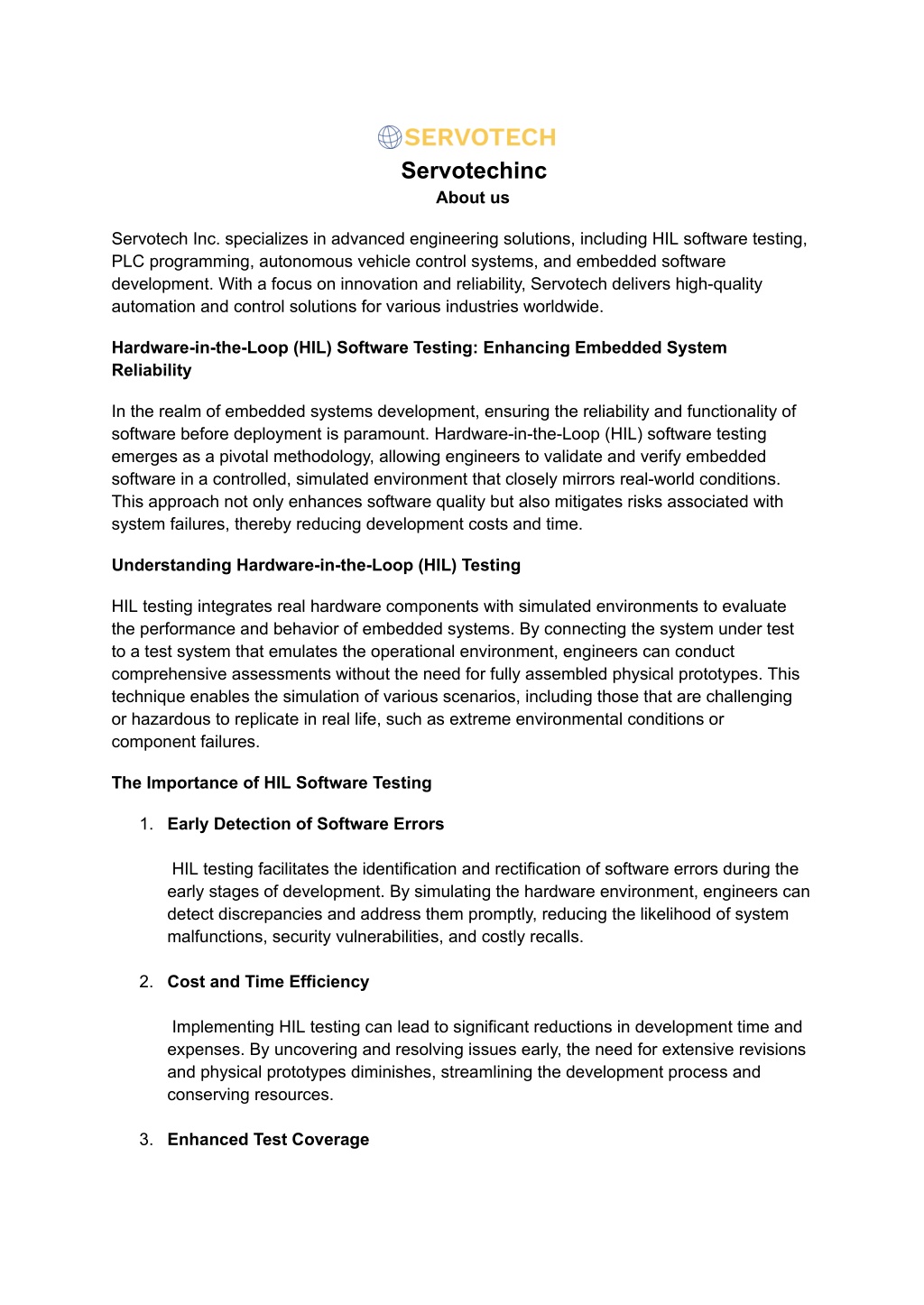

1. Servotechinc About us Servotech Inc. specializes in advanced engineering solutions, including HIL software testing, PLC programming, autonomous vehicle control systems, and embedded software development. With a focus on innovation and reliability, Servotech delivers high-quality automation and control solutions for various industries worldwide. Hardware-in-the-Loop (HIL) Software Testing: Enhancing Embedded System Reliability In the realm of embedded systems development, ensuring the reliability and functionality of software before deployment is paramount. Hardware-in-the-Loop (HIL) software testing emerges as a pivotal methodology, allowing engineers to validate and verify embedded software in a controlled, simulated environment that closely mirrors real-world conditions. This approach not only enhances software quality but also mitigates risks associated with system failures, thereby reducing development costs and time. Understanding Hardware-in-the-Loop (HIL) Testing HIL testing integrates real hardware components with simulated environments to evaluate the performance and behavior of embedded systems. By connecting the system under test to a test system that emulates the operational environment, engineers can conduct comprehensive assessments without the need for fully assembled physical prototypes. This technique enables the simulation of various scenarios, including those that are challenging or hazardous to replicate in real life, such as extreme environmental conditions or component failures. The Importance of HIL Software Testing 1. Early Detection of Software Errors HIL testing facilitates the identification and rectification of software errors during the early stages of development. By simulating the hardware environment, engineers can detect discrepancies and address them promptly, reducing the likelihood of system malfunctions, security vulnerabilities, and costly recalls. 2. Cost and Time Efficiency Implementing HIL testing can lead to significant reductions in development time and expenses. By uncovering and resolving issues early, the need for extensive revisions and physical prototypes diminishes, streamlining the development process and conserving resources. 3. Enhanced Test Coverage

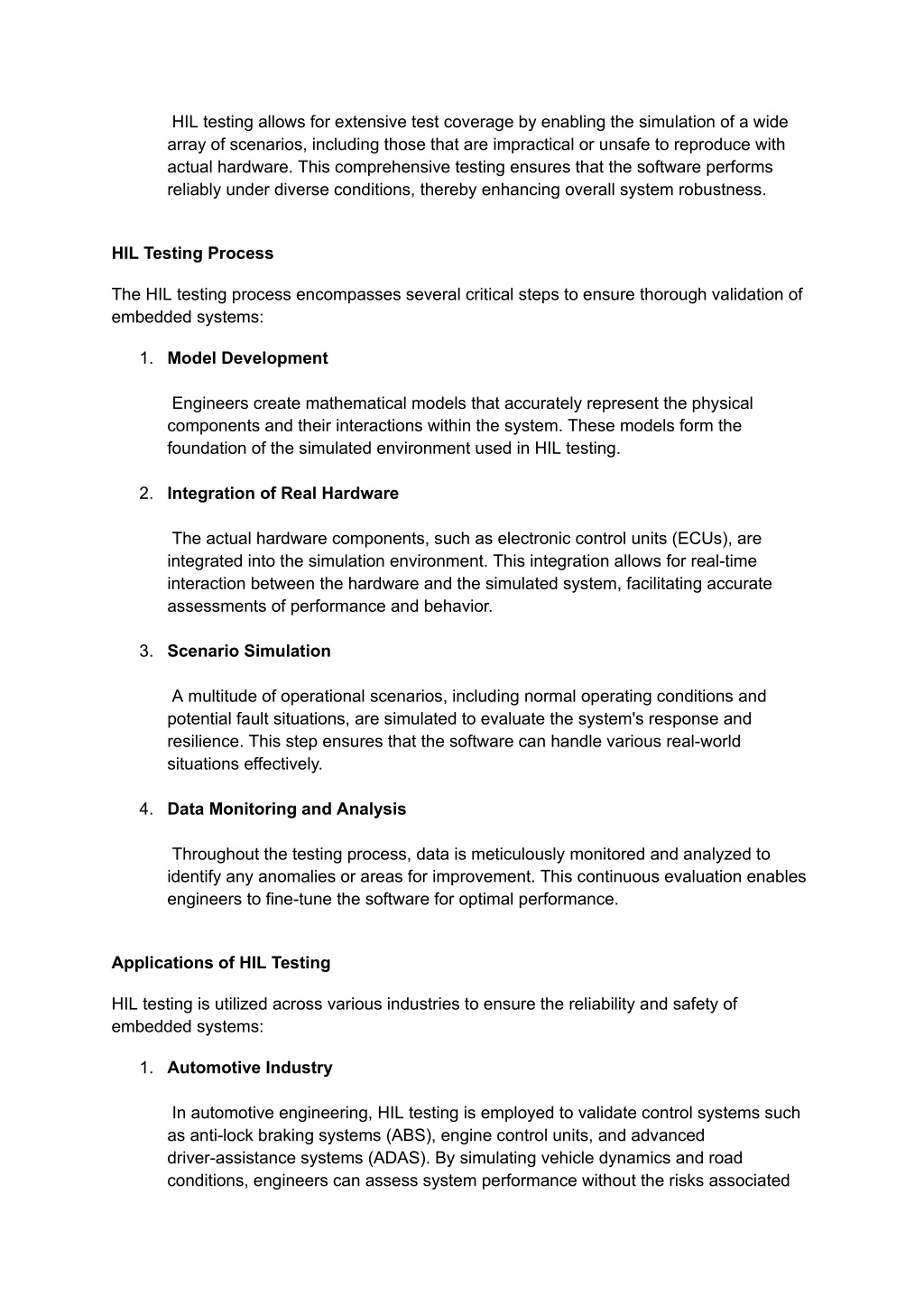

2. HIL testing allows for extensive test coverage by enabling the simulation of a wide array of scenarios, including those that are impractical or unsafe to reproduce with actual hardware. This comprehensive testing ensures that the software performs reliably under diverse conditions, thereby enhancing overall system robustness. HIL Testing Process The HIL testing process encompasses several critical steps to ensure thorough validation of embedded systems: 1. Model Development Engineers create mathematical models that accurately represent the physical components and their interactions within the system. These models form the foundation of the simulated environment used in HIL testing. 2. Integration of Real Hardware The actual hardware components, such as electronic control units (ECUs), are integrated into the simulation environment. This integration allows for real-time interaction between the hardware and the simulated system, facilitating accurate assessments of performance and behavior. 3. Scenario Simulation A multitude of operational scenarios, including normal operating conditions and potential fault situations, are simulated to evaluate the system's response and resilience. This step ensures that the software can handle various real-world situations effectively. 4. Data Monitoring and Analysis Throughout the testing process, data is meticulously monitored and analyzed to identify any anomalies or areas for improvement. This continuous evaluation enables engineers to fine-tune the software for optimal performance. Applications of HIL Testing HIL testing is utilized across various industries to ensure the reliability and safety of embedded systems: 1. Automotive Industry In automotive engineering, HIL testing is employed to validate control systems such as anti-lock braking systems (ABS), engine control units, and advanced driver-assistance systems (ADAS). By simulating vehicle dynamics and road conditions, engineers can assess system performance without the risks associated

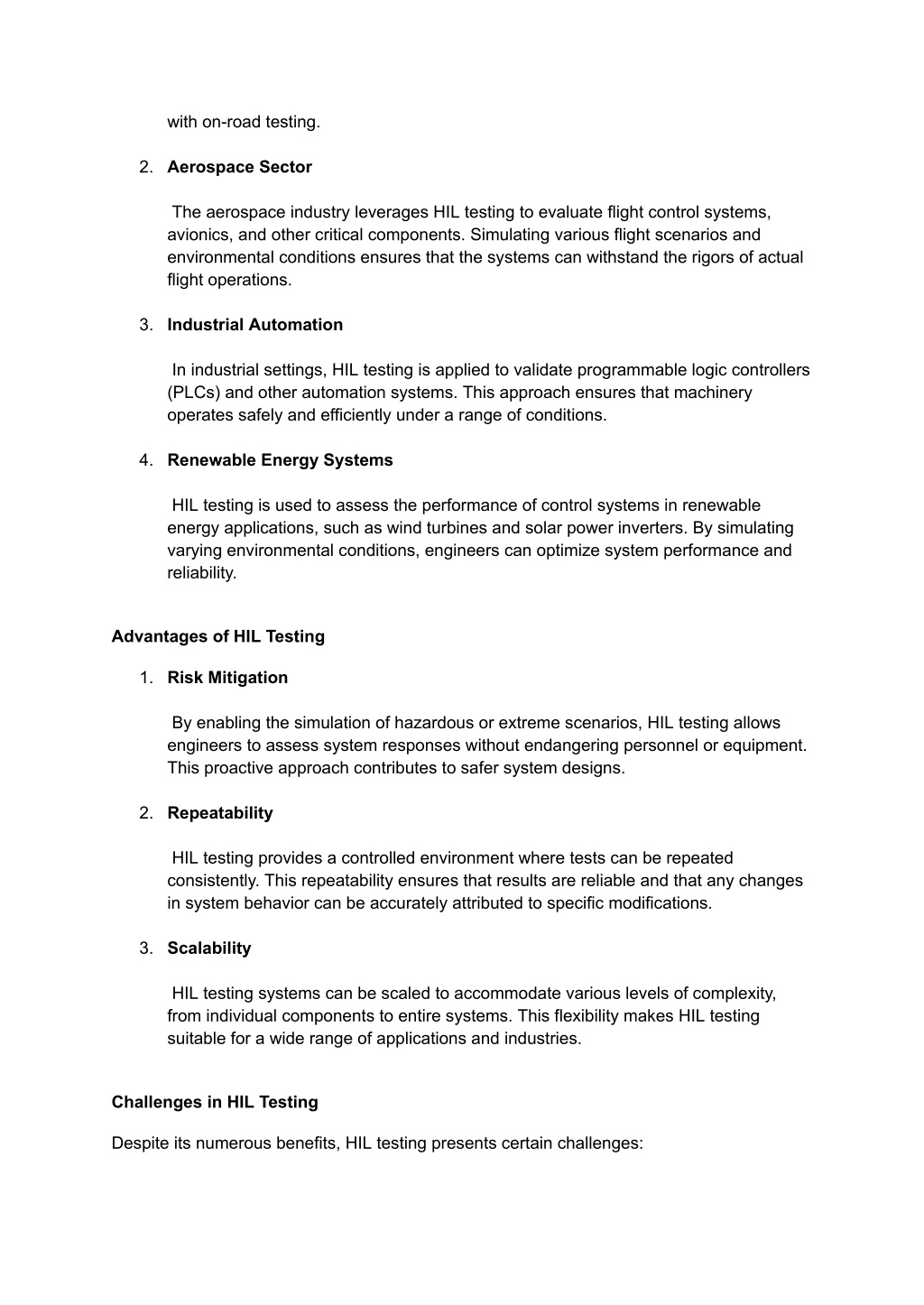

3. with on-road testing. 2. Aerospace Sector The aerospace industry leverages HIL testing to evaluate flight control systems, avionics, and other critical components. Simulating various flight scenarios and environmental conditions ensures that the systems can withstand the rigors of actual flight operations. 3. Industrial Automation In industrial settings, HIL testing is applied to validate programmable logic controllers (PLCs) and other automation systems. This approach ensures that machinery operates safely and efficiently under a range of conditions. 4. Renewable Energy Systems HIL testing is used to assess the performance of control systems in renewable energy applications, such as wind turbines and solar power inverters. By simulating varying environmental conditions, engineers can optimize system performance and reliability. Advantages of HIL Testing 1. Risk Mitigation By enabling the simulation of hazardous or extreme scenarios, HIL testing allows engineers to assess system responses without endangering personnel or equipment. This proactive approach contributes to safer system designs. 2. Repeatability HIL testing provides a controlled environment where tests can be repeated consistently. This repeatability ensures that results are reliable and that any changes in system behavior can be accurately attributed to specific modifications. 3. Scalability HIL testing systems can be scaled to accommodate various levels of complexity, from individual components to entire systems. This flexibility makes HIL testing suitable for a wide range of applications and industries. Challenges in HIL Testing Despite its numerous benefits, HIL testing presents certain challenges:

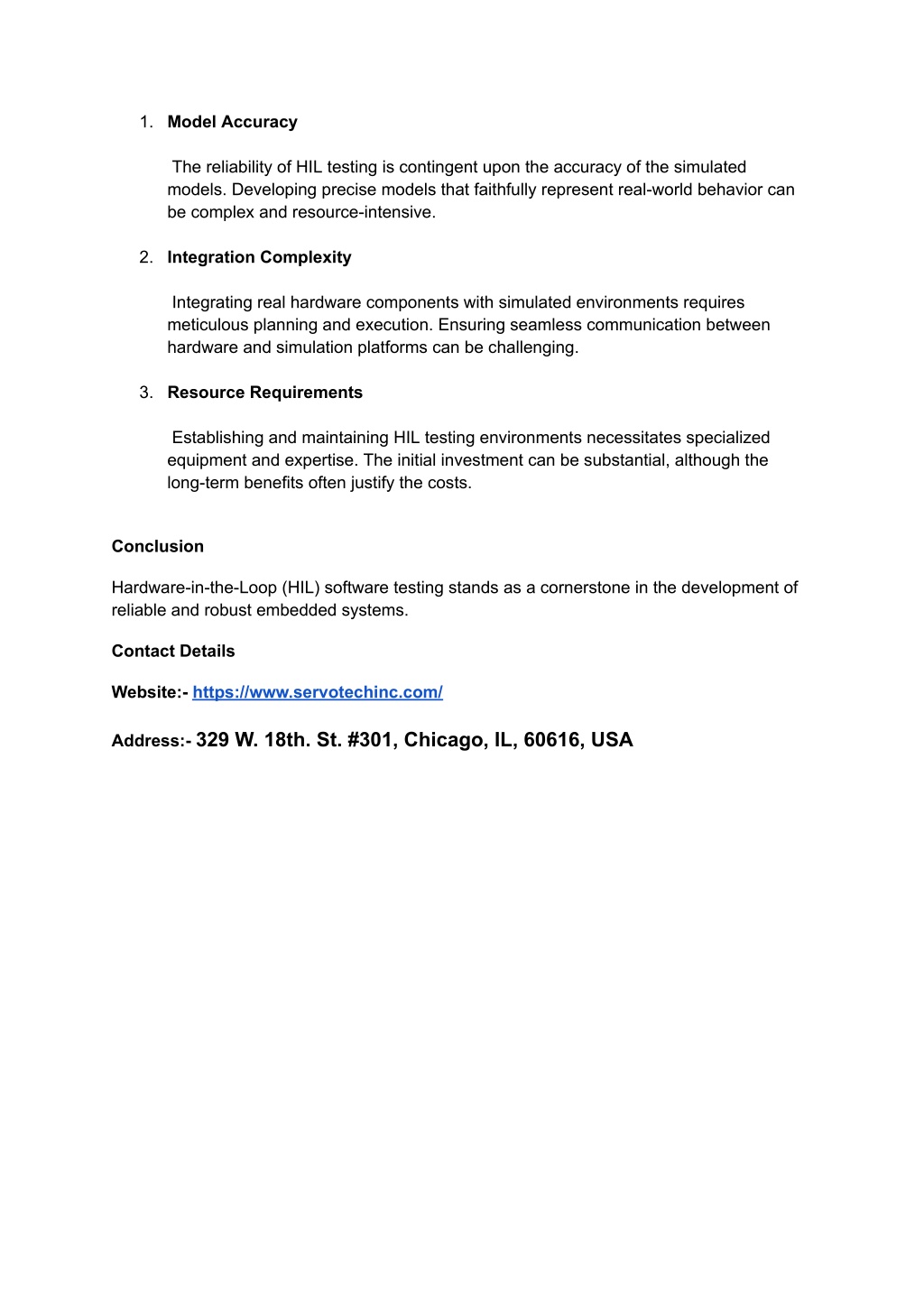

4. 1. Model Accuracy The reliability of HIL testing is contingent upon the accuracy of the simulated models. Developing precise models that faithfully represent real-world behavior can be complex and resource-intensive. 2. Integration Complexity Integrating real hardware components with simulated environments requires meticulous planning and execution. Ensuring seamless communication between hardware and simulation platforms can be challenging. 3. Resource Requirements Establishing and maintaining HIL testing environments necessitates specialized equipment and expertise. The initial investment can be substantial, although the long-term benefits often justify the costs. Conclusion Hardware-in-the-Loop (HIL) software testing stands as a cornerstone in the development of reliable and robust embedded systems. Contact Details Website:- https://www.servotechinc.com/ Address:- 329 W. 18th. St. #301, Chicago, IL, 60616, USA
