Mapping Cortical Development Using Diffusion Tensor Imaging

Jeff Neil, MD, PhD

Departments of Neurology, Radiology and Pediatrics


Slide2 l.jpg

MR Imaging

  • Detect signal from 1H of H2O, which is present at a concentration of approximately 100 M.

  • In conventional imaging, signal intensity (greyscale) is related to MR relaxation properties of 1H2O such as T1 or T2 relaxation times.

  • Water in grey matter has different T1 and T2 relaxation times than water in white matter or CSF.


Slide3 l.jpg

Water motion in white matter

Parallel to axons

Perpendicular to axons


Slide4 l.jpg

Hindered Diffusion

(diffusion ellipsoid)

without hindrance

with hindrance

WILSON


Slide5 l.jpg

Ellipsoid Image

Pierpaoli and Basser, Toward a Quantitative Assessment of Diffusion Anisotropy, Magn. Reson. Med, 36, 893-906 (1996)


Slide6 l.jpg

Information available through DTI -- Dav

  • Related to the overall size of the ellipsoid.

  • Values for Dav change with brain maturation.

  • Values of Dav change dynamically after injury (useful for early detection of injury).


Slide7 l.jpg

Diffusion MR Imaging of Stoke

Five hours after onset right hemiparesis and aphasia

DWI

T2W

Courtesy of Jonathan Lewin, Case Western Reserve/UH of Cleveland


Slide8 l.jpg

Information available through DTI -- Aσ

s

av

  • Related to the shape of the ellipsoid

  • Independent of Dav (normalized)

  • Zero for a sphere, positive for other shapes

  • Sensitive to myelination and cortical development


Diffusion tensor imaging a s l.jpg

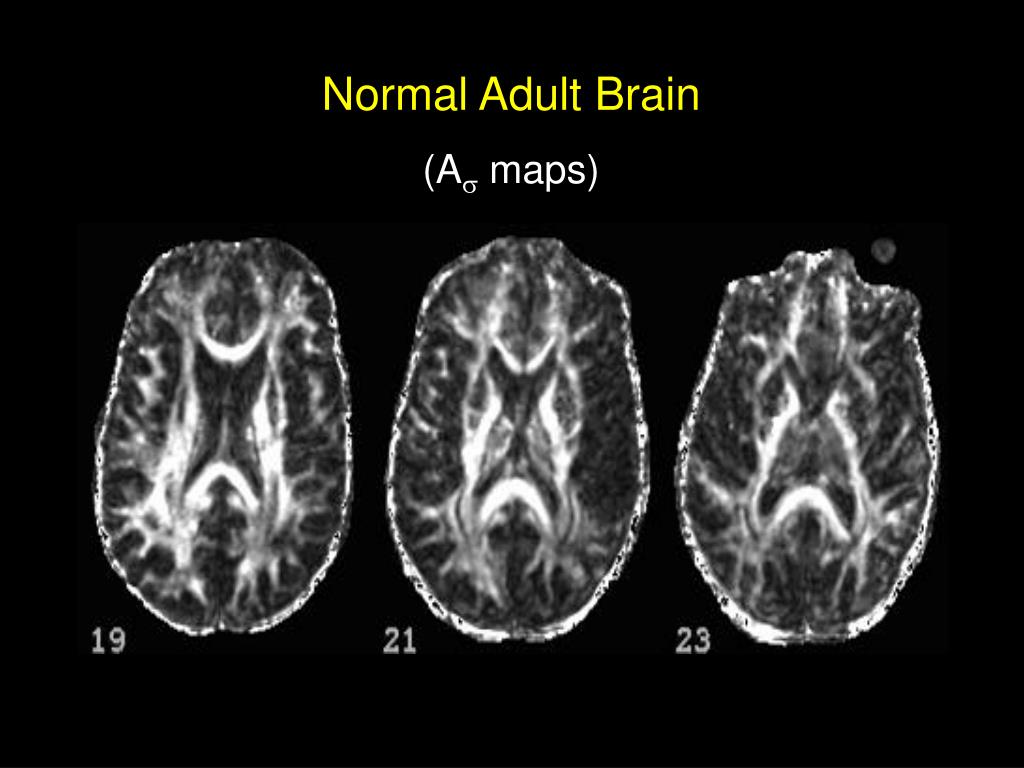

Normal Adult Brain

(A maps)

Diffusion Tensor Imaging (As)


Slide10 l.jpg

Information available through DTI – Orientation of λ1

  • Useful for following white matter tracts


Diffusion tracking of geniculo calcarine tracts l.jpg
Diffusion Tracking of Geniculo-Calcarine Tracts

Conturo et al. Tracking neuronal fiber pathways in the living human brain PNAS96, 10422-10427 (1999).


Slide12 l.jpg

I. Diffusion Anisotropy in Cortical Grey Matter – Human Studies

McKinstry et al. Radial organization of developing human cerebral cortex revealed by non-invasive water diffusion anisotropy MRI, Cereb Cortex, 12, 1237-1243 (2002).


Slide13 l.jpg

Background Studies

  • Nonzero values for diffusion anisotropy have been described occurring transiently during the cerebral cortical development:

    • Cat [Baratti et al. Proc ISMRM, 5th Annual Meeting and Exhibition, Vancouver 504 (1997)]

    • Pig [Thornton et al. Magn Reson Imaging15, 433-440 (1997)].

  • We measured cerebral cortical anisotropy values from premature newborn infants.





Slide18 l.jpg

M. Marin-Padilla StudiesJ Comp Neurol321, 223 (1992)


Slide20 l.jpg

Cortical Anisotropy Conclusions Studies

  • Cerebral cortex in infants less than 36 weeks gestational age (GA) has nonzero anisotropy values.

  • Cortical A values decrease with increasing GA (rank sum = -0.94, p < 0.01) and are consistent with zero after 36 weeks GA.

  • Changes in diffusion anisotropy reflect changes in underlying cortical architecture.

  • Diffusion anisotropy measures may have a role in assessing cortical development and its response to injury.



Slide22 l.jpg

Experimental Design Preliminary Baboon Data

  • Evaluated immersion-fixed tissue supplied by the Southwest Foundation in San Antonio (Drs. Jackie Coalson, Brad Yoder, Don McCurnin).

  • Specimens available from 90 days (20 weeks) through 182 days (40 weeks).

  • 450 mm3 spatial resolution.

  • 40 q or b values

  • Bayesian probability theory for model selection and parameter estimation (Drs. Chris Kroenke, G. Larry Bretthorst).


Slide23 l.jpg

No Constant Preliminary Baboon Data

Diffusion + C

Model

Selection

No Signal

Constant

Isotropic

Oblate

Prolate

DTI


Slide24 l.jpg

Model Preliminary Baboon Data

Selection


Slide25 l.jpg

Anisotropy Maps Preliminary Baboon Data

90

128

182

146

0.0

0.2

0.4

0.6


Slide26 l.jpg

D Preliminary Baboon Data

Ellipsoid Map


Slide27 l.jpg

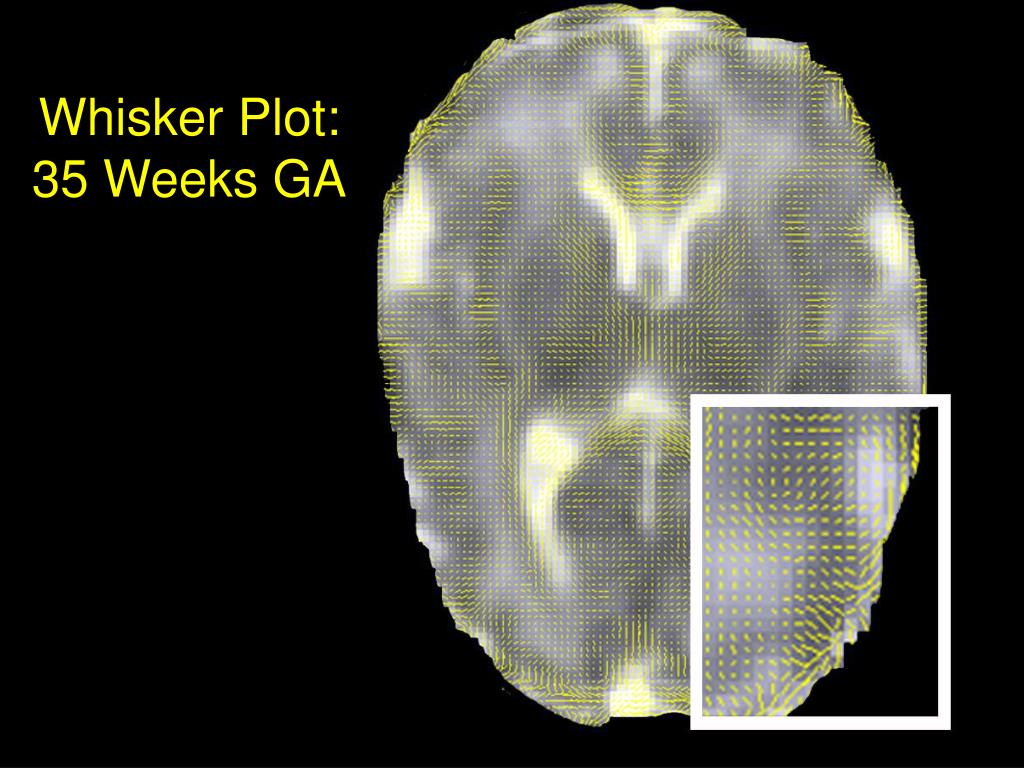

Whisker Preliminary Baboon Data

Plot


Slide28 l.jpg

Baboon Study Conclusions Preliminary Baboon Data

  • Anisotropy features of fixed baboon brain are remarkably similar to those of live premature infants.

  • Models for cortical anisotropy tend to be fairly simple (axisymmetric, prolate, include “constant”).

  • Similar information can be obtained from human infants using fewer b or q values (i.e., with shorter scan times than for baboon tissue).

  • Studies of tissue from injured baboons (and humans) are under way.


Slide29 l.jpg

Terrie E. Inder, MD, PhD Preliminary Baboon Data

Chris Kroenke, PhD

G. Larry Bretthorst, PhD

Robert C. McKinstry, MD, PhD

Amit Mathur, MD

Jeff Miller, MD

I. Alpay Ozcan, DSc

Georgia Schefft, CPNP

Shelly I. Shiran, MD

Joshua S. Shimony, MD, PhD

Avi Z. Snyder, MD, PhD

C. Robert Almli, PhD

NS37357
