  1. Potter’s Wheel: An Interactive Data Cleaning System Vijayshankar Raman Joseph M. Hellerstein

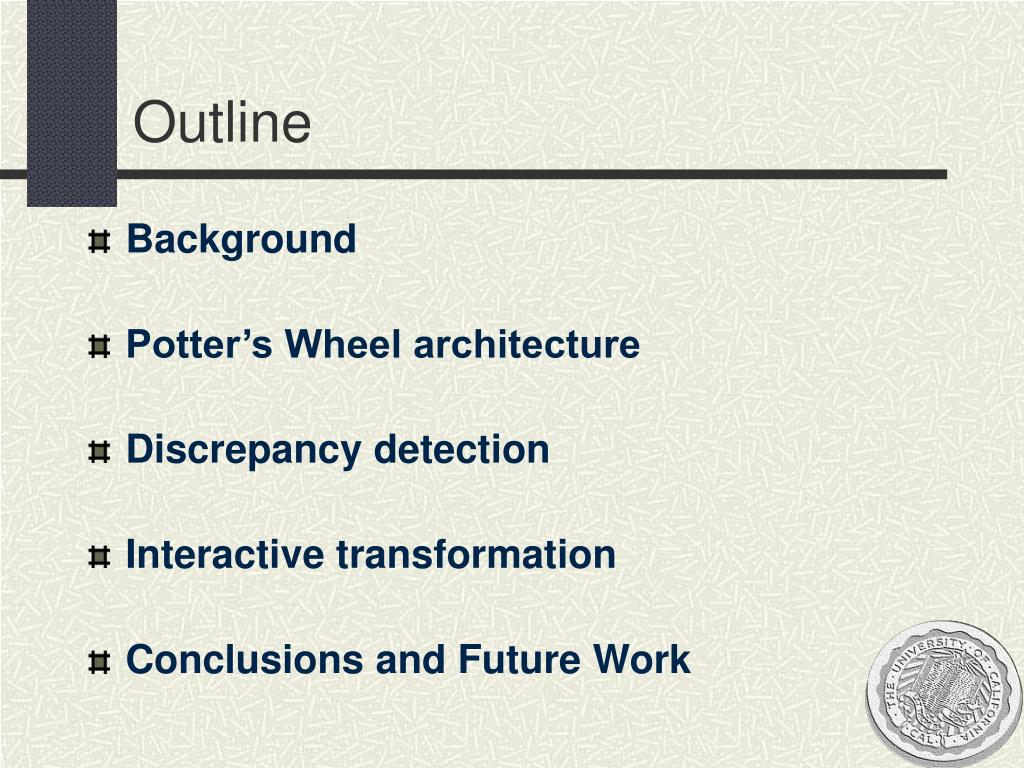

  2. Outline • Background • Potter’s Wheel architecture • Discrepancy detection • Interactive transformation • Conclusions and Future Work

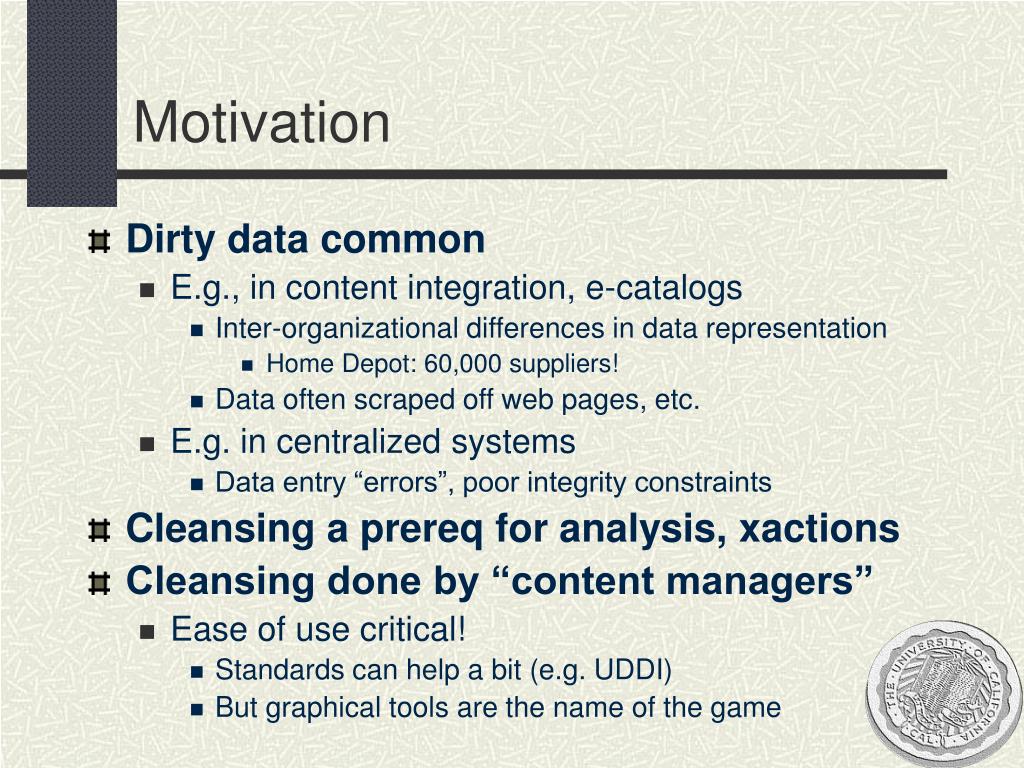

  3. Motivation • Dirty data common • E.g., in content integration, e-catalogs • Inter-organizational differences in data representation • Home Depot: 60,000 suppliers! • Data often scraped off web pages, etc. • E.g. in centralized systems • Data entry “errors”, poor integrity constraints • Cleansing a prereq for analysis, xactions • Cleansing done by “content managers” • Ease of use critical! • Standards can help a bit (e.g. UDDI) • But graphical tools are the name of the game

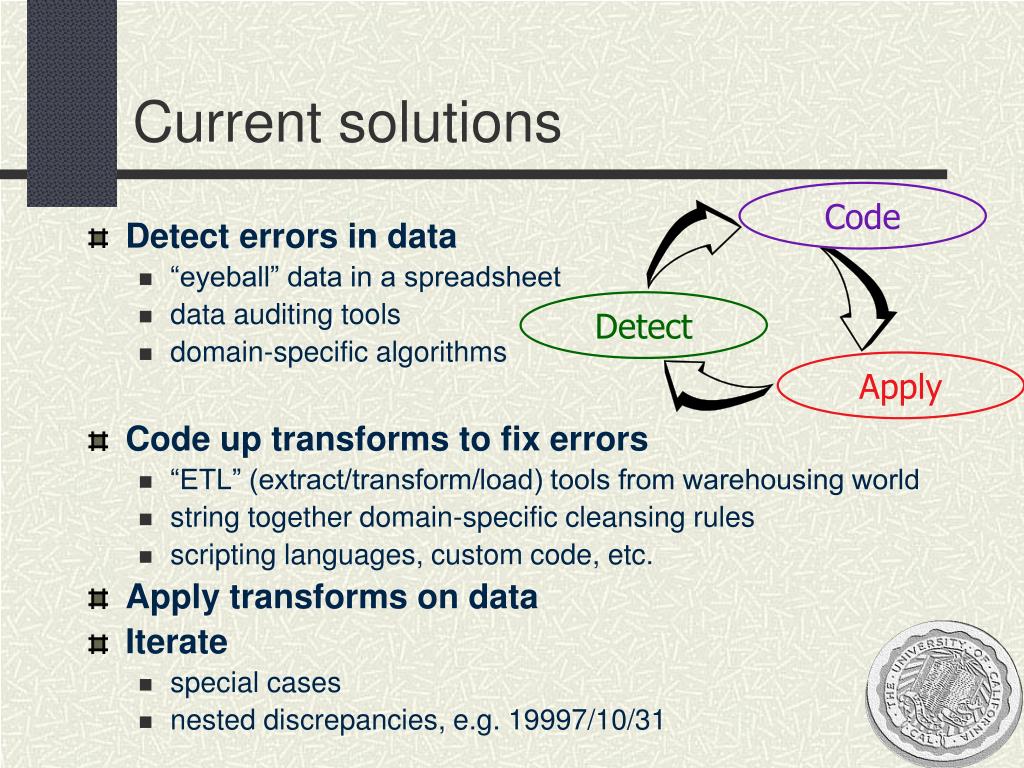

  4. Code Detect Apply Current solutions • Detect errors in data • “eyeball” data in a spreadsheet • data auditing tools • domain-specific algorithms • Code up transforms to fix errors • “ETL” (extract/transform/load) tools from warehousing world • string together domain-specific cleansing rules • scripting languages, custom code, etc. • Apply transforms on data • Iterate • special cases • nested discrepancies, e.g. 19997/10/31

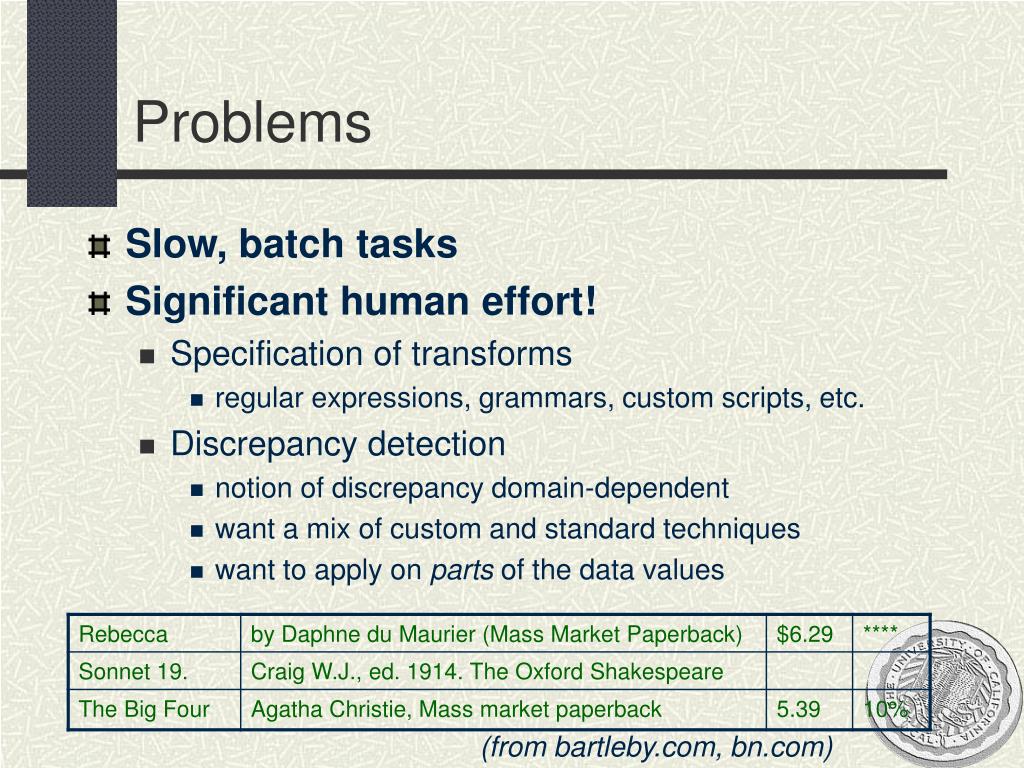

  5. Problems • Slow, batch tasks • Significant human effort! • Specification of transforms • regular expressions, grammars, custom scripts, etc. • Discrepancy detection • notion of discrepancy domain-dependent • want a mix of custom and standard techniques • want to apply on parts of the data values (from bartleby.com, bn.com)

  6. Outline • Background • Potter’s Wheel architecture • Discrepancy detection • Interactive Transformation • Conclusions and Future Work

  7. Potter’s Wheel: Design Goals • Eliminate wait time during each step • Even on big data! Use Online Reordering (VLDB ‘99), sampling • Ensure transform results can be seen/undone instantly • Compile/optimize sequence of transforms when happy • Eliminate programming, but keep user “in the loop” • Semi-automatic, “direct manipulation” GUI • Support & leverage “eyeball” detection, verification (human input) • Point-and-click transformation “by example” • Unify detection and transformation • Detection always runs online in the background • Detection always runs on transformed “view” of data • Extensibility • Domain experts (vendors) should be able to plugin detectors/transforms • A mixed (“Systems!”) design challenge: • Query Processing, HCI, Learning Limited appreciation for this kind of systems work

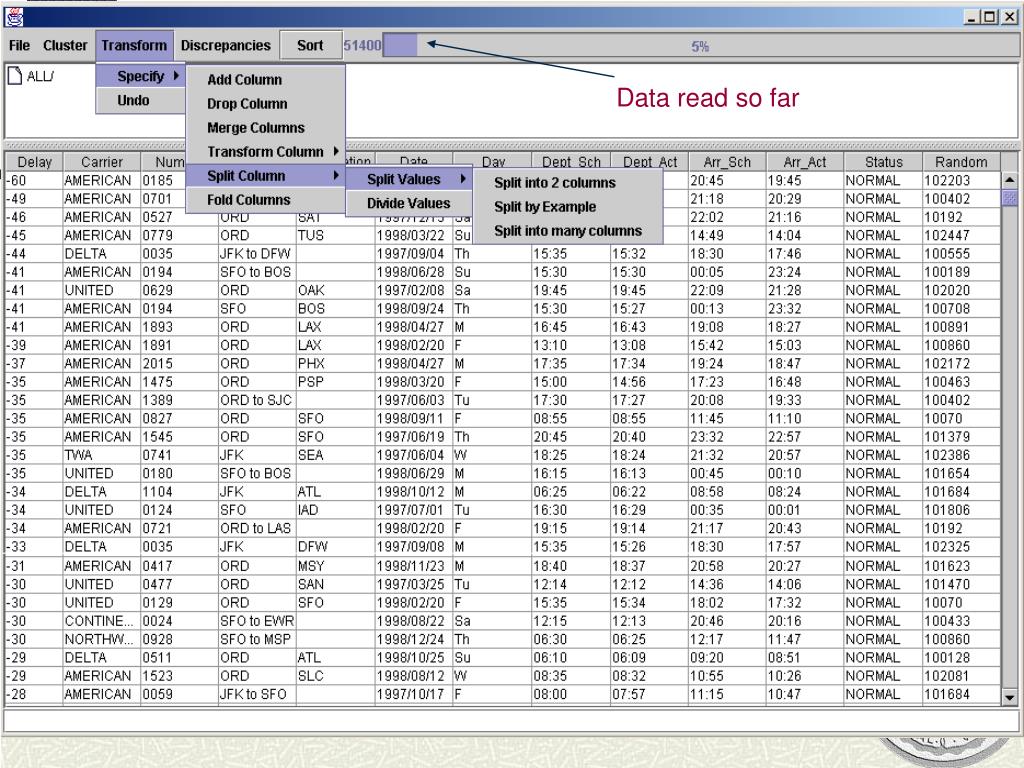

  8. Potter’s Wheel UI Data read so far

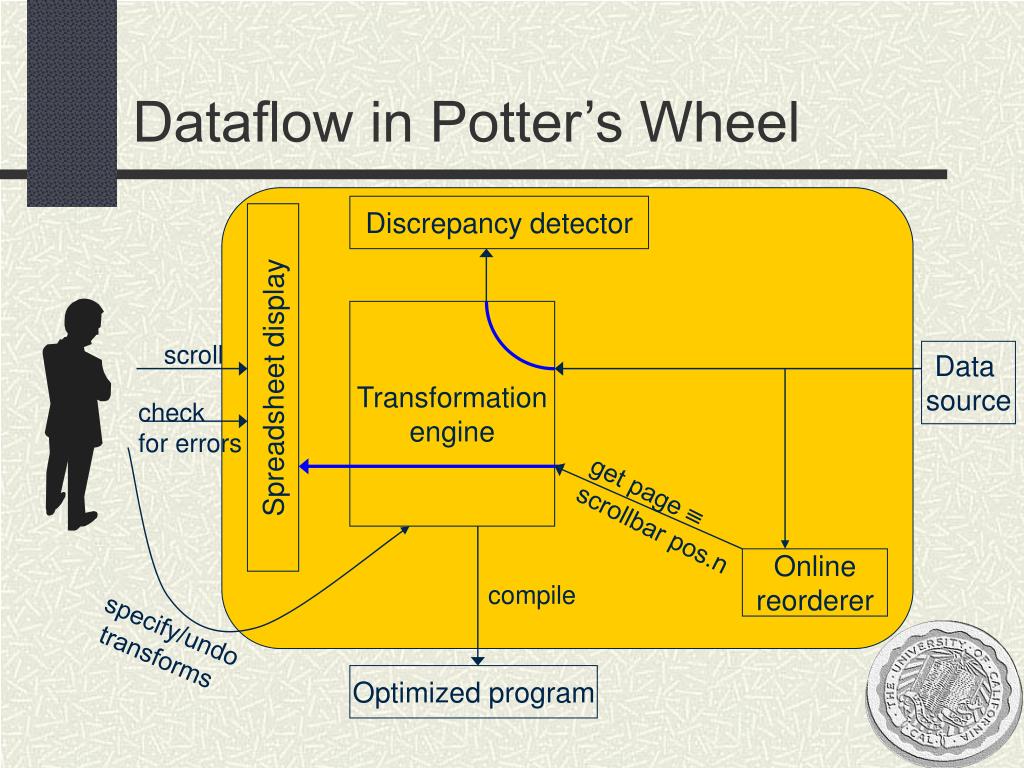

  9. Dataflow in Potter’s Wheel Discrepancy detector Spreadsheet display Transformation engine scroll Data source check for errors get page  scrollbar pos.n Online reorderer Optimized program compile specify/undo transforms

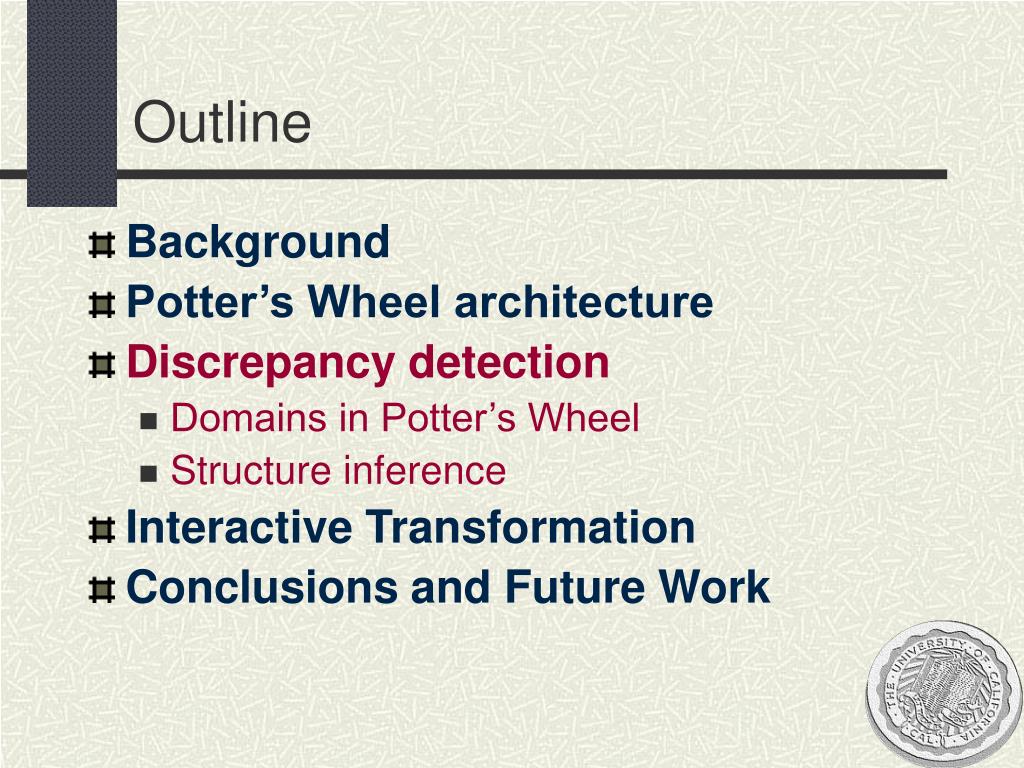

  10. Outline • Background • Potter’s Wheel architecture • Discrepancy detection • Domains in Potter’s Wheel • Structure inference • Interactive Transformation • Conclusions and Future Work

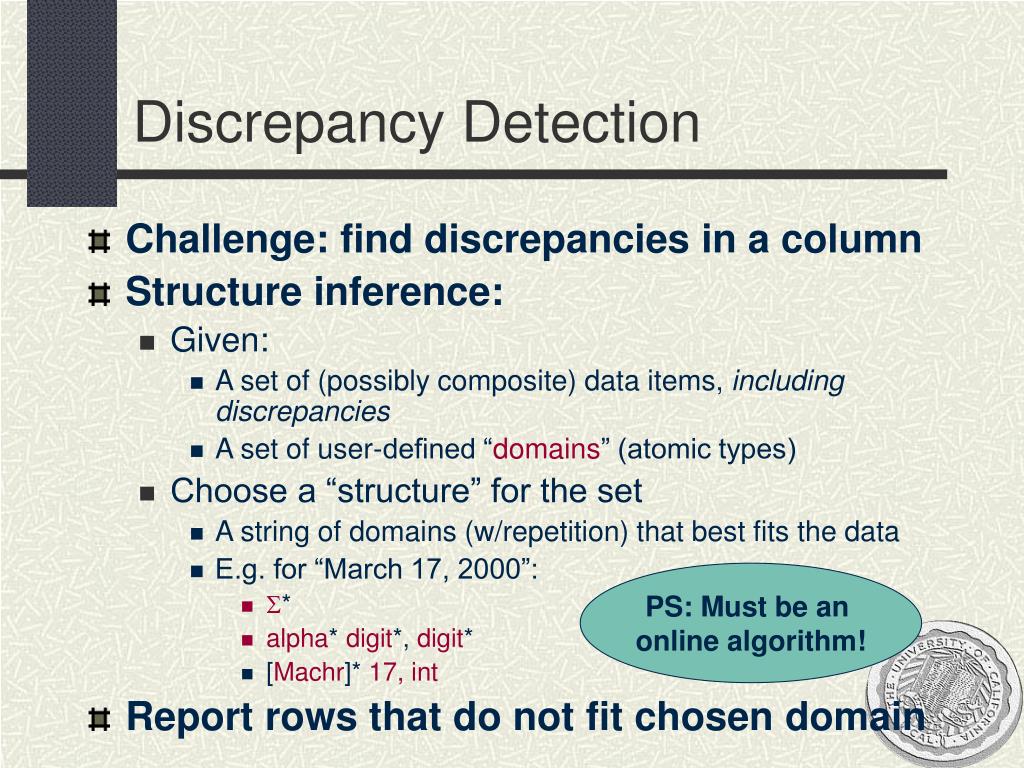

  11. Discrepancy Detection • Challenge: find discrepancies in a column • Structure inference: • Given: • A set of (possibly composite) data items, including discrepancies • A set of user-defined “domains” (atomic types) • Choose a “structure” for the set • A string of domains (w/repetition) that best fits the data • E.g. for “March 17, 2000”: • S* • alpha* digit*, digit* • [Machr]* 17,int • Report rows that do not fit chosen domain PS: Must be an online algorithm!

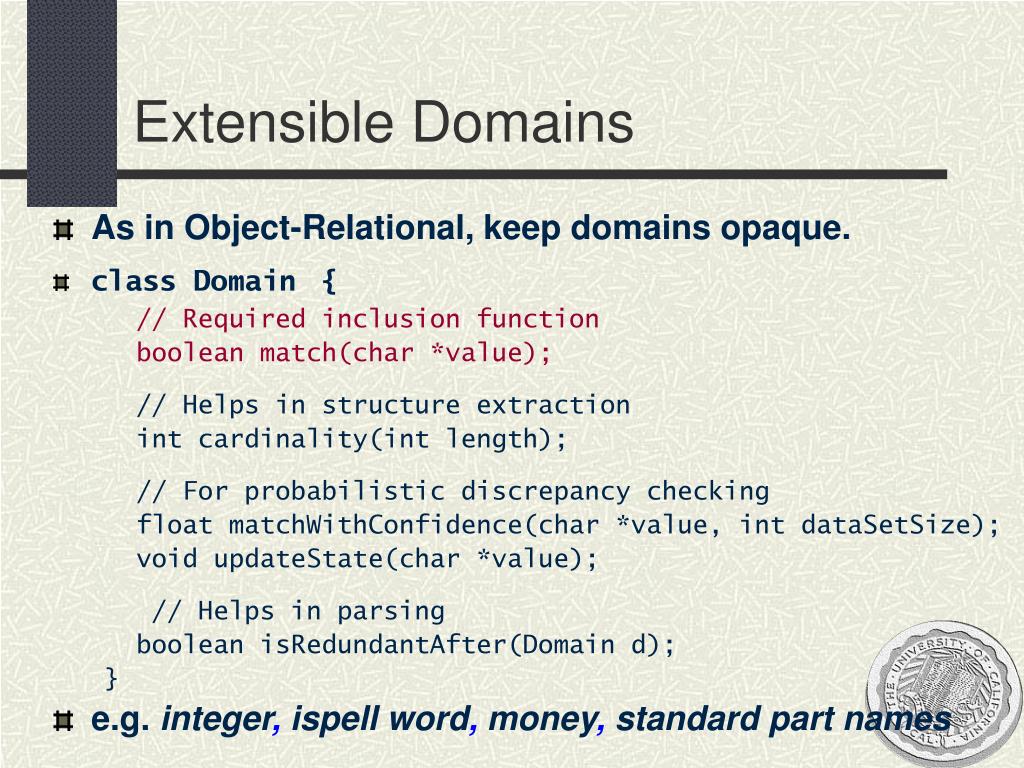

  12. Extensible Domains • As in Object-Relational, keep domains opaque. • class Domain{ // Required inclusion function boolean match(char *value); // Helps in structure extraction int cardinality(int length); // For probabilistic discrepancy checking float matchWithConfidence(char *value, int dataSetSize); void updateState(char *value); // Helps in parsing boolean isRedundantAfter(Domain d); } • e.g. integer, ispell word, money, standard part names

  13. Evaluating Structure Fit • Three desired characteristics • Recall • match as many values as possible • Precision • flag as many real discrepancies as possible • e.g. Month day, day over alpha* digit*, digit* • Conciseness • avoid over-fitting examples, make use of the domains • e.g. alpha* digit*, digit* over March 17, 2000

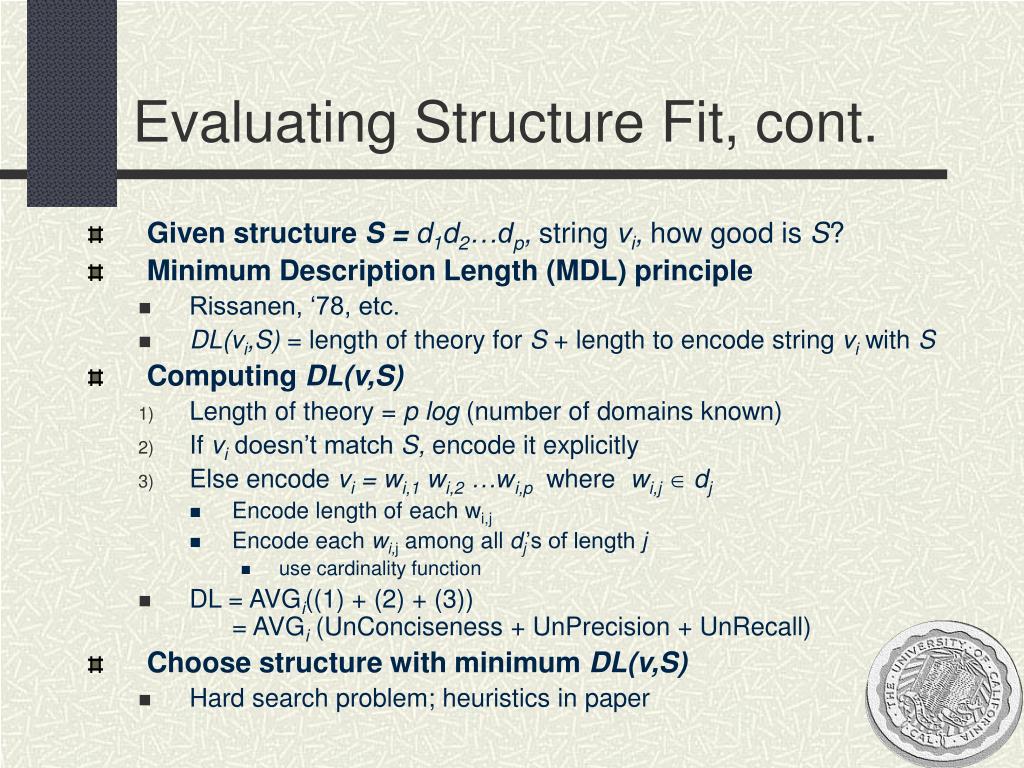

  14. Evaluating Structure Fit, cont. • Given structure S = d1d2…dp, string vi, how good is S? • Minimum Description Length (MDL) principle • Rissanen, ‘78, etc. • DL(vi,S) = length of theory for S + length to encode string vi with S • Computing DL(v,S) • Length of theory = p log (number of domains known) • If vidoesn’t match S, encode it explicitly • Else encode vi = wi,1 wi,2 …wi,p where wi,jdj • Encode length of each wi,j • Encode each wi,j among all dj’s of length j • use cardinality function • DL = AVGi((1) + (2) + (3)) = AVGi (UnConciseness + UnPrecision + UnRecall) • Choose structure with minimum DL(v,S) • Hard search problem; heuristics in paper

  15. Potter’s Wheel UI

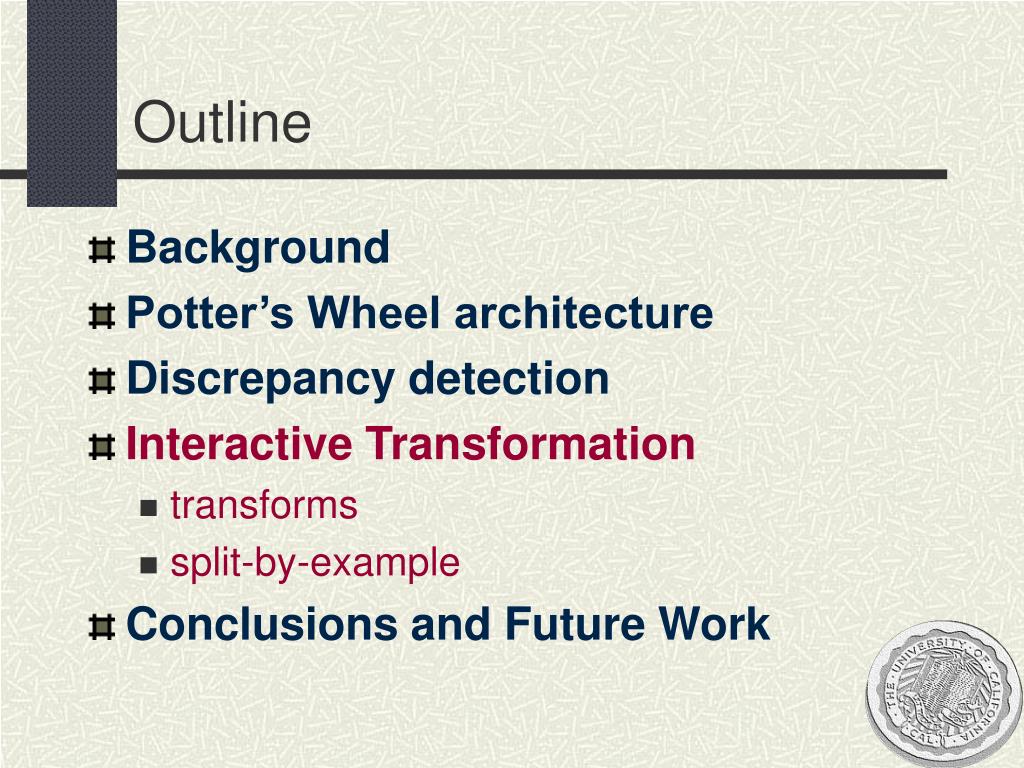

  16. Outline • Background • Potter’s Wheel architecture • Discrepancy detection • Interactive Transformation • transforms • split-by-example • Conclusions and Future Work

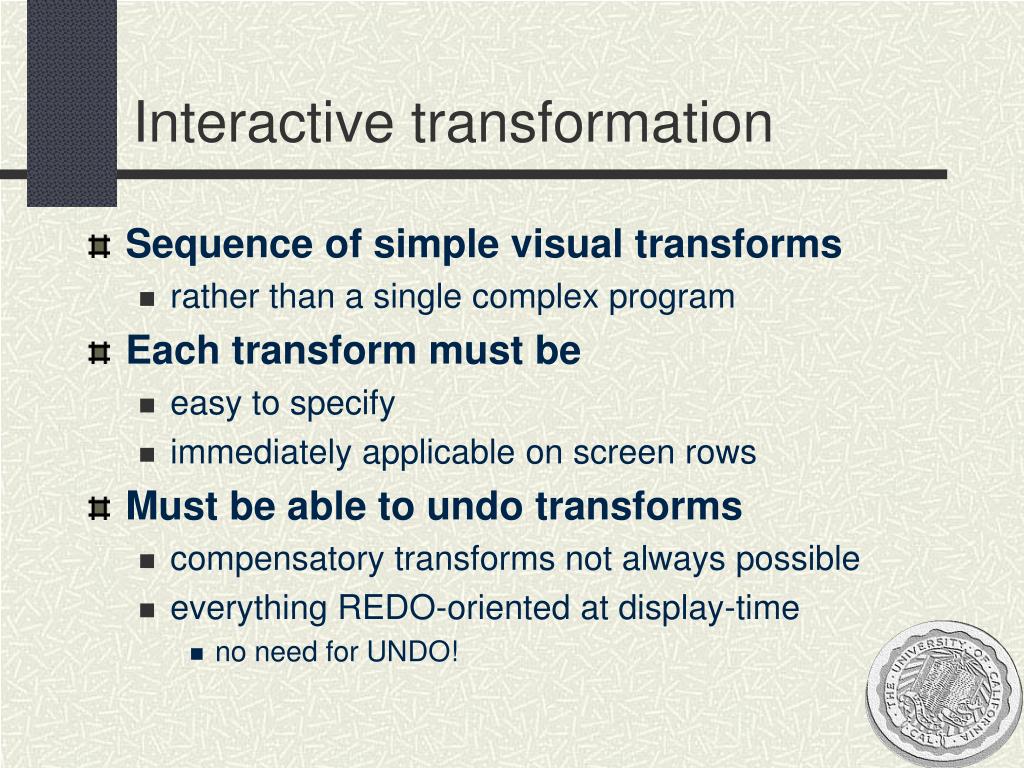

  17. Interactive transformation • Sequence of simple visual transforms • rather than a single complex program • Each transform must be • easy to specify • immediately applicable on screen rows • Must be able to undo transforms • compensatory transforms not always possible • everything REDO-oriented at display-time • no need for UNDO!

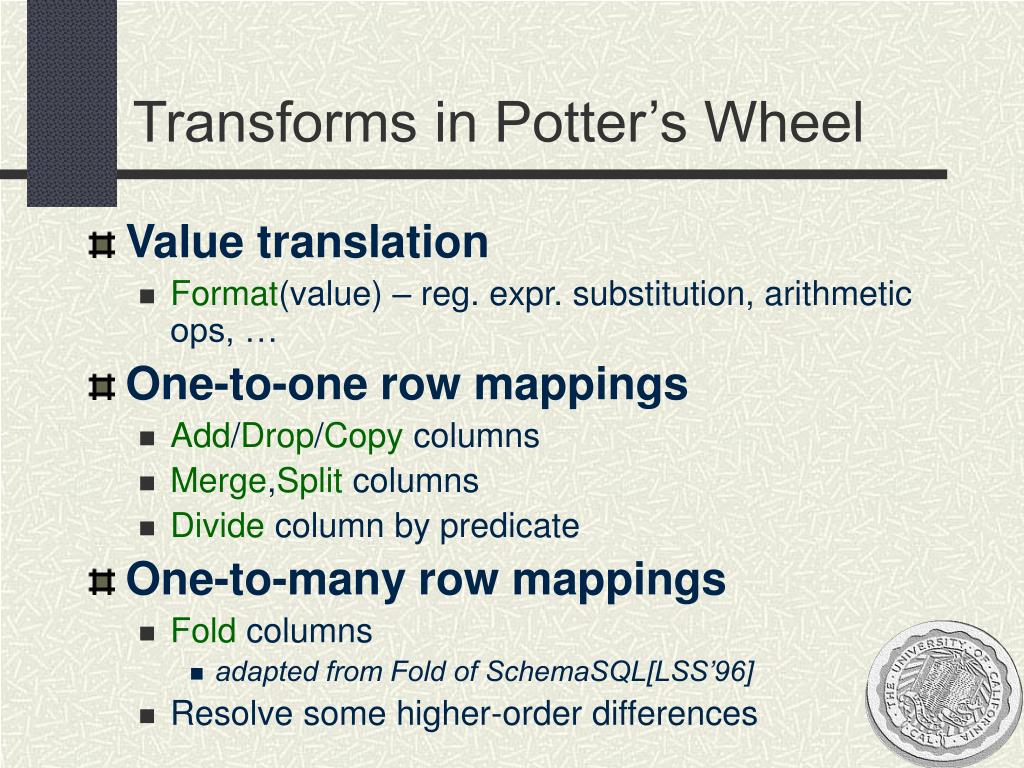

  18. Transforms in Potter’s Wheel • Value translation • Format(value) – reg. expr. substitution, arithmetic ops, … • One-to-one row mappings • Add/Drop/Copy columns • Merge,Split columns • Divide column by predicate • One-to-many row mappings • Fold columns • adapted from Fold of SchemaSQL[LSS’96] • Resolve some higher-order differences

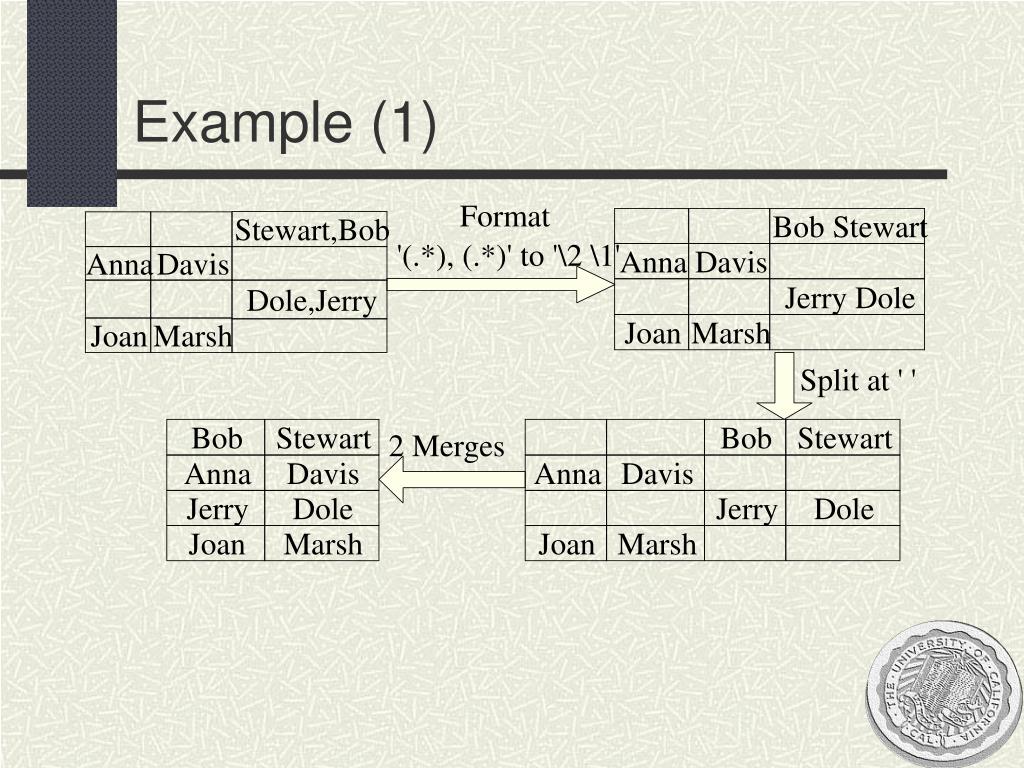

  19. Example (1) Format Bob Stewart Stewart,Bob '(.*), (.*)' to '\2 \1' Anna Davis Anna Davis Jerry Dole Dole,Jerry Joan Marsh Joan Marsh Split at ' ' Bob Stewart Bob Stewart 2 Merges Anna Davis Anna Davis Jerry Dole Jerry Dole Joan Marsh Joan Marsh

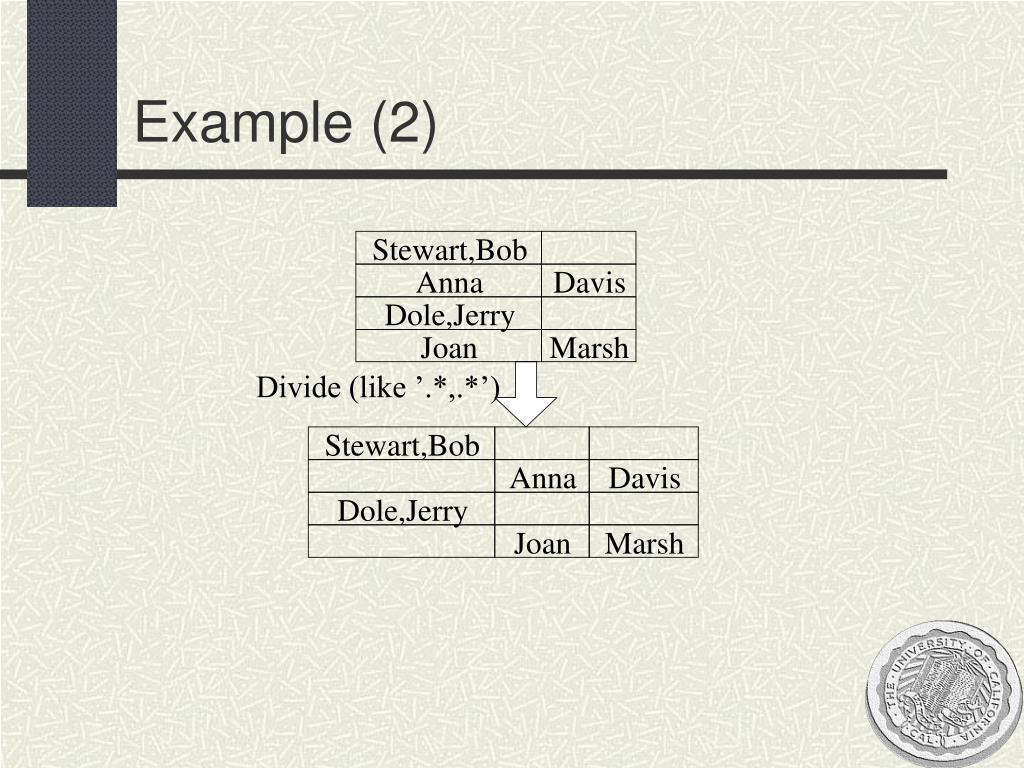

  20. Example (2) Stewart,Bob Anna Davis Dole,Jerry Joan Marsh Divide (like ’.*,.*’) Stewart,Bob Anna Davis Dole,Jerry Joan Marsh

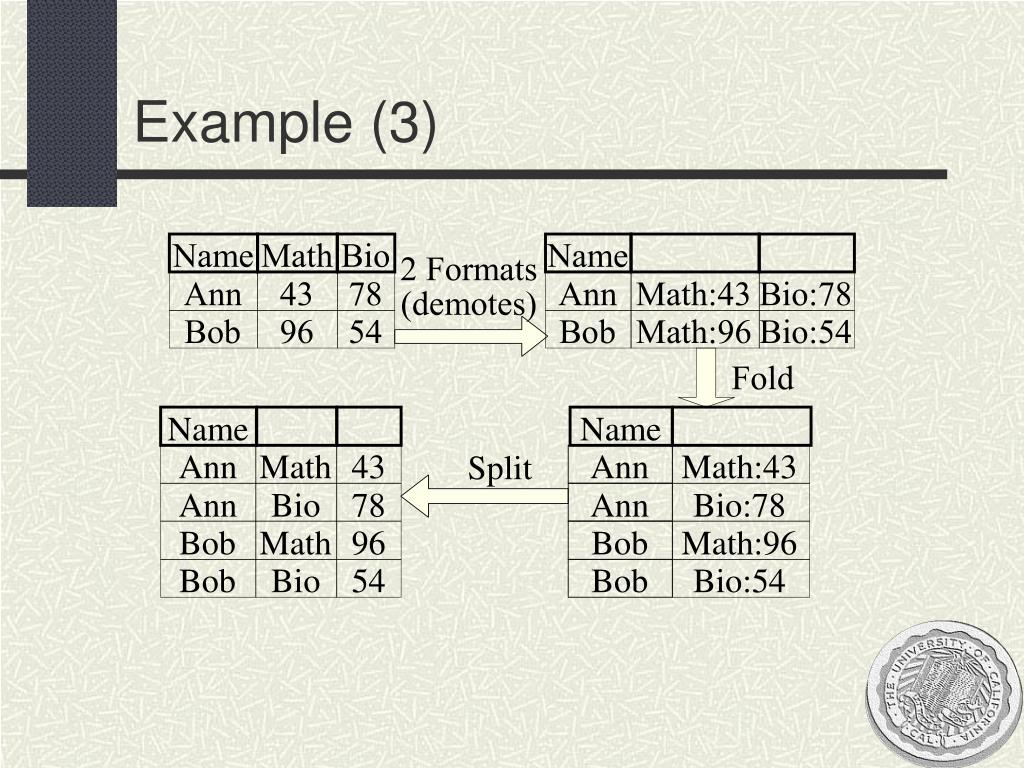

  21. Example (3) Name Math Bio Name 2 Formats Ann 43 78 Ann Math:43 Bio:78 (demotes) Bob 96 54 Bob Math:96 Bio:54 Fold Name Name Ann Math 43 Ann Math:43 Split Ann Bio 78 Ann Bio:78 Bob Math 96 Bob Math:96 Bob Bio 54 Bob Bio:54

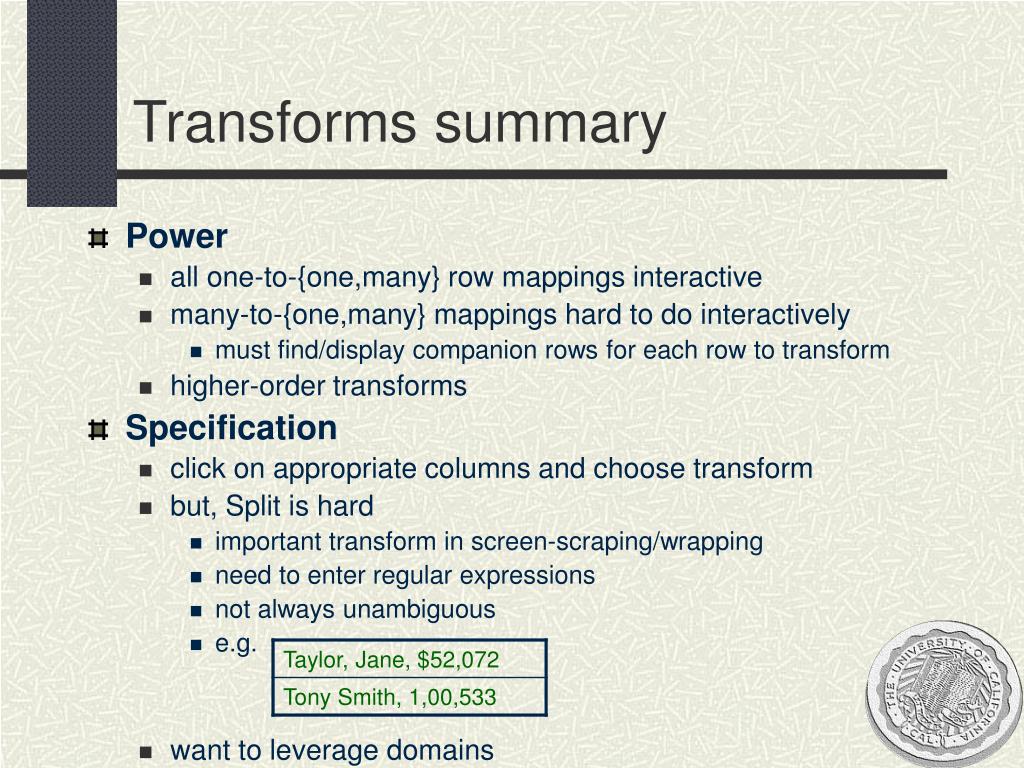

  22. Transforms summary • Power • all one-to-{one,many} row mappings interactive • many-to-{one,many} mappings hard to do interactively • must find/display companion rows for each row to transform • higher-order transforms • Specification • click on appropriate columns and choose transform • but, Split is hard • important transform in screen-scraping/wrapping • need to enter regular expressions • not always unambiguous • e.g. • want to leverage domains

  23. Split by Example • User marks split positions on examples • System infers structure, then parses rest • Parsing • must identify matching substrings for structures • multiple alternate parses could work • search heuristics explored in paper • DecreasingSpecificity seems good infer structures < * >, <‘,’ Money>

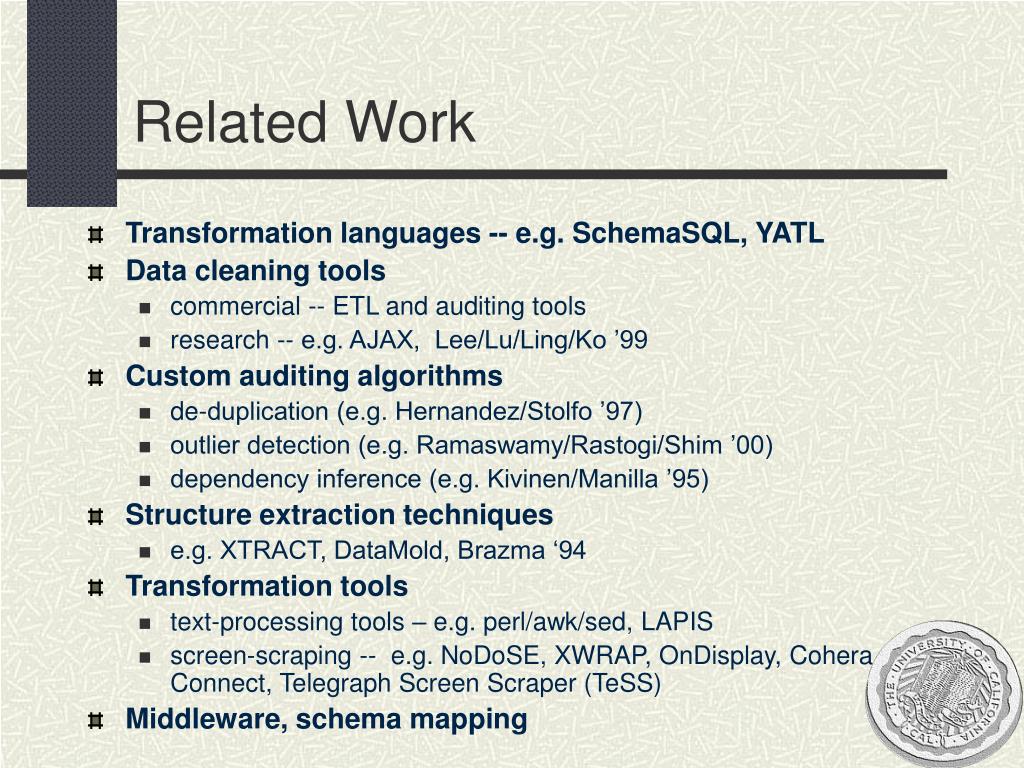

  24. Related Work • Transformation languages -- e.g. SchemaSQL, YATL • Data cleaning tools • commercial -- ETL and auditing tools • research -- e.g. AJAX, Lee/Lu/Ling/Ko ’99 • Custom auditing algorithms • de-duplication (e.g. Hernandez/Stolfo ’97) • outlier detection (e.g. Ramaswamy/Rastogi/Shim ’00) • dependency inference (e.g. Kivinen/Manilla ’95) • Structure extraction techniques • e.g. XTRACT, DataMold, Brazma ‘94 • Transformation tools • text-processing tools – e.g. perl/awk/sed, LAPIS • screen-scraping -- e.g. NoDoSE, XWRAP, OnDisplay, Cohera Connect, Telegraph Screen Scraper (TeSS) • Middleware, schema mapping

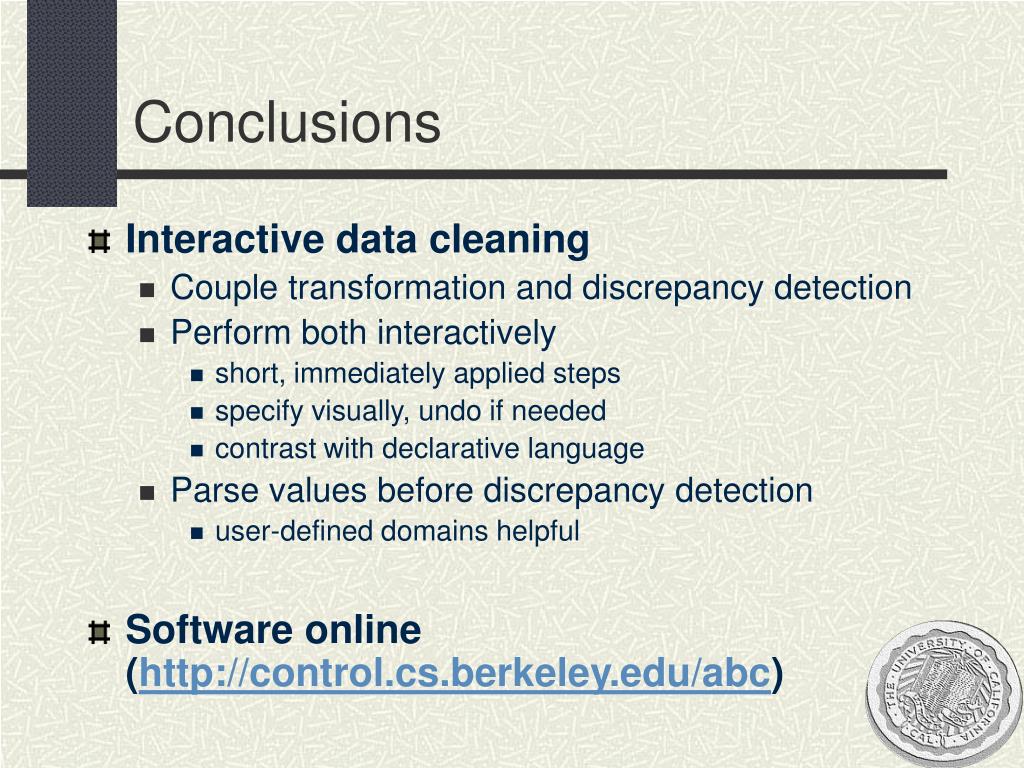

  25. Conclusions • Interactive data cleaning • Couple transformation and discrepancy detection • Perform both interactively • short, immediately applied steps • specify visually, undo if needed • contrast with declarative language • Parse values before discrepancy detection • user-defined domains helpful • Software online (http://control.cs.berkeley.edu/abc)

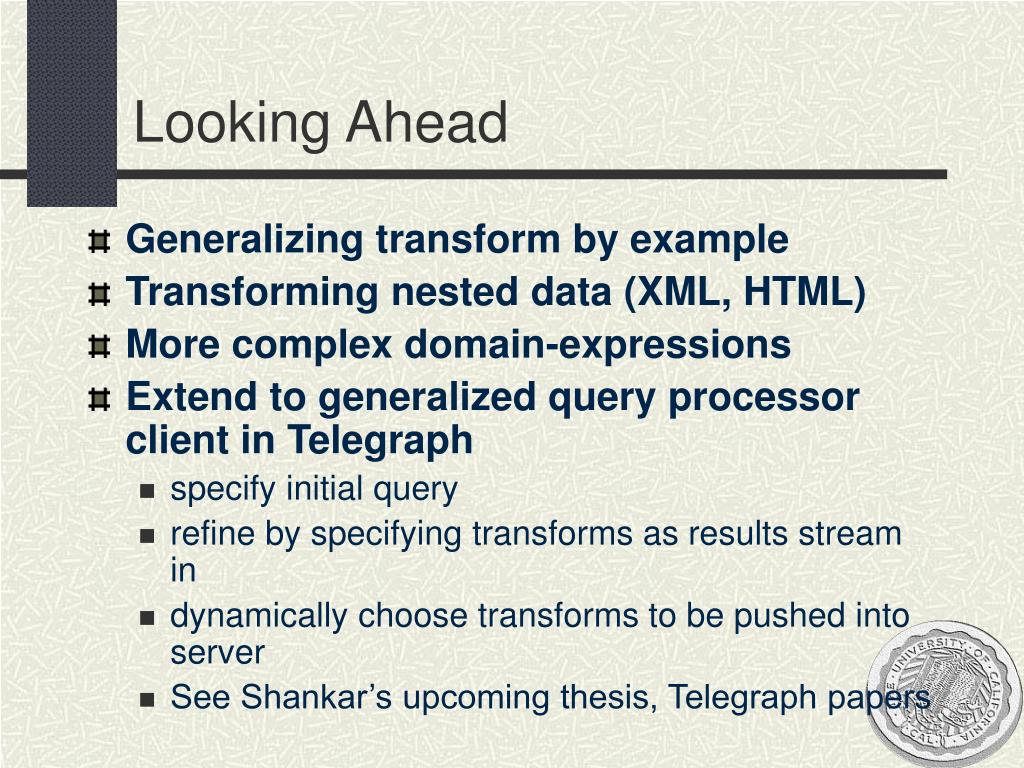

  26. Looking Ahead • Generalizing transform by example • Transforming nested data (XML, HTML) • More complex domain-expressions • Extend to generalized query processor client in Telegraph • specify initial query • refine by specifying transforms as results stream in • dynamically choose transforms to be pushed into server • See Shankar’s upcoming thesis, Telegraph papers

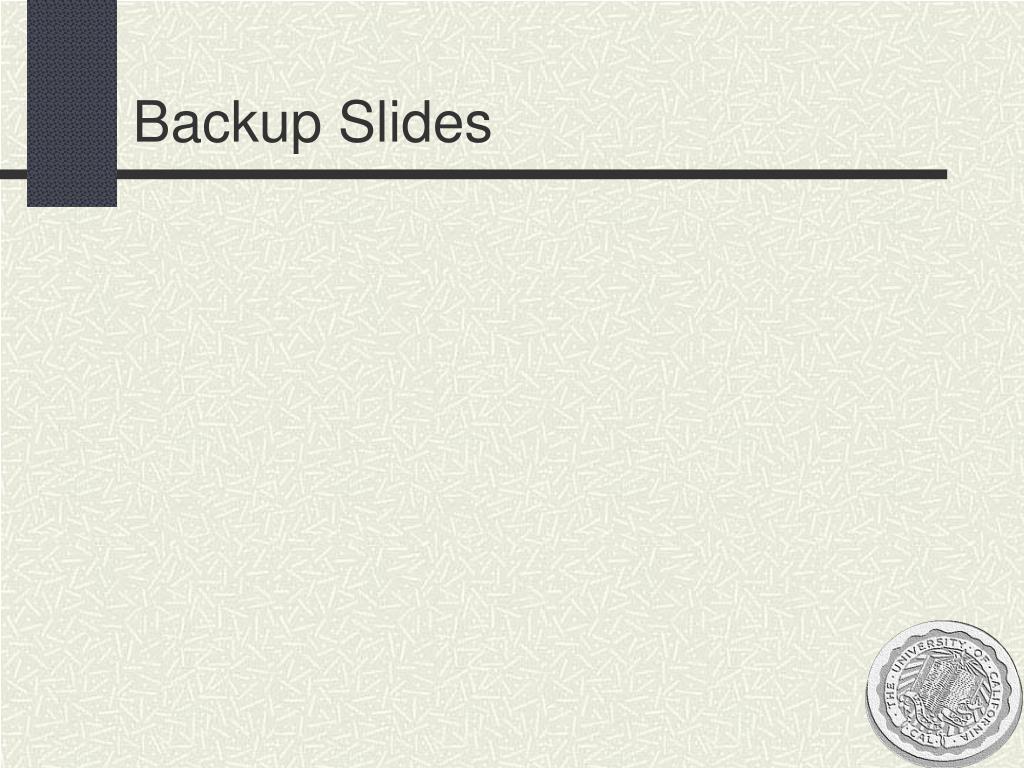

  27. Backup Slides

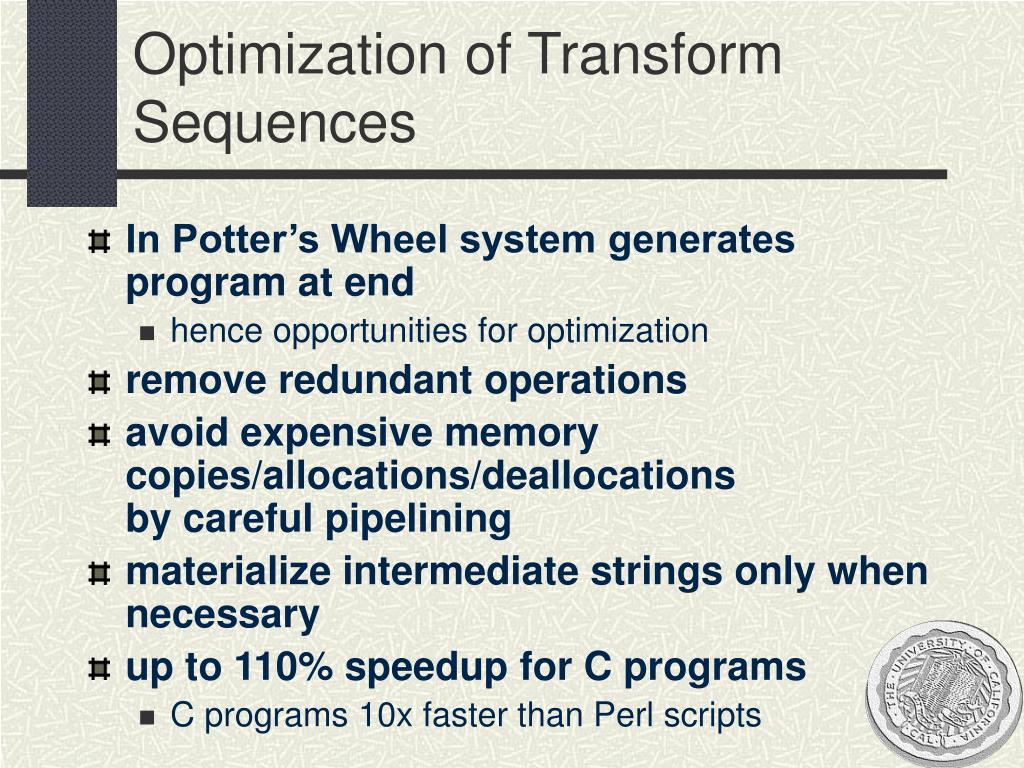

  28. Optimization of Transform Sequences • In Potter’s Wheel system generates program at end • hence opportunities for optimization • remove redundant operations • avoid expensive memory copies/allocations/deallocationsby careful pipelining • materialize intermediate strings only when necessary • up to 110% speedup for C programs • C programs 10x faster than Perl scripts

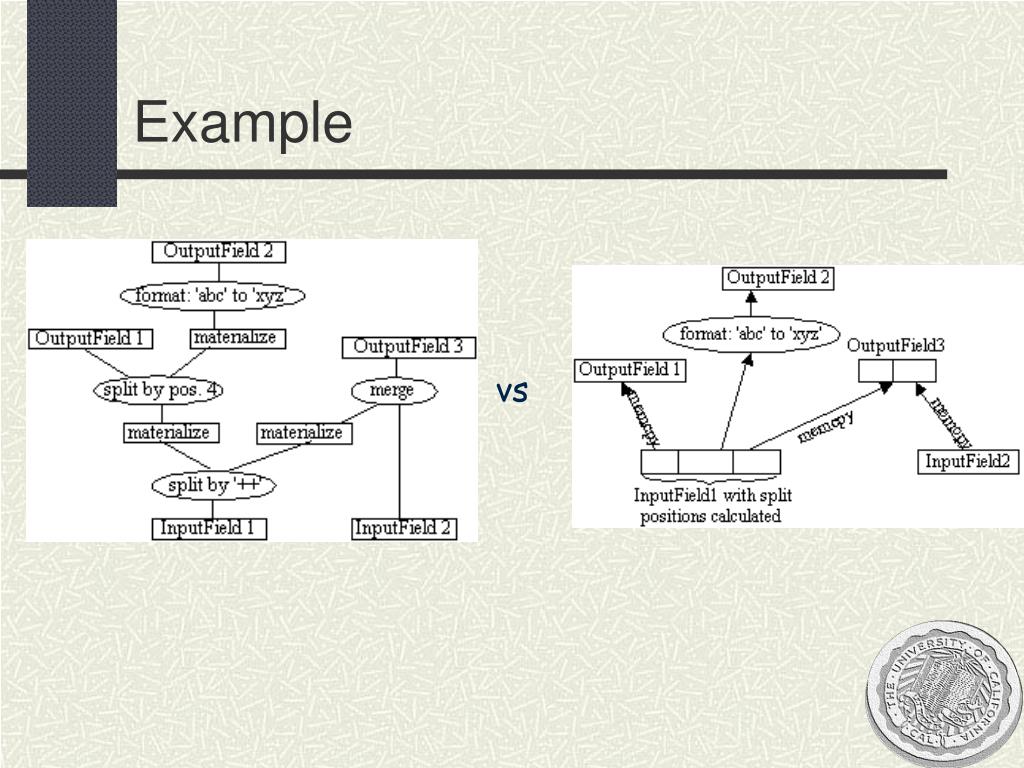

  29. Example vs
