Presentation Transcript

Learning outcomes part 2 l.jpg
Learning Outcomes – Part 2

  • The participant will learn:

    • In what circumstances LS residuals provide direct information on how the model for the fixed effects is misspecified

    • How and why to transform a GLS model into a LS model

    • The different types of residuals in mixed models and their uses

    • SAS diagnostics for fixed effects and covariance parameters in mixed models

    • How PRISM plots provide information about the covariance structure

    • General strategies for building mixed models

    • How penalised spline regression can be used as a nonparametric fitting method


Slide3 l.jpg

Department of Statistics

TEXAS A&M UNIVERSITY

Choosing the models for the mean and the covariance structure


Three approaches to modeling the covariance l.jpg
Three approaches to modeling the covariance

  • Random effects covariance structures:- random intercepts and/or random slopes

  • Covariance pattern models

  • Unstructured covariance


Slide5 l.jpg

Verbeke, G. & Molenbergs, G. (2000), Linear Mixed Models for Longitudinal Data, Springer, New York

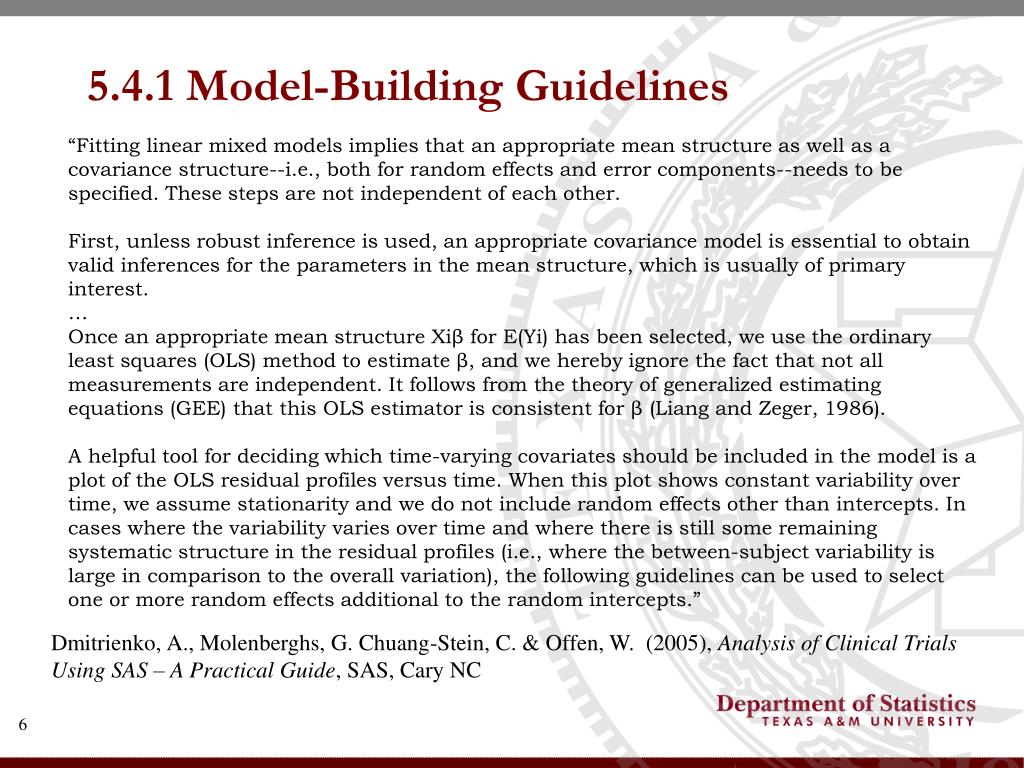

5 4 1 model building guidelines l.jpg
5.4.1 Model-Building Guidelines

“Fitting linear mixed models implies that an appropriate mean structure as well as a covariance structure--i.e., both for random effects and error components--needs to be specified. These steps are not independent of each other.

First, unless robust inference is used, an appropriate covariance model is essential to obtain valid inferences for the parameters in the mean structure, which is usually of primary interest.

Once an appropriate mean structure Xiβ for E(Yi) has been selected, we use the ordinary least squares (OLS) method to estimate β, and we hereby ignore the fact that not all measurements are independent. It follows from the theory of generalized estimating equations (GEE) that this OLS estimator is consistent for β (Liang and Zeger, 1986).

A helpful tool for deciding which time-varying covariates should be included in the model is a plot of the OLS residual profiles versus time. When this plot shows constant variability over time, we assume stationarity and we do not include random effects other than intercepts. In cases where the variability varies over time and where there is still some remaining systematic structure in the residual profiles (i.e., where the between-subject variability is large in comparison to the overall variation), the following guidelines can be used to select one or more random effects additional to the random intercepts.”

Dmitrienko, A., Molenberghs, G. Chuang-Stein, C. & Offen, W. (2005), Analysis of Clinical Trials Using SAS – A Practical Guide, SAS, Cary NC


Slide7 l.jpg

Department of Statistics

TEXAS A&M UNIVERSITY

A cautionary example


Interest rate example l.jpg
Interest Rate Example

Tryfos, P. (1998), Methods for Business Analysis and Forecasting: Text & Cases, Wiley, New York

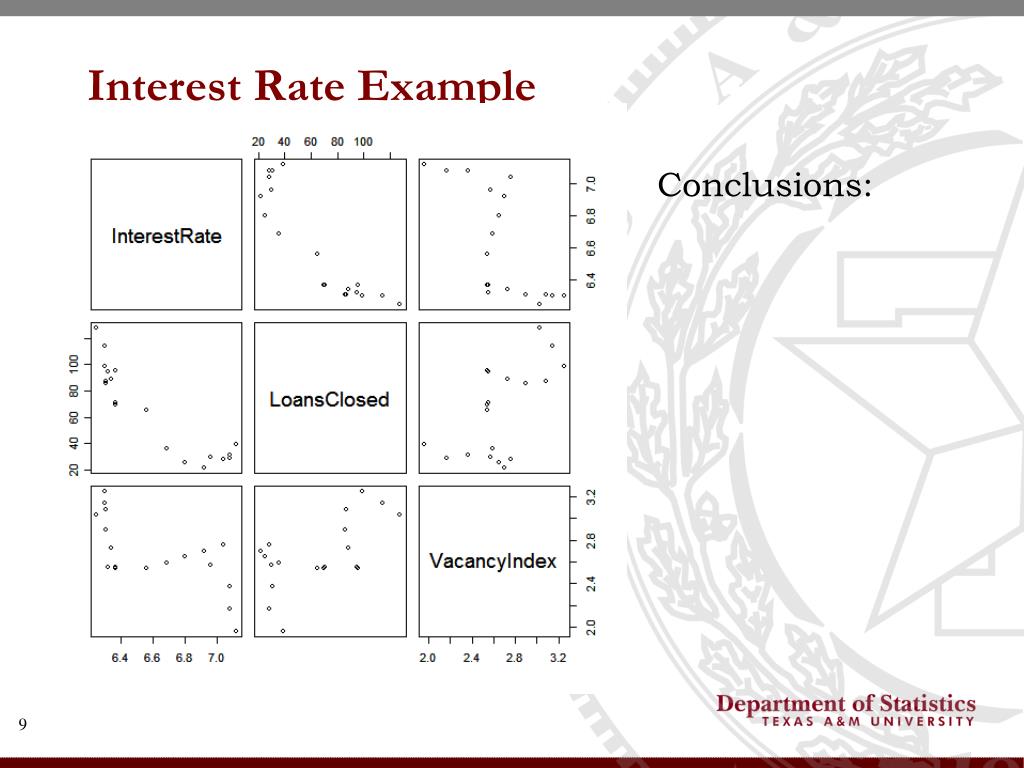

Interest rate example9 l.jpg
Interest Rate Example

Conclusions:


Interest rate example10 l.jpg
Interest Rate Example

Next Steps:

Add a quadratic term in Loans Closed to the model

Or

?



Interest rate example model with ar 1 errors l.jpg
Interest Rate Example: Model with AR(1) errors

Generalized least squares fit by maximum likelihood

Model: InterestRate ~ LoansClosed + I(LoansClosed^2)

+ VacancyIndex

Correlation Structure: AR(1)

Formula: ~Month

Parameter estimate(s):

Phi

0.9568896

Coefficients:

Value Std.Error t-value p-value

(Intercept) 7.163999 0.4505311 15.901231 0.0000

LoansClosed -0.004723 0.0044814 -1.053932 0.3086

I(LoansClosed^2) 0.000009 0.0000285 0.298965 0.7691

VacancyIndex -0.079368 0.1349623 -0.588074 0.5652

What happened to the quadratic term in LoansClosed that is evident in the LS residual plots?


Interest rate example model with ar 1 errors13 l.jpg
Interest Rate Example: Model with AR(1) errors

Generalized least squares fit by maximum likelihood

Model: InterestRate ~ LoansClosed + VacancyIndex

Correlation Structure: AR(1)

Formula: ~Month

Parameter estimate(s):

Phi

0.9572093

Coefficients:

Value Std.Error t-value p-value

(Intercept) 7.122990 0.4182065 17.032232 0.0000

LoansClosed -0.003432 0.0011940 -2.874452 0.0110

VacancyIndex -0.076340 0.1307842 -0.583710 0.5676

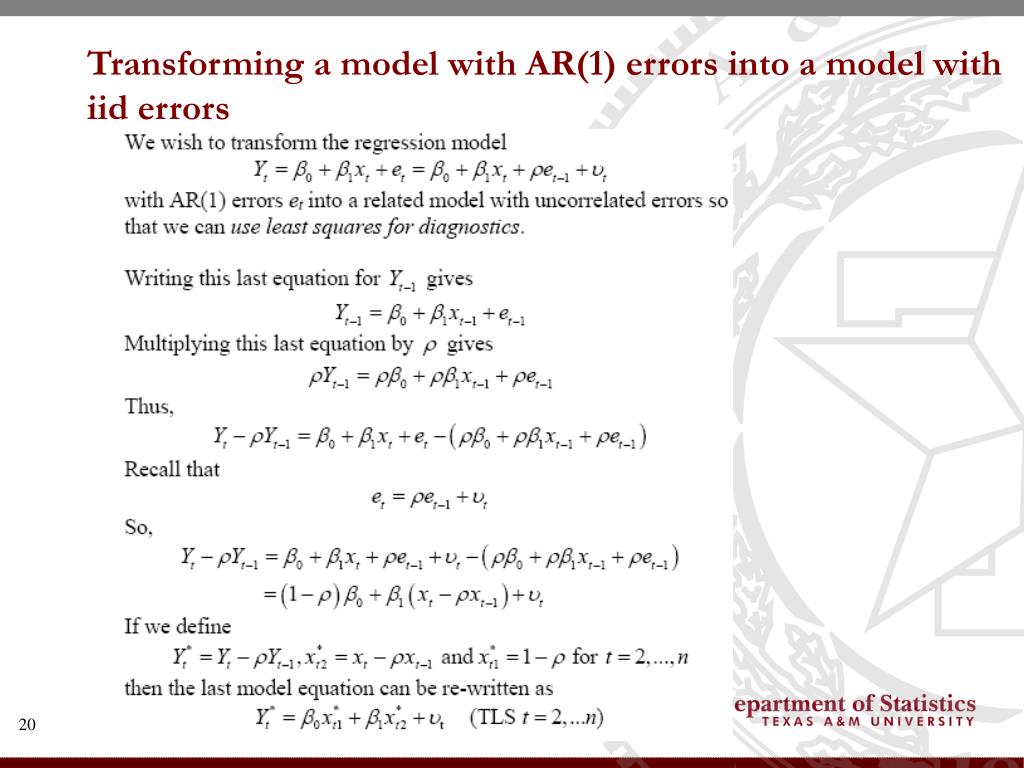

Interest rate example after transforming a model with ar 1 errors into a model with iid errors l.jpg
Interest Rate Example after transforming a model with AR(1) errors into a model with iid errors

Call:

lm(formula = ystar ~ xstar - 1)

Coefficients:

Estimate Std. Error t value Pr(>|t|)

xstar(Intercept) 7.122990 0.418207 17.032 1.12e-11

xstarLoansClosed -0.003432 0.001194 -2.874 0.011

xstarVacancyIndex -0.076340 0.130784 -0.584 0.568

Generalized least squares fit by maximum likelihood

Coefficients:

Value Std.Error t-value p-value

(Intercept) 7.122990 0.4182065 17.032232 0.0000

LoansClosed -0.003432 0.0011940 -2.874452 0.0110

VacancyIndex -0.076340 0.1307842 -0.583710 0.5676



Interpreting residual plots l.jpg
Interpreting residual plots errors into a model with iid errors

Li, K.C. and Duan, N. (1989), Regression analysis under link violation, Annals of Statistics, 17, 1009-1052.


Interpreting residual plots17 l.jpg
Interpreting residual plots errors into a model with iid errors

Cook, R.D. and Weisberg, S. (1999), Graphs in statistical analysis: is the medium the message? The American Statistician, 53(1), 29-37.


Interpreting residual plots18 l.jpg
Interpreting residual plots errors into a model with iid errors







Slide24 l.jpg

Department of Statistics errors

TEXAS A&M UNIVERSITY

Random effects covariance structures


Random effects covariance structures orthodontic growth data l.jpg
Random effects covariance structures: Orthodontic Growth Data

Investigators at the University of North Carolina Dental School followed the growth of 27 children (16 males, 11 females) from age 8 top age 14. Every two years they measured the distance between the pituitary and pterygomaxillary fissure, two points that are easily identified on x-ray exposures of the side of the head. These data are reported in Pothoff and Roy (1964) and analyzed in detail in Pinheiro and Bates (2000) and elsewhere.

Pinheiro, J.C. & Bates, D.M. (2000). Mixed Effects Models in S and S-PLUS, Springer, New York.

Pothoff, R.F. & Roy, S.N. (1964). A generalized multivariate analysis of variance model especially useful for growth curve problems, Biometrika 51, 313-326.


Random effects covariance structures orthodontic growth data26 l.jpg
Random effects covariance structures: Orthodontic Growth Data

distance age Subject Sex

1 26.0 8 M01 Male

2 25.0 10 M01 Male

3 29.0 12 M01 Male

4 31.0 14 M01 Male

.

61 22.0 8 M16 Male

62 21.5 10 M16 Male

63 23.5 12 M16 Male

64 25.0 14 M16 Male

65 21.0 8 F01 Female

66 20.0 10 F01 Female

67 21.5 12 F01 Female

68 23.0 14 F01 Female

.

105 24.5 8 F11 Female

106 25.0 10 F11 Female

107 28.0 12 F11 Female

108 28.0 14 F11 Female



Random effects covariance structures orthodontic growth data plots of y distance l.jpg
Random effects covariance structures: Orthodontic Growth Data – Plots of Y= Distance

Correlations

T8 T10 T12 T14

T8 1.000 0.626 0.711 0.600

T10 0.626 1.000 0.635 0.759

T12 0.711 0.635 1.000 0.795

T14 0.600 0.759 0.795 1.000

The correlations are relatively constant across time. This suggests that we fit ______ as the covariance structure.


Random intercepts model l.jpg
Random intercepts model Data – Plots of Y= Distance

Compound Symmetry = Random intercepts


Example covariance matrices l.jpg
Example Covariance Matrices Data – Plots of Y= Distance

Compound Symmetry = Random intercepts


Random intercepts covariance structure orthodontic growth data r output l.jpg
Random intercepts covariance structure: Orthodontic Growth Data – R output

Linear mixed-effects model fit by REML

Data: Orthodont

AIC BIC logLik

445.7572 461.6236 -216.8786

Random effects:

Formula: ~1 | Subject

(Intercept) Residual

StdDev: 1.816214 1.386382

Fixed effects: distance ~ age * Sex

Value Std.Error DF t-value p-value

(Intercept) 16.340625 0.9813122 79 16.651810 0.0000

age 0.784375 0.0775011 79 10.120823 0.0000

SexFemale 1.032102 1.5374208 25 0.671321 0.5082

age:SexFemale -0.304830 0.1214209 79 -2.510520 0.0141




Random intercepts covariance structure orthodontic growth data fitted lines for each subject l.jpg
Random intercepts covariance structure: Orthodontic Growth Data: Fitted lines for each subject

Examples of “shrinkage” in random intercepts


Likelihood ratio tests l.jpg
Likelihood ratio tests Data: Fitted lines for each subject

For models with the same fixed effects, the REML log-likelihoods can be used to compare nested models for the covariance. A formal statistical test is obtained by taking twice the difference in the respective maximized log-likelihoods and comparing it to a chi-squared distribution with degrees of freedom equal to the difference between the number of covariance parameters in the full and reduced models. This test is called the likelihood ratio test.

Fitzmaurice, G.M., Laird, N.N. & Ware, J.H. (2004). Applied Longitudinal Analysis. Wiley, New York (Chapter 4)


Random intercepts versus unstructured covariance orthodontic growth data l.jpg
Random intercepts versus unstructured covariance: Orthodontic Growth Data

Conclusion:


Testing on the boundary of the parameter space l.jpg
Testing on the boundary of the parameter space Orthodontic Growth Data

In general, when testing a null hypothesis that is on the boundary of the parameter space (e.g., the variance of a random effect equals zero), the usual null distribution for the likelihood ratio test is no longer a chi-squared distribution with degrees of freedom equal to the difference between the number of parameters in the full and reduced models; instead, the null distribution is a mixture of chi-squared distributions. For example, when comparing two nested models, one with q correlated random effects, the other with q+1 correlated random effects, the null distribution of the likelihood ratio test is a 50:50 mixture of chi-squared distributions with q and q+1 degrees of freedom.

Fitzmaurice, G.M., Laird, N.N. & Ware, J.H. (2004). Applied Longitudinal Analysis. Wiley, New York (Chapter 8)


Random intercepts covariance structure orthodontic growth data r output39 l.jpg
Random intercepts covariance structure: Orthodontic Growth Data – R output

Linear mixed-effects model fit by REML

Fixed effects: distance ~ age * Sex

Value Std.Error DF t-value p-value

(Intercept) 16.340625 0.9813122 79 16.651810 0.0000

age 0.784375 0.0775011 79 10.120823 0.0000

SexFemale 1.032102 1.5374208 25 0.671321 0.5082

age:SexFemale -0.304830 0.1214209 79 -2.510520 0.0141

lm(formula = distance ~ age * Sex, data = Orthodont)

Coefficients:

Estimate Std. Error t value Pr(>|t|)

(Intercept) 16.3406 1.4162 11.538 < 2e-16

age 0.7844 0.1262 6.217 1.07e-08

SexFemale 1.0321 2.2188 0.465 0.643

age:SexFemale -0.3048 0.1977 -1.542 0.126

Model df AIC BIC logLik Test L.Ratio p-value

RI 1 6 445.7572 461.6236 -216.8786

lm0 2 5 493.5591 506.7811 -241.7796 1 vs 2 49.80187 <.0001

Critical value (alpha=0.001) is 9.55

Conclusion:

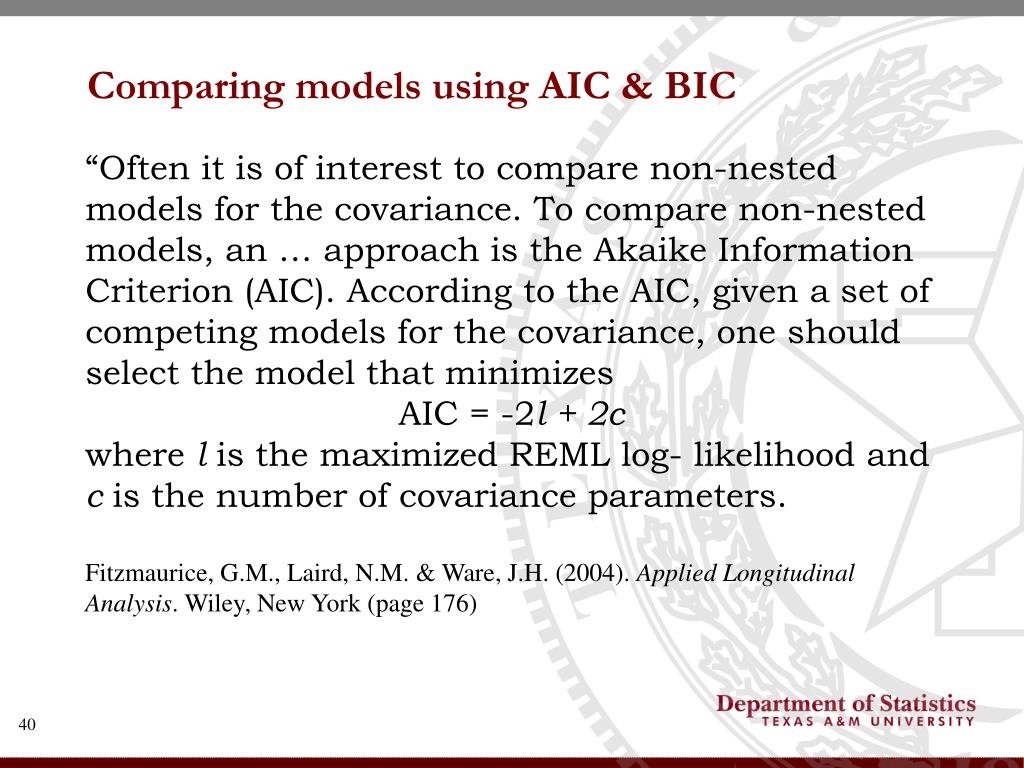

Comparing models using aic bic l.jpg
Comparing models using AIC & BIC Data – R output

“Often it is of interest to compare non-nested models for the covariance. To compare non-nested models, an … approach is the Akaike Information Criterion (AIC). According to the AIC, given a set of competing models for the covariance, one should select the model that minimizes

AIC = -2l + 2c

where l is the maximized REML log- likelihood and c is the number of covariance parameters.

Fitzmaurice, G.M., Laird, N.M. & Ware, J.H. (2004). Applied Longitudinal Analysis. Wiley, New York (page 176)



Comments on aic and bic l.jpg
Comments on AIC and BIC Data – R output

“BIC extracts a very large penalty for the estimation of each additional covariance parameter. In general we do not recommend the use of BIC for covariance model selection as it entails a high risk of selecting a model that is too simple or parsimonious for the data at hand.”

Fitzmaurice, G.M., Laird, N.M. & Ware, J.H. (2004). Applied Longitudinal Analysis. Wiley, New York (page 177)


Residuals in mixed models l.jpg
Residuals in mixed models Data – R output


Scaled or cholesky residuals l.jpg
Scaled or Cholesky residuals Data – R output




Random intercepts covariance structure orthodontic growth data marginal conditional residuals l.jpg
Random intercepts covariance structure: Orthodontic Growth Data – Marginal & conditional residuals

Conclusions:


Random intercepts covariance structure orthodontic growth data mixed model diagnostics in sas l.jpg
Random intercepts covariance structure: Orthodontic Growth Data – Mixed model diagnostics in SAS

Conclusions:


Random intercepts covariance structure orthodontic growth data mixed model diagnostics in sas51 l.jpg
Random intercepts covariance structure: Orthodontic Growth Data – Mixed model diagnostics in SAS

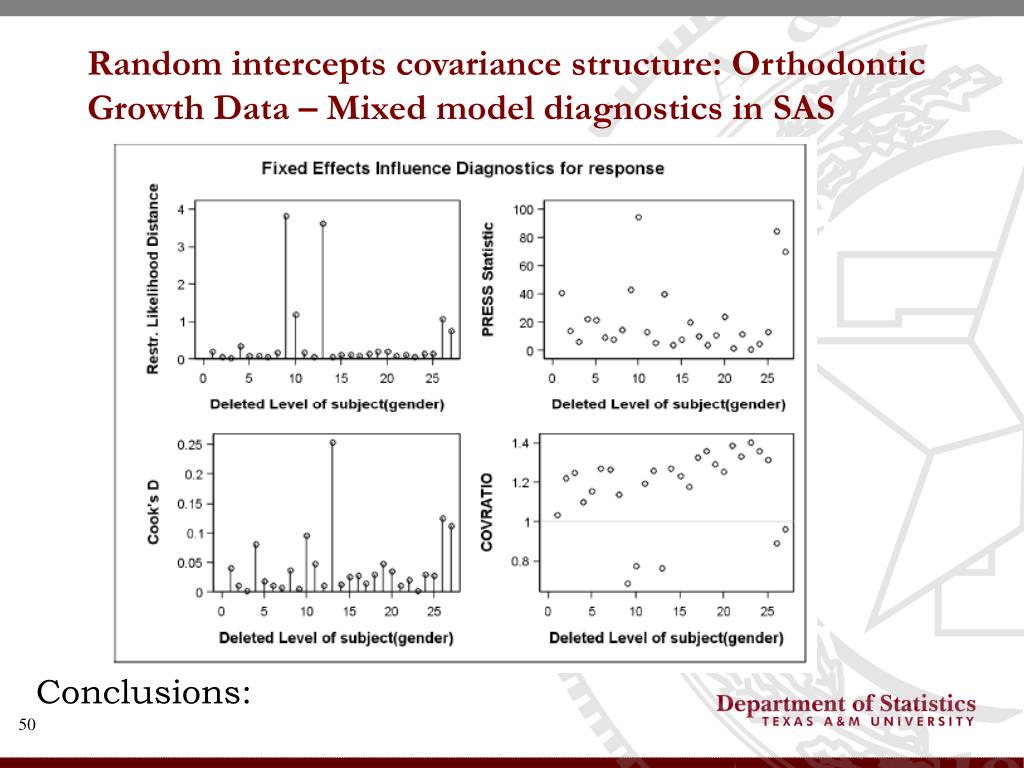

Random intercepts covariance structure orthodontic growth data mixed model diagnostics in sas52 l.jpg
Random intercepts covariance structure: Orthodontic Growth Data – Mixed model diagnostics in SAS


Random intercepts covariance structure orthodontic growth data mixed model diagnostics in sas53 l.jpg
Random intercepts covariance structure: Orthodontic Growth Data – Mixed model diagnostics in SAS

Conclusions:


Random effects covariance structures orthodontic growth data plots of marginal residuals l.jpg
Random effects covariance structures: Orthodontic Growth Data – Plots of Marginal Residuals

Correlations

T8 T10 T12 T14

T8 1.000 0.560 0.660 0.522

T10 0.560 1.000 0.560 0.718

T12 0.660 0.560 1.000 0.728

T14 0.522 0.718 0.728 1.000

The marginal residuals are positively correlated.


Random effects covariance structures orthodontic growth data plots of conditional residuals l.jpg
Random effects covariance structures: Orthodontic Growth Data – Plots of Conditional Residuals

Correlations

T8 T10 T12 T14

T8 1.000 -0.326 -0.129 -0.600

T10 -0.326 1.000 -0.560 0.005

T12 -0.129 -0.560 1.000 -0.065

T14 -0.600 0.005 -0.065 1.000

In this case, the conditional residuals are generally NEGATIVELY correlated.


Slide56 l.jpg
Orthodontic growth data after transforming a model with random intercepts into a regression model with iid errors: diagnostic LS plots

Conclusions:


Slide57 l.jpg
Orthodontic growth data after transforming a model with random intercepts into a regression model with iid errors

Conclusions:


Slide58 l.jpg

Orthodontic growth data after transforming a model with random intercepts into a regression model with iid errors: plots of standardized LS residuals

T8 T10 T12 T14

T8 1.000 -0.184 0.179 -0.186

T10 -0.184 1.000 -0.073 0.383

T12 0.179 -0.073 1.000 0.172

T14 -0.186 0.383 0.172 1.000

Pearson's product-moment correlation

data: T10 and T14

p-value = 0.04832

alternative hypothesis: true correlation

is not equal to 0

Conclusions:


Orthodontic growth data plots of y distance for females l.jpg
Orthodontic Growth Data – Plots of Y= Distance for females random intercepts into a regression model with iid errors: plots of standardized LS residuals

Correlations

T8 T10 T12 T14

T8 1.000 0.626 0.711 0.600

T10 0.626 1.000 0.635 0.759

T12 0.711 0.635 1.000 0.795

T14 0.600 0.759 0.795 1.000

FT8 FT10 FT12 FT14

FT8 1.000 0.830 0.862 0.841

FT10 0.830 1.000 0.895 0.879

FT12 0.862 0.895 1.000 0.948

FT14 0.841 0.879 0.948 1.000

Conclusions:


Orthodontic growth data plots of y distance for males l.jpg
Orthodontic Growth Data – Plots of Y= Distance for males random intercepts into a regression model with iid errors: plots of standardized LS residuals

Correlations

T8 T10 T12 T14

T8 1.000 0.626 0.711 0.600

T10 0.626 1.000 0.635 0.759

T12 0.711 0.635 1.000 0.795

T14 0.600 0.759 0.795 1.000

MT8 MT10 MT12 MT14

MT8 1.000 0.437 0.558 0.315

MT10 0.437 1.000 0.387 0.631

MT12 0.558 0.387 1.000 0.586

MT14 0.315 0.631 0.586 1.000

Conclusions:


Orthodontic growth data next steps l.jpg
Orthodontic Growth Data: Next steps random intercepts into a regression model with iid errors: plots of standardized LS residuals


Slide62 l.jpg
Random intercepts covariance structure with variances differing with sex : Orthodontic Growth Data – R output

Linear mixed-effects model fit by REML

Data: Orthodont

AIC BIC logLik

429.2205 447.7312 -207.6102

Random effects:

Formula: ~1 | Subject

(Intercept) Residual

StdDev: 1.847570 1.669823

Variance function:

Structure: Different standard deviations per stratum

Formula: ~1 | Sex

Parameter estimates:

Male Female

1.0000000 0.4678944

Fixed effects: distance ~ age * Sex

Value Std.Error DF t-value p-value

(Intercept) 16.340625 1.1450945 79 14.270111 0.0000

age 0.784375 0.0933459 79 8.402883 0.0000

SexFemale 1.032102 1.4039842 25 0.735124 0.4691

age:SexFemale -0.304830 0.1071828 79 -2.844016 0.0057


Slide63 l.jpg
Random intercepts covariance structure with variances differing with sex: Orthodontic Growth Data – R output

Model df AIC BIC logLik Test L.Ratio p-value

RI 1 6 445.7572 461.6236 -216.8786

RIH 2 7 429.2205 447.7312 -207.6102 1 vs 2 18.53677 <.0001


Random intercepts covariance structure with variances differing with sex orthodontic growth data l.jpg
Random intercepts covariance structure with variances differing with sex: Orthodontic Growth Data


Random intercepts covariance structure differing across sex orthodontic growth data sas output l.jpg
Random intercepts covariance structure differing across sex: Orthodontic Growth Data – SAS output

Conclusions:


Slide66 l.jpg
Random intercepts covariance structure with variances differing with sex: Orthodontic Growth Data – Marginal & conditional residuals

Conclusions:


Orthodontic growth data conditional residuals rh side has the variances differing across sex l.jpg
Orthodontic Growth Data – Conditional residuals (RH side has the variances differing across sex)

Conclusions:


Slide68 l.jpg
Random intercepts covariance structure differing across sex has the variances differing across sex) : Orthodontic Growth Data – Mixed model diagnostics in SAS

Conclusions:


Slide69 l.jpg
Random intercepts covariance structure differing across sex: Orthodontic Growth Data – Mixed model diagnostics in SAS

Conclusions:


Slide70 l.jpg

Orthodontic growth data after transforming a model with random intercepts covariance structure differing with sex into a regression model with iid errors: diagnostic LS plots

Conclusions:


Slide71 l.jpg

Orthodontic growth data after transforming a model with random intercepts covariance structure differing with sex into a regression model with iid errors: diagnostic LS plots

Conclusions:


Slide72 l.jpg

Orthodontic growth data after transforming a model with random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

T8 T10 T12 T14

T8 1.000 -0.188 0.222 -0.083

T10 -0.188 1.000 -0.001 0.270

T12 0.222 -0.001 1.000 0.297

T14 -0.083 0.270 0.297 1.000

Conclusions:


Orthodontic growth data lessons learnt l.jpg
Orthodontic Growth Data: Lessons learnt random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals


Slide74 l.jpg

Department of Statistics random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

TEXAS A&M UNIVERSITY

Choosing between random effects covariance structures and covariance pattern models


Three approaches to modeling the covariance75 l.jpg
Three approaches to modeling the covariance random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

  • Random effects covariance structures:- random intercepts and/or random slopes

  • Covariance pattern models

  • Unstructured covariance


Pig weight data l.jpg
Pig Weight Data random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

“… data provided by Dr Philip McCloud (Monash University Melbourne) on the weights of 48 pigs measured in nine successive weeks.”

Diggle,P.J., Heagerty, P., Liang, K-Y. & Zeger, S.L. (2002). Analysis of Longitudinal Data (2nd edn.), Oxford University Press, Oxford.


Pig weight data77 l.jpg
Pig Weight Data random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

Conclusions:


Pig weight data78 l.jpg
Pig Weight Data random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

Conclusions:


Pig weight data time plots of y weight l.jpg
Pig Weight Data: Time plots of Y= Weight random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

Correlations

T1 T2 T3 T4 T5 T6 T7 T8 T9

T1 1.00 0.92 0.80 0.80 0.75 0.71 0.66 0.63 0.56

T2 0.92 1.00 0.91 0.91 0.88 0.84 0.78 0.71 0.66

T3 0.80 0.91 1.00 0.96 0.93 0.91 0.84 0.82 0.77

T4 0.80 0.91 0.96 1.00 0.96 0.93 0.87 0.83 0.79

T5 0.75 0.88 0.93 0.96 1.00 0.92 0.85 0.81 0.79

T6 0.71 0.84 0.91 0.93 0.92 1.00 0.96 0.93 0.89

T7 0.66 0.78 0.84 0.87 0.85 0.96 1.00 0.96 0.92

T8 0.63 0.71 0.82 0.83 0.81 0.93 0.96 1.00 0.97

T9 0.56 0.66 0.77 0.79 0.79 0.89 0.92 0.97 1.00

Conclusions:


Prism plot partial regression on intervenors scatterplot matrix l.jpg
PRISM plot: random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residualsPartial-Regression-on-Intervenors Scatterplot Matrix


Prism plot for the pig weights data l.jpg
PRISM plot for the pig weights data random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

Conclusions:


Pig weight data random intercept and slope model l.jpg
Pig Weight Data: random intercept and slope model random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

… We therefore adopt as our working model for the weight Yij of the ith pig in the jth week:

Diggle, P.J., Heagerty, P., Liang, K-Y. & Zeger, S.L. (2002). Analysis of Longitudinal Data (2nd edn.), Oxford University Press, Oxford (page 77)

A & S (2005) fit a RIAS model with AR(2) rather than iid errors.

Alkhamisi, M.A. & Shukur, G. (2005). Bayesian analysis of a linear mixed model with AR(p) errors via MCMC, Journal of Applied Statistics, 32, 741-755.


Pig weight data ri vs rias l.jpg
Pig Weight Data – RI vs RIAS random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

Model df AIC BIC logLik Test L.Ratio p-value

mRI 1 4 2041.797 2058.052 -1016.8984

mRIAS 2 6 1752.871 1777.254 -870.4356 1 vs 2 292.9256 <.0001

Linear mixed-effects model fit by REML

AIC BIC logLik

2041.797 2058.052 -1016.898

Random effects:

Formula: ~-1 | Animal

(Intercept) Residual

StdDev: 3.891253 2.096356

Fixed effects: weight ~ Time

Value Std.Error DF t-value p-value

(Intercept) 19.355613 0.6031390 383 32.09146 0

Time 6.209896 0.0390633 383 158.97012 0

Linear mixed-effects model fit by REML

AIC BIC logLik

1752.871 1777.254 -870.4356

Random effects:

Formula: ~Time | Animal

StdDev Corr

(Intercept) 2.6431920 (Intr)

Time 0.6164379 -0.063

Residual 1.2636572

Fixed effects: weight ~ Time

Value Std.Error DF t-value p-value

(Intercept) 19.355613 0.4038676 383 47.92564 0

Time 6.209896 0.0920382 383 67.47085 0

Conclusions:


Pig weight data rias vs unstructured l.jpg
Pig Weight Data – RIAS vs Unstructured random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

Model df AIC BIC logLik Test L.Ratio p-value

mRIAS 1 6 1752.871 1777.254 -870.4356

mFULLHet 2 47 1635.943 1826.941 -770.9717 1 vs 2 198.9278 <.0001

Generalized least squares fit by REML

Model: weight ~ Time

Data: pigweights

AIC BIC logLik

1635.943 1826.941 -770.9717

Correlation Structure: General

Formula: ~1 | Animal

Parameter estimate(s):

Correlation:

1 2 3 4 5 6 7 8

2 0.894

3 0.722 0.895

4 0.767 0.910 0.946

5 0.742 0.879 0.889 0.956

6 0.694 0.836 0.876 0.930 0.923

7 0.650 0.774 0.806 0.863 0.857 0.963

8 0.602 0.720 0.812 0.835 0.810 0.927 0.953

9 0.546 0.669 0.753 0.789 0.788 0.891 0.917 0.968

Variance function:

Structure: Different standard deviations per stratum

Formula: ~1 | Time

Parameter estimates:

1 2 3 4 5 6 7 8 9

1.000000 1.133915 1.514700 1.524495 1.825750 1.798021 2.005047 2.212073 2.561561

Coefficients:

Value Std.Error t-value p-value

(Intercept) 19.072855 0.3292651 57.92552 0

Time 6.174367 0.0791560 78.00249 0

Conclusions:


Pig weight data riasar2het vs unstructured l.jpg
Pig Weight Data – RIASAR2Het vs Unstructured random intercepts covariance structure differing with sex into a regression model with iid errors: plots of standardized LS residuals

Conclusions & next steps:

Linear mixed-effects model fit by REML

Data: pigweights

AIC BIC logLik

1628.055 1693.076 -798.0276

Random effects:

Formula: ~Time | Animal

StdDev Corr

(Intercept) 2.0328867 (Intr)

Time 0.5644216 0.135

Residual 1.2570683

Correlation Structure: ARMA(2,0)

Formula: ~1 | Animal

Parameter estimate(s):

Phi1 Phi2

0.7987402 -0.1113745

Variance function:

Structure: Different standard deviations per stratum

Formula: ~1 | Time

Parameter estimates:

1 2 3 4 5 6 7 8 9

1.000000 1.111492 1.609214 1.155950 1.739209 1.032130 1.519083 1.470896 2.007803

Fixed effects: weight ~ Time

Value Std.Error DF t-value p-value

(Intercept) 18.651097 0.3546391 383 52.59176 0

Time 6.339774 0.0910021 383 69.66622 0

Model df AIC BIC logLik Test L.Ratio p-value

mRIAS 1 6 1752.871 1777.254 -870.4356

mRIASHet 2 14 1712.108 1769.001 -842.0539 1 vs 2 56.76340 <.0001

mRIASAR2Het.REML 3 16 1628.055 1693.076 -798.0276 2 vs 3 88.05265 <.0001

mFULLHet 4 47 1635.943 1826.941 -770.9717 3 vs 4 54.11179 0.0063


Slide86 l.jpg

Pig Weight Data – after transforming a straight line fit with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Conclusions:


Slide87 l.jpg

Pig Weight Data – after transforming a straight line fit with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Formula:

StanRes1 ~ s(Timestar, k = 7)

Parametric coefficients:

Estimate Std. Error t value Pr(>|t|)

(Intercept) -6.793e-05 4.740e-02 -0.001 0.999

Approximate significance of smooth terms:

edf Est.rank F p-value

s(Timestar) 4.738 6 3.291 0.00355 **

---

R-sq.(adj) = 0.0316

Deviance explained = 4.22%

GCV score = 0.98375

Scale est. = 0.97068 n = 432

Conclusions & next steps:


Linear regression splines l.jpg
Linear regression splines with unstructured covariance into a regression model with iid errors: diagnostic LS plots


Regression spline model for the pig weight data l.jpg
Regression spline model for the pig weight data with unstructured covariance into a regression model with iid errors: diagnostic LS plots


Pig weight data spline fit with unstructured covariance l.jpg
Pig Weight Data – spline fit with unstructured covariance with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Generalized least squares fit by maximum likelihood

Model: weight ~ Time + TimeM2Plus + TimeM3Plus + TimeM4Plus + TimeM5Plus + TimeM6Plus + TimeM7Plus + TimeM8Plus

Data: pigweights

AIC BIC logLik

1600.992 1820.687 -746.4958

Correlation Structure: General

Formula: ~1 | Animal

Parameter estimate(s):

Variance function:

Structure: Different standard deviations per stratum

Formula: ~1 | Time

Coefficients:

Value Std.Error t-value p-value

(Intercept) 18.260417 0.3801332 48.03689 0.0000

Time 6.760417 0.1623941 41.62968 0.0000

TimeM2Plus 0.322917 0.2294237 1.40751 0.1600

TimeM3Plus -1.552083 0.2925803 -5.30481 0.0000

TimeM4Plus 0.229167 0.2432417 0.94214 0.3467

TimeM5Plus 0.531250 0.3931523 1.35126 0.1773

TimeM6Plus -0.281250 0.2646046 -1.06291 0.2884

TimeM7Plus 0.833333 0.2974937 2.80118 0.0053

TimeM8Plus -0.927083 0.2757124 -3.36250 0.0008

Generalized least squares fit by maximum likelihood

Model df AIC BIC logLik Test L.Ratio p-value

mFULLHet.ML 1 47 1632.303 1823.520 -769.1517

mFULLSplineHet.ML 2 54 1600.992 1820.687 -746.4958 1 vs 2 45.31183 <.0001

Conclusions & next steps:


Comments on ml vs reml l.jpg
Comments on ML vs REML with unstructured covariance into a regression model with iid errors: diagnostic LS plots

… we recommend the use of REML for estimation of the variance covariance matrix. … The REML log-likelihood should also be used to compare nested models for the covariance. However, the construction of likelihood ratio tests comparing nested models for the mean should always be based on the ML and not the REML log-likelihood.

Fitzmaurice, G.M., Laird, N.M. & Ware, J.H. (2004). Applied Longitudinal Analysis. Wiley, New York (page 102)


Pig weight data spline378 fit with unstructured covariance l.jpg
Pig Weight Data – spline378 fit with unstructured covariance

Model df AIC BIC logLik Test L.Ratio p-value

mFULLHet.ML 1 47 1632.303 1823.520 -769.1517

mFULLSpline378Het.ML 2 50 1600.125 1803.546 -750.0624 1 vs 2 38.17859 <.0001

mFULLSplineHet.ML 3 54 1600.992 1820.687 -746.4958 2 vs 3 7.13324 0.129

Generalized least squares fit by maximum likelihood

Model: weight ~ Time + TimeM3Plus + TimeM7Plus + TimeM8Plus

Data: pigweights

AIC BIC logLik

1600.125 1803.546 -750.0624

Correlation Structure: General

Variance function:

Structure: Different standard deviations per stratum

Formula: ~1 | Time

Coefficients:

Value Std.Error t-value p-value

(Intercept) 18.256905 0.3533667 51.66560 0.0000

Time 6.820640 0.1371208 49.74183 0.0000

TimeM3Plus -0.981702 0.1375617 -7.13645 0.0000

TimeM7Plus 0.828701 0.2096348 3.95307 0.0001

TimeM8Plus -0.767967 0.2485657 -3.08959 0.0021

Conclusions:


Pig weight data spline378 fit with unstructured covariance93 l.jpg
Pig Weight Data – spline378 fit with unstructured covariance

Generalized least squares fit by REML

Model: weight ~ Time + TimeM3Plus + TimeM7Plus + TimeM8Plus

Data: pigweights

AIC BIC logLik

1608.513 1811.352 -754.2563

Correlation Structure: General

Formula: ~1 | Animal

Parameter estimate(s):

Correlation:

1 2 3 4 5 6 7 8

2 0.916

3 0.800 0.909

4 0.796 0.909 0.955

5 0.749 0.881 0.924 0.963

6 0.703 0.832 0.906 0.929 0.918

7 0.651 0.771 0.844 0.863 0.849 0.964

8 0.620 0.706 0.816 0.821 0.802 0.927 0.959

9 0.553 0.658 0.769 0.779 0.778 0.889 0.917 0.970

Variance function:

Structure: Different standard deviations per stratum

Formula: ~1 | Time

Parameter estimates:

1 2 3 4 5 6 7 8 9

1.000000 1.130608 1.434699 1.512733 1.835017 1.803844 2.019490 2.206989 2.575075

Coefficients:

Value Std.Error t-value p-value

(Intercept) 18.256899 0.3550324 51.42319 0.0000

Time 6.820637 0.1377675 49.50832 0.0000

TimeM3Plus -0.981701 0.1382101 -7.10296 0.0000

TimeM7Plus 0.828708 0.2106256 3.93451 0.0001

TimeM8Plus -0.767975 0.2497383 -3.07512 0.0022

Conclusions & next steps:


Slide94 l.jpg

Pig Weight Data – after transforming the spline378 fit with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Conclusions:


Slide95 l.jpg

Pig Weight Data – after transforming the spline378 fit with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Formula:

StanRes1 ~ s(LSFits, k = 7)

Parametric coefficients:

Estimate Std. Error t value Pr(>|t|)

(Intercept) 0.01075 0.04822 0.223 0.824

Approximate significance of smooth terms:

edf Est.rank F p-value

s(LSFits) 1 1 0.036 0.849

R-sq.(adj) = -0.00224

Deviance explained = 0.00844%

GCV score = 1.0091

Scale est. = 1.0045 n = 432

Conclusions & next steps:


Pig weight data96 l.jpg
Pig weight data with unstructured covariance into a regression model with iid errors: diagnostic LS plots

  • Mean structure is adequately modeled by regression splines with knots at Time = 3, 7 & 8

  • Can we use a random effects covariance structure and/or a covariance pattern model rather than an unstructured covariance?


Pig weight data97 l.jpg
Pig weight data with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Model df AIC BIC logLik Test L.Ratio p-value

mRIASSpline378.REML 1 21 1663.697 1748.889 -810.8483

mRIASAR2Spline378.REML 2 23 1636.153 1729.459 -795.0768 1 vs 2 31.54306 <.0001

mRIASAR2HetSpline378.REML 3 31 1605.189 1730.949 -771.5945 2 vs 3 46.96459 <.0001

mFULLSpline378Het.REML 4 50 1608.513 1811.352 -754.2563 3 vs 4 34.67638 0.0153


Pig weight data riasar2hetspline378 l.jpg
Pig weight data: RIASAR2HetSpline378 with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Linear mixed-effects model fit by REML

Data: pigweights

AIC BIC logLik

1605.189 1730.949 -771.5945

Random effects:

Formula: ~Time + TimeM3Plus + TimeM7Plus + TimeM8Plus | Animal

StdDev Corr

(Intercept) 2.1834406 (Intr) Time TmM3Pl TmM7Pl

Time 0.8315105 -0.269

TimeM3Plus 0.4659166 0.779 -0.790

TimeM7Plus 1.2592576 -0.024 -0.214 0.267

TimeM8Plus 0.7618044 -0.424 0.603 -0.751 -0.836

Residual 1.3902067

Correlation Structure: ARMA(2,0)

Formula: ~1 | Animal

Parameter estimate(s):

Phi1 Phi2

0.6231344 0.2935163

Variance function:

Structure: Different standard deviations per stratum

Formula: ~1 | Time

Parameter estimates:

1 2 3 4 5 6 7 8 9

1.000000 1.341819 1.690955 1.763115 2.300776 1.547082 1.111084 1.334961 1.997972

Fixed effects: weight ~ Time + TimeM3Plus + TimeM7Plus + TimeM8Plus

Value Std.Error DF t-value p-value

(Intercept) 18.236529 0.3594763 380 50.73082 0.0000

Time 6.956690 0.1484038 380 46.87677 0.0000

TimeM3Plus -1.058136 0.1453124 380 -7.28180 0.0000

TimeM7Plus 0.974005 0.2287388 380 4.25815 0.0000

TimeM8Plus -0.846191 0.2610472 380 -3.24152 0.0013


Pig weight data riasar2hetspline378 random effects l.jpg
Pig weight data: RIASAR2HetSpline378 random effects with unstructured covariance into a regression model with iid errors: diagnostic LS plots


Pig weight data riasar2hetspline378 random effects100 l.jpg
Pig weight data: RIASAR2HetSpline378 random effects with unstructured covariance into a regression model with iid errors: diagnostic LS plots

  • Next steps?


Pig weight data lessons learnt l.jpg
Pig weight data: Lessons learnt with unstructured covariance into a regression model with iid errors: diagnostic LS plots


Slide102 l.jpg

Department of Statistics with unstructured covariance into a regression model with iid errors: diagnostic LS plots

TEXAS A&M UNIVERSITY

Scatter plot smoothing using regression splines: choosing the location of the knots versus penalized regression splines


Linear spline regression fits based on different knot selections l.jpg
Linear spline regression fits based on different knot selections

Ruppert, D., Wand, M.P. & Carroll, R.J. (2003), Semiparametric Regession, Cambridge University Press, Cambridge


Linear spline regression fits based on different knot selections104 l.jpg
Linear spline regression fits based on different knot selections

Figure 3.8 is based on knots at every 12.5 meters of the range. However, for these data, it appears that there is now too much flexibility; the plot is heavily “overfitted”, meaning that the fitted function is following small, apparently random fluctuations in the data as well as the main features. One could try pruning knots to overcome this problem. For example, if the knots at range = 612.5, 650, 662.5 and 687.5 are deleted then we obtain the fit in Figure 3.9.

Ruppert, D., Wand, M.P. & Carroll, R.J. (2003), Semiparametric Regession, Cambridge University Press, Cambridge


Penalised spline regression l.jpg
Penalised spline regression selections

An alternative to pruning knots is to retain all the knots but to constrain their influence. This is the idea behind penalised spline regression.

Ruppert, D., Wand, M.P. & Carroll, R.J. (2003), Semiparametric Regession, Cambridge University Press, Cambridge


Effect of smoothing parameter on penalised spline regression fit l.jpg
Effect of smoothing parameter on penalised spline regression fit

Ruppert, D., Wand, M.P. & Carroll, R.J. (2003), Semiparametric Regession, Cambridge University Press, Cambridge


Penalized splines as blups of a mixed model l.jpg
Penalized splines as BLUPs of a mixed model fit

Ruppert, D., Wand, M.P. & Carroll, R.J. (2003), Semiparametric Regession, Cambridge University Press, Cambridge


Reml cv smoothing parameter choices l.jpg
REML & CV smoothing parameter choices fit

Ruppert, D., Wand, M.P. & Carroll, R.J. (2003), Semiparametric Regession, Cambridge University Press, Cambridge


Simulation results re reml cv smoothing parameter choices l.jpg
Simulation results re REML & CV smoothing parameter choices fit

“In summary, REML will produce smoother fits than GCV ... This means that in the fitted curves REML will have more bias but less variance than GCV. However, the two methods of selecting the smoothing parameter will be about equally accurate in terms of MSE; they trade of bias and variance differently but achieve nearly the same value of MSE.”

Ruppert, D., Wand, M.P. & Carroll, R.J. (2003), Semiparametric Regession, Cambridge University Press, Cambridge


Slide110 l.jpg

Pig Weight Data – after transforming a straight line fit with unstructured covariance into a regression model with iid errors: diagnostic LS plots

Formula:

StanRes1 ~ s(Timestar, k = 7)

Parametric coefficients:

Estimate Std. Error t value Pr(>|t|)

(Intercept) -6.793e-05 4.740e-02 -0.001 0.999

Approximate significance of smooth terms:

edf Est.rank F p-value

s(Timestar) 4.738 6 3.291 0.00355 **

---

R-sq.(adj) = 0.0316

Deviance explained = 4.22%

GCV score = 0.98375

Scale est. = 0.97068 n = 432

Conclusions & next steps:


Lessons learnt l.jpg
Lessons learnt with unstructured covariance into a regression model with iid errors: diagnostic LS plots


References and further reading l.jpg
References and further reading with unstructured covariance into a regression model with iid errors: diagnostic LS plots


ad
