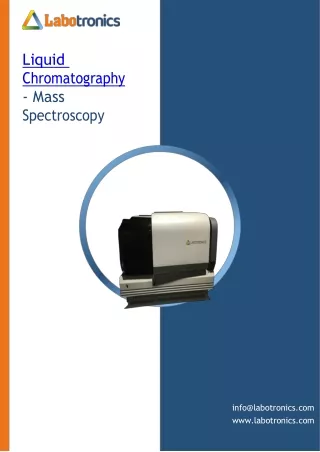

  1. Liquid Chromatography - Mass Spectroscopy info@labotronics.com www.labotronics.com

  2. Overview Liquid Chromatography - Mass Spectroscopy is table top unit with the hyphenated combination of liquid chromatography and mass spectroscopy for chemical separation and identification of organic molecules. It is equipped with powerful electric spray ionization technique makes the LC- MS chart and data processing simpler. Specifications : Measuring range 10 amu ~ 1500 amu Resolution 1 amu Mass accuracy ≤ ± 0.2 amu / 12 hours Standard mode: 1000 amu / s Scan rate Fast mode: 10000 amu / s Peak area repeatability RSD ≤ 4.6 % Retention time repeatability RSD ≤ 1.5 % Dimensions 610 × 450 × 340 mm Net weight 155 kgs Gross weight 228 kgs Features : Adjustable ion source and complex sample analysis adaptability for enhanced performance under different flow rates Multi-channel acquisition function for rapid analysis and work efficiency Automatic calibration function Positive and negative ion mode switching for high detection sensitivity

  3. Integrated software for accurate data processing Applications: Used for identification of unknown organic species and contaminants, analysis and quantification of mixed solvents and solvent waste streams, polymer, paint, adhesives, pharmaceuticals, cosmetics, food and beverages, etc. Optional Accessories : Accessory NoAccessory 1. 2. Autosampler Degasser 3. Gradient Mixer Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
