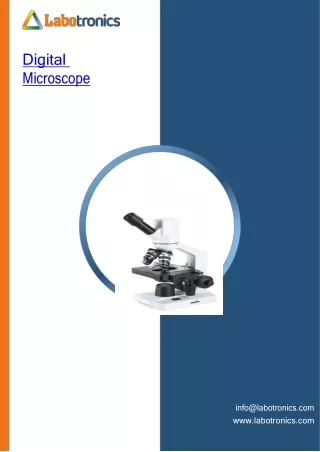

  1. Digital Microscope info@labotronics.com www.labotronics.com

  2. Overview Digital microscope is a compact bench-top unit. Inbuilt digital camera captures vivid images and real time videos. LED illumination with rheostat brightness control aids to achieve high quality images. Coaxial coarse and fine adjustment focus knob with tension adjustment aids in mobility of the objective lenses. Condenser adjustable for lateral movement has iris diaphragm. Specifications : Viewing head Monocular Eyepiece ( Wide field eyepiece ) WF10X / 18 mm Camera system 1.3 MP 4X 10X Achromatic objective 40X 100X ( Spring, Oil ) Software ScopeImage 9.0 Viewing head inclination 45° Viewing head rotation 360° Stage USB2.0 Moving range (stage ) 110 mm × 120 mm Iris diaphragm 70 mm × 20 mm

  3. Focus fine division 2 mm ⁓28 mm Condenser 10 mm Dimensions 1 W Weight 280 × 220 × 390 mm Features : Built-in CMOS camera ( 1.3 MP ) Software support for mage analysis Viewing head with 10X widefield eyepieces Large mechanical stage ( double layered ) Applications : Widely used by school students to do image analysis. Used in computer interactive laboratory, clinical environments and individual propose. Optional Accessories : Accessory No. Accessory Accessory specification 1DMA1 Eyepiece WF5X / 20 mm 1DMA2 Eyepiece WF16X / 11 mm 1DMA3 Eyepiece WF10X with pointer 1DMA4 Objective Achromatic objective 20X 1DMA5 Objective Achromatic objective 60X 1DMA6 Mirror Plan-concave mirror 1DMA7 Power supply Rechargeable battery 1DMA8 Package Wooden box

  4. Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com| www.labotronics.com
