Digital microscope

Digital microscopes is in demand for the provision of high resolution image on the LCD screen. <br>The zoom objectives of different range offers superior magnification. It is supported with Wi-Fi <br>and Bluetooth and CMOS chip for transfer of data. It comes with sturdy track stand which supports <br>the microscope and attachments. These microscopes are ideal for industrial as well as professional applications.

Eleanor96
Download Presentation

Digital microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

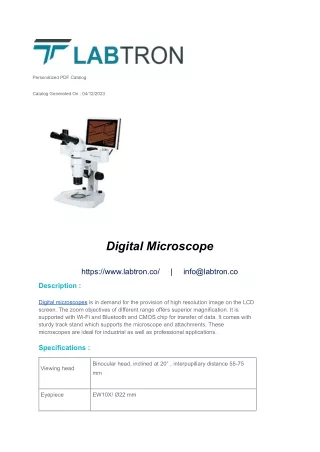

  1. Personalized PDF Catalog Catalog Generated On : 04/12/2023 Digital Microscope https://www.labtron.co/ | info@labtron.co Description : Digital microscopes is in demand for the provision of high resolution image on the LCD screen. The zoom objectives of different range offers superior magnification. It is supported with Wi-Fi and Bluetooth and CMOS chip for transfer of data. It comes with sturdy track stand which supports the microscope and attachments. These microscopes are ideal for industrial as well as professional applications. Specifications : Binocular head, inclined at 20° , interpupillary distance 55-75 Viewing head mm Eyepiece EW10X/ Ø22 mm

  2. Plan achromatic objective: 1x Objectives Zoom objectives: 0.8x-5x with 1:6 zoom ratio Stage working distance: 78 mm Focusing Focusing distance: 105 mm Illumination Transmission & reflected LED illumination, brightness adjustable LCD Screen 8 inch TFT touch screen Output USB 2.0 Mini USB, HDMI Operating system Android 4.2.2 Software Touch scope (for microscope) NMS client (for PC) 5.0 mega pixel Digital Part CMOS chip and support Wi-Fi and Bluetooth Dimension 370×320×670 mm Net weight 9 kg Gross weight 10 kg

  3. Features : 8 inch TFT touch screen Transmission & reflected LED illumination Touch scope (for microscope), NMS client (for PC) Software Zoom objectives and plan achromatic objective Android 4.2.2 O.S. and USB 2.0 Mini USB Applications : Digital microscope has wide applications in the fields of research labs, hospitals, industries to view and study opaque, translucent, and temperature sensitive objects on LCD screen.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
