Metallurgical Microscope

Metallurgical Microscope features four plan achromatic objective lenses and both bright field and dark field condensers for good quality. Head is inclined at 30u00b0 <br>angle for viewing and WF10X20 is used as standard eyepiece. Trinocular Siedentopf type heads with 30u00b0 inclined tubes and interpupillary distance from 48 to 75 mm.<br>3 W LED or 6 V 20W illumination is used as transmitted light. Innovative design offers larger apertures with optical system of the microscope to produce images <br>at higher resolutions. Equipped with quadruple reverse angled nosepiece. Focusing of system can be adjusted using

Kimber4
Download Presentation

Metallurgical Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

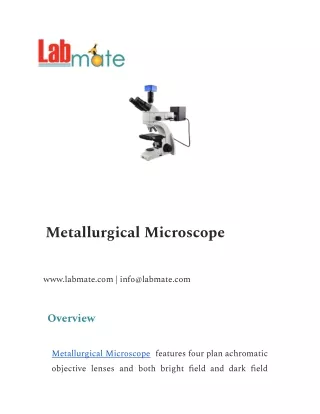

  1. Metallurgical Microscope www.labmate.com | info@labmate.com Overview Metallurgical Microscope features four plan achromatic objective lenses and both bright field and dark field

  2. condensers for good quality. Head is inclined at 30° angle for viewing and WF10X20 is used as standard eyepiece. Trinocular Siedentopf type heads with 30° inclined tubes and interpupillary distance from 48 to 75 mm. 3 W LED or 6 V 20W illumination is used as transmitted apertures with optical system of the microscope to produce images at higher resolutions. Equipped with quadruple reverse angled nosepiece. Focusing of system can be adjusted using coaxial coarse and fine focusing knobs. light. Innovative design offers larger Specifications : Viewing Head 30° Inclined angle Objective 5X/10X/20X/50X Nosepiece 4 Holes

  3. Condenser _ Eyepiece WF10X20 Light Source 12V 50W Power Supply AC100 to 240V/DC12V Color White And Black Features : - Eyepieces can be secured to the tubes - All optics are anti-fungus and anti-reflection coated for maximum light throughput - Infinity professional LWD objectives 5x/0.13 10x/0.25 20x/0.40 S50x/0.70 S100x/1.25 are used as optional - Coarse adjustment are equipped with friction control

  4. - Uses different lighting method than a conventional microscope and can illuminate solid specimens to identify, inspect and measure them - Adjustable interpupillary distance - Equipped with diopter adjustments - Supplier with power cord, dust cover and spare fuse Applications : These are commonly used in industry for quality control and inspection or for measuring instruments for viewing thin films and electroplating, inclusions, surface defects and grain size Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
