Metallurgical microscope

The inverted polarizing metallurgical microscope has 30u00c2u00b0 inclined trinocular head. <br>It has superior coaxial coarse & fine focusing adjustment with vertical objective <br>movement. This microscope comes with plain stage and slide clips. This microscope <br>is designed to observe, identify and analyze the structures of metals and alloys. <br>They are mainly used to view & study opaque objects.<br><br>

Eleanor96
Download Presentation

Metallurgical microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

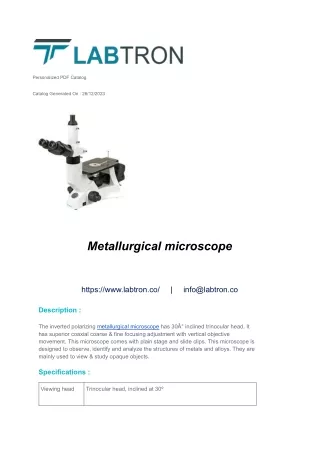

  1. Personalized PDF Catalog Catalog Generated On : 26/12/2023 Metallurgical microscope https://www.labtron.co/ | info@labtron.co Description : The inverted polarizing metallurgical microscope has 30° inclined trinocular head. It has superior coaxial coarse & fine focusing adjustment with vertical objective movement. This microscope comes with plain stage and slide clips. This microscope is designed to observe, identify and analyze the structures of metals and alloys. They are mainly used to view & study opaque objects. Specifications : Viewing head Trinocular head, inclined at 30º

  2. Interpupillary distance 48-75 mm Eyepiece High point, extra wide field eyepiece EW10X/20 mm Coaxial coarse & fine focusing adjustment with Vertical objective movement Focusing Coarse stroke 37.7 mm per rotation Fine stroke 0.2 mm per rotation Nosepiece Quintuple nosepiece Infinite plan achromatic objectives: 4×0.1/∞/- WD17.3 mm Objective 10×0.25/∞/- WD10 mm 20×0.4/∞/0 WD5.8 mm 40×0.65/∞/0 WD0.52 mm Stage Plain stage with slide clips Illumination Halogen lamp 6V/30W Polarizing outfit Polarizer & analyzer Filter Blue, green, yellow, ground glass Dimension 460×400×670 mm Net weight 13 kg

  3. Gross weight 15 kg Features : Trinocular head, inclined at 30° High point, extra wide field eyepiece EW10X/20 mm Vertical objective movement for focusing Halogen lamp 6V/30W as illumination source Infinity plan achromatic objectives Quintuple nosepiece Applications : Metallurgical microscope is widely used in the field of alloy and metal engineering industry, mineral industry. This metallurgical microscope can be used in the inspection of semiconductor chips, integrated circuits.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
