Forced Convection Oven

Forced Convection Oven provides greater temperature uniformity and faster recovery rates. It is available in AC 220V, 50/60Hz configuration and achieves <br>temperatures up to 250u00b0C with fast ramp-up and recovery time. This oven has a 49-liters capacity having a triple-paned safety glass front window for added <br>implosion protection. The chamber ventilation and exhaust vent are easily adjustable as it is equipped with a fan assisted air circulation operation.

Kimber4
Download Presentation

Forced Convection Oven

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

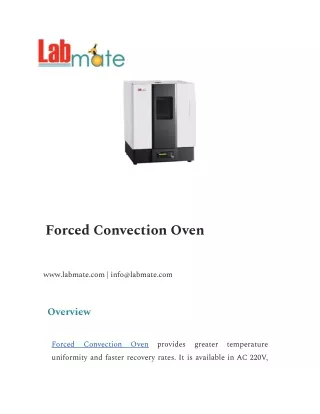

  1. Forced Convection Oven www.labmate.com | info@labmate.com Overview Forced uniformity and faster recovery rates. It is available in AC 220V, Convection Oven provides greater temperature

  2. 50/60Hz configuration and achieves temperatures up to 250°C with fast ramp-up and recovery time. This oven has a 49-liters capacity having a triple-paned safety glass front window for added implosion protection. The chamber ventilation and exhaust vent are easily adjustable as it is equipped with a fan assisted air circulation operation. Specifications : Capacity 49 L Temperature Range Ambient ±10°C to 200°C (Max 250°C) Temperature Accuracy ±0.5°C Timer 99 Hr 59 Mints Shelves 2 EA

  3. Temperature Controller Digital PID Controller, 5 pattern 18 steps Temperature Regulator SSR Regulator Thermocouple K (CA type) Insulation Glass Wool Window High Temp. safety glass/3 glass Safety Device Circuit Breaker, Sensor Alarm Fan Motor 1-16 HP Heater Capacity 1 Kw Power AC 220V, 50/60Hz, 1ɸ Internal Material Stainless Steel

  4. External Material Steel Plate with powder coating Internal Dimension 350×400×350 mm (W×D×H) External Dimension 500×560×810 mm (W×D×H) Features : - Intuitive and easy to use operating menu - High efficient fan motor ensures uniform air circulation - Excellent temperature accuracy - Simple to use and maintain - Simultaneous display of set constant and measured temperature - Increased safety and self-diagnostic functions - Over-temperature limit function - Specialized ventilation opening function to control air circulation and exhaust gas - Adjustable shelves to enhance end-users’ convenience - Less and low noise operation with gentle air currents

  5. - Chamber and door is insulated by solid heat insulator - Quick Auto start and auto stop functions - Fast recovery time when opening the door - Comes with 2/3 shelves with height adjustment option Applications : These drying ovens are suitable for drying of every kind of laboratory glassware, drying of heat-sensitive materials, and sterilizing, aging, curing, so?ening, annealing and residue-free drying of intricately designed parts. Also used for temperature control functions in Life Science, Research and Material tests in industries and laboratories. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
