Presentation Transcript


Instructors professor rudolf b husar erin m robinson l.jpg

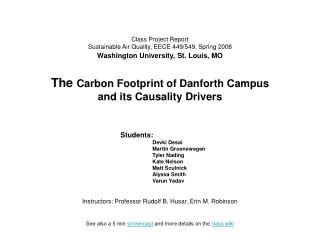

Class Project ReportSustainable Air Quality, EECE 449/549, Spring 2008Washington University, St. Louis, MOThe Carbon Footprint of Danforth Campusand its Causality Drivers

Instructors: Professor Rudolf B. Husar, Erin M. Robinson

Students:

Devki Desai

Martin Groenewegen

Tyler Nading

Kate Nelson

Matt Sculnick

Alyssa Smith

Varun Yadav

See also a 5 min screencast and more details on the class wiki


Main components of wu carbon emissions on campus energy use in buildings and transportation l.jpg

Main Components of WU Carbon Emissions: On Campus Energy Use in Buildings and Transportation

On Campus Energy Use Carbon Impact

The impact on carbon arises from on-campus energy use and from transportation

Heating

Cooling

Appliances

Transportation Carbon Impact

Commuting

Air Travel

Students

University Fleet

Faculty/Staff


Transportation l.jpg

Transportation

Devki Desai

Tyler Nading

Varun Yadav


Washington university transportation emission l.jpg

Washington University Transportation Emission

  • Commuter Travel

    • Faculty/Staff

    • Students

  • University Fleet

  • Air Travel

    • Athletic Meets

    • Study Abroad

    • Faculty Air Travels


Annual commuter emission calculation l.jpg

Annual Commuter Emission Calculation

2,421 grams of Carbon/Gallon as given by the Code of Federal Regulations (40 CFR 600.113)

44 gm CO2

miles

gallons

0.99 % fuel oxidized

X

Emissions

=

12 gm C

year

mile

# people

X

X

X

X

  • Factors effecting the emission:

    • # of people commuting to WashU

    • miles driven per year

    • gallons of fuel required

    • amount of Carbon or Carbon Dioxide produced by the fuel


Data collected l.jpg

Data Collected

Student Parking Permit Data: Only 2007-08.

Student Local Address Data

Student Home Address Data

Faculty/Staff Parking Permit Data: Only 2007-08.

Faculty/Staff Local Address Zip code: Only 2007-08.


Issues with data l.jpg

Issues with Data

Some students provide their permanent home address zip code instead of local address zip code

Each year over 3000-4000 students do not provide zip code.

Historic faculty/staff local zip code not available.

Historic parking permit data not available.


Slide8 l.jpg

2007-08 Data on Google Earth

Distance within 150 miles to WashU considered for analysis.


Distance calculation l.jpg

Distance Calculation

Zip code converted to latitude and longitude based on U.S. Gazetteer and zipinfo.

For WashU, coordinates of Brookings Hall (38.648N, 90.305W) considered.

Distance from zip code coordinates to WashU coordinates calculated using the reference formula:

Δx = 69.1*(lat1-lat2); Δy = 53.0*(lon1-lon2),

Distance (in miles) = (Δx2+Δy2) 1/2.

Calculates straight line distance between WashU and centroid of zip code


Slide10 l.jpg

Fudge factors required for calculated distance

Highways and road directions

Bridges on East and North St. Louis

18% for Students

40% for Faculty/Staff


Annual distance traveled l.jpg

Annual Distance Traveled

Assume every person makes 1 round trip (2 trips) to school per working day of the year

Faculty/Staff - 225 working days per year

Students - 165 working days (excluding vacations)


Slide12 l.jpg

Faculty Commuter Contribution


Slide13 l.jpg

Student Commuters

The number of students living within 150 miles of the Danforth Campus have not lead to an increase in the amount of parking permits issued as our data implied.


Slide16 l.jpg

1991-92

1995-96

Annual miles driven per student decreased most dramatically from 2002-2007.

This is explained in part by the shift in student residences from 2001-2007.

2000-2001

2007-08


Slide17 l.jpg

Student Commuter Carbon Emissions


University fleet contribution l.jpg

University Fleet Contribution

The University fleet grew and contribution steadily increased despite improvements in fuel economy, yet is minimal in comparison to student commuter carbon emissions.


Air travel emissions l.jpg

Air Travel Emissions

  • General areas of air travel

    • Faculty

    • Study abroad

    • Athletics

  • Methodology

    • Faculty air travel not considered

    • Study abroad data was provided for the past 6 years

    • Athletic air travel data provided for the past 3 years


Slide21 l.jpg

Air travel emissions have increased by 30%


Slide22 l.jpg

Study abroad emissions are the driver in this study


Washington university transportation emission23 l.jpg

Washington University Transportation Emission


On campus energy use l.jpg

On Campus Energy Use

Kate Nelson

Alyssa Smith


Building use by category l.jpg

Building Use by Category

Instruction and Departmental Research

Organized Research

Other


1990 vs 2006 main campus site map l.jpg

1990 vs. 2006 Main Campus Site Map


Area growth through buildings l.jpg

Area Growth through Buildings

Instruction and Departmental Research: 1%

Organized Research: -40%

Other: 43%

Total: 35%


Monthly total electricity use l.jpg

Monthly Total Electricity Use

  • Monthly data for Danforth campus electricity use

  • Data for 1996-2000 is incomplete and not shown above


Seasonal electricity use l.jpg

Seasonal Electricity Use

  • Electricity use peaks in the summer


Electricity yearly increase l.jpg

Electricity Yearly Increase

60%

40%

Baseline electricity use has increased ~60% since 1990

Cooling electricity use has increased ~40% since 1990


Electricity use compared to building area l.jpg

Electricity Use Compared to Building Area

  • Electricity used per unit area for cooling has not increased significantly

  • Baseline electricity use has increased 15% more than building area

  • Increase in baseline electricity use per unit area due to increased computer and electronics use


Electricity use distribution l.jpg

Electricity Use Distribution

Electronic devices account for ~25% of 2007 electricity use

Lighting and electronics account for a large portion of electricity use and reductions can easily be made in this area

Reductions in cooling are more difficult to implement


Monthly total fuel use l.jpg

Monthly Total Fuel Use

  • Monthly natural gas use on Danforth campus from 1997 to 2007


Seasonal fuel use l.jpg

Seasonal Fuel Use

  • Fuel use peaks in the winter


Fuel yearly increase l.jpg

Fuel Yearly Increase

-10%

65%

  • Heating fuel use has decreased ~10% since 1997

Baseline fuel use has increased ~65% since 1997


Fuel use compared to building area l.jpg

Fuel Use Compared to Building Area

  • Fuel used per unit area for heating has decreased, ~30% less fuel is used per unit area

  • Baseline fuel use has increased 25% more than building area


Fuel use distribution l.jpg

Fuel Use Distribution

Residential area built in 2001

Hot water heating requirements can easily be reduced

Heating needs are major use of fuel and not easily reduced


Linear causality model for campus carbon emissions l.jpg

Linear Causality Model for Campus Carbon Emissions

Carbon/BTU

  • The carbon impact of on-campus energy is due to direct fuel consumption and indirectly from electricity use

  • The overall carbon impact for on campus energy consumption has increased 50% from 1990-2007

  • Electricity use contributed about 80 percent to the on-campus carbon impact

Fuel Cons.BTU/yr

C EmissionTon C/yr

$/Student

Sq. Ft./$

BTU/Sq.Ft.

PopulationStudents

Activities$ Expend./yr

Buildings Sq. Ft

Kw-hr/Sq.Ft.

Electr. ConsKw-Hr/yr

Fuel Cons. BTU/yr

C Emission Ton C/yr

BTU/Kw-hr

Carbon/BTU


Slide39 l.jpg

  • The student population increased only by 10% since 1990

  • However, the expenditures/student have increased by 60 percent

  • The buildings/expenditure has barely changed and the increased expenditures were matched by 60% growth in campus building area

  • Neither the energy use/sq ft nor the C emission/energy use has changed much

  • Hence, the key driver for the 60% carbon emission growth were the increased expenditures (prosperity) and the associated growth in the physical campus expansion.


Wu comparison with other universities l.jpg

WU Comparison with Other Universities

Martin Groenewegen

Tyler Nading


What is in this analysis l.jpg

What is in this analysis:

Carbon assessments from other schools

Use to make sense of WU's report

Different data

Purchased electricity

Stationery sources (labs, steam generation, etc)

Transportation (University fleet, Commuting students, Commuting Faculty and Staff)

Ag Wastes

Solid Wastes


Colleges and universities l.jpg

Colleges and Universities

  • Carleton College

  • Harvard

  • Tufts University

  • University of New Hampshire

  • Smith College

  • Lewis and Clark

  • Middlebury College

  • University of Central Florida

  • Penn State University Park

  • Tulane University

  • Utah State University

  • Oberlin College

  • Duke University

  • University of Pennsylvania

  • Colby College

  • Wellesley College

  • Rice University

  • University of Illinois at Chicago

  • Penn State

  • College of Charleston

  • Yale

  • University of California, Santa Barbara

  • California State Polytechnic University

  • University of Connecticut

  • University of California, Berkeley

  • Amherst College

  • College of William and Mary

  • UT, Knoxville

  • Connecticut College

  • Occidental College

  • Colorado State University


Why analyze the others l.jpg

Why analyze the others

Determining scope of emission

Finding new ways to handle a lack of data/estimations with limited details

Method validation

Structuring of the Wash U report


Slide45 l.jpg

Tr-CSt=Transportation Commuting Students

PE=purchased electricity

Tr-CSF=Transportation Commuting Fac. Staff

ST=Stationery sources

Tr-A=Transportation Air

Re=Refrigerants

SW=Solid Wastes

Tr-UF=Transportation University Fleet

Ag=Agriculture Wastes


Slide46 l.jpg

Duke

Wash U


And the study shows l.jpg

And the Study Shows:

Wash U is average

Overall correlation between size and emission

Some out liars do exist

Improvements

  • Do this study for a longer period of time using interim reports

  • Check the units

  • Comprise more comparisons for the given student body populations


Analysis of transportation sector from other schools inventories l.jpg

Analysis of Transportation Sector From Other Schools’ Inventories

  • Purpose

    • Examine methodology used by other schools to account for transportation emissions

    • Determine trends/drivers for transportation emissions

    • Use findings as measuring stick for WU

  • Methodology observed

  • Error observed


Slide50 l.jpg

  • Linear trend observed

  • Variance observed and expected

  • Duke and Penn outliers


Slide51 l.jpg

  • Population is a definite driver of transportation emissions


Wu and the chicago climate exchange l.jpg

WU and the Chicago Climate Exchange

Matt Sculnick


Pollution prevention l.jpg

Pollution Prevention

  • There are 2 main types of pollution prevention methods: Cap-and-Trade and BACT

  • The Best Available Technology Method requires certain pollution control methods to be put in place at specific facilities

  • There are different requirements for both new and existing sources; the new generally being stricter

  • Cap-and-Trade systems require that each facility only emit a certain amount a certain pollution (by weight) and if they come in under they are allowed to sell their remaining permits

  • This requires specific monitoring in order to verify the pollution levels


Chicago climate exchange l.jpg

Chicago Climate Exchange

  • The CCX was founded in 2003 and is the only trading platform of its kind in North America

  • All members of the exchange, currently approximately 350, agree to certain CO2 reductions each year

  • The members join voluntarily, but the reductions which they agree to are legally binding

  • The Chicago Climate Exchange (CCX) has three component parts: The CCX Registry, The CCX Trading Platform, and The Clearing Settlement Platform; which provide real-time information to the traders

  • There are two different kinds of members: Phase I and Phase II, which joined the exchange in 2003 and 2007 respectively

  • Both types of members have agreed to overall reductions of 6% of their baseline by 2010


Trading on the exchange l.jpg

Trading on the Exchange

  • Members on the exchange are trading CCX Carbon Financial Instruments (CFI) Contracts which correspond to 100 metric tons of CO2 emissions

  • The contracts that are being traded also correspond to the specific year in which they were issued and when companies fail to meet their reductions they purchase contracts from that year

  • In addition to companies trading contracts which the receive for any reductions below their specified levels, they also may receive reductions for any offset projects which they are able to complete and have verified by a third party

  • There are standardized rules set out by the exchange which define how CFI contracts are issued for Agricultural methane, Coal mine methane, Landfill methane, Agricultural soil carbon, Rangeland soil carbon management, Forestry, Renewable energy, and depleting substance destruction. These projects must also go through a 4 set verification procedure.


University involvement l.jpg

University Involvement

  • There are 8 current University members of the Chicago Climate Exchange

  • Tufts has been a member of the exchange since 2003 and the others have subsequently joined later as Phase II members


Actual vs allowed co2 emissions l.jpg

Actual vs. Allowed CO2 Emissions

  • Differential between actual emissions and allowed emissions not only is positive, but is actually increasing every year


Ccx cfi contracts purchased per year l.jpg

CCX CFI Contracts Purchased Per Year

  • In each year the number or CCX CFI contracts that would need to be purchased by the University in order to overcome its pollution is increasing


Excess polluting costs to the university l.jpg

Excess Polluting Costs to the University

  • As a Phase I member of the exchange the University would have contracted total costs of $20,816

  • As a point of reference it would cost $150,000 to buy all of the contracts on the European Climate Exchange


Working toward a transition to sustainability l.jpg

Working Toward a Transition to Sustainability

Alyssa Smith


Working toward a sustainable carbon footprint l.jpg

Working Toward a Sustainable Carbon Footprint

  • What is to be sustained?

  • What is to be developed?

  • The links between the entities to be sustained and the entities to be developed

  • The extent of the future


Sustainable transition l.jpg

Sustainable Transition

  • Sustained

    • Energy

      • Development of efficient harnessing of non-polluting energy, reduction in energy loss due to transmission

    • Water

      • Harvesting rain water, water treatment, recycling

    • Material

      • Recycling

    • Construction

      • energy efficient buildings and upgrade of old building

    • Transportation

      • Development of high performance engines using renewable energy, converting to energy efficient vehicles

  • Developed

    • Campaigns directed towards reduction of energy demand

    • Programs for water conservation, reuse, and recycling

    • Raise awareness of waste reduction and recycling programs

    • Promote consumption of organic and local food products

    • Encouraging use of public and non-polluting modes of transportation

    • Organization of social events to raise environmental awareness


Reporting the transition l.jpg

Reporting the Transition

Transportation Indicators:

Building Indicators:


Exploring the future l.jpg

Exploring the Future

  • Trial and error process

  • Must consider

    • scientific credibility

    • political legitimacy

    • practical utility

    • effectiveness of the system on trial

  • Regional Information Systems (RIS) are often used

  • Analysis of the future is a prediction, not factual


Slide67 l.jpg

Carbon Emission Model: Neutral Case


Energy alternatives l.jpg

Energy Alternatives

  • Coal:

    • 68,000 metric tons

  • Wind:

    • 56 turbines, diameter 71 m

  • Solar:

    • PV Panel Area: 556,000 sq m

  • Hydro:

    • Dam = 64 ft


Slide70 l.jpg

Wash U.'s goals are to address the issues of environment, energy and sustainability through education, research and out reach projects. More over, Wash U. will seek and define its best operation practices, and aspire to be a model of energy conservation for other institutions.

- Mark S Wrighton, Chancellor EES, WashU


Links to class wiki and documents l.jpg

Links to Class Wiki and Documents

  • Class Project: Carbon Footprint of Danforth Campus

    • On Campus Energy Use

    • Transportation

    • Other University Comparison

    • Washington University and the Chicago Climate Exchange

    • Working Toward a Sustainable Transition

  • Related Links

    • Clean Air/Cool Planet

    • Other University Inventories

    • National Academy of Science Report: Our Common Journey

    • All class contributed links


  • Login
