Presentation Transcript


Marine microfossils l.jpg

Dr. J Bret Bennington

Department of Geology

Marine Microfossils


What are marine microfossils l.jpg

What are marine microfossils?

  • Fossilized remains of small organisms or tiny hardparts of larger organisms.

  • Plankton

  • Benthic fauna

  • Many different groups representing animals, protists, and a variety of algae.


Protistan microfossils l.jpg

Protistan Microfossils

  • Mineralized test (shell) formed by amoeba-like protozoans.

  • Foraminifera - calcareous (calcium carbonate) or agglutinated (test composed of cemented grains of sand or other sediment).

  • Radiolaria - test composed of silica.


Slide4 l.jpg

Foraminifera - sarcodina (amoeba)

Protistan Microfossils


Slide5 l.jpg

Foraminifera - sarcodina (amoeba)

  • Benthic forams

  • live in sediments

  • relatively large

  • Planktic forams

  • live floating in the water column

  • relatively small

Protistan Microfossils


Slide7 l.jpg

Foraminifera - sarcodina (amoeba)

Benthic forams

Protistan Microfossils

Calcite


Slide8 l.jpg

Foraminifera

Planktic forams

Calcite

Protistan Microfossils


Slide9 l.jpg

Radiolarians - Spumellarians

Protistan Microfossils

Silica


Slide10 l.jpg

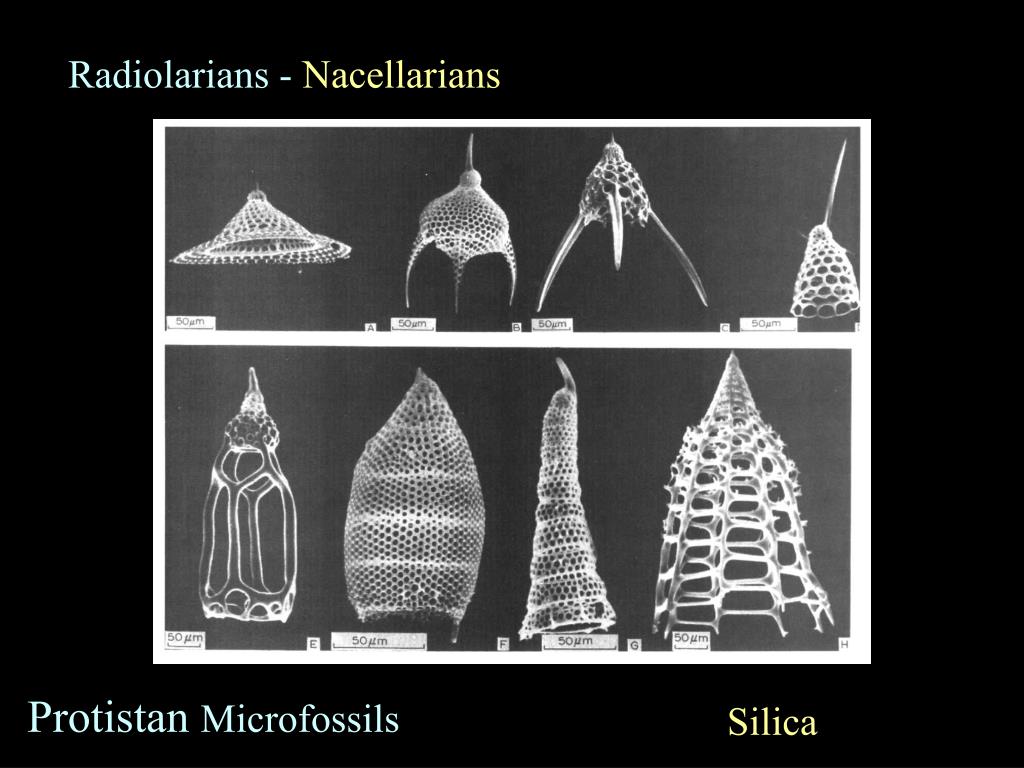

Radiolarians - Nacellarians

Protistan Microfossils

Silica


Animal microfossils l.jpg

Animal Microfossils

  • Mineralized shells and teeth produced by metazoans (multicellular animals).

  • Ostracods - calcareous (calcium carbonate) shell produced by tiny crustaceans.

  • Conodonts - calcium phosphate “teeth” produced by an extinct group of vermiform (worm-like) vertebrates.


Slide12 l.jpg

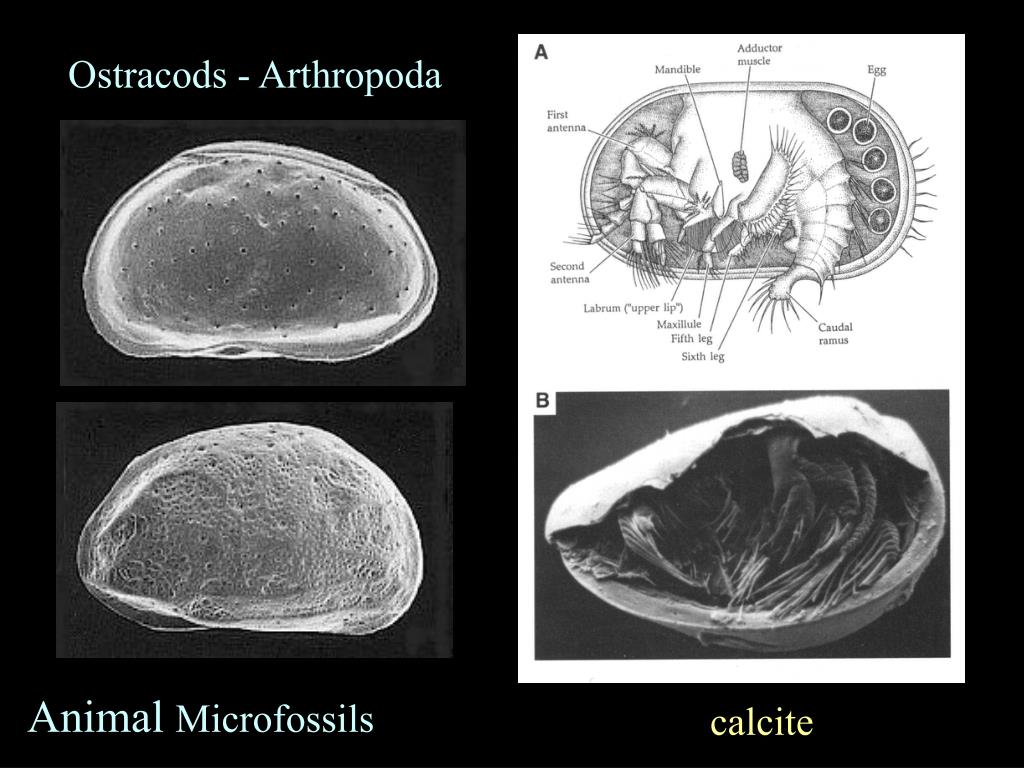

Ostracods - Arthropoda

Animal Microfossils

calcite


Slide13 l.jpg

Conodonts - Vertebrata

Animal Microfossils


Slide14 l.jpg

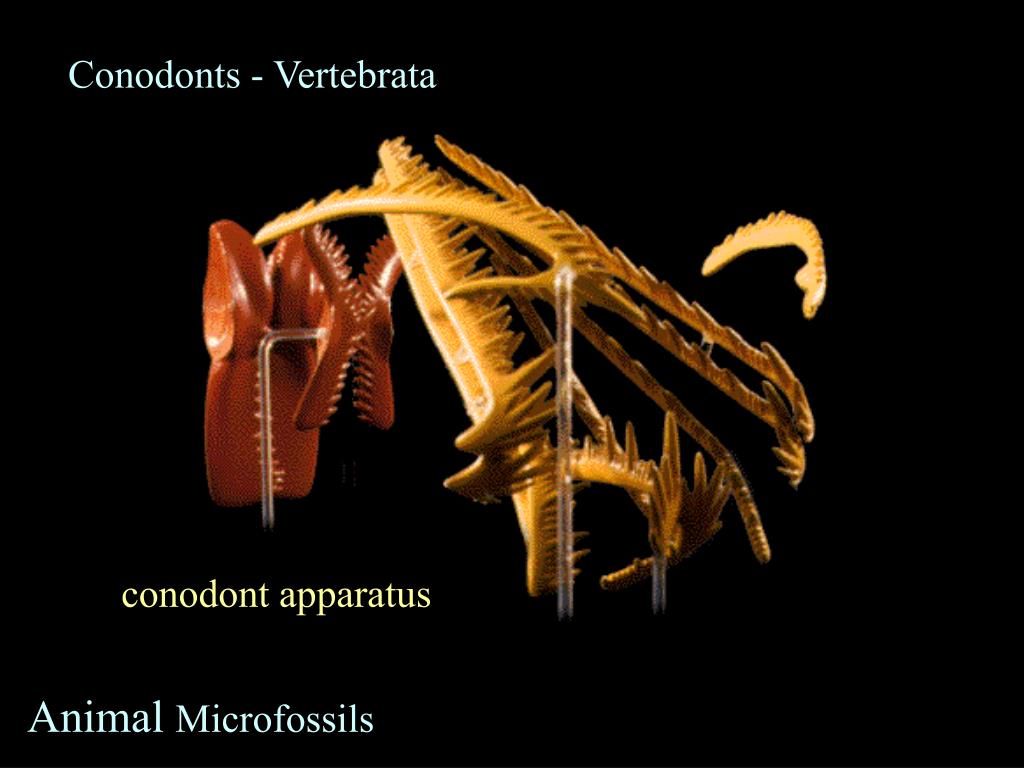

Conodonts - Vertebrata

conodont apparatus

Animal Microfossils


Slide15 l.jpg

Conodonts - Vertebrata

Animal Microfossils

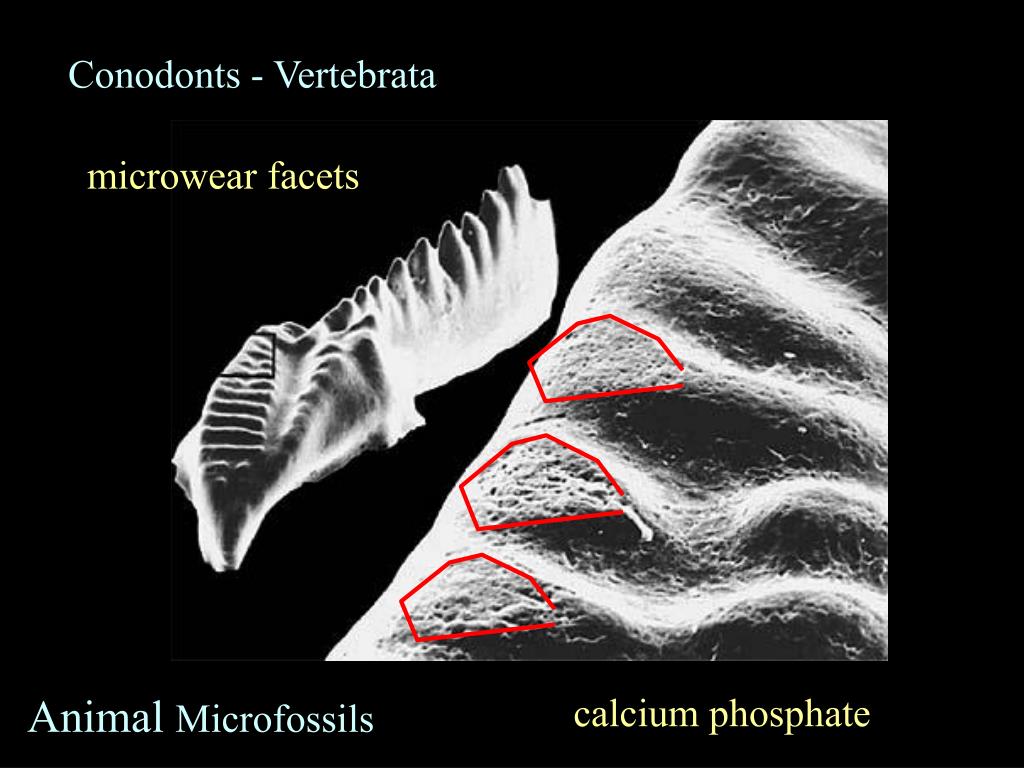

Slide16 l.jpg

microwear facets

Conodonts - Vertebrata

Animal Microfossils

calcium phosphate


Algal microfossils l.jpg

Algal Microfossils

  • Mineralized tests and plates produced by a variety of unicellular algae.

  • Coccolithophorids - tiny algae that produce calcareous plates - main component of chalk.

  • Diatoms - algal cells that produce paired tests (called frustules) composed of silica.

  • Dinoflagellates - marine algae that produce organic cysts preserved in sedimentary rock. Also the cause of most harmful algal blooms (HABs).


Slide18 l.jpg

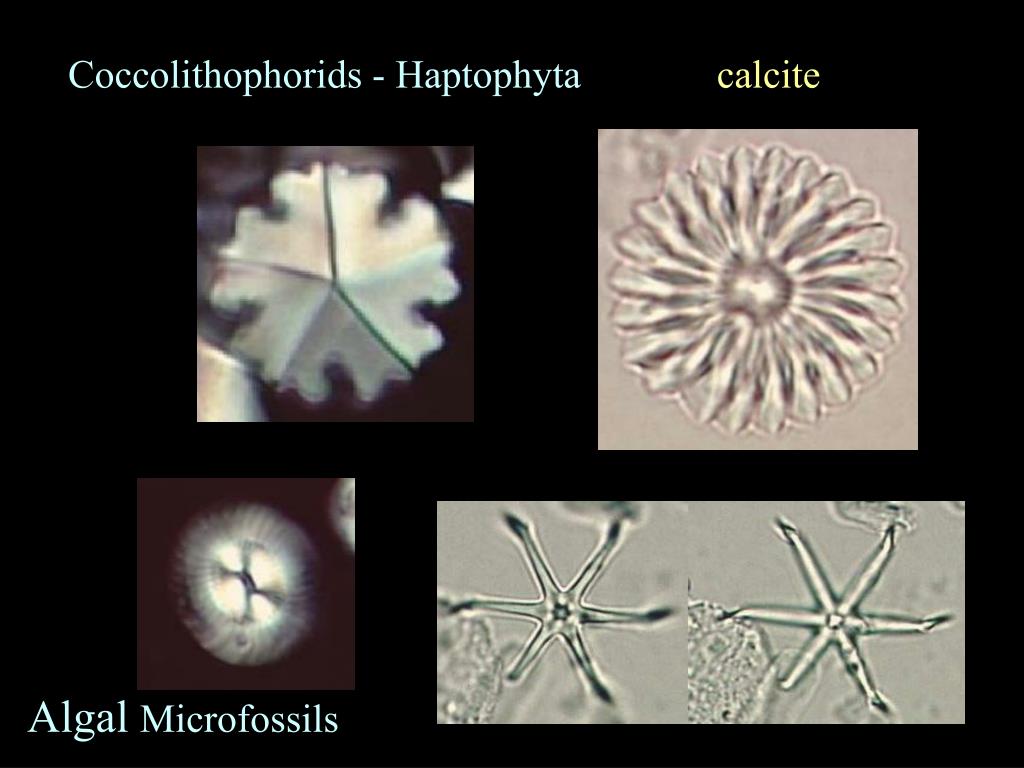

Coccolithophorids - Haptophyta

calcite

Algal Microfossils

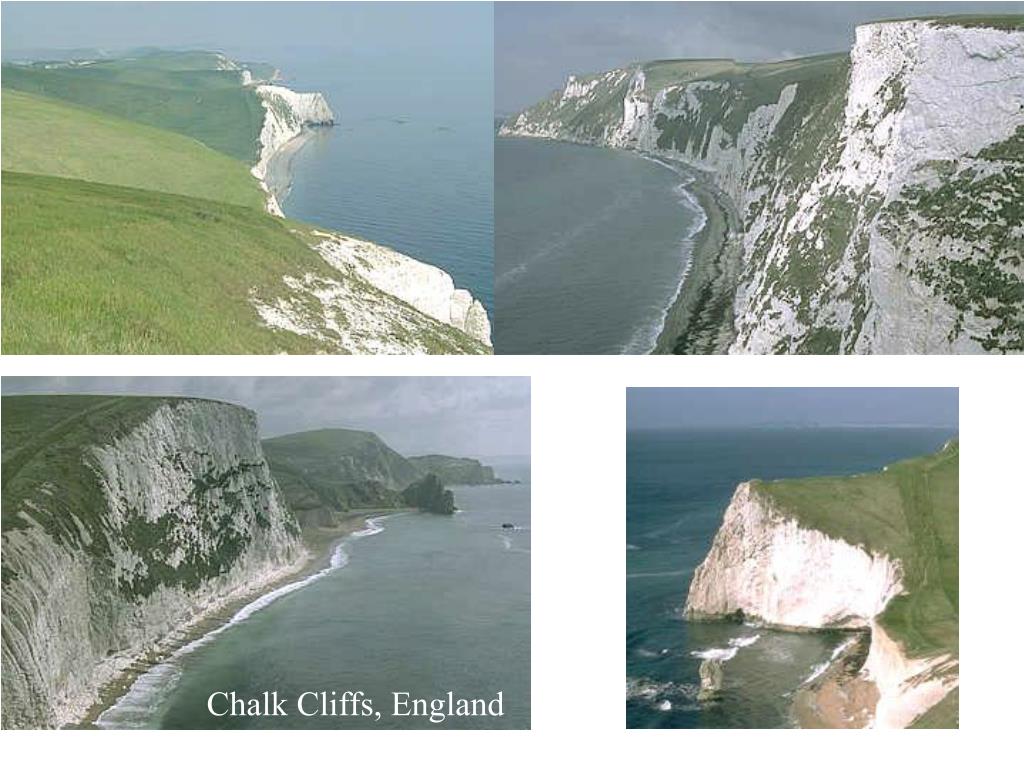

Slide19 l.jpg

Chalk Cliffs, England

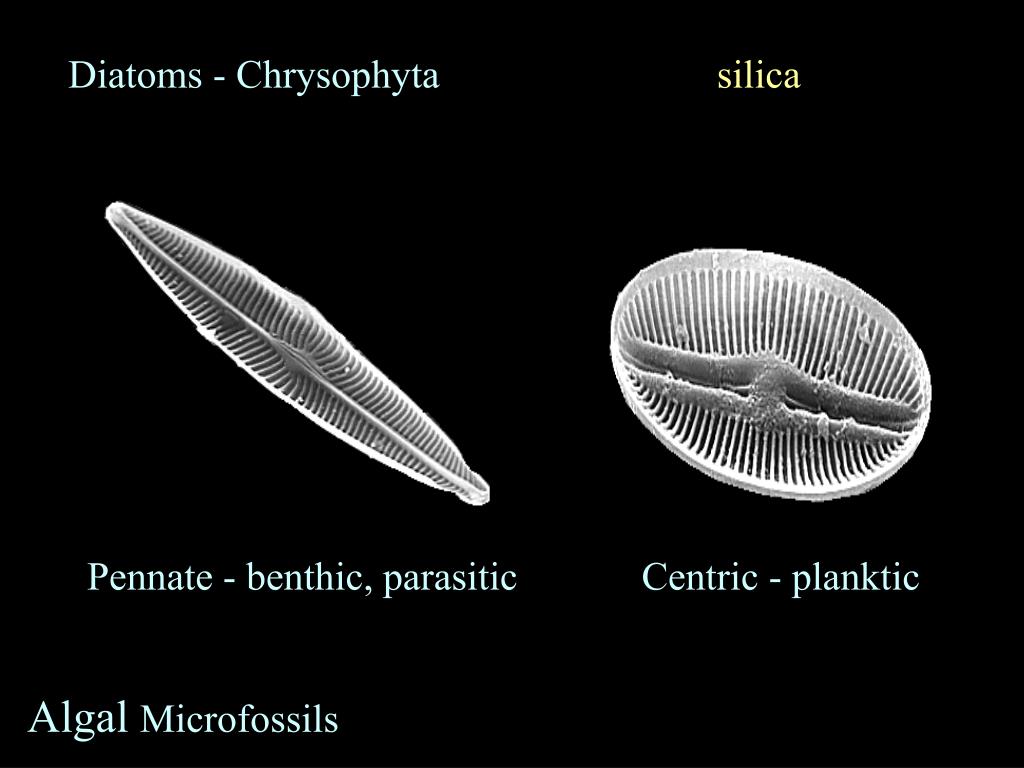

Slide20 l.jpg

Diatoms - Chrysophyta

silica

Pennate - benthic, parasitic

Centric - planktic

Algal Microfossils


Slide21 l.jpg

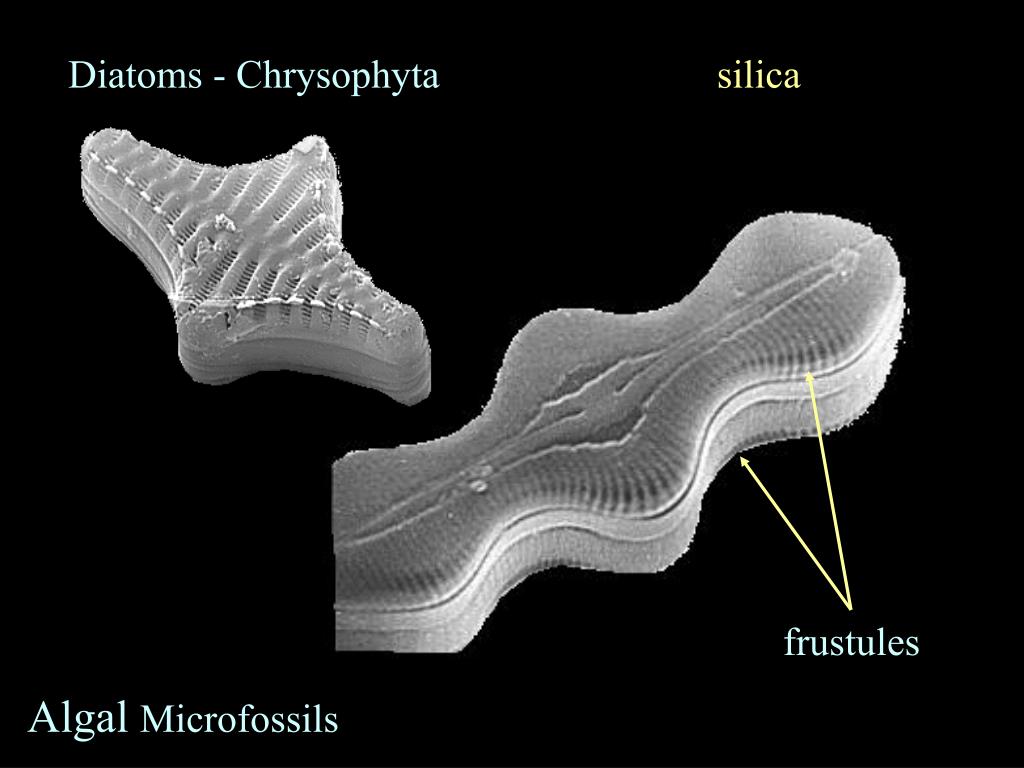

frustules

Diatoms - Chrysophyta

silica

Algal Microfossils


Slide22 l.jpg

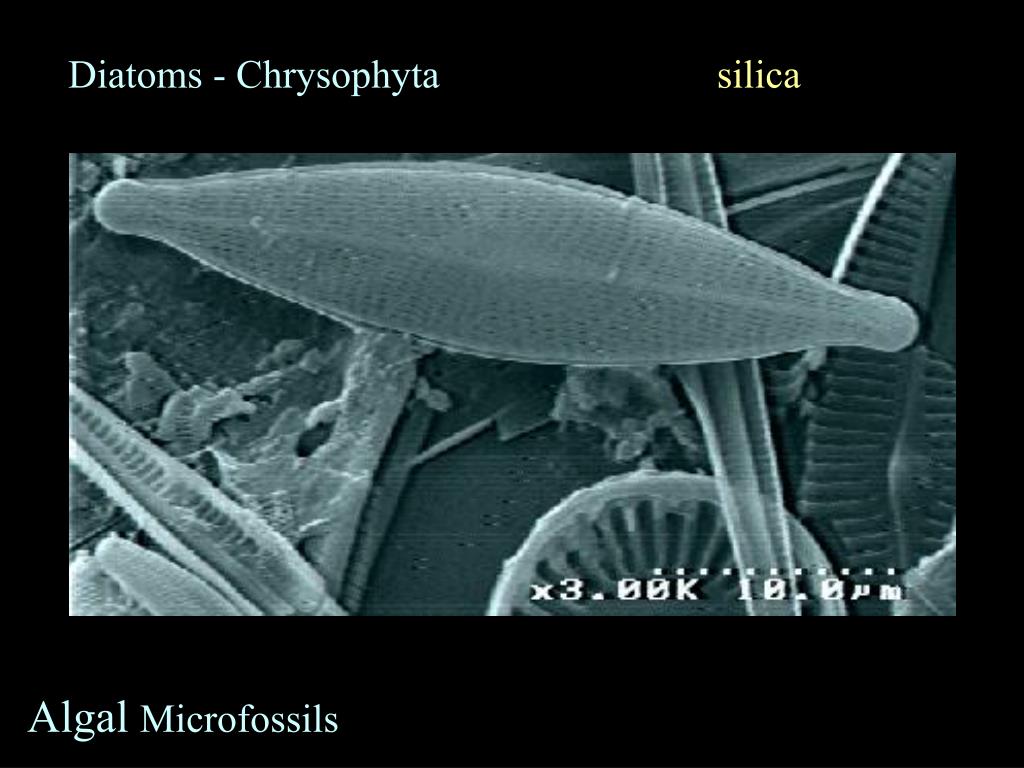

Diatoms - Chrysophyta

silica

Algal Microfossils


Slide23 l.jpg

Dinoflagellates - Pyrrhophyta

Sporopollenin

living

fossil

Algal Microfossils


Slide25 l.jpg

Dinoflagellates - Pyrrhophyta

Living cell

Cyst

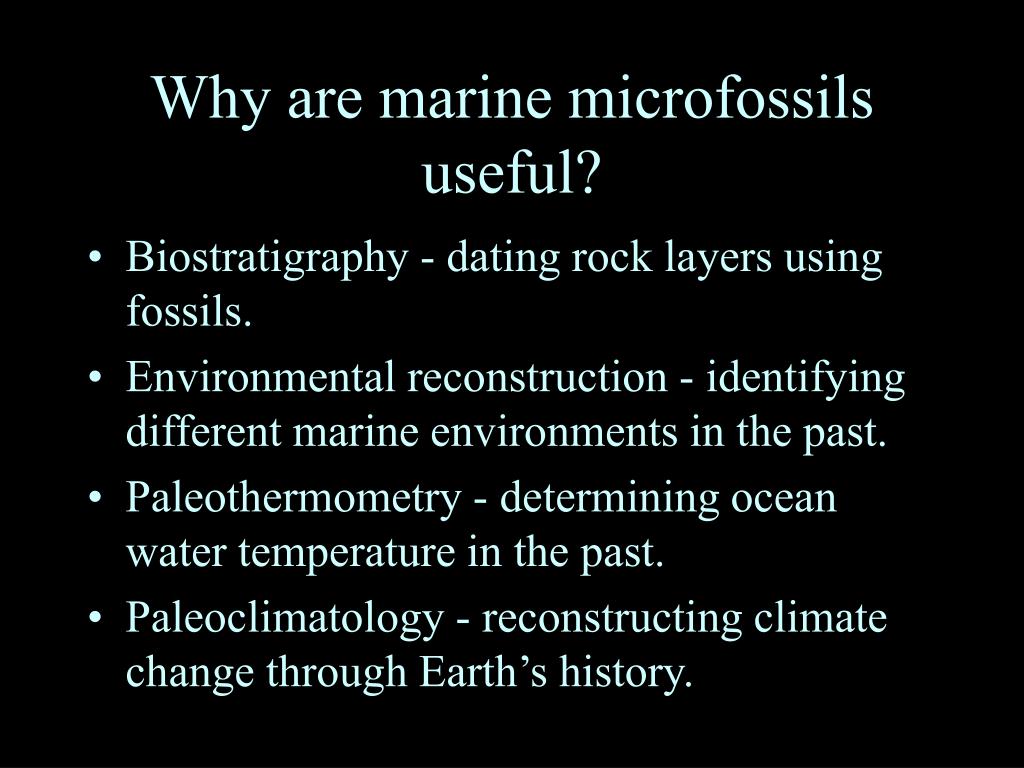

Why are marine microfossils useful l.jpg

Why are marine microfossils useful?

  • Biostratigraphy - dating rock layers using fossils.

  • Environmental reconstruction - identifying different marine environments in the past.

  • Paleothermometry - determining ocean water temperature in the past.

  • Paleoclimatology - reconstructing climate change through Earth’s history.


Slide29 l.jpg

From Sugarman, et. al, 1995

Biostratigraphic zones - intervals of time defined by the presence of particular fossil species.


Slide30 l.jpg

Coccoliths

From Sugarman, et. al, 1995

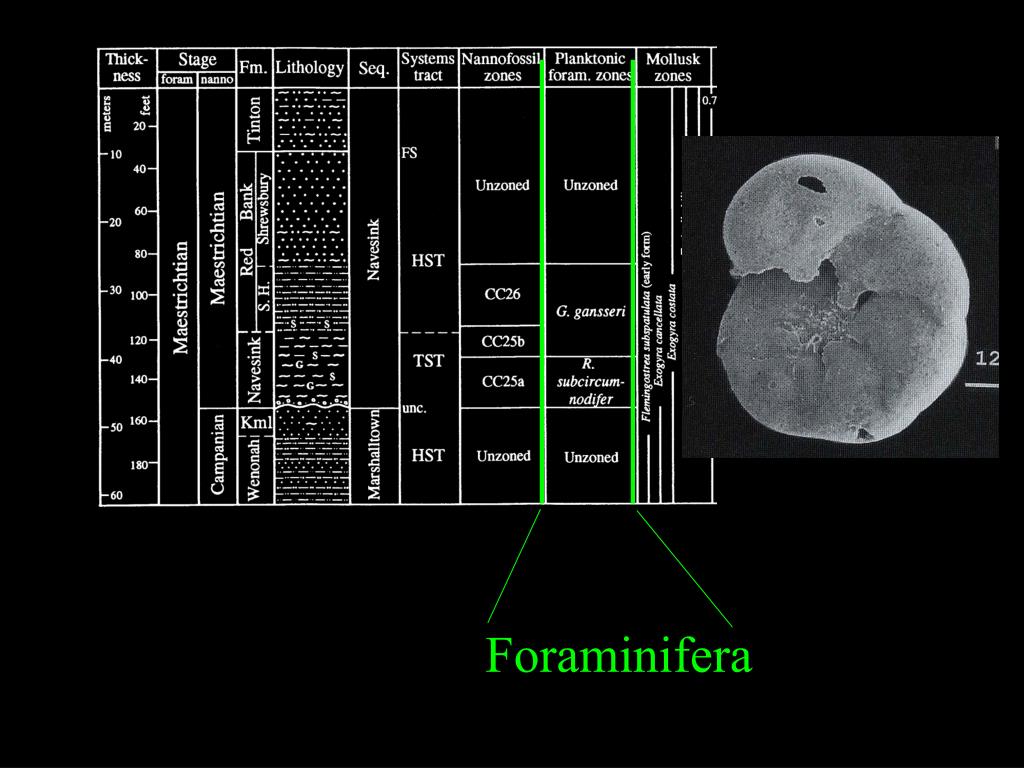

Slide31 l.jpg

Foraminifera

From Sugarman, et. al, 1995


Slide32 l.jpg

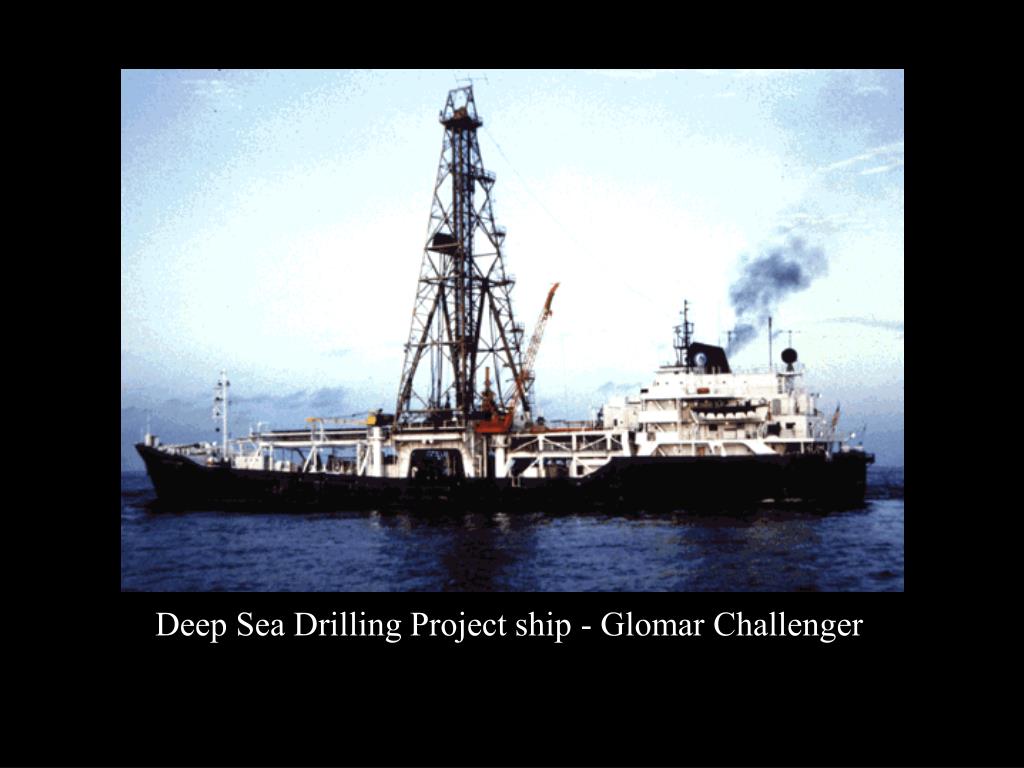

Deep Sea Drilling Project ship - Glomar Challenger


Slide33 l.jpg

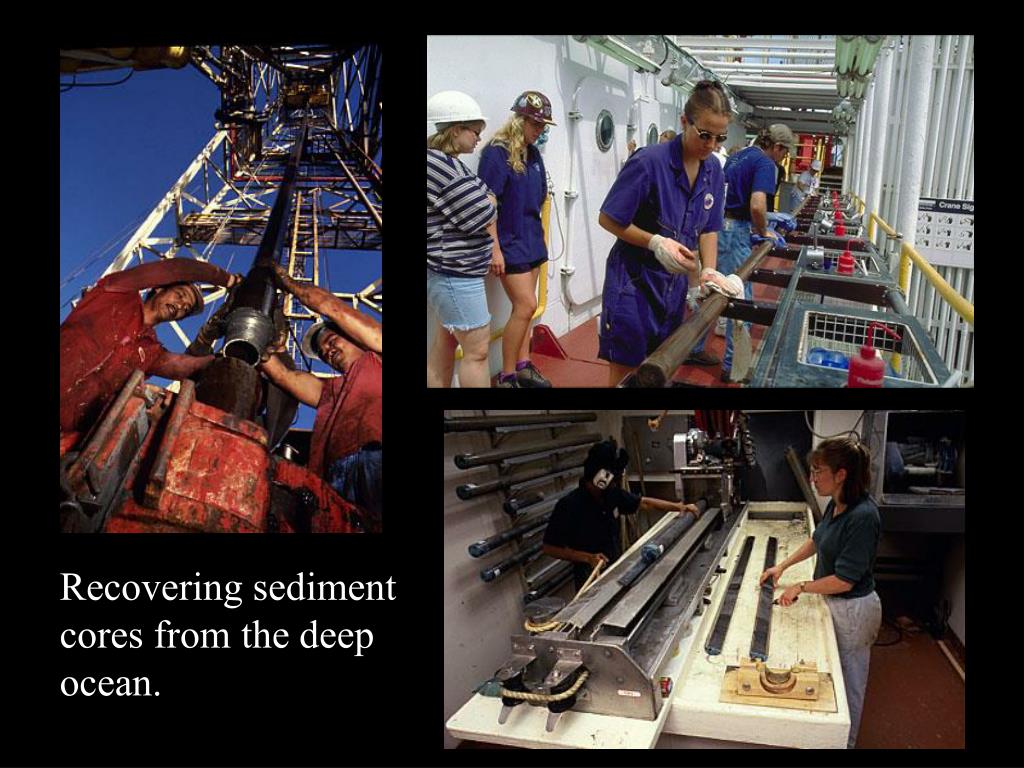

Recovering sediment cores from the deep ocean.


Slide34 l.jpg

Foraminifera

  • Fossil foram species can be used to date age of seafloor and sediment layers.


Slide37 l.jpg

O16

O18

Stable Isotopes

Oxygen

99.76%

.2%

CO2 + H2O = HCO3-1 + H+

2 HCO3-1 + Ca++ = CaCO3 + H2CO3

  • O18 is preferentially removed from seawater during calcite formation.

  • This effect is sensitive to temperature.

  • Ratio of O18 / O16 in shell is temperature dependent.

  • Can be measured using a mass spectrometer.


Slide38 l.jpg

Mass Spectrometer

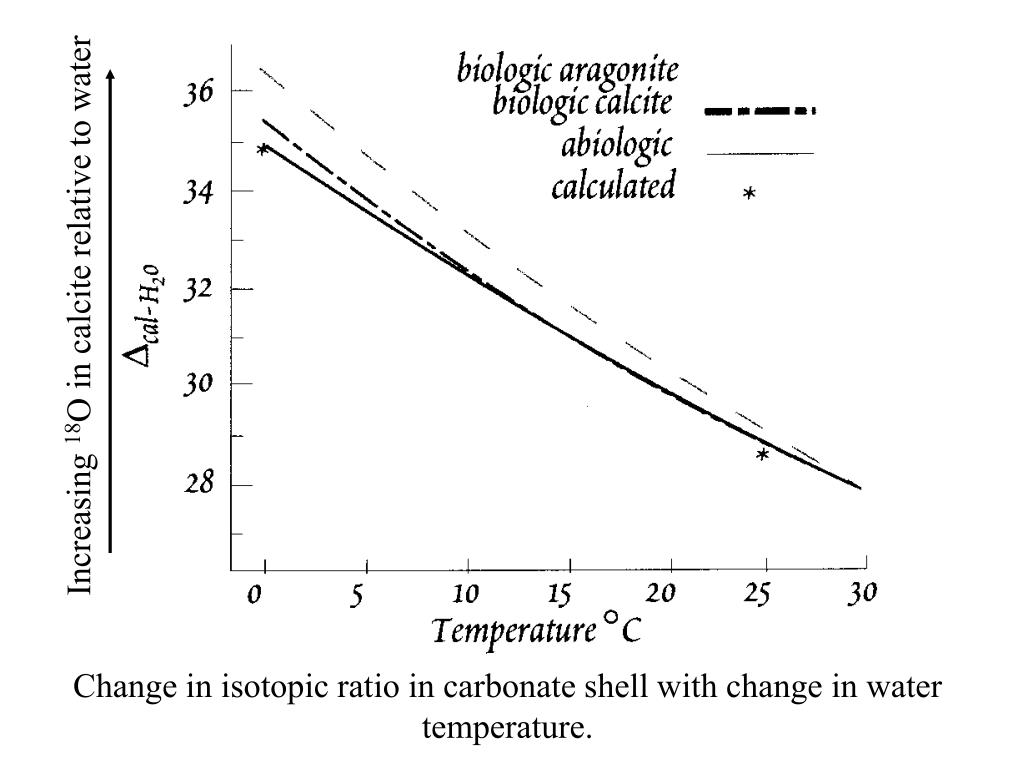

Slide39 l.jpg

Increasing 18O in calcite relative to water

Change in isotopic ratio in carbonate shell with change in water temperature.


Slide40 l.jpg

Modern sea-surface temperature


Slide41 l.jpg

less ice

negative excursion

more ice

positive excursion

d18O due to ice buildup

Glaciations cause more d18O to accumulate in seawater.

This happens because 16O evaporates preferentially and becomes trapped on land as glacial ice.

H216O


Slide42 l.jpg

warming

cooling

Average d18O curve

from 5 deep sea cores

(foram calcite).

After Imbrie et al. (1984)


Slide43 l.jpg

Onset of Cenozoic cooling trend - development of cold deep ocean circulation.


Slide45 l.jpg

Navesink Formation, central New Jersey


Slide46 l.jpg

70X

Benthic foraminifera


Slide47 l.jpg

70X

Benthic foraminifera


Slide48 l.jpg

70X

Planktic foraminifera


Slide49 l.jpg

70X

Ostracod

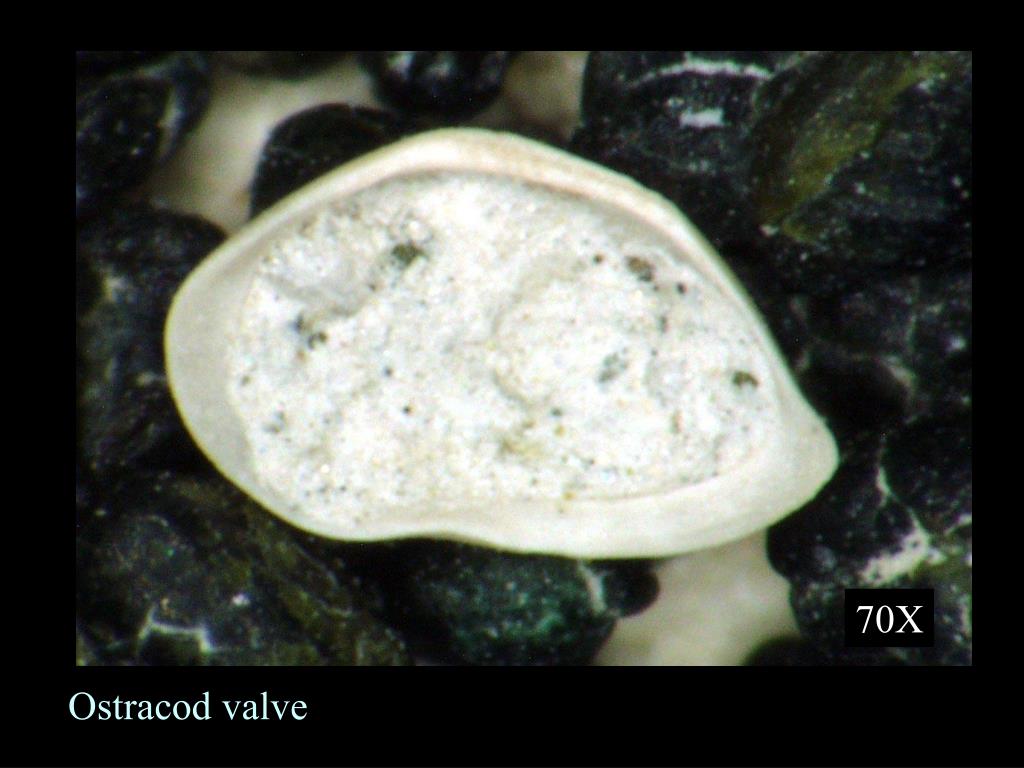

Slide50 l.jpg

70X

Ostracod valve


Slide51 l.jpg

70X

Burrowing echinoid spine


Slide52 l.jpg

70X

Fish denticle
