Presentation Transcript


Paint by numbers abstract image representation l.jpg

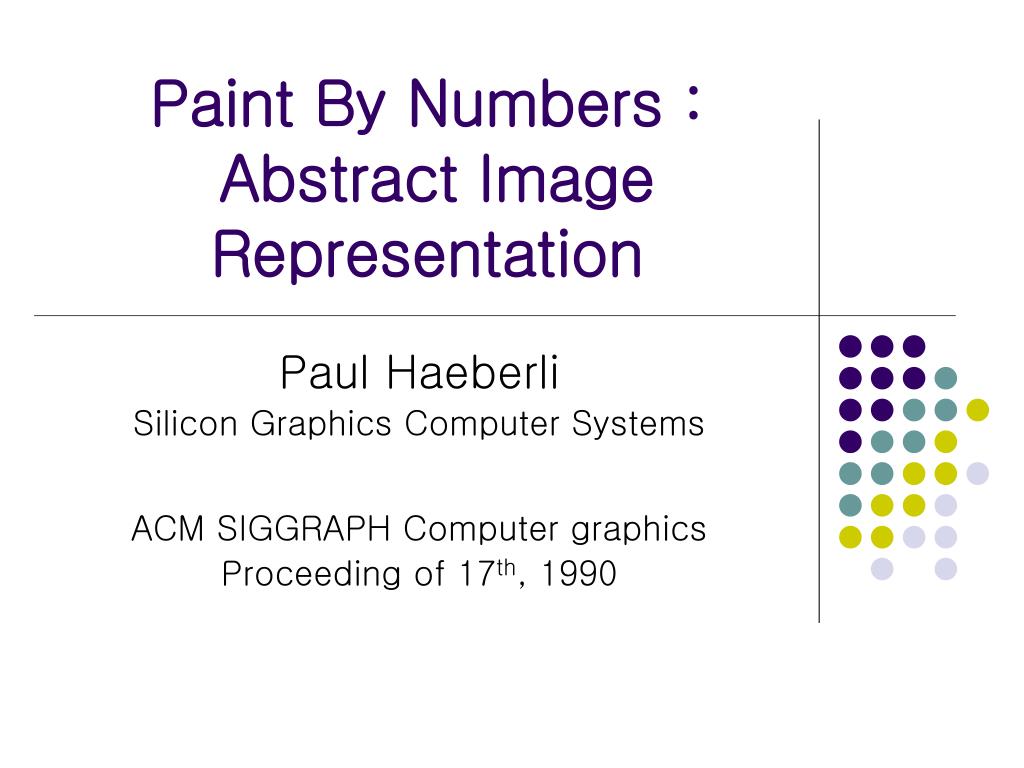

Paint By Numbers : Abstract Image Representation

Paul Haeberli

Silicon Graphics Computer Systems

ACM SIGGRAPH Computer graphics

Proceeding of 17th, 1990


Outline l.jpg

Outline

  • Motivation

  • Overview

  • Painting Techniques

  • Stroke Attributes

  • Operations on Paintings

  • Advanced Techniques

  • Spice for Images

  • Conclusion

  • Further work


Motivation l.jpg

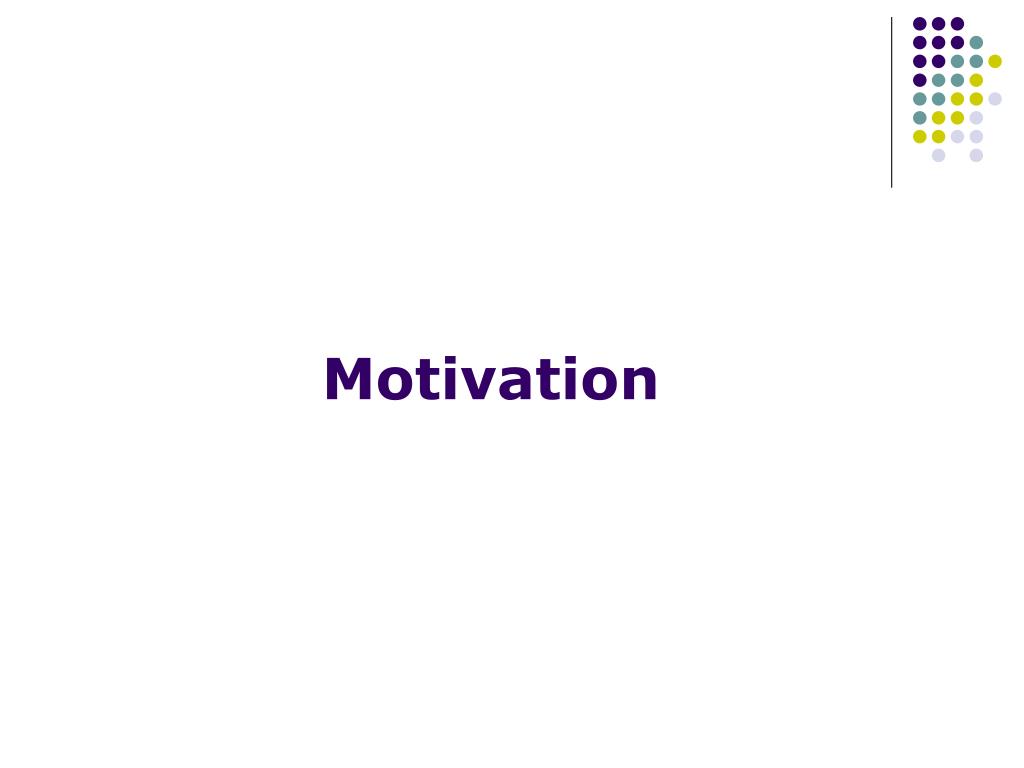

Motivation


Motivation4 l.jpg

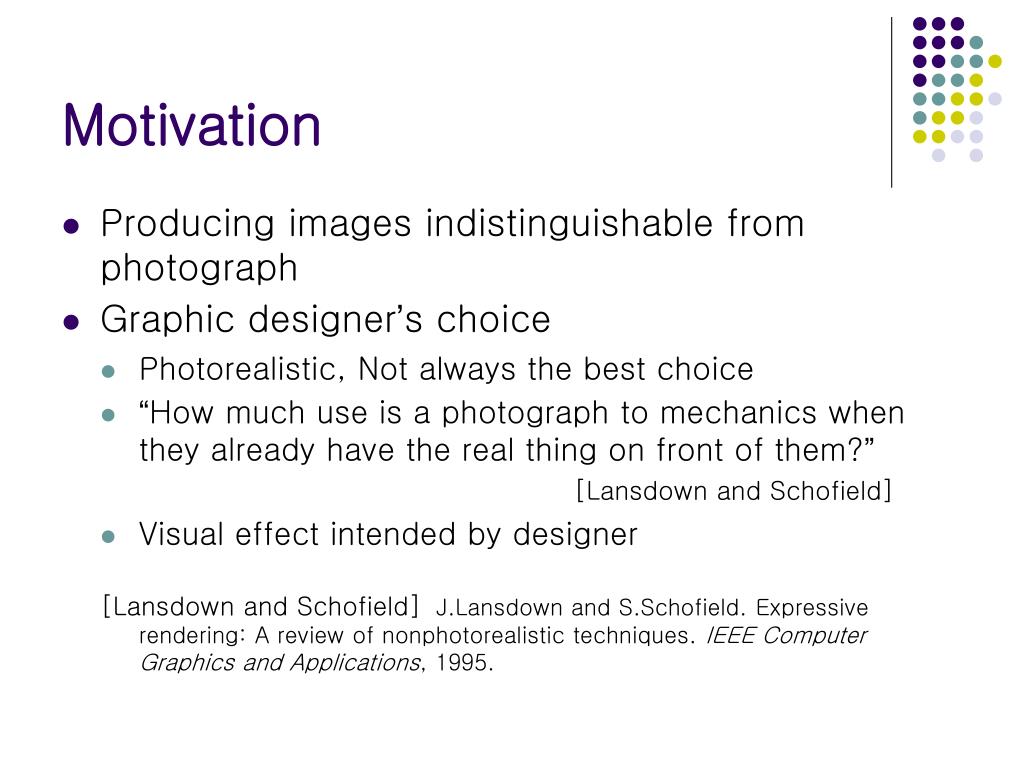

Motivation

  • Producing images indistinguishable from photograph

  • Graphic designer’s choice

    • Photorealistic, Not always the best choice

    • “How much use is a photograph to mechanics when they already have the real thing on front of them?”[Lansdown and Schofield]

    • Visual effect intended by designer

      [Lansdown and Schofield] J.Lansdown and S.Schofield. Expressive rendering: A review of nonphotorealistic techniques. IEEE ComputerGraphics and Applications, 1995.


Overview l.jpg

Overview


Overview6 l.jpg

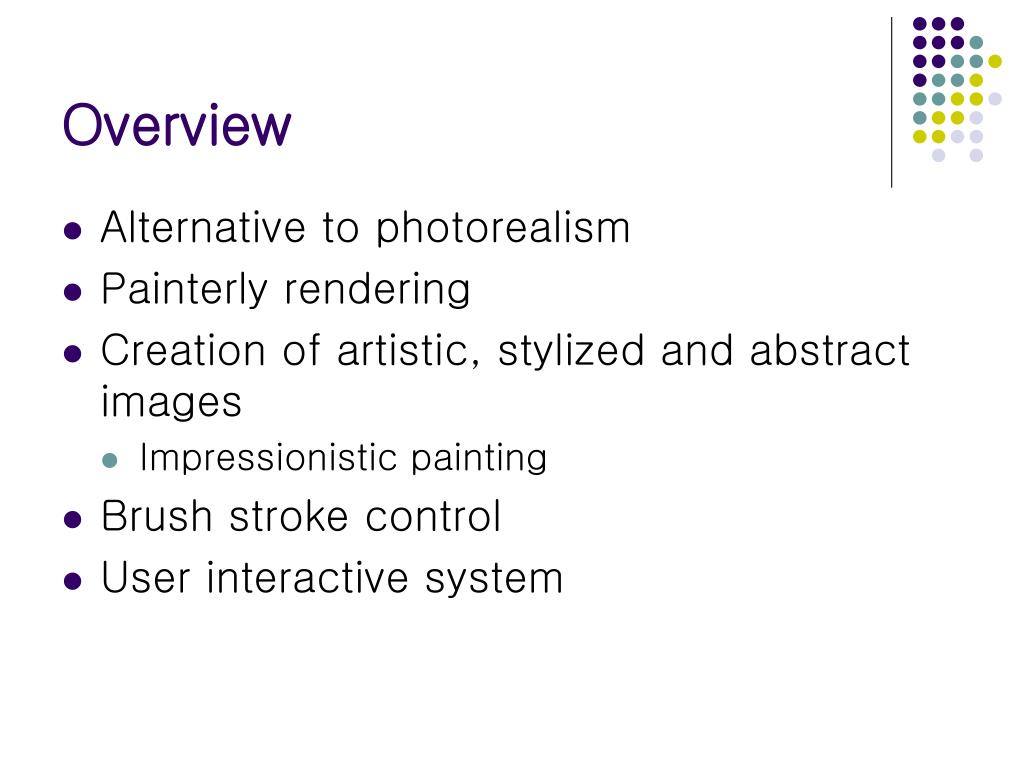

Overview

  • Alternative to photorealism

  • Painterly rendering

  • Creation of artistic, stylized and abstract images

    • Impressionistic painting

  • Brush stroke control

  • User interactive system


Painting techniques l.jpg

Painting Techniques


Operation l.jpg

Operation

  • Information from source image

    • Cursor across the canvas

    • Sampling color from image

  • Paint a brush stroke

    • Location

    • Color

    • Size

    • Direction

    • Shape


Painting example l.jpg

Painting Example


Stroke location l.jpg

Stroke Location

  • Stochastic distribution around cursor

  • Example of interactive particle system[Reeves]

    [Reeves] William T. Reeves and Ricki Blau, “Approximate and probabilistic algorithm for shading and rendering structured particle systems”, Computer Graphics, 1985.


Stroke color l.jpg

Stroke Color

  • RGB and alpha value

  • Time limitation to pick new color

    • “put-that-color-there” procedure[Lewis]

    • Restrict to small number of color

      [Lewis] John-Peter Lewis, “Texture Synthesis for Digital Painting”, Computer Graphics, 1984.


Stroke size and orientation l.jpg

Stroke Size and Orientation

  • Size

    • Control by cursor speed

      • Easy to create rough representation

    • Control by arrow keys

  • Orientation

    • Direction of cursor

    • Mouse gesture

    • Image gradient


Stroke shape l.jpg

Stroke Shape

  • Shape

    • Significant influenceto final painting

    • Circle, rectangle, line,scattering of points,polygon, cone, user-defined shape


Painting example14 l.jpg

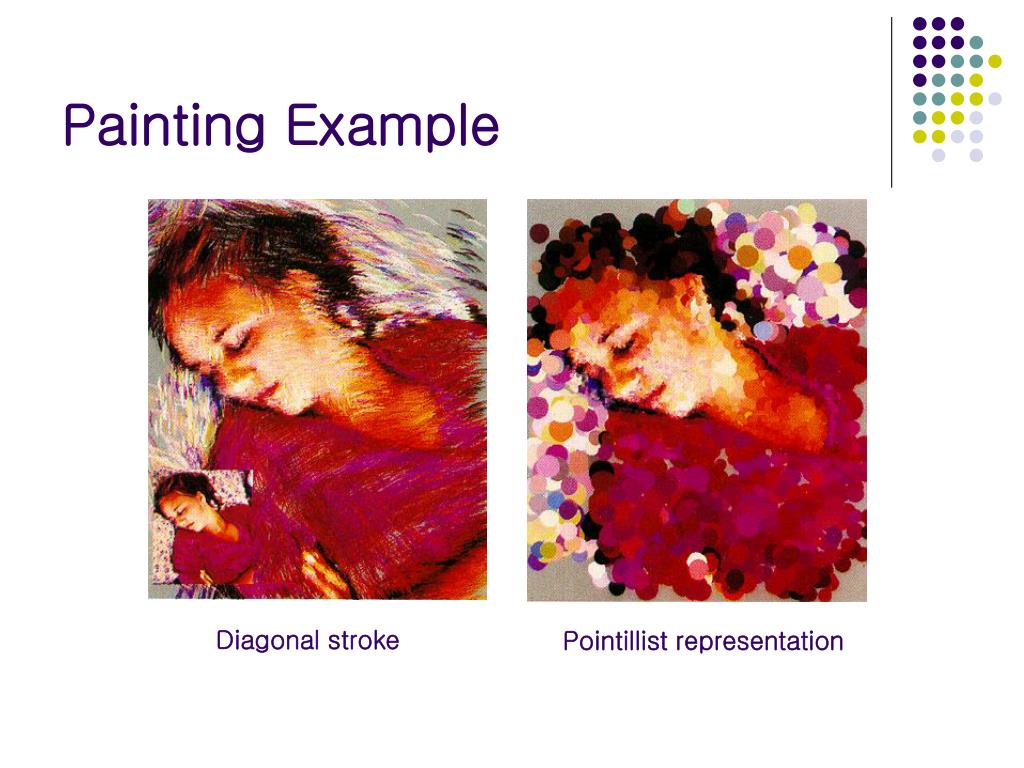

Painting Example

Diagonal stroke

Pointillist representation


Painting example15 l.jpg

Painting Example

  • • Cone shape brush

    • • Voronoi diagram polygon resterizing hardware• rendering of cones to construct 2D Voronoi diagrams of points

Cone shape


Operations on paintings l.jpg

Operations on paintings


Painting description l.jpg

Painting Description

  • Painting as an ordered set of strokes

  • Containing stroke information

  • Operations on paintings

    • Transform painting into RGB images

    • Unary operation – scaling, sorting, adding noise, etc.

    • Binary operation – interpolation, extrapolation, animation, etc


Description table l.jpg

Description Table


Slide19 l.jpg

Advanced Techniques


Brush direction l.jpg

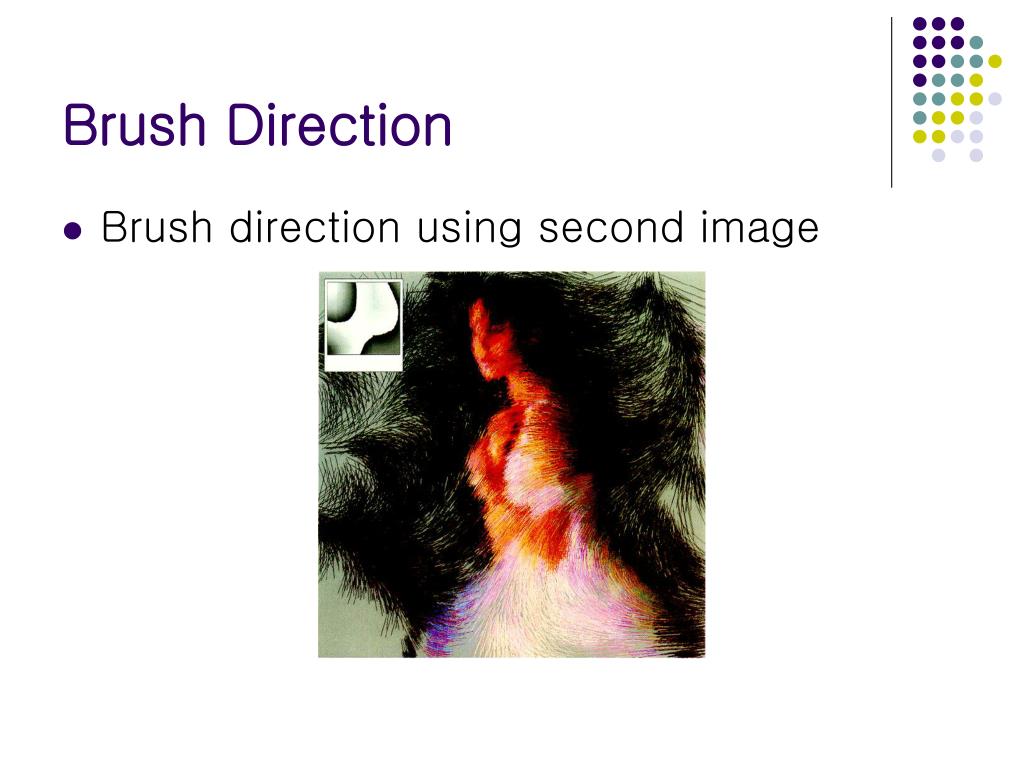

Brush Direction

  • Brush direction using second image


Edge drawing l.jpg

Edge drawing

  • Edge drawing using luminance gradient


Texture mapping l.jpg

Texture mapping

  • Brush texture mapping


Sampling geometry l.jpg

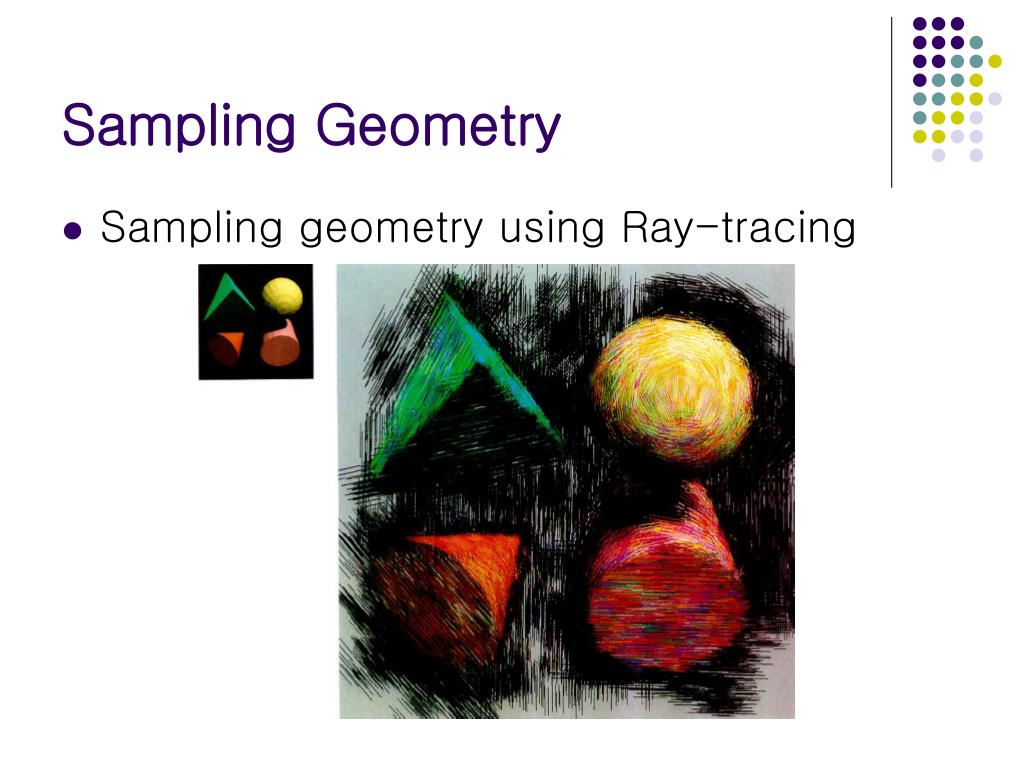

Sampling Geometry

  • Sampling geometry using Ray-tracing


Approximation l.jpg

Approximation

  • Approximation using Relaxation


Slide25 l.jpg

Spice for images


Edge enhancement l.jpg

Edge enhancement

  • “Pushing edge”

  • More explicit depth relationship

  • Using unsharp masking


Color enhancement l.jpg

Color enhancement

  • Increase saturation

  • Lum = 0.3*R + 0.59*G + 0.11*B

  • Extrapolation


Color restriction and background color l.jpg

Color restriction and Background Color

  • Color restriction

    • Limited color for overall harmony and unity

    • Color quantization of source image

    • Noise for no contouring

  • Background cover

    • Unity and integrity

    • Color perception


Slide29 l.jpg

Conclusion


Conclusion l.jpg

Conclusion

  • A system for producing abstract image

    • The first experiment on NPR

    • Making stylized abstract image

    • Interactive processing

    • Motivations for future works

      • Media

      • Method


Slide31 l.jpg

Advanced Work


Inspiration l.jpg

Inspiration

  • Haeberli’s work

    • The first work on NPR

    • Some issues

      • Stroke methods, attributes, animation, etc

  • After Haeberli’s work

    • Considerable works on painting system

    • Two large categorization

      • Digital analogues

      • Automatic stroke


Digital analogues l.jpg

Digital analogues

  • Salisbury et al. 1994

    • Pen and ink

  • Curtis et al. 1997

    • Watercolor

  • Sousa et al. 1999

    • Pencil drawing


Automatic stroke l.jpg

Automatic stroke

  • Litwinowicz, 1997

  • Hertzmann, 1998

  • Shiraishi and Yamaguchi, 2000

  • Only global effect by user

    • Brush size or shape


Stroke dimension l.jpg

Stroke Dimension

  • Dana, 1996

    • 8D dimension for social visualization[Dana]

    • To show social data

Animation

  • Meier, 1996

    • Using particle rendering methods
