Gene Electroporator

Gene Electroporator is a compact, modular electroporation system, <br>where electrical pulse is used to create temporary pores in cell <br>membranes through which substances like nucleic acids can pass into <br>cells. The instrument is of a complete set with man-computer dialog <br>interface. Once optimum electroporation conditions achieved, this <br>Gene Electroporator transfects a large number of cells in a short time. <br>The detailed setting range of capacitance and resistance makes the <br>electro-perforation experiment of cells more selective under the related <br>conditions.

Eleanor96
Download Presentation

Gene Electroporator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

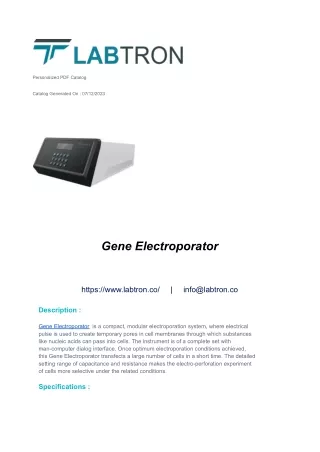

  1. Personalized PDF Catalog Catalog Generated On : 07/12/2023 Gene Electroporator https://www.labtron.co/ | info@labtron.co Description : Gene Electroporator is a compact, modular electroporation system, where electrical pulse is used to create temporary pores in cell membranes through which substances like nucleic acids can pass into cells. The instrument is of a complete set with man-computer dialog interface. Once optimum electroporation conditions achieved, this Gene Electroporator transfects a large number of cells in a short time. The detailed setting range of capacitance and resistance makes the electro-perforation experiment of cells more selective under the related conditions. Specifications :

  2. High Output voltage 400 to 2500 V Low output voltage 100 to 450 V High voltage capacitor 1, 5, 6, 25, 30, 31 µF Low voltage capacitor 100 µF，125 µF，150 µF …1675 µF, one grades of 25 µF Resistance 50 Ω, 100 Ω, 150 Ω, 1600 Ω, increment total 30 grades Operation system Microcomputer control Output waveform With RC time constant of the exponential decay of wave Dimension 368 × 316 × 229 mm Weight 10.5 kg Packing dimension 480 × 420 × 280 mm Features : Exponential wave form output Easy and rapid transfection of large number of cells in short time Intelligent network system for on-site measurement and controlling parameters close to network Networking of gene importer system; Two-way communication functions Microprocessor controlled technology

  3. User-friendly, simple operations Applications : It finds application in the electro-perforation of microorganism cells of animals and plants and is also used in cell hybridization, gene electroporation and silencing across molecular biology, genetic engineering and other research fields. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  4. Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
