Presentation Transcript

Slide2 l.jpg

Outline

  • Terms For Describing Folds

  • Fold systems

  • Fold geometries

  • Mechanics of folding

  • Kimematic models of folding


Slide3 l.jpg

Initial Layer Cake


Slide4 l.jpg

Convexity and Age of Beds

  • Anticline - a fold that is convex in the direction of youngest beds

  • Syncline - a fold that is convex in the direction of oldest beds


Slide5 l.jpg

Direction of Fold Closing

inflection point

inflection point - change in curvature (i.e., concave to convex)


Slide6 l.jpg

Folds - Definitions

  • Antiforms are anticline-shaped folds (convex-down) whose stratigraphic order has not been determined.

  • Synforms are syncline-shaped folds (convex-up) whose stratigraphic order has not been determined.

  • We apply these terms to any fold in which facing direction and/or stratigraphic order is unknown or uncertain.

    • Determining stratigraphic succession - which way is up!


Slide7 l.jpg

Folds - Definitions

  • Overturned folds are those who have a limb that us technically upside down, it has rotated beyond vertical - dipping past 90°.


Slide8 l.jpg

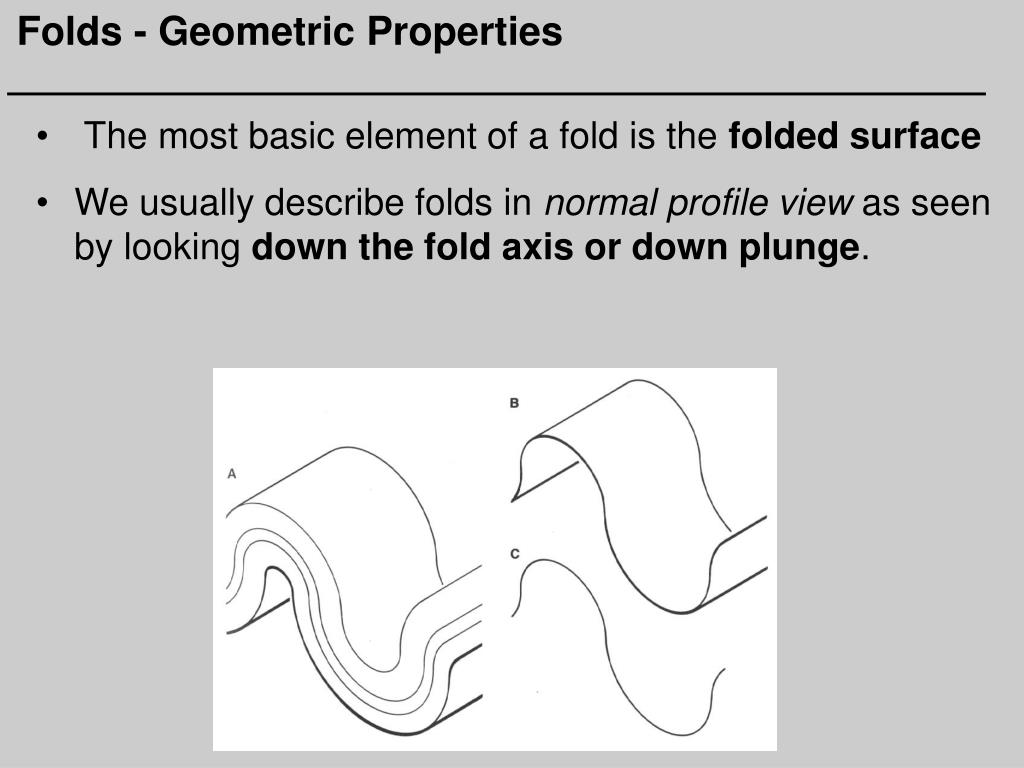

Folds - Geometric Properties

  • The most basic element of a fold is the folded surface

  • We usually describe folds in normal profile view as seen by looking down the fold axis or down plunge.


Slide9 l.jpg

Folds - Geometric Properties

  • In normal profile view, folded surfaces can be divided up into limbs and hinges.

  • If the hinge is sharp, that point is called the hinge point otherwise it is called a hinge zone.

  • Fold limbs commonly curve, and the location where segments of opposite convexity join is called the inflection point.

    It is the place where the fold is setting up for the next hinge.


Slide10 l.jpg

Folds - Geometric Properties

  • The hinge line of a fold is defined by successively connecting the hinge points along the strike length of the fold.

  • The orientation of the hinge line is recorded as a lineation (plunge & trend). Hinge lines are typically not straight and their orientations can vary considerably.

Take hinge points along a single folded surface, taken together define a hinge line

The orientation of a folded surface can be defined by the orientation of a hinge line, using plunge & trend.


Slide11 l.jpg

Hinge line

inflection point

inflection point - change in curvature (i.e., concave to convex)


Slide12 l.jpg

Folds - Geometric Properties

  • To establish the orientation or attitude of a fold, it is necessary to know its hinge orientationand the orientation of the axial plane or axial surface.

The trend and plunge of a hinge line of a fold does not uniquely define the orientation of the fold





Slide16 l.jpg

Folds - Geometric Properties

  • The axial surface of a fold connects all the hinge points in all successive layers.

  • It may be planar - an axial plane, or a curvi-planar surface - an axial surface.


Slide18 l.jpg

Folds - Hinge lines & Axial Surfaces

Hinge lines are lines described by a lineation that lies on the axial surface, which is itself described by strike and dip..

Axial surface - Surface created by the hinge lines of consecutive layers within the fold area - it may be planar or curved. Described by strike and dip


Slide19 l.jpg

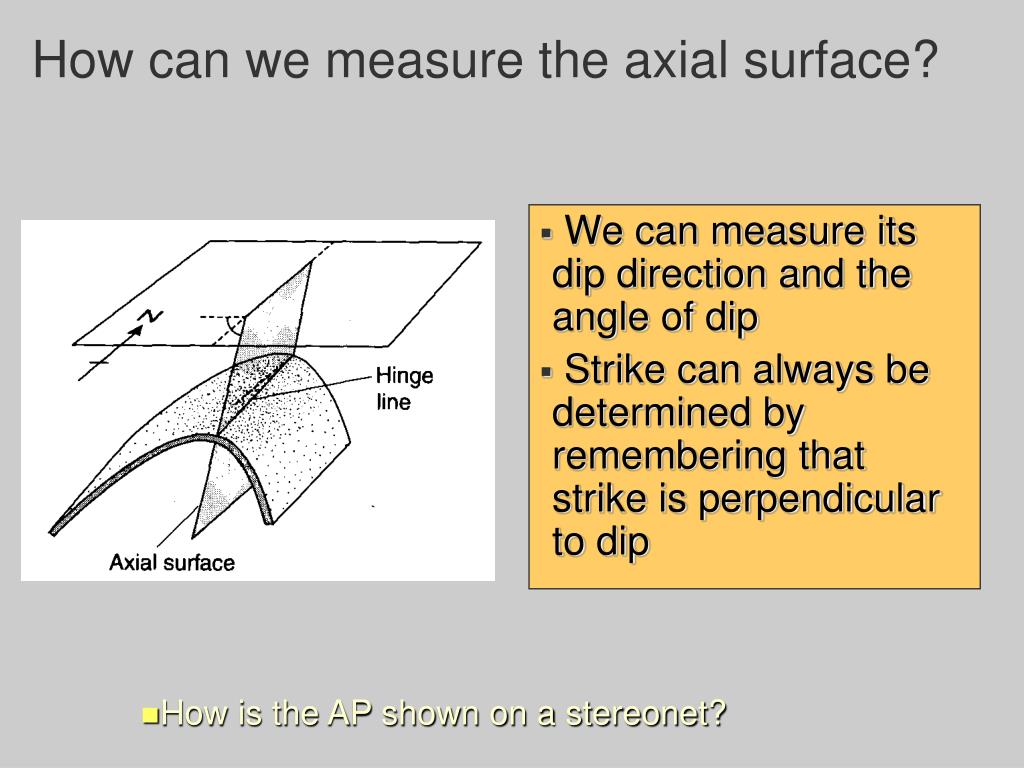

How can we measure the axial surface?

  • We can measure its dip direction and the angle of dip

  • Strike can always be determined by remembering that strike is perpendicular to dip

  • How is the AP shown on a stereonet?


Slide20 l.jpg

Interlimb Angle

Four Categories:

Gentle

Open

Tight

Isoclinal


Slide21 l.jpg

Interlimb angle: classifying fold shape





Fold types cylindrical folds l.jpg

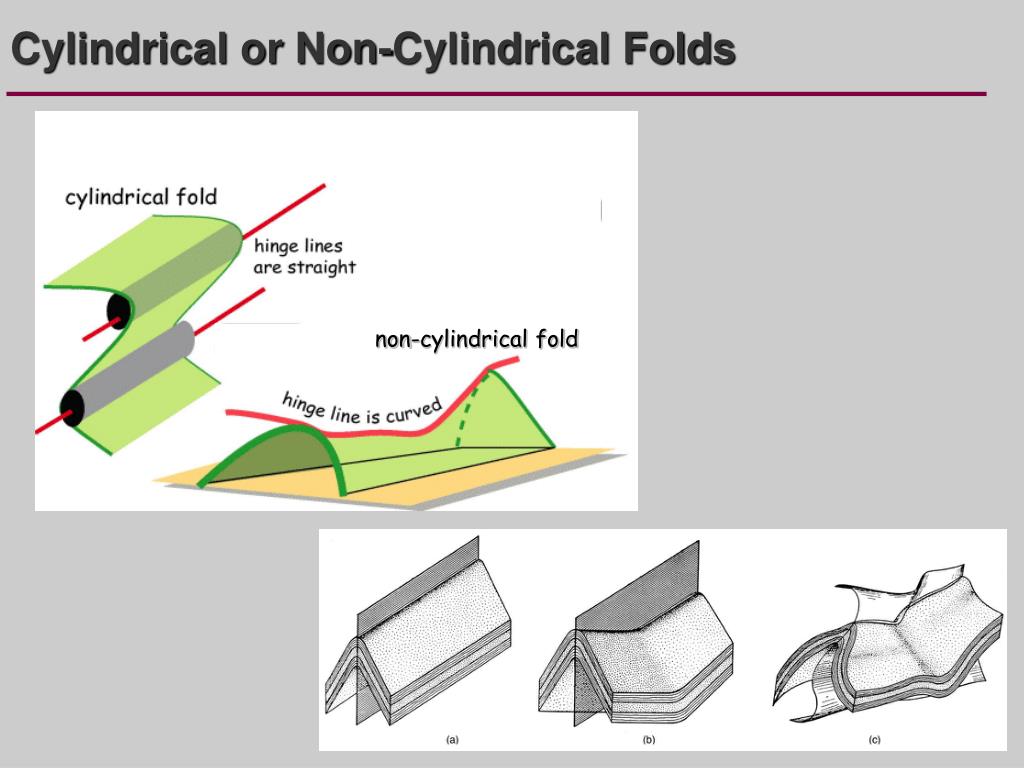

Fold Types: Cylindrical Folds

Cylindrical folds: Folds where the hinge line is straight.

If traced far enough, few hinge lines are ever straight, but segments of the hinge lines are straight, so this is a useful concept.



Slide28 l.jpg

Stereographic Determination of Fold Orientations

Cylindrical and non-cylindrical folds

Poles to bedding planes are co-planar if the fold has a cylindrical geometry.


Slide29 l.jpg

Stereographic Determination of Fold Orientations

  • It is usually impossible to directly measure the axis and axial surface of large folds.

  • The trend and plunge of the hinge line (fold axis) and strike and dip of the axial surface can be calculated using a stereonet.

An axial surface, by definition, passes through the hinge line of successive folded surfaces within a fold.

The point representing the trend and plunge of the hinge line lies on a great circle that describes the orientation of the axial surface (great circle).


Slide30 l.jpg

By definition, the fold axis (hinge line) lies upon the axial plane, which bisects the fold-limbs.


Slide31 l.jpg

Stereographic Determination of Fold Orientations axial plane, which bisects the fold-limbs.

How to determine a fold axis and axial surface of a large fold in the field

Two methods are:

1) Beta diagrams: -diagrams

2) Pi diagrams: -diagrams


Slide32 l.jpg

Stereographic Determination of Fold Orientations axial plane, which bisects the fold-limbs.

  • Beta diagrams: b-diagrams

  • Intersection shows the trend and plunge of fold axis.

The intersection of two bedding planes (e.g., great circles) represents a close approximation to trend and plunge of the hinge line.

The intersection of the great circles is labeled beta (b).

This is called a beta (b) diagram.


Slide33 l.jpg

Stereographic Determination of Fold Orientations axial plane, which bisects the fold-limbs.

  • Pi diagrams: p-diagrams

Another way to calculate the orientation of a fold.

p plots uses at least 2 poles to bedding, results in the orientation of the fold axis.

p uses multiple poles to bedding, fits a best-fit great circle to those poles, and also results in the orientation of the fold axis.


Slide34 l.jpg

Stereographic Determination of Fold Orientations axial plane, which bisects the fold-limbs.

  • Pi diagrams: p-diagrams

  • Pole to pi great circle shows the orientation of the fold axis

p plots uses at least 2 poles to bedding, results in the orientation of the fold axis.

p uses multiple poles to bedding, fits a best-fit great circle to those poles, and also results in the orientation of the fold axis.



Slide36 l.jpg

Bisecting surface: the same - a bisector!

Simple view in stereographic method that the bisecting surface approximates the axial surface.

  • The bisecting surface and the axial surface do not always coincide.

  • The axial surface connects individual hinge lines


Slide37 l.jpg

Determining the orientation of the the same - a bisector!bisecting surface of a fold.

  • Construct beta diagram

  • Plot poles to the fold limbs

  • Measure angle between the poles.

  • Fit a great circle to the bisector and b


Slide38 l.jpg

Determining the orientation of the the same - a bisector!bisecting surface of a fold

Stereographic view of bisecting surface in proper orientation.


Slide41 l.jpg

Stratigraphic Facing the same - a bisector!


Slide42 l.jpg

Fold Symmetry and fold vergence the same - a bisector!


Slide43 l.jpg

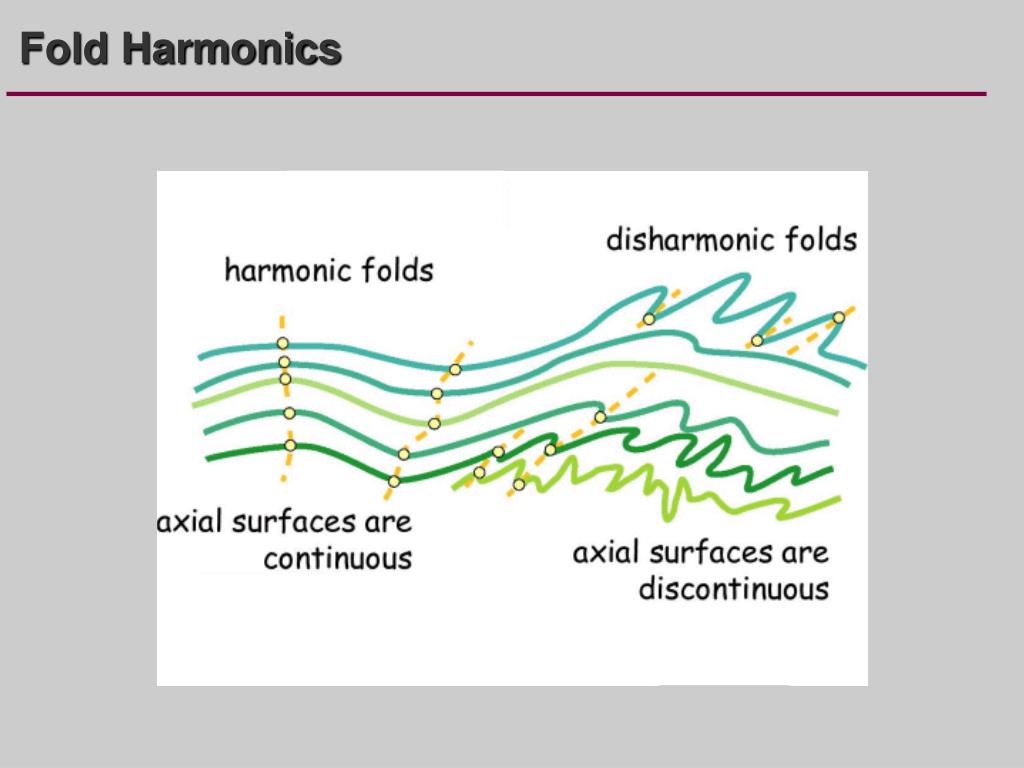

Fold Harmonics the same - a bisector!


Slide44 l.jpg

Parasitic Folds the same - a bisector!

Parasitic folds

always verge

towards anticlines

and away from

synclines


Slide45 l.jpg

Parasitic Folds the same - a bisector!

Parasitic folds verge towards anticlines and away from synclines



Slide47 l.jpg

Vergence synclines

The direction in which the next antiform can be found.

Vergence occurs in the direction in which thrusting took place.


Slide48 l.jpg

Vergence synclines


Slide49 l.jpg

Vergence synclines

Parasitic folds

Gives us information about sense of shear on the fold limbs as well as the location of larger-scale fold hinges..

Think of S and Z folds, their asymmetry will give a sense of rotation, when viewed down plunge.


Slide50 l.jpg

Vergence synclines

Small scale folds define fold shape


Slide51 l.jpg

Vergence synclines

S

Which cross-section is correct?

Identify major isoclinal fold:

antiform or synform?

Z

Use asymmetry of the folds suggests flexural slip on the limbs of an overturned synform.

Expected layer parallel slip (flexural slip) indicates sense of shear.

Flexural slip folding (buckling) transforms symmetrical folds into asymmetrical folds


Slide52 l.jpg

Vergence synclines

S

Which cross-section is correct?

Identify major isoclinal fold:

antiform or synform?

Z

S

Z


Slide53 l.jpg

References synclines

Most figures from:

http://earth.leeds.ac.uk/folds/describing/folddesc.htm
