1. Smoothing Methods for LM in IR Alejandro Figueroa

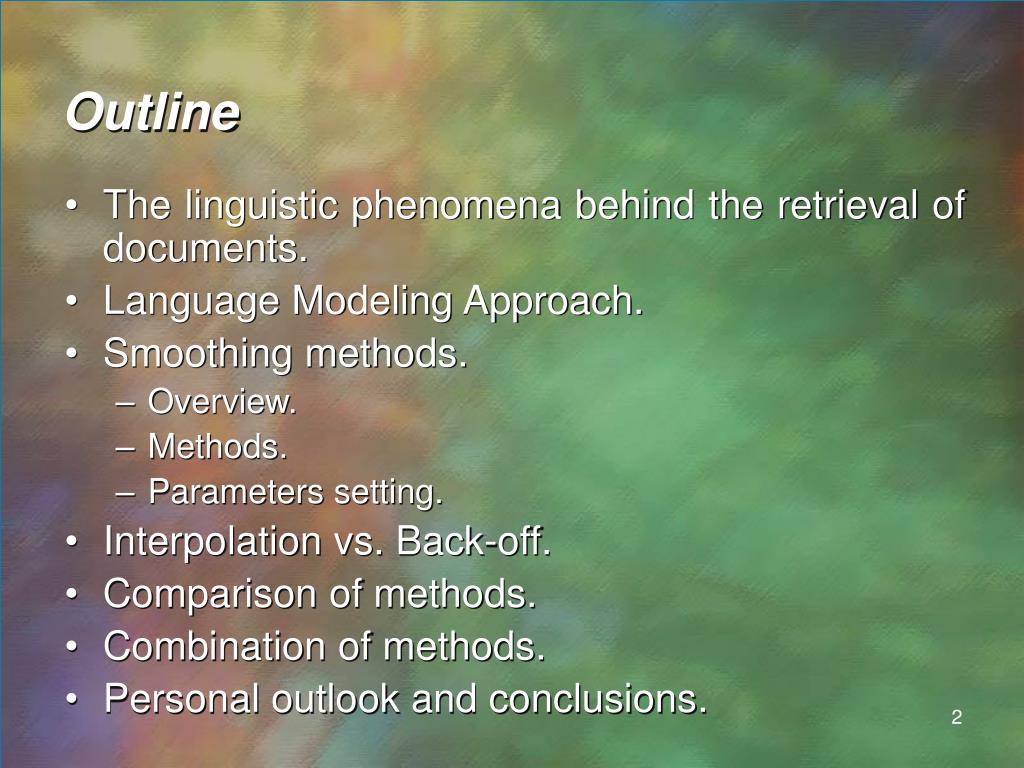

2. Outline • The linguistic phenomena behind the retrieval of documents. • Language Modeling Approach. • Smoothing methods. • Overview. • Methods. • Parameters setting. • Interpolation vs. Back-off. • Comparison of methods. • Combination of methods. • Personal outlook and conclusions.

3. The Linguistic Phenomena behind IR. • „Reducing Information Variation on Texts“ (Agata Savary and Christian Jacquemin). • Work on our QA Group – DFKI.

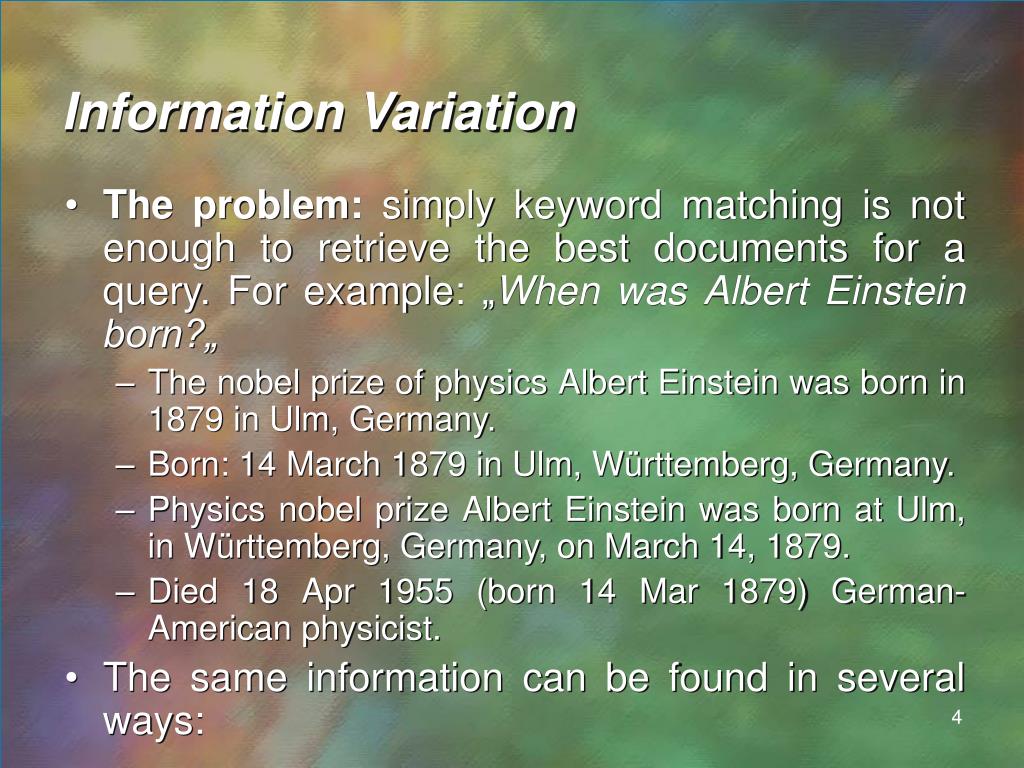

4. Information Variation • The problem: simply keyword matching is not enough to retrieve the best documents for a query. For example: „When was Albert Einstein born?„ • The nobel prize of physics Albert Einstein was born in 1879 in Ulm, Germany. • Born: 14 March 1879 in Ulm, Württemberg, Germany. • Physics nobel prize Albert Einstein was born at Ulm, in Württemberg, Germany, on March 14, 1879. • Died 18 Apr 1955 (born 14 Mar 1879) German-American physicist. • The same information can be found in several ways:

5. Information Variation • Kinds of variation: • Graphic: "14 March 1879“ and "14 Mar 1879“. • Morphological:” Physics nobel prize“ • Syntactical: “German-American physicist“ • Semantic:"Albert Einstein was born at Ulm“ and "German-American physicist“. • Appropriateness: • Precision. • Economy.

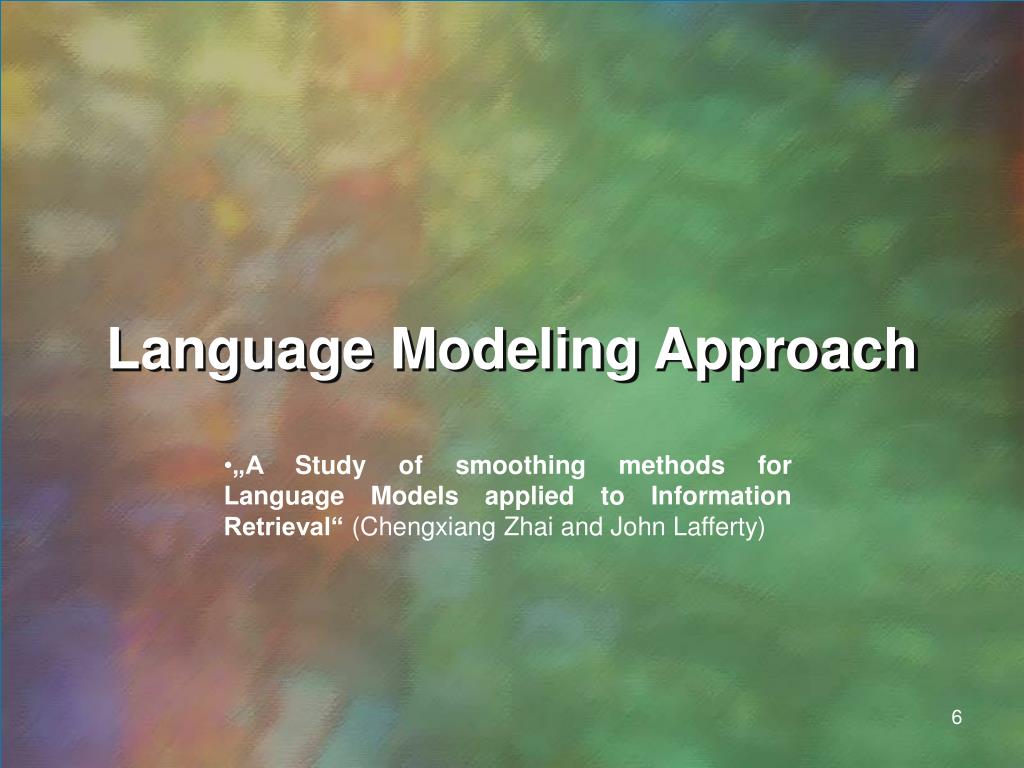

6. Language Modeling Approach • „A Study of smoothing methods for Language Models applied to Information Retrieval“ (Chengxiang Zhai and John Lafferty)

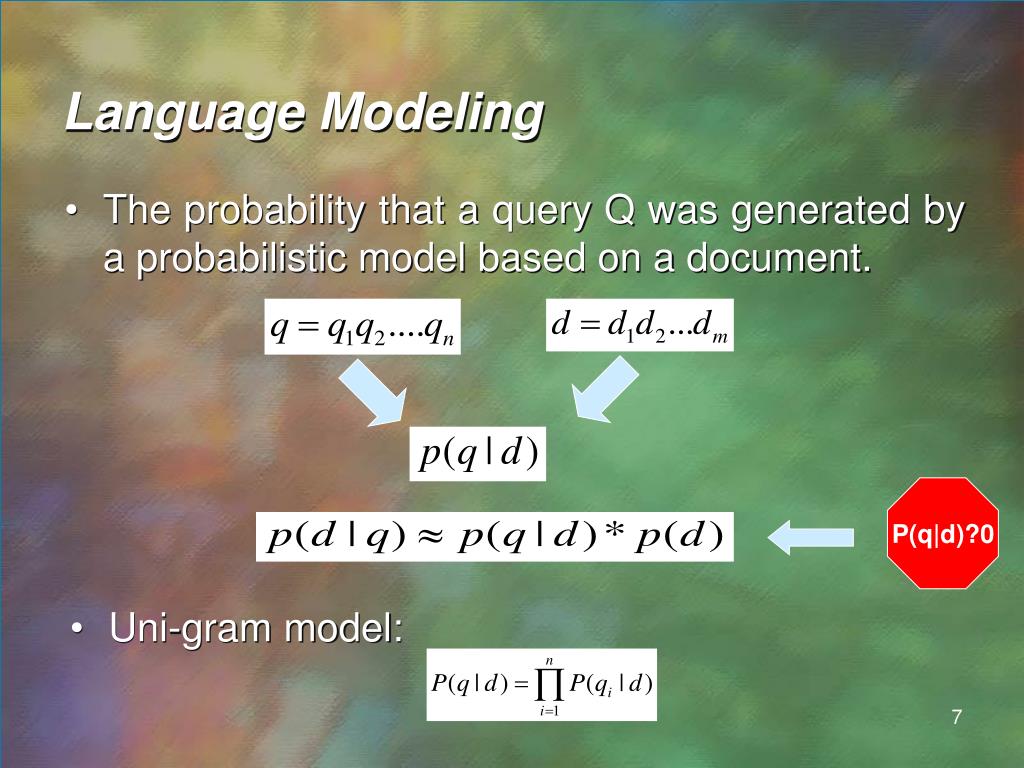

7. Language Modeling • The probability that a query Q was generated by a probabilistic model based on a document. P(q|d)?0 • Uni-gram model:

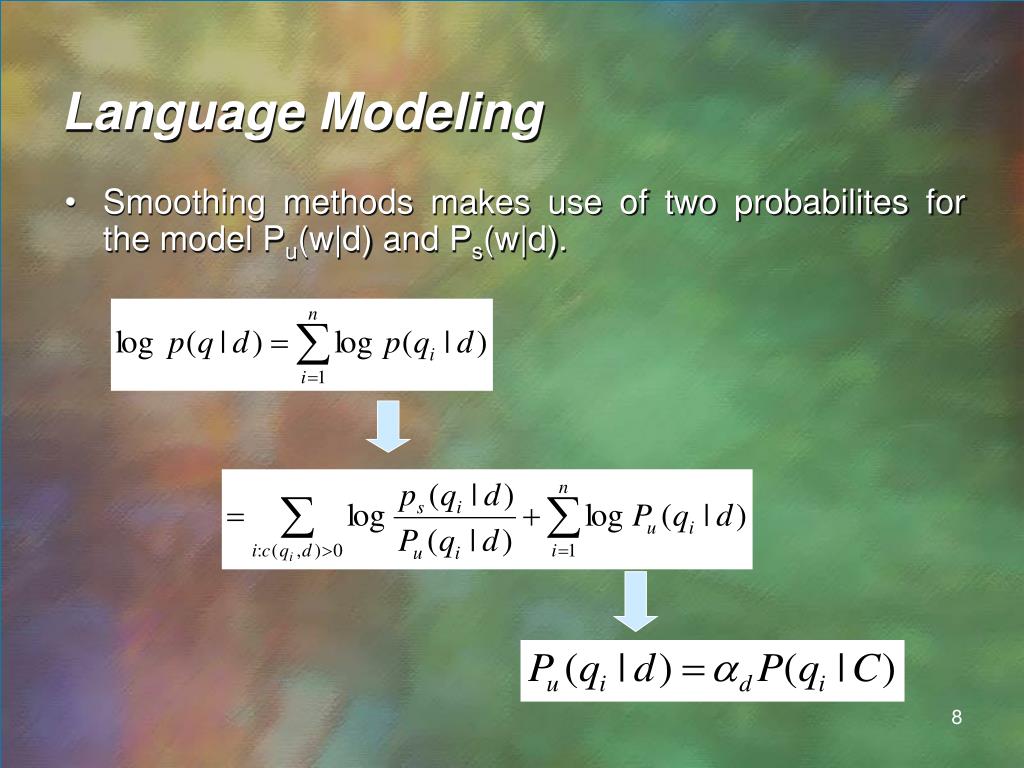

8. Language Modeling • Smoothing methods makes use of two probabilites for the model Pu(w|d) and Ps(w|d).

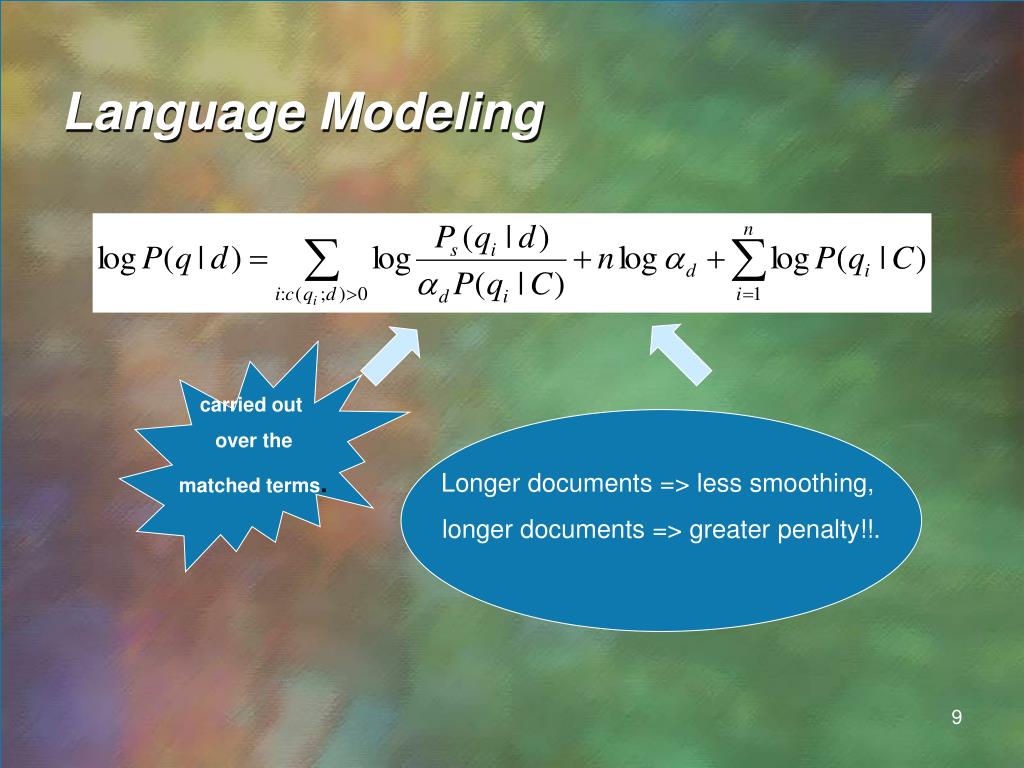

9. Language Modeling carried out over the matched terms. Longer documents => less smoothing, longer documents => greater penalty!!.

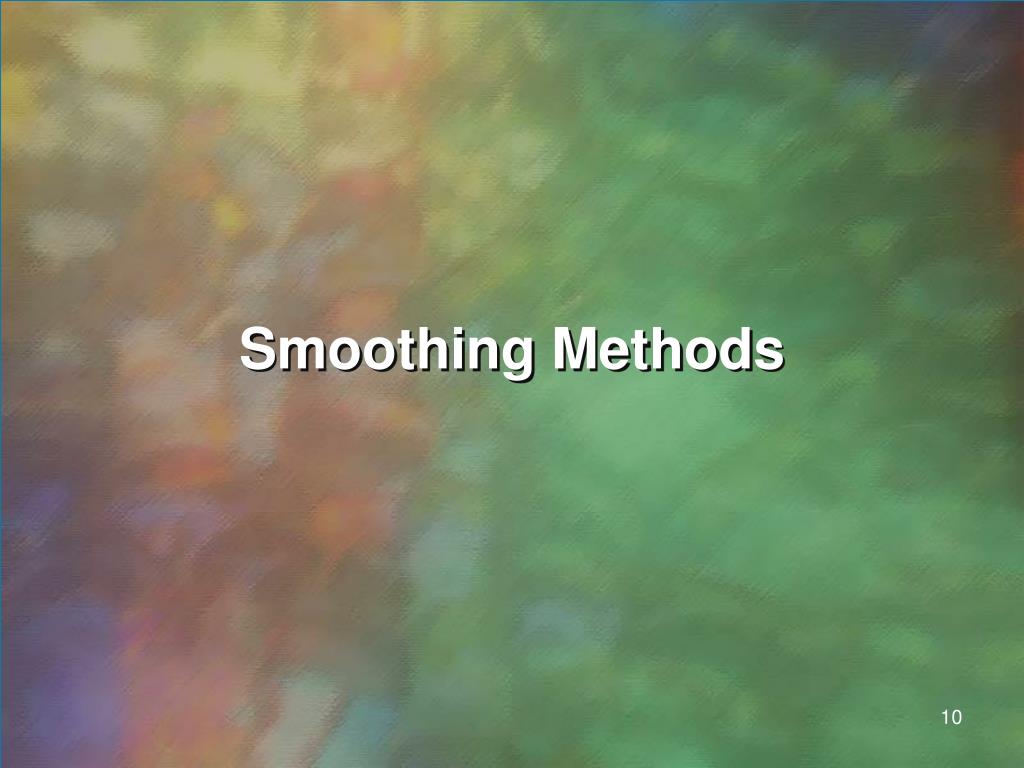

10. Smoothing Methods

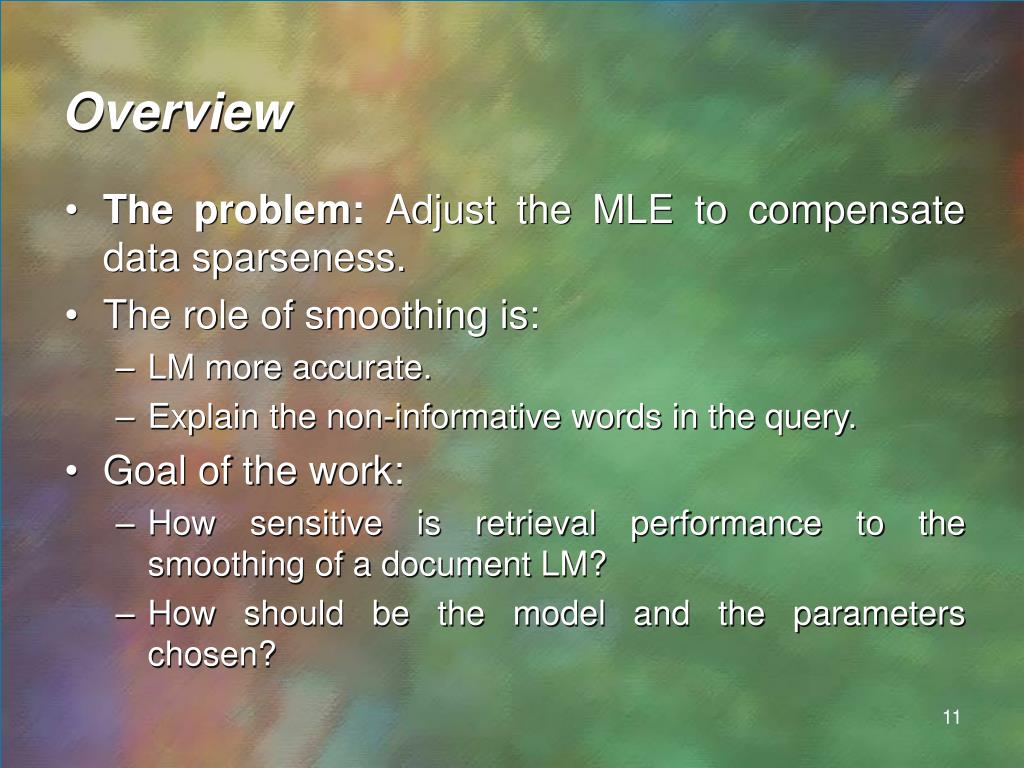

11. Overview • The problem: Adjust the MLE to compensate data sparseness. • The role of smoothing is: • LM more accurate. • Explain the non-informative words in the query. • Goal of the work: • How sensitive is retrieval performance to the smoothing of a document LM? • How should be the model and the parameters chosen?

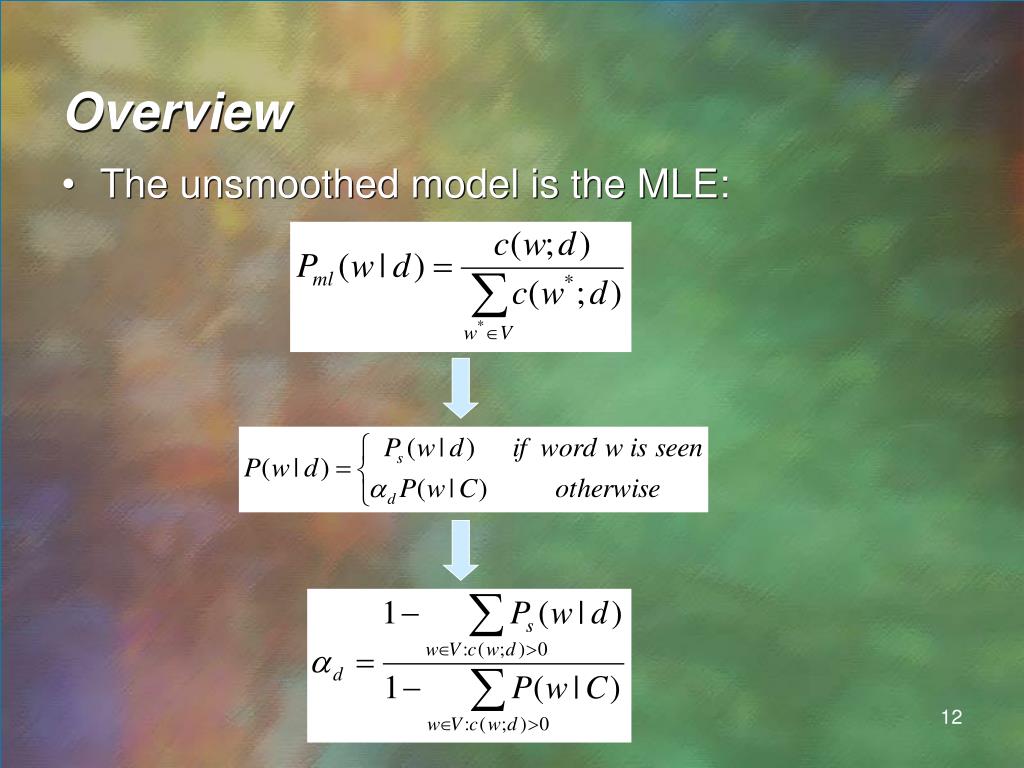

12. Overview • The unsmoothed model is the MLE:

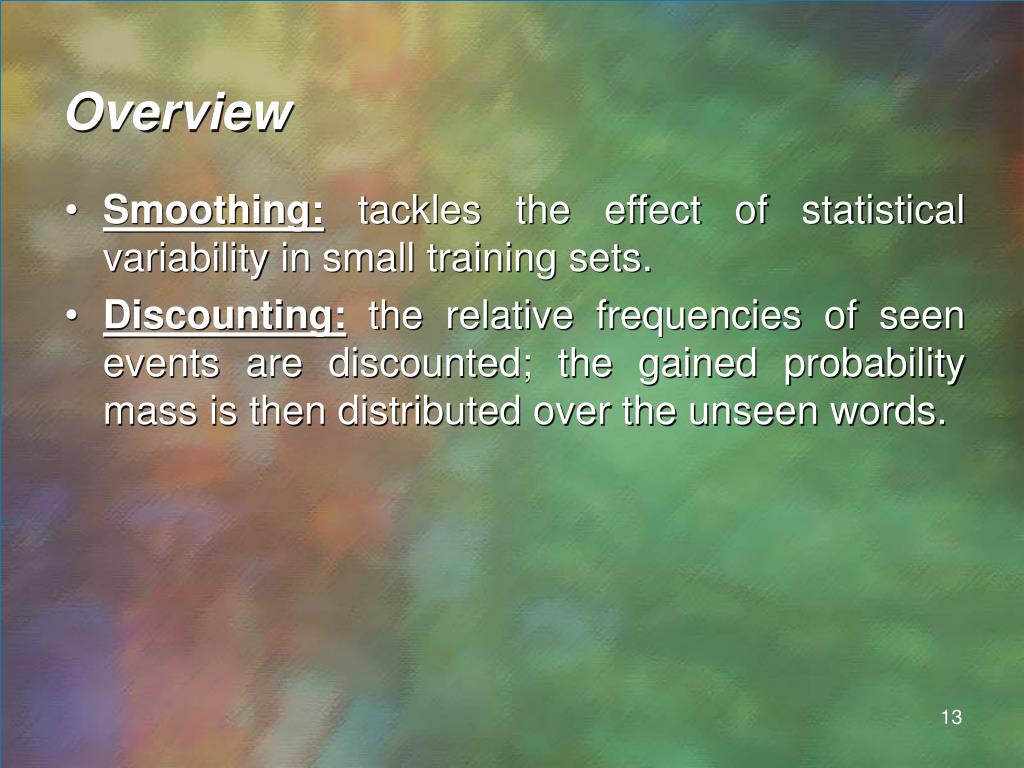

13. Overview • Smoothing: tackles the effect of statistical variability in small training sets. • Discounting: the relative frequencies of seen events are discounted; the gained probability mass is then distributed over the unseen words.

14. Smoothing Methods • Based on the Good-turing idea: Estimate the probabilities of new events by taking the counts of singleton events, dividing it by the total number of events (0,1).

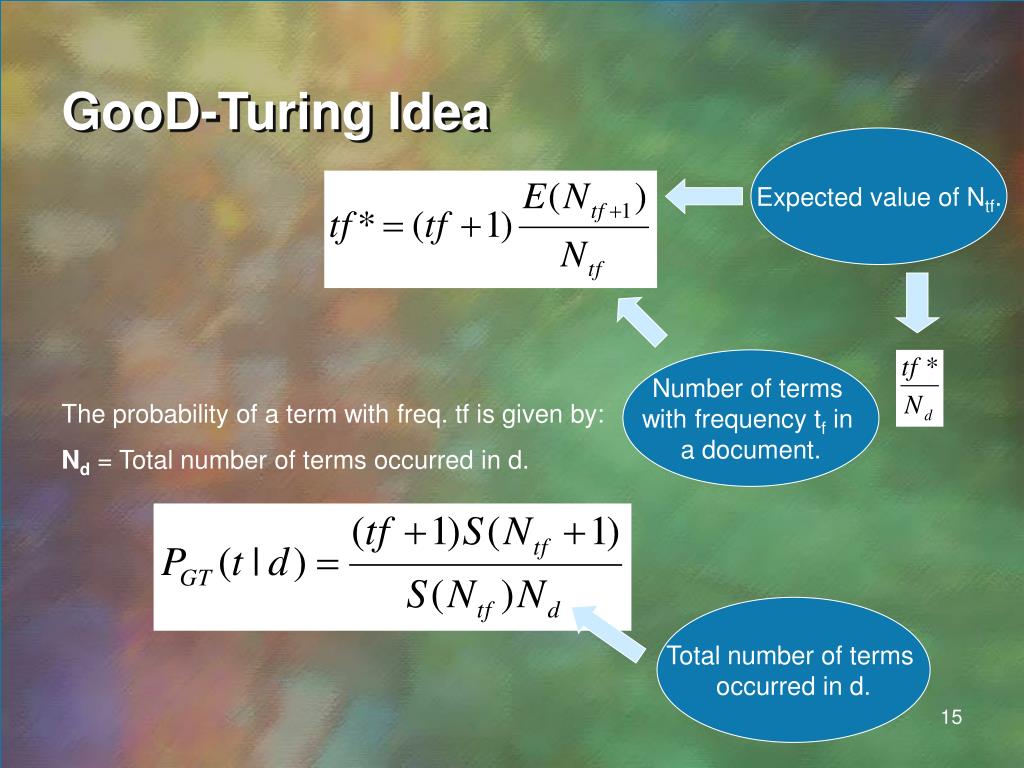

15. GooD-Turing Idea Expected value of Ntf. Number of terms with frequency tf in a document. The probability of a term with freq. tf is given by: Nd = Total number of terms occurred in d. Total number of terms occurred in d.

16. Smoothing Methods • Jelinek-mercer method: involves a linear interpolation of the ML model with the collection model.

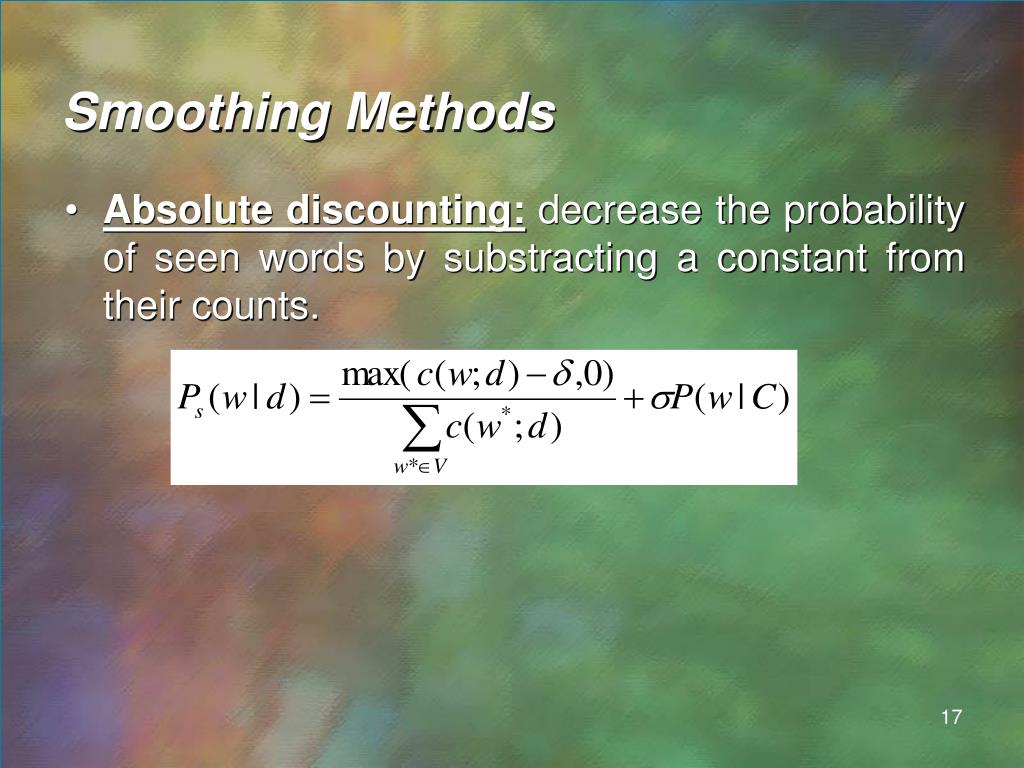

17. Smoothing Methods • Absolute discounting: decrease the probability of seen words by substracting a constant from their counts.

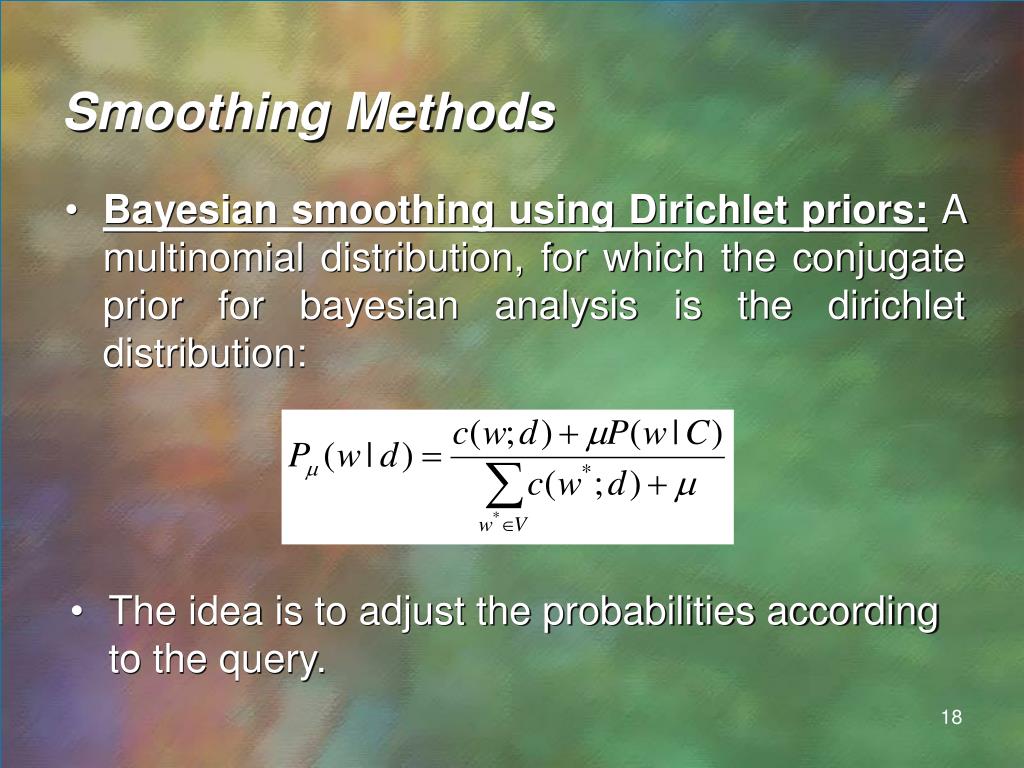

18. Smoothing Methods • Bayesian smoothing using Dirichlet priors: A multinomial distribution, for which the conjugate prior for bayesian analysis is the dirichlet distribution: • The idea is to adjust the probabilities according to the query.

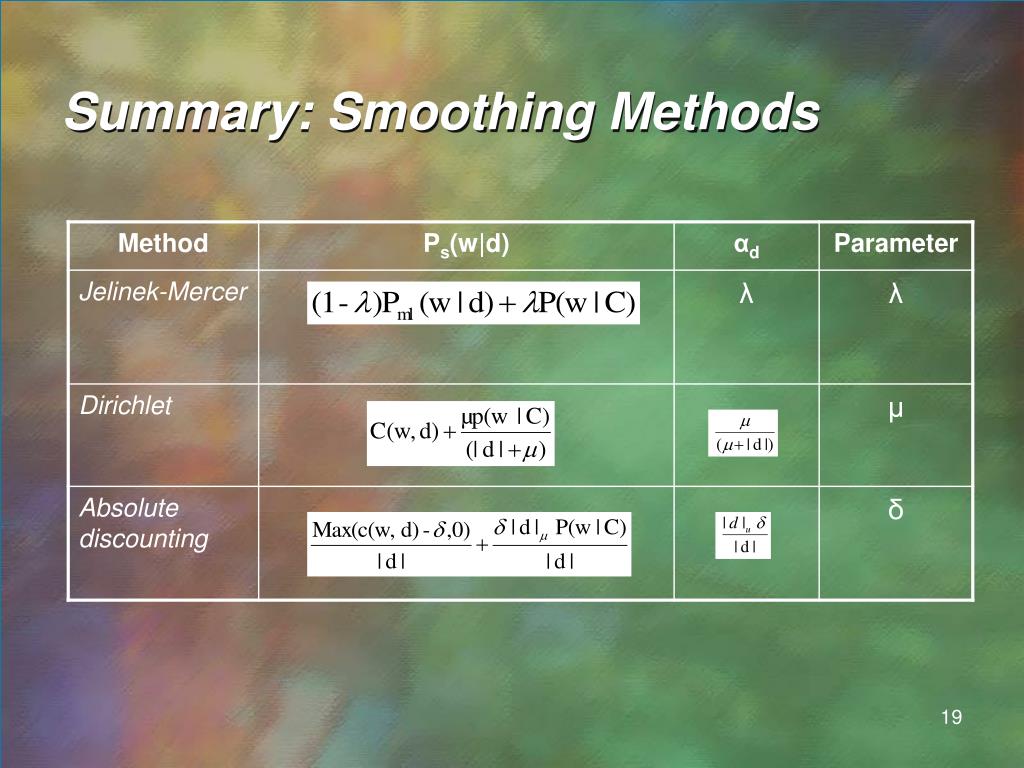

19. Summary: Smoothing Methods

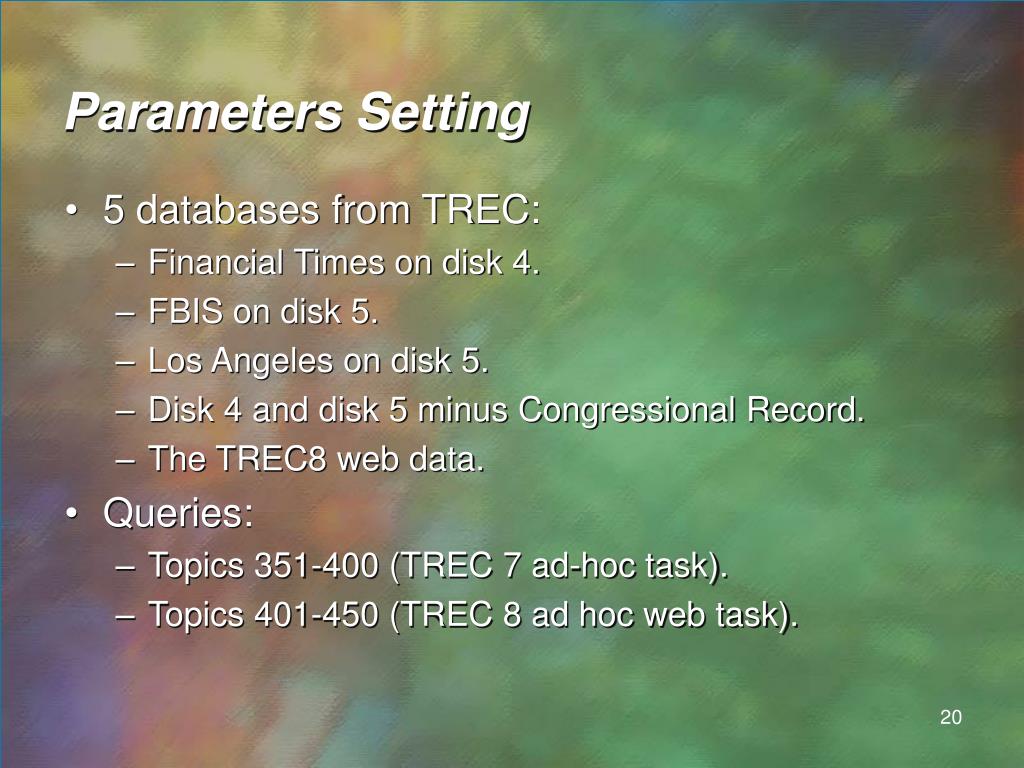

20. Parameters Setting • 5 databases from TREC: • Financial Times on disk 4. • FBIS on disk 5. • Los Angeles on disk 5. • Disk 4 and disk 5 minus Congressional Record. • The TREC8 web data. • Queries: • Topics 351-400 (TREC 7 ad-hoc task). • Topics 401-450 (TREC 8 ad hoc web task).

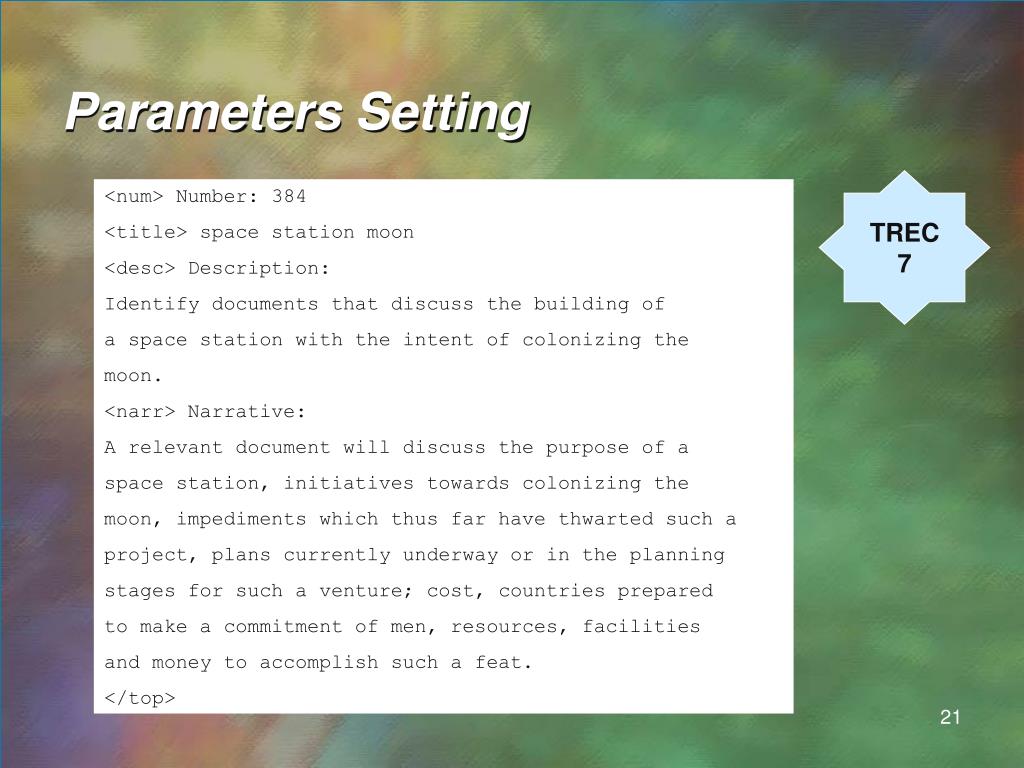

21. Parameters Setting TREC 7 <num> Number: 384 <title> space station moon <desc> Description: Identify documents that discuss the building of a space station with the intent of colonizing the moon. <narr> Narrative: A relevant document will discuss the purpose of a space station, initiatives towards colonizing the moon, impediments which thus far have thwarted such a project, plans currently underway or in the planning stages for such a venture; cost, countries prepared to make a commitment of men, resources, facilities and money to accomplish such a feat. </top>

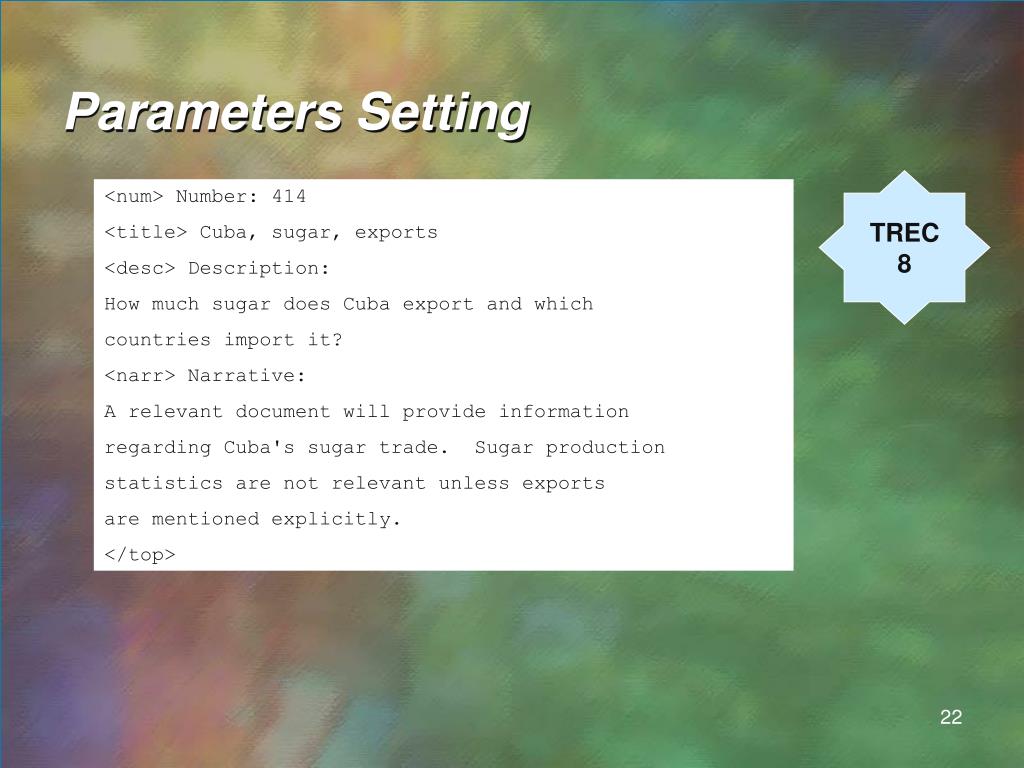

22. Parameters Setting TREC 8 <num> Number: 414 <title> Cuba, sugar, exports <desc> Description: How much sugar does Cuba export and which countries import it? <narr> Narrative: A relevant document will provide information regarding Cuba's sugar trade. Sugar production statistics are not relevant unless exports are mentioned explicitly. </top>

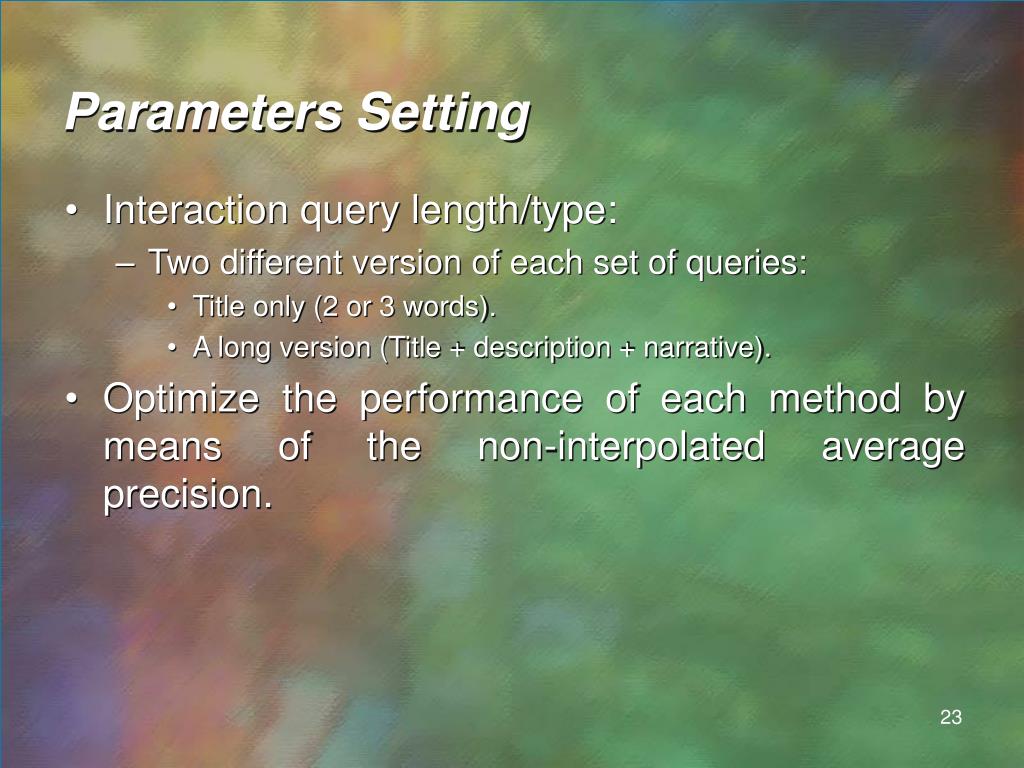

23. Parameters Setting • Interaction query length/type: • Two different version of each set of queries: • Title only (2 or 3 words). • A long version (Title + description + narrative). • Optimize the performance of each method by means of the non-interpolated average precision.

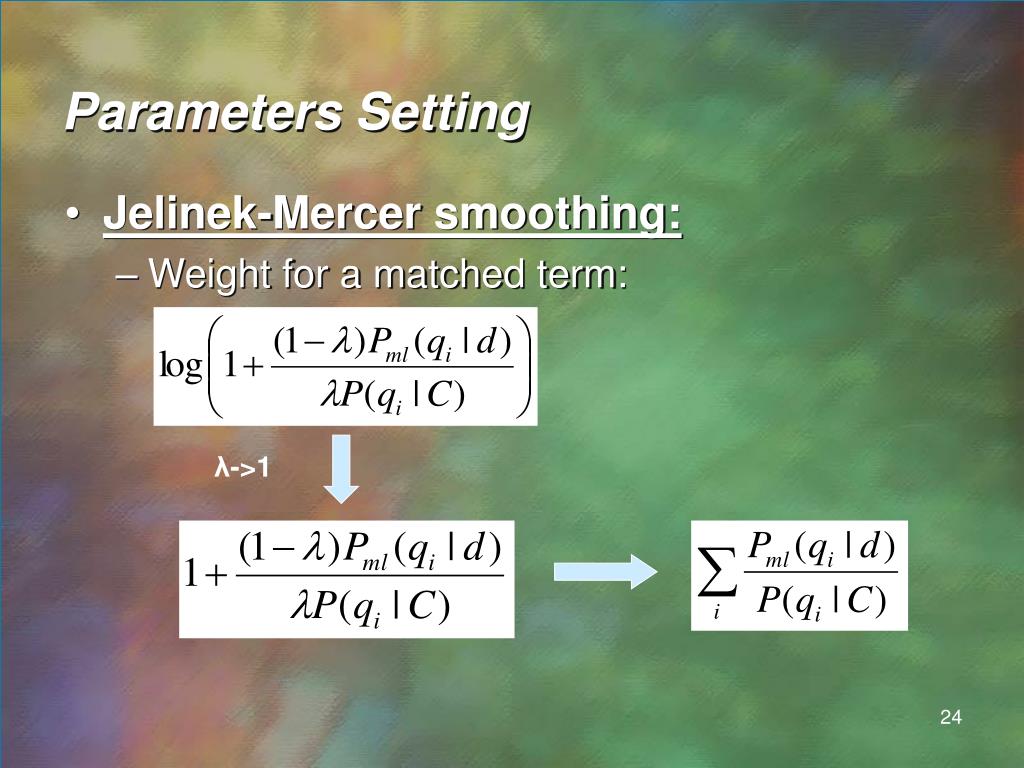

24. Parameters Setting • Jelinek-Mercer smoothing: • Weight for a matched term: λ->1

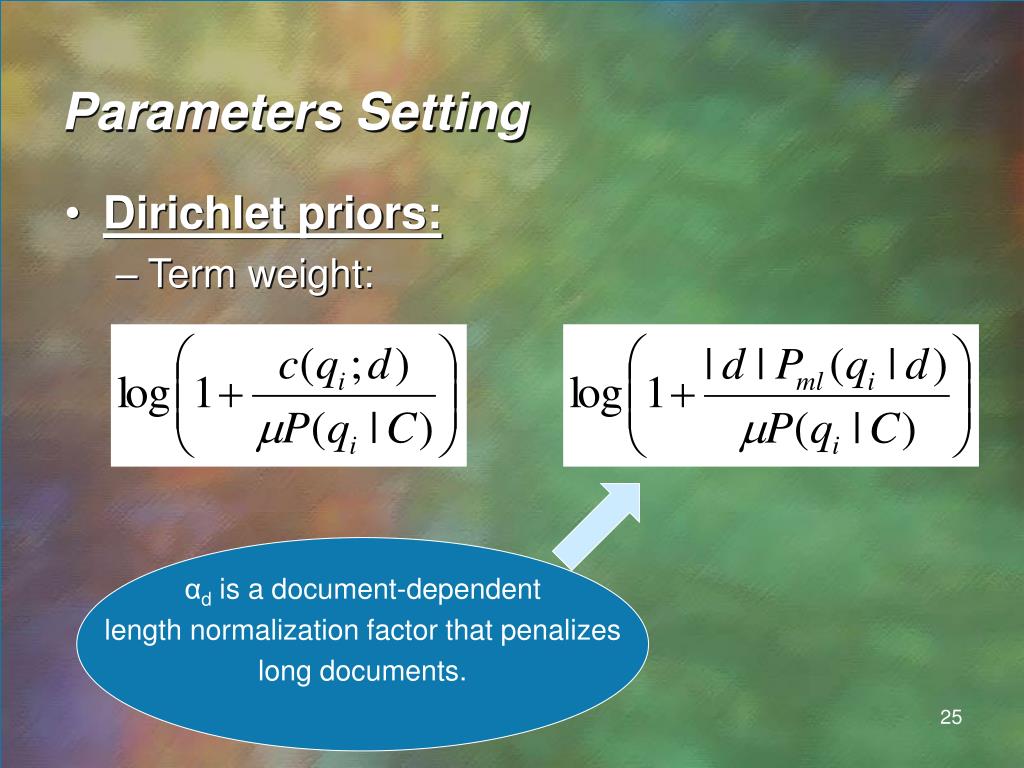

25. Parameters Setting • Dirichlet priors: • Term weight: αd is a document-dependent length normalization factor that penalizes long documents.

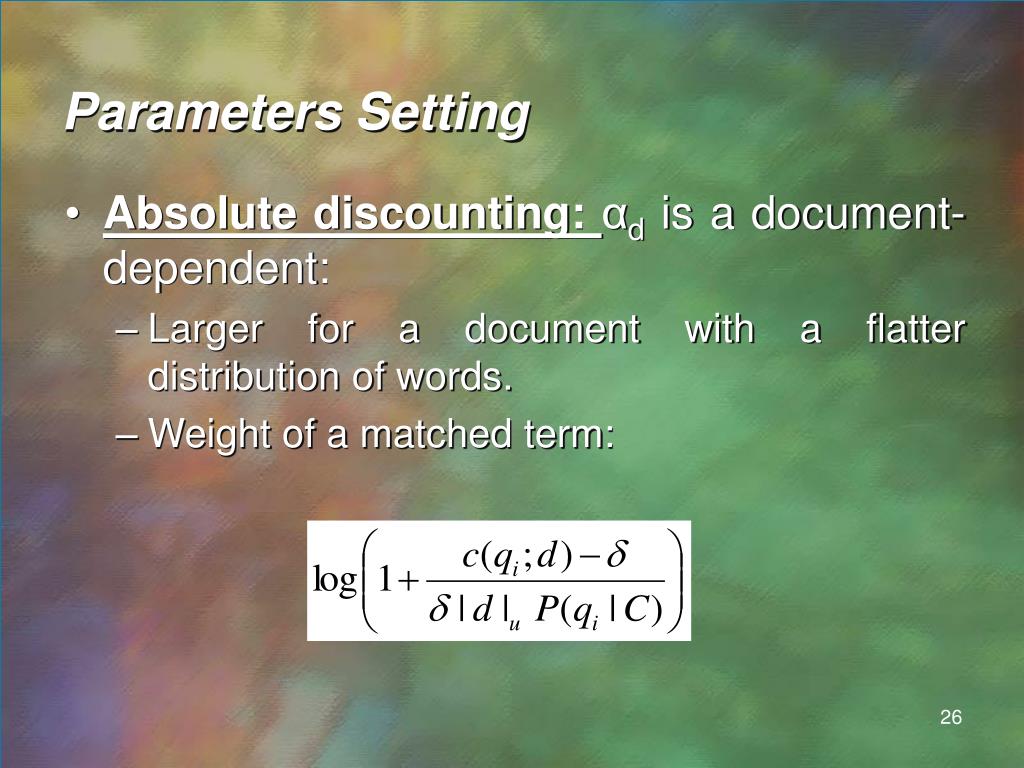

26. Parameters Setting • Absolute discounting: αd is a document-dependent: • Larger for a document with a flatter distribution of words. • Weight of a matched term:

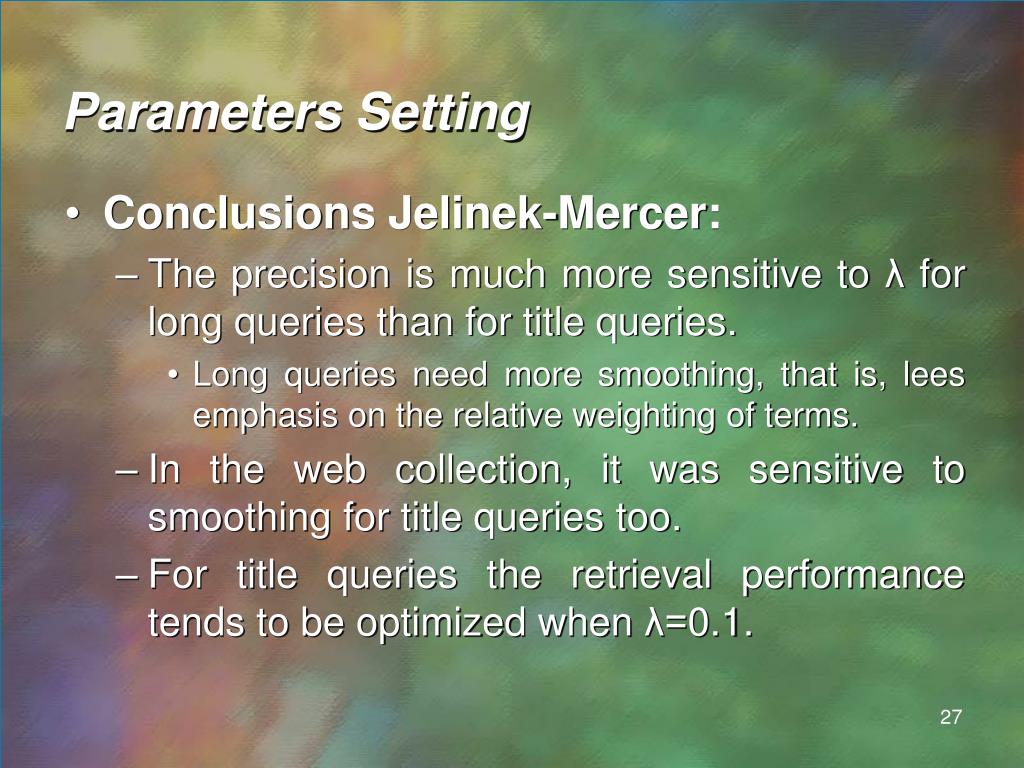

27. Parameters Setting • Conclusions Jelinek-Mercer: • The precision is much more sensitive to λ for long queries than for title queries. • Long queries need more smoothing, that is, lees emphasis on the relative weighting of terms. • In the web collection, it was sensitive to smoothing for title queries too. • For title queries the retrieval performance tends to be optimized when λ=0.1.

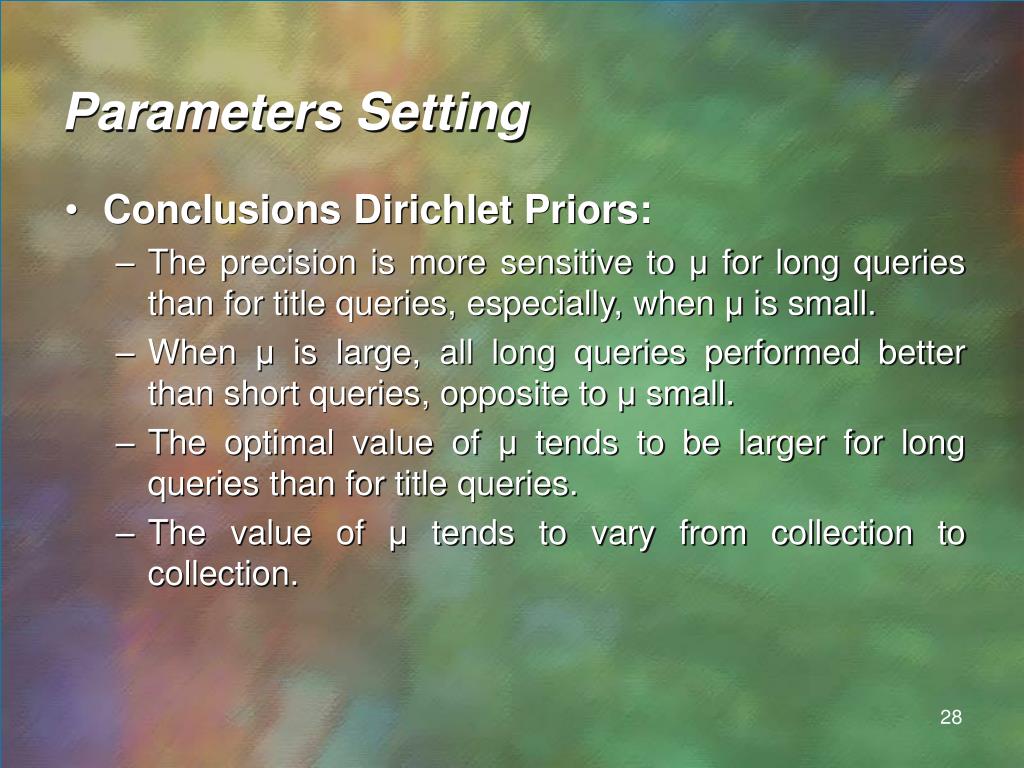

28. Parameters Setting • Conclusions Dirichlet Priors: • The precision is more sensitive to μ for long queries than for title queries, especially, when μ is small. • When μ is large, all long queries performed better than short queries, opposite to μ small. • The optimal value of μ tends to be larger for long queries than for title queries. • The value of μ tends to vary from collection to collection.

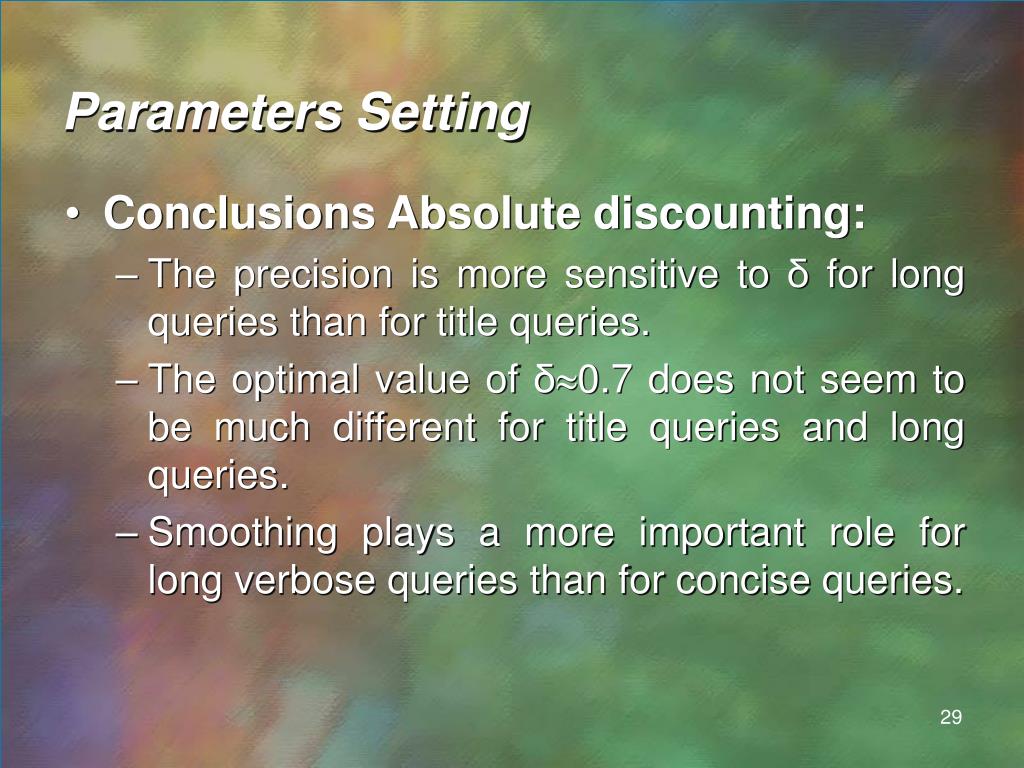

29. Parameters Setting • Conclusions Absolute discounting: • The precision is more sensitive to δ for long queries than for title queries. • The optimal value of δ0.7 does not seem to be much different for title queries and long queries. • Smoothing plays a more important role for long verbose queries than for concise queries.

30. Interpolation vs. Back-off

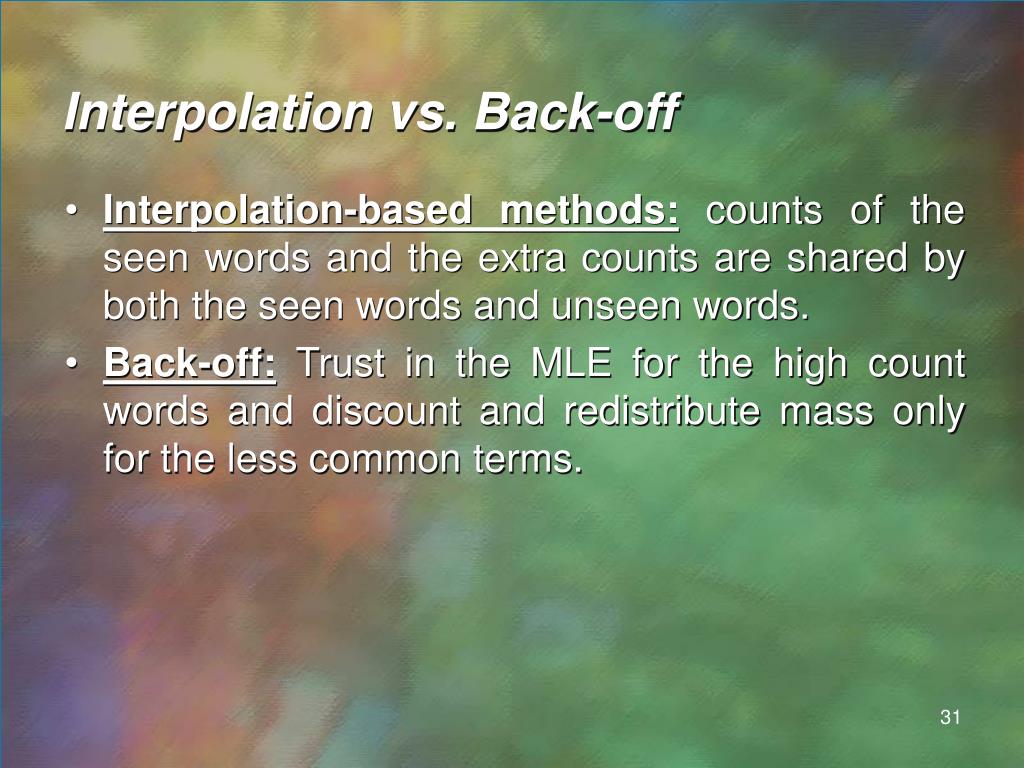

31. Interpolation vs. Back-off • Interpolation-based methods: counts of the seen words and the extra counts are shared by both the seen words and unseen words. • Back-off: Trust in the MLE for the high count words and discount and redistribute mass only for the less common terms.

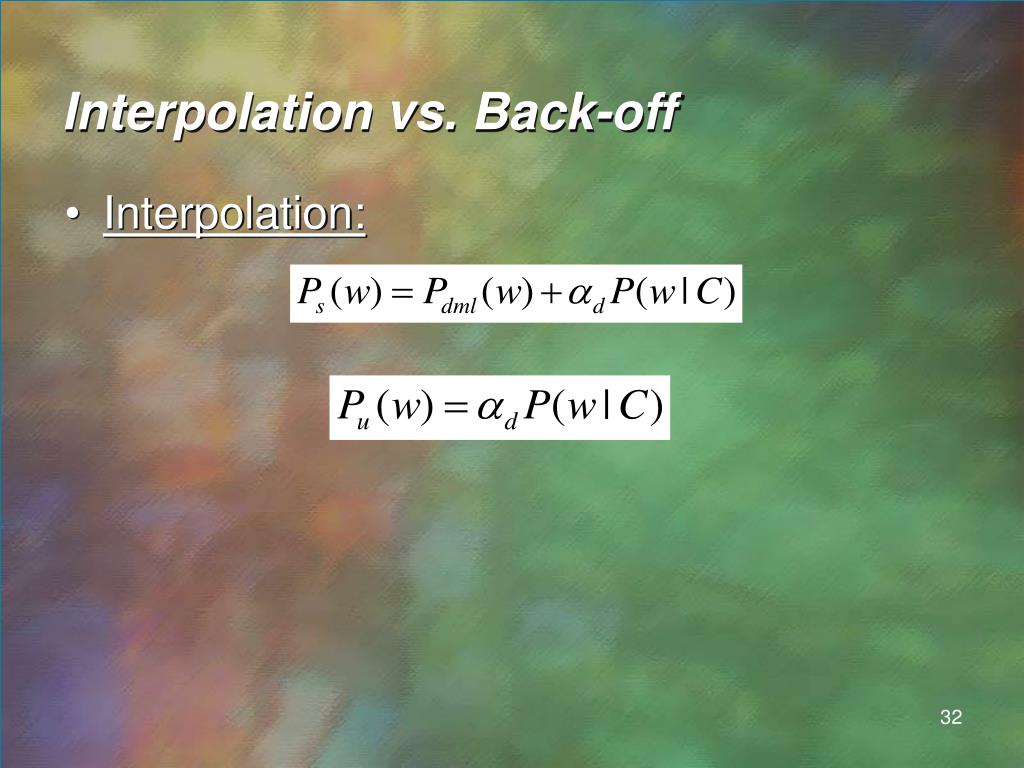

32. Interpolation vs. Back-off • Interpolation:

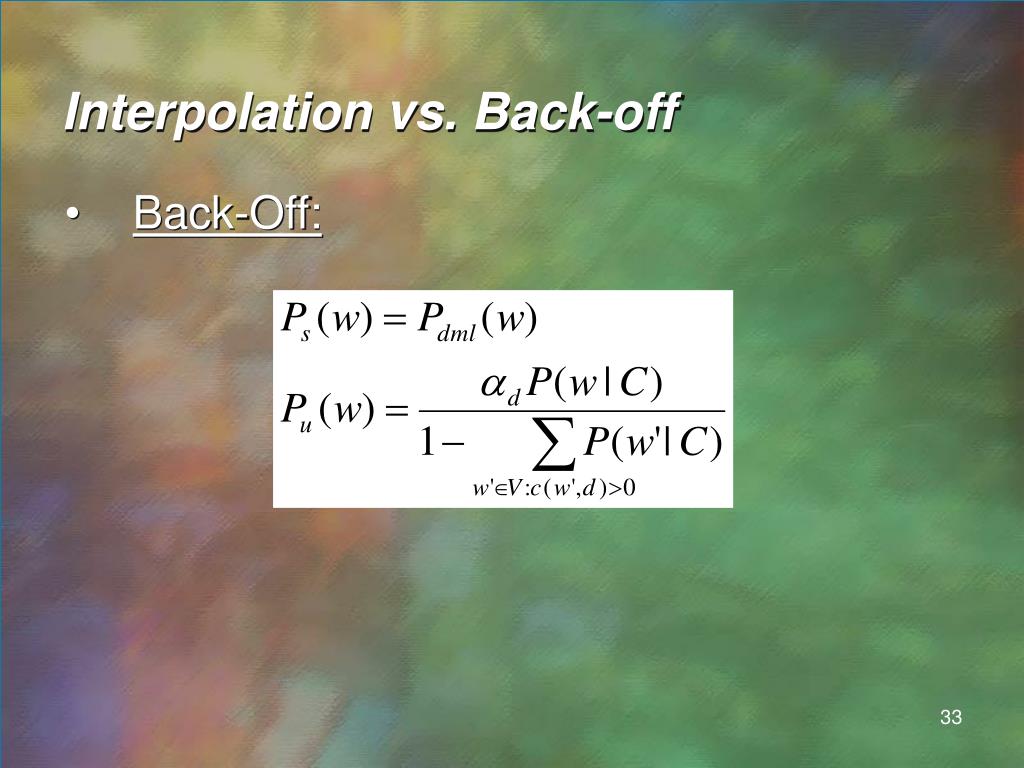

33. Interpolation vs. Back-off • Back-Off:

34. Interpolation vs. Back-off • Results: • The performance of the back-off strategy is more sensitive to the smoothing parameters. • Specially: Jeliner-Mercer and Dirichlet priors. • This sensitivity is smaller for the absolute discounting method, due to the lower upper bound.

35. Comparisson of methods

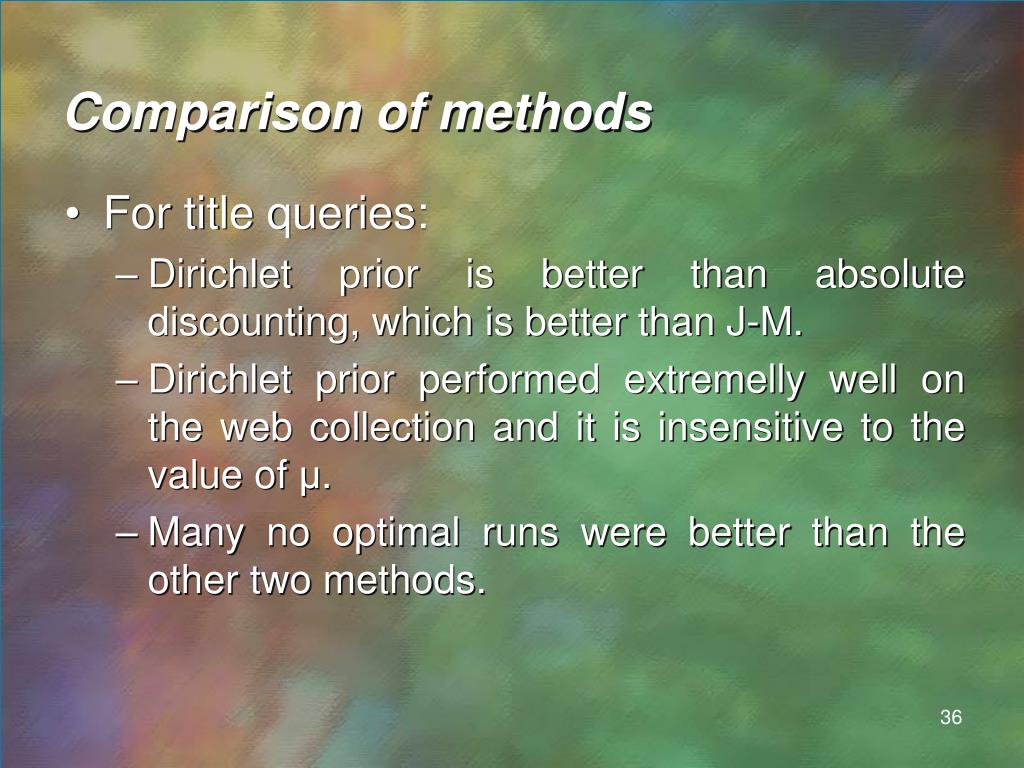

36. Comparison of methods • For title queries: • Dirichlet prior is better than absolute discounting, which is better than J-M. • Dirichlet prior performed extremelly well on the web collection and it is insensitive to the value of μ. • Many no optimal runs were better than the other two methods.

37. Comparison of methods • For long queries: • Jelinek-Mercer is better than Dirichlet, which is better than absolute discounting. • The three methods perform better on long queries than in short queries. • Jelinek-Mercer is much more effective for long and verbose queries. • All methods perform better for long queries than for short queries.

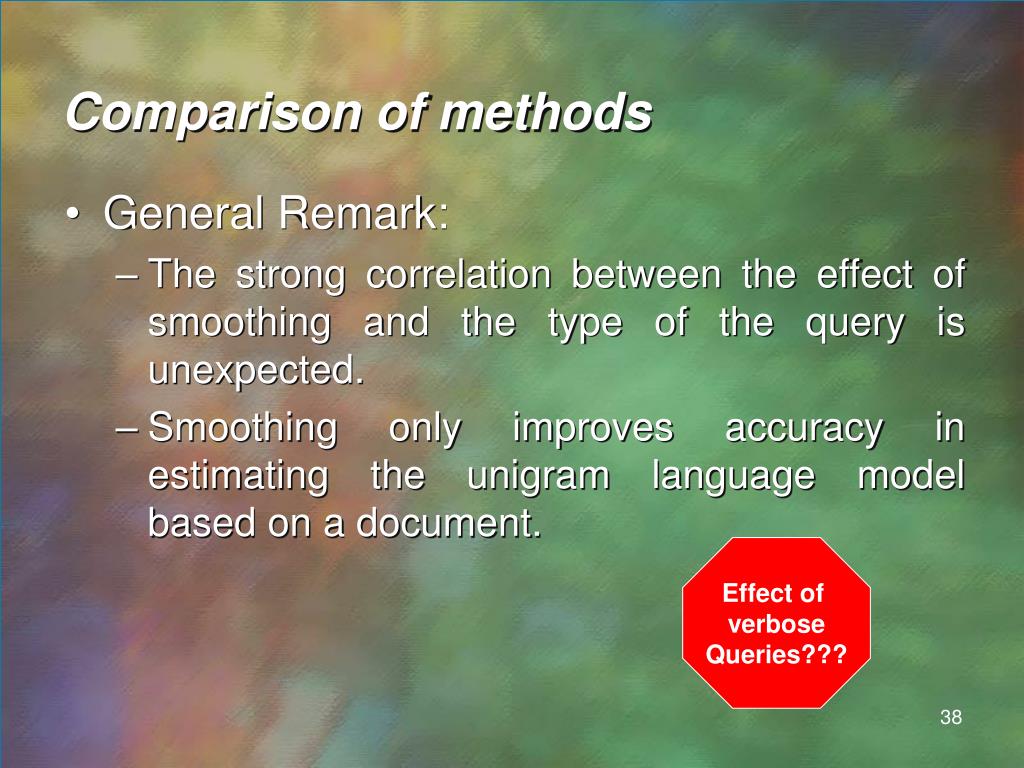

38. Comparison of methods • General Remark: • The strong correlation between the effect of smoothing and the type of the query is unexpected. • Smoothing only improves accuracy in estimating the unigram language model based on a document. Effect of verbose Queries???

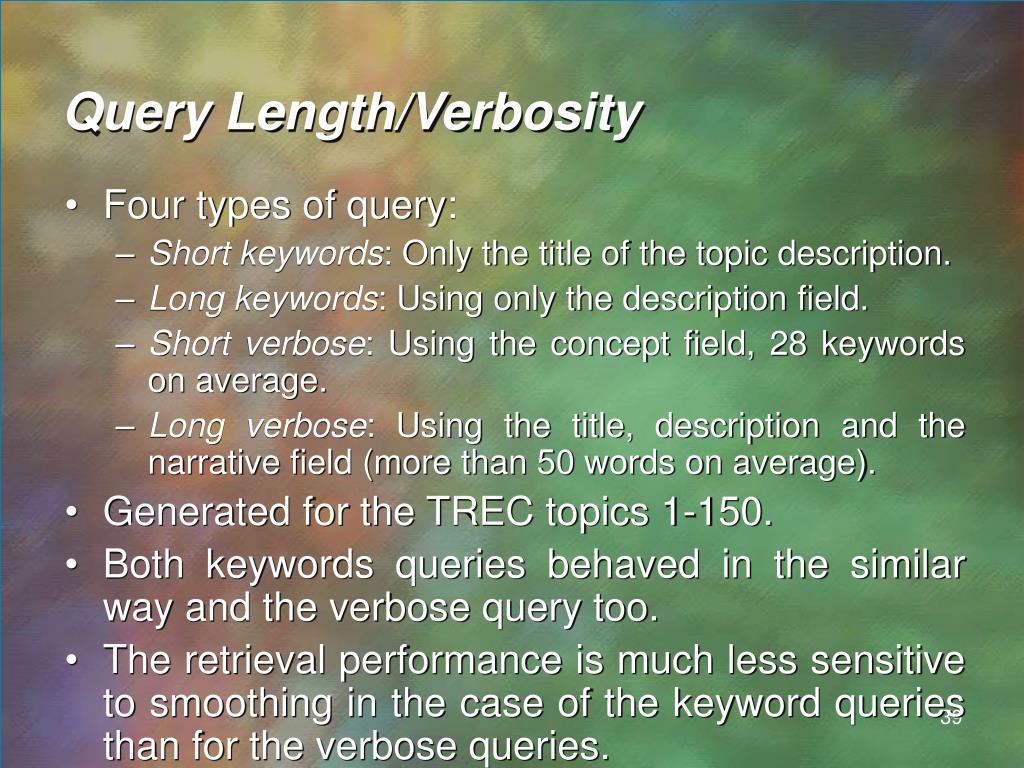

39. Query Length/Verbosity • Four types of query: • Short keywords: Only the title of the topic description. • Long keywords: Using only the description field. • Short verbose: Using the concept field, 28 keywords on average. • Long verbose: Using the title, description and the narrative field (more than 50 words on average). • Generated for the TREC topics 1-150. • Both keywords queries behaved in the similar way and the verbose query too. • The retrieval performance is much less sensitive to smoothing in the case of the keyword queries than for the verbose queries.

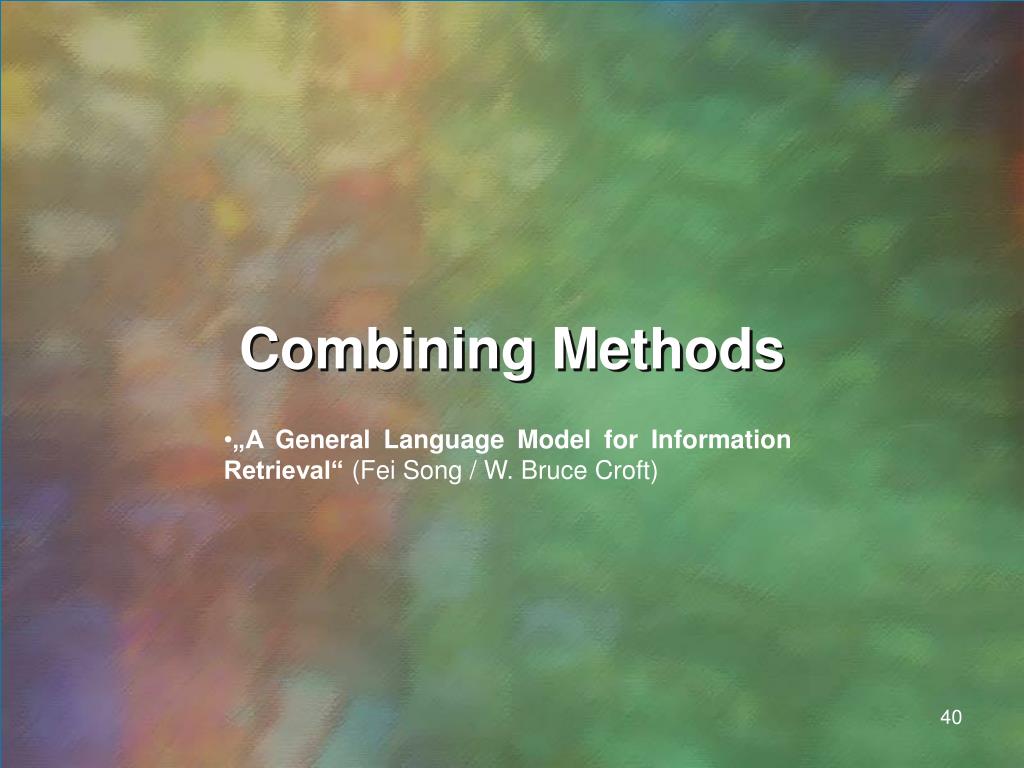

40. Combining Methods • „A General Language Model for Information Retrieval“ (Fei Song / W. Bruce Croft)

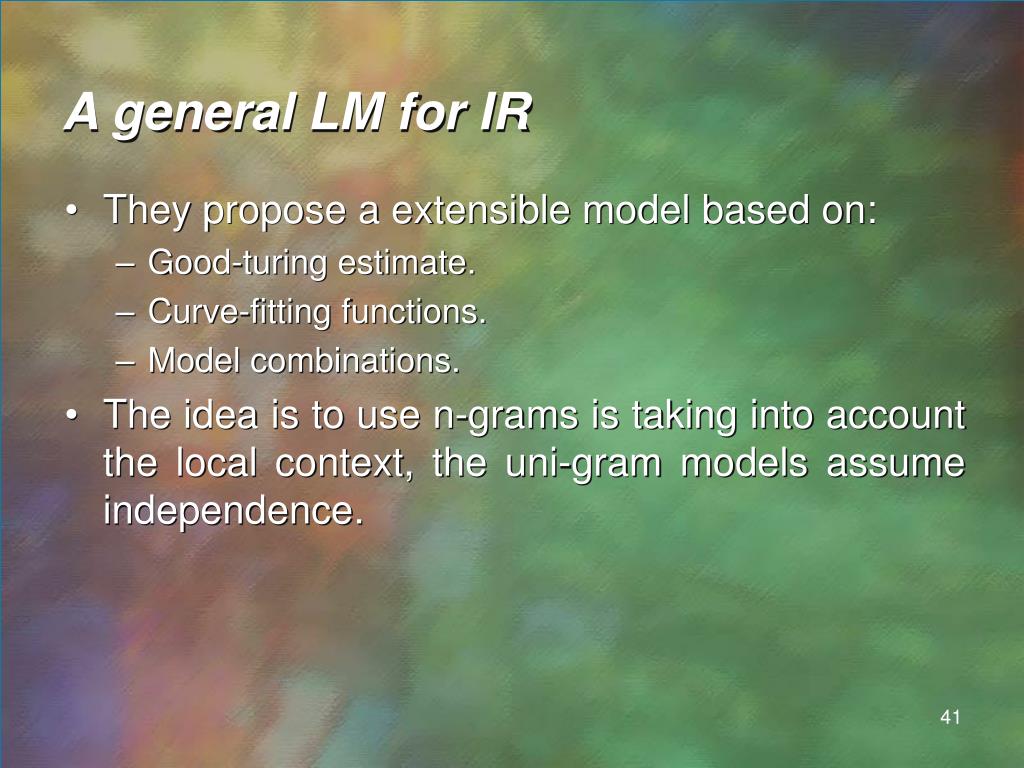

41. A general LM for IR • They propose a extensible model based on: • Good-turing estimate. • Curve-fitting functions. • Model combinations. • The idea is to use n-grams is taking into account the local context, the uni-gram models assume independence.

42. A general LM for IR • The new model: • Smooth each document with the Good-turing estimate. • Expand each document with the corpus. • Consider terms pairs and expand the unigram model to the bi-gram model.

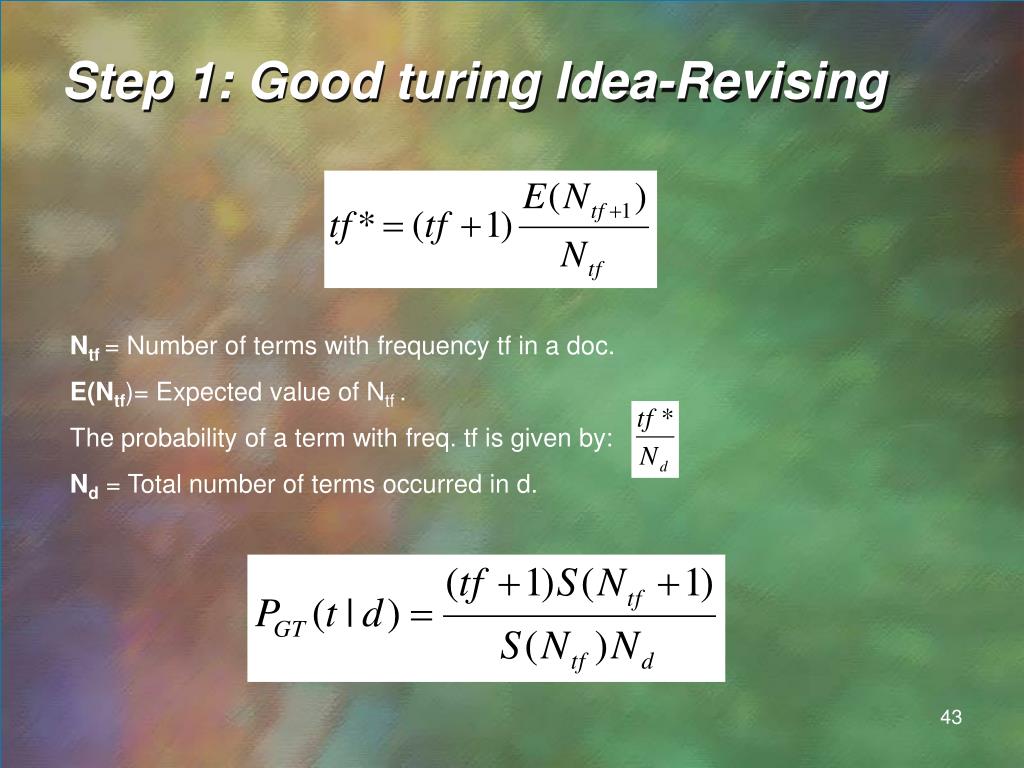

43. Step 1: Good turing Idea-Revising Ntf = Number of terms with frequency tf in a doc. E(Ntf)= Expected value of Ntf . The probability of a term with freq. tf is given by: Nd = Total number of terms occurred in d.

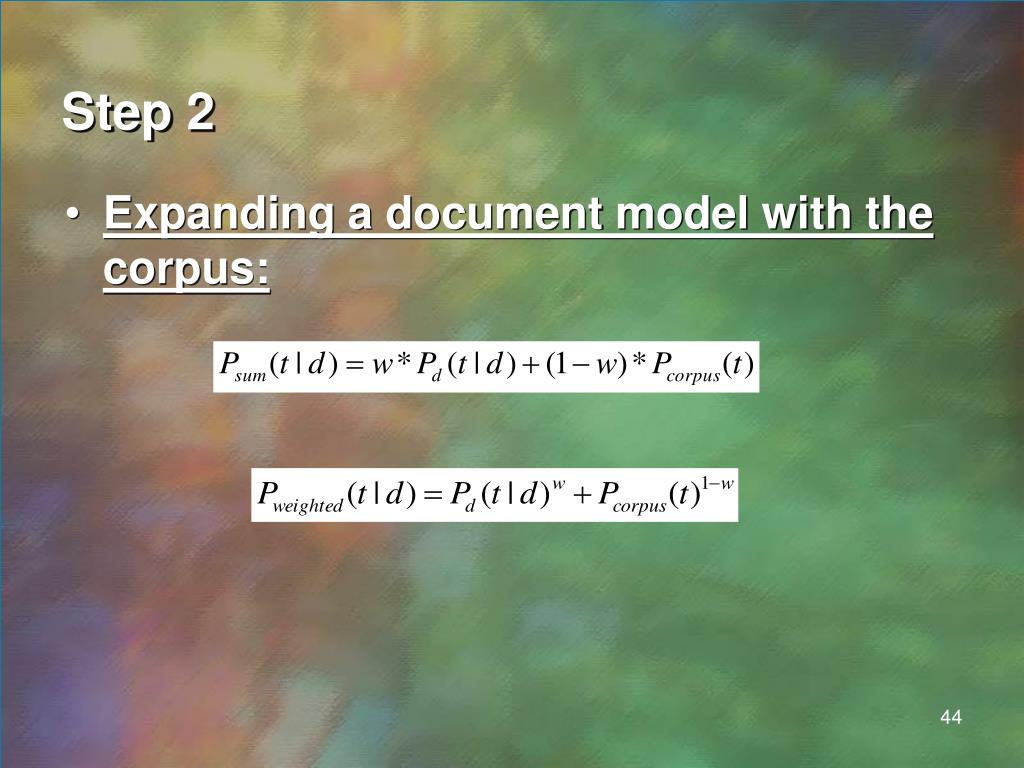

44. Step 2 • Expanding a document model with the corpus:

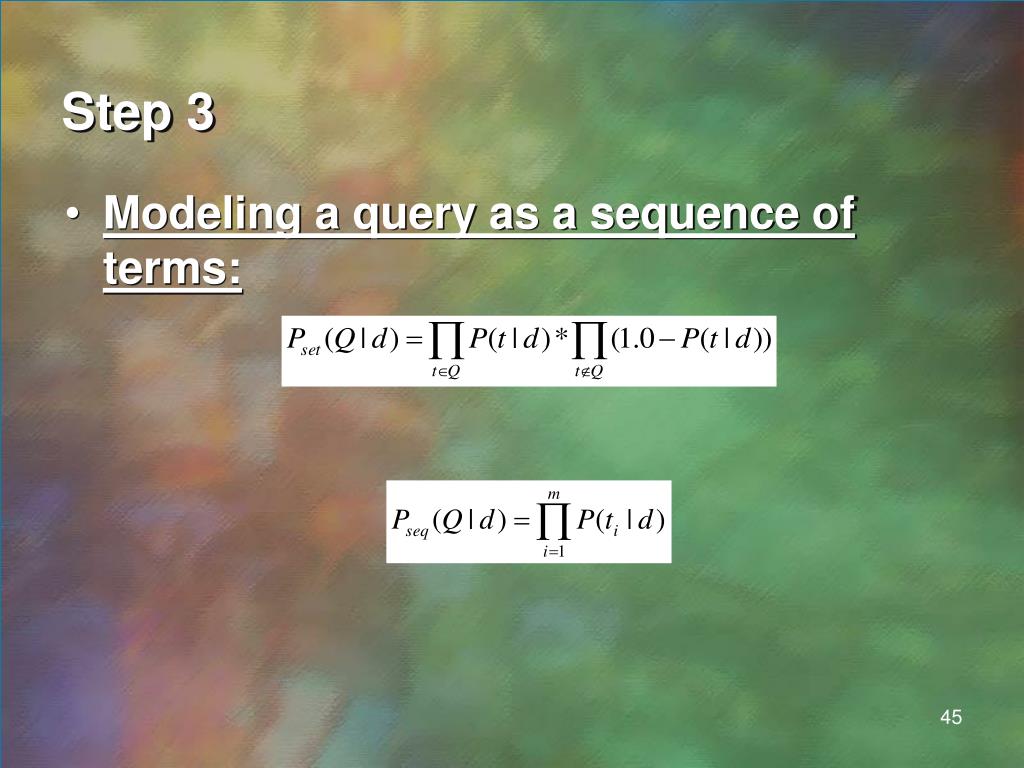

45. Step 3 • Modeling a query as a sequence of terms:

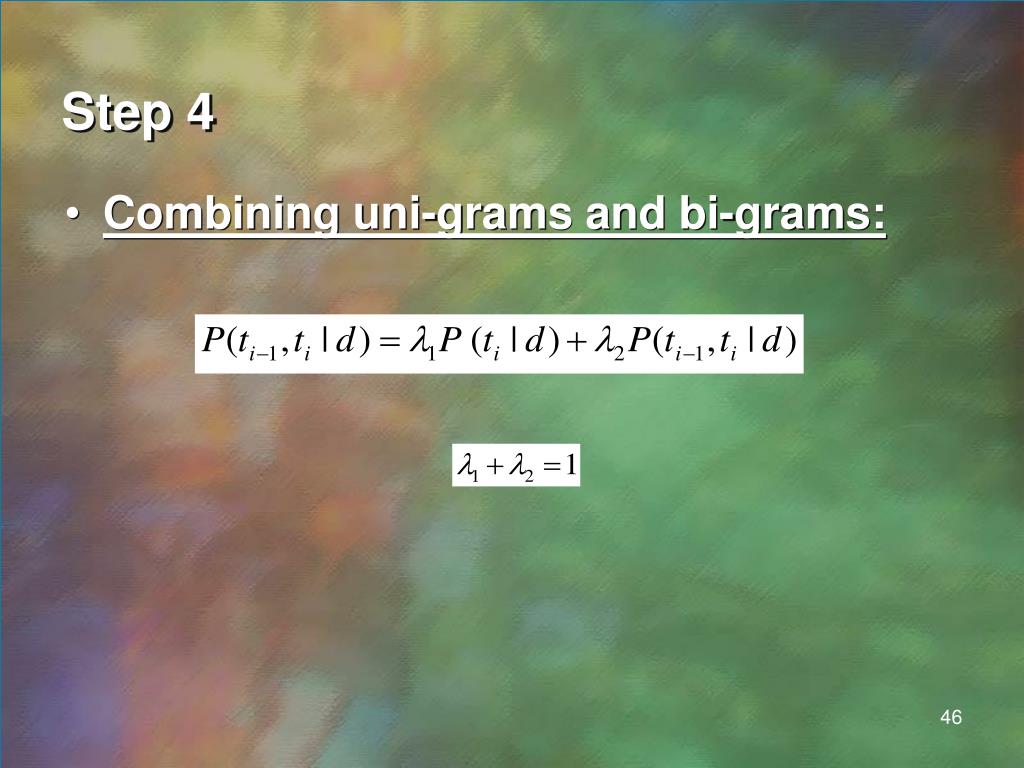

46. Step 4 • Combining uni-grams and bi-grams:

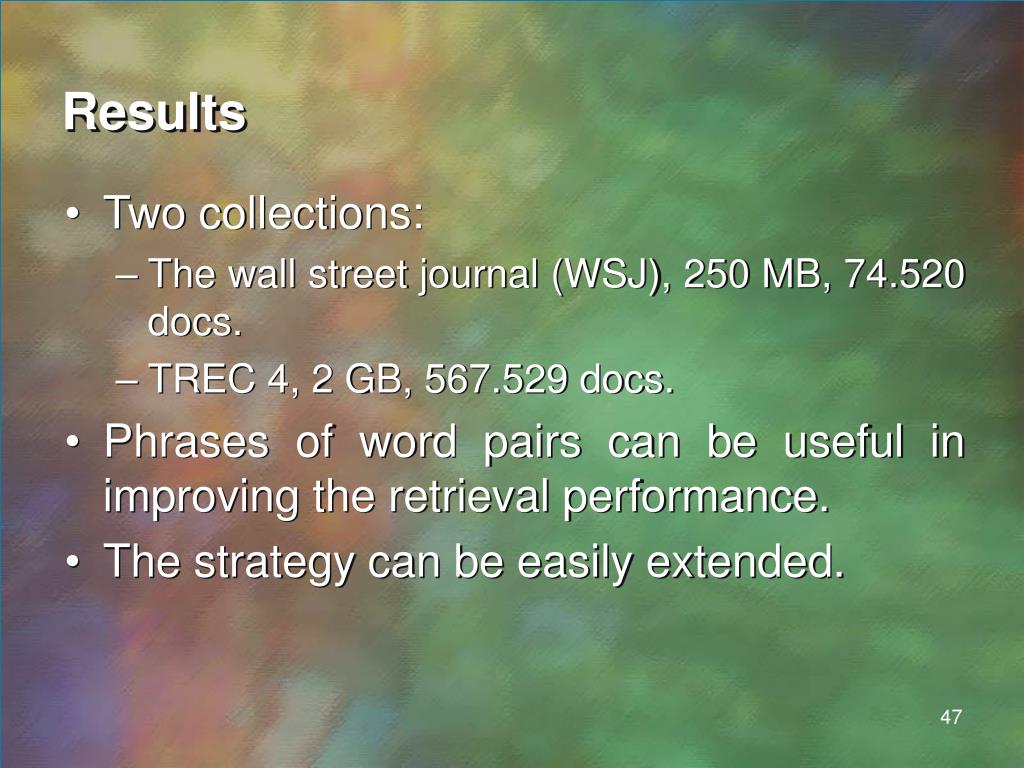

47. Results • Two collections: • The wall street journal (WSJ), 250 MB, 74.520 docs. • TREC 4, 2 GB, 567.529 docs. • Phrases of word pairs can be useful in improving the retrieval performance. • The strategy can be easily extended.

48. Personal Outlook / Conclusions

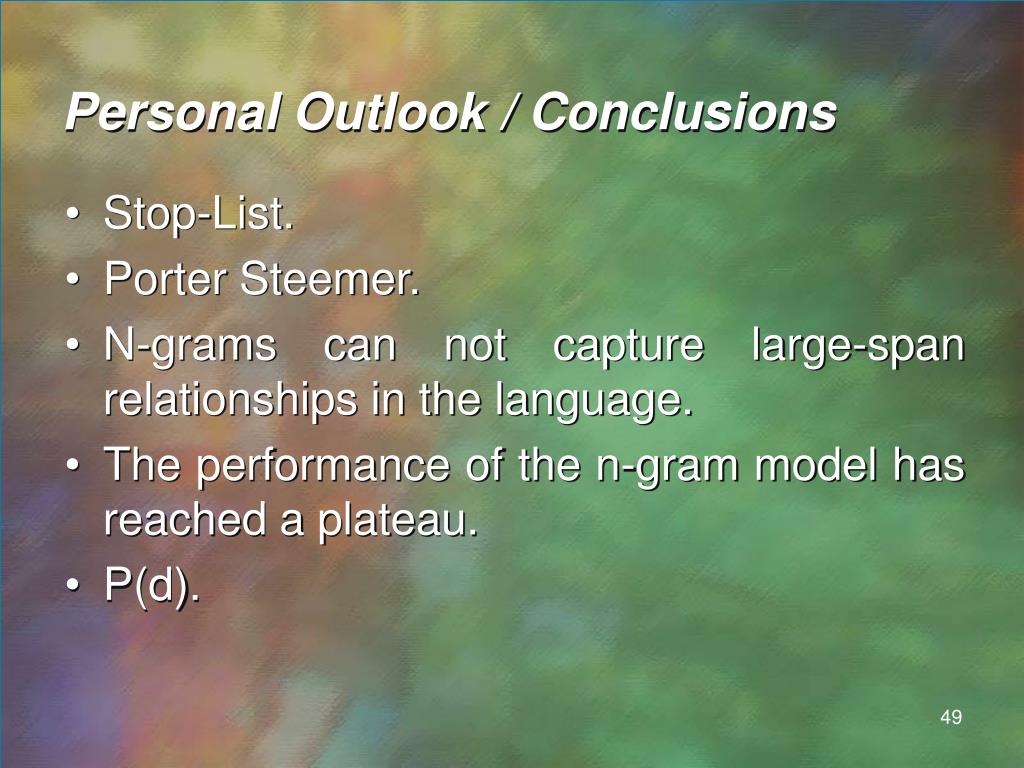

49. Personal Outlook / Conclusions • Stop-List. • Porter Steemer. • N-grams can not capture large-span relationships in the language. • The performance of the n-gram model has reached a plateau. • P(d).

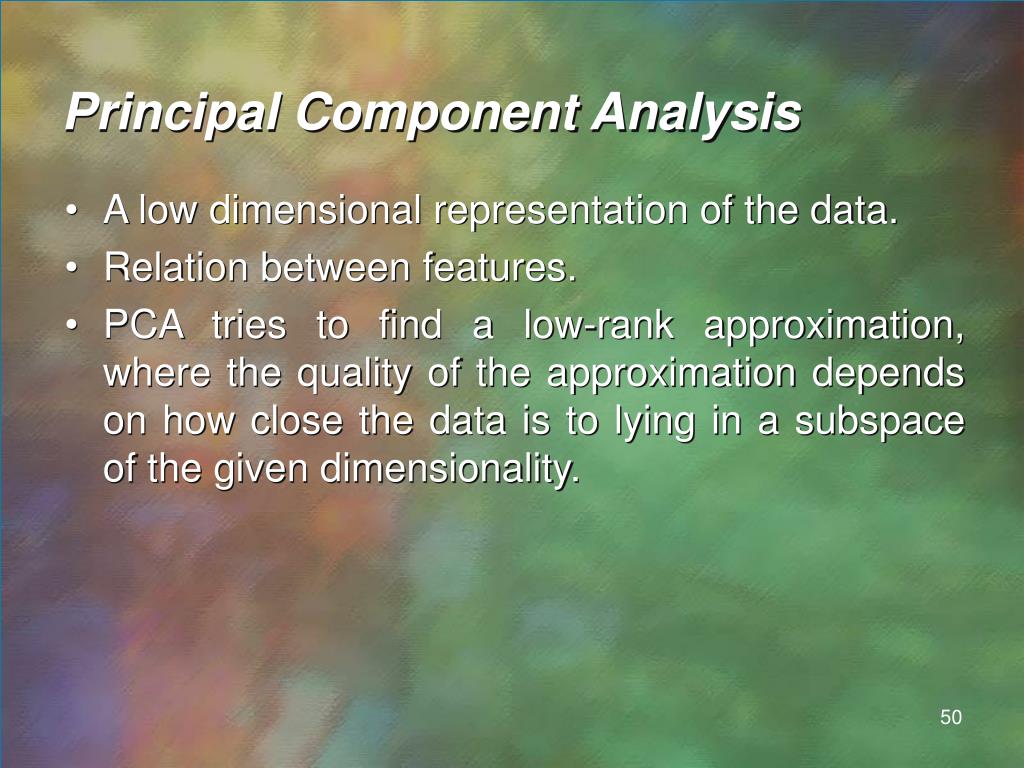

50. Principal Component Analysis • A low dimensional representation of the data. • Relation between features. • PCA tries to find a low-rank approximation, where the quality of the approximation depends on how close the data is to lying in a subspace of the given dimensionality.
