  1. 简明船舶市场概述 由 Daniel Cao 创建 于2006.12.26

  2. 船舶部分 • 油轮 • 散货船 • 集装箱船 • 特种船

  3. VLCC尺寸 • MT MAJESTIC UNITY •    ABT 300,549 TDW ON 22.20M  BLT 1996 HYUNDAI HI  LR SS 1/06  LOA 330.26 BEAM 58.04 M  B+W 7S80MC 33,264 BHP  15 TANKS 345,096 CBM  PUMPS 3X5000 TWPH  SBT/IGS/COW  DOUBLE HULL

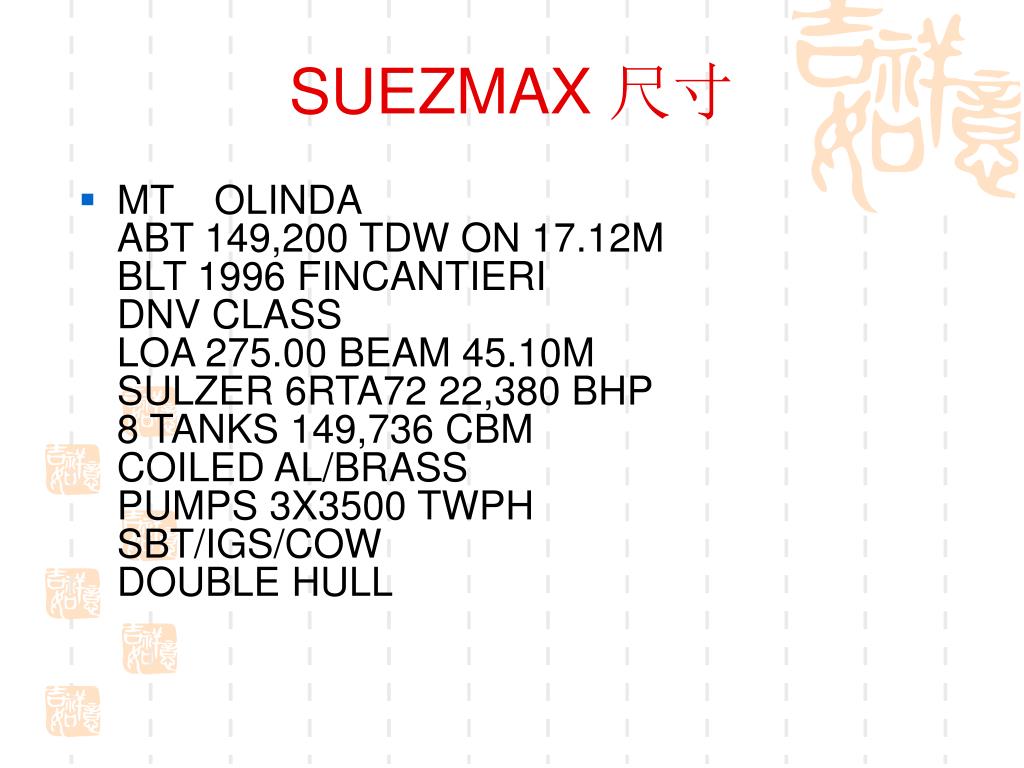

  4. SUEZMAX 尺寸 • MTOLINDAABT 149,200 TDW ON 17.12MBLT 1996 FINCANTIERIDNV CLASSLOA 275.00 BEAM 45.10MSULZER 6RTA72 22,380 BHP8 TANKS 149,736 CBMCOILED AL/BRASSPUMPS 3X3500 TWPHSBT/IGS/COWDOUBLE HULL

  5. AFRA尺寸 • MT OVERSEAS ELIANE • ABT 94,813 TDW ON 13.62 M • LOA 244.81 /BEAM. 42.00 • BUILT HYUNDAI H.I., 1994 • CLASS AB • NO. TANKS: 7 / 105,936 CBM LIQ. • COILED • COW / IGS / SBT • B&W 5S70MC/14,909 BHP • DOUBLE HULL

  6. PANAMX 尺寸 • M/T OCEAN PRIDE • 62,482 MT DWT ON 12.5M • BUILT 1990 HUDONG • LIBERIAN FLAG • LOA 224.64M BEAM 32.24M • CLASS LR • CAP 1 ON HULL AND CARGO SYSTEMS, CAP 2 ON MACHINERY SS/DD PASSED APR 06 B&W 6L60MC 12,500 BHP • 5 TANKS 59,600 CBM • COILED /SBT/IGS/COW • DOUBLE SIDED

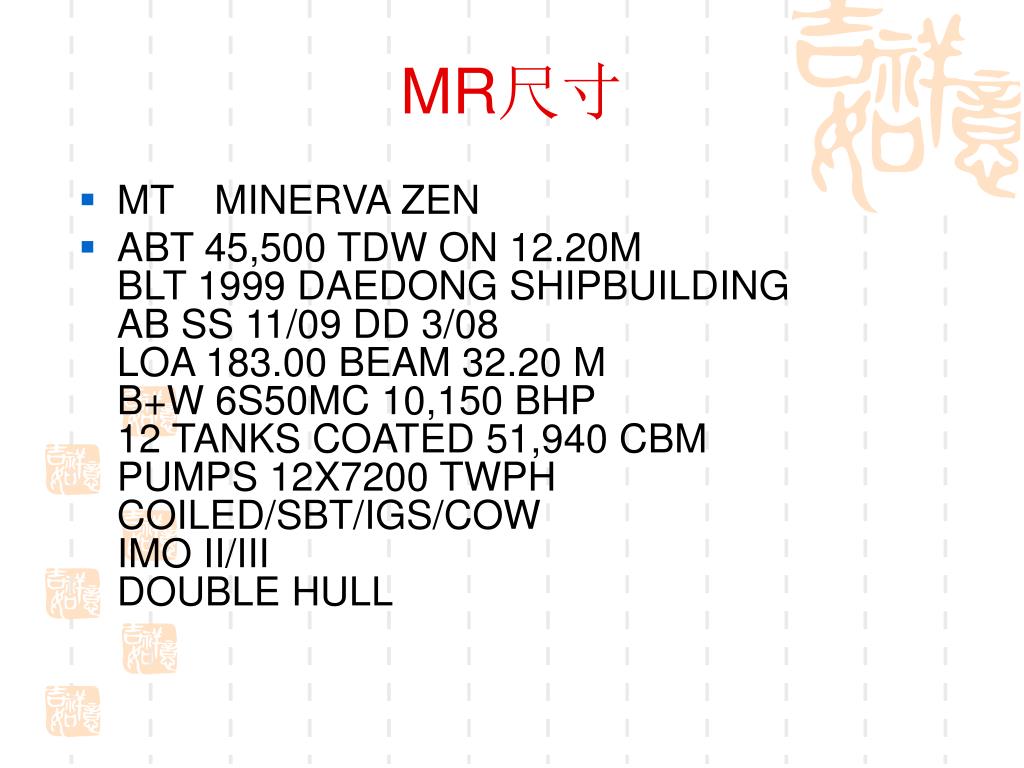

  7. MR尺寸 • MTMINERVA ZEN • ABT 45,500 TDW ON 12.20MBLT 1999 DAEDONG SHIPBUILDINGAB SS 11/09 DD 3/08LOA 183.00 BEAM 32.20 MB+W 6S50MC 10,150 BHP12 TANKS COATED 51,940 CBMPUMPS 12X7200 TWPHCOILED/SBT/IGS/COWIMO II/III DOUBLE HULL

  8. CAPSIZE 尺寸 • M/V NIGHTWHISPER (EX SEAKOH) • 172,428 MTDW ON 17.52M DRAFT • BLT 3/1985 MITSUBISHI NAGASAKI, JAPAN • BAHAMIAN FLAG - NK • LOA 290.00 LBP 278.01 BEAM 46.00 DEPTH 24.01 M • GRT: 88,840 / NRT: 54,596 • 188,426/188,427 CBM GR/BL • 9/9 HO/HA • HA DIM: 1(14.28X17.60) 7(15.12X21.12) 1(14.28X14.00) HVY STR: Y / ORE STR: Y • 1 SULZER 6RTA84 17,070 BHP • ABT 12.5/14 KN L/B ON ABT 45 MT (380RMG) + 0.5 MT MDO

  9. PANAMX　尺寸 • MVDELRAYABT 70029 DWT ON 13.62MBLT 07/94 HUDONG 225M LOA 32.248M BEAM LR +100A1 30/JUL/09 -7HO 7HA 85056/81564 CBM G/B 6S60MC B+W 12264BHP ON 903 X DAIHATSU GENS12153LDT

  10. HANDYMAX 尺寸 • MVOCEAN EAGLE • ABT 42972 DWT ON 11,33M DRFT • LOA 185,83M BEAM 30,45M DEPTH 16,21M • BLT 3/1984 HASHIHAMA ZOSEN TAD JAPAN • CLASS BV SS-DD 06/2007 • GRT 25777, NRT 13332 • 52551 GR 51780 BL • 5 HO / 5 HA • CRANES 4/25T, 4 GRABS 8 CBM EACH • M/E 1 X B&W 8973 BHP • LDT 8741

  11. HANDY　尺寸 • M/VCIELO DI SIENA • ABT 30975 DWT ON 10.348M • BLT 02/86 LENINA STOCZNIA GDANSK • 184.51M LOA 27.51M BEAM • CLASS NV • 5HO 5HA 36822/36627 CBM G/B 1100TEU • 6RTA58 SULZER 9600BHP • ABT 13/19 380 + 0.5DO + 3 FO; FOR CONTRS 13/25 OWISE 14.5K/29 CR 5X25 COMB 50T

  12. 租金与船价部分 • 租金 • 船价

  13. 上海电气租赁有限公司
