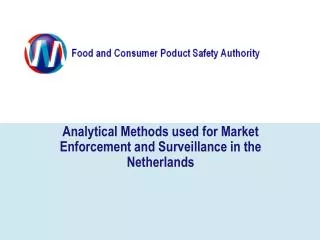

  1. Analytical Methods used for Market Enforcement and Surveillance in the Netherlands

  2. Trend • Emphasis falls on product information enforcement (PIF) and less on product examination TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  3. However… • Product examination is still necessary to check at random if the system works well TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  4. And… • Product examination is necessary to discover trends and to initiate product file inspections TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  5. Laboratory • Accreditation ISO/IEC 17025:2005 • Chemical and Microbiological team (22 fte) • 2006: 5300 analyses, 2200 for cosmetics (650 samples tattoo excluded) • 2007: 4200 analyses, 1900 for cosmetics (500 samples tattoo excluded) • VIDAS and Anoxomat • Pathogen laboratory and own preparation of culture media • HPLC (12), GC (5), GC-MS (4), LC-MS, UPLC-MS-MS, ICP-MS, FTIR, NIR and XRF TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  6. Microbiological Methods • Total Count • Moulds • Challenge tests • Entero’s • Pseudomonas • S. Aureus TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  7. Challenge test • Pseudomonas aeruginosa, Escherichia coli, Staphylococcus aureus, Candida albicans, Aspergillus niger • Test on germ free • Addition to product of different cultures of micro-organisms, yeast and moulds • After 1 week determination of Total Count • Addition to product of different cultures of micro-organisms, yeast and moulds • After 1 week determination of Total Count • Repeat the procedure until no growth is detected or until maximal 4 weeks after second addition • Determination of log reduction TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  8. Challenge test TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  9. Chemical Methods (1) • Vitamin A, D and E • Hydrogen peroxide in tooth whiteners • Local anaesthetics (benzocain, procain, lidocain, tetracoin, bupivacain) in creams • Formaldehyde • Hydroquinone • Nitrosamines in shampoo • Benzisotiazolinone, chloromethylisothiazolinone and methylisothiazolinone • Corticosteroids • Mercury in soap bars • Iodopropylbutylcarbamate (IPBC) TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  10. Chemical Methods (2) • Benzoylperoxide in nail products • Thioglycolic acid in hair wave products • Oxidative hair dyes • Primary aromatic amines in tattoo • Allergens in perfumes • Dibutylphthalate and toluene in nail lacquers • Parabens, phenoxyethanol, benzoic acid, sorbic acid and salicylic acid • Bronopol, Bronidox and methyldibromoglutaronitril • UV filters • Ad hoc methods TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  11. Survey Nitrosamines (2004-2007) SB-Aq 150x4.6 mm, 5 µm Flow 1,0 ml/min Mobile phase acetic acid (1%) and acetonitril (Gradient) sample extracted with SPE or LLE TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  12. Survey Nitrosamines (2004-2007) NDELA detected: 2004: 18% of the samples (n=137) 2005: 19% of the samples (n=181) 2006: 5% of the samples (n=394) 2007: 4% of the samples (n=668) TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  13. Survey Child Cosmetics (2005-2006) • Babies/pre-scholars (355 samples) and children > 3 years (400 samples) • Preservatives (parabens, BIT, MI, CMI, Formaldehyde) • Fluoride • UV filters • Heavy metals • Total Count • Challenge test TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  14. Survey Child Cosmetics (2005-2006) • Parabens most used preservatives possibly in combination with phenoxyethanol • Presence of benzisotiazolinone (4 out of 137) • Sodium salt most used form of fluoride • Presence of NDELA (3 out of 40) • Ethylhexylmethoxycinnamate, benzophenone-4/5, BMDBM and octocrylene most used UV filters in products for children <3 years • BMDBM and ethylhexylmethoxycinnamate most used UV filters in products for children >3 years • Presence of Lead (8%) and Cadmium (2%) (59 samples) TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  15. Survey Child Cosmetics (2005-2006) • Total Count >10 CFU/g is 5% for products for children <3 years (262 samples) • Total Count >10 CFU/g is 8% for products for children >3 years (223 samples) • Challenge test for products for children <3 years were qualified as weak or unsatisfactory (27%) and at least 2-times unsatisfactory (4%) • Challenge test for products for children >3 years were qualified as weak or unsatisfactory (45%) and at least 2-times unsatisfactory (6%) TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  16. Survey allergens (2006-2007) CPWax 52CB 50m*0.25mm*0.20µm sample diluted with acetone TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  17. Survey allergens (2006-2007) TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  18. TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  19. Survey allergens (2006-2007) TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  20. Survey Microbiological State (2006) • 1070 products on water base • Total Count using Trypton Soya Agar (3 days at 30°C) • Moulds using Mout Agar (5 days at 25 °C) • Challenge test TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  21. Survey Microbiological State (2006) • Total Count >15 CFU/g : 4% • Total Count >1000 CFU/g: 1% • Non-compliance challenge test: 30% • Shampoo higher Total Count • Sun care products and creams/ointments score less in challenge test • In most cases the preservative system is not adequate for protection against infection of moulds TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  22. PAO symbol (2007) • Statutory requirement for products with shelf life >30 months • Creams without dispenser system • Once a week “finger-test” • Three weekly microbiological analysis (Total Count and Moulds) • Proceed as long as the product is run out or the PAO date is passed • No results yet TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel

  23. Conclusion Product examination is still necessary to guarantee the safety of use of cosmetics by consumers. TAIEX Seminar EU Cosmetics Legislation Zagreb Author | BSc. Durk J. Schakel
