  1. IBM System x3755 제품소개

  2. 서버 시장의 흐름(1) *Source: IDC Q405 Server forecaster

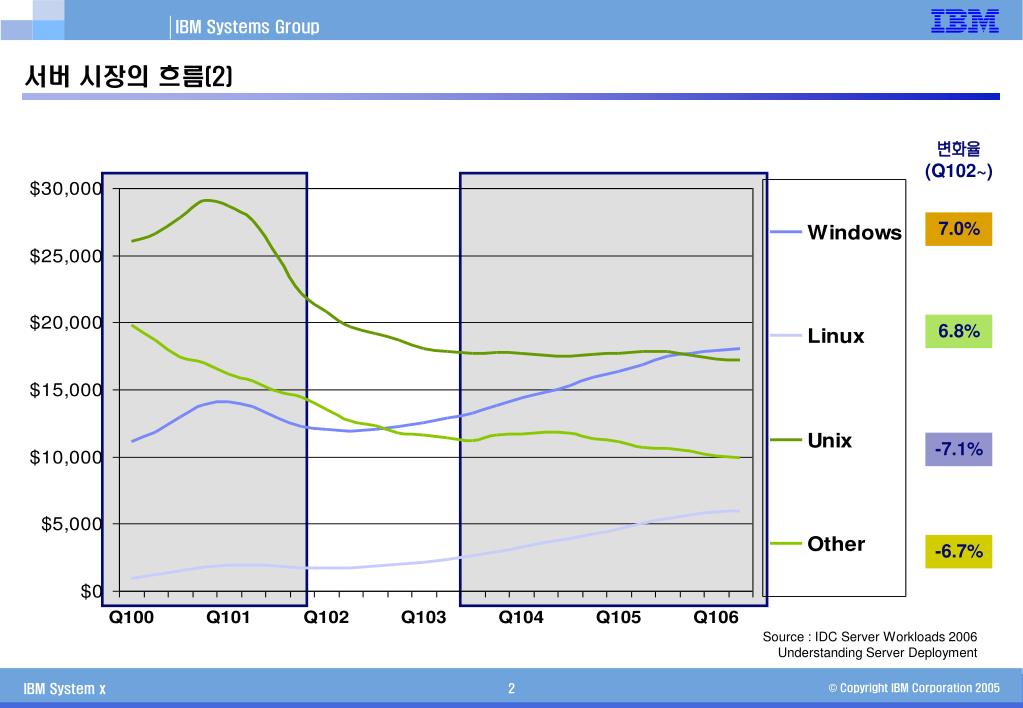

  3. 서버 시장의 흐름(2) 변화율 (Q102~) 7.0% 6.8% -7.1% -6.7% Source : IDC Server Workloads 2006Understanding Server Deployment

  4. Clusters / Virtualization / H/A Solutions File / Print / All PurposeRemote / Branch / Distributed / Departmental x3400 x3500 X3200/ x3250 M2 유연성을 제공하는 IBM System x 포트폴리오 x3950 M2 Database Servers Business Intelligence Transaction Processing Mail / App Servers x3755 x3850 M2 Application Servers Web Services Terminal Servers Middleware File / Print / DNS / Mail Scale Up / SMP Computing x3655x3650 IBM BladeCenter x3550 x3455 x3250x3250 M2 Compute Clusters Scale Out / Distributed Computing

  5. System x3755는 최대 메모리 가용성이 필요한 고성능 연산 애플리케이션에 놀라운 성능을 제공하며, 메모리 데이터에 대한 빠른 엑세스와 짧은 대기시간을 요청하는 애플리케이션에 유용합니다. 또한 구성이 유연하여 고객은 필요에 따라 업그레이드하고, 비용에 맞게 최적화하거나, 성능을 극대화할 수 있습니다. AMD 설계로구성된 고성능 4way 서버 System x3755 제품 개요 • 유연하고 설치가 편리한 4U 샤시 • AMD 쿼드코어 Opteron 모델 8350,8356,8360SE CPU 장착 • 최대 128GB DDR 2 메모리 확장성 • 초기 비용으로 뛰어난 부동소수점 성능을 제공하도록 설계 • 최대 4개의 Disk Bay, 최대 1.8TB 디스크 내부 저장공간 제공 • 최대 7개의 확장슬롯 보유 ( 4 PCI-Express, 2 PCI-X, 1 HTx ), 혁신적인 HTx 설계를 통한 앞선 I/O 성능제공 • 메모리, 하드 디스크, 팬, 전원 공급장치의 핫스왑 기능 제공으로 가용성과 유지보수 편의 향상 • Remote Supervisor Adapter 2 Slimline 옵션 제공 • Full Down Light Path Diagnostics (광경로 진단) 패녈 제공 및 Predictive Failure Analysis 제공

  6. System x3755 제품 주요 사양

  7. System x 3755 시스템 성능 : AMD Opteron 프로세서의 주요 특징 • 전통적인 x86 Architecture • 20년 동안 사용된 Front-Side-Bus Architecture로서 • CPUs, Memory, IO에서 동일한 버스를 공유함으로 • 병목현상이 발생하여 성능이 저하됨 • 빠른 CPU, 더많은 CPU는 성능과 직결되지 않음 • AMD64의 Direct Connect Architecture • 산업 표준의 AMD64 Technology • AMD의 혁신적인 Direct Connect Architecture는 FSB 병목현상을 완전히 제거함 • HyperTransport Technology를 통해 상호 연결되어 고대역폭 및 낮은 Latency를 제공함

  8. System x 3755 시스템 성능 : AMD Opteron 프로세서의 주요 특징 • 32와 64-bit 컴퓨팅을 동시에 지원하는 AMD Opteron™ 프로세서는 AMD64 아키텍처를 채용한 최초의 제품이라는 기념비적인 의미를 가지고 있다. • AMD Opteron 프로세서는 탁월한 성능으로 기존 32-bit 애플리케이션을 실행할 수 있도록 개발되었으며 아주 쉽게 64-bit 컴퓨팅으로 전환할 수 있는 마이그레이션 경로를 제공한다. • 이 혁신적인 프로세서는 호환성과 성능, 투자 보호 및 TCO(Total cost of ownership) 절감의 측면에서 비약적인 발전을 이루어냈다. • AMD Opteron 2000 시리즈(1~2-웨이) 및 8000 시리즈(8-웨이까지)의 3가지 시리즈로 제공.

  9. 통합 DDR 메모리 컨트롤러 HyperTransport™ 기술 • 프로세서가 메인 메모리에 액세스하는 방법을 새롭게 변화시킴으로써 대역폭을 증가시키고 메모리 • 대기시간을 단축시킬 뿐만 아니라 프로세서 성능을 향상 • 가용 메모리 대역폭이 프로세서의 수에 따라 확장됨 • 프로세서 당 최고 8개의 레지스터드 DDR2 DIMM을 지원할 수 있는 128-bit 버스 폭의 통합 DDR 메모리 • 프로세서 당 최고 6.4GB(PC3200 장착)의 가용 메모리 대역폭 지원 • HyperTransport™ 링크 기술을 채용한 AMD Opteron™ 프로세서는 프로세서, I/O 서브시스템과 기타 칩셋 간의 확장 가능한 대역폭 연결기능을 제공 • 최대 3개의 코히런트 HypetTransport 링크 지원 프로세서 당 32GB/s 피크 대역폭 제공 • 링크 당 최고 6.4GB/s의 대역폭으로 PCI-X, DDR2, InfiniBand 및 10G Ethernet을 포함해 새로운 연결기능을 지원할 수 있는 충분한 대역폭 제공 System x 3755 시스템 성능 : AMD Opteron 프로세서의 주요 특징

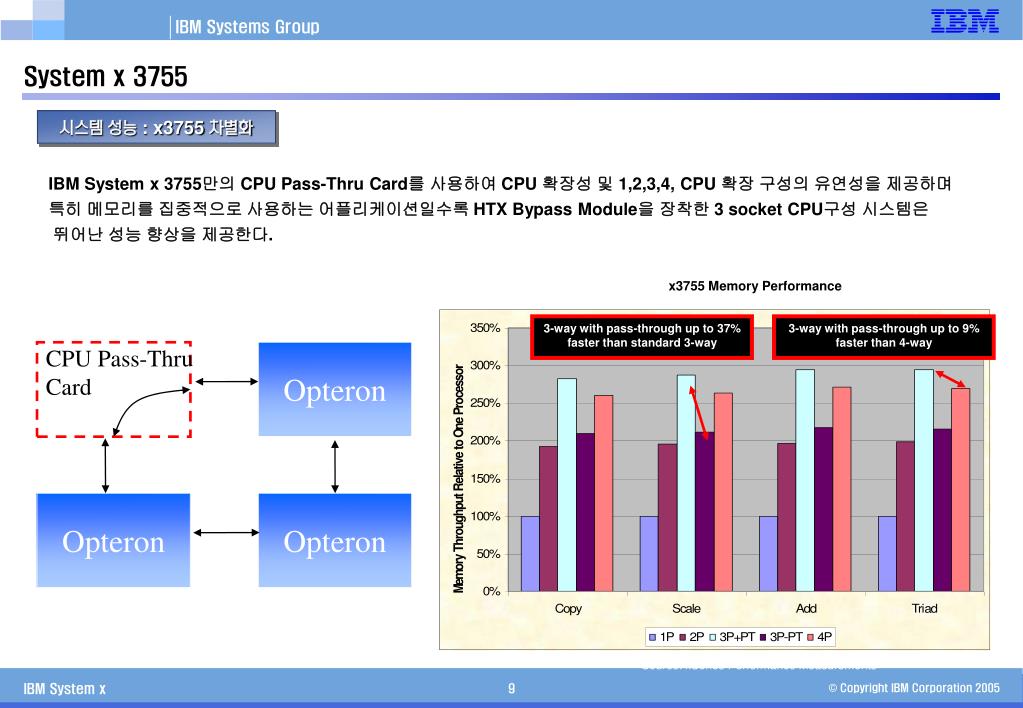

  10. System x 3755 시스템 성능 : x3755 차별화 IBM System x 3755만의 CPU Pass-Thru Card를 사용하여 CPU 확장성 및 1,2,3,4, CPU 확장 구성의 유연성을 제공하며 특히 메모리를 집중적으로 사용하는 어플리케이션일수록 HTX Bypass Module을 장착한 3 socket CPU구성 시스템은 뛰어난 성능 향상을 제공한다. x3755 Memory Performance 3-way with pass-through up to 37% faster than standard 3-way 3-way with pass-through up to 9% faster than 4-way CPU Pass-Thru Card Opteron cHT Opteron Opteron Source: xSeries Performance Measurements

  11. cHT Xcelerated Memory Technology drives 25% better memory performance System x 3755 시스템 성능 : 서버 구성요소 (Memory) • 프로세서당 8개 Dimm 및 667MHz지원 • online-spare memory, Chipkill memory, and memory scrubbing을 지원. • 최대 4개의 프로세서 및 메모리 카드를 지원하며 각 프로세서/메모리카드는 최대 8개 Dimm을 지원함. • 메모리 DIMM추가시 메모리 Dimm을 동일 속도, 타입,용량의 Pair로 추가하여야 함 • IBM Xcelerated Memory Technology로 최대 25%의 메모리 성능 향상 Competition only runs 4 DIMMS at 667MHz then clocks down to 533Mhz x3755 runs all 8 DIMMS at fast 667MHz, delivering 15% system performance advantage

  12. System x 3755 시스템 성능 : 서버 구성요소 (Memory) IBM’s x3755 Xcelerated Memory Technology 프로세서당 8개 667MHz DIMM 지원 Opteron Opteron HTX 총 32개 DIMM슬롯을 제공하여 2GB DIMM사용시 64GB 메모리 구성 – 4GB DIMM 16개 사용시보다 40% 비용절감 효과 Opteron Opteron cHT Better Performance...Less $$ I/O I/O

  13. 온라인 스페어 메모리는 실패하는 또는 실패된 메모리 DIMM을 “백업” 할 수 있는 스페어 메모리의 제공으로 시스템 다운타임을 감소 • 에러 검출 및 교정 기능으로 에러 확인시 오류를 조처 • 보다 향상된 Chipkill 기능 내장 • 부가적인 비용을 지불할 필요가 없고, 부가적인 hardware구입이 필요 없으며 OS와 독립적으로 운영됨 • 데이터베이스를 지원하는 데 있어 더 많은 신뢰성을 가짐 • Chipkill Memory는 향상된 availability 를 제공 • 다중 bit의 Memory오류를 자동으로 수정 온라인 스페어 메모리 ECC 메모리 Chipkill™ 메모리 최신 메모리 기술 적용 : Active Memory™ System x 3755 시스템 성능 : 서버 구성요소 (Memory)

  14. SAS HDDs SAS Backplane SAS Controller System x 3755 새로운 SCSI 기술적용 : Serial Attach SCSI (SAS) • 단순화된 cabling • Controller와 각각의 HDD가 독립적으로 연결 • 얇은 cable과 작은 connector가 더 쉬운 cable routing을 가능하게 함 • 더 효과적인 cooling으로 airflow를 향상시킴 • 더 큰 throughput으로 다중의 지속적인 읽기쓰기가 가능해짐 • 이 전의 SCSI보다 더 큰 scalability 와 더 높은 performance를 제공(각 채널당 300MB/S) • 내장된 H/W Base의 Serveraid 8ki 컨트롤러는 TAID 0/1/10을 기본 제공하며 32MB, PC2-4200 DDRII cache Memory를 사용 • 옵션 Serveraid 8S컨트롤러는 256MB Battery-backup cache 및 RAID 0/1/10/1E/5/6을 제공함

  15. 기본 제공 구성 : ServeRAID 8k-l 옵션 추가 가능 :ServeRAID 8k AIC9580W System x 3755 시스템 유연성 : Disk RAID 구성 • 새로운 x3755는 2가지 수준의 RAID를 지원합니다. • 기본 제공되는 ServeRAID 8k-l • 옵션으로 높은 성능과 RAID 5를 지원하기 위해 ServeRAID 8k 장착 가능 • 외부 스토리지 확장 유닛을 위해 외부 SAS port 지원 • 통합된 미러링과 스트라이핑 지원 • ServeRAID subset (RAID 0,1,10) • 32MBcache • No battery • 확장된 RAID 지원 • Full RAID 0,1,1E,5,6,10 • 256MB DDR2 memory DIMM with 256MB cache • Battery Back Up

  16. System x 3755 시스템 관리성 : Light Path Diagnostic • 특별한 Error Check 프로그램을 실행시키지 않고 시스템의 전면 판넬에 문제가 발생한 장치에 대하여 에러표시를 해줌으로써 시스템관리자가 원인을 빨리 파악하여 조치를 취할 수가 있음 • 복사기처럼 쉬운 혁신적 시스템 H/W 진단장치 • 신속 정확한 오류 판단/Down Time & Service Time 최소화/시스템 가용성 제고 • 2단계시스템 내부의 LED 패널에 장애 발생 위치 점등 • 1단계시스템 관리 프로세서가 시스템 앞면에 있는 프론트 패널에 ! 점등 • 3단계Light-Path 진단 장치는 장애 부품에 가장 가까운 지시등을 점등

  17. System x3755 – Calibrated Vectered Cooling System x 3755 시스템 안정성 : Calibrated Vectered Cooling • 서버를 통해 흐르는 냉각공기의 흐름을 최적화한 혁신적인 온도 설계로서 고집적서버에서 내부 확장성을 더욱 높일 수 있는 설계가 가능하며 효율적인 냉각으로 시스템의 가용성을 증대. • Isolated Zone 냉각 • 특히 열을 많이 발생하는 내부 zone에 집중한 냉각방식 • 냉각 팬 기술 • 펜 분당 회전수 감지 기능 및 온도에 따른 가변적 팬 속도 조절기능

  18. System x 3755 X3755 서버의 솔루션 Area

  19. Status LEDs Hot-Swap Redundant Fans Cover Latch Power Button USB Ports Carrying Handles CD-RW/DVD Combo Drive Hot-Swap SAS Drive Empty Hot-Swap SAS Drive Bays 3.5” Pop-Out Light Path Diagnostics Panel System x 3755 전면부 외관

  20. System x 3755 후면부 외관 Redundant H/S Power Supply Bays 10/100 Ethernet Port for BMC Serial Port KVM Ports USB Port Gb Ethernet Ports Hexagonal Ventilation Holes HTX Slot PCI-E Slots PCI-X slots • SP Ethernet 10/100 link LED • Power-supply connector: Connect the power cord to this connector. • Gigabit Ethernet 1 link LED • Gigabit Ethernet 1 activity LED • Gigabit Ethernet 2 link LED • Gigabit Ethernet 2 activity LED • Power-on LED: When this LED is lit and not flashing, it indicates that the server is turned on. • Locator LED: When this LED is lit, it has been lit remotely by the system administrator to aid in visually locating the server. • System-error LED: When this LED is lit, it indicates that there is a fault or condition in the server and that light path diagnostics might light an additional LED to help isolate the condition. • Gigabit Ethernet 2 connector: to connect the server to a network. • Gigabit Ethernet 1 connector: to connect the server to a network. • USB connector: Connect a USB device to this connector. • Video connector: Connect a monitor to this connector. • Mouse connector: Connect a mouse or other device to this connector. • Keyboard connector: Connect a keyboard to this connector. • Serial connector: Connect a 9-pin serial device to this connector. The serial port is shared with the baseboard management controller (BMC). The BMC can take control of the shared serial port to perform text console redirection and to redirect serial traffic, using Serial over LAN (SOL).

  21. 경쟁사 비교 : IBM x3755 vs. HP DL585 G5

  22. 경쟁사 비교 : IBM x3755 vs. SUN x4600
