  1. Some Basic HVAC

  2. HVAC - Cooling First Law of Thermodynamics Enthalpy H = U + PV Second Law:Entropy dS = dQ/T

  3. HVAC - Cooling Second Law:Entropy

  4. HVAC - Cooling ideal COP – dimensionless! – EER – dimensions of Btu/h/W! kpH’ evQ

  5. HVAC - Cooling kpH’ evQ COP = evQ / kpH’ = (h1-h4) / (h2-h1)

  6. HVAC - Cooling COP = evQ / kpH’ = (h1-h4) / (h2-h1) Nipuna

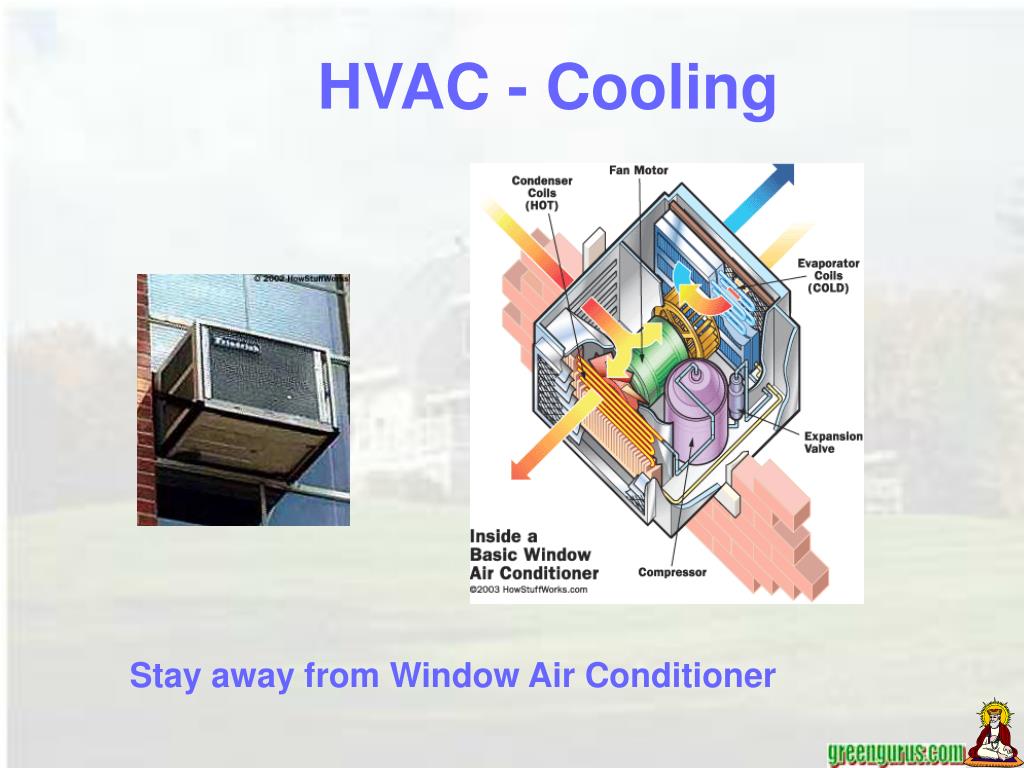

  7. HVAC - Cooling Stay away from Window Air Conditioner

  8. HVAC - Cooling Split System

  9. HVAC - Cooling Cooling Tower Chilled-water System

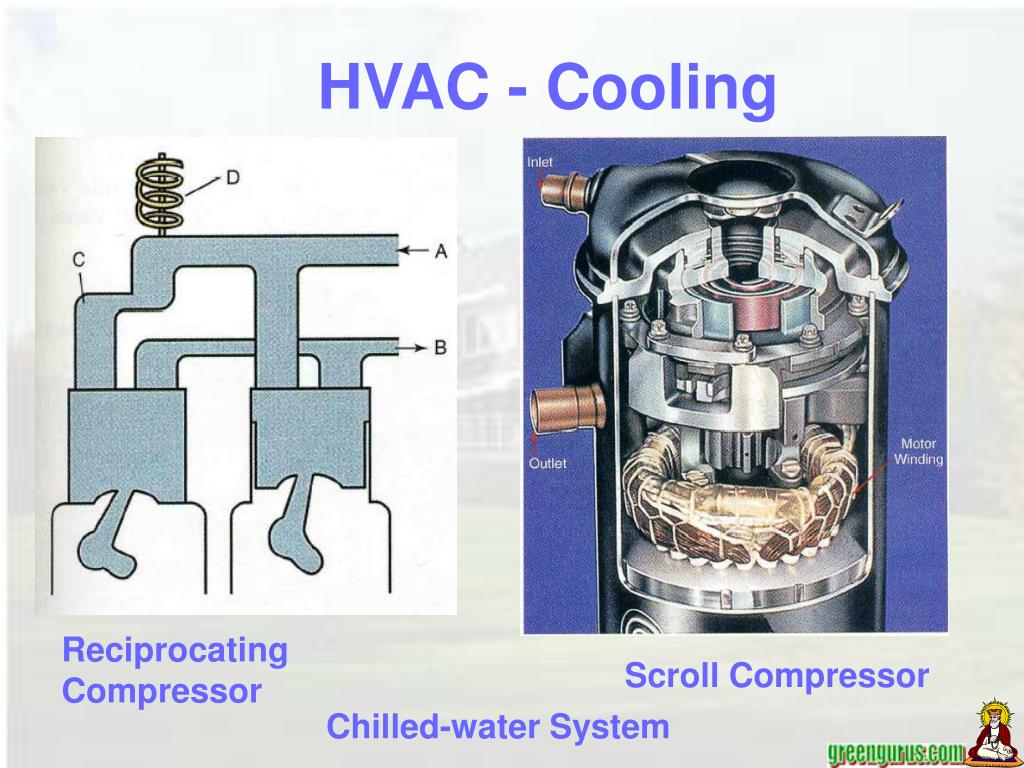

  10. HVAC - Cooling Reciprocating Compressor Scroll Compressor Chilled-water System

  11. HVAC - Cooling Chilled-water System Chilled-water System:Centrifugal Compressor

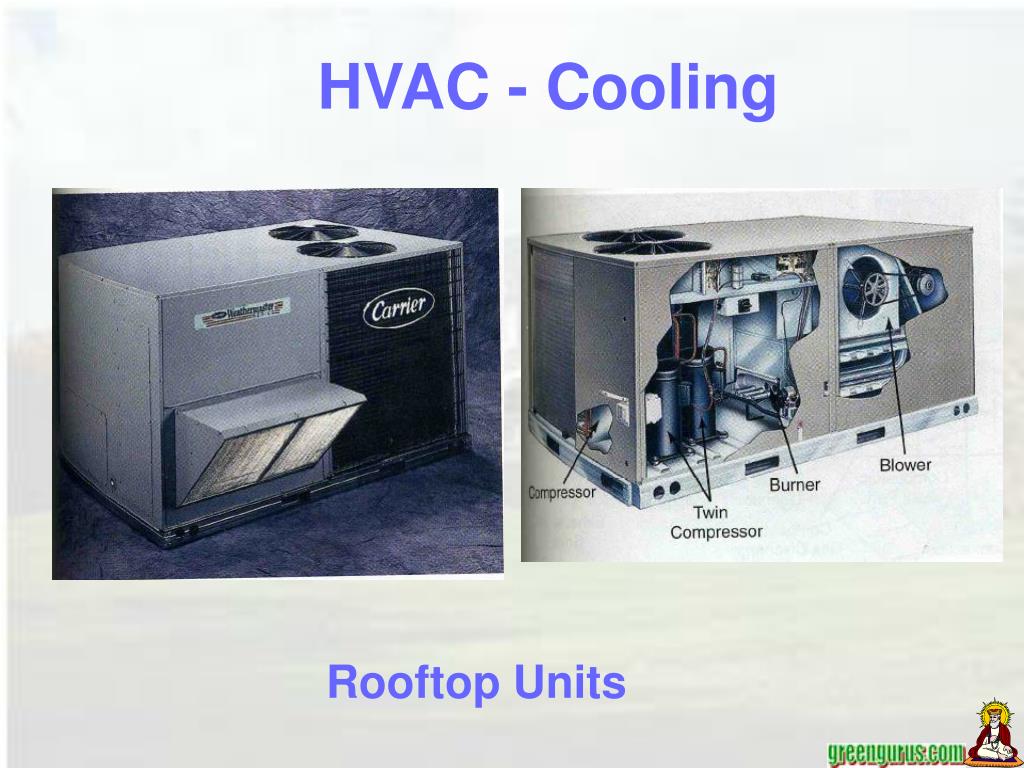

  12. HVAC - Cooling Rooftop Units

  13. HVAC - Cooling Rooftop Units

  14. HVAC - Cooling Rooftop Units

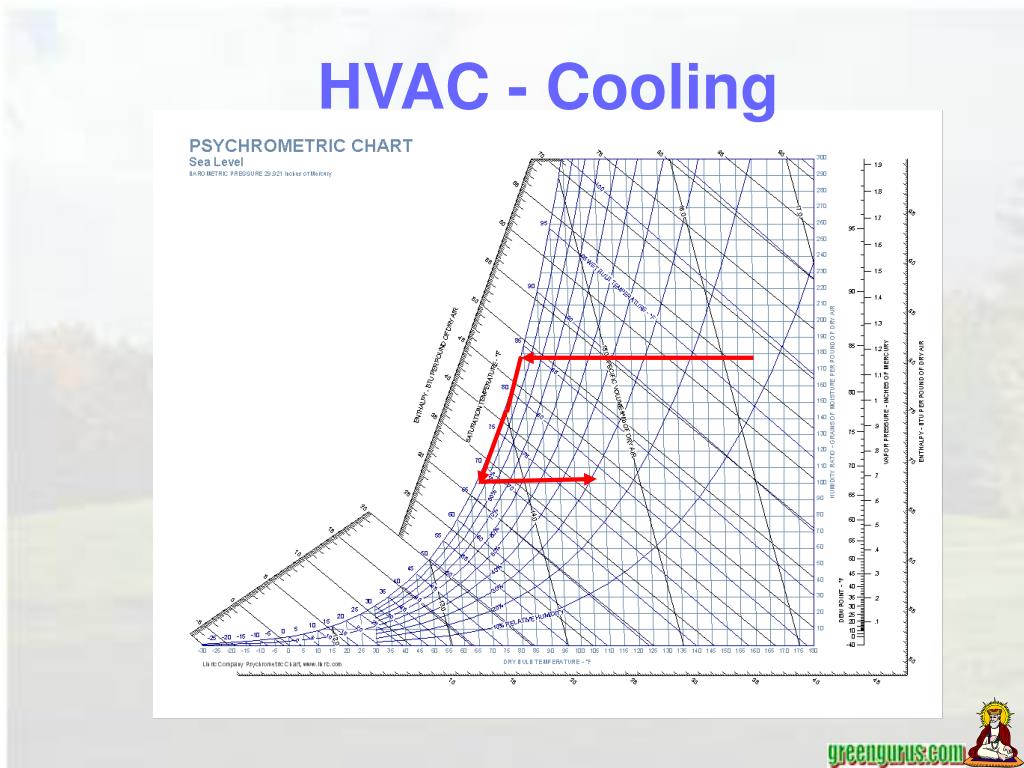

  15. HVAC - Cooling Saturation humidity line: Relative humidity line Wet bulb temperature lines Specific volume lines Enthalpy lines Psychrometric Chart

  16. HVAC - Cooling

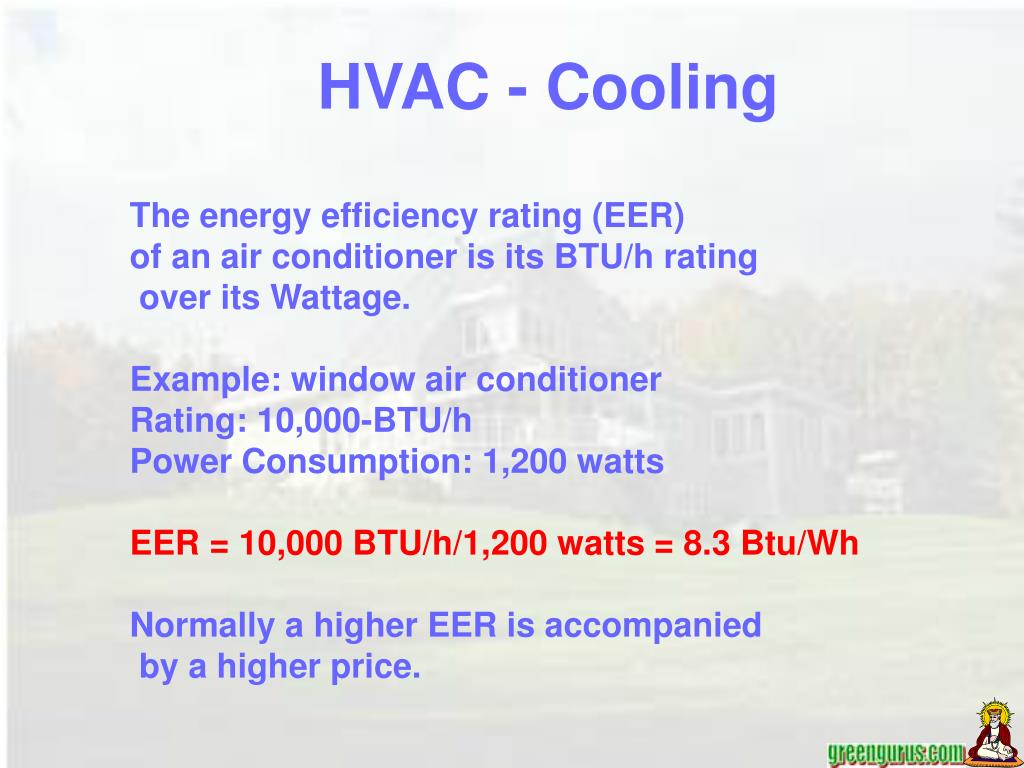

  17. HVAC - Cooling The energy efficiency rating (EER) of an air conditioner is its BTU/h rating over its Wattage. Example: window air conditioner Rating: 10,000-BTU/h Power Consumption: 1,200 watts EER = 10,000 BTU/h/1,200 watts = 8.3 Btu/Wh Normally a higher EER is accompanied by a higher price.

  18. HVAC - Cooling • Choice between two 10,000-BTU/h units • 1. EER of 8.3, consumes 1,200 watts • EER of 10, consumes 1000 watts. • Price difference is $100. • Usage: 4 months a year, 6 hours a day. • Electricity Cost: $0.10/kWh. • =========================================== • 4 mo. x 30 days/mo. x 6 hr/day = 720 hours • (720 h x .2 kW) x $0.10/kWh = $14.40 Savings • Since the EER 10 unit costs $100 more, • it will take about seven years for this more expensive unit • to break even

  19. HVAC - Cooling

  20. HVAC - Cooling

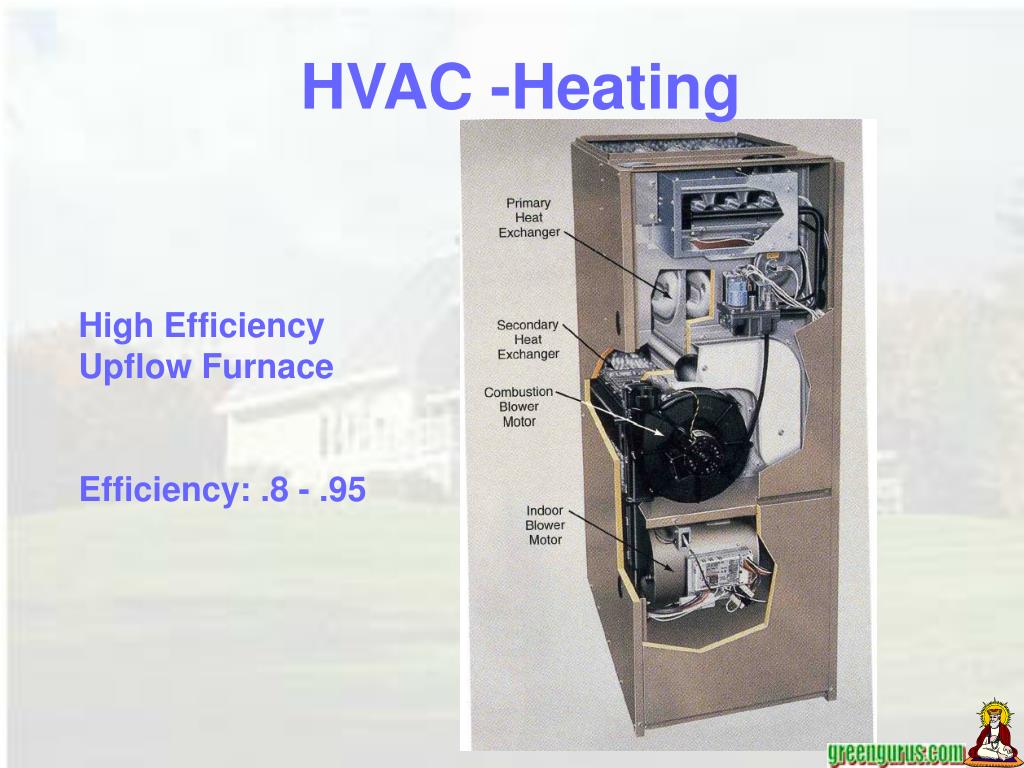

  21. HVAC -Heating High Efficiency Upflow Furnace Efficiency: .8 - .95

  22. HVAC -Heating FIRETUBE BOILER

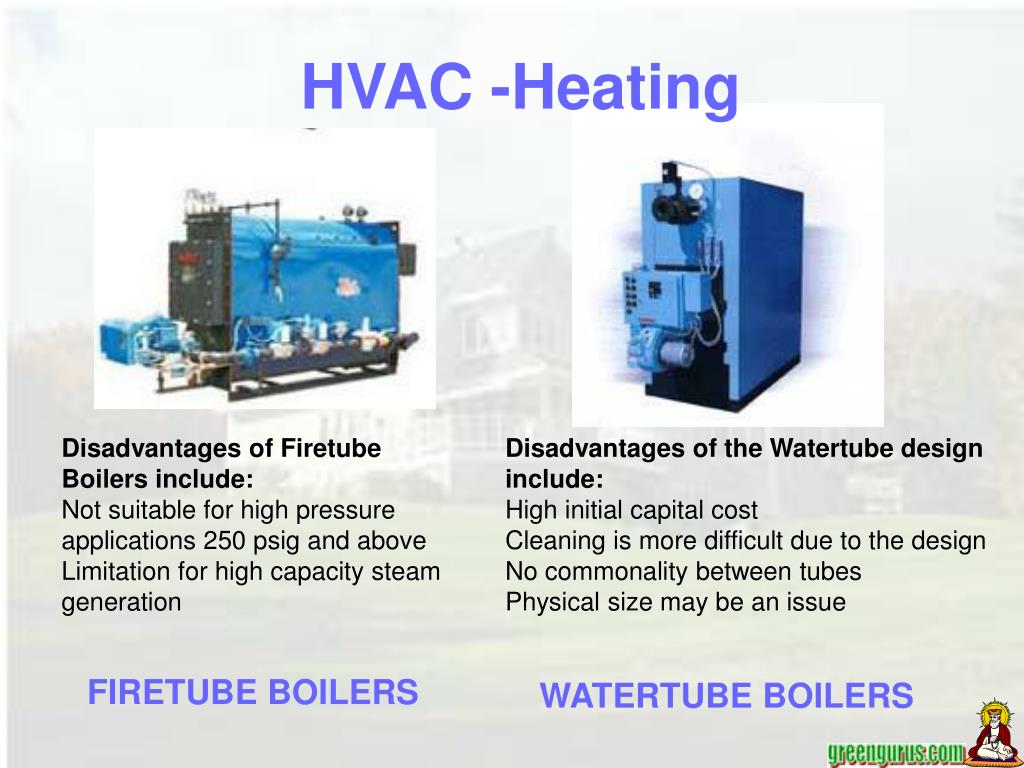

  23. HVAC -Heating Disadvantages of Firetube Boilers include: Not suitable for high pressure applications 250 psig and above Limitation for high capacity steam generation Disadvantages of the Watertube design include: High initial capital cost Cleaning is more difficult due to the design No commonality between tubes Physical size may be an issue FIRETUBE BOILERS WATERTUBE BOILERS

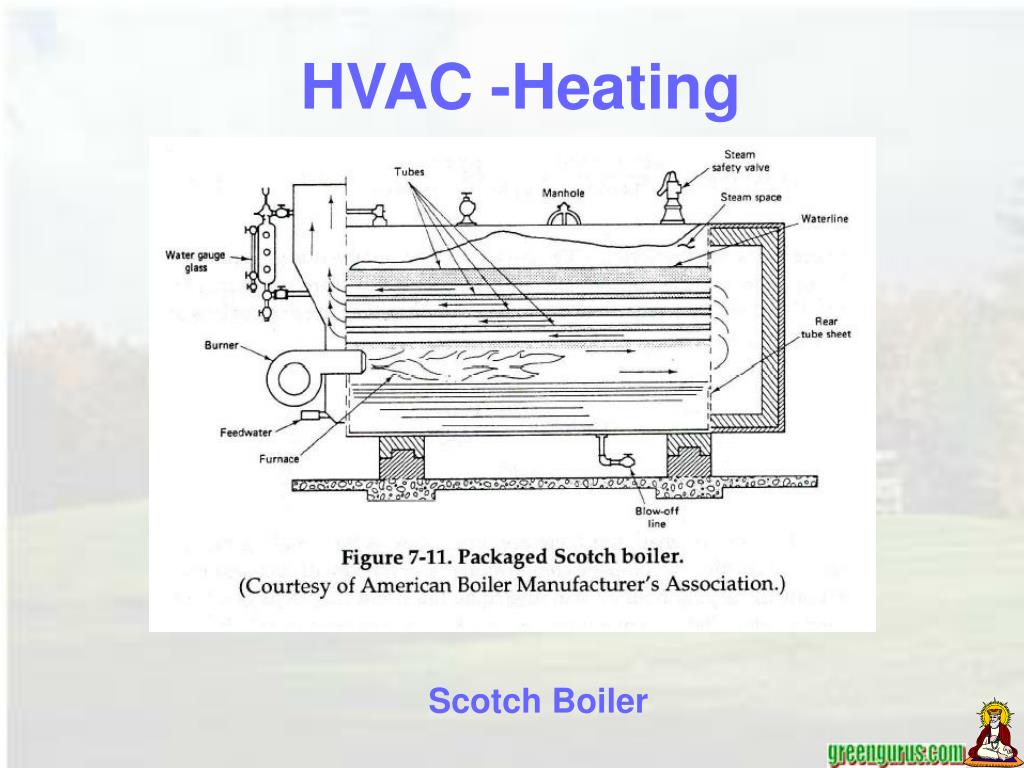

  24. HVAC -Heating Scotch Boiler

  25. HVAC -Heating

  26. HVAC -Heating

  27. HVAC -Heating Thermostatic Steam Traps Mechanical Steam Traps

  28. HVAC -Heating Thermodynamic Steam Traps Orifice Steam Traps

  29. HVAC -Heating Determination of Efficiency

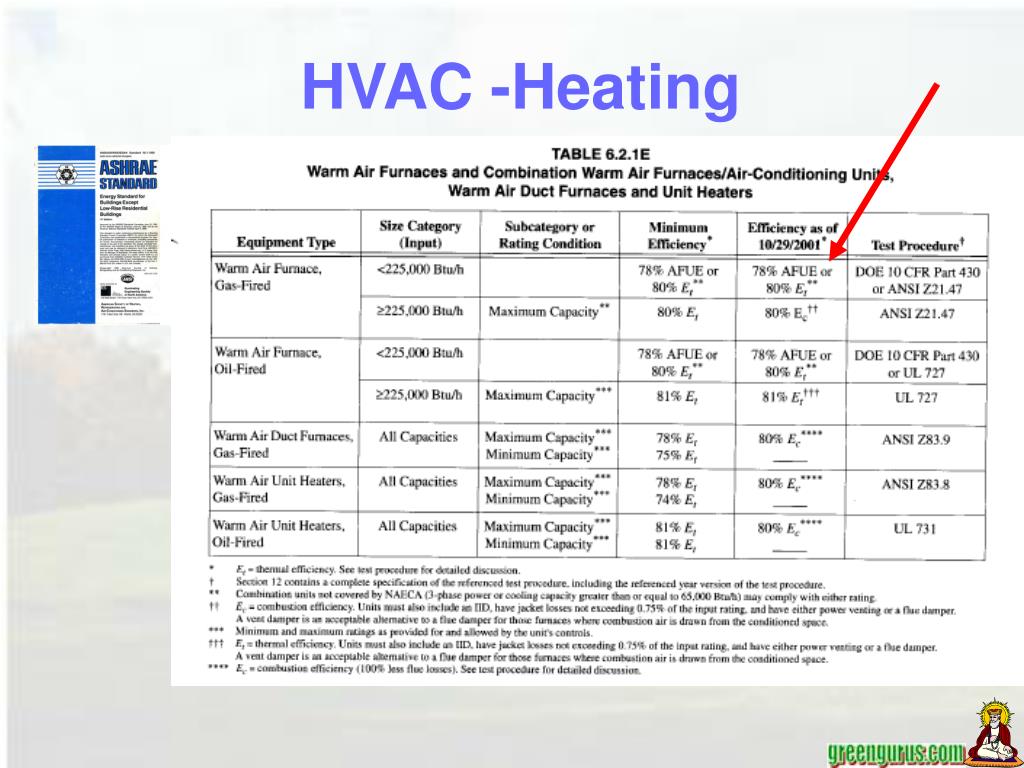

  30. HVAC -Heating

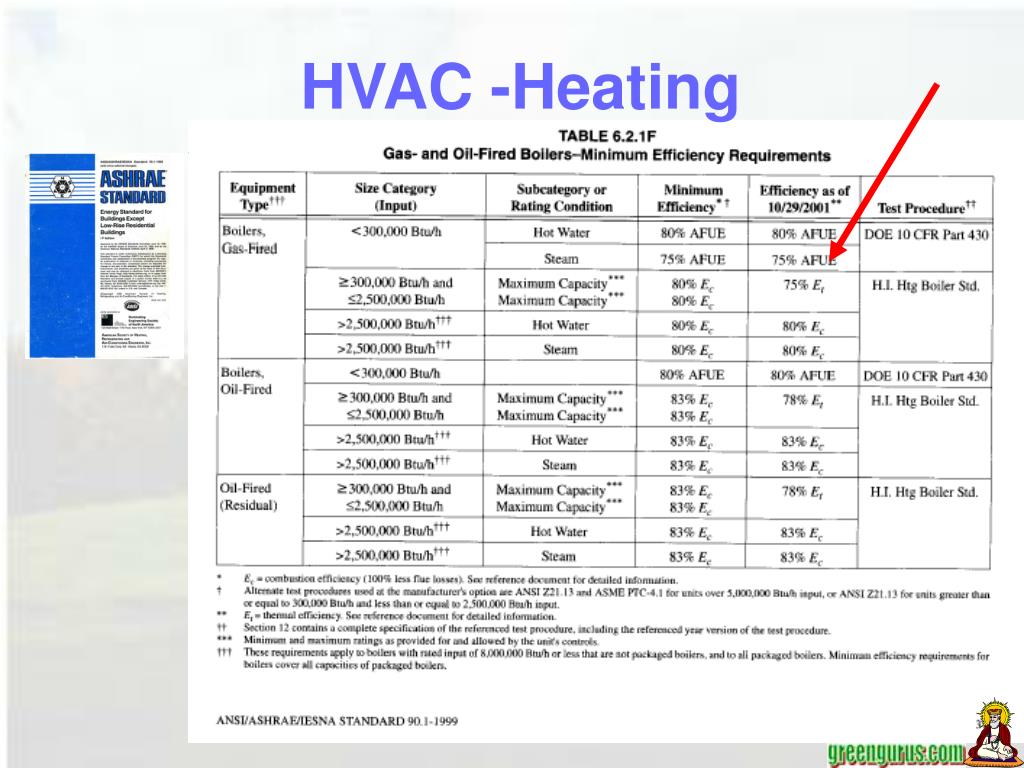

  31. HVAC -Heating

  32. HVAC Motors Radial Flow belt driven Fan

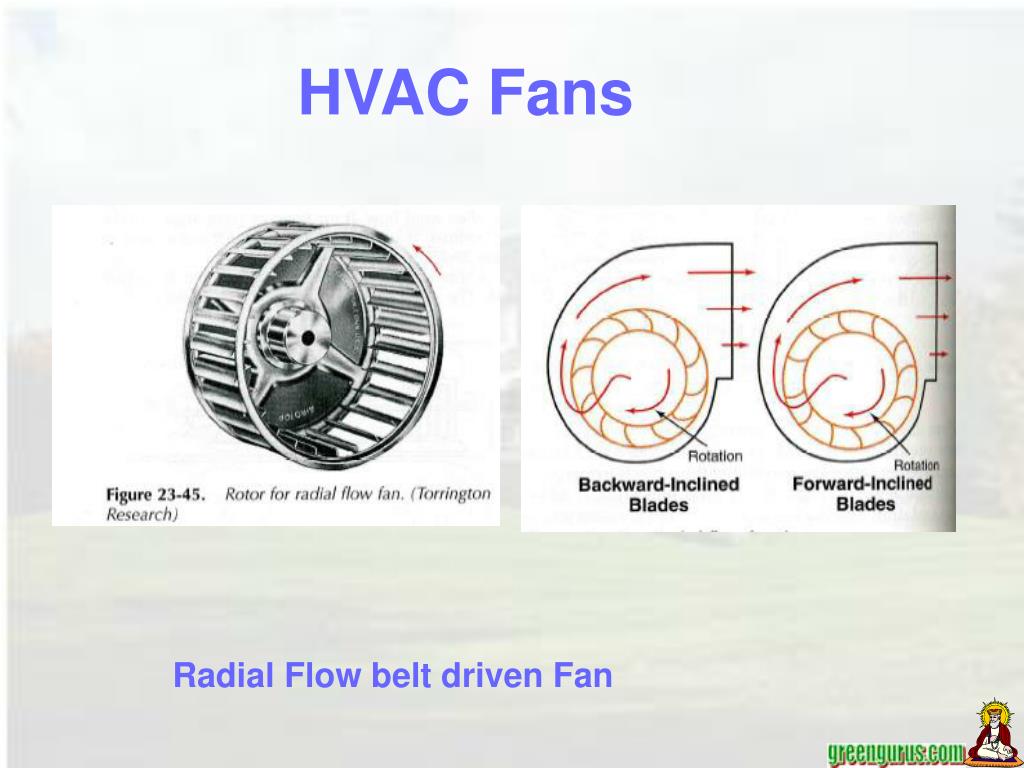

  33. HVAC Fans Radial Flow belt driven Fan

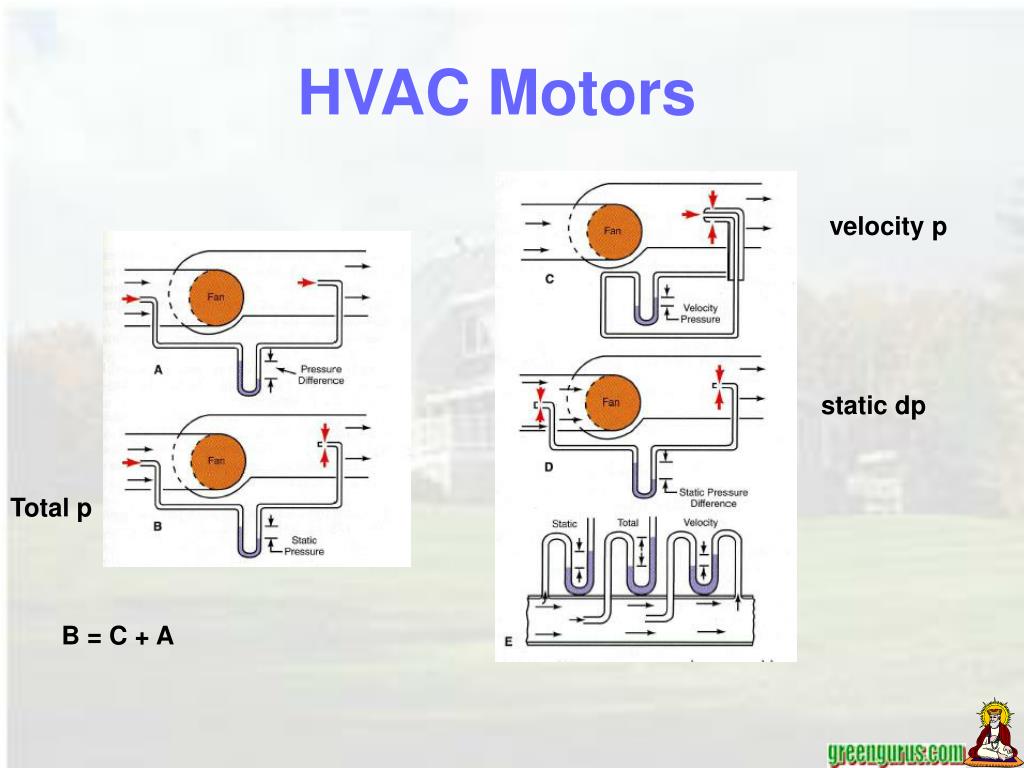

  34. HVAC Motors velocity p static dp Total p B = C + A

  35. HVAC Motors

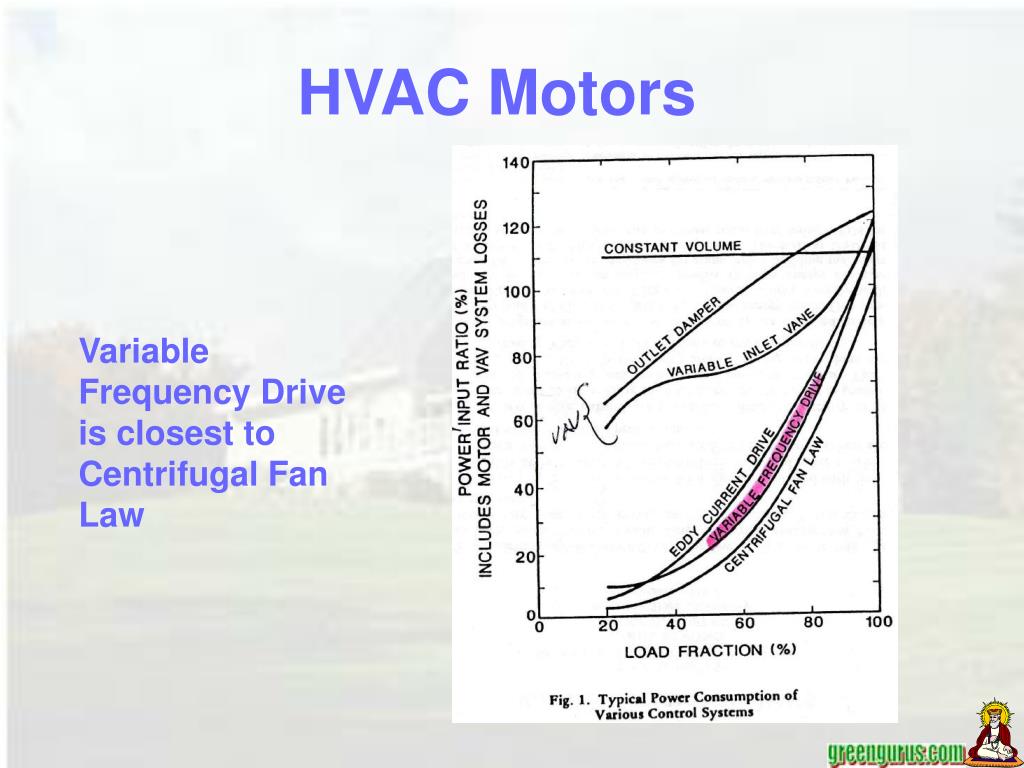

  36. HVAC Motors Variable Frequency Drive is closest to Centrifugal Fan Law

  37. HVAC Motors Variable Speed Drive

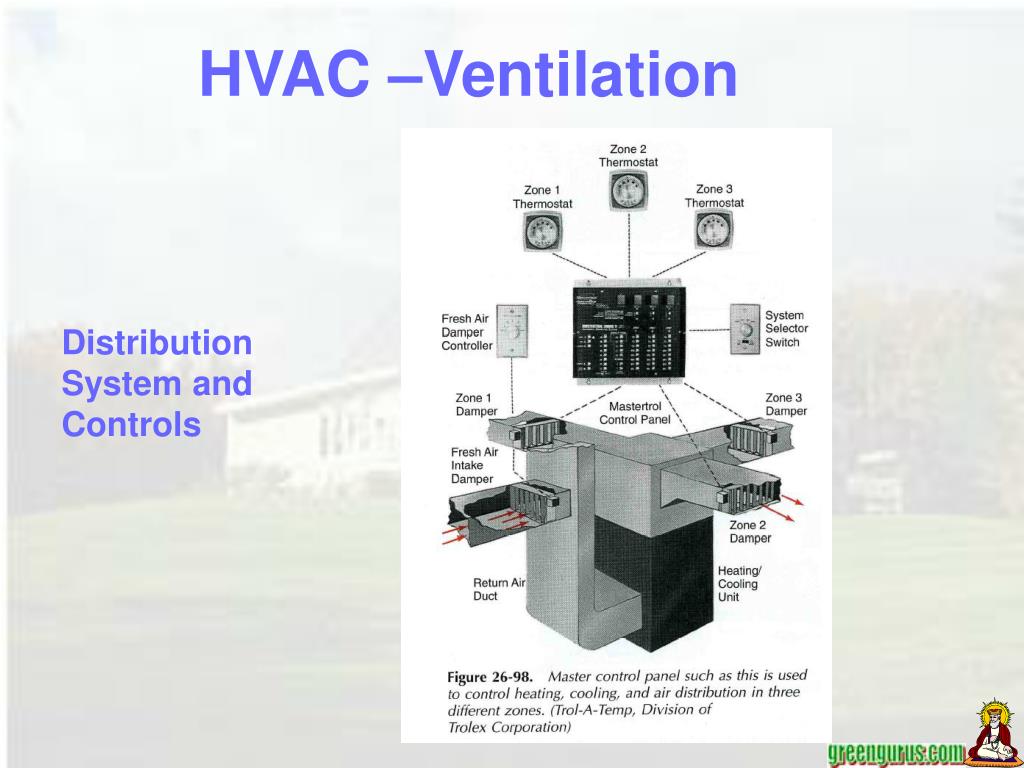

  38. HVAC –Ventilation Distribution System and Controls

  39. HVAC –Ventilation Circulation Systems

  40. HVAC –Ventilation Circulation Systems Two Duct System

  41. HVAC –Ventilation Circulation Systems Four Pipe Systems

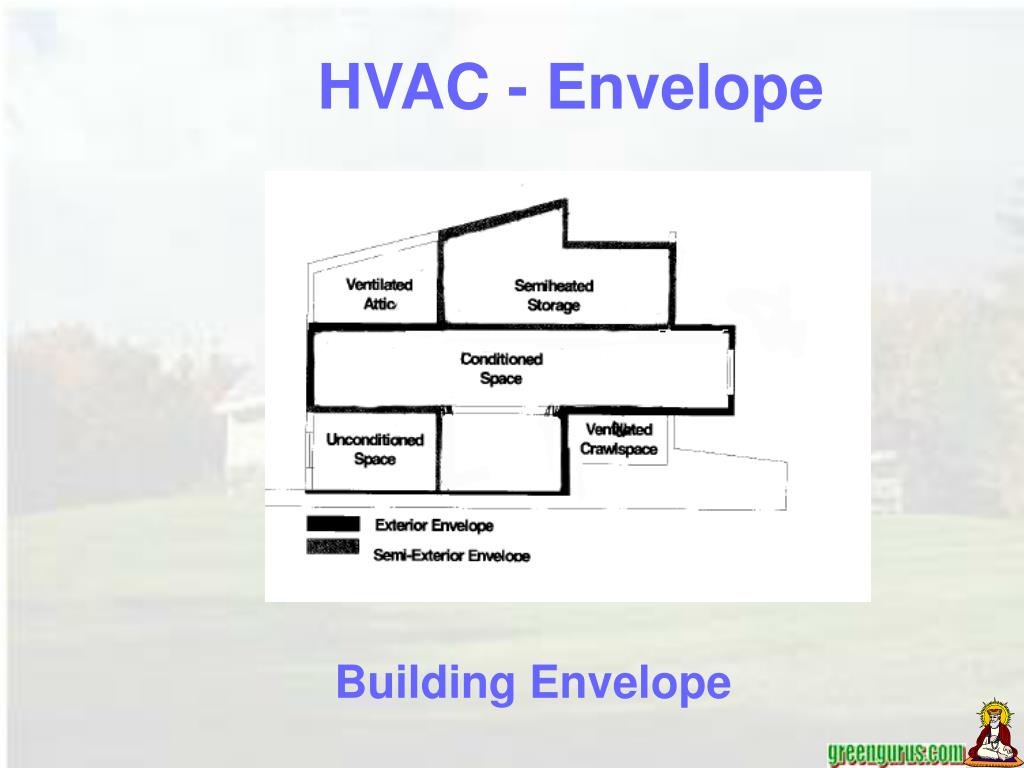

  42. HVAC - Envelope Building Envelope

  43. HVAC - Envelope Building EnvelopeNipuna en:p:ÙN:

  44. HVAC - Envelope Building EnvelopeNipuna en:p:ÙN:

  45. HVAC - Envelope Building Envelope – HDD/CDD Data

  46. HVAC - Envelope Building Envelope Values from G. Pita “Air Conditioning and Principles”, 2002

  47. HVAC - Envelope Building Envelope NY Data

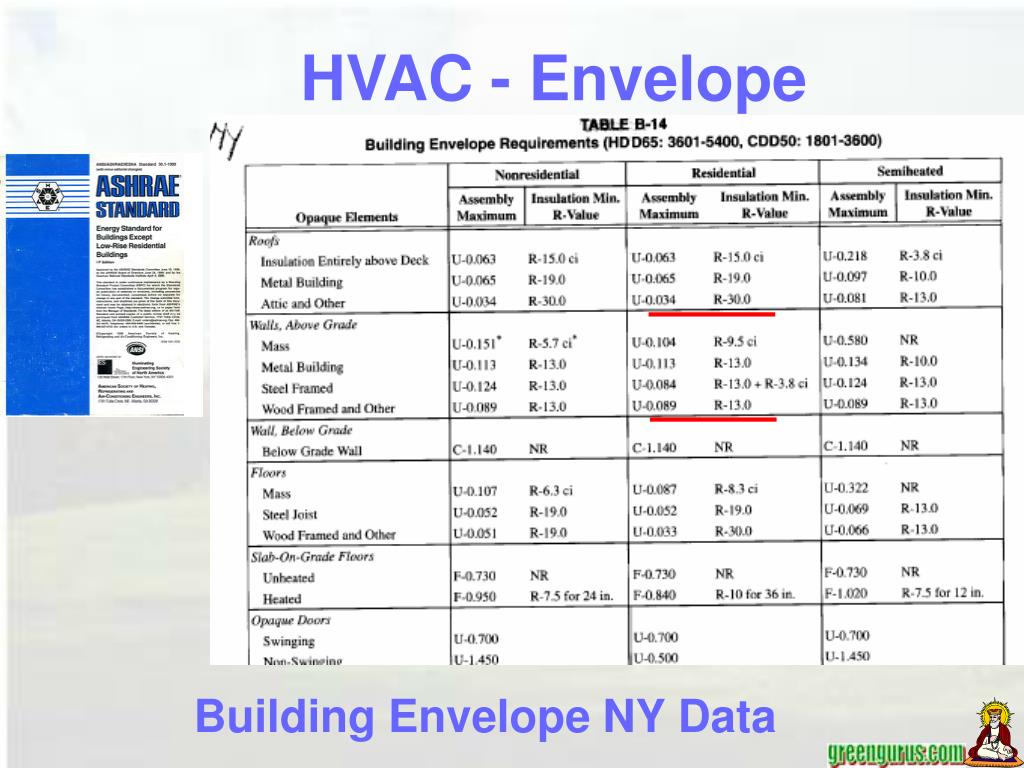

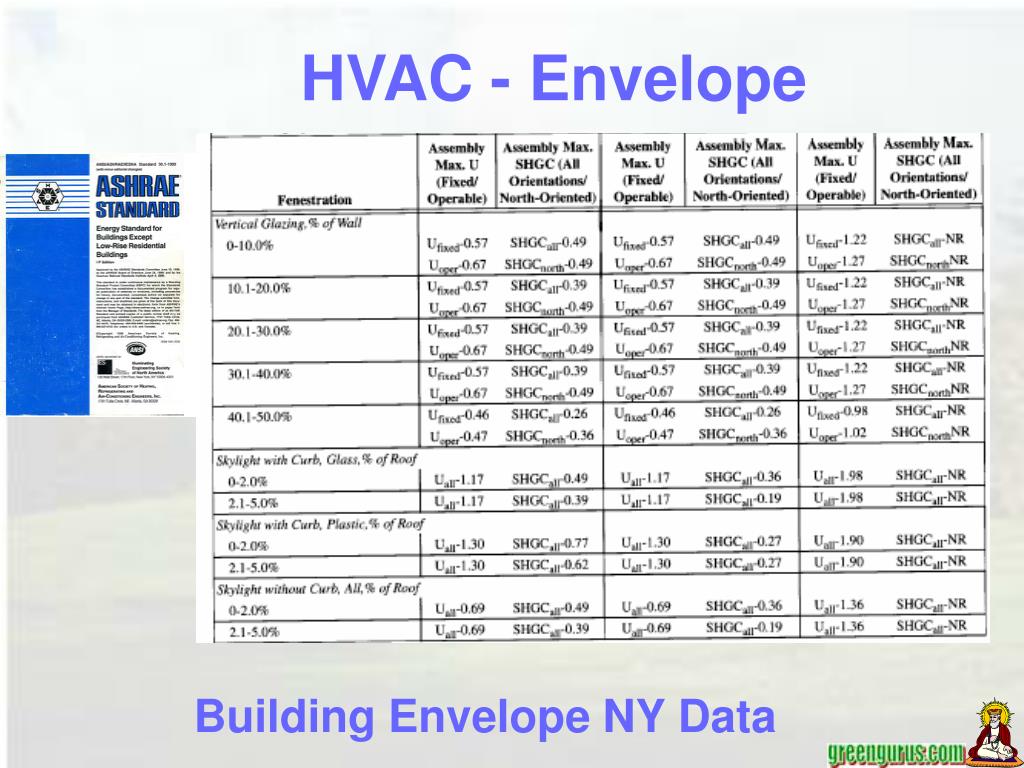

  48. HVAC - Envelope Building Envelope NY Data

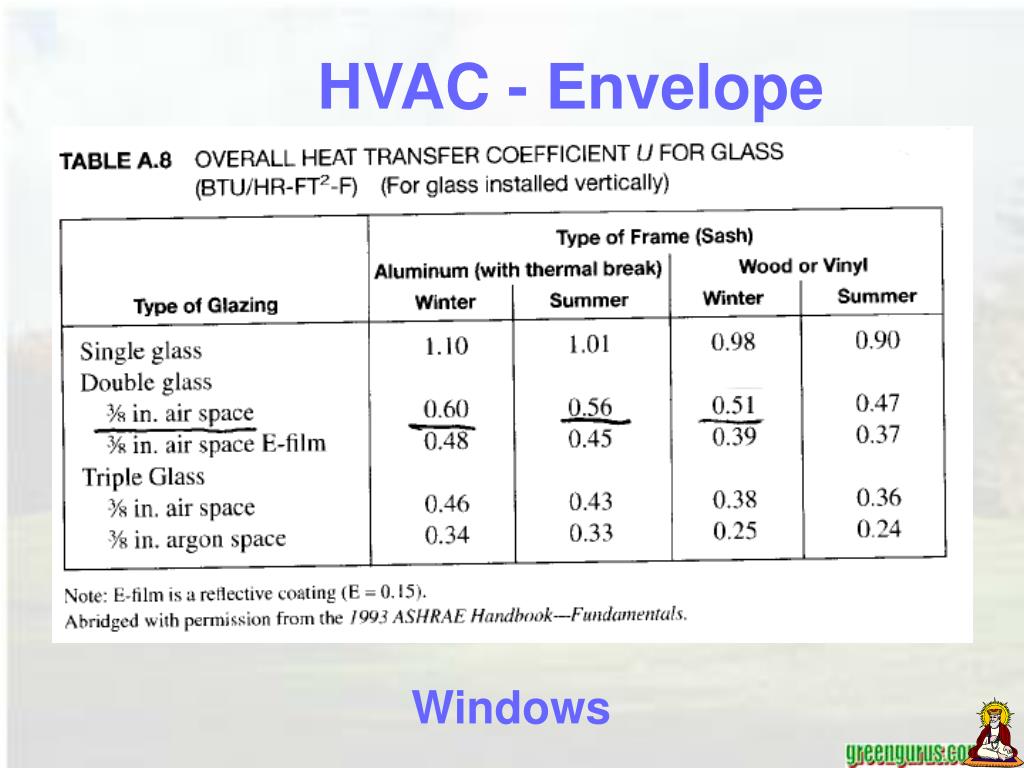

  49. HVAC - Envelope Windows

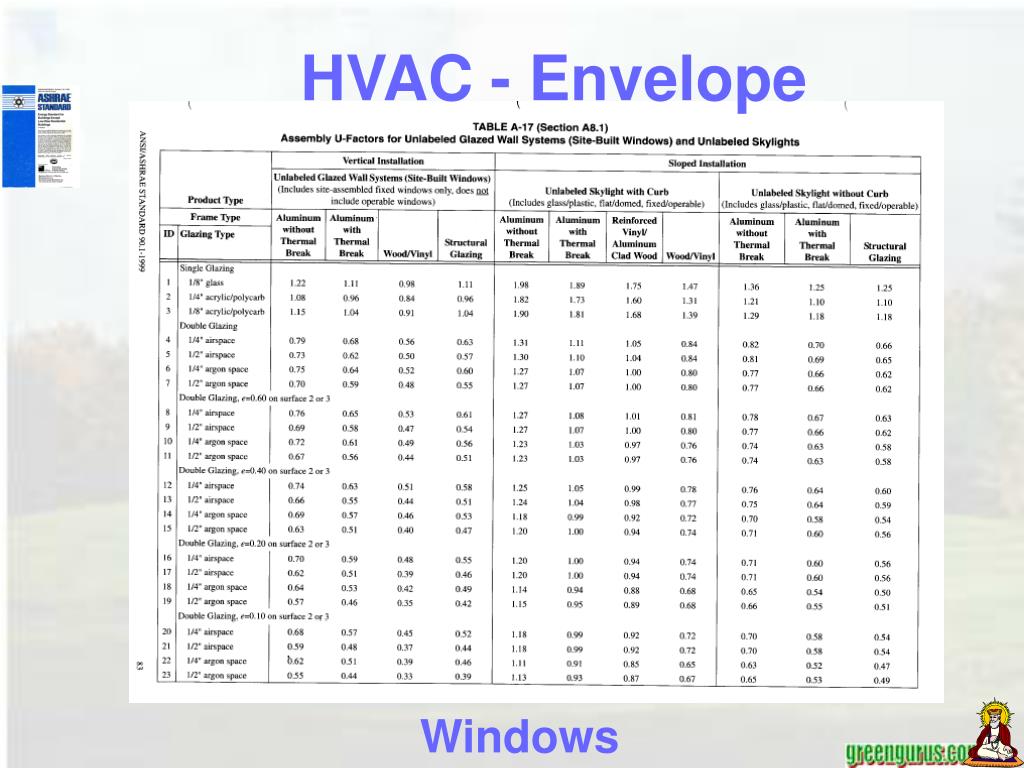

  50. HVAC - Envelope Windows
