Structural Modelings

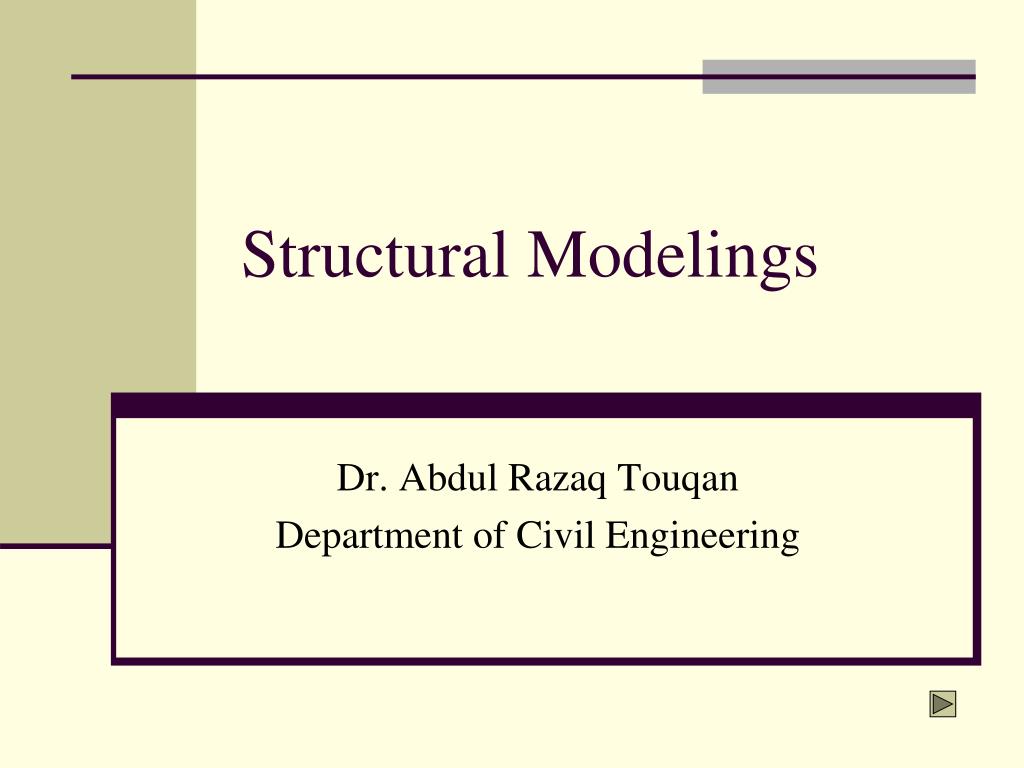

Dr. Abdul Razaq Touqan

Department of Civil Engineering

structural modeling assumptions

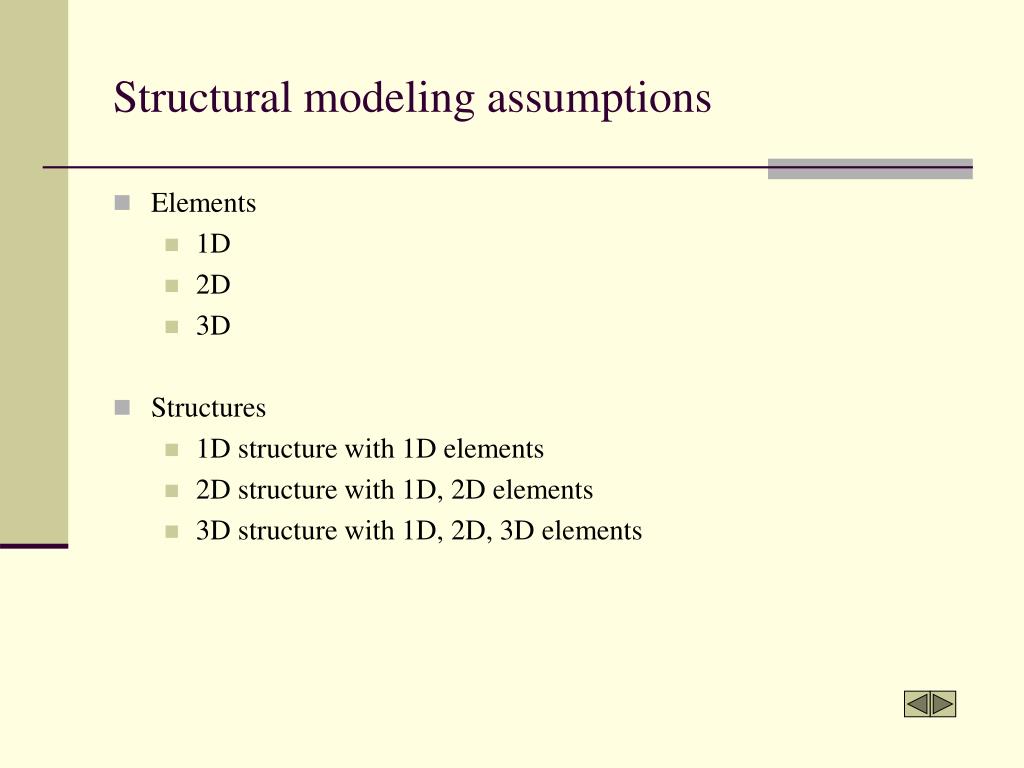

Structural modeling assumptions
  • Elements
    • 1D
    • 2D
    • 3D
  • Structures
    • 1D structure with 1D elements

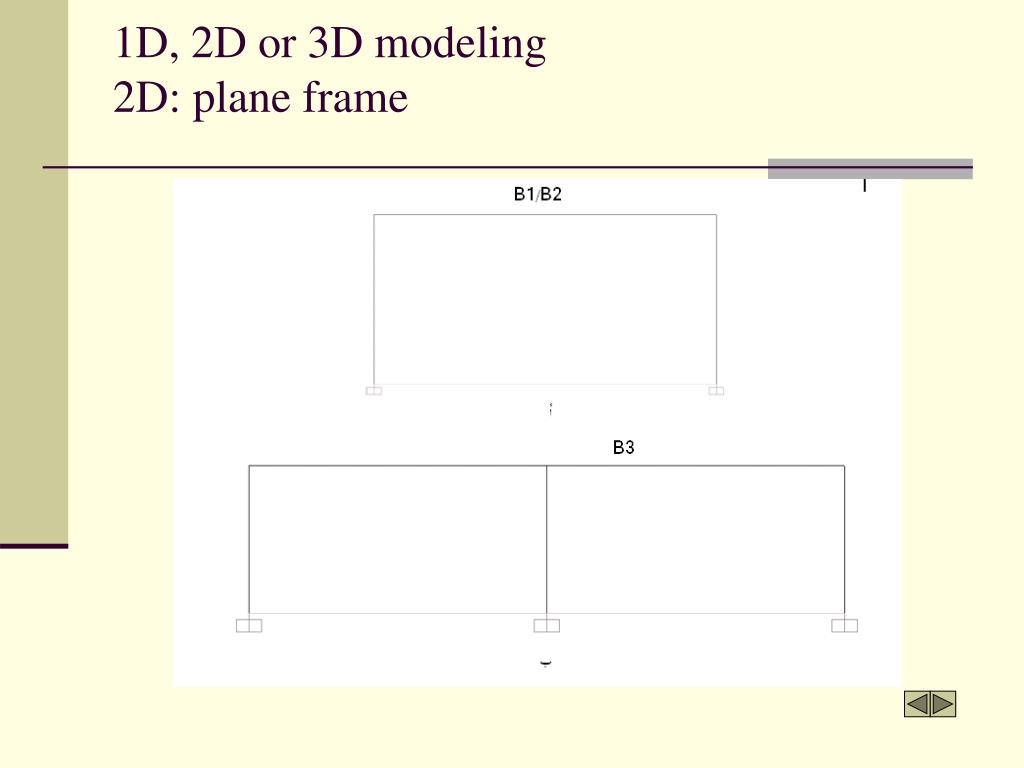

    • 2D structure with 1D, 2D elements

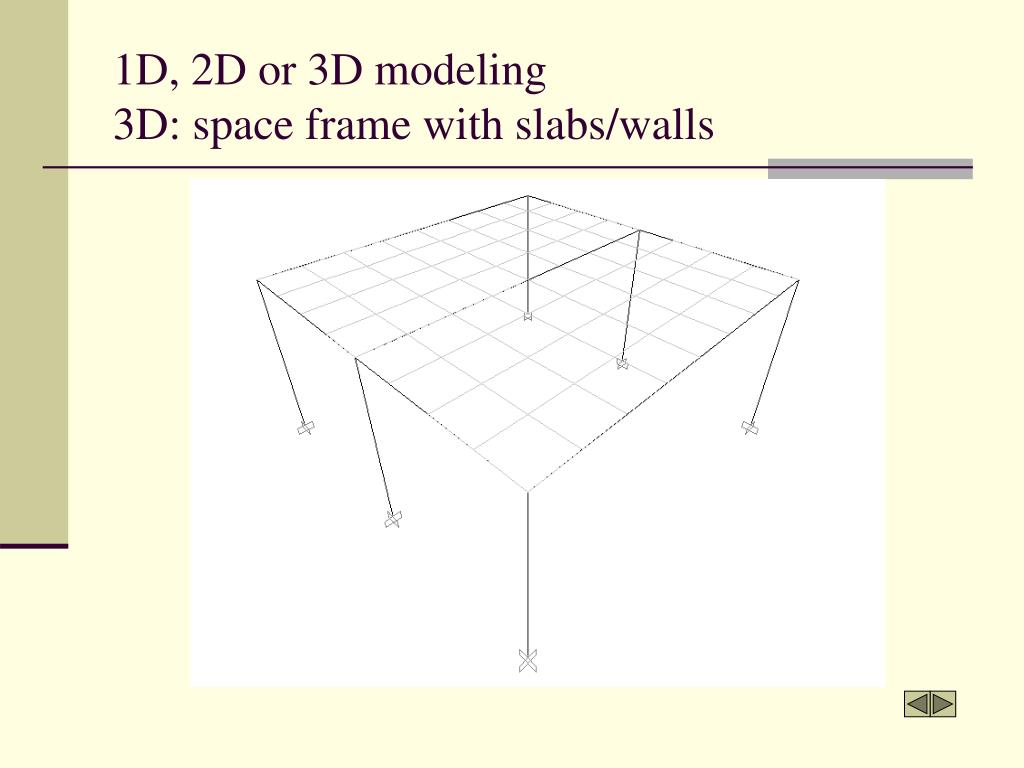

    • 3D structure with 1D, 2D, 3D elements
loading assumptions

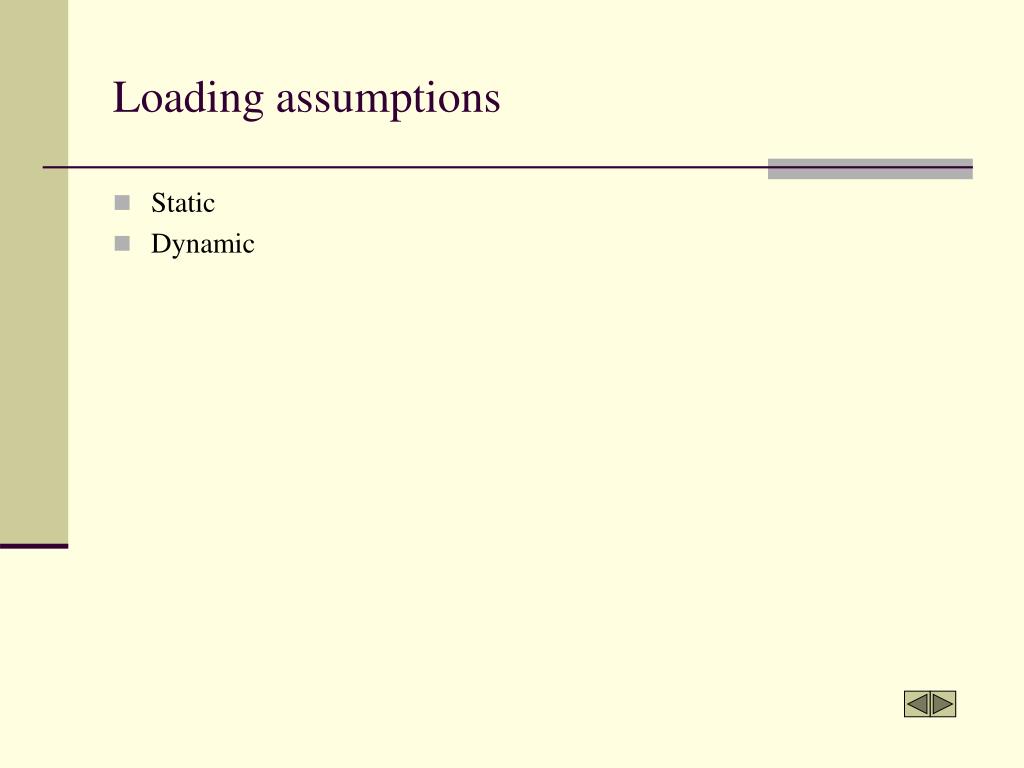

Loading assumptions
  • Static
  • Dynamic
laws versus theories

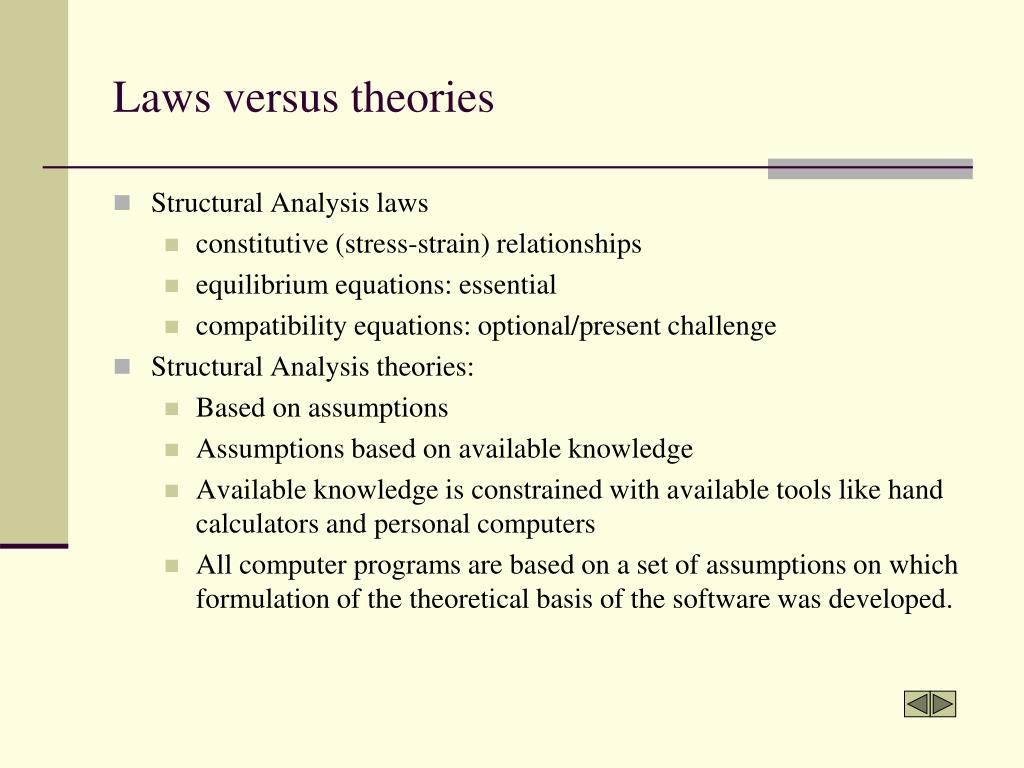

Laws versus theories
  • Structural Analysis laws
    • constitutive (stress-strain) relationships
    • equilibrium equations: essential
    • compatibility equations: optional/present challenge
  • Structural Analysis theories:
    • Based on assumptions
    • Assumptions based on available knowledge
    • Available knowledge is constrained with available tools like hand calculators and personal computers
    • All computer programs are based on a set of assumptions on which formulation of the theoretical basis of the software was developed.
structural analysis system approach

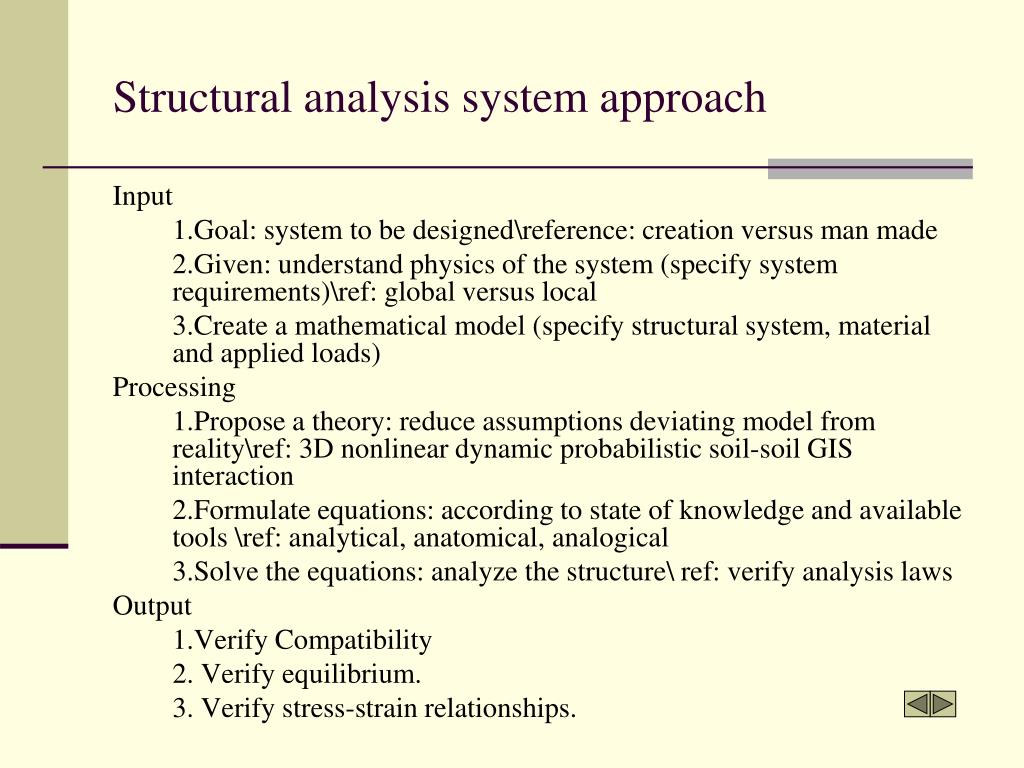

Structural analysis system approach

Input

1.Goal: system to be designed\reference: creation versus man made

2.Given: understand physics of the system (specify system requirements)\ref: global versus local

3.Create a mathematical model (specify structural system, material and applied loads)

Processing

1.Propose a theory: reduce assumptions deviating model from reality\ref: 3D nonlinear dynamic probabilistic soil-soil GIS interaction

2.Formulate equations: according to state of knowledge and available tools \ref: analytical, anatomical, analogical

3.Solve the equations: analyze the structure\ ref: verify analysis laws

Output

1.Verify Compatibility

2. Verify equilibrium.

3. Verify stress-strain relationships.

example

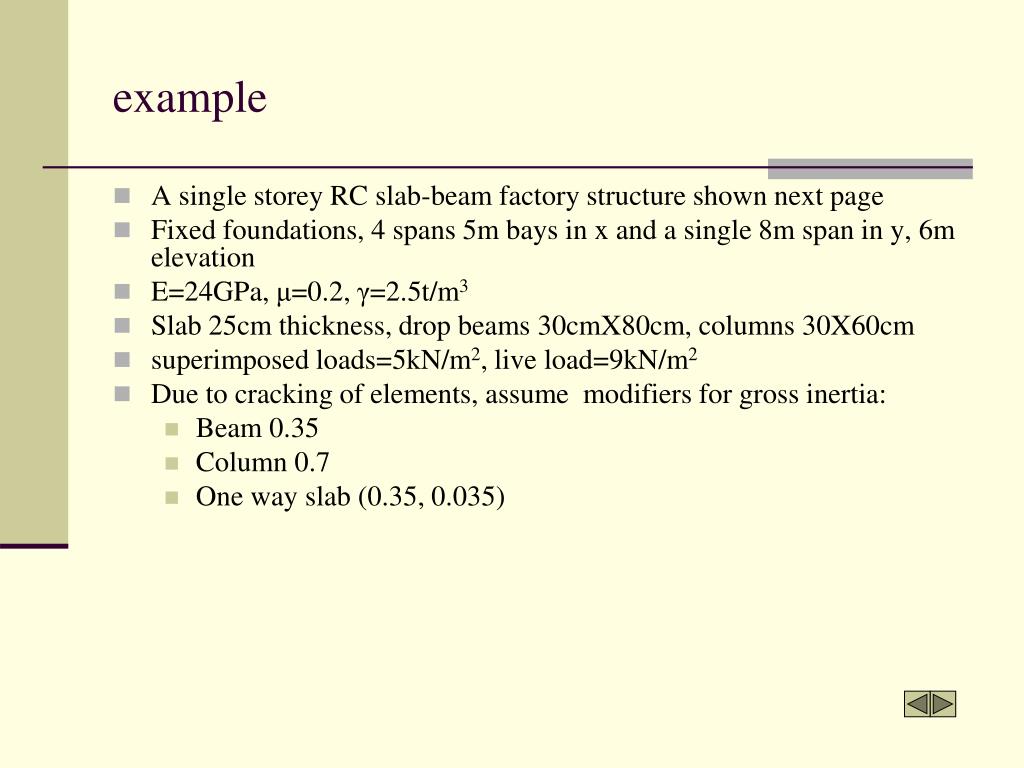

example
  • A single storey RC slab-beam factory structure shown next page
  • Fixed foundations, 4 spans 5m bays in x and a single 8m span in y, 6m elevation
  • E=24GPa, μ=0.2, γ=2.5t/m3
  • Slab 25cm thickness, drop beams 30cmX80cm, columns 30X60cm
  • superimposed loads=5kN/m2, live load=9kN/m2
  • Due to cracking of elements, assume modifiers for gross inertia:
    • Beam 0.35
    • Column 0.7
    • One way slab (0.35, 0.035)
1d analysis slab analysis15

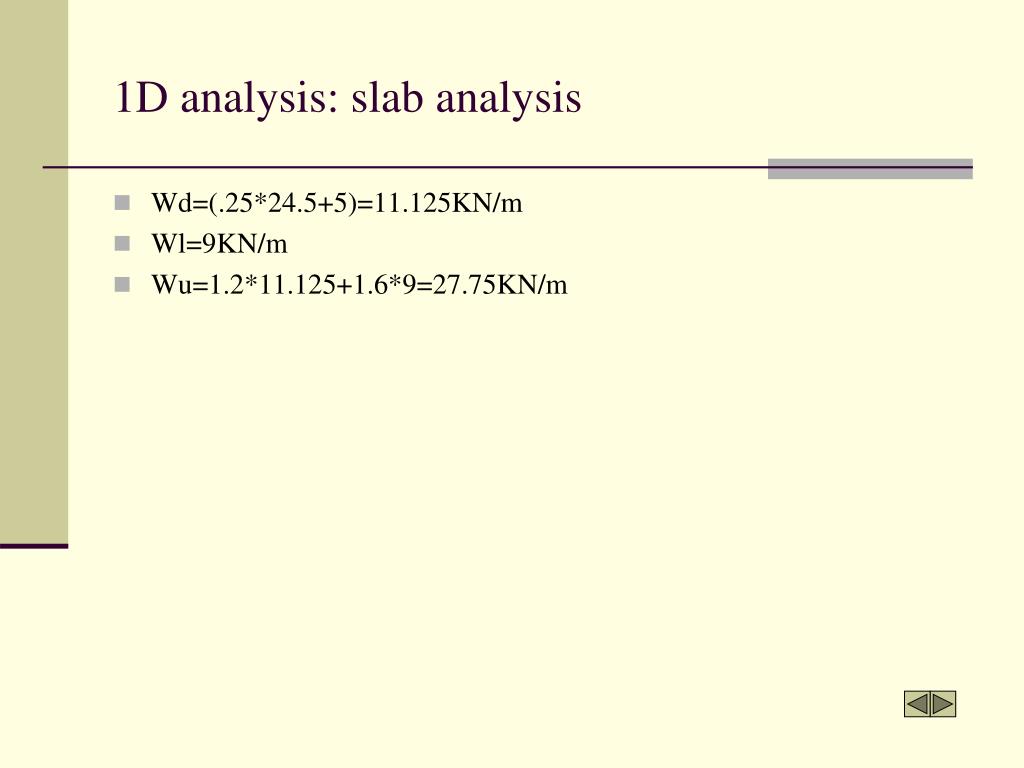

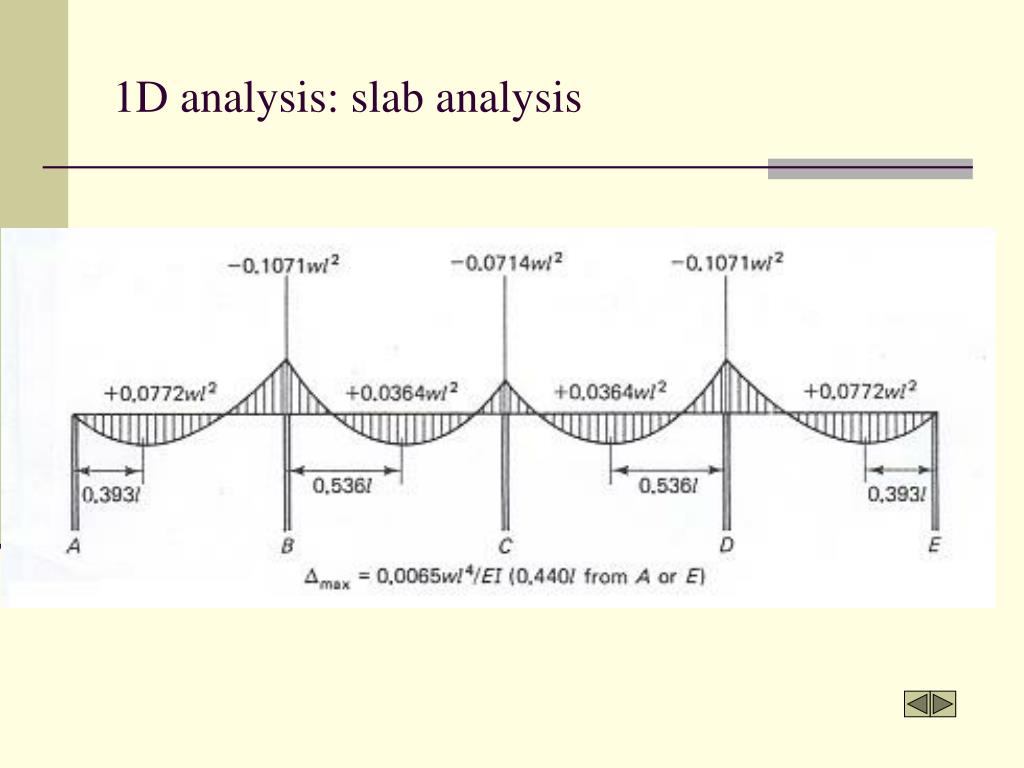

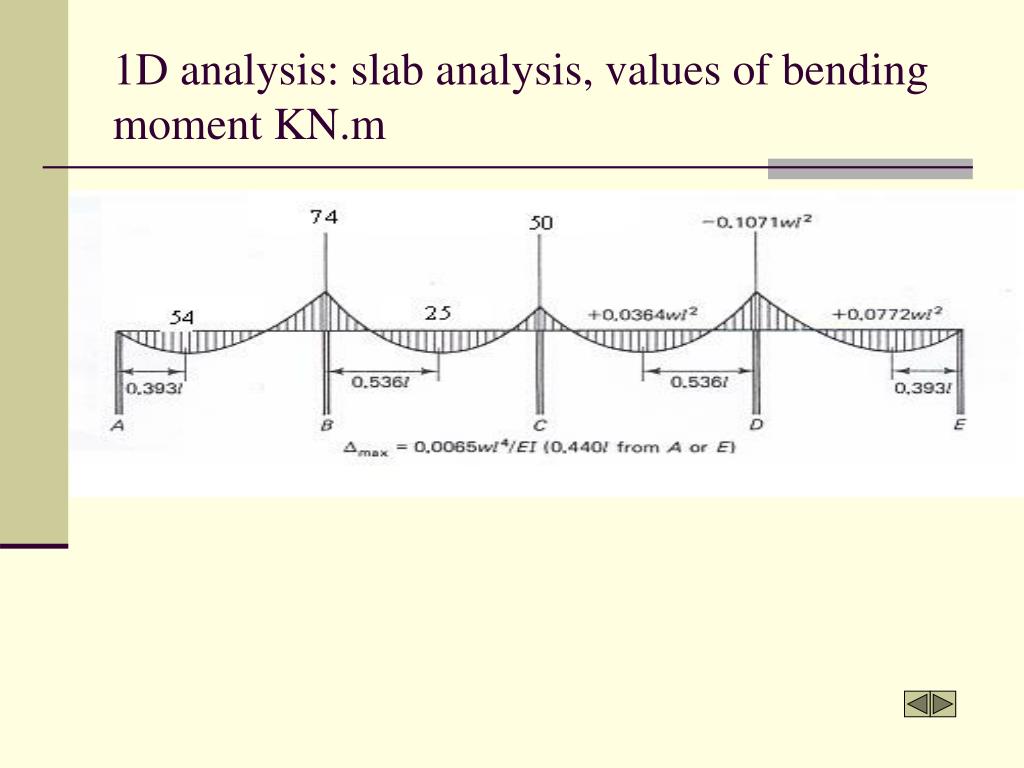

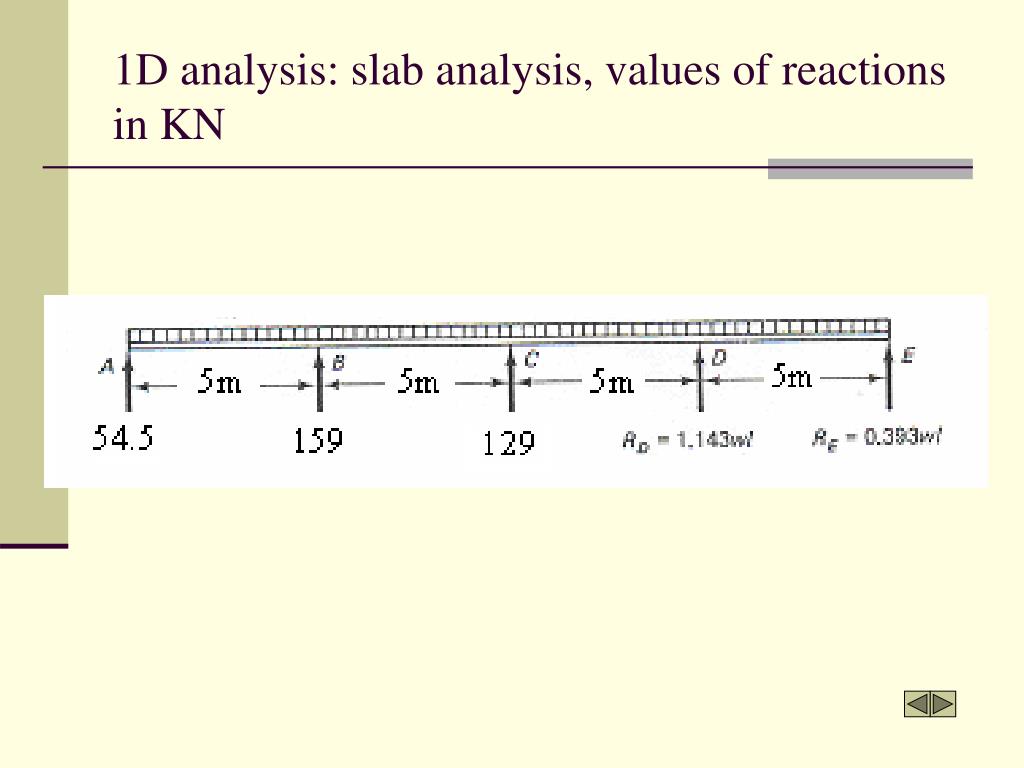

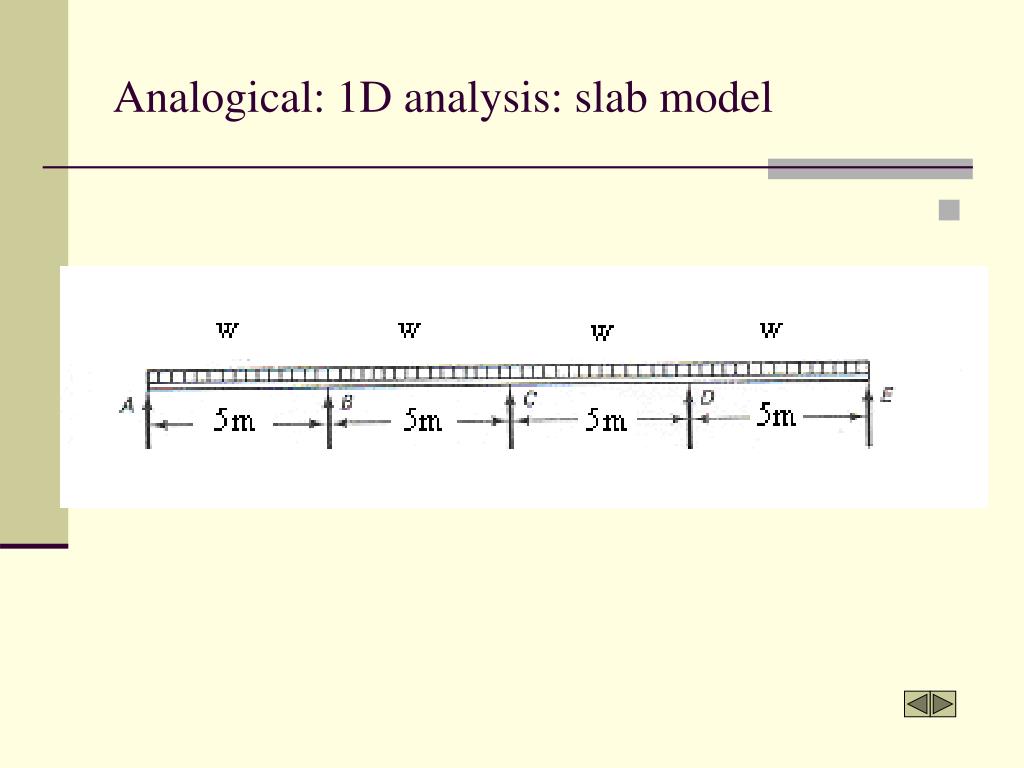

1D analysis: slab analysis
  • Wd=(.25*24.5+5)=11.125KN/m
  • Wl=9KN/m
  • Wu=1.2*11.125+1.6*9=27.75KN/m
1d analysis beam and column analysis

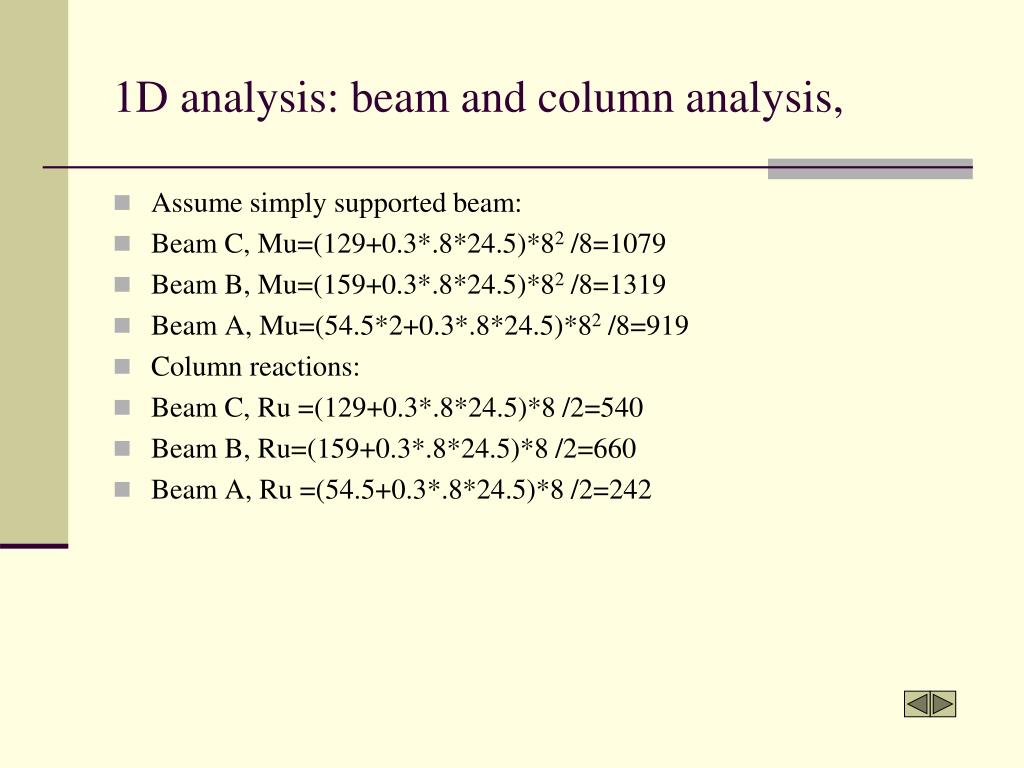

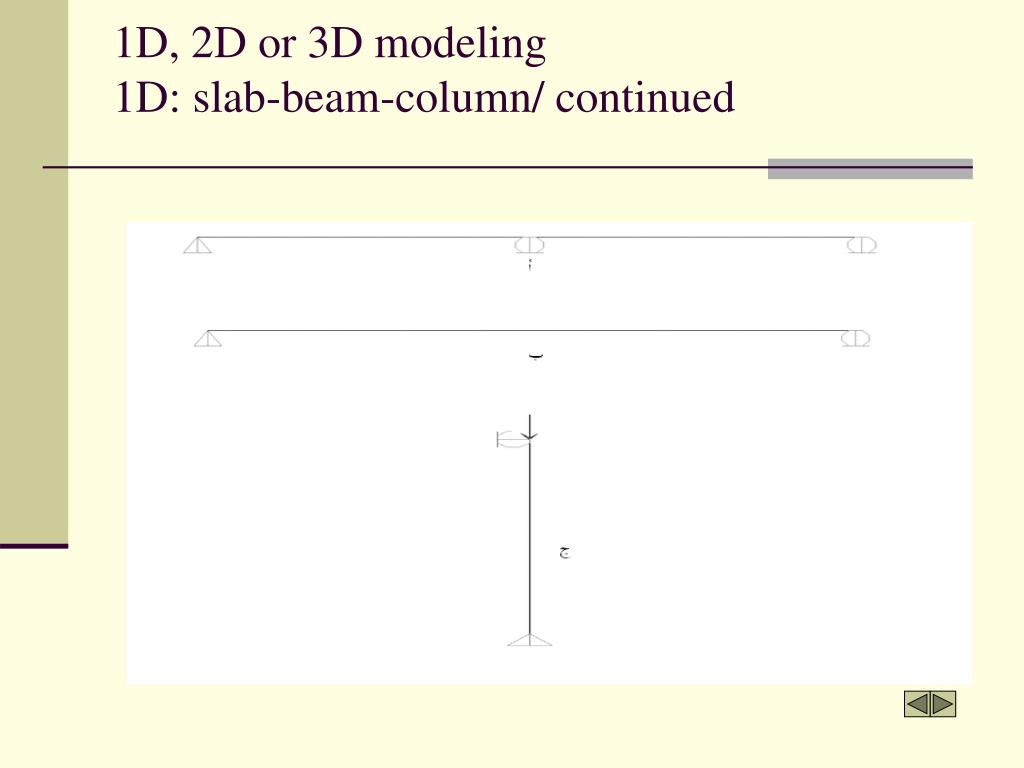

1D analysis: beam and column analysis,
  • Assume simply supported beam:
  • Beam C, Mu=(129+0.3*.8*24.5)*82 /8=1079
  • Beam B, Mu=(159+0.3*.8*24.5)*82 /8=1319
  • Beam A, Mu=(54.5*2+0.3*.8*24.5)*82 /8=919
  • Column reactions:
  • Beam C, Ru =(129+0.3*.8*24.5)*8 /2=540
  • Beam B, Ru=(159+0.3*.8*24.5)*8 /2=660
  • Beam A, Ru =(54.5+0.3*.8*24.5)*8 /2=242
gravity equilibrium checks

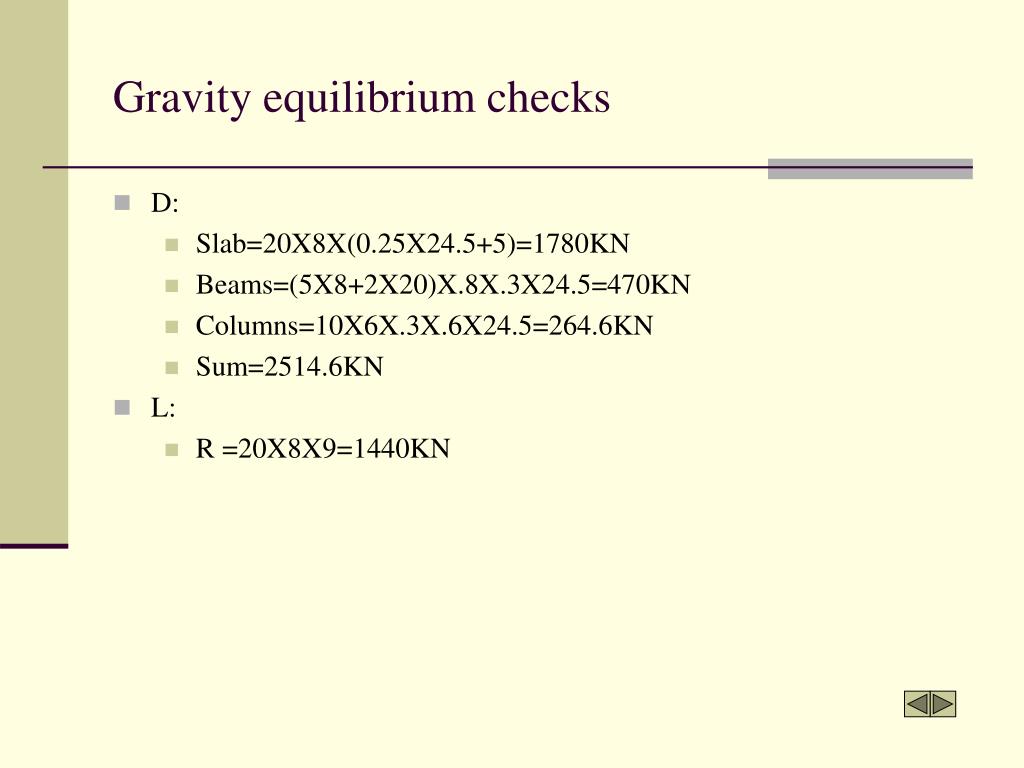

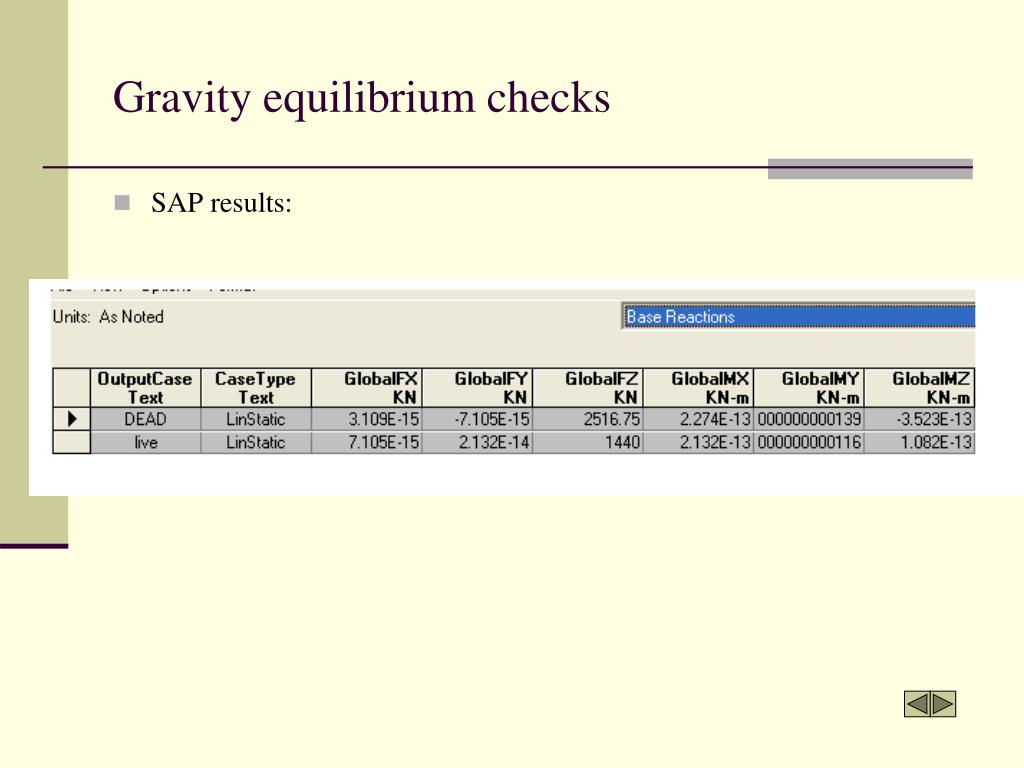

Gravity equilibrium checks
  • D:
    • Slab=20X8X(0.25X24.5+5)=1780KN
    • Beams=(5X8+2X20)X.8X.3X24.5=470KN
    • Columns=10X6X.3X.6X24.5=264.6KN
    • Sum=2514.6KN
  • L:
    • R =20X8X9=1440KN
homework

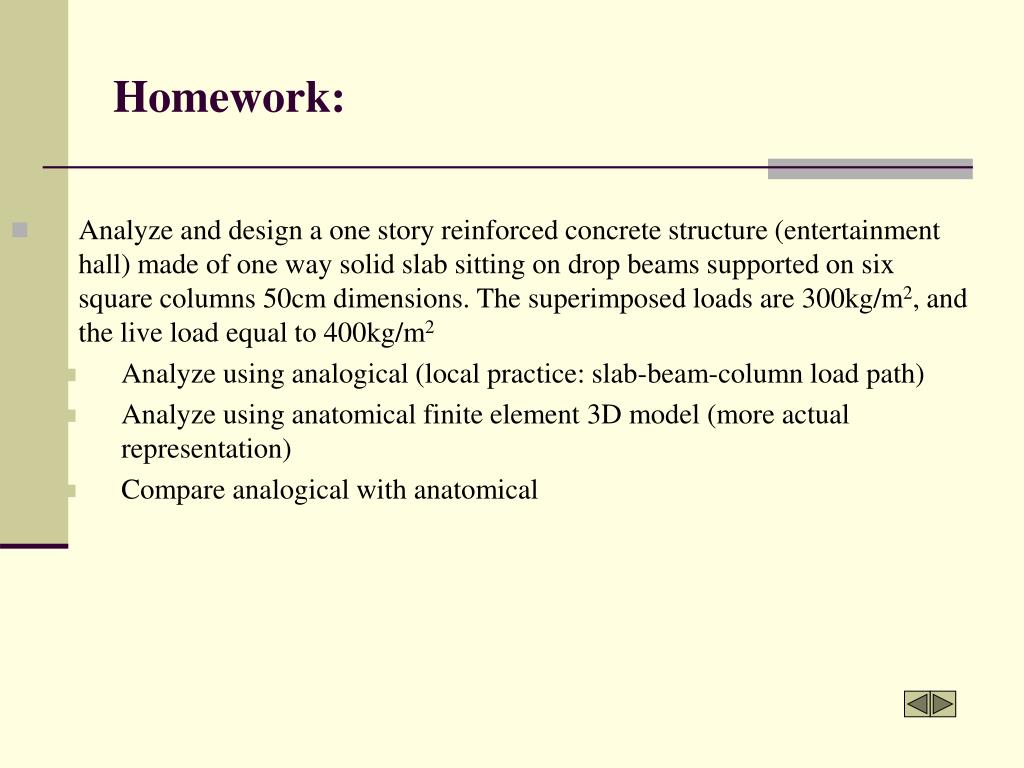

Homework:
  • Analyze and design a one story reinforced concrete structure (entertainment hall) made of one way solid slab sitting on drop beams supported on six square columns 50cm dimensions. The superimposed loads are 300kg/m2, and the live load equal to 400kg/m2
    • Analyze using analogical (local practice: slab-beam-column load path)
    • Analyze using anatomical finite element 3D model (more actual representation)
    • Compare analogical with anatomical
slide25

End of structural modelings
