  1. CANVAS Report for CTF Event at USAFA on 4/25/2007 Subject :Penetration Tools for Front Range Pen Test Exercise By Rajshri Vispute CANVAS REPORT/rvispute

  2. Front Range Voting Machines (FRVM) • FRVM : Located in Denver, Colorado • Created for : “Front Range Capture the Flag” • Built using Web Interface • To tally votes for political elections • One person – one vote • Front end – Web Server, Back end - MySQL CANVAS REPORT/rvispute

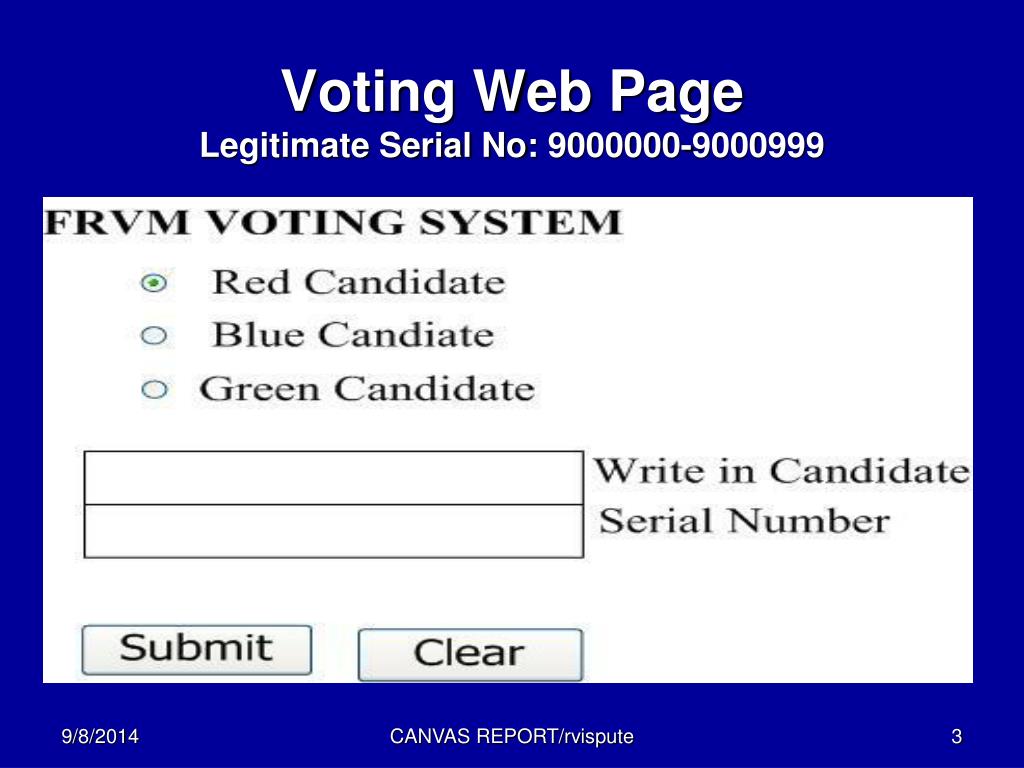

  3. Voting Web PageLegitimate Serial No: 9000000-9000999 CANVAS REPORT/rvispute

  4. Our Job • Perform a complete system evaluation • To find actual vulnerabilities • Recommended solutions • Submit the final report CANVAS REPORT/rvispute

  5. Rules to follow • We cannot hack or attack any other teams • We may not modify any software, hardware or data on other team’s servers/machines • Keyboard time will be shared among members of our team • If we violate any rule – we will be disqualified and asked to leave CANVAS REPORT/rvispute

  6. Information Provided • One laptop to connect to Internet for looking up information and but not for transfer programs • 1 Computer for a team of 3 members. • Backtrack installed • IP address • Subnet • Route CANVAS REPORT/rvispute

  7. Procedure to find flags • nmap 192.168.104.0/24 – gives IP Address of server • Go to IE and type http://192.168.111.249/ • View-Source • Will get Image Directory – First flag • Use Metasploit – WebDAV – will get command prompt. • In Dir , Flag.txt file – Second flag • From webpage , we will get admin.htm from where we can find admin.php CANVAS REPORT/rvispute

  8. Cont.. • From C:\Inetpub\admin.php we obtain username/password info to (mysql server?) • Use this info to login (where? Web server/fw/mysql server), here is Third flag • Root password – hashes.txt • Try ssh@root IP address , enter root password • works – Fourth flag • Try to enter serial number like ‘;’ you will get SQL error which is hint. • Login Mysql with mysql –u root – get access • Show databases; - Here is Fifth Flag • Most Vulnerable situation: If you enter 123 OR 1=1 in the serial number box- you are in… CANVAS REPORT/rvispute

  9. Our Recommendations • Secure Mysql database from SQL Injection • Need Host based IDS and firewalls • Using 443 port number for web server instead of port 80 • Putting the web server on a DMZ – damage to local computer only • Use SNORT to protect or observe the network • Encryption/decryption should use for serial numbers which is plain text CANVAS REPORT/rvispute

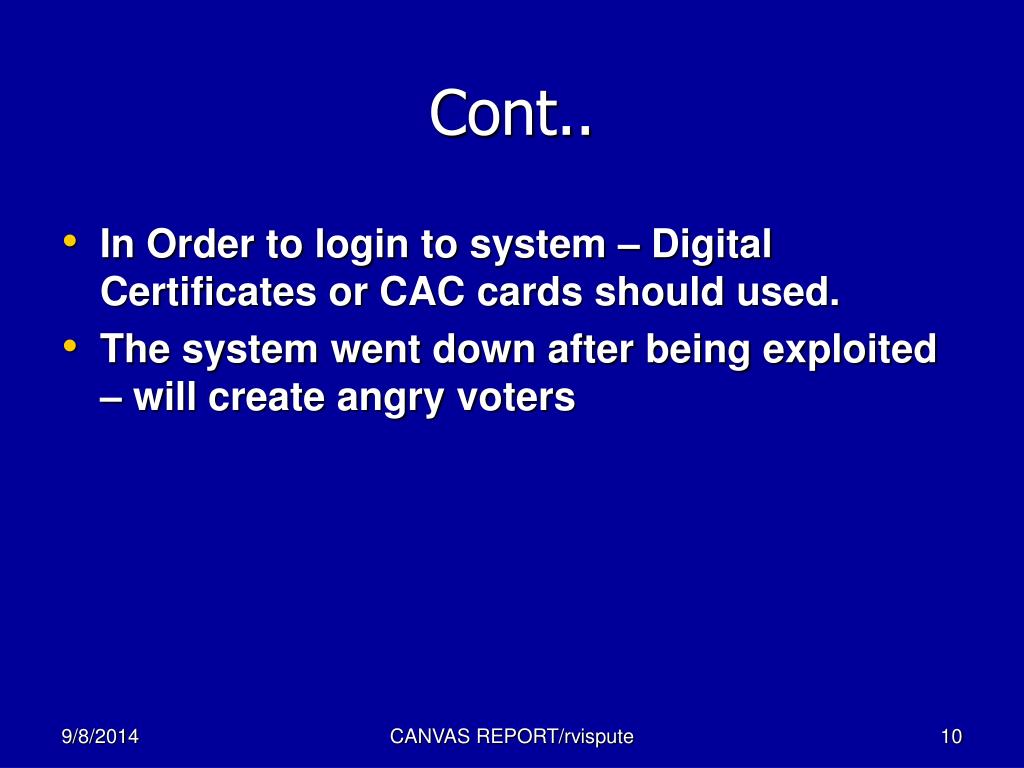

  10. Cont.. • In Order to login to system – Digital Certificates or CAC cards should used. • The system went down after being exploited – will create angry voters CANVAS REPORT/rvispute

  11. Our suggestions • Should have knowledge of Backtrack – how to use different tools. • Exploitation tutorials CANVAS REPORT/rvispute

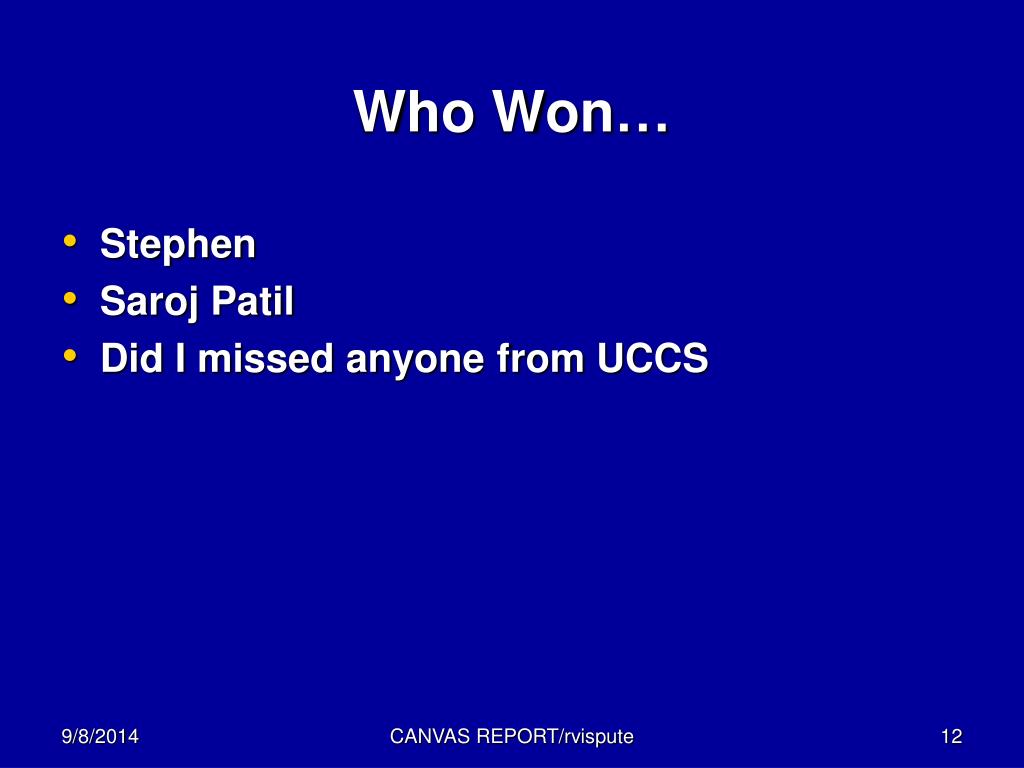

  12. Who Won… • Stephen • Saroj Patil • Did I missed anyone from UCCS CANVAS REPORT/rvispute

  13. What we learned • Great learning experience • Comments from Group members.. CANVAS REPORT/rvispute
