Presentation Transcript

  1. SAKI Automatic Optical Inspection System Presented by: 傅楸善 & 顏慕帆 0933 373 485 r94922113@ntu.edu.tw 指導教授: 傅楸善 博士

  2. Company Profile http://www.sakicorp.com/index.html DC & CV Lab. CSIE NTU

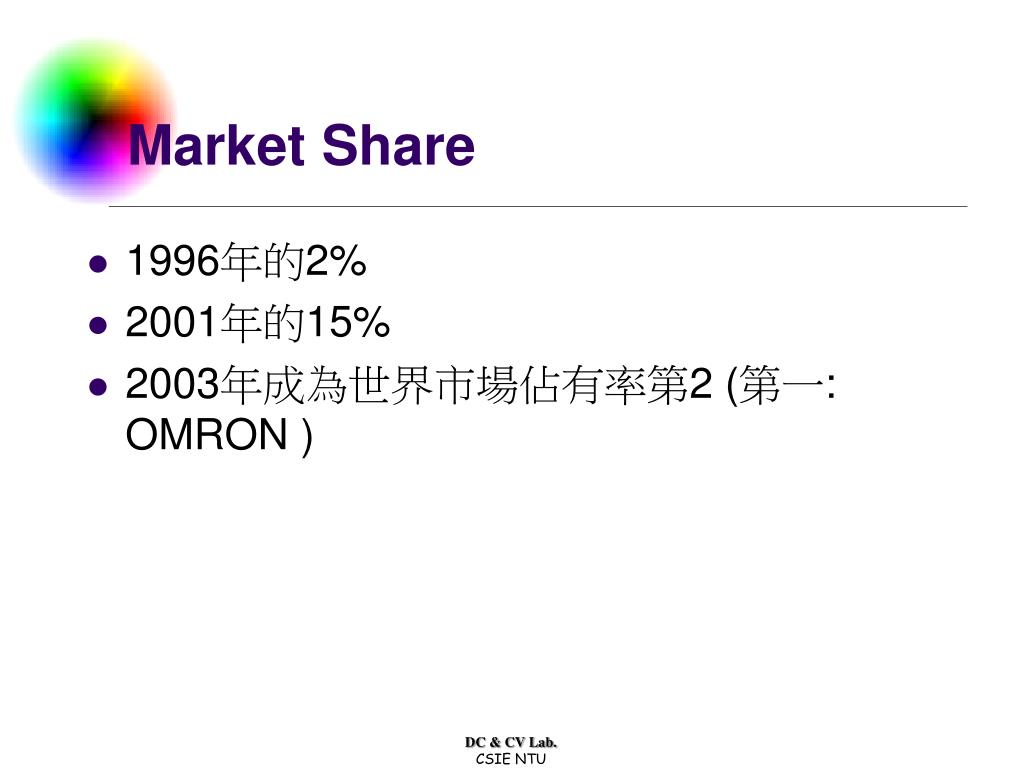

  3. Market Share • 1996年的2% • 2001年的15% • 2003年成為世界市場佔有率第2 (第一: OMRON ) DC & CV Lab. CSIE NTU

  4. Competitor • Omron • SAKI • Orbotech • Teradyne (泰瑞達) • Agilent (安捷倫) DC & CV Lab. CSIE NTU

  5. Automatic Optical Inspection • BF (B??? F???)-PlanetX standard model (250mmx330mm) • BF-Frontier LL (Large Large) size (460mmx500mm) model • BF-Tristar high resolution model DC & CV Lab. CSIE NTU

  6. BF-PlanetX DC & CV Lab. CSIE NTU

  7. Working Theory • Line Scan Technology DC & CV Lab. CSIE NTU

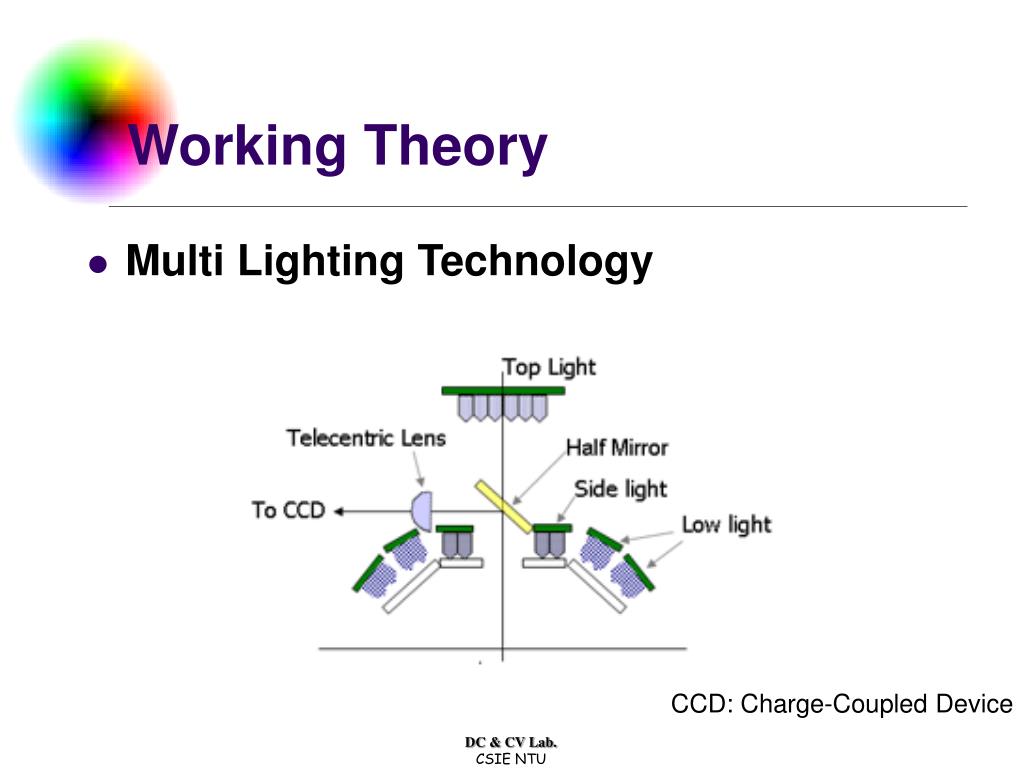

  8. Working Theory • Multi Lighting Technology CCD: Charge-Coupled Device DC & CV Lab. CSIE NTU

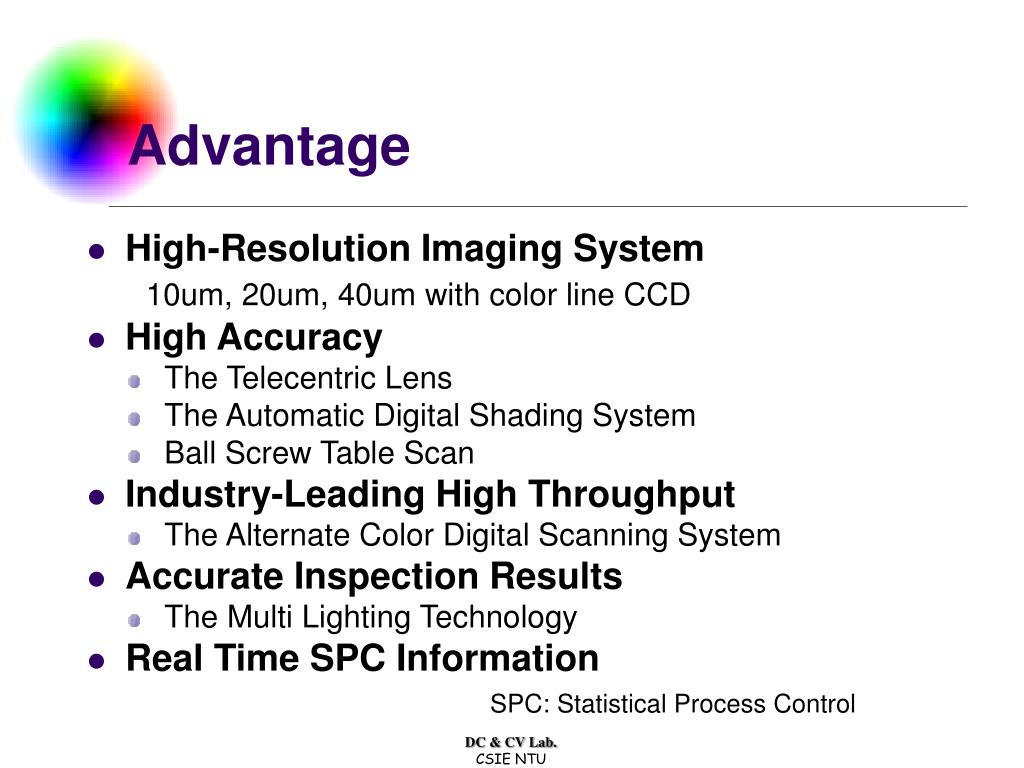

  9. Advantage • High-Resolution Imaging System 10um, 20um, 40um with color line CCD • High Accuracy • The Telecentric Lens • The Automatic Digital Shading System • Ball Screw Table Scan • Industry-Leading High Throughput • The Alternate Color Digital Scanning System • Accurate Inspection Results • The Multi Lighting Technology • Real Time SPC Information SPC: Statistical Process Control DC & CV Lab. CSIE NTU

  10. Disadvantage • Line Scan Technology 打光方式: 頂光源 無法用側光源來確定元件在不同角度的光照條 件一致 DC & CV Lab. CSIE NTU

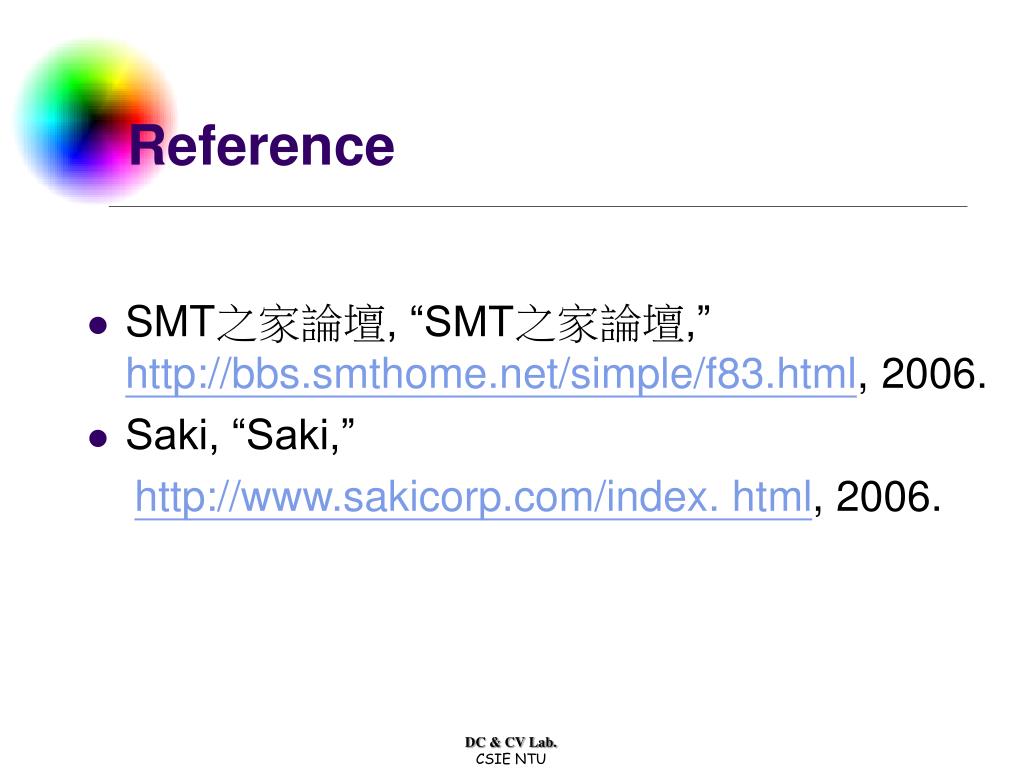

  11. Reference • SMT之家論壇, “SMT之家論壇,” http://bbs.smthome.net/simple/f83.html, 2006. • Saki, “Saki,” http://www.sakicorp.com/index. html, 2006. DC & CV Lab. CSIE NTU
