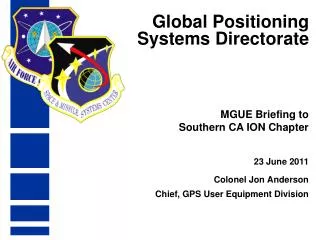

global positioning systems directorate

Global Positioning Systems Directorate

MGUE Briefing to

Southern CA ION Chapter

23 June 2011

Colonel Jon Anderson

Chief, GPS User Equipment Division

recent accomplishments
Recent Accomplishments

Modernized User Equipment (MUE):

  • All GB-GRAM Cards completed FQT and delivered to the government
  • Began independent government testing at SPAWAR (in progress)
  • Began anti-tamper testing at Sandia and Aerospace (in progress)

Military GPS User Equipment (MGUE):

  • Technology Development Strategy (TDS) approved by SAF – in coordination with OSD (AT&L)
  • Completed Service Cost Position (SCP) and Independent Cost Estimate (ICE): 2366a certification imminent
  • Technical Requirements Document (TRD) baselined at 31 Mar 11 CCB
modernized gps capabilities

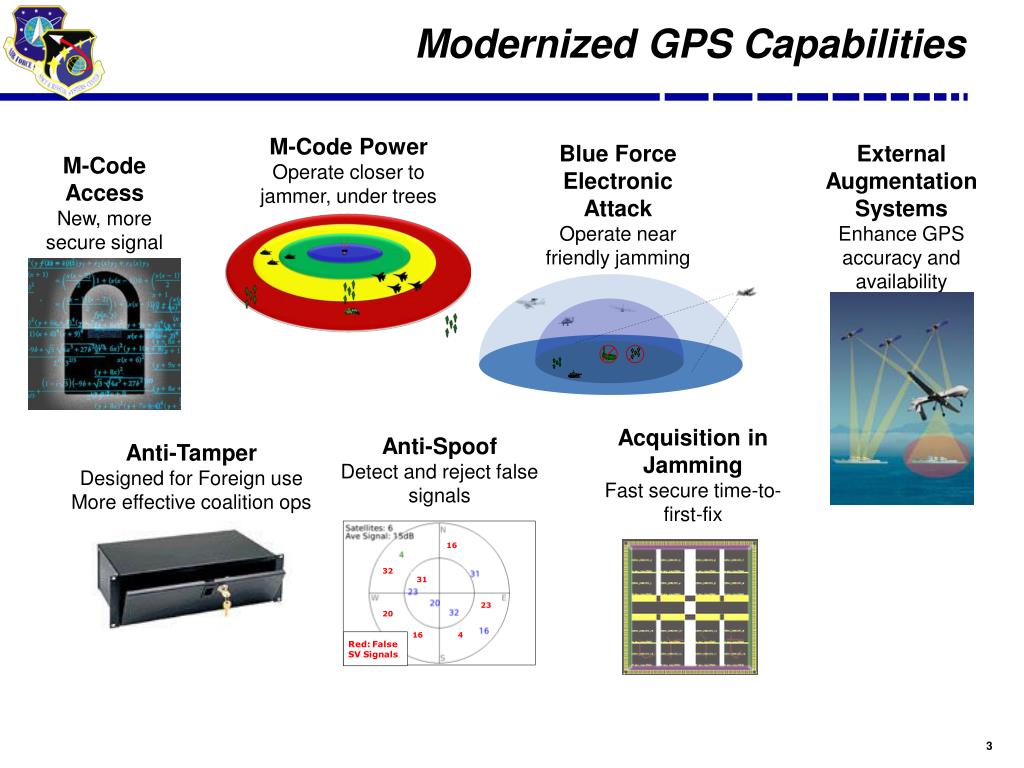

Modernized GPS Capabilities

M-Code Power

Operate closer to jammer, under trees

M-Code Access

New, more secure signal

Blue Force Electronic Attack

Operate near friendly jamming

Anti-Spoof

Detect and reject false signals

External Augmentation Systems

Enhance GPS accuracy and availability

Acquisition in Jamming

Fast secure time-to-first-fix

Anti-Tamper

Designed for Foreign use

More effective coalition ops

slide4

MGUEArchitecture

Lead Platforms & Host Applications

External Augmentation Systems

GPS Space Segment

SIS

MGUE Products

Ground Embedded

Data

Ground--RQ-11B, Raven

USA : PM-UAS-SUAV

L1 SIS

(GB-GRAM-M )

L2 SIS

Aviation

Aviation – F-15E

USAF: 912 AESG

Data

SIS

GRAM SEM-E-M

(GRAM S/M)

GPS Control Segment

Maritime- Arleigh Burke Class Destroyer (DDG)

USN: PMW/A 170

Data

Maritime

(GRAM-M-PMC)

Master Control Station

Common GPS Module

Handheld and other applications

Data

(CGM)

Ground Antenna

Monitor Station

slide5

New Business Approach for GPS User Equipment Division

Migrate from end user products

To Common GPS Module (CGM) and Support Tools

what is the mgue overarching strategy
What is the MGUE Overarching Strategy?
  • May 2010 ADM by USD(AT&L) directed us to deliver capability ASAP
    • Deliver a usable capability as close as possible to FY13
  • We’re completing a successful Technology Demonstration Program
    • Achieved M-Code Crypto, SAASM, C/A-code, AT and AS capability
    • Implemented several new policies, programs, and requirements
      • GPS User Equipment Information Assurance Program
      • USD(AT&L) Anti-Tamper program
      • Trusted Foundry program
      • ICDs 703, 722, 723, etc….
  • 3 prototype contracts  2 development contracts maintains industrial base
  • Implement DoD policies on efficiencies and affordability

Leverage technology developed under MUE

Finish Discovery

Mature the technology and move into EMD

slide7

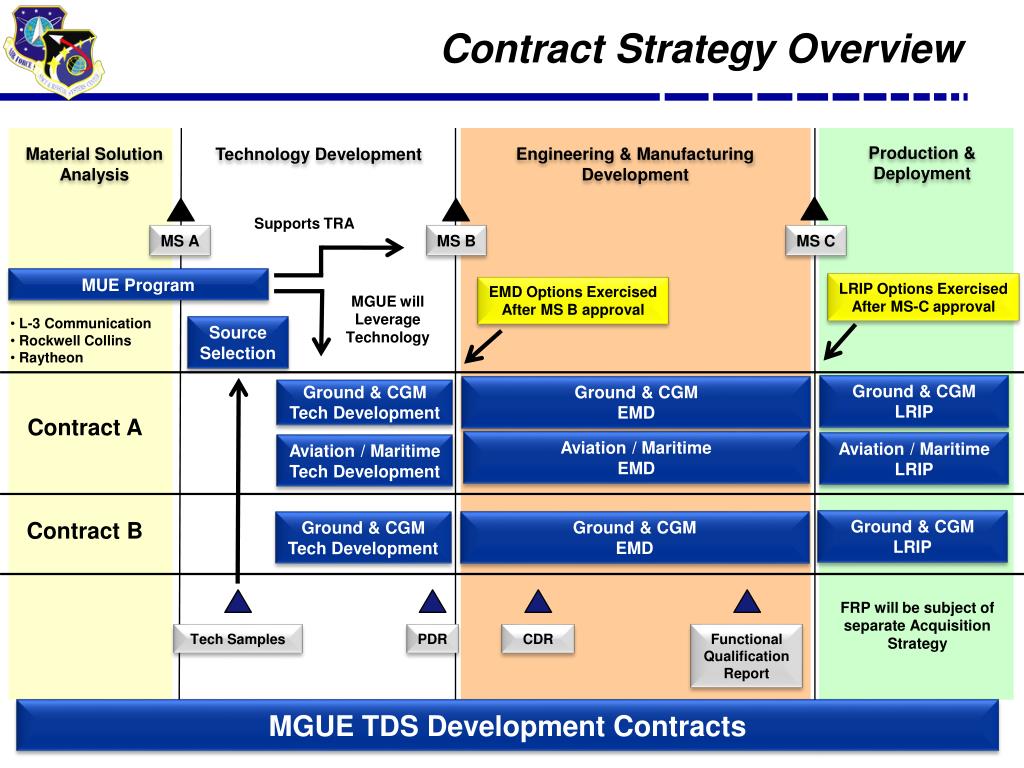

Contract Strategy Overview

Production &

Deployment

Material Solution

Analysis

Engineering & Manufacturing

Development

Technology Development

Supports TRA

MS A

MS B

MS C

MUE Program

LRIP Options Exercised

After MS-C approval

EMD Options Exercised

After MS B approval

MGUE will

Leverage

Technology

  • L-3 Communication
  • Rockwell Collins
  • Raytheon

Source

Selection

Ground & CGM

LRIP

Ground & CGM

EMD

Ground & CGM

Tech Development

Contract A

Aviation / Maritime

EMD

Aviation / Maritime

LRIP

Aviation / Maritime

Tech Development

Contract B

Ground & CGM

LRIP

Ground & CGM

EMD

Ground & CGM

Tech Development

FRP will be subject of separate Acquisition Strategy

Tech Samples

PDR

CDR

Functional Qualification Report

MGUE TDS Development Contracts

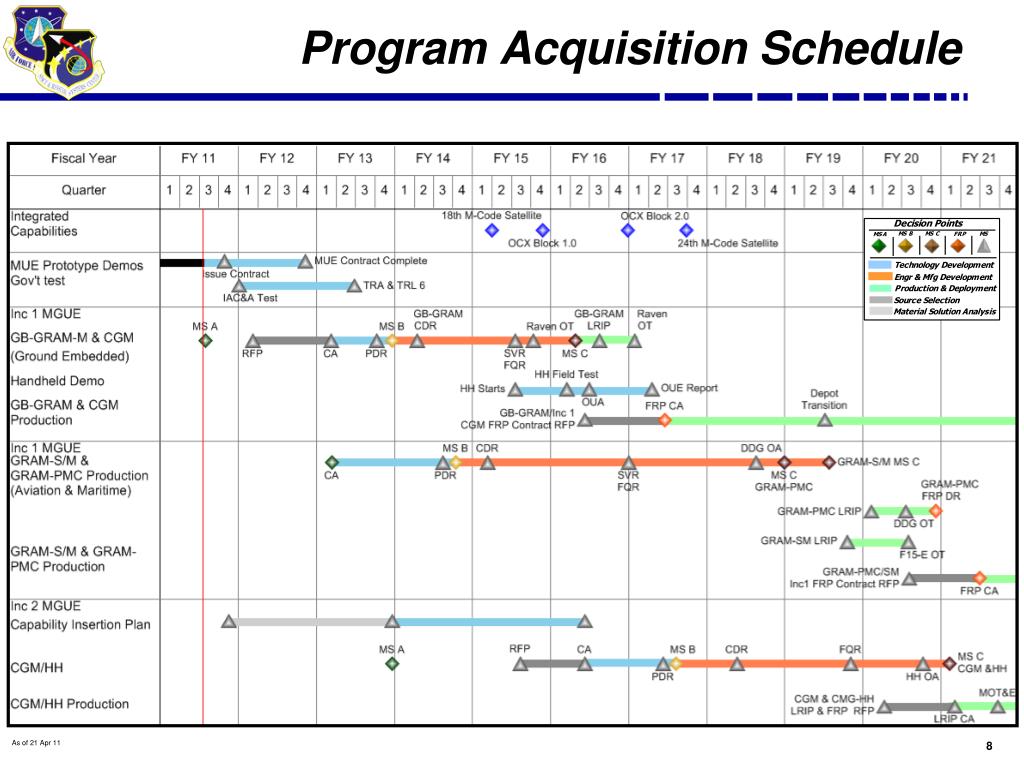

slide9

CGM Business Model

+

SDK

Ground Embedded

Aviation

Maritime

GRAM SEM-E-M

(GRAM S/M)

(GB-GRAM-M )

(GRAM-M-PMC)

Third Party Developers

+

S/W Developer Kit

Common GPS Module

(SDK)

(CGM)

Handheld Demo

Munitions Demo

Many Applications

slide10

CGM Signal Support

“On the Board”

Upgraded receivers may add L5, Galileo, and other signals by integrating COTS chips on the receivers cards

CGM & MGUE receiver cards will include C/A, P(Y), and M-Code

How to incorporate additional civil signals

COTS

L5

Opportunity On Ramp

CGM

C/A, P(Y),

M-Code

COTS

Galileo

key challenges

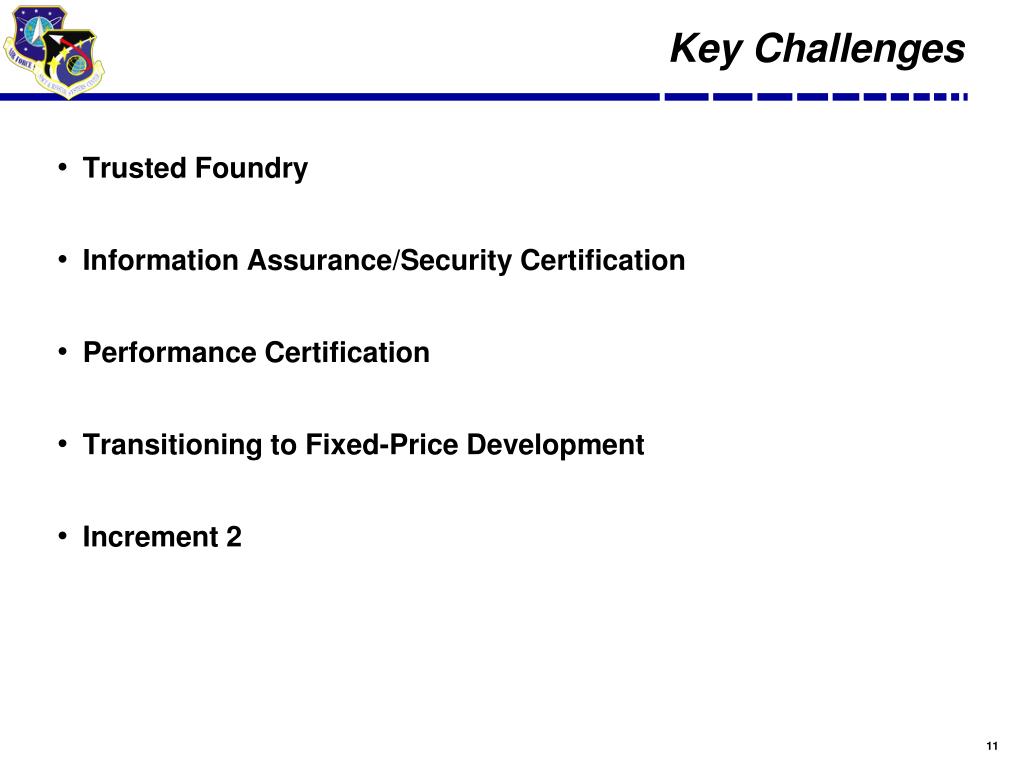

Key Challenges
  • Trusted Foundry
  • Information Assurance/Security Certification
  • Performance Certification
  • Transitioning to Fixed-Price Development
  • Increment 2
slide12

Advanced Technology MGUE Increment 2 Technology Maturation

  • GPS Directorate Technology Priorities
    • Reduced SWAP & C
    • NetCentricity / Comm/Nav Integration
    • Software Defined Radio – Structured IP, IA/AT Solutions, CGM Alternative
    • PNT Robustness – Focused on Sensor Integration and Disadvantaged User
  • MGUE Delta/Objective CDD Requirements
    • Advanced BFEA Compatibility, Anti-Spoof, Integrity, M-Code External Augmentation System, Reprogrammability, Multiple Signals
  • Support the GPS Enterprise Modernization and PNT Assurance AoA

Mature Critical Technology Element (CTEs) to support

Increment 2 Technology Readiness Assessment
