7.5 part 1 Work and Pumping Liquids

7.5 part 1 Work and Pumping Liquids. Greg Kelly, Hanford High School, Richland, Washington. a Find k :. b. How much work would be needed to stretch the spring 3m beyond its natural length?. Review: Hooke’s Law:. A spring has a natural length of 1 m .

Download Presentation

7.5 part 1 Work and Pumping Liquids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 7.5 part 1 Work and Pumping Liquids Greg Kelly, Hanford High School, Richland, Washington

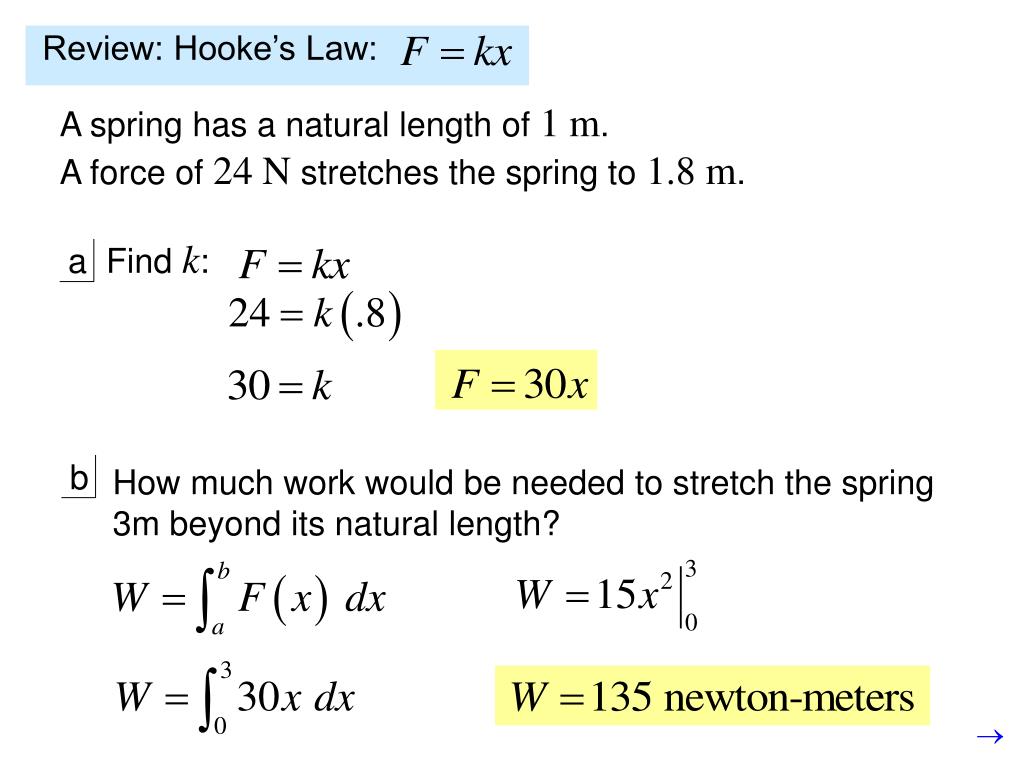

  2. a Find k: b How much work would be needed to stretch the spring 3m beyond its natural length? Review: Hooke’s Law: A spring has a natural length of 1m. A force of 24N stretches the spring to 1.8 m.

  3. If we add up all these small bits of work we get: Over a very short distance, even a non-constant force doesn’t change much, so work becomes:

  4. Check: A leaky 5 lb bucket is raised 20 feet The rope weights 0.08 lb/ft. The bucket starts with 2 gal (16 lb) of water and is empty when it just reaches the top. Work: Bucket: Water: The force is proportional to remaining rope.

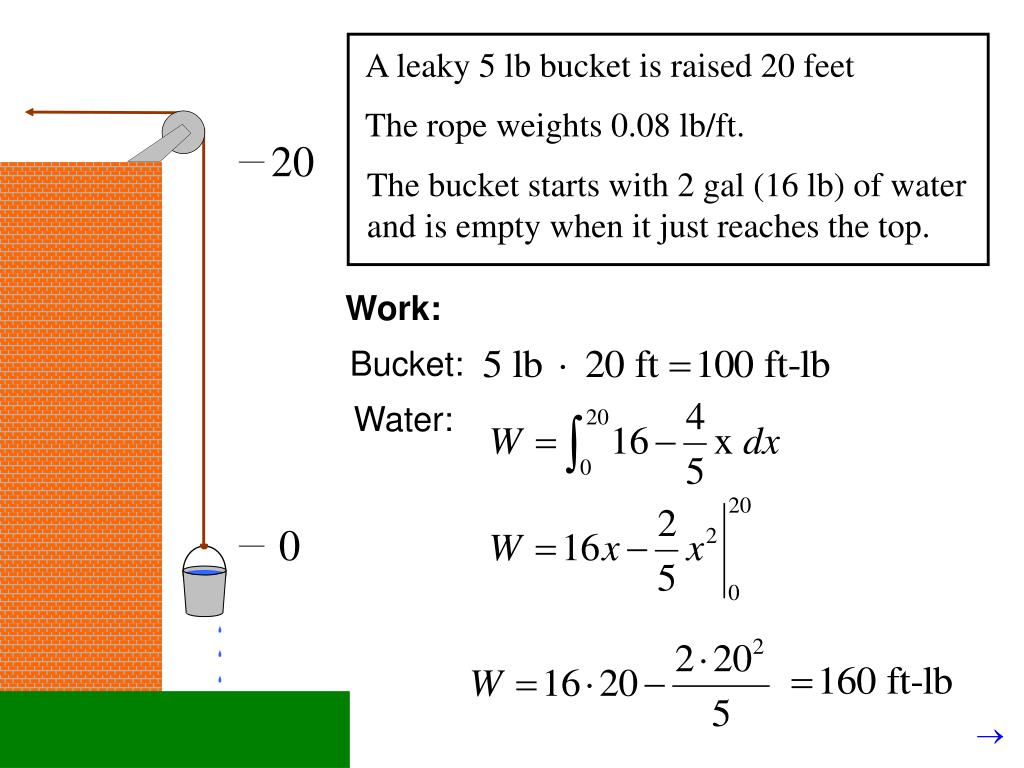

  5. A leaky 5 lb bucket is raised 20 feet The rope weights 0.08 lb/ft. The bucket starts with 2 gal (16 lb) of water and is empty when it just reaches the top. Work: Bucket: Water:

  6. Check: A leaky 5 lb bucket is raised 20 feet The rope weights 0.08 lb/ft. The bucket starts with 2 gal (16 lb) of water and is empty when it just reaches the top. Work: Bucket: Water: Rope: Total:

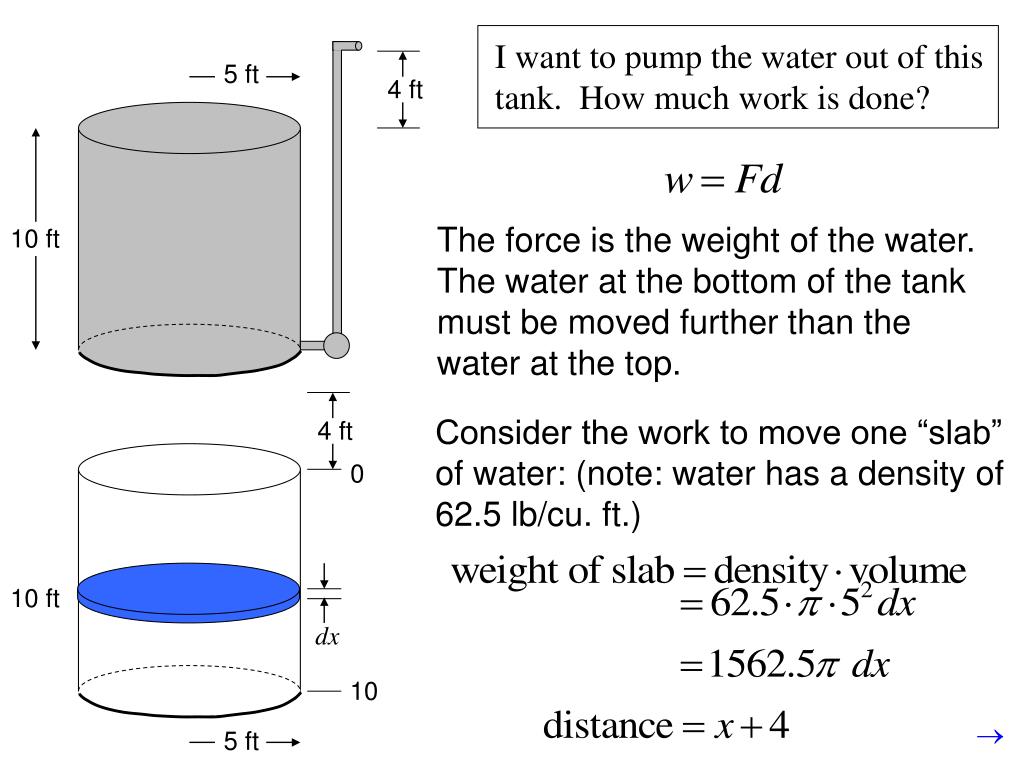

  7. 4 ft 0 10 ft dx 10 5 ft I want to pump the water out of this tank. How much work is done? 5 ft 4 ft The force is the weight of the water. The water at the bottom of the tank must be moved further than the water at the top. 10 ft Consider the work to move one “slab” of water: (note: water has a density of 62.5 lb/cu. ft.)

  8. 4 ft 0 10 ft dx 10 5 ft I want to pump the water out of this tank. How much work is done? 5 ft 4 ft 10 ft distance force

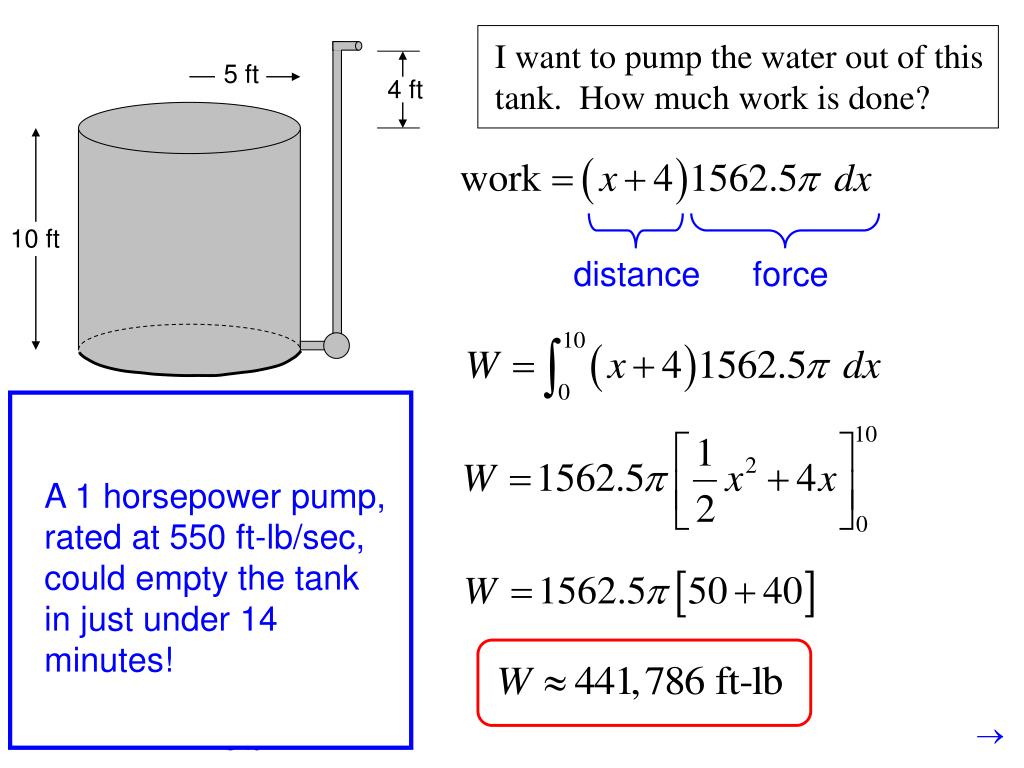

  9. 4 ft 0 A 1 horsepower pump, rated at 550 ft-lb/sec, could empty the tank in just under 14 minutes! 10 ft dx 10 5 ft I want to pump the water out of this tank. How much work is done? 5 ft 4 ft 10 ft distance force

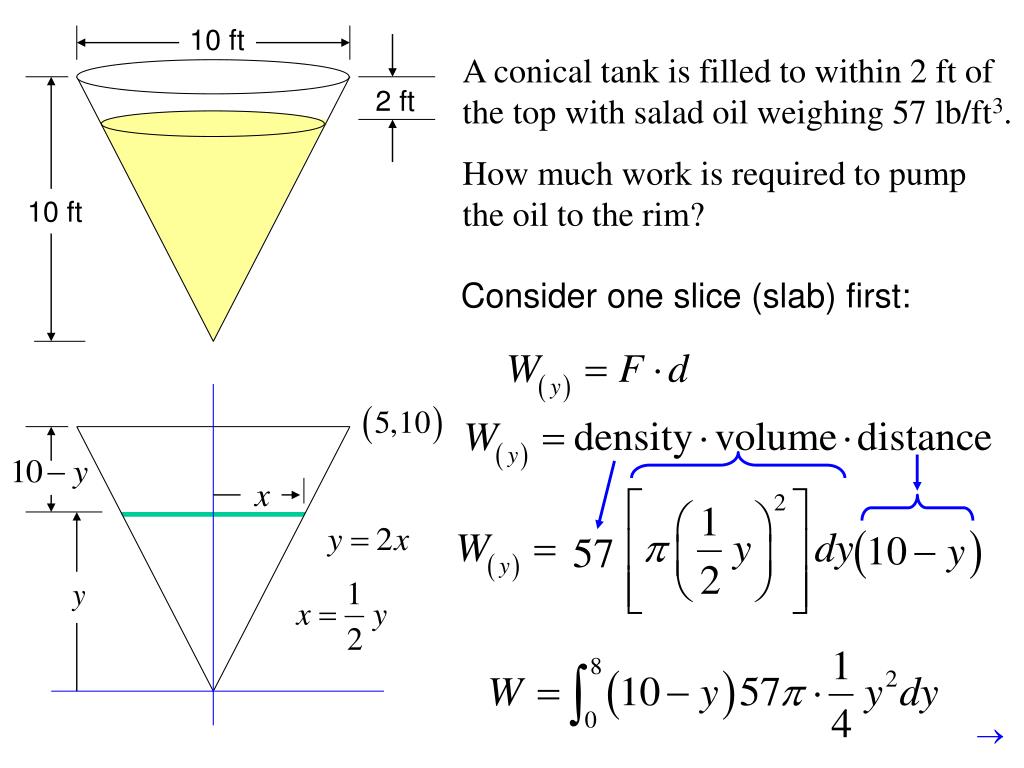

  10. 2 ft 10 ft A conical tank is filled to within 2 ft of the top with salad oil weighing 57 lb/ft3. How much work is required to pump the oil to the rim? 10 ft Consider one slice (slab) first:

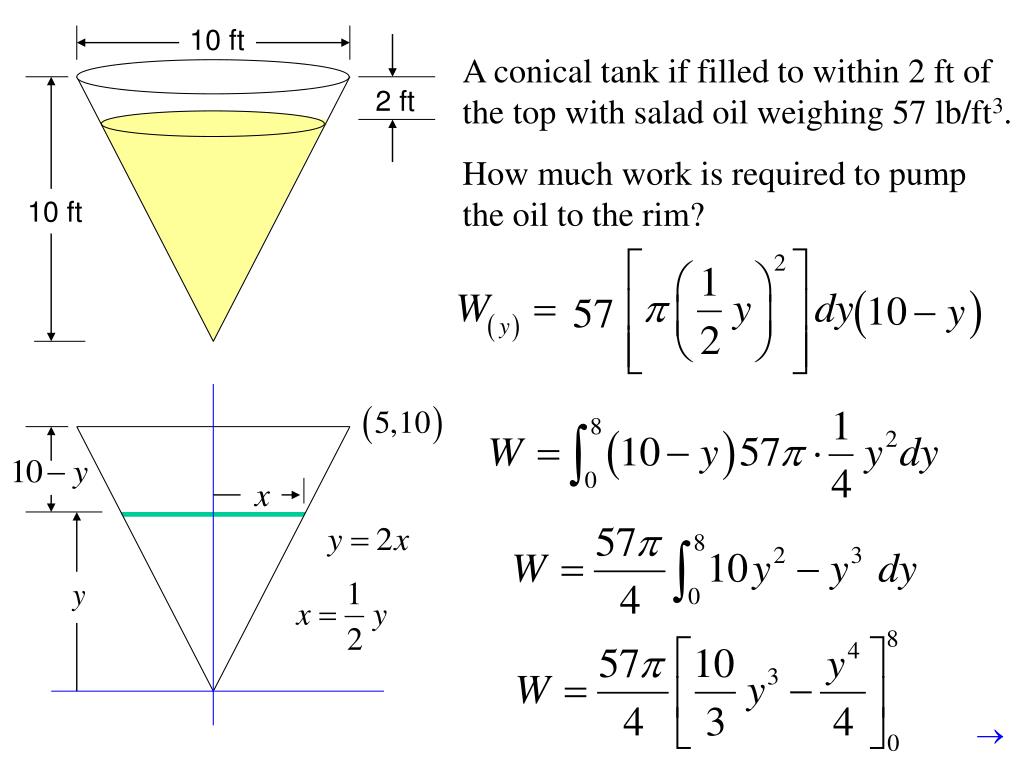

  11. 2 ft 10 ft A conical tank if filled to within 2 ft of the top with salad oil weighing 57 lb/ft3. How much work is required to pump the oil to the rim? 10 ft

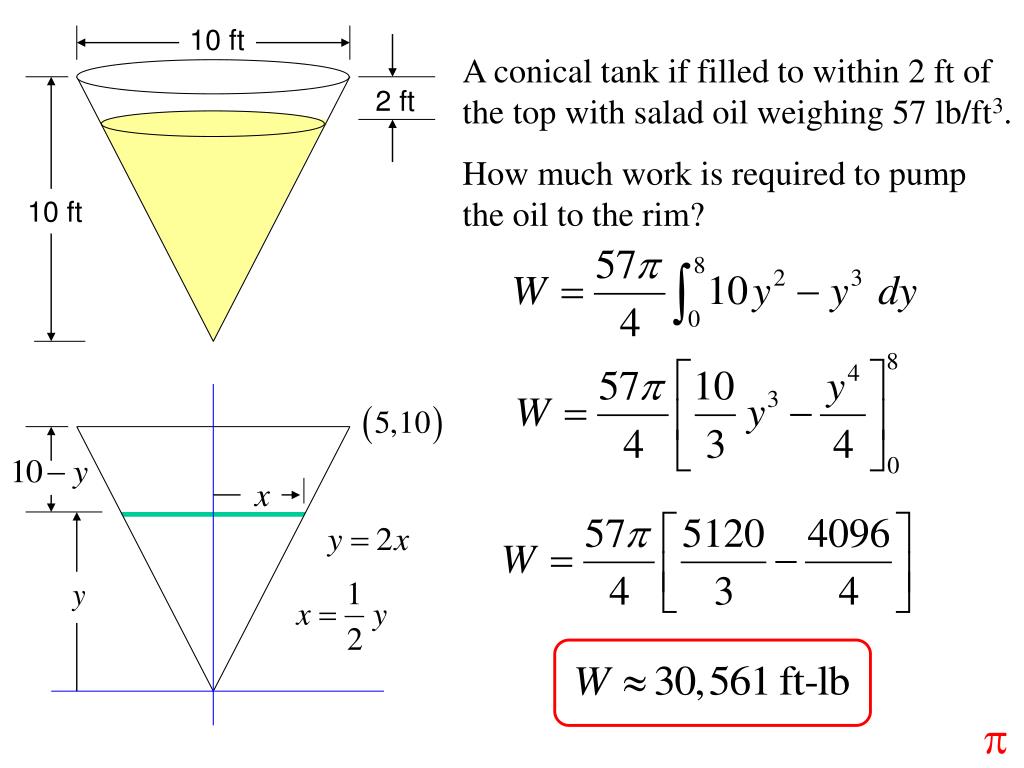

  12. 2 ft 10 ft A conical tank if filled to within 2 ft of the top with salad oil weighing 57 lb/ft3. How much work is required to pump the oil to the rim? 10 ft p
