FPGA Configuration and Firmware Development Updates for L1, L2, and L3 Trigger Systems

Overview of FPGA configurations and firmware development progress for the L1, L2, and L3 trigger systems. Includes milestones reached and upcoming tasks for synchronization, trigger generation, and data processing.

zeno
Download Presentation

FPGA Configuration and Firmware Development Updates for L1, L2, and L3 Trigger Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

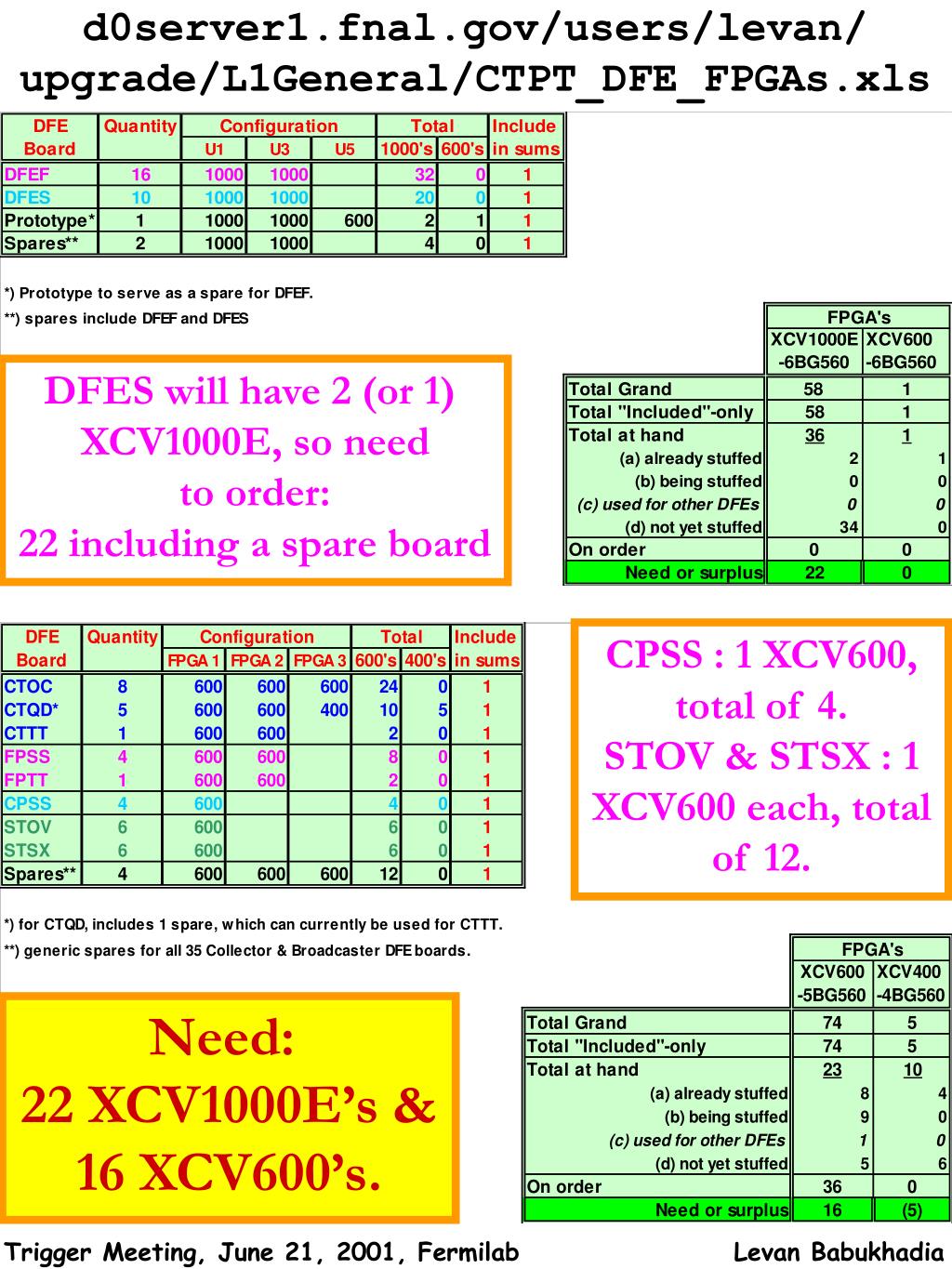

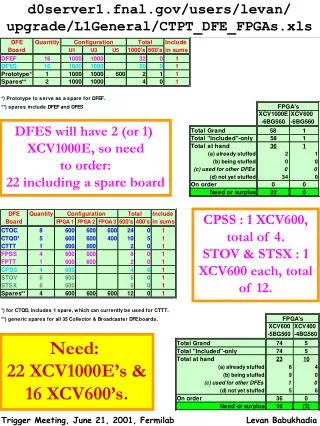

  1. d0server1.fnal.gov/users/levan/ upgrade/L1General/CTPT_DFE_FPGAs.xls DFES will have 2 (or 1) XCV1000E, so need to order: 22 including a spare board CPSS : 1 XCV600, total of 4. STOV & STSX : 1 XCV600 each, total of 12. Need: 22 XCV1000E’s & 16 XCV600’s.

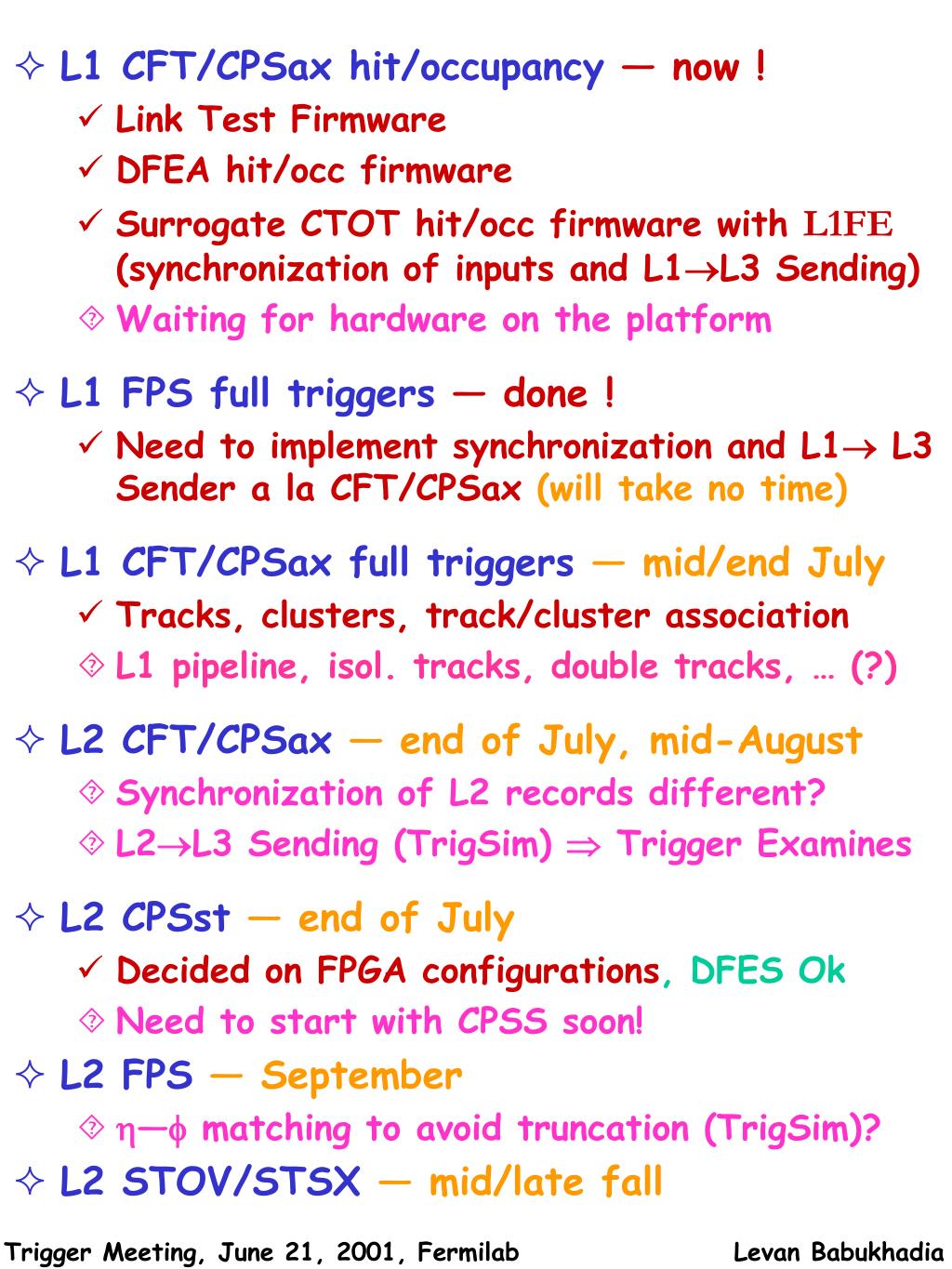

  2. L1 CFT/CPSax hit/occupancy — now ! • Link Test Firmware • DFEA hit/occ firmware • Surrogate CTOT hit/occ firmware with L1FE (synchronization of inputs and L1L3 Sending) • Waiting for hardware on the platform • L1 FPS full triggers — done ! • Need to implement synchronization and L1 L3 Sender a la CFT/CPSax (will take no time) • L1 CFT/CPSax full triggers — mid/end July • Tracks, clusters, track/cluster association • L1 pipeline, isol. tracks, double tracks, … (?) • L2 CFT/CPSax — end of July, mid-August • Synchronization of L2 records different? • L2L3 Sending (TrigSim)  Trigger Examines • L2 CPSst— end of July • Decided on FPGA configurations, DFES Ok • Need to start with CPSS soon! • L2 FPS— September • — matching to avoid truncation (TrigSim)? • L2 STOV/STSX— mid/late fall
