MARC-HI Everest Framework

1. MARC-HI Everest Framework Enabling RMIM Based Applications Justin Fyfe (Mohawk College)

2. Agenda • Overview • Architecture • Using Everest • Universal Messaging • Data types Enhancements • Roadmap

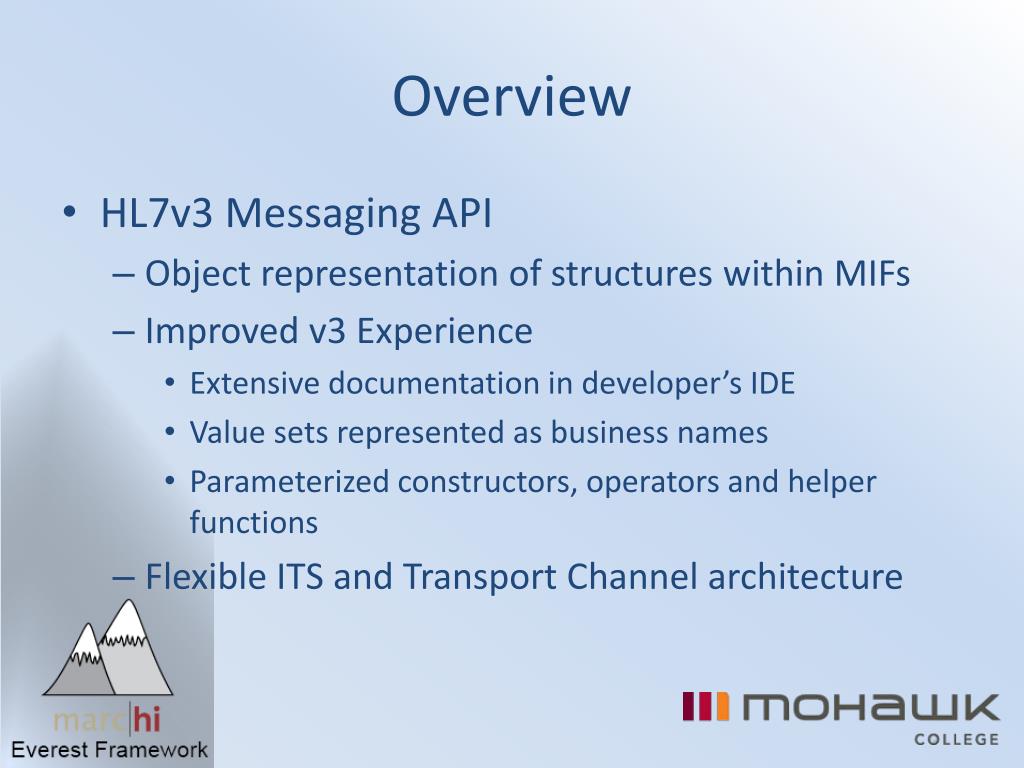

3. Overview • HL7v3 Messaging API • Object representation of structures within MIFs • Improved v3 Experience • Extensive documentation in developer’s IDE • Value sets represented as business names • Parameterized constructors, operators and helper functions • Flexible ITS and Transport Channel architecture

4. History

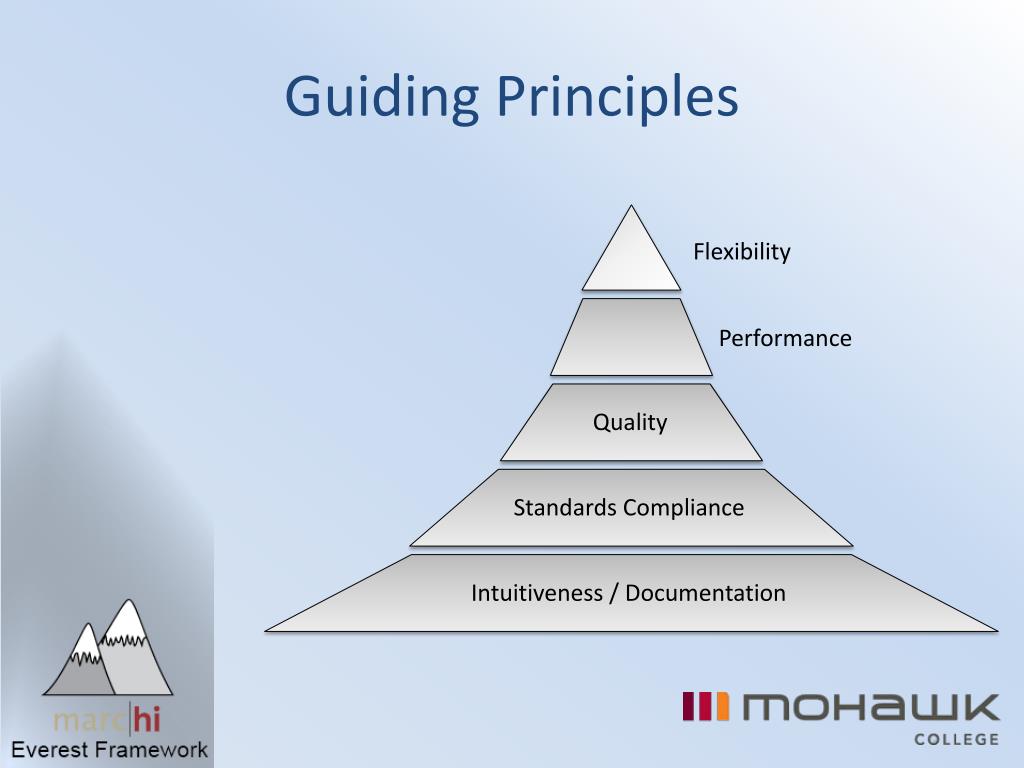

5. Guiding Principles Flexibility Performance Quality Standards Compliance Intuitiveness / Documentation

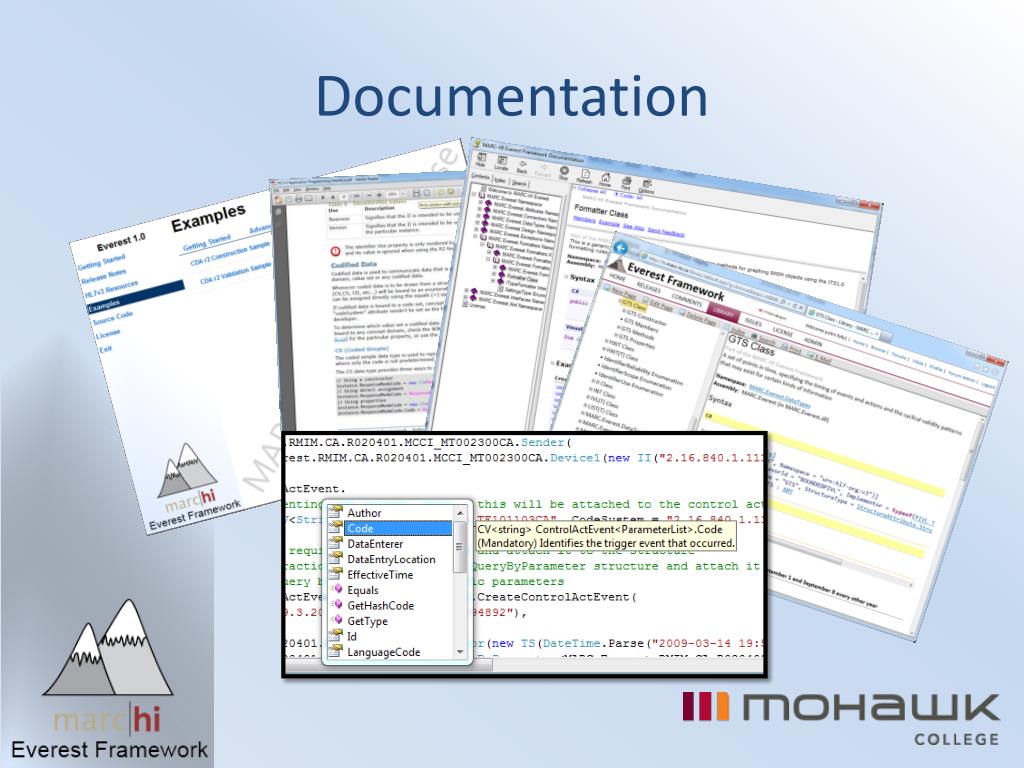

6. Documentation

7. Architecture

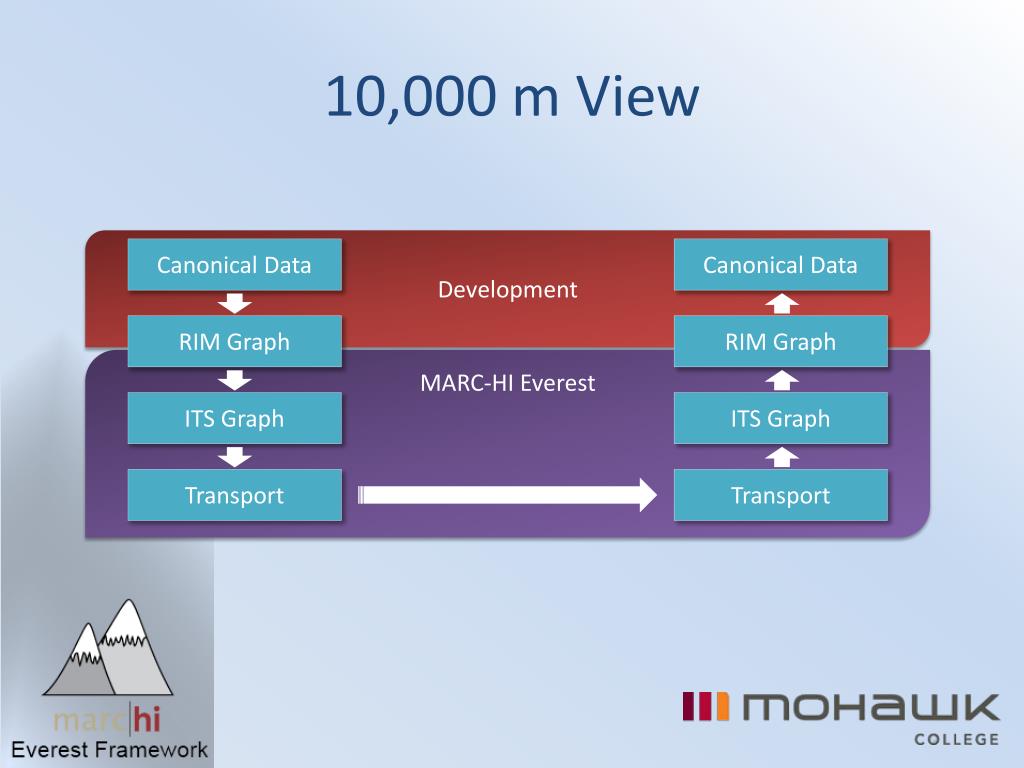

8. 10,000 m View Development Canonical Data Canonical Data RIM Graph RIM Graph MARC-HI Everest ITS Graph ITS Graph Transport Transport

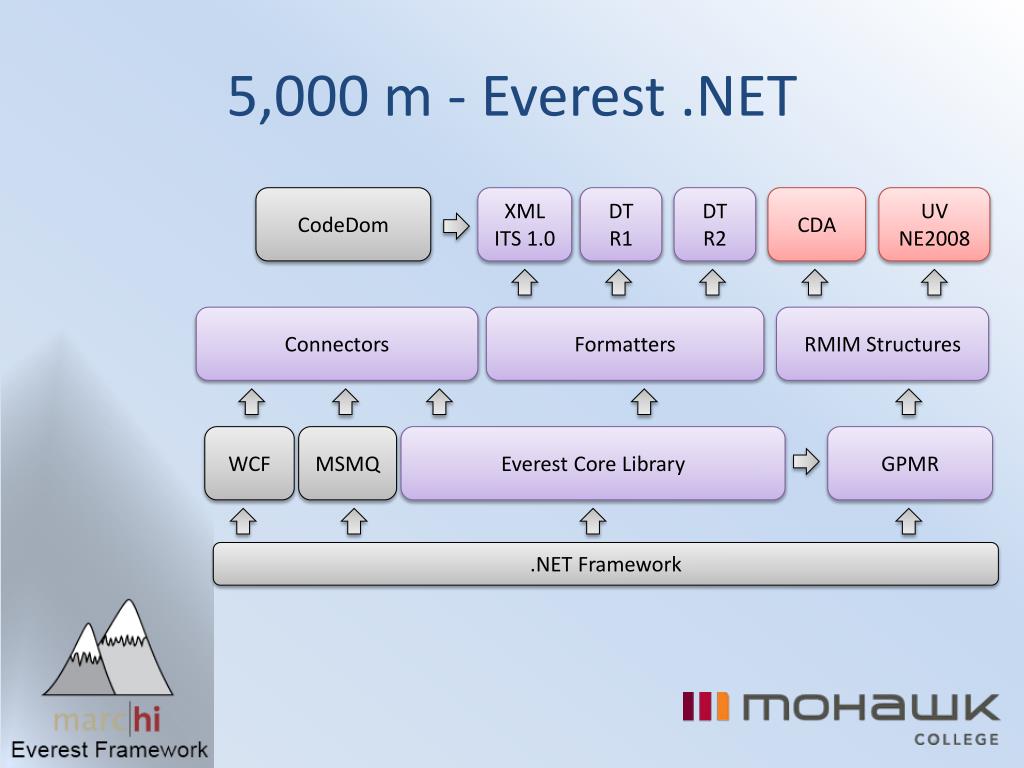

9. 5,000 m - Everest .NET CodeDom XML ITS 1.0 DT R1 DT R2 CDA UV NE2008 Connectors Formatters RMIM Structures WCF MSMQ Everest Core Library GPMR .NET Framework

10. 5,000 m - Overview jEverest XML ITS 1.0 DT R1 Connectors Formatters CA 2.04.02 UV NE2008 Metro / Axis JMS Everest Core Library J2SE/J2EE 1.6

11. Universal Messaging & CDA

12. UV Support • NE2008 (since GPMR 0.9.x) • *_HD*.*mif files should be removed • NE2009 / NE2010 • HTML renderer works on Patched MIF files in quirks mode • Missing Several CMET definitions in DEFN IFC file • Templating issue with several Interactions • CDAr2 (NE2010) (since GPMR 1.1.x)

13. Patching NE2009/2010 • Some MIFs duplicate the “true” option • <mif:class name="GuarantorChoice" isAbstract="true true"> • Search / replace “true true” with “true” • PORP_MT0500032UV04 has invalid Type option • <mif:type name=")"/> • Replace name=“)” with name=“CS”

14. DT Enhancements

15. Operators • HL7v3 data types should behave like native primitives when not null-Flavored • INT should behave like int, long, uint • REAL should behave like float, double • BL should behave like bool • Operator overloading allows us to achieve this: • Casting to/from native types • Adding nullFlavors • Providing native operations (+, -, /, *, %, <=, >=, etc..)

16. Behaving Like Native Types for (int i = 0; i < 10; i++) if ((i % 2).Equals(1)) Console.WriteLine("{0} odd", i); for (INT i = 0; i < 10; i++) if ((i % 2).Equals(1)) Console.WriteLine("{0} odd", i);

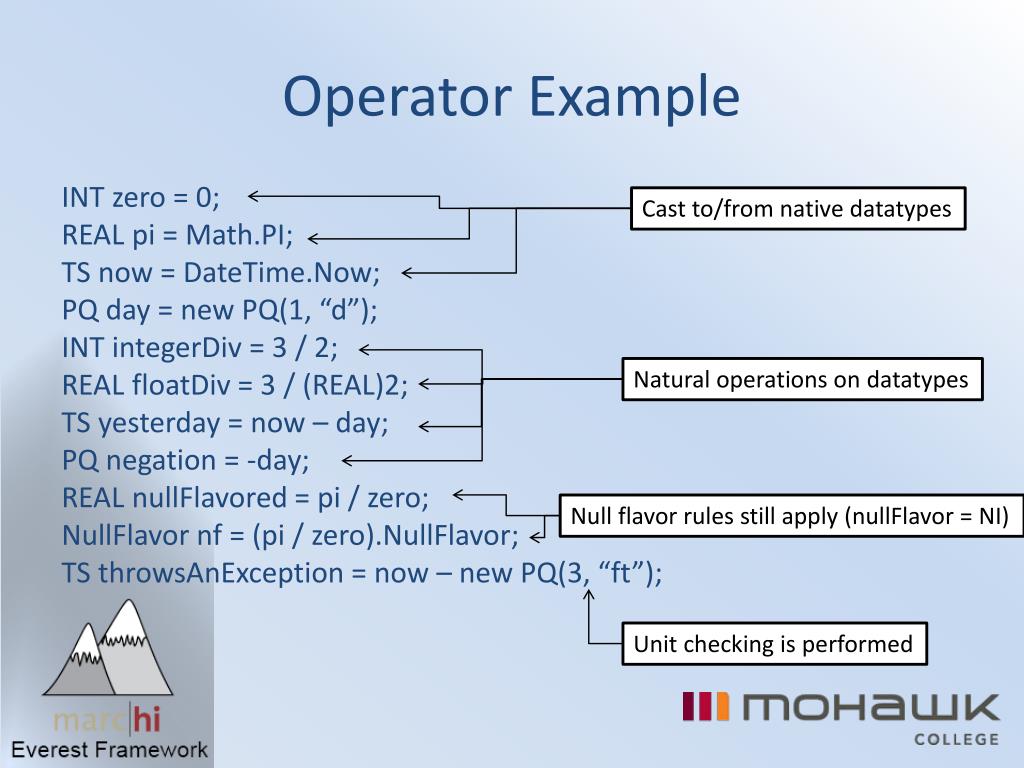

17. Operator Example INT zero = 0; REAL pi = Math.PI; TS now = DateTime.Now; PQ day = new PQ(1, “d”); INT integerDiv = 3 / 2; REAL floatDiv = 3 / (REAL)2; TS yesterday = now – day; PQ negation = -day; REAL nullFlavored = pi / zero; NullFlavornf = (pi / zero).NullFlavor; TS throwsAnException = now – new PQ(3, “ft”); Cast to/from native datatypes Natural operations on datatypes Null flavor rules still apply (nullFlavor = NI) Unit checking is performed

18. Implemented Operators • Comparison (<, >, <=, >=) • Any PDV<T> where T is IComparable<T> • Basic Arithmetic (+, -) • TS, PQ, MO, INT, REAL • Arithmetic (*, /) & Unary (-) • PQ, MO, REAL, INT • Integer Arithmetic (%, /) & Unary (--, ++) • INT • Logic (^, &, |, !) • BL • Casting (Implicit / Explicit) • Many of the datatypes support this, many times when ToX or FromX is listed in the Data Types implementation guide.

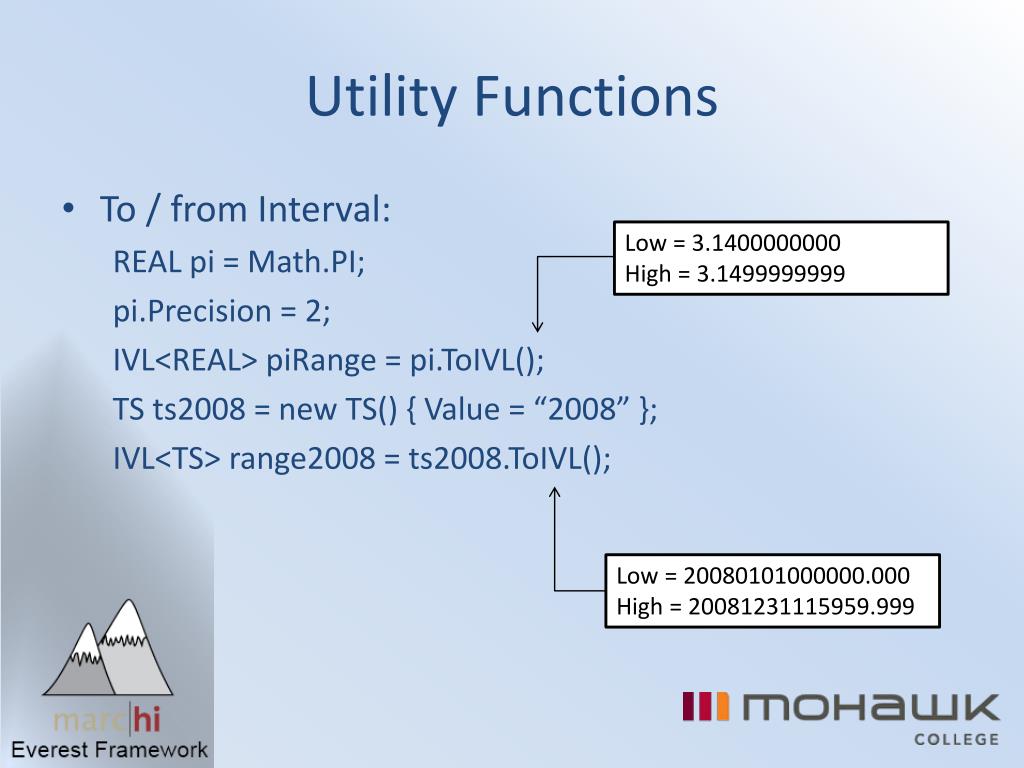

19. Utility Functions • To / from Interval: REAL pi = Math.PI; pi.Precision = 2; IVL<REAL> piRange = pi.ToIVL(); TS ts2008 = new TS() { Value = “2008” }; IVL<TS> range2008 = ts2008.ToIVL(); Low = 3.1400000000 High = 3.1499999999 Low = 20080101000000.000 High = 20081231115959.999

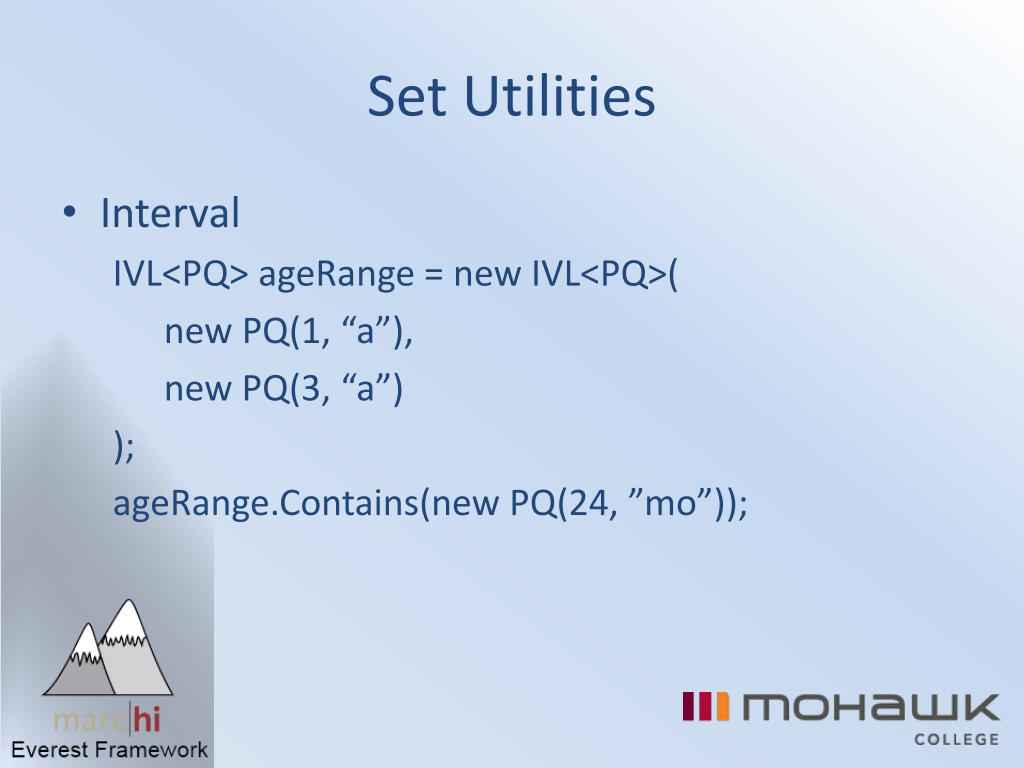

20. Set Utilities • Interval IVL<PQ> ageRange = new IVL<PQ>( new PQ(1, “a”), new PQ(3, “a”) ); ageRange.Contains(new PQ(24, ”mo”));

21. Set Utilities • Periodic Interval: IVL<TS> nineToFive = new IVL<TS>( DateTime.Parse("2011-09-02 09:00 AM"), DateTime.Parse("2011-09-02 05:00 PM") ); PIVL<TS> repeated = new PIVL<TS>( nineToFive, new PQ(1, "wk") ); TS y2kLunch = DateTime.Parse("2000-01-01 11:30 AM"); boolisIncluded = repeated.Contains(y2kLunch ); // Returns false

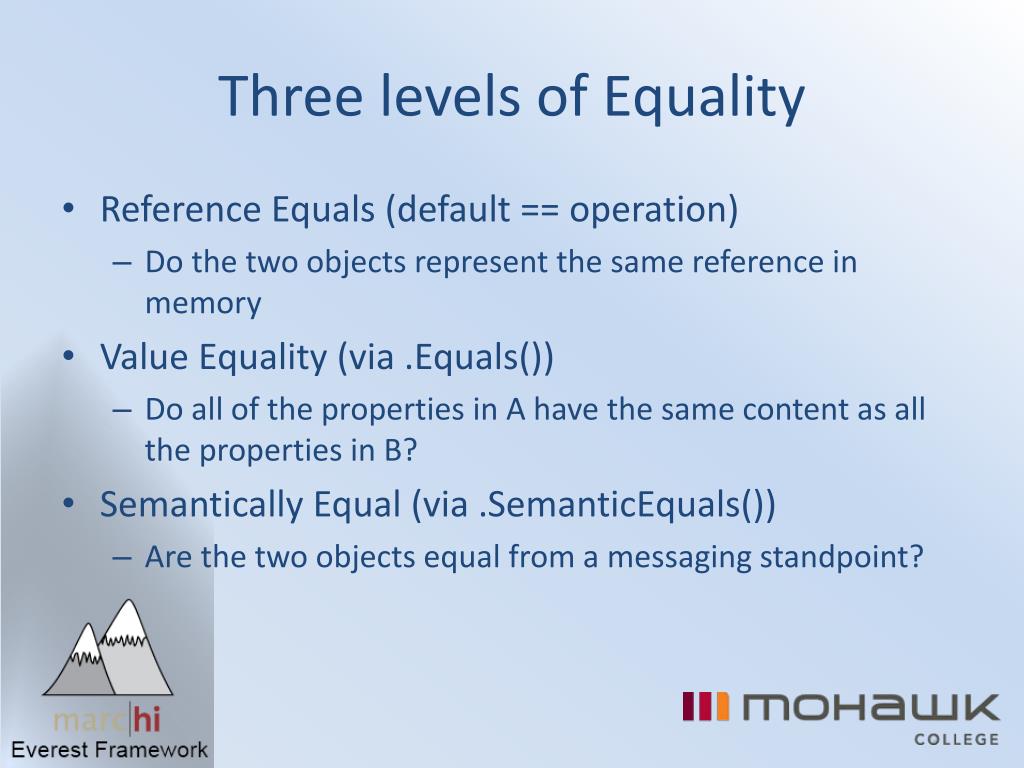

22. Three levels of Equality • Reference Equals (default == operation) • Do the two objects represent the same reference in memory • Value Equality (via .Equals()) • Do all of the properties in A have the same content as all the properties in B? • Semantically Equal (via .SemanticEquals()) • Are the two objects equal from a messaging standpoint?

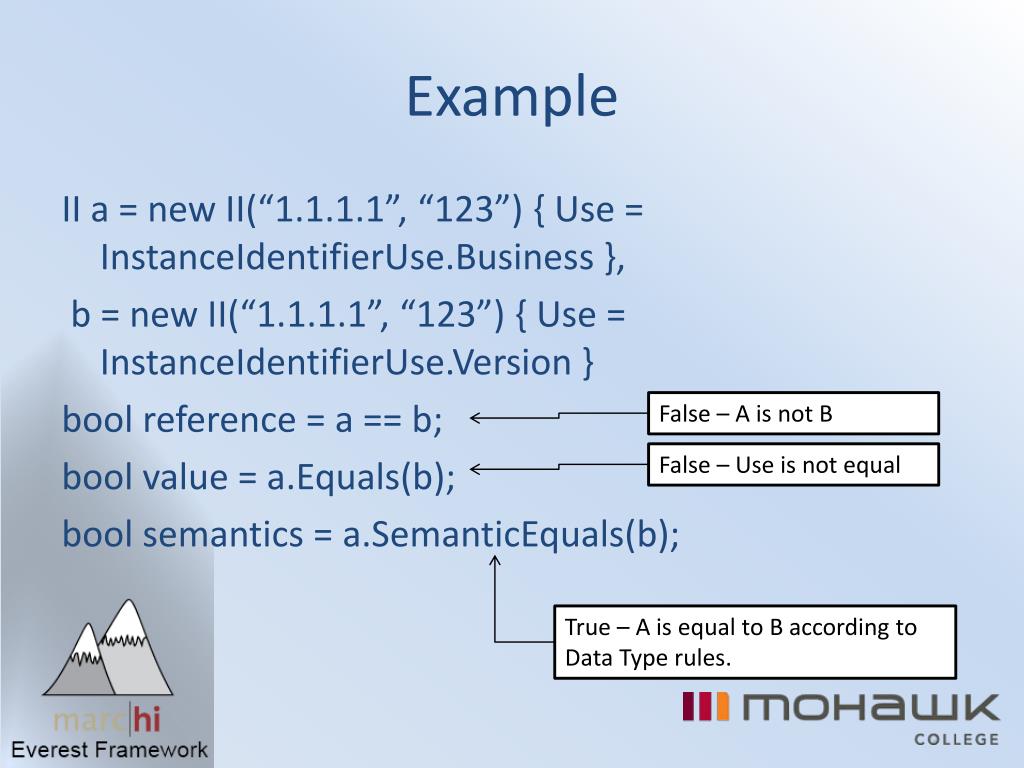

23. Example II a = new II(“1.1.1.1”, “123”) { Use = InstanceIdentifierUse.Business }, b = new II(“1.1.1.1”, “123”) { Use = InstanceIdentifierUse.Version } bool reference = a == b; bool value = a.Equals(b); bool semantics = a.SemanticEquals(b); False – A is not B False – Use is not equal True – A is equal to B according to Data Type rules.

24. roadmap

25. Milestones • Q4 2011 – jEverest CTP (Community Tech. Preview) • Formatters • RMIM Structures • GPMR Patches • Q1 2012 – Release Candidate 3 • Everest .NET: • CDA Support • Datatypes R2 Support • jEverest : • Connectors • Q2 2012 – Release of Everest 1.0 • jEverest + Everest + GPMR Bundles • Documentation for jEverest

26. Everest 1.0 Goals • jEverest – Java Version of Everest • XML ITS 1.0 and Datatypes R1 • File and SOAP Connectors (Metro / Axis undecided yet) • Support for NE2010 • CDA Support for Everest • DataTypes R2 Support for .NET version

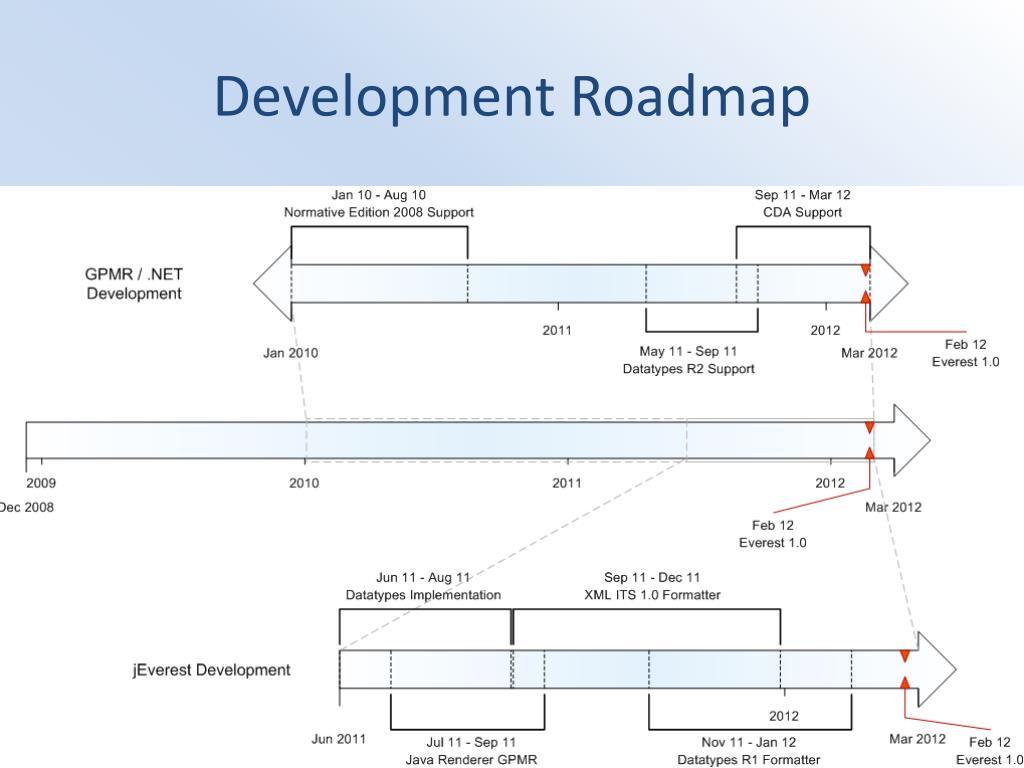

27. Development Roadmap

28. Questions • http://everest.marc-hi.ca
