  1. Work, Power, Energy

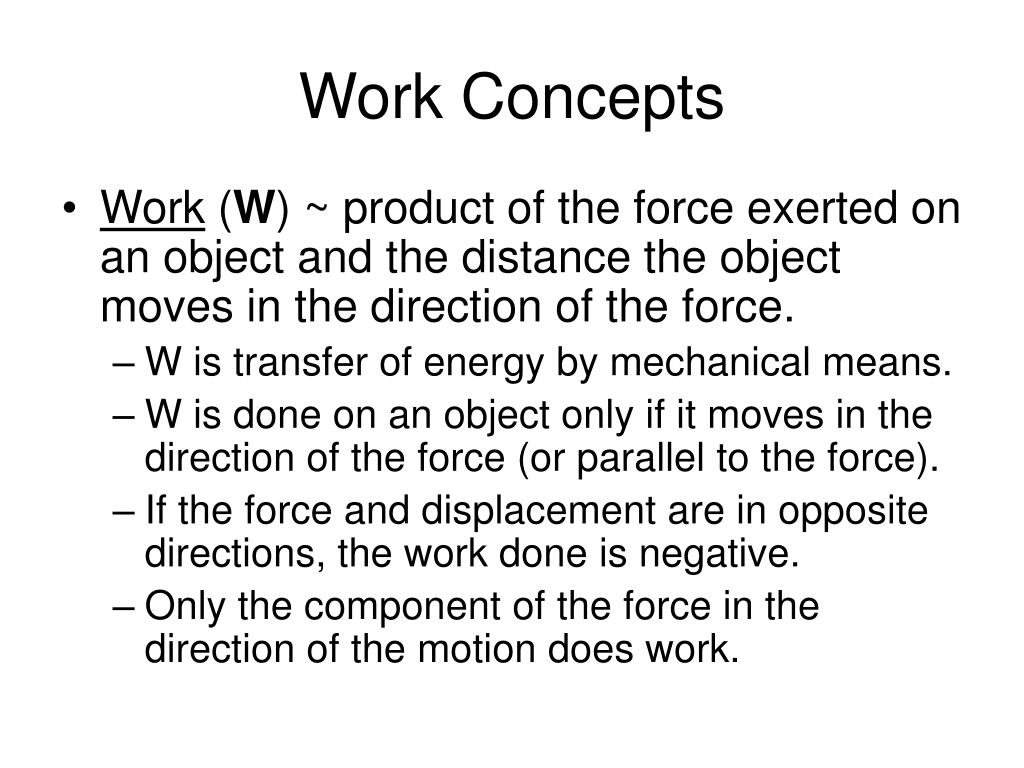

  2. Work Concepts • Work (W) ~ product of the force exerted on an object and the distance the object moves in the direction of the force. • W is transfer of energy by mechanical means. • W is done on an object only if it moves in the direction of the force (or parallel to the force). • If the force and displacement are in opposite directions, the work done is negative. • Only the component of the force in the direction of the motion does work.

  3. Work Formulas Work = Force x displacement W = Fd 1 Joule (J) = 1 Newton x meter (N m) F d

  4. F  d If force is exerted at an angle, use only the component of force that is parallel to the displacement: Since the displacement is horizontal (x direction), use only the horizontal component of force. Wx = Fx dx W = (Fcos)d F Fy θ Fx

  5. Power • Power (P) ~ rate at which work is done or rate at which energy is transferred. Measured in watts. • Watt (W) ~ one joule of energy transferred in one second. Power = Work / time Units: 1 watt = 1 joule / second (J/s) 1 watt = 1 N m / s

  6. Ideal Machines • Ideal machines exist only in a frictionless, air resistance-less world. • No energy or work is lost to the system through outside forces • For ideal machines: Work input = Work out put so: Findin = Fout dout

  7. Efficiency • Efficiency ~ ratio of work output to work input expressed in percent. • Ratio of final energy to initial energy efficiency = (Wout / Win)* 100 Or efficiency = (Ef / Ei)*100

  8. Types of Energy • Mechanical Energy • Kinetic Energy • Elastic Potential Energy • Gravitational Potential Energy • Chemical Potential Energy • Thermal (Heat) Energy

  9. Kinetic Energy-the energy an object has due to its motion KE or K = ½ m v2 KE or K – kinetic energy, J m – mass, kg V – speed, m/s

  10. Potential Energy Potential energy is the energy an object has because of its position, shape, or form

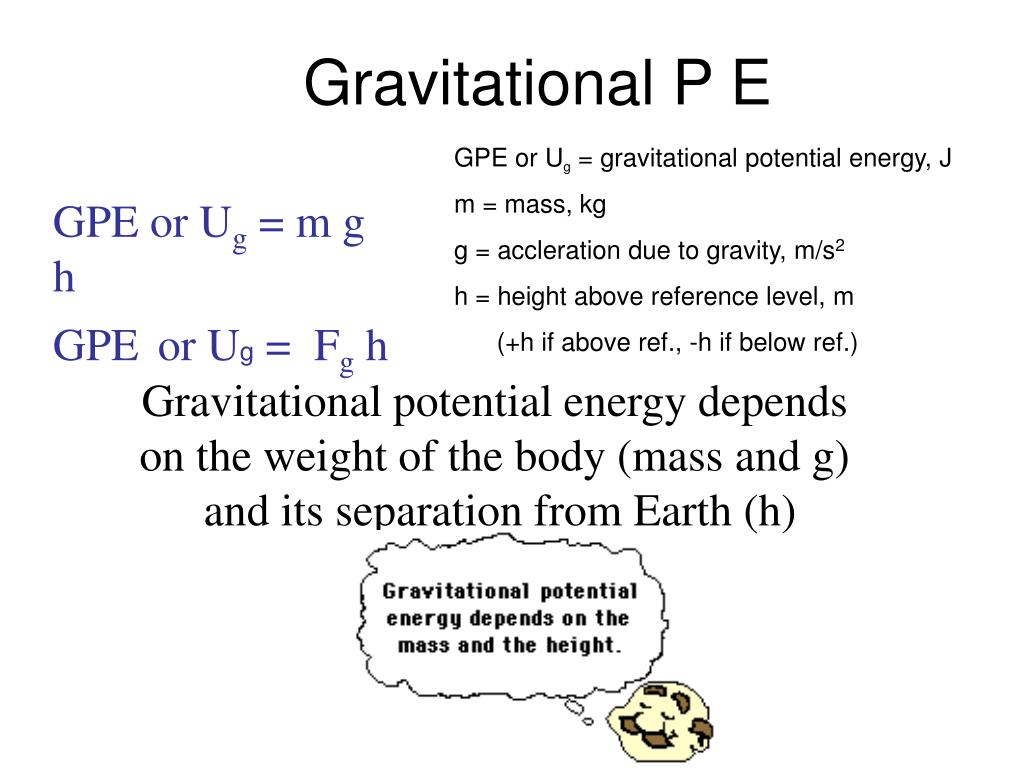

  11. Gravitational P E GPE or Ug = gravitational potential energy, J m = mass, kg g = accleration due to gravity, m/s2 h = height above reference level, m (+h if above ref., -h if below ref.) GPE or Ug = m g h GPE or Ug = Fg h Gravitational potential energy depends on the weight of the body (mass and g) and its separation from Earth (h)

  12. Elastic Potential Energy • Energy stored in an elastic object that is stretched or compressed. • An elastic object is one that can be stretched or compressed and will return to its original or relaxed length. EPE or Uel = ½ k x2 EPE or Uel - elastic potential energy, J k - the elastic or spring constant, N/m (indicates how easily a material stretches or compresses) ‘higher k, stiffer’ x - the distance that the object is stretched or compressed from its relaxed length (stretched length – relaxed length)

  13. Mechanical Energy Mechanical energy is the energy which is possessed by an object due to its motion or its stored energy of position, shape, or form Mechanical Energy = KE + PE ME = KE + GPE + EPE

  14. Law of Conservation of Energy • Energy can not be created or destroyed. • The total energy remains constant. • Energy can change forms. • Assumes a closed, isolated system. • We will only use mechanical energy. Etotal,initial = Etotal, final KEi + GPEi + EPEi = KEf + GPEf +EPEf ½ mvi2 + mghi + ½ kxi2 = ½ mvf 2 + mghf + ½ kxf 2

  15. Work-Energy Theorem If work is done on an object (by the net force), its energy is changed. The is change in energy is equal to the work done. Work = Δ KE F d = KEf – KEi F d = ½ m vf 2 – ½ m vi2 F d = ½ m (vf2 – vi2)

  16. Work Energy Theorem • When work is done, potential energy can also be changed.
