    1. m m Work, Energy, And Power Honors Physics Lecture Notes

    2. Energy Topics 5-01 Work 5-02 Kinetic Energy & the Work Energy Theorem 5-03 Gravitational Potential Energy 5-04 Spring Potential Energy 5-05 Systems and Energy Conservation 5-06 Power Energy

    3. Work The work done by a constant force is defined as the distance moved multiplied by the component of the force in the direction of displacement: Energy

    4. Work What is the correct unit of work expressed in SI units? (A) kg m2/s2 (B) kg m2/s (C) kg m/s2 (D) kg2 m/s2

    5. Work How much work did the movers do (horizontally) pushing a 160 kg crate 10.3 m across a rough floor without acceleration, if the effective coefficient of friction was 0.50?

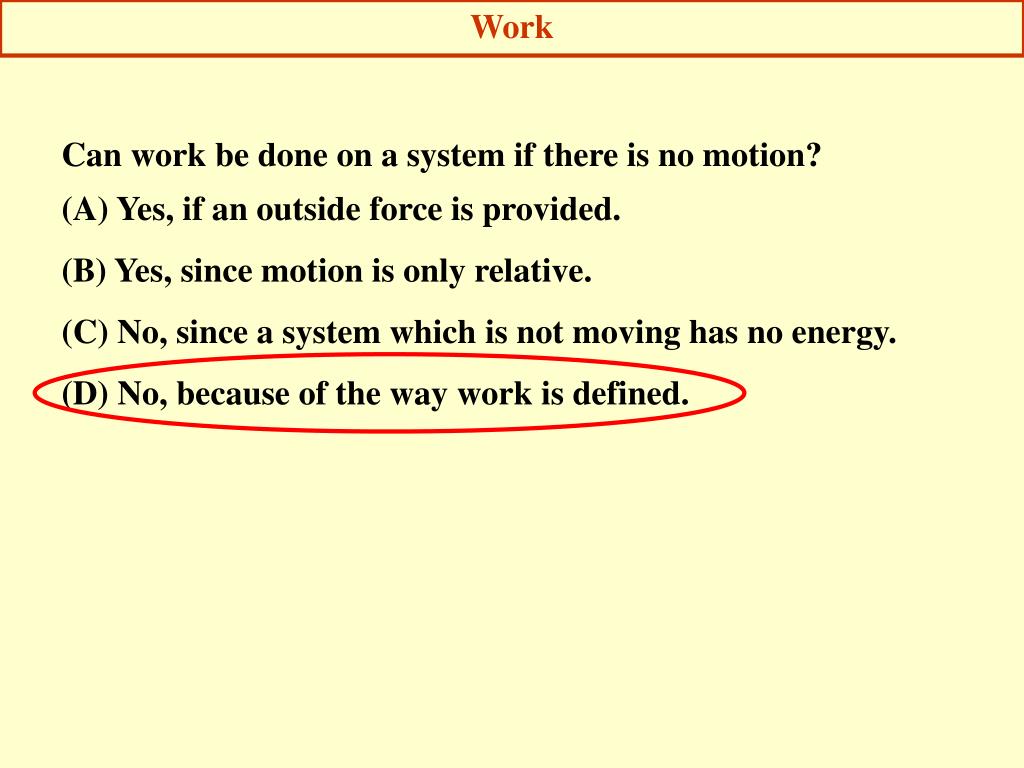

    6. Work Can work be done on a system if there is no motion? (A) Yes, if an outside force is provided. (B) Yes, since motion is only relative. (C) No, since a system which is not moving has no energy. (D) No, because of the way work is defined.

    7. Work mg m m Object falls in a gravitational field h Wg= mgh Energy

    8. Work A 50 N object was lifted 2.0 m vertically and is being held there. How much work is being done in holding the box in this position? (A) more than 100 J (B) 100 J (C) less than 100 J, but more than 0 J (D) 0 J

    9. Work v f d v Fc Work done by forces that oppose the direction of motion, such as friction, will be negative. Centripetal forces do no work, they are always perpendicular to the direction of motion. Energy

    10. Work Does a centripetal force acting on an object do work on the object? (A) Yes, since a force acts and the object moves, and work is force times distance. (B) No, because the force and the displacement of the object are perpendicular. (C) Yes, since it takes energy to turn an object. (D) No, because the object has constant speed.

    11. Work f Friction acts on moving object m m d Energy

    12. Work The area under the curve, on a Force versus position (F vs. x) graph, represents (A) work. (B) kinetic energy. (C) power. (D) potential energy.

    13. Work On a plot of Force versus position (F vs. x), what represents the work done by the force F? (A) the slope of the curve (B) the length of the curve (C) the area under the curve (D) the product of the maximum force times the maximum x

    14. Kinetic Energy and the Work Energy Theorem Kinetic Energy Force acts on a moving object vf vi F m x Energy

    15. Kinetic Energy and the Work Energy Theorem (Problem) A baseball (m = 140 g) traveling 32 m/s moves a fielder’s glove backward 25 cm when the ball is caught. What was the average force exerted by the ball on the glove?

    16. Kinetic Energy and the Work Energy Theorem The quantity is (A) the kinetic energy of the object. (B) the potential energy of the object. (C) the work done on the object by the force. (D) the power supplied to the object by the force.

    17. Kinetic Energy and the Work Energy Theorem (Problem) (a) If the KE of an arrow is doubled, by what factor has its speed increased?

    18. Kinetic Energy and the Work Energy Theorem (Problem) (b) If the speed of an arrow is doubled, by what factor does its KE increase?

    19. Kinetic Energy and the Work Energy Theorem Work done is equal to the change in the kinetic energy: • If the net work is positive, the kinetic energy increases. • If the net work is negative, the kinetic energy decreases. Energy

    20. Gravitational Potential Energy When an object is thrown upward. Positive work done by the gravitational force Negative work done by the gravitational force Earth Energy

    21. Gravitational Potential Energy • An object can have potentialenergy by virtue of its position. • Familiar examples of potential energy: • A wound-up spring • A stretched elasticband • An object at some height above the ground Energy

    22. Gravitational Potential Energy In raising a mass m to a height h, the work done by the external force is y2 Fext m h mg We therefore define the gravitational potential energy: y1 Energy

    23. Gravitational Potential Energy The quantity is (A) the kinetic energy of the object. (B) the gravitational potential energy of the object. (C) the work done on the object by the height. (D) the power supplied to the object by the force.

    24. Gravitational Potential Energy (Problem) How high will a 1.85 kg rock go if thrown straight up by someone who does 80.0 J of work on it? Neglect air resistance.

    25. x F = kx F kx 0 x Spring Potential Energy Work Energy

    26. Spring Potential Energy The restoringforce of a spring is where k is called the springconstant, and needs to be measured for each spring. The force required to compress or stretch a spring is: Energy

    27. Spring Potential Energy F Work kx 0 x The force increases as the spring is stretched or compressed further. We find that the potentialenergy of the compressed or stretched spring, measured from its equilibrium position, can be written: Energy

    28. Spring Potential Energy The quantity is (A) the kinetic energy of the object. (B) the elastic potential energy of the object. (C) the work done on the object by the displacement. (D) the power supplied to the object by the force.

    29. Spring Potential Energy (Problem) A spring (with k = 53 N/m) hangs vertically next to a ruler. The end of the spring is next to the 15 cm mark on the ruler. If a 2.5 kg mass is now attached to the end of the spring, where will the end of the spring line up with the ruler marks? Energy

    30. Systems and Energy Conservation The sum of the changes in the kinetic energy and in the potential energy is zero – the kinetic and potential energy changes are equal but opposite in sign. This allows us to define the totalmechanicalenergy: And its conservation: Energy

    31. Systems and Energy Conservation If there is nofriction, the speed of a roller coaster will depend only on its height compared to its starting height. y Energy

    32. Systems and Energy Conservation Ball dropped from rest falls freely from a height h. Find its final speed. h v Energy

    33. Systems and Energy Conservation A block of mass m compresses a spring (force constant k) a distance x. When the block is released, find its final speed. v m m x Energy

    34. Systems and Energy Conservation m When released from rest, the block slides to a stop. Find the distance the block slides. vf= 0 Friction (m) m k x d Energy

    35. Systems and Energy Conservation A block released from rest slides freely for a distance d. vi= 0 m d h m q V = ? Find the final speed of the block h = d sin(q) Energy

    36. Power Power is the rate at which work is done – In the SI system, the units of power are Watts: The difference between walking and running up these stairs is power – the change in gravitational potential energy is the same. Energy

    37. Power v F Fr d Power is also needed for acceleration and for moving against the force of gravity. The averagepower can be written in terms of the force and the averagevelocity: Energy

    38. Power (Problem) A 1000 kg sports car accelerates from rest to 20 m/s in 5.0 s. What is the average power delivered by the engine? Fnet= ma a = (20m/s – 0)/5.0s = 4.0 m/s2 Fnet= (1000 kg)(4.0 m/s2) = 4000 N P = Fvave P = (4000N)[(0 + 20 m/s)/2] P = (4000N)(10 m/s) 40,000 W Power = Energy

    39. END
