Hazard Communication



subpart z toxic hazardous substances 1910 1000 1450 fy2006
Subpart Z - Toxic & Hazardous Substances (1910.1000 - 1450)FY2006

Hazard Communication - Written program

Hazard Communication - Information & training

Hazard Communication - Training initially & for new hazards

Standard: 1910.

Hazard Communication - Material Safety Data Sheets

Hazard Communication - Label identification

  • Hazard Communication Program
  • Labels and other forms of warnings
  • Material Safety Data Sheets (MSDS)
  • Information and training
  • Health Hazards

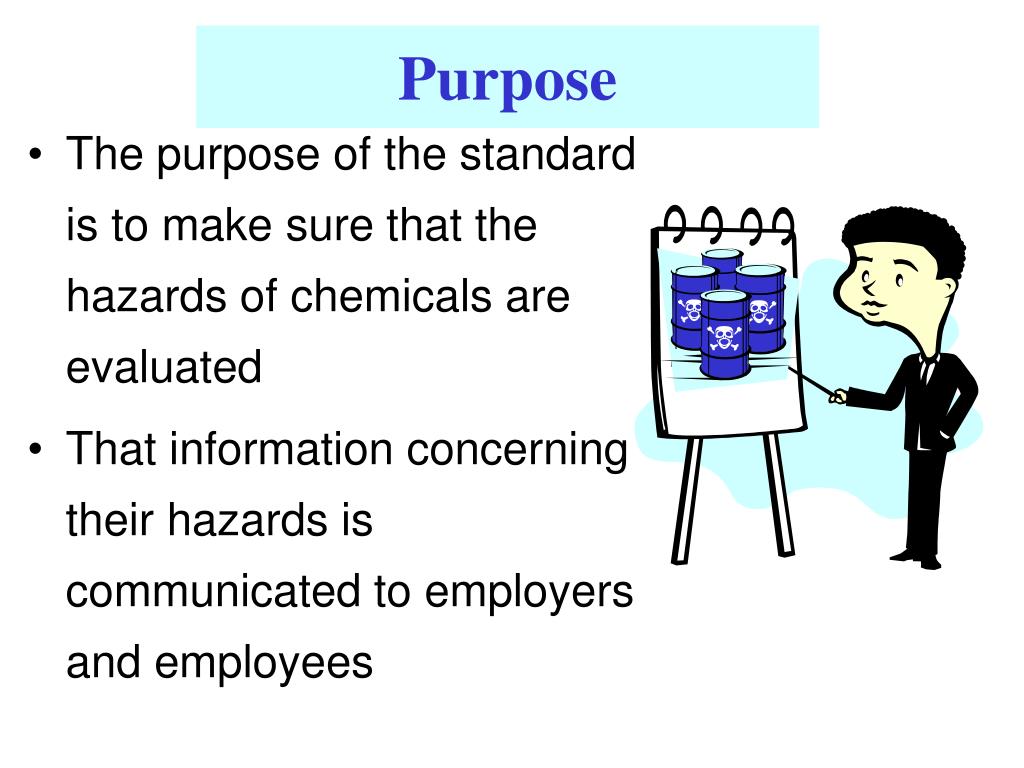

  • The purpose of the standard is to make sure that the hazards of chemicals are evaluated
  • That information concerning their hazards is communicated to employers and employees
who is covered

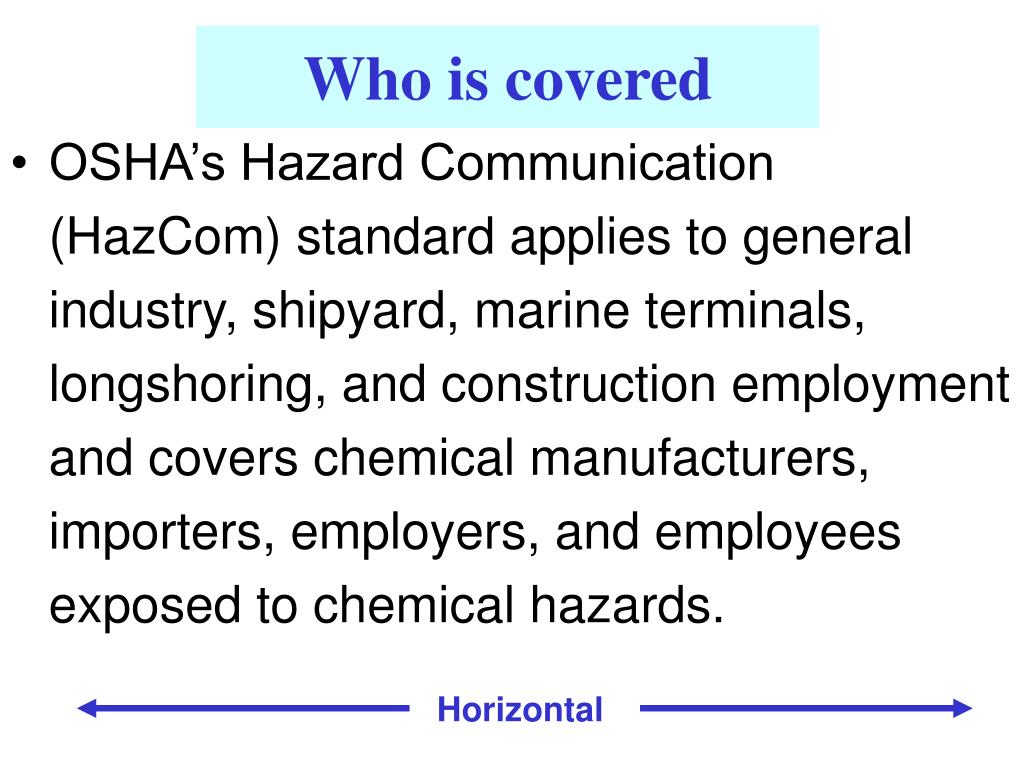

Who is covered
  • OSHA’s Hazard Communication (HazCom) standard applies to general industry, shipyard, marine terminals, longshoring, and construction employment and covers chemical manufacturers, importers, employers, and employees exposed to chemical hazards.


  • The Hazard Communication Standard (HCS) is based on a simple concept--that employees have both a need and a right to know the hazards and identities of the chemicals they are exposed to when working
  • They also need to know what protective measures are available to prevent adverse effects from occurring
  • The HCS is designed to provide employees with the information they need


employer requirements written program

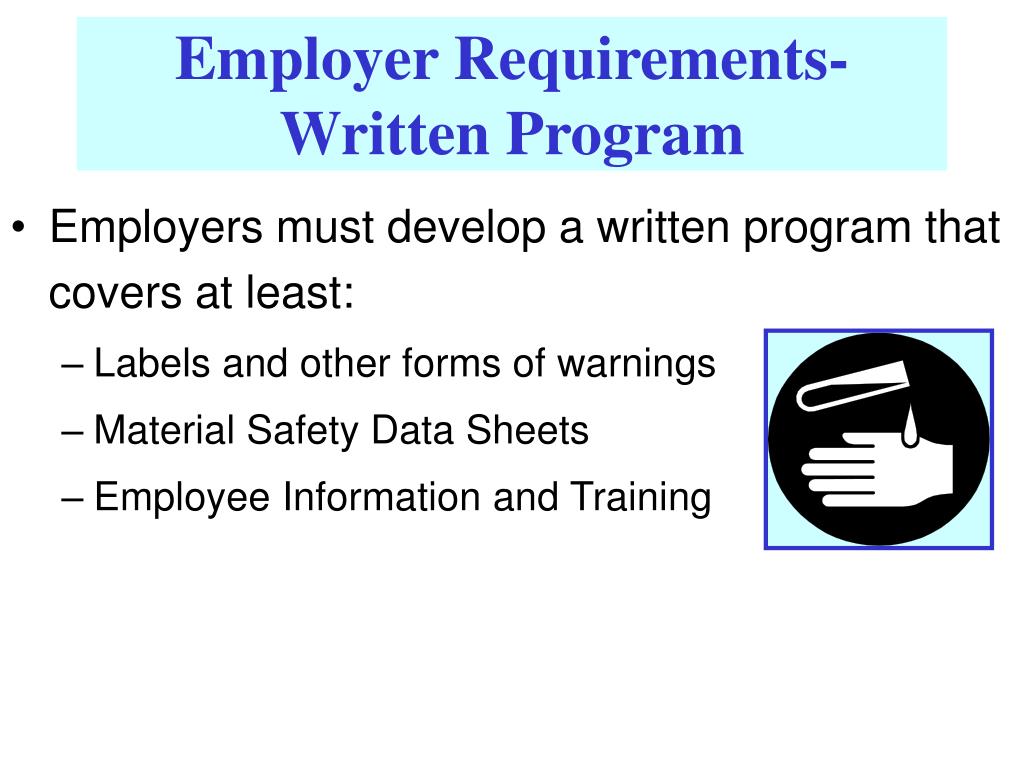

Employer Requirements-Written Program
  • Employers must develop a written program that covers at least:
    • Labels and other forms of warnings
    • Material Safety Data Sheets
    • Employee Information and Training
employer requirements written program10

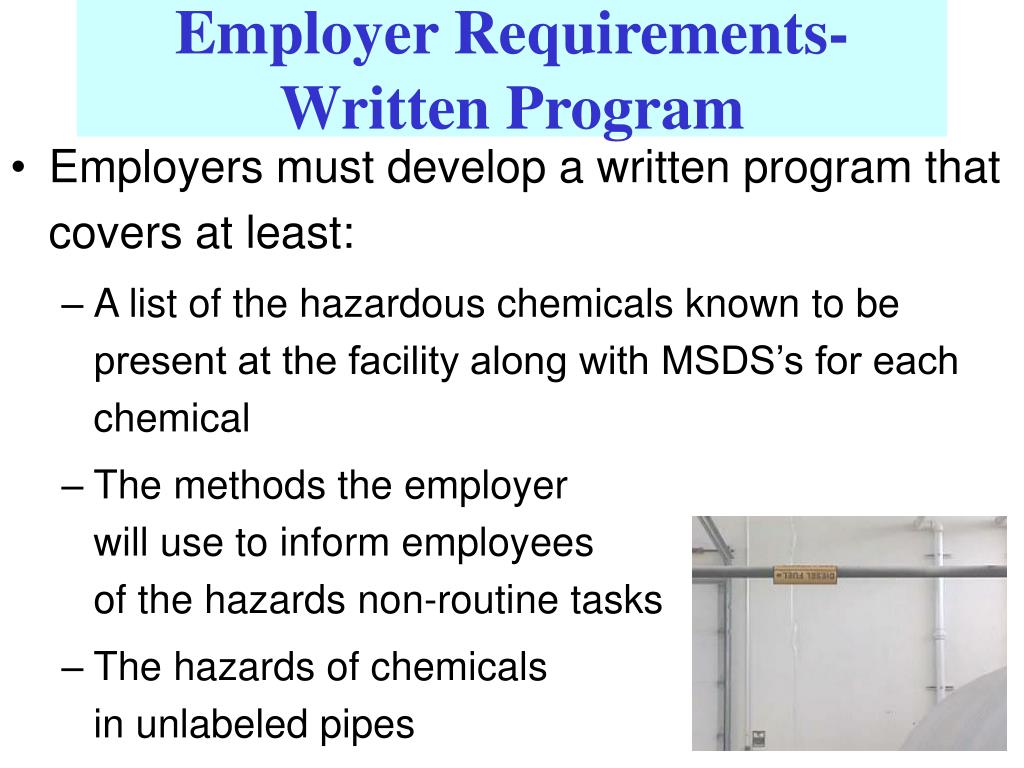

Employer Requirements-Written Program
  • Employers must develop a written program that covers at least:
    • A list of the hazardous chemicals known to be present at the facility along with MSDS’s for each chemical
    • The methods the employer will use to inform employees of the hazards non-routine tasks
    • The hazards of chemicals in unlabeled pipes
multi employer workplaces
Multi-Employer Workplaces
  • If employees of other employers could be exposed to hazardous chemicals the program must include:
    • Methods to provide contractor employees with on-site access to MSDS for each chemical those workers may be exposed to
    • The methods used to inform other employers of any precautionary measures to be taken for normal and emergency situations
    • The employers chemical labeling system
consumer products exemption
Consumer Products Exemption
  • Any consumer product as defined in the Consumer Product Safety Act where the employer can show that:
    • It is used in the workplace for the purpose intended
    • The use results in a duration and frequency of exposure which is not greater than the range of exposures that could reasonably be experienced by consumers when used for the purpose intended
written program availability
Written Program Availability
  • The employer must make the written program available, upon request, to:
    • Employees and their designated representatives
  • Where work is carried out at more than one location, the program may be kept at the main location
labels tags and markings

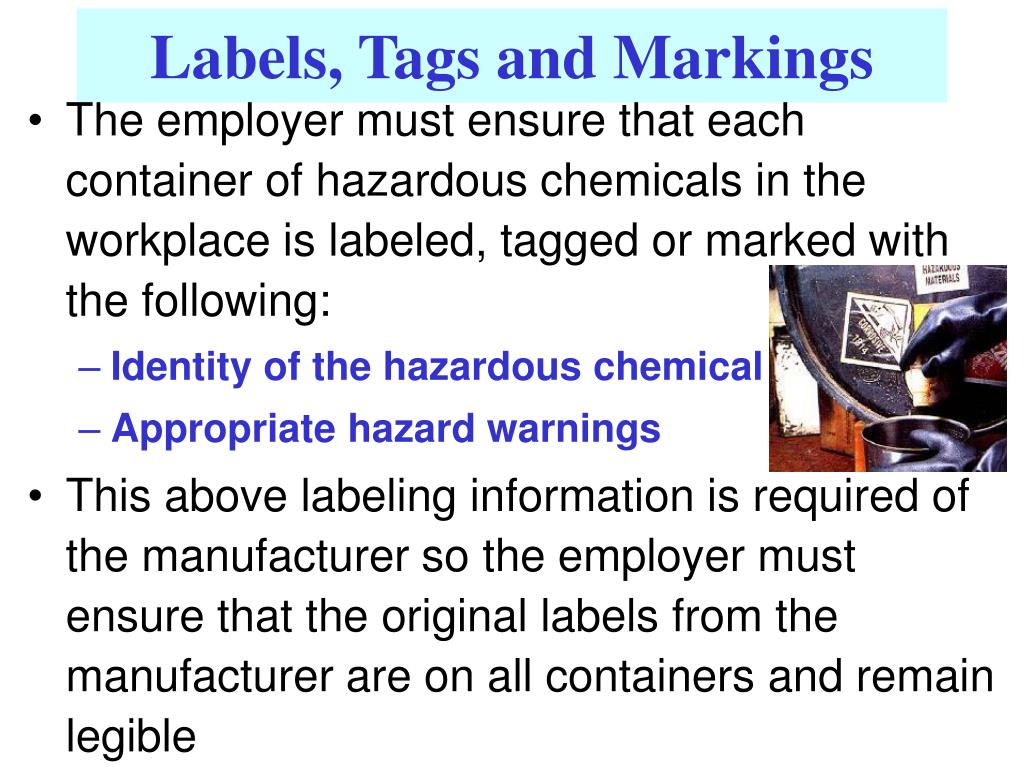

Labels, Tags and Markings
  • The employer must ensure that each container of hazardous chemicals in the workplace is labeled, tagged or marked with the following:
    • Identity of the hazardous chemical
    • Appropriate hazard warnings
  • This above labeling information is required of the manufacturer so the employer must ensure that the original labels from the manufacturer are on all containers and remain legible
labels nfpa diamond
Labels – NFPA Diamond
  • RED - Flammability
  • BLUE - Health
  • YELLOW - Reactivity
  • WHITE - Special

{NFPA – National Fire Protection Association}

labels health hazard

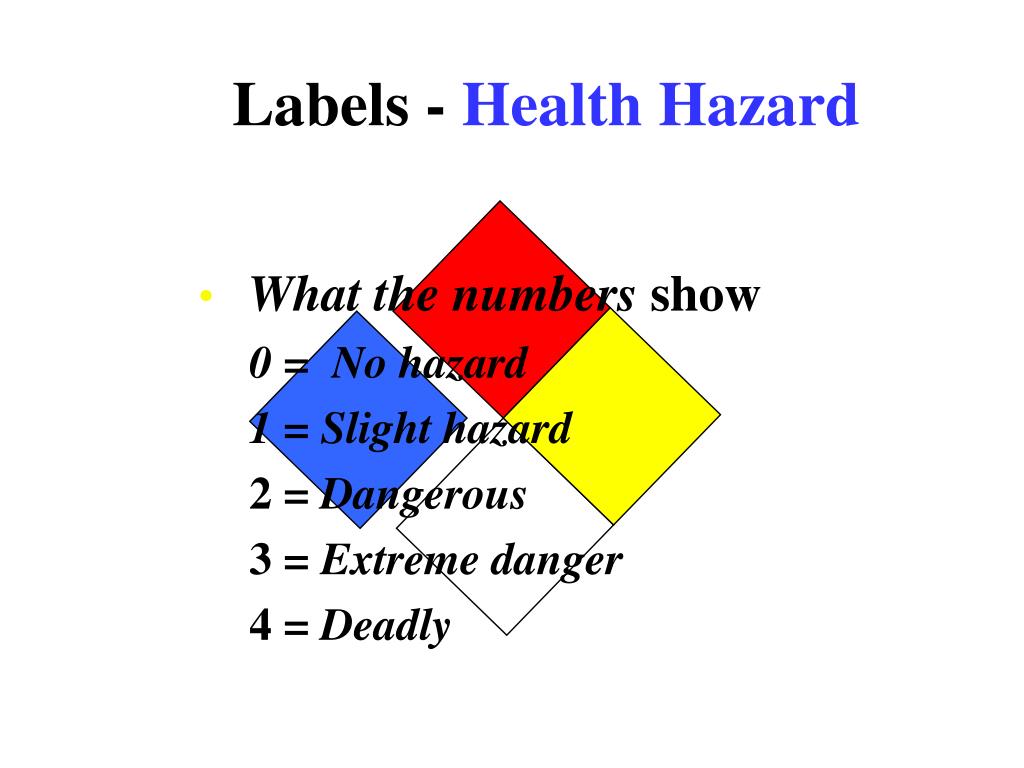

Labels - HealthHazard
  • What the numbers show

0 = No hazard

1 = Slight hazard

2 = Dangerous

3 = Extreme danger

4 = Deadly

labels flammability
Labels –Flammability
  • What the numbers show

0 = Will not burn

1 = Ignites above 200 degrees F

2 = Ignites below 200 degrees F

3 = Ignites below 100 degrees F

4 = Ignites below 73 degrees F

Based on Flash Point {the temperature at which a material gives off enough vapors to sustain ignition}

labels reactivity

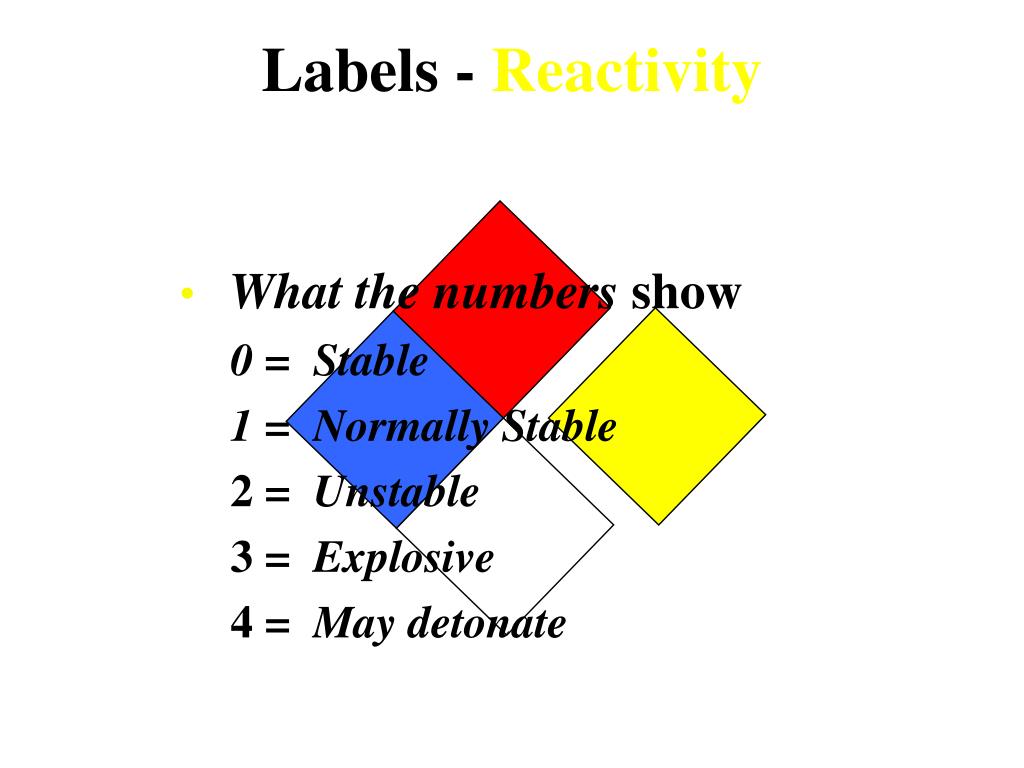

Labels - Reactivity
  • What the numbers show

0 = Stable

1 = Normally Stable

2 = Unstable

3 = Explosive

4 = May detonate


Labels - Special Hazard

  • What the letters show
    • OX= Oxidizer
    • ACID = Acid
    • ALK= Alkali
    • COR= Corrosive
    • W= Use No Water
    • = Radioactive
labels hmis





Labels - HMIS

Protective Equipment

A = safety glasses

B = safety glasses + gloves

C = safety glasses + gloves + synthetic apron

D-Z = etc.......

{HMIS – Hazard Material Information System}

container labeling exemption for portable containers

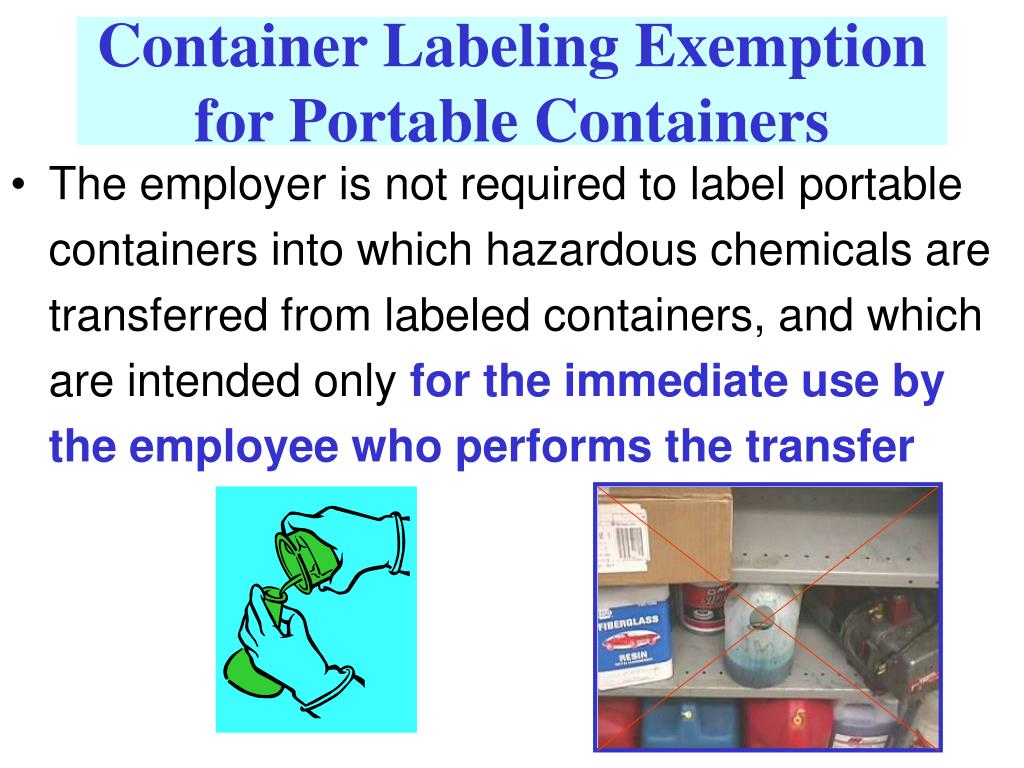

Container Labeling Exemption for Portable Containers
  • The employer is not required to label portable containers into which hazardous chemicals are transferred from labeled containers, and which are intended only for the immediate use by the employee who performs the transfer

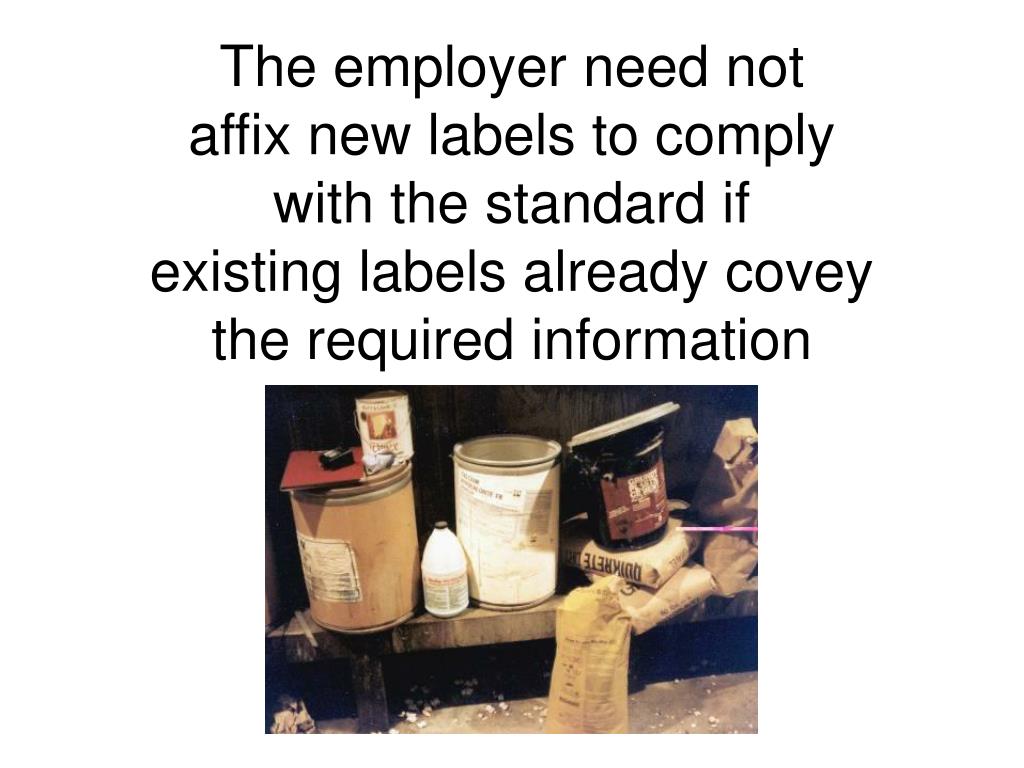

The employer need not

affix new labels to comply

with the standard if

existing labels already covey

the required information

new hazard information
New Hazard Information
  • Manufacturers, importers, distributors and employers who become newly aware of significant information regarding chemical hazards shall:
    • Revise the labels for the chemical within three months
    • Revise the MSDS for the chemical within three months
msds kept in other forms

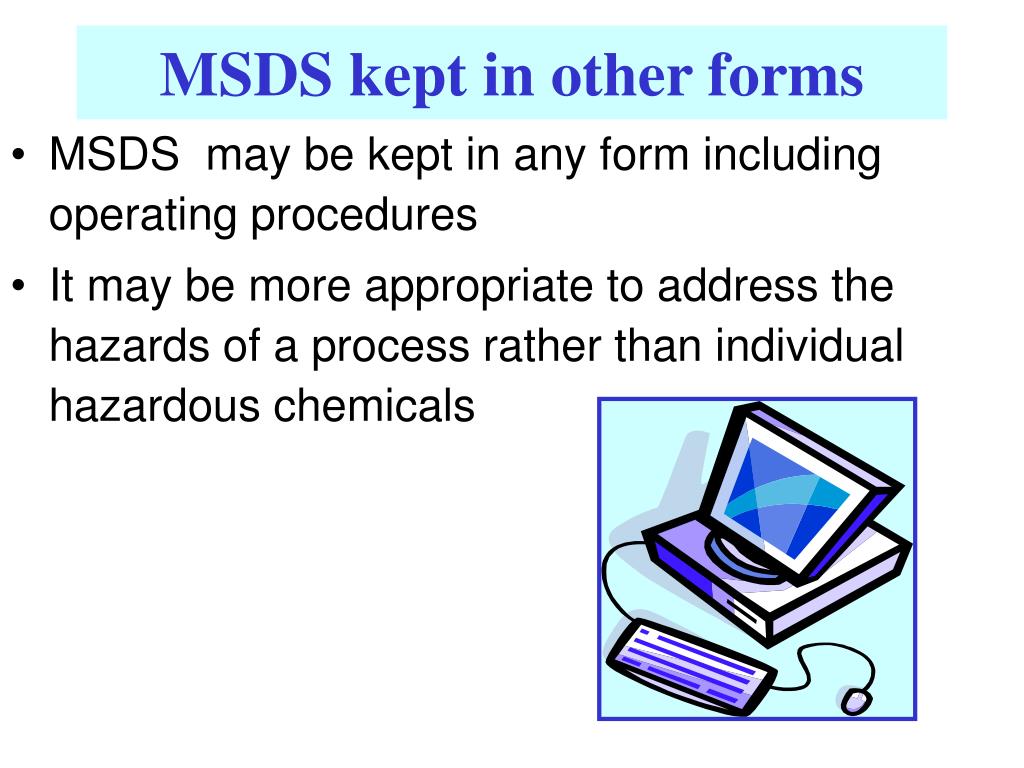

MSDS kept in other forms
  • MSDS may be kept in any form including operating procedures
  • It may be more appropriate to address the hazards of a process rather than individual hazardous chemicals
employee information and training
Employee Information and Training
  • Employers must provide employees information and training on hazardous chemicals in their work area:
    • At the time of their initial assignment
    • Whenever a new physical or health hazard the employees have not previously been trained about is introduced into their work area
  • Training may cover categories of hazards
employee information
Employee Information
  • Employers must inform employees:
    • Of the training requirements of this section (1910.1200 (h) Employee information and training.);
    • Any operations in their work area where hazardous chemicals are present;
    • The location and availability of the written hazard communication program
employee training
Employee Training
  • Employee training shall include at least:
    • The means to detect the presence or release of a hazardous chemical in the work area
    • The physical and health hazards of chemicals in the work area
    • Measures employees can take to protect themselves
    • Details of the employers specific program



chemical exposure severity duration
Chemical ExposureSeverity & Duration
  • “Acute” effects usually occur rapidly as a result of short-term exposures, and are of short duration
  • “Chronic” effects generally occur as a result of long-term exposure, and are of long duration

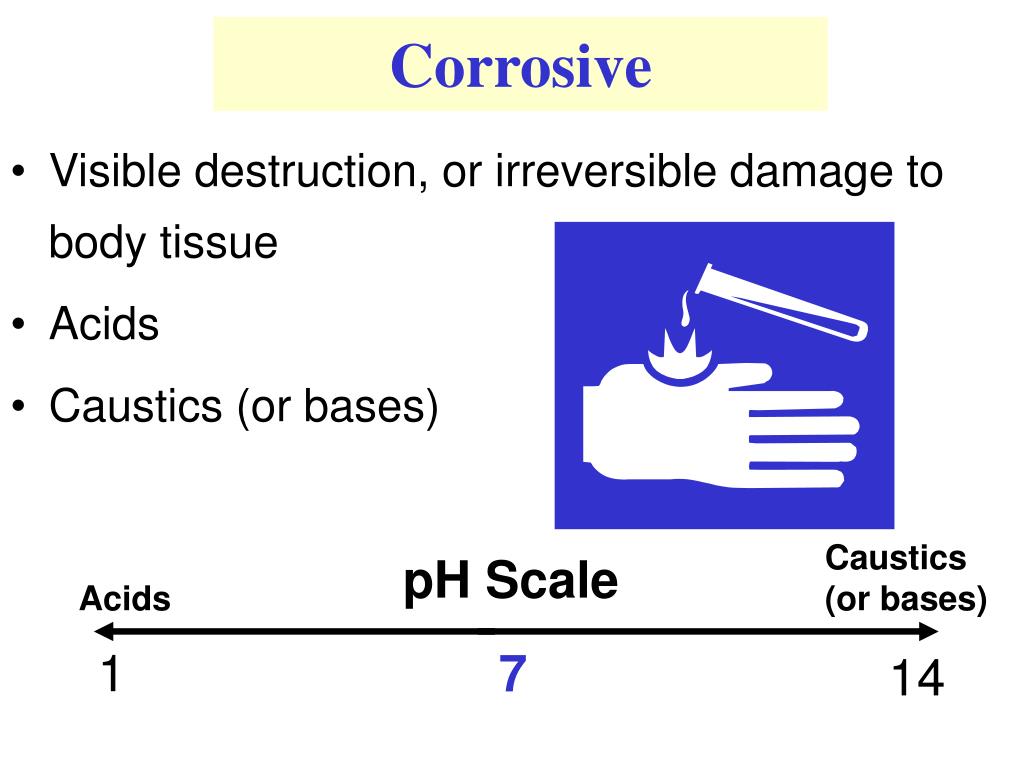

  • Visible destruction, or irreversible damage to body tissue
  • Acids
  • Caustics (or bases)


(or bases)

pH Scale

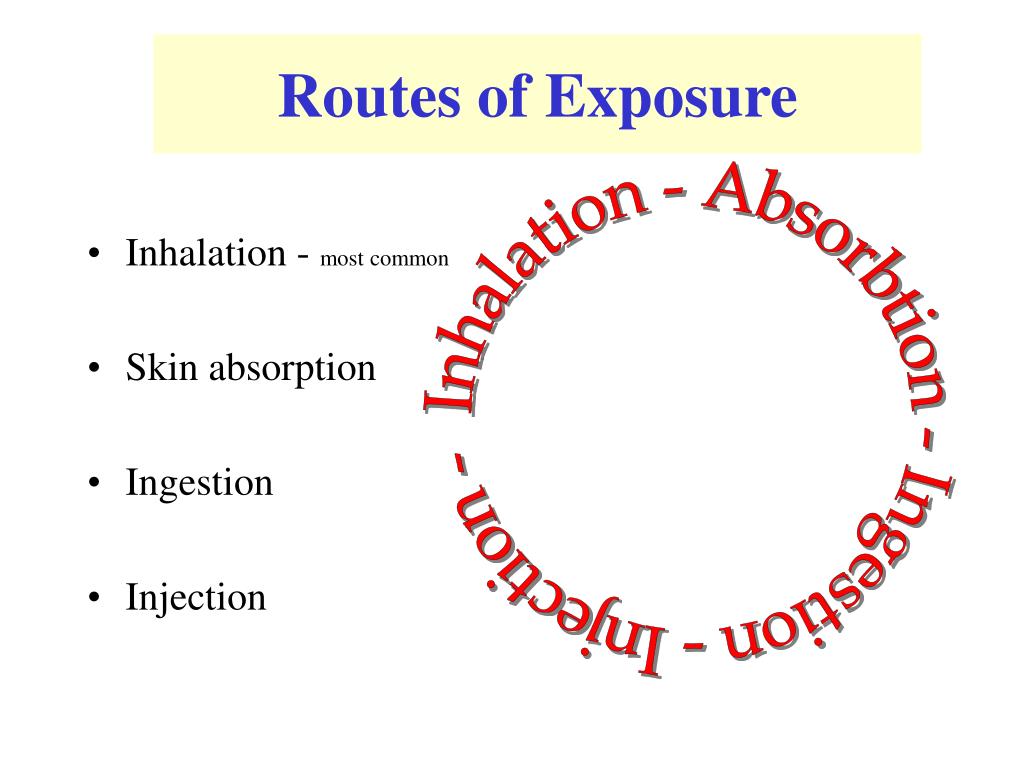

Routes of Exposure

Inhalation - Absorbtion - Ingestion - Injection -

  • Inhalation - most common
  • Skin absorption
  • Ingestion
  • Injection

Health Hazards

Toxicity vs. hazard - toxicity is used to describe the ability of the substance to cause a harmful effect. Everything is toxic at some dose.


Health Hazards

Toxicity vs. Dose - There is a balance between toxicity and dose. Dose is the amount of something the individual is exposed to or comes in contact with. The lower the toxicity, the greater the dose that can be tolerated without ill effects. The greater the toxicity, the lower the dose that can be tolerated without ill effects.


Chemical Exposure Limits

  • Time Weighted Average (TWA) based on an 8 hour day.
  • Ceiling Limits based on maximum exposure.
  • Exposure Limits are established for all chemicals.

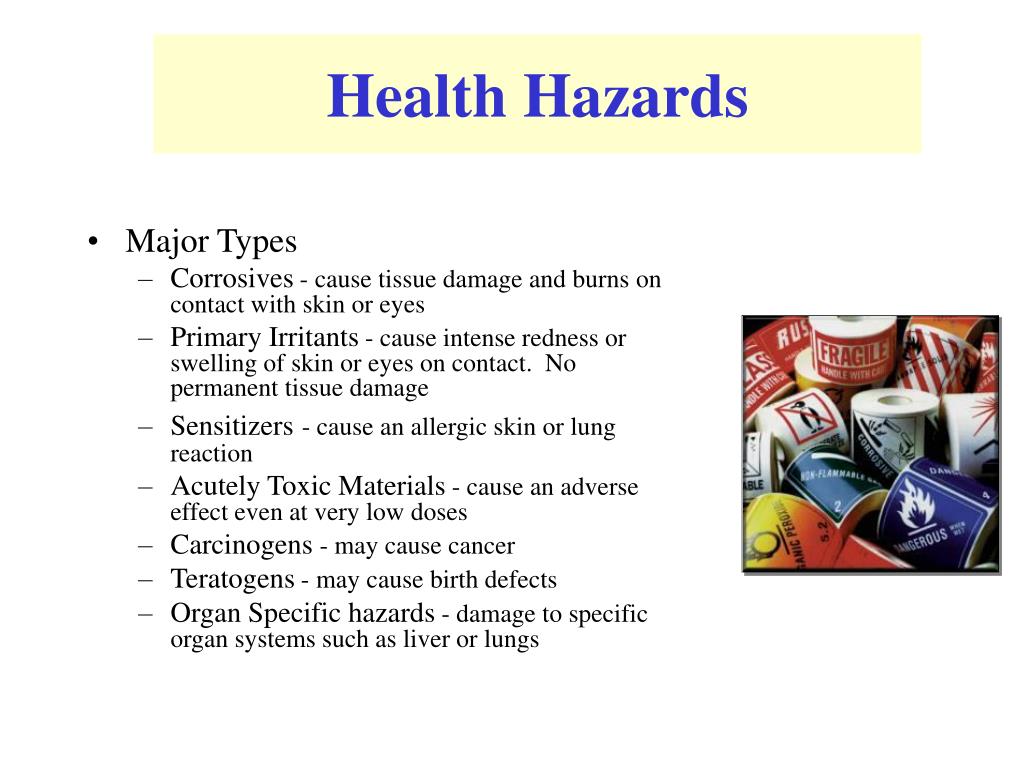

Major Types

Corrosives - cause tissue damage and burns on contact with skin or eyes

Primary Irritants - cause intense redness or swelling of skin or eyes on contact. No permanent tissue damage

Sensitizers- cause an allergic skin or lung reaction

Acutely Toxic Materials - cause an adverse effect even at very low doses

Carcinogens - may cause cancer

Teratogens - may cause birth defects

Organ Specific hazards - damage to specific organ systems such as liver or lungs

Health Hazards


Health Hazards

  • Training and communication - knowing how to work safely with chemicals that pose a hazard - i.e. bulletins, MSDS, etc.. THE RIGHT TO KNOW
  • Environmental monitoring - Industrial Hygiene air sampling
  • Personal monitoring - check yourself and co-workers for symptoms - i.e. skin rashes, eye or throat irritation, strong odors
chemicals used during sanitation

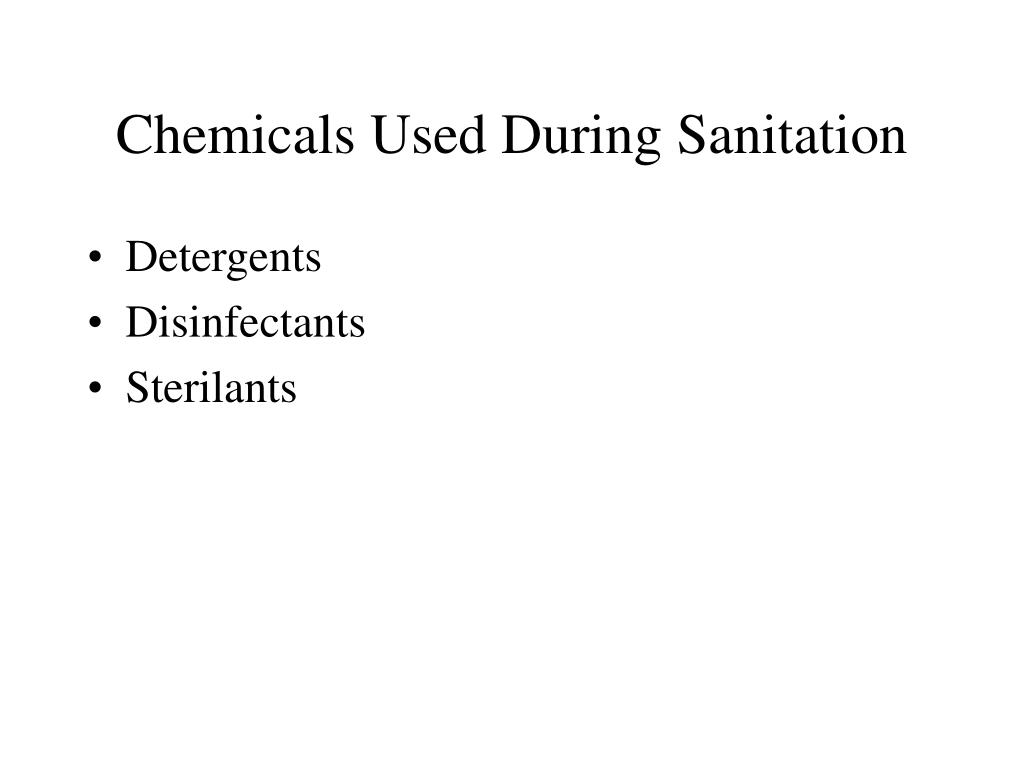

Chemicals Used During Sanitation
  • Detergents
  • Disinfectants
  • Sterilants
general characteristics of detergents
General Characteristics of Detergents

ALCOHOLS (Isopropyl or Ethyl Alcohol)

Wide germicidal activity, non corrosive, but poses a fire hazard.

Limited residual activity due to evaporation.

Alcohols provide limited activity in the presence of organic matter.

Not considered effective against bacterial or fungal spores.

Excellent for disinfecting instruments or other small objects.

Too expensive for general use in the hatchery.

Must use as a 70-95% concentration for effectiveness.

HALOGENS (Iodines or hypochlorites)

Provide wide germicidal activity but are corrosive.

Limited activity when in the presence of organic matter.

Poor residual activity, low toxicity, but may stain surfaces.

Not effective as sporocidal agents.

Effective at low concentrations for disinfecting clean, small objects.

Low cost but requires frequent applications.

general characteristics of detergents41

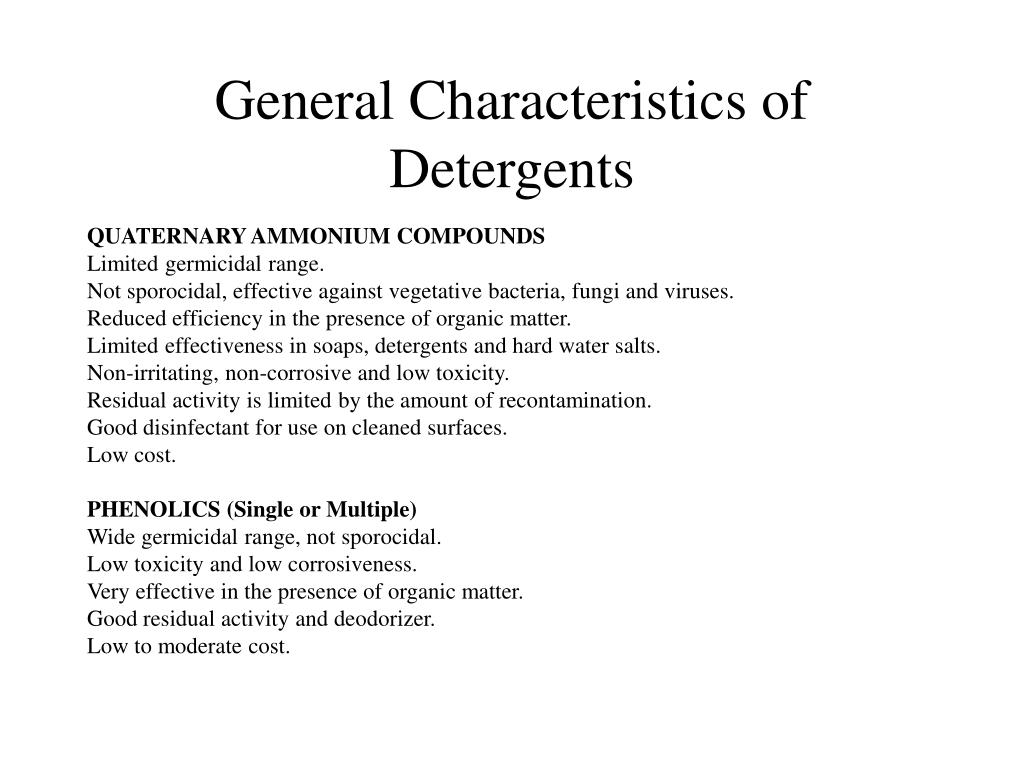

General Characteristics of Detergents


Limited germicidal range.

Not sporocidal, effective against vegetative bacteria, fungi and viruses.

Reduced efficiency in the presence of organic matter.

Limited effectiveness in soaps, detergents and hard water salts.

Non-irritating, non-corrosive and low toxicity.

Residual activity is limited by the amount of recontamination.

Good disinfectant for use on cleaned surfaces.

Low cost.

PHENOLICS (Single or Multiple)

Wide germicidal range, not sporocidal.

Low toxicity and low corrosiveness.

Very effective in the presence of organic matter.

Good residual activity and deodorizer.

Low to moderate cost.

general characteristics of detergents42
General Characteristics of Detergents

COAL TAR DISTILLATES ( Cresol and Cresylic Acid)

Wide germicidal activity, not sporocidal.

Corrosive and toxic at high concentrations.

Excellent residual activity with heavy odor.

Highly efficient in presence of organic matter.

Not well suited for use near eggs or chicks due to noxious gases.

Moderately expensive.

ALDEHYDES (Glutaraldehyde)

Wide germicidal activity, sporocidal and fungicidal.

Slight to moderate efficiency in presence of organic matter.

Slight residual activity.

Moderately toxic.

Moderate cost.

general characteristics of detergents43
General Characteristics of Detergents

OXIDIZING AGENTS (Hydrogen peroxide, Potassium Permanganate)

Moderate to wide germicidal activity, not sporocidal.

Rendered ineffective in the presence of organic matter.

Moderately corrosive, limited toxicity.

Poor to limited residual activity.

More valuable as a cleansing and deodorizing agent.

Moderate cost.


Material Safety Data Sheets (MSDS)

are one of the most important tools

available to employers

for providing information, and protection

to workers from hazardous chemicals

which are used in the workplace.

Material Safety Data Sheets


1910 1200 g 2 msds required information
Identity of the chemical

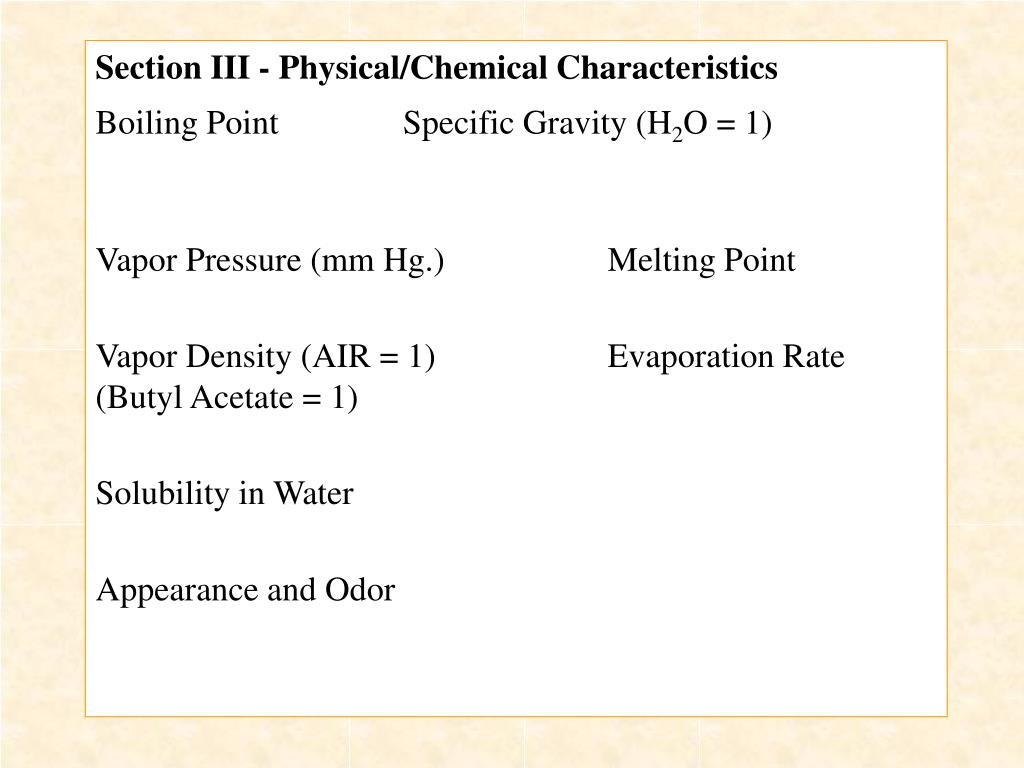

Physical and chemical characteristics

Physical hazards

Chemical hazards

Primary routes of entry

PEL’s or other exposure limits

Control measures

Emergency procedures

Whether the hazardous chemical is listed in the National Toxicology Program (NTP) Annual Report on Carcinogens

precautions for safe handling and use

Date of preparation

Name, address and telephone of the manufacturer

1910.1200 (g)(2) MSDS, required information

Material Safety Data Sheet U.S. Department of Labor

May be used to comply with Occupational Safety and Health Administration

OSHA's Hazard Communication Standard, (Non-Mandatory Form)

29 CFR 1910.1200. Standard must be consulted for specific requirements.

Form Approved

OMB No. 1218-0072

IDENTITY (As Used on Label and List) Note: Blank spaces are not permitted. If any item is not applicable, or no information is available, the space must be marked to indicate that.

Section I

Manufacturer's Name Emergency Telephone Number

Address (Number, Street, City, State, and ZIP Code) Telephone Number for Information

Date Prepared Signature of Preparer (optional)


Section II - Hazard Ingredients/Identity Information

Hazardous Components (Specific Chemical Identity;

Common Name(s)) OSHA PEL ACGIH TLV Other


Recommended %(optional)


Section III - Physical/Chemical Characteristics

Boiling Point Specific Gravity (H2O = 1)

Vapor Pressure (mm Hg.) Melting Point

Vapor Density (AIR = 1) Evaporation Rate(Butyl Acetate = 1)

Solubility in Water

Appearance and Odor


Section IV - Fire and Explosion Hazard Data

Flash Point (Method Used) Flammable Limits LEL UEL

Extinguishing Media

Special Fire Fighting Procedures

Unusual Fire and Explosion Hazards


Section V - Reactivity Data

Stability Unstable Conditions to Avoid


Incompatibility (Materials to Avoid)

Hazardous Decomposition or Byproducts

HazardousPolymerization May Occur Conditions to Avoid

Will Not Occur


Section VI - Health Hazard Data

Route(s) of Entry: Inhalation? Skin? Ingestion?

Health Hazards (Acute and Chronic)

Carcinogenicity: NTP? IARC Monographs? OSHA Regulated?

Signs and Symptoms of Exposure

Medical ConditionsGenerally Aggravated by Exposure

Emergency and First Aid Procedures


Section VII - Precautions for Safe Handling and Use

Steps to Be Taken in Case Material is Released or Spilled

Waste Disposal Method

Precautions to Be taken in Handling and Storing

Other Precautions


Section VIII - Control Measures

Respiratory Protection (Specify Type)

Ventilation Local Exhaust Special

Mechanical (General) Other

Protective Gloves Eye Protection

Other Protective Clothing or Equipment

Work/Hygienic Practices

identify hazardous chemicals in the workplace
Identify hazardous chemicals in the workplace.
  • Compile a complete list of the potentially hazardous chemicals in the workplace
  • Determine if you have received material safety data sheets for all of them
  • If any are missing, contact your supplier and request one
  • You should not allow employees to use any chemicals for which you have not received an MSDS
health hazard controls
Health Hazard Controls
  • Product substitution
  • Ventilation
  • PPE
osha s checklist
OSHA’s Checklist

Are employees trained in the safe handling practices of hazardous chemicals such as acids, caustics, ammonia etc? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Is employee exposure to chemicals kept within acceptable levels? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments:Are eye wash fountains and safety showers provided in areas where corrosive chemicals are handled? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Are all containers, such as vats, and storage tanks labeled as to their contents and with appropriate hazard warnings? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Are flammable or toxic chemicals kept in closed containers when not in use? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Are chemical piping systems clearly marked as to their content? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Have standard operating procedures been established, and are they being followed when cleaning up chemical spills? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments:

Are employees prohibited from eating in areas where hazardous chemicals are present? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments:

osha s checklist57
OSHA’s Checklist

If hazardous substances are used in the processes, is there a medical or biological monitoring system in operation? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Are the employer and employees aware of the Threshold Limit Values or Permissible Exposure Limits of airborne contaminants and physical agents used in your workplace? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Have control procedures been instituted for hazardous materials, where appropriate, such as respirators, ventilation systems, and handling practices? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Whenever possible, are hazardous substances handled in properly designed and exhausted booths or similar locations? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Do you use general dilution or local exhaust ventilation systems to control dusts (feathers and feces), vapors, gases, fumes, smoke, solvents or mists which may be generated in your workplace? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Do employees complain about dizziness, headaches, nausea, irritation, or other factors of discomfort when they are exposed to dusts (feathers and feces), vapors, gases, fumes, smoke, solvents or mists? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments:

osha s checklist58
OSHA’s Checklist

Is there a dermatitis problem? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Do employees complain about dryness, irritation, or sensitization of the skin? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Has employer utilized an industrial hygienist or environmental health specialist to evaluate the operation? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: If internal combustion engines are used, is carbon monoxide kept within acceptable levels? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Is vacuuming used, rather than blowing or sweeping dusts whenever possible for clean-up?[  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments: Are materials which give off toxic, asphyxiant, or anesthetic vapors or fumes, stored in remote or isolated locations when not in use, e.g. bulk ammonia storage? [  ]Always  [  ]Usually [  ]Sometimes  [  ]Never [  ]N/A Comments:

cpl 2 2 38d
CPL 2-2.38D




  • March 30, 1998
  • Inspection Procedures for the Hazard Communication Standard
  • Manufacturers must assess hazards of chemicals.
  • Distributors must transmit hazard information to employers.
  • Employers must provide information to workers.
