  1. Presenting Ikôn Rugged PDA from Psion Teklogix Leonardo Junco – Technical Consultant

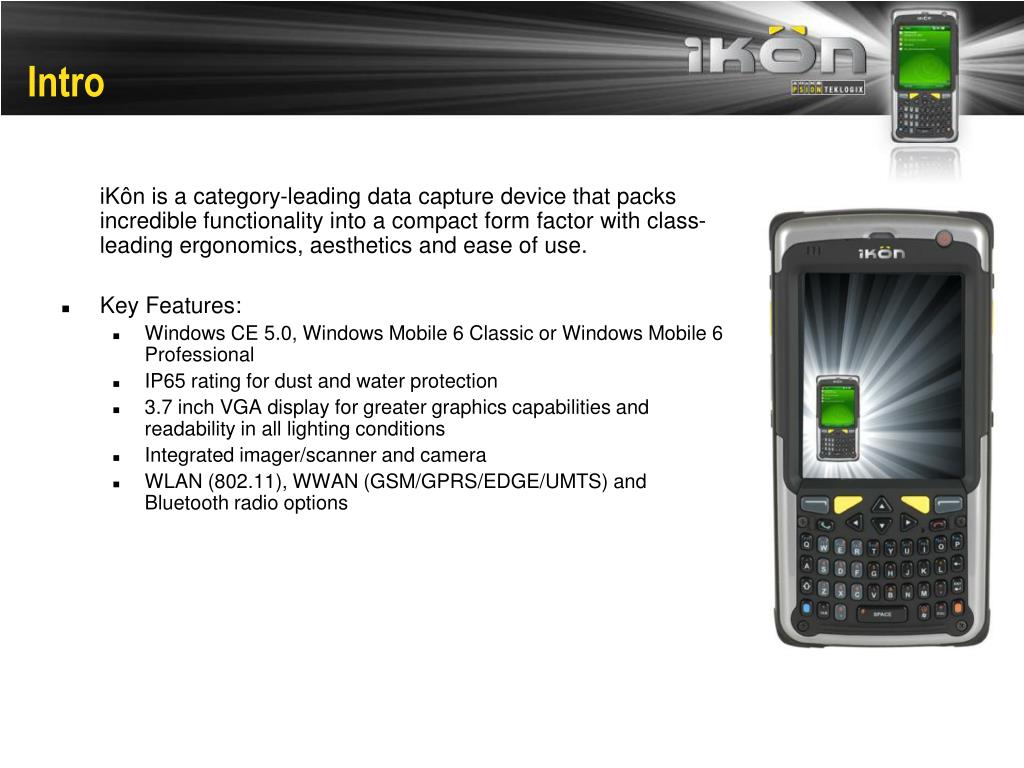

  2. Intro iKôn is a category-leading data capture device that packs incredible functionality into a compact form factor with class-leading ergonomics, aesthetics and ease of use. • Key Features: • Windows CE 5.0, Windows Mobile 6 Classic or Windows Mobile 6 Professional • IP65 rating for dust and water protection • 3.7 inch VGA display for greater graphics capabilities and readability in all lighting conditions • Integrated imager/scanner and camera • WLAN (802.11), WWAN (GSM/GPRS/EDGE/UMTS) and Bluetooth radio options

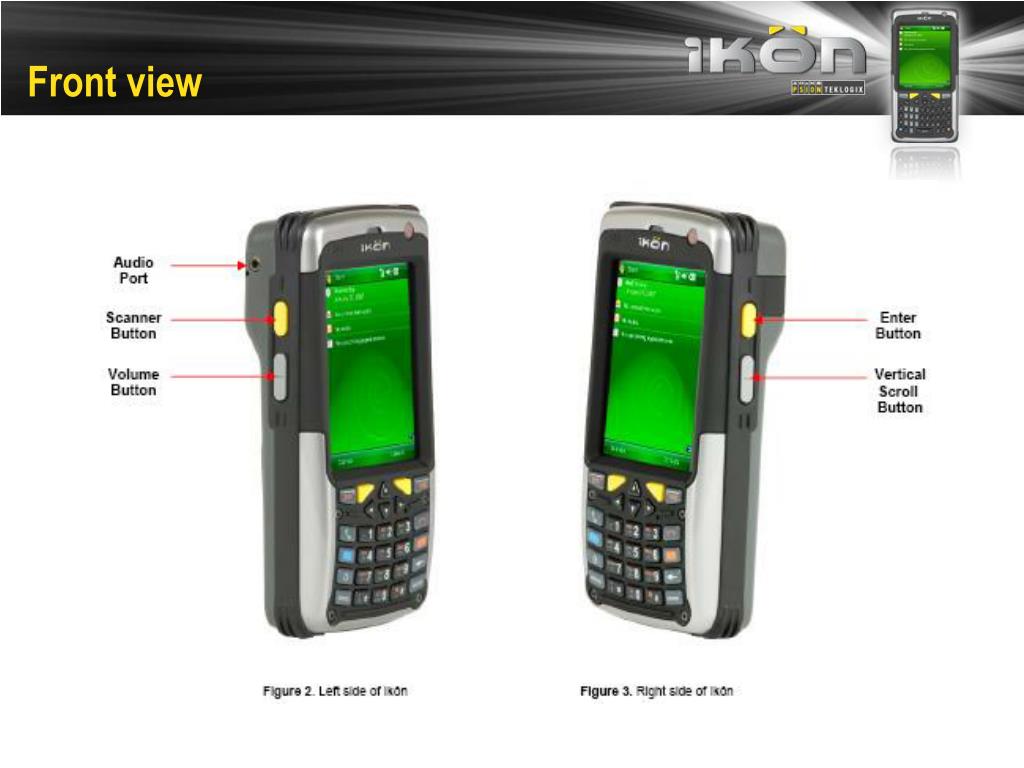

  3. Front view

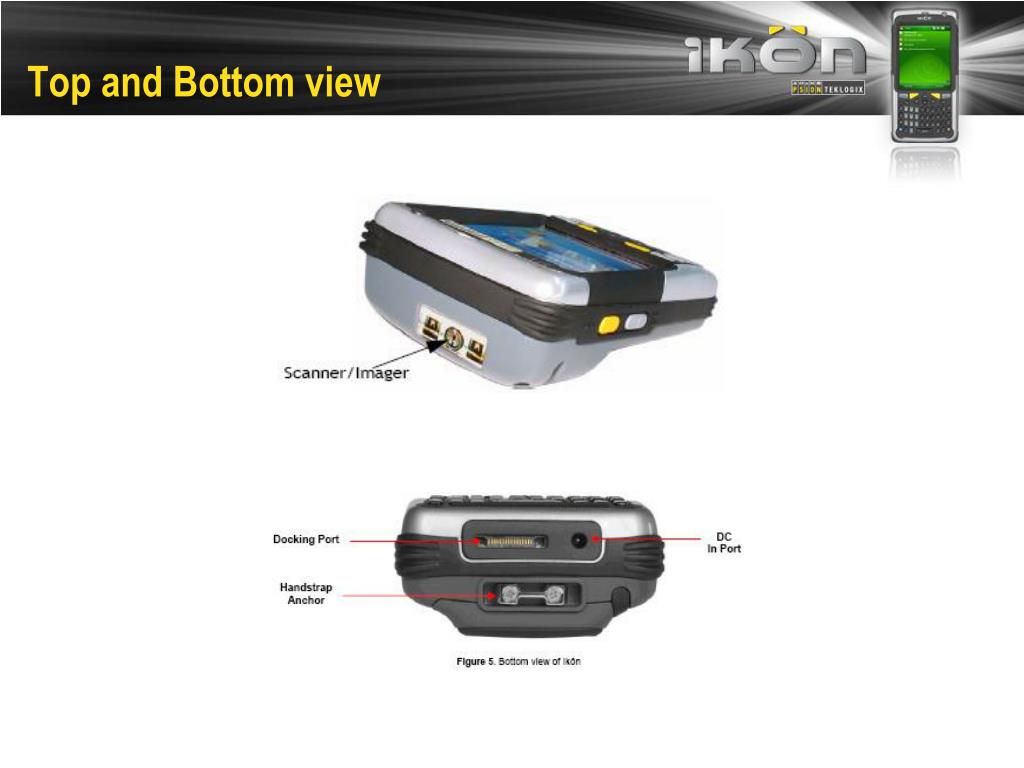

  4. Top and Bottom view

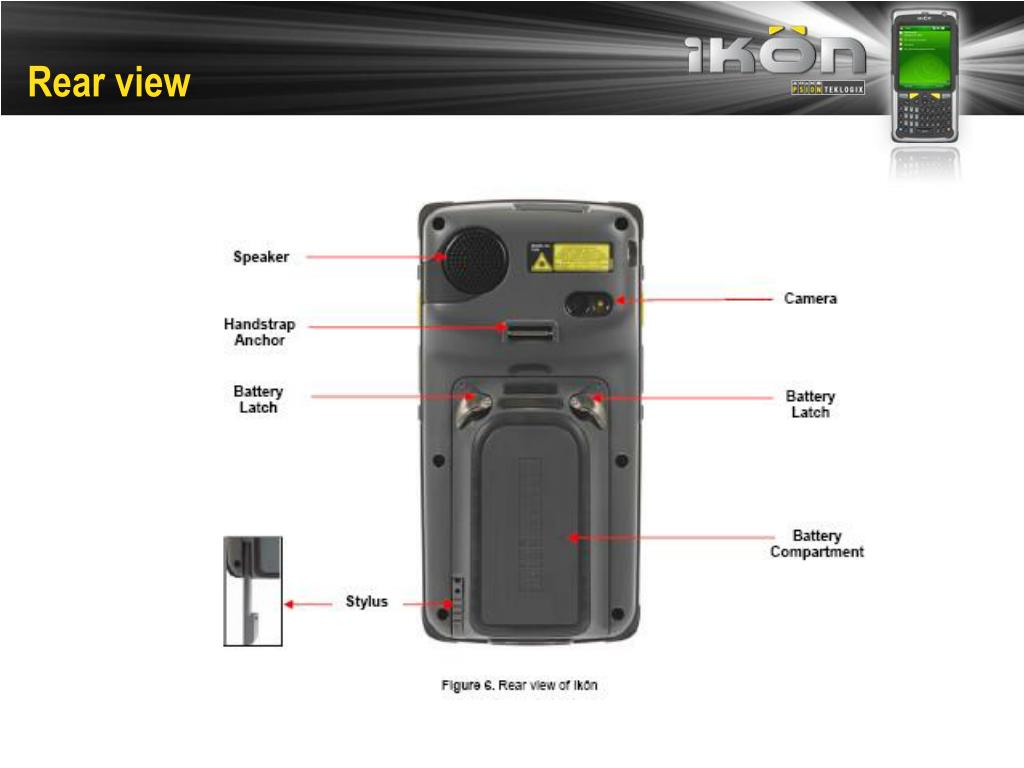

  5. Rear view

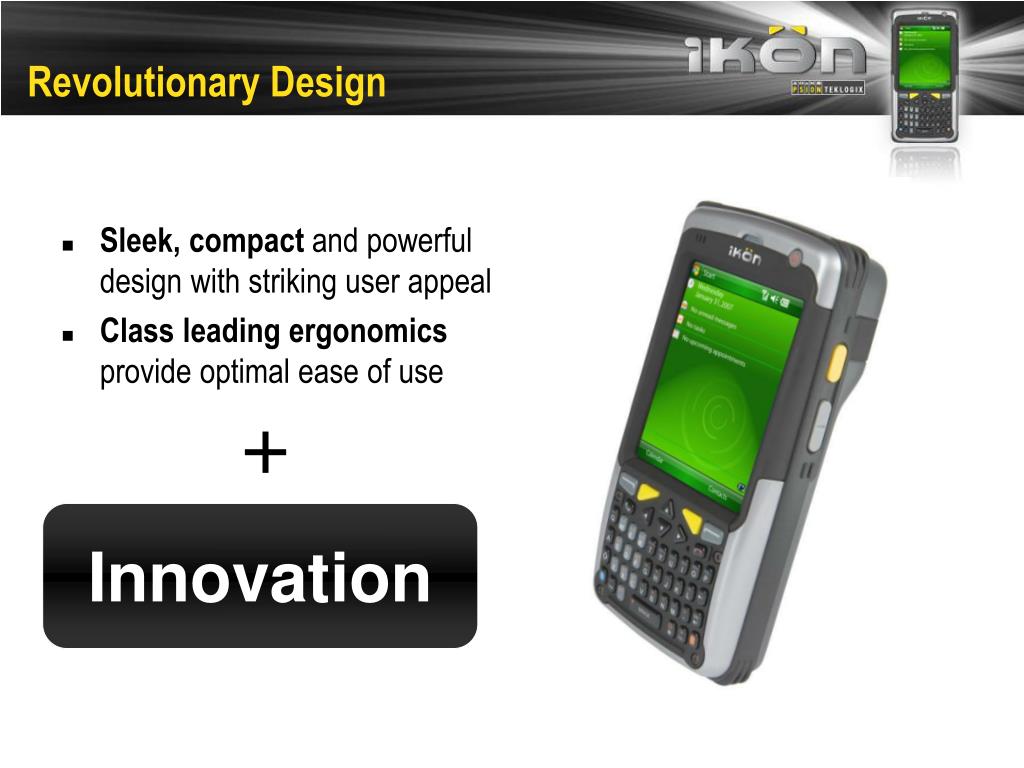

  6. Revolutionary Design • Sleek, compact and powerful design with striking user appeal • Class leading ergonomics provide optimal ease of use + Innovation

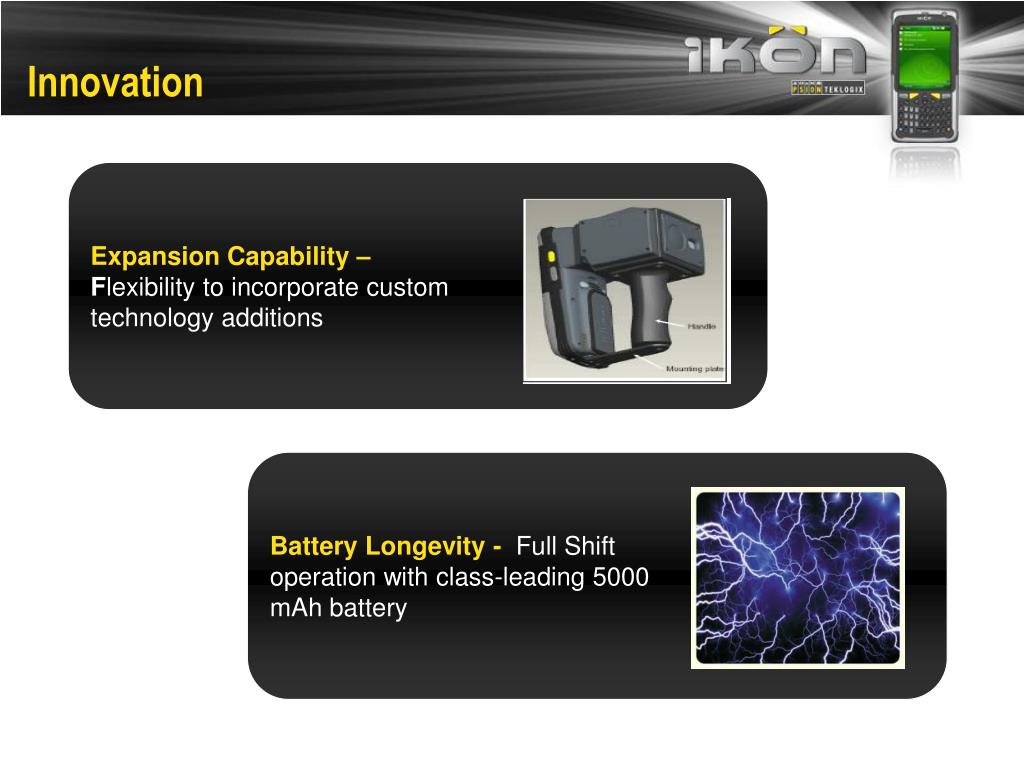

  7. Innovation Expansion Capability – Flexibility to incorporate custom technology additions Battery Longevity - Full Shift operation with class-leading 5000 mAh battery

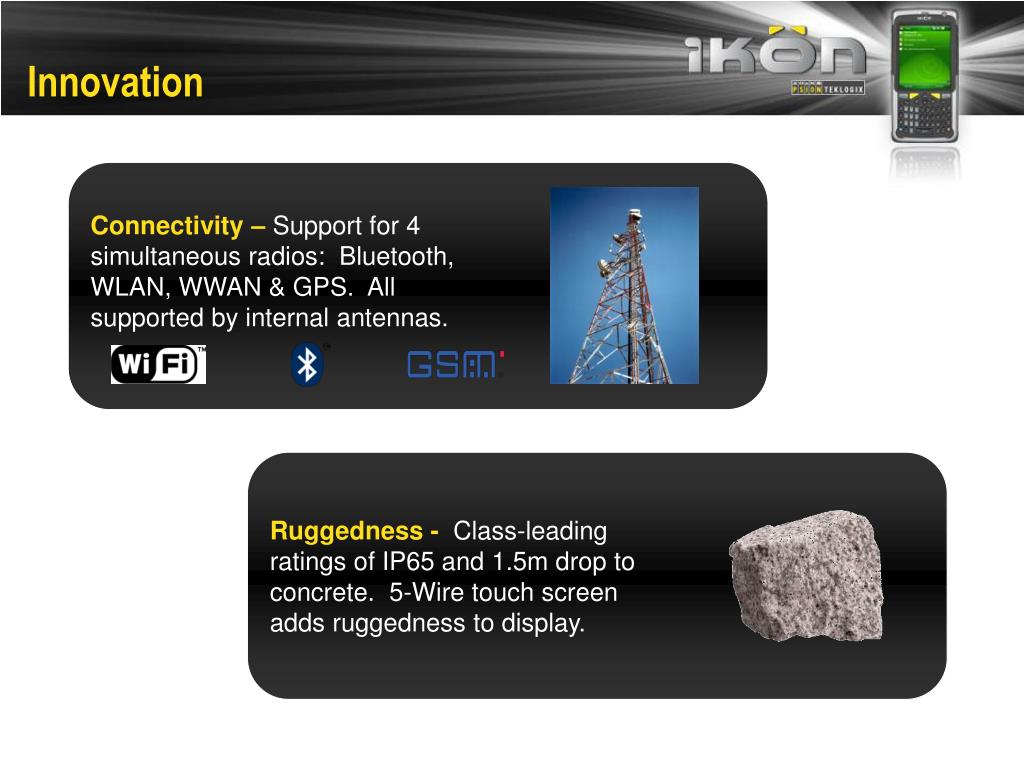

  8. Innovation Connectivity –Support for 4 simultaneous radios: Bluetooth, WLAN, WWAN & GPS. All supported by internal antennas. Ruggedness - Class-leading ratings of IP65 and 1.5m drop to concrete. 5-Wire touch screen adds ruggedness to display.

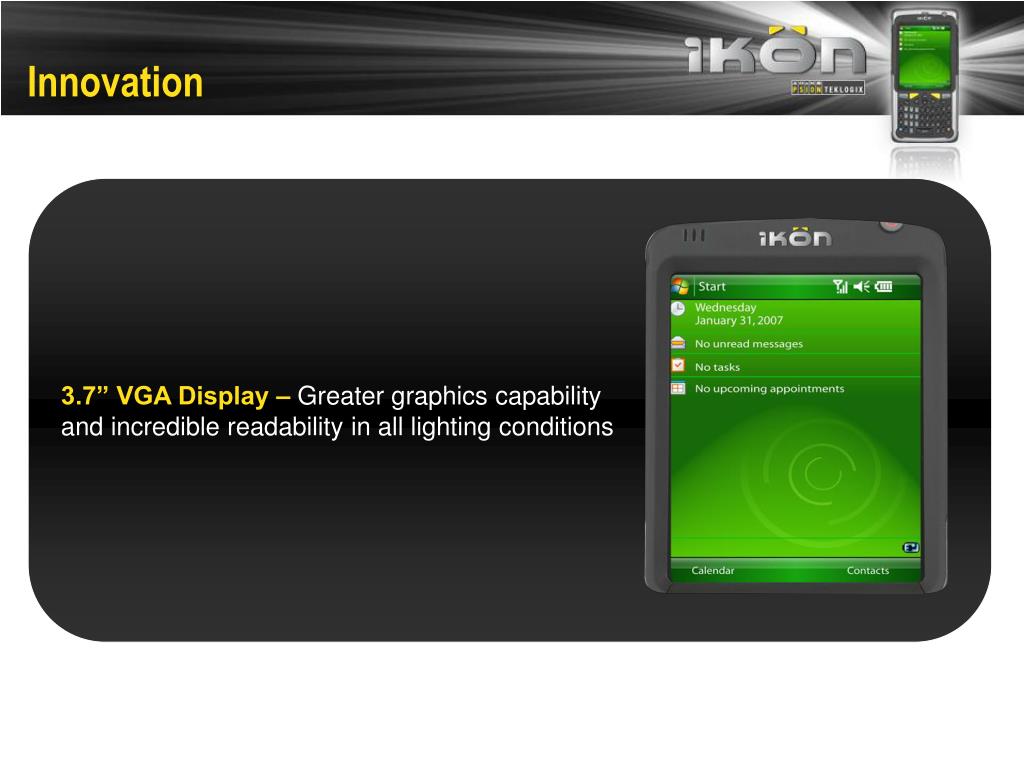

  9. Innovation 3.7” VGA Display –Greater graphics capability and incredible readability in all lighting conditions

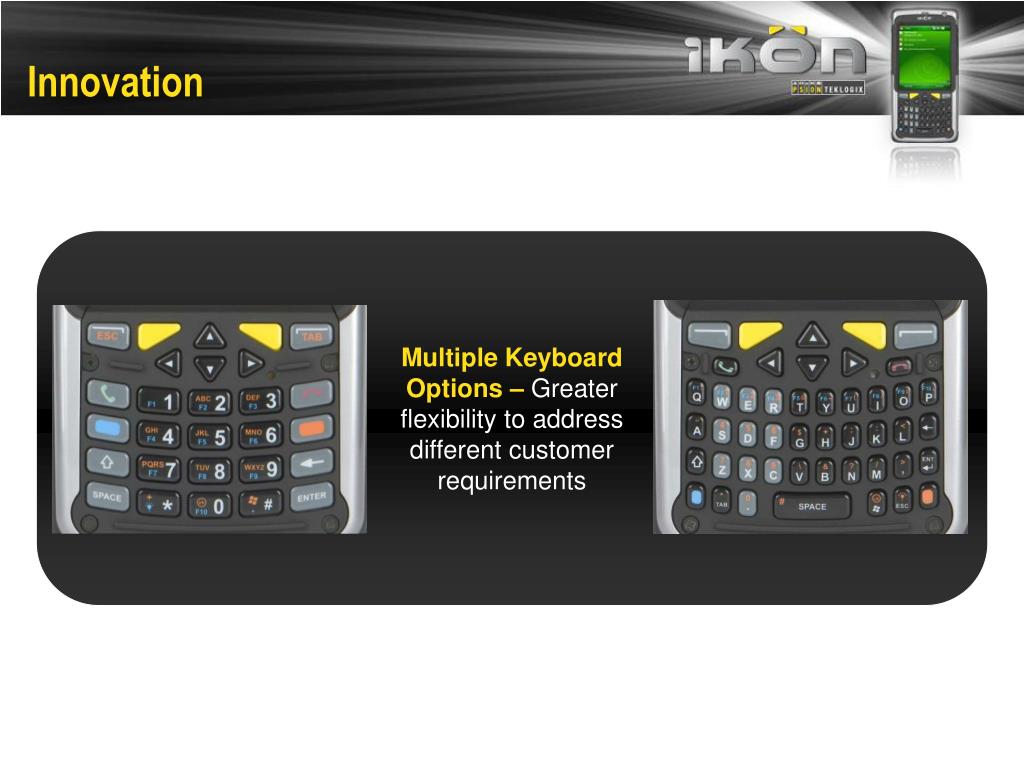

  10. Innovation Multiple Keyboard Options –Greater flexibility to address different customer requirements

  11. What’s in the box?

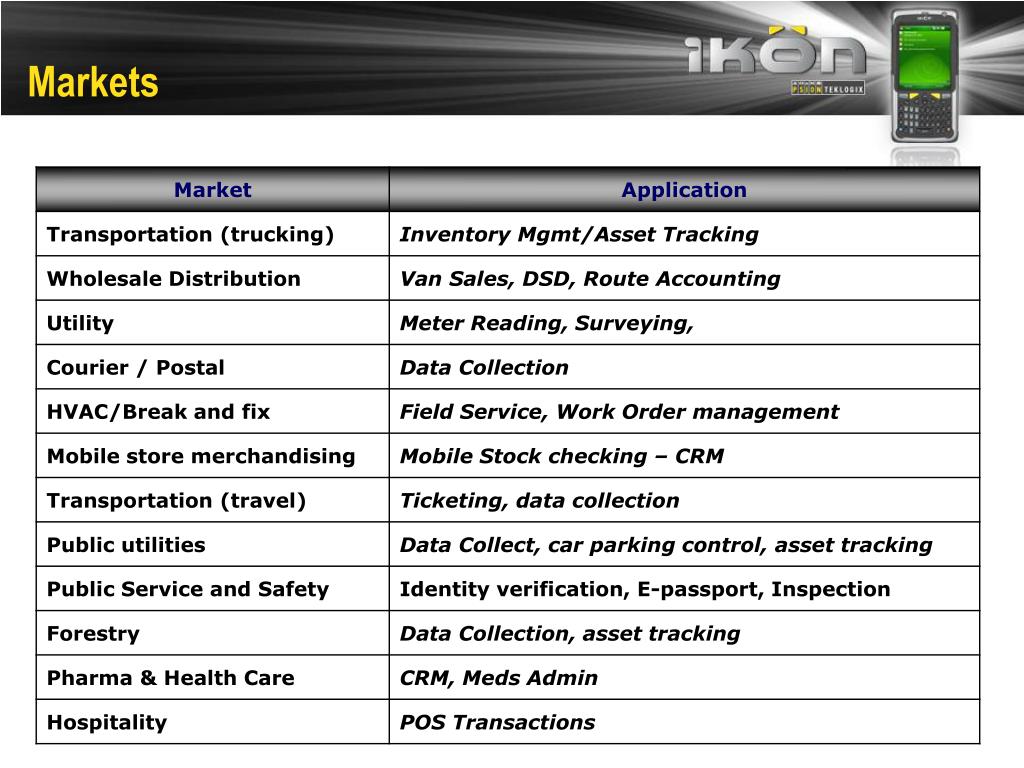

  12. Markets

  13. Ikôn: Highlights • 1st to market with • - 3G HSDPA • - Largest capacity battery • - Ruggedness: Best drop and IP rating among leading PDA’s • - Combined Camera and Imager/Scanner option • - 3.7” VGA Display • - User friendly, large keys keypad • Ikôn’s feature/functionality attributesforced Motorola and Intermec to update initial versions of their PDA’s

  14. Competition • Motorola MC70/75 • Launched Jan 2006. • Successful product that created new market segment – voice-enabled wide area rugged PDA • MC75 introduced in Sept 2008 • Intermec CN3/e • Launched Sept 2006 • Response to MC70 • Recently launched CN3e • Steady stream of Asian entrants • Mobile Compia M3 • Pidion BIP- 5000 • ….

  15. Competition

  16. Competition

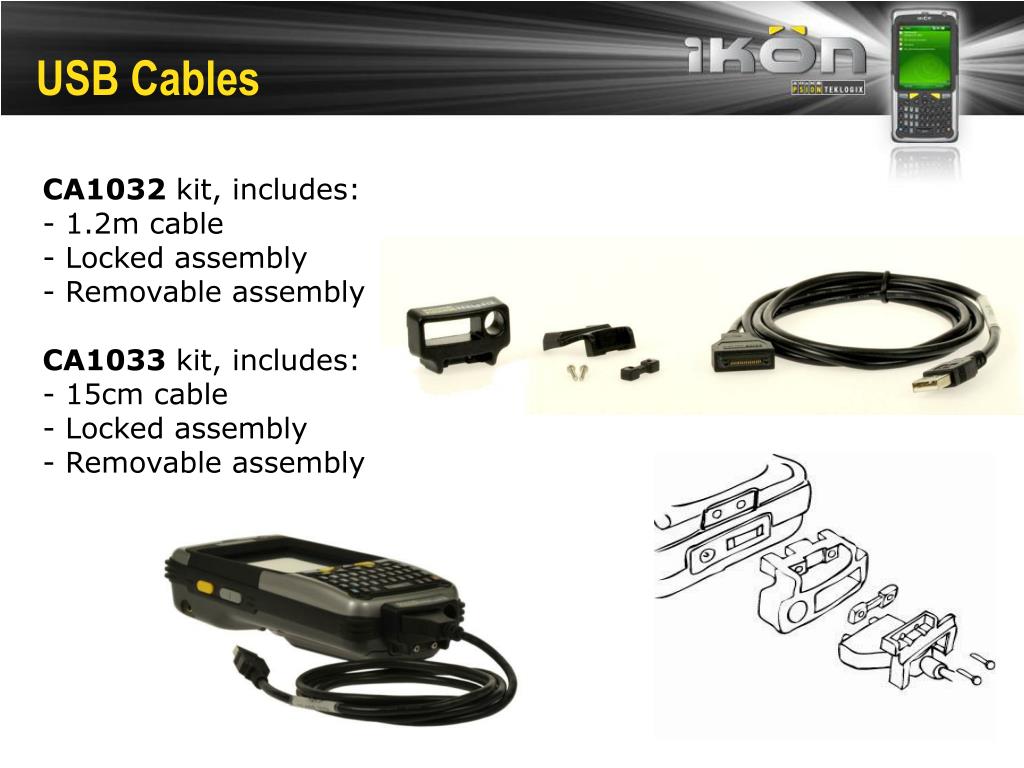

  17. USB Cables • CA1032 kit, includes: • - 1.2m cable • - Locked assembly • Removable assembly • CA1033 kit, includes: • - 15cm cable • - Locked assembly • Removable assembly

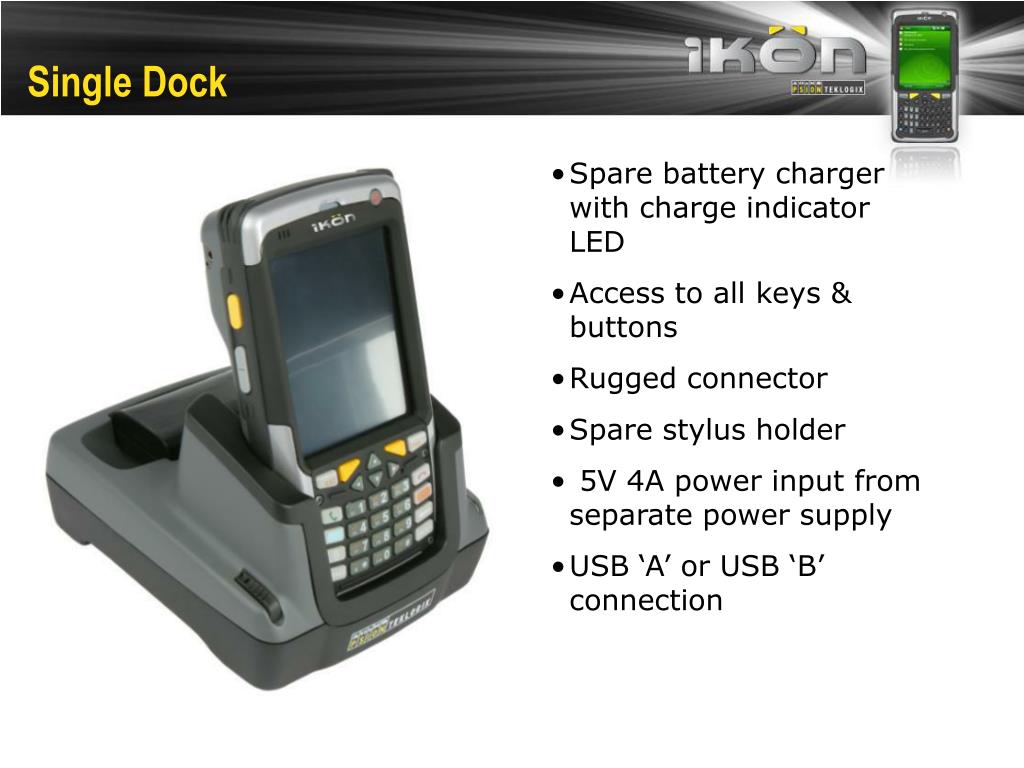

  18. Single Dock • Spare battery charger with charge indicator LED • Access to all keys & buttons • Rugged connector • Spare stylus holder • 5V 4A power input from separate power supply • USB ‘A’ or USB ‘B’ connection

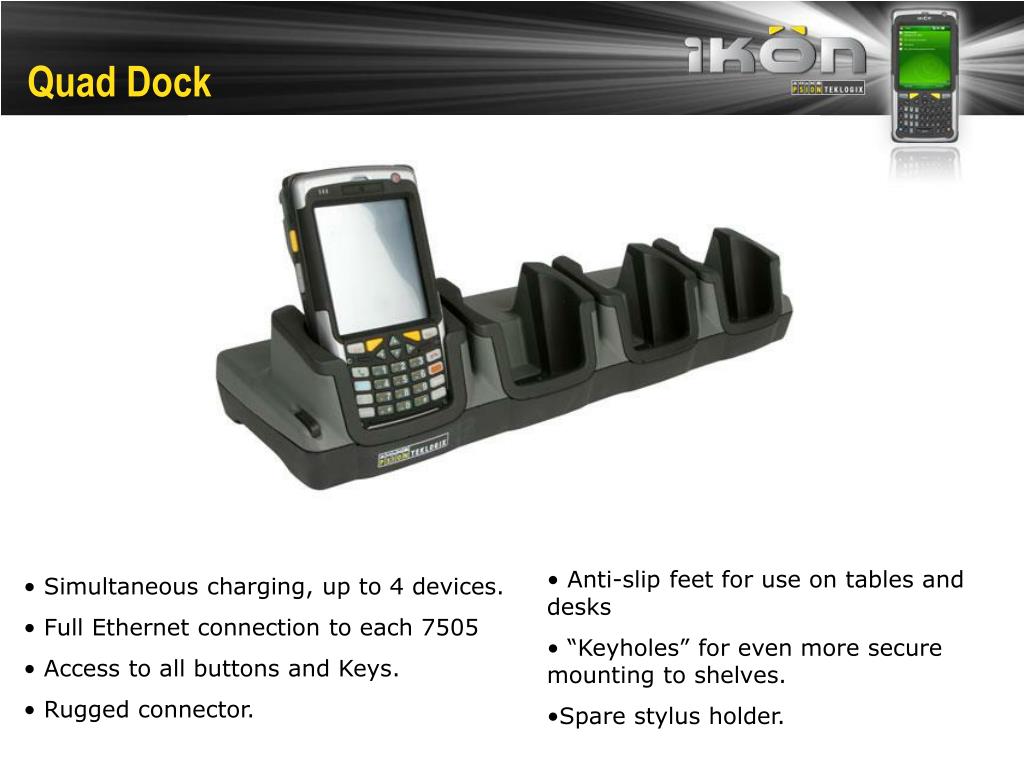

  19. Quad Dock • Anti-slip feet for use on tables and desks • “Keyholes” for even more secure mounting to shelves. • Spare stylus holder. • Simultaneous charging, up to 4 devices. • Full Ethernet connection to each 7505 • Access to all buttons and Keys. • Rugged connector.

  20. Powered Vehicle Cradle • Access to all buttons and keys • 3 Options (fully released) • USB A connector/2 RS232 Serial Ports • USB A connector/1 RS232 Serial Port • USB A connector only • Rugged connection to the terminal • Single hand release mechanism • Speaker for hands free calling • Power indicator LED • Spare stylus holder • Multiple mounting configurations • RAM Mount, others

  21. Non Powered Vehicle Cradle • Access to all buttons and Keys • Access to both connectors on the bottom of the terminal • Spare stylus holder • Multiple mounting configurations.

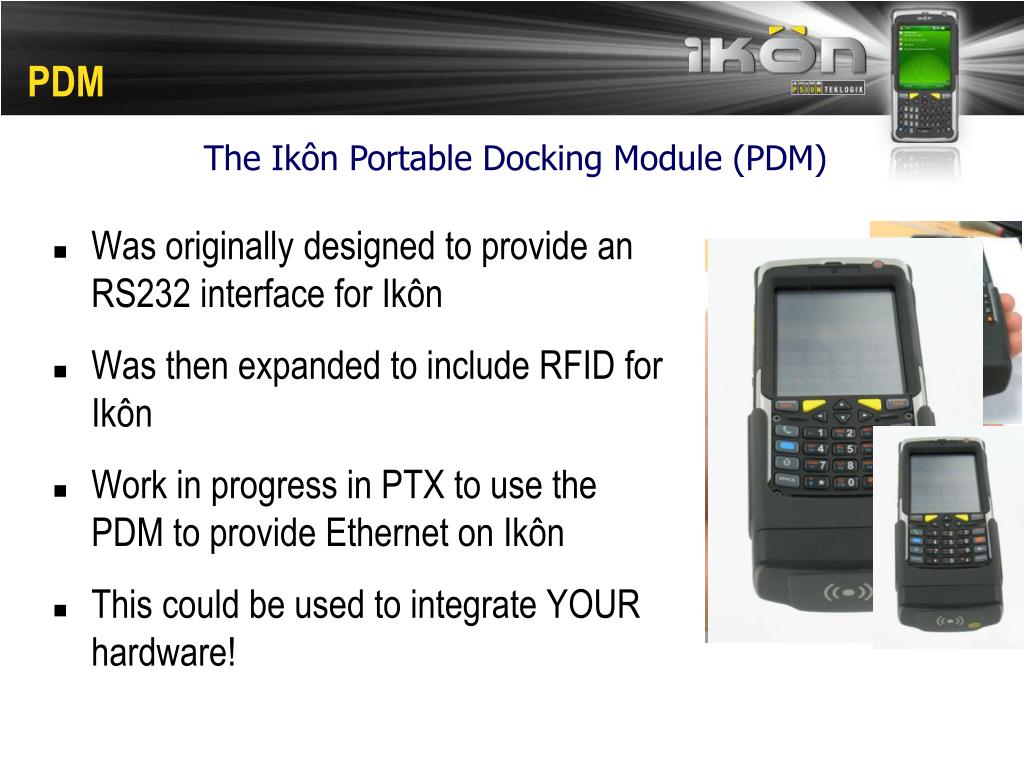

  22. PDM The Ikôn Portable Docking Module (PDM) • Was originally designed to provide an RS232 interface for Ikôn • Was then expanded to include RFID for Ikôn • Work in progress in PTX to use the PDM to provide Ethernet on Ikôn • This could be used to integrate YOUR hardware!

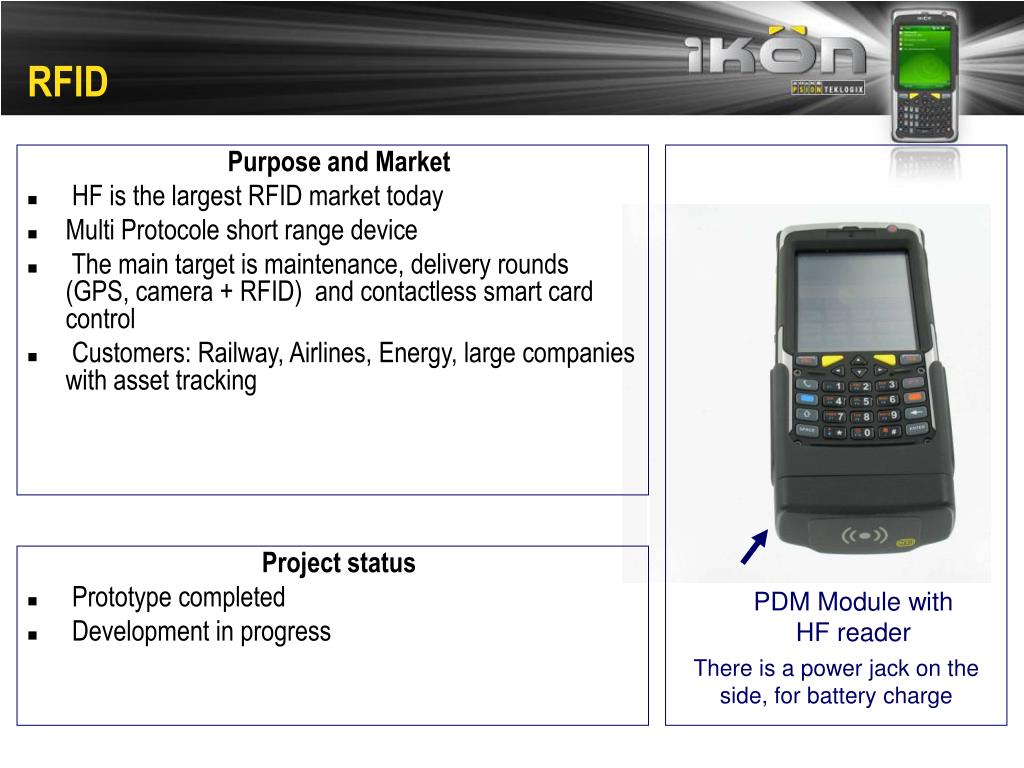

  23. RFID Purpose and Market • HF is the largest RFID market today • Multi Protocole short range device • The main target is maintenance, delivery rounds (GPS, camera + RFID) and contactless smart card control • Customers: Railway, Airlines, Energy, large companies with asset tracking Project status • Prototype completed • Development in progress PDM Module with HF reader There is a power jack on the side, for battery charge

  24. RFID • RFID Reader integrated in Snap On • HF Multi Protocol : • ISO 14443 + 2 SAM • ISO 15693 24 04/10/2014

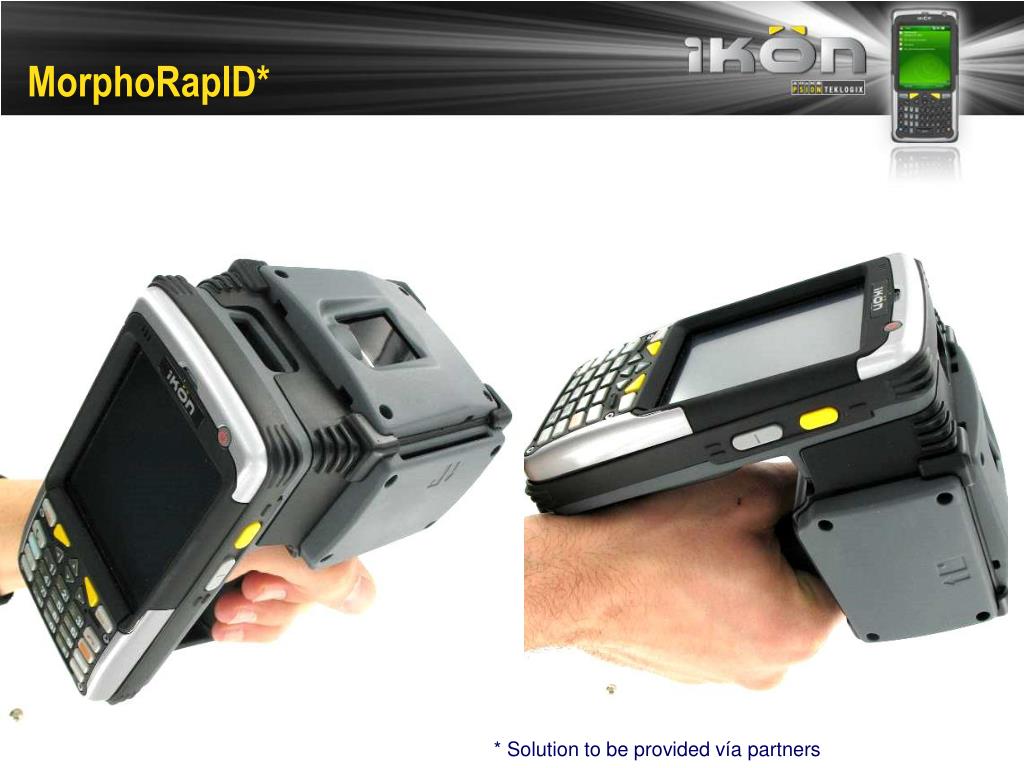

  25. MorphoRapID* * Solution to be provided vía partners

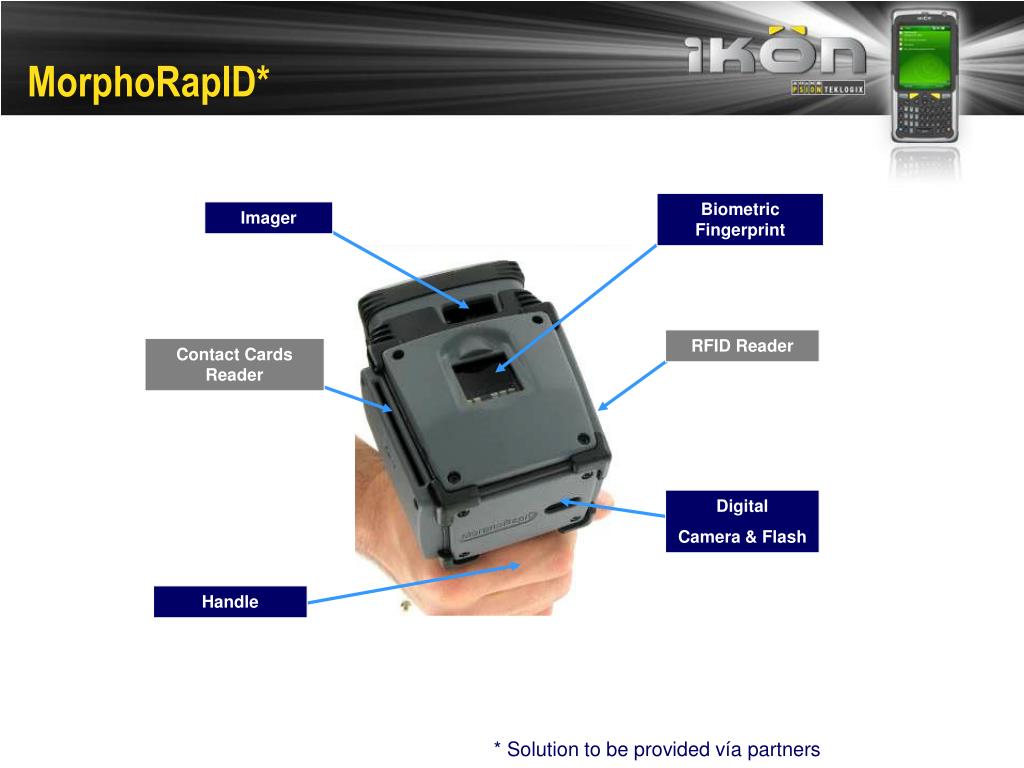

  26. MorphoRapID* Biometric Fingerprint Imager RFID Reader Contact Cards Reader Digital Camera & Flash Handle * Solution to be provided vía partners

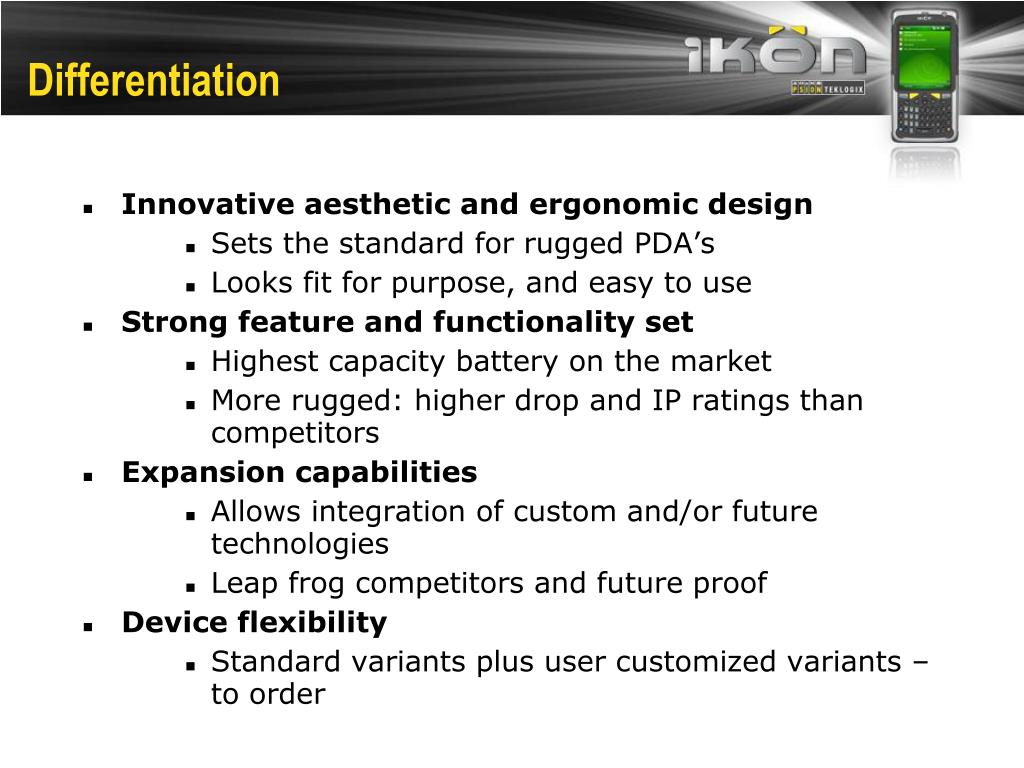

  27. Differentiation • Innovative aesthetic and ergonomic design • Sets the standard for rugged PDA’s • Looks fit for purpose, and easy to use • Strong feature and functionality set • Highest capacity battery on the market • More rugged: higher drop and IP ratings than competitors • Expansion capabilities • Allows integration of custom and/or future technologies • Leap frog competitors and future proof • Device flexibility • Standard variants plus user customized variants – to order

  28. Thank You
