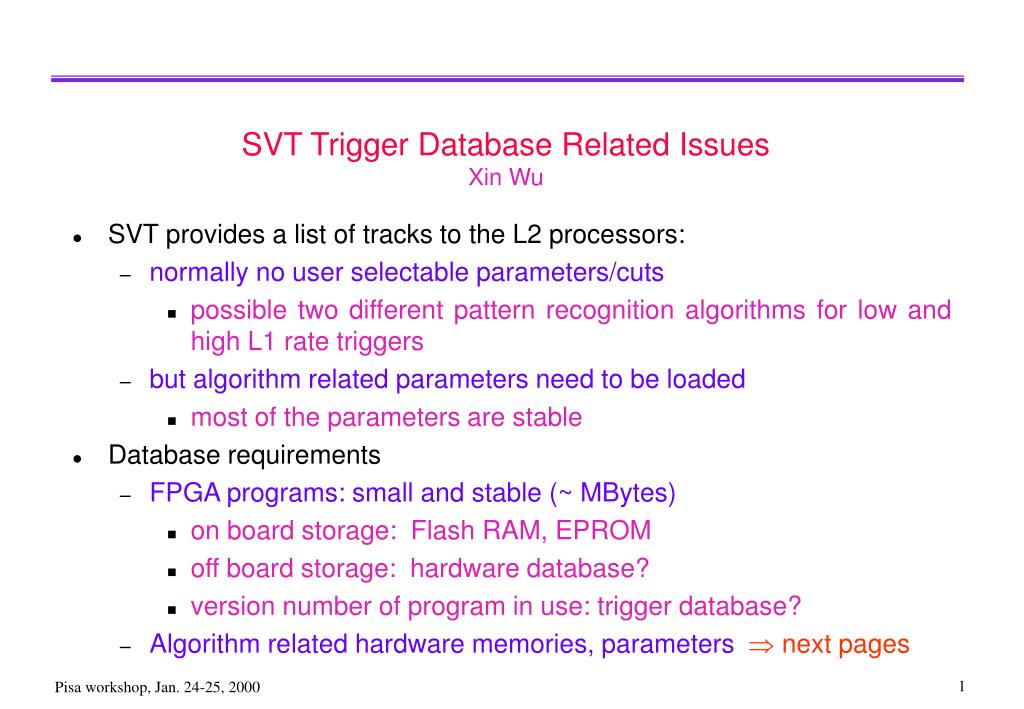

  1. SVT Trigger Database Related IssuesXin Wu • SVT provides a list of tracks to the L2 processors: • normally no user selectable parameters/cuts • possible two different pattern recognition algorithms for low and high L1 rate triggers • but algorithm related parameters need to be loaded • most of the parameters are stable • Database requirements • FPGA programs: small and stable (~ MBytes) • on board storage: Flash RAM, EPROM • off board storage: hardware database? • version number of program in use: trigger database? • Algorithm related hardware memories, parameters  next pages

  2. Algorithm Related Hardware Memories and Parameters • Affect trigger performance (efficiency and fake rate) • some need to be modified when beam conditions change • no experience yet, to be seen! • should be accessible also by offline (Trigsim++) • Therefore belong to the Trigger Database (actual files or pointers) • Hardware memories on SVT boards • 36 Hit Finders: PEDRAM, CRAM • 12 Hit Buffers : SSMAP, AMMAP • 12 AM Sequencers (12): SSMAP, Seq_RAM • 24 AM Boards: AM_patterns • 12 Track Fitters: SS_MAP, MAKE_ADDR, P0RAM, COERAM, CHI2_RAM

  3. Hit Finder Hardware Memories and Parameters • PED_RAM: pedestals and thresholds • ALTERA chip internal SRAM • channel pedestal: 7-bit, 1K10 streams/board  360 KB total • chip threshold and cluster charge cut: 3Byte/chip 8.4 KB total • max # of clusters: 1 Byte/stream 360 Bytes total • # of chips: 1 Byte/stream 360 Bytes total • CRAM: look-up table for cluster finding • Static RAM • 6 bits, 32K 10 streams, same for all boards  320 KB total • Stream number to barrel/layer map • ALTERA chip internal SRAM • 6 bits, 10 Byte/board 360 Bytes total

  4. HB/AMS/AMB Hardware Memories and Parameters • SSMAP (hb): hit to super-strip look-up table • DRAM • 15-bit, 128K/board  3 MB total • AMMAP (hb): road to Super-Strip list look-up table • DRAM • 16-bit, 1 M/board  24 MB total • SSMAP (ams): same as SSMAP of hb • Seq_RAM (ams): microsequencer RAM • DRAM • 24-bit, 128k/board, same for all boards  512 KB total • maxRoad and empty layer register (ams): • 12-bit register  2 B total • AM_patterns (amb): AM patterns • AM chips: 128 chips/board, 128 patterns/chip • 12-bit, 6 /pattern  192 KB/board  4.5 MB total

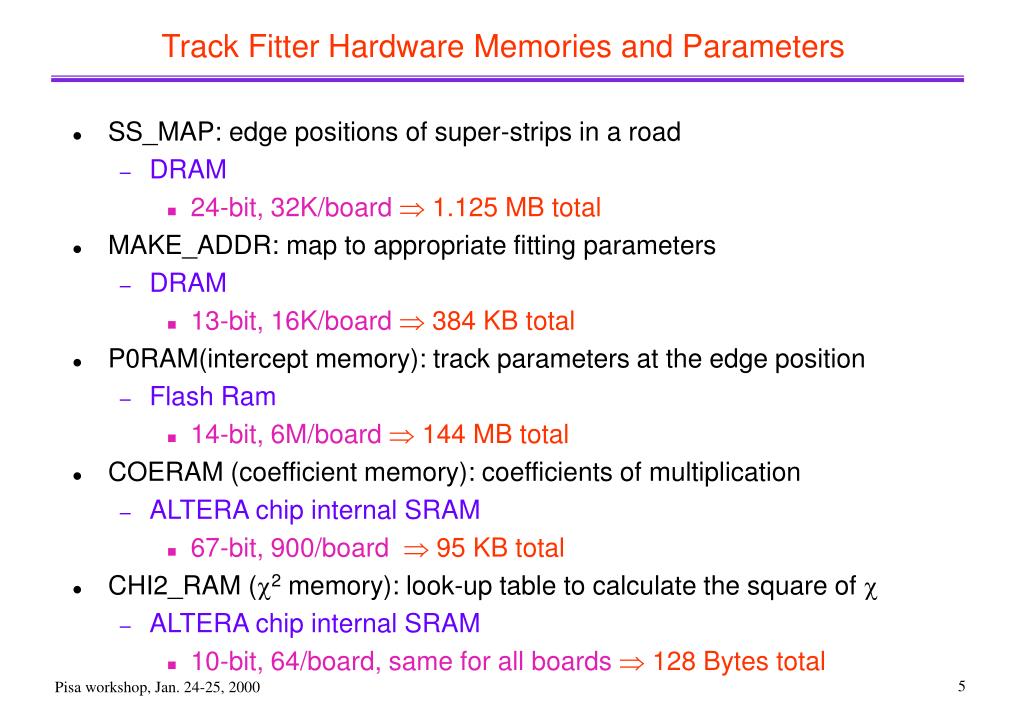

  5. Track Fitter Hardware Memories and Parameters • SS_MAP: edge positions of super-strips in a road • DRAM • 24-bit, 32K/board  1.125 MB total • MAKE_ADDR: map to appropriate fitting parameters • DRAM • 13-bit, 16K/board  384 KB total • P0RAM(intercept memory): track parameters at the edge position • Flash Ram • 14-bit, 6M/board  144 MB total • COERAM (coefficient memory): coefficients of multiplication • ALTERA chip internal SRAM • 67-bit, 900/board  95 KB total • CHI2_RAM (2memory): look-up table to calculate the square of  • ALTERA chip internal SRAM • 10-bit, 64/board, same for all boards  128 Bytes total

  6. Track Fitter Hardware Memories and Parameters (Cont.) • Shift control registers: control shifting distance after multiplications • 15-bit, 6/board, same for all boards  12 Bytes total •  cuts registers: cut on fitted 1, 2, 3 • 17-bit, 1/board, same for all boards  3 Byte total

  7. Summary • Need large disk space to store hardware memory files • P0RAM (144 MB), AMMAP(24MB), AM_pattern(4.5MB), SSMAP(3MB)  ~ 200MB • No frequent change necessary, if beam stable! • but version numbers should be recorded for each run for offline use • Amount of down loading at run start-up is less • Hit Finder and Track Fitter have Flash RAMs and Static RAMs • need to down load: • AMMAP(24MB), AM_pattern(4.5MB), SSMAP(3MB), ...  ~ 40MB • The details of the SVT database related issues will be discussed at a workshop in Pisa next week  WE WILL BE BACK!
