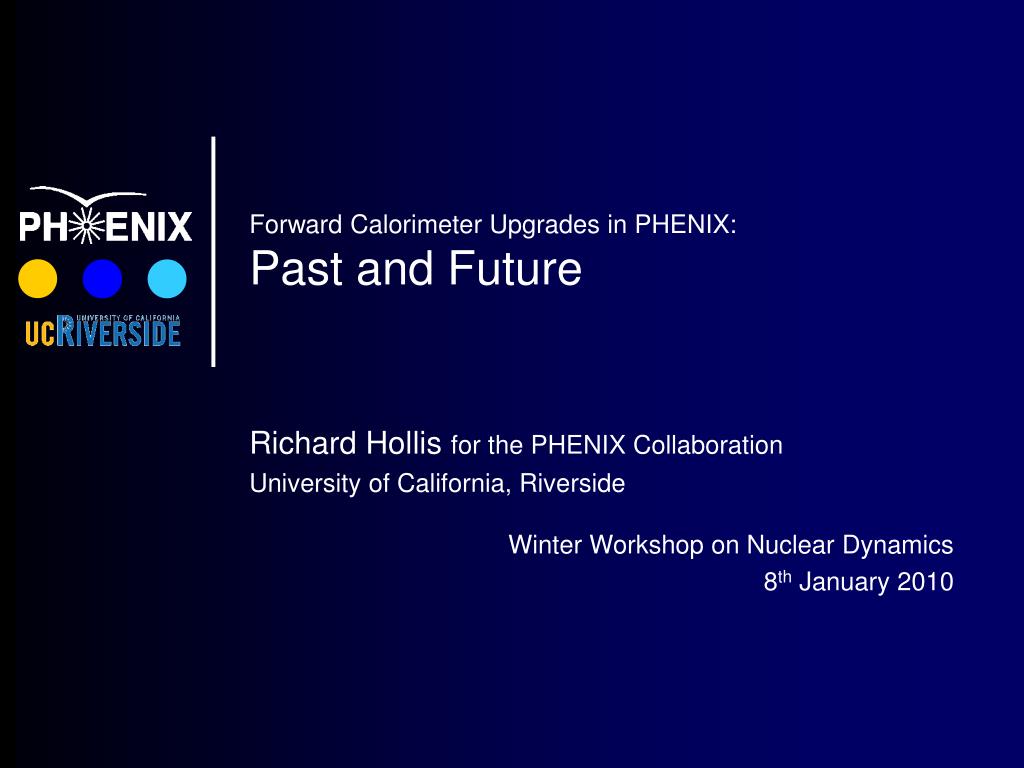

Forward Calorimeter Upgrades in PHENIX: Past and Future. Richard Hollis for the PHENIX Collaboration University of California, Riverside Winter Workshop on Nuclear Dynamics 8 th January 2010. Overview. The next decade at RHIC&PHENIX Motivation and Needs Calorimeter Upgrades

zaria
Download Presentation

Forward Calorimeter Upgrades in PHENIX: Past and Future

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Forward Calorimeter Upgrades in PHENIX:Past and Future Richard Hollis for the PHENIX Collaboration University of California, Riverside Winter Workshop on Nuclear Dynamics 8th January 2010

  2. Overview • The next decade at RHIC&PHENIX • Motivation and Needs • Calorimeter Upgrades • Past: MPC – currently operational • Future: FoCal – proposal soon • Summary Richard Hollis 8th January 2010 ● 2

  3. The next decade at PHENIX • A biased (to Forward Calorimetry) view: • Gluon density at low-x in cold nuclear matter • Proton spin contribution from Gluon Polarization • Measure g-jet production, correlations in Au+Au collisions • Test predictions for the relation between single-transverse spin in p+p and those in DIS • For data taking and analysis over the course of the next decade… First step: measurements at high h Richard Hollis 8th January 2010 ● 3

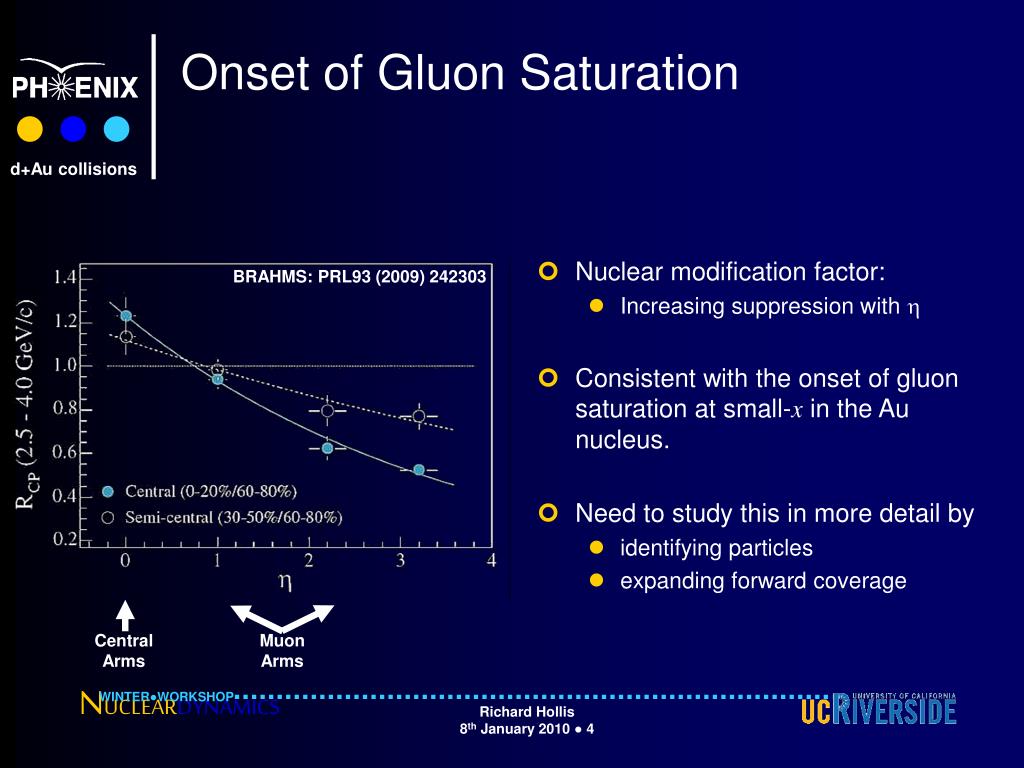

  4. Muon Arms Central Arms Onset of Gluon Saturation d+Au collisions • Nuclear modification factor: • Increasing suppression with h • Consistent with the onset of gluon saturation at small-x in the Au nucleus. • Need to study this in more detail by • identifying particles • expanding forward coverage BRAHMS: PRL93 (2009) 242303 Richard Hollis 8th January 2010 ● 4

  5. Proton spin contribution from gluon polarization p+p collisions xDg • Spin contribution from gluon polarization • derived from measured ALL • currently over a narrow region of x • Large uncertainty at low-x • Need to measure ALL over a broader region of x • forward h • measure direct photons RHIC range 0.05 < x < 0.2 Richard Hollis 8th January 2010 ● 5

  6. Building detectors to suit physics needs • Need: • Forward rapidities • Direct photons • Well defined energy scale for g measurements Richard Hollis 8th January 2010 ● 6

  7. mTr mTr 0 f coverage 2p (F)VTX -3 -2 -1 0 1 2 3 h EMC 0 f coverage 2p -3 -2 -1 0 1 2 3 h PHENIX Acceptance • Tracking • Central region and forward muon arms • Calorimetry • Very limited acceptance • In f and h • What do we need for the future? • and how can we obtain it? Richard Hollis 8th January 2010 ● 7

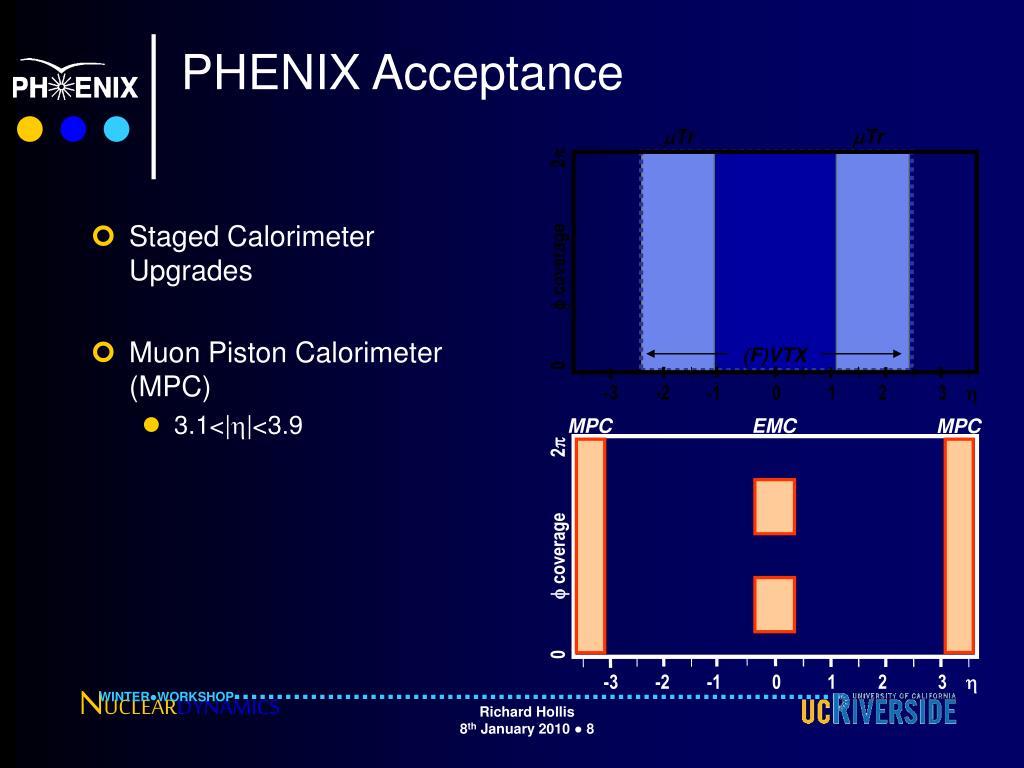

  8. mTr mTr 0 f coverage 2p (F)VTX -3 -2 -1 0 1 2 3 h EMC 0 f coverage 2p -3 -2 -1 0 1 2 3 h PHENIX Acceptance • Staged Calorimeter Upgrades • Muon Piston Calorimeter (MPC) • 3.1<|h|<3.9 MPC MPC Richard Hollis 8th January 2010 ● 8

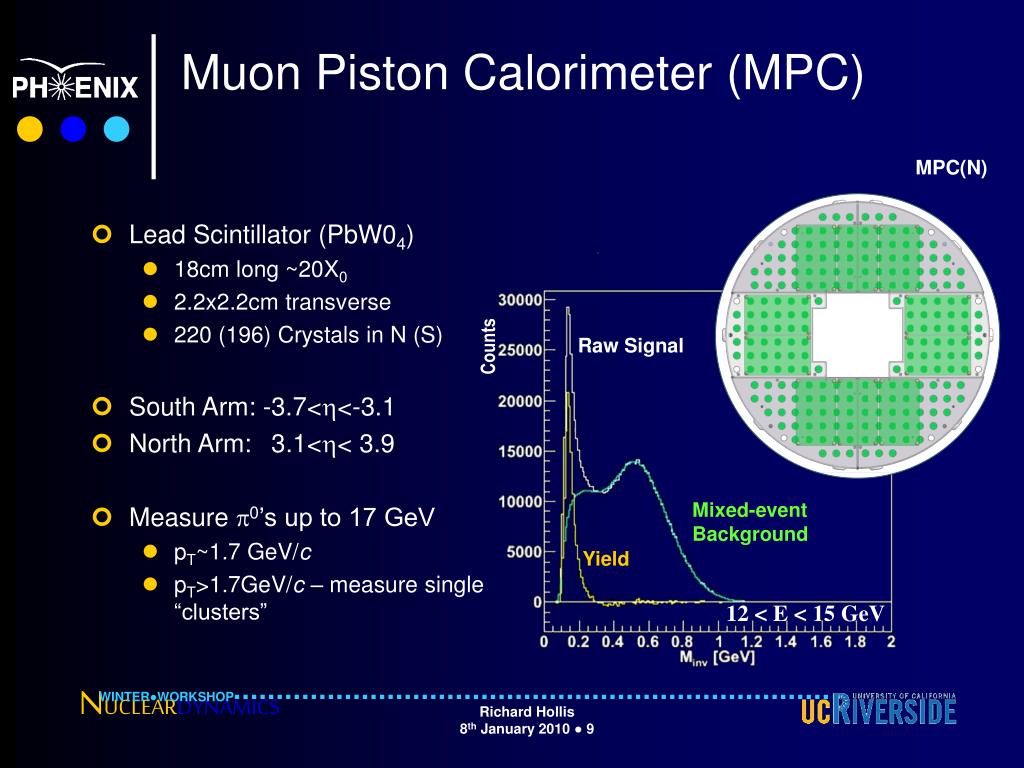

  9. Counts Muon Piston Calorimeter (MPC) MPC(N) • Lead Scintillator (PbW04) • 18cm long ~20X0 • 2.2x2.2cm transverse • 220 (196) Crystals in N (S) • South Arm: -3.7<h<-3.1 • North Arm: 3.1<h< 3.9 • Measure p0’s up to 17 GeV • pT~1.7 GeV/c • pT>1.7GeV/c – measure single “clusters” Raw Signal Mixed-event Background Yield 12 < E < 15 GeV Richard Hollis 8th January 2010 ● 9

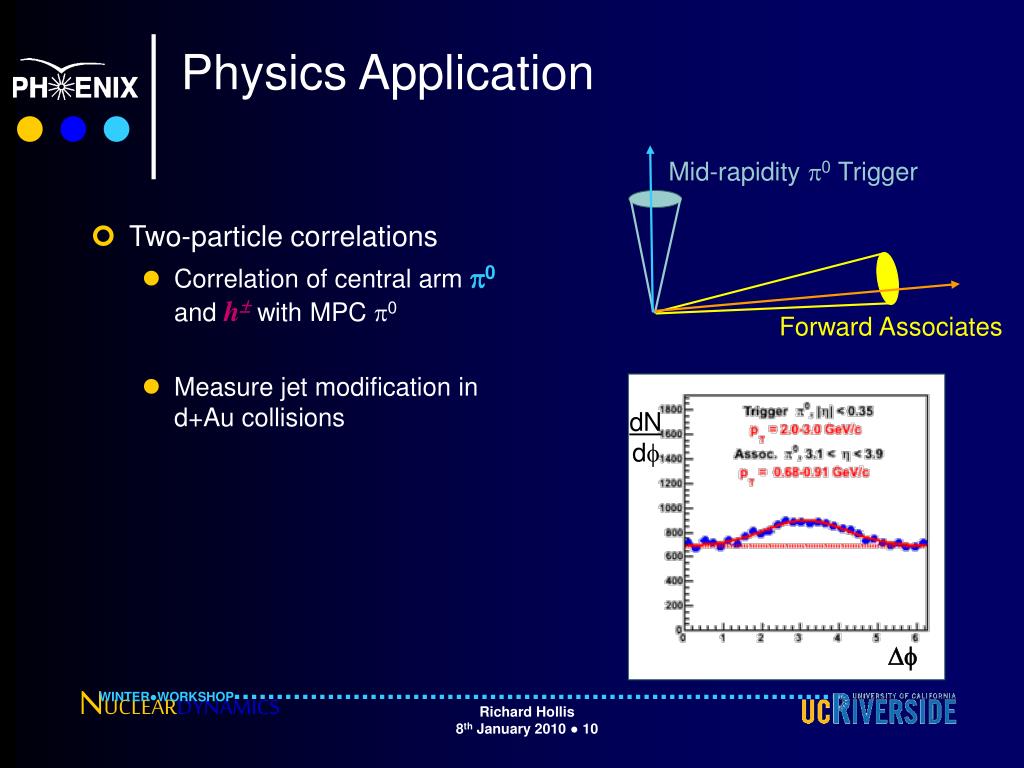

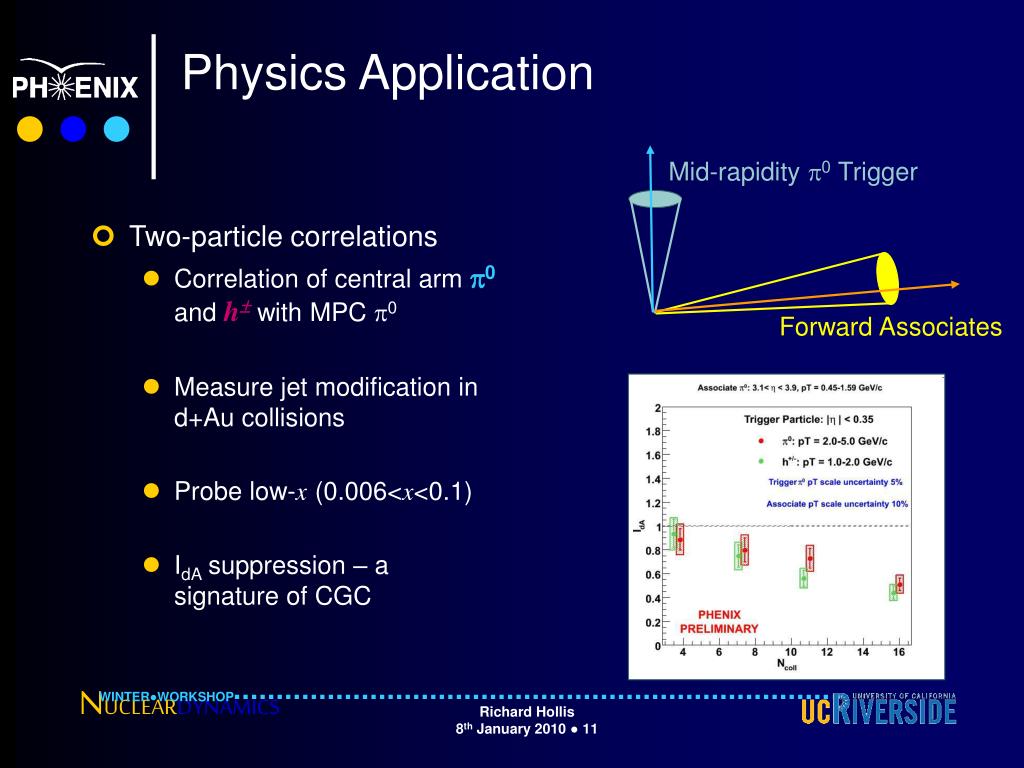

  10. Mid-rapidity p0 Trigger Forward Associates Physics Application • Two-particle correlations • Correlation of central arm p0 and h with MPCp0 • Measure jet modification in d+Au collisions dN df Df Richard Hollis 8th January 2010 ● 10

  11. Mid-rapidity p0 Trigger Forward Associates Physics Application • Two-particle correlations • Correlation of central arm p0 and h with MPCp0 • Measure jet modification in d+Au collisions • Probe low-x (0.006<x<0.1) • IdA suppression – a signature of CGC Richard Hollis 8th January 2010 ● 11

  12. p+p0+X at s=62.4 GeV/c2 3.0<<4.0 Physics Application • Calorimeters are versatile • Measurements using identified cC and h are underway • Preliminary results on transverse single-spin asymmetries • Measurements over a broad phase space will provide quantitative tests for models • How do the calorimeters contribute to DG – the gluon contribution to proton spin • Would like to measure direct gs Richard Hollis 8th January 2010 ● 12

  13. mTr mTr 0 f coverage 2p -3 -2 -1 0 1 2 3 h (F)VTX EMC 0 f coverage 2p -3 -2 -1 0 1 2 3 h PHENIX Acceptance • Staged Calorimeter Upgrades • Muon Piston Calorimeter (MPC) • 3.1<|h|<3.9 • Forward Calorimeter (FoCal) • 1<|h|<3 MPC MPC Richard Hollis 8th January 2010 ● 13

  14. MPC Finding space in PHENIX MPC installed ~ 3<||<4 FoCal: where could it fit? Richard Hollis 8th January 2010 ● 14

  15. Finding space in PHENIX • Small space in front of nosecone • 40 cm from vertex • 20 cm deep • Calorimeter needs to be high density • Silicon-Tungsten sampling calorimeter Richard Hollis 8th January 2010 ● 15

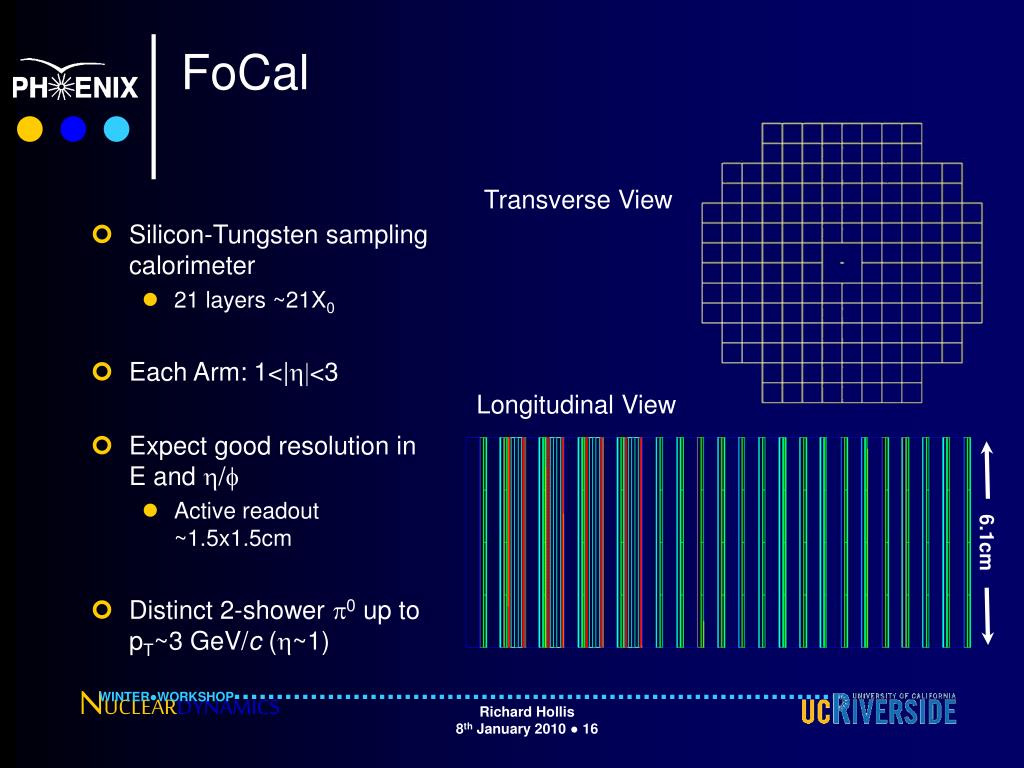

  16. FoCal Transverse View • Silicon-Tungsten sampling calorimeter • 21 layers ~21X0 • Each Arm:1<|h|<3 • Expect good resolution in E and h/f • Active readout ~1.5x1.5cm • Distinct 2-shower p0 up to pT~3 GeV/c (h~1) Longitudinal View 6.1cm Richard Hollis 8th January 2010 ● 16

  17. FoCal x Coverage p+p collisions • x coverage: • Weak pT dependence x versus pT (p+p, 500 GeV) (FoCal Acceptance) Richard Hollis 8th January 2010 ● 17

  18. FoCal x Coverage p+p collisions • x coverage: • Weak pT dependence • Strong h dependence x versus h (p+p, 500 GeV) (FoCal Acceptance) Richard Hollis 8th January 2010 ● 18

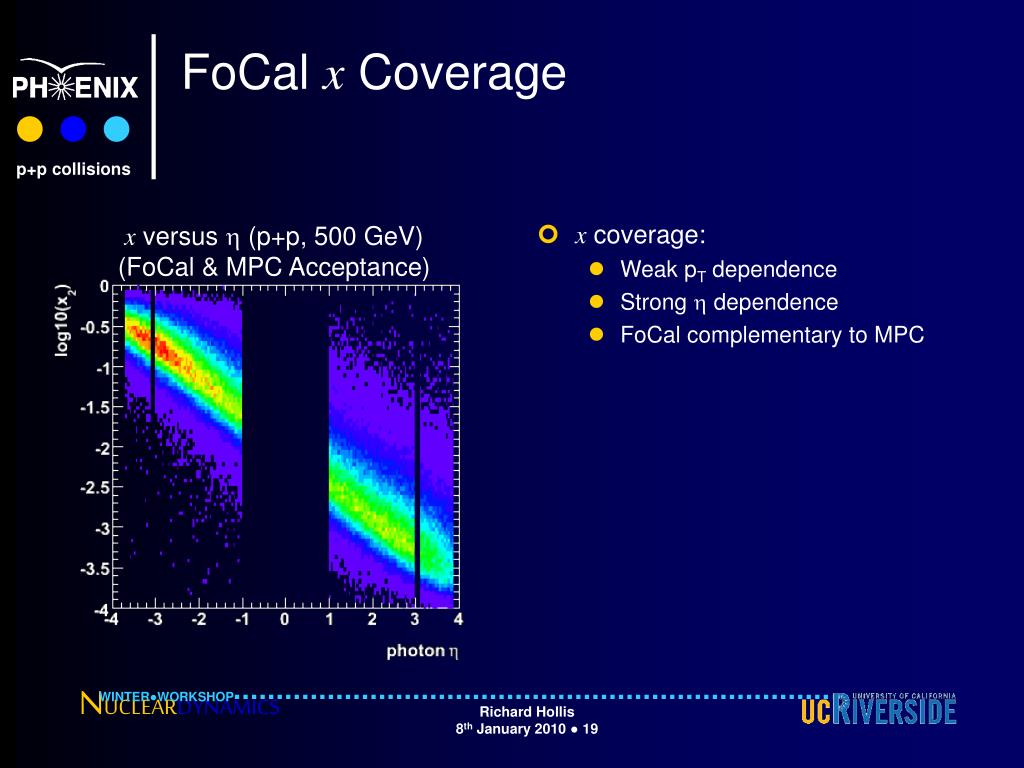

  19. FoCal x Coverage p+p collisions • x coverage: • Weak pT dependence • Strong h dependence • FoCal complementary to MPC x versus h (p+p, 500 GeV) (FoCal & MPC Acceptance) Richard Hollis 8th January 2010 ● 19

  20. FoCal x Coverage • x coverage: • Weak pT dependence • Strong h dependence • FoCal complementary to MPC • Selecting h region probes a specific x range x for h bins (p+p, 500 GeV) (FoCal Acceptance) Richard Hollis 8th January 2010 ● 20

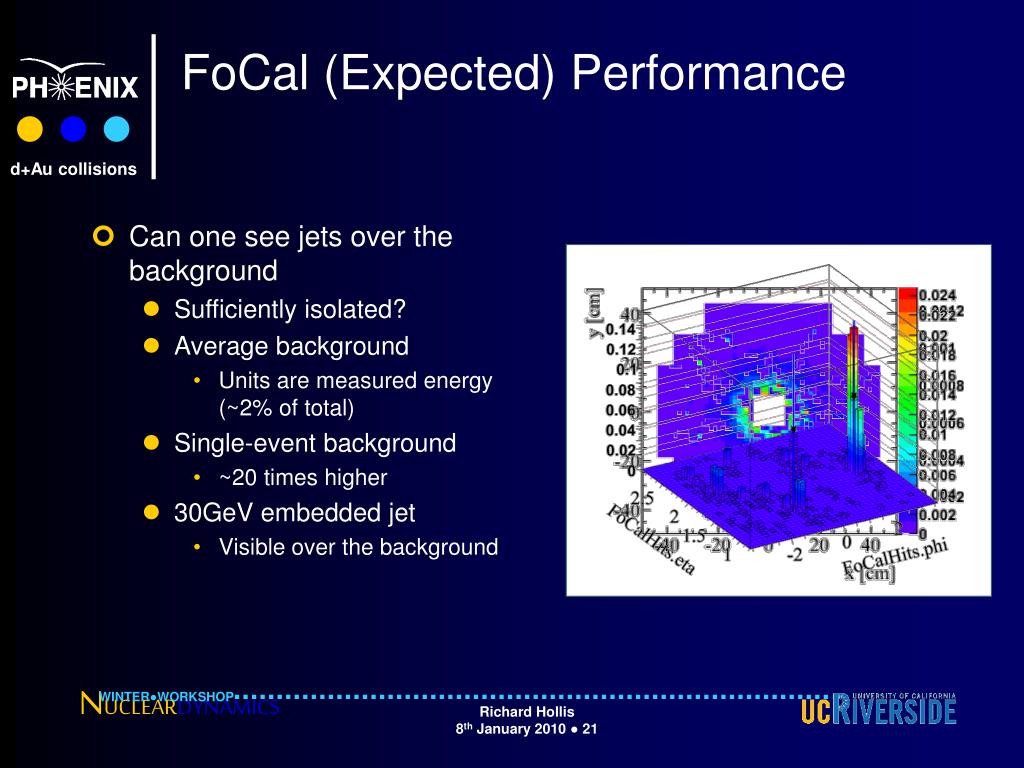

  21. FoCal (Expected) Performance d+Au collisions • Can one see jets over the background • Sufficiently isolated? • Average background • Units are measured energy (~2% of total) • Single-event background • ~20 times higher • 30GeV embedded jet • Visible over the background Richard Hollis 8th January 2010 ● 21

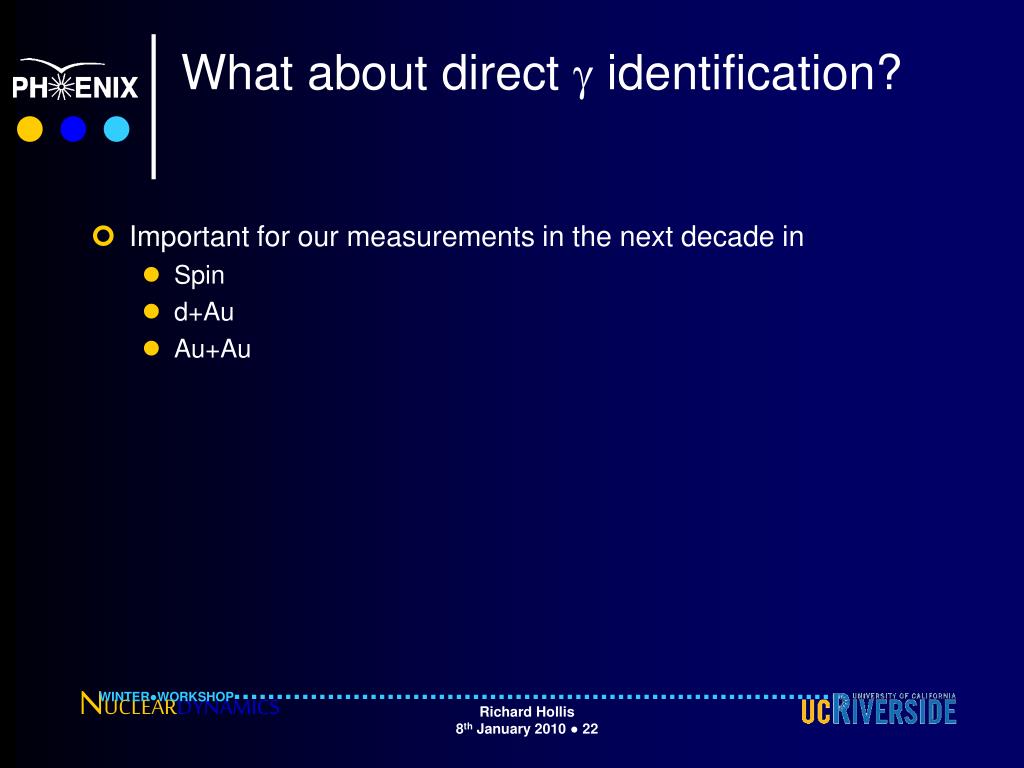

  22. What about direct g identification? • Important for our measurements in the next decade in • Spin • d+Au • Au+Au Richard Hollis 8th January 2010 ● 22

  23. Identifying p0 and g p+p collisions • First: use physics • Direct g typically are alone • Whilst p0 are produced as part of a hadronic jet • Measurement of accompanying energy can reduce background at minimal expense to g • Still, this does not provide full decontamination • Need direct p0 identification Ratio of background/signal (NLO calculation) Richard Hollis 8th January 2010 ● 23

  24. High energy p0 shower p+p collisions • Origin of all shower particles (red) • Shown with effective resolution of pads • Individual tracks not distinguishable Richard Hollis 8th January 2010 ● 24

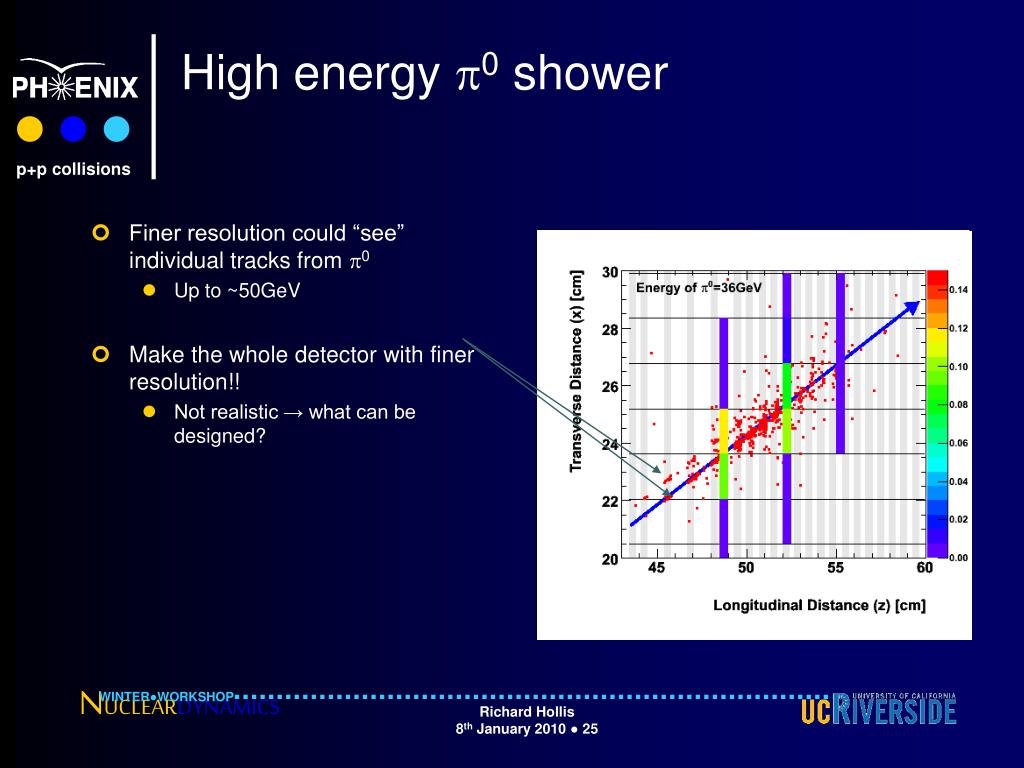

  25. High energy p0 shower p+p collisions • Finer resolution could “see” individual tracks from p0 • Up to ~50GeV • Make the whole detector with finer resolution!! • Not realistic → what can be designed? Richard Hollis 8th January 2010 ● 25

  26. x y x y x y x y High energy p0 shower p+p collisions • Finer resolution could “see” individual tracks from p0 • Up to ~50GeV • Make the whole detector with finer resolution!! • Not realistic → what can be designed? • Add highly segmented layers of x/y strips into first segment. • Measure the development of the shower at its infancy • With a resolution to distinguish individual g tracks EM0 EM1 EM2 ~70 strips ~2 towers Richard Hollis 8th January 2010 ● 26

  27. High energy p0 shower • Finer resolution could “see” individual tracks from p0 • Up to ~50GeV • Make the whole detector with finer resolution!! • Not realistic → what can be designed? • Add highly segmented layers of x/y strips into first segment. • Measure the development of the shower at its infancy • With a resolution to distinguish individual g tracks Track showers Merge Tracks are visibly Separable Catch the shower, before it’s too late Richard Hollis 8th January 2010 ● 27

  28. High energy p0 shower • Using a Hough Transform, • Transverse/longitudinal coordinate • Find the best track as most frequently occurring Hough-slope • Use each track vector, full track energy → calculate invariant mass Richard Hollis 8th January 2010 ● 28

  29. Performance of FoCal Reconstruction Reconstruction of p0 (p+p 500 GeV minimum bias pythia) Signal reconstruction (d+Au 200 GeV minimum bias + embedded pythia g+jet signal) Richard Hollis 8th January 2010 ● 29

  30. Summary • PHENIX Calorimeter upgrades (will) provide much extended coverage for a variety of physics topics • Proven p0 reconstruction in the MPC further our understanding of forward jet production in d+Au collisions • FoCal complements the MPC in terms of additional phase-space coverage and direct photon identification capabilities at high energies. • For p+p, d+Au (and Au+Au) collisions Richard Hollis 8th January 2010 ● 30

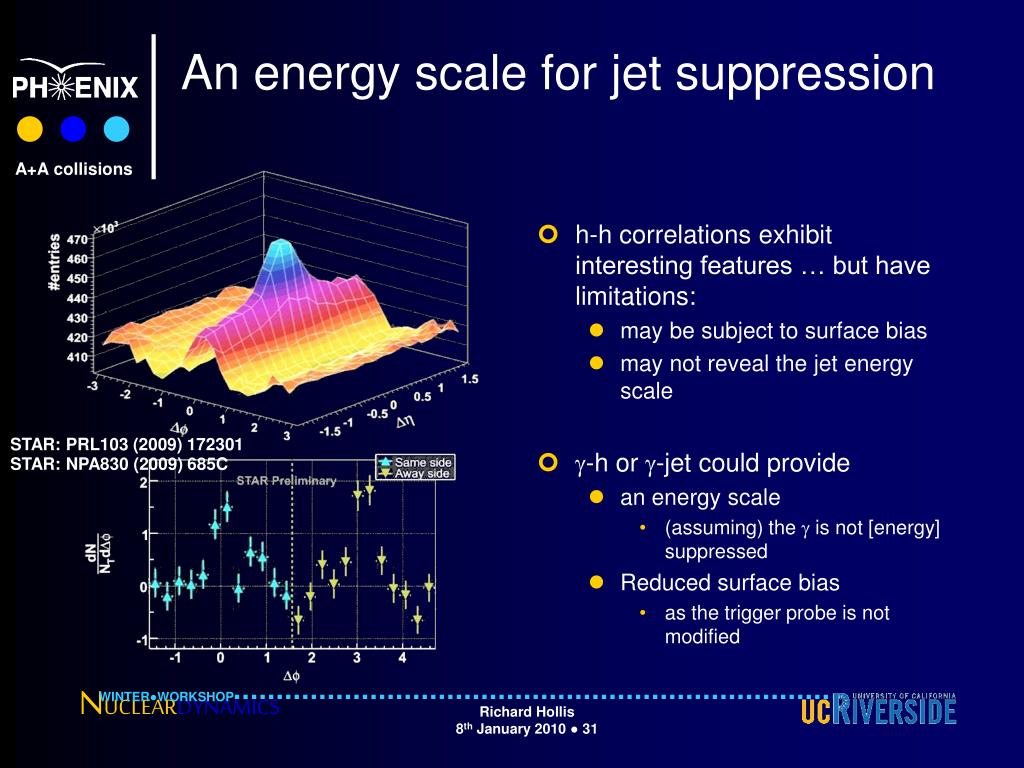

  31. An energy scale for jet suppression A+A collisions • h-h correlations exhibit interesting features … but have limitations: • may be subject to surface bias • may not reveal the jet energy scale • g-h or g-jet could provide • an energy scale • (assuming) the g is not [energy] suppressed • Reduced surface bias • as the trigger probe is not modified STAR: PRL103 (2009) 172301 STAR: NPA830 (2009) 685C Richard Hollis 8th January 2010 ● 31

  32. MPC x Coverage x versus h (p+p, 500 GeV) (MPC Acceptance) Richard Hollis 8th January 2010 ● 32

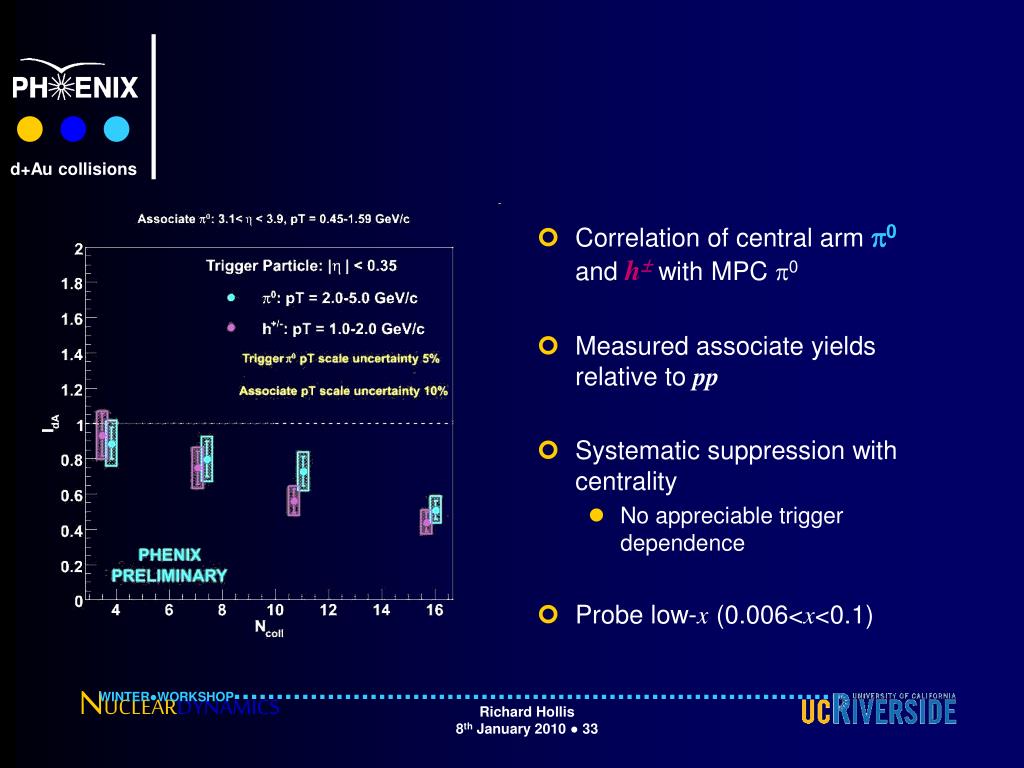

  33. d+Au collisions • Correlation of central arm p0 and h with MPCp0 • Measured associate yields relative to pp • Systematic suppression with centrality • No appreciable trigger dependence • Probe low-x (0.006<x<0.1) Richard Hollis 8th January 2010 ● 33
