slide1

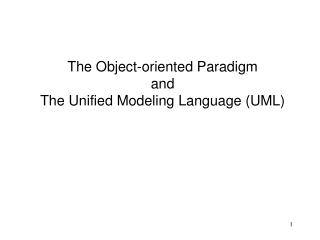

The Object-oriented Paradigm

and

The Unified Modeling Language (UML)

problems of software development
Problems of software development
  • "problems" of software development (review):
          • **conceptual integrity
        • **incremental build, progressive refinement
          • **large projects "differ" from small ones
  • programming paradigms (1950’s-present): attempts to deal effectively with these problems, make software easier to develop and to maintain
languages and design methodology
Languages and design methodology

Computer Language / Design Methodology: brief history:

1950's:unstructured, no information hiding--”spaghetti” code, GOTO, flowcharts

--machine code

--assembly lang.

--FORTRAN, LISP

(Algol; COBOL)

1980’s: structured, top-down design (“3 basic control structures, no GOTO”), modularity

--Pascal

--(C)

--Ada

1990’s: encapsulation, information-hiding, reuse, hardware/software codesign (from

simulation languages developed much earlier, e.g., Modula, simula)

--C++

--Java

2000’s: info hiding; web languages; environments encapsulating multiple languages, styles

--.NET, C#

--Python

--MATLAB, Mathematica, Labview, …

a brief history computer hardware computer languages design techniques
A Brief History: Computer Hardware, Computer Languages, Design Techniques

1950's:unstructured, no information hiding--”spaghetti” code, GOTO, flowcharts

--machine code

--assembly lang.

--FORTRAN, LISP (Algol; COBOL)

1970s,1980s: structured, top-down design (“3 basic control structures, no GOTO”), modularity

--Pascal, C, PL/I, Ada

1990’s: encapsulation, information-hiding, reuse, hardware/software codesign (from

simulation languages developed much earlier, e.g., Modula, simula)

--C++, Java

2000’s: info hiding; web languages; environments encapsulating multiple

languages, styles

--.NET, C#, Python, Perl, MATLAB, Mathematica, Labview, …

Early machines—large, central (Eniac)

Supercomputers, “Minicomputers”, PCs, multiuser machines, PICs

Beowulf clusters, Spread of the Internet

“Ubiquitous computing”, laptops,.

Personal communication devices, multicore processors, GPUs

wpclipart.com

chilton-computing.org.uk

http://en.wikipedia.org/wiki/PIC

_microcontroller#History

techxav.com

cse.mtu.edu

visual.merriam-webster.com

oo class
OO class
  • Important basic OO concepts:
  • class: encapsulates data
  • structure (object) and associated methods (functions)
  • these may be declared public / private / protected
  • appropriate uses:
  • public: pass info to object or request info about object
      • (use "messages") (can be used by anyone)
  • private: modify object (can be used in class or by “friends”)
  • protected: for descendants (in class or by derived class and “friends”)
record class
Record/class

traditional: record (struct): functions to use or modify this record can be anywhere in the program

OO: class concept supports encapsulation, information hiding

OO Prog.

DATA

DATA

DATA

DATA

DATA

DATA

DATA

Procedural Prog.

inheritance

Ex: Object data

structures:

A. Base class

B. Derived class

X

Y

Z

W

X

Y

Z

A.

B.

Inheritance

Useful OO techniques:

Inheritance:

ex: in a program modeling an ecosystem, we might have the relationships:

wolf is carnivore; sheep is herbivore; grass is plant

carnivore is animal; herbivore is animal

animal is organism; plant is organism

here the base class “organism” holds data fields which apply to all organisms, e.g., amount of water needed to survive

two derived classes, plant and animal, hold information specific to each of these types of organisms, e.g., kind of soil preferred by plant

the animal class also has two derived classes, wolf and sheep

Inheritance allows the collection of common attributes and methods in "base" class and inclusion of more specific attributes and methods in derived classes

polymorphism and overloading

Polymorphism:

base class can define a “virtual” function; appropriate versions of this function can be instantiated in each derived class (e.g., "draw" in the base class of graphical objects can have its own specific meaning for rectangles, lines, ellipses)

Overloading:

ex: cin >> num1;

>> is overloaded "shift”

ex: “+” can be overloaded to allow the addition of two vectors

ex: a function name can be overloaded to apply to more than one situation; e.g., a constructor can be defined one way if initial values are given and a different way if initial values are not given

Polymorphism and overloading
templates
Templates

Templates:

example:

template <class T>

T method1 (T x) …..

can be specialized: int method1 (int x)

float method1 (float y)

usertype method1 (usertype a)

templates promote reuse

separate compilation
Separate compilation
  • Separate compilation:
  • Typically, an object-oriented program can be broken into three sets of components:
      • definitions and prototypes (text files, “header files”)
      • implementations (compiled--source code need not be available to user)
      • application program--uses the classes defined in header files and supported by the implementation files
  • This strategy promotes reuse and information hiding
misuse of object oriented paradigm
Misuse of object-oriented paradigm

Note: no paradigm is misuse-proof

using oo uml in quarter project

Developing an OO project: we will use UML (subset)

determine specifications:

use cases

[scenario: instance of use case; concrete informal description of 1 feature; enhances understanding of use case]

determine classes and connections (static behavior):

ER or class diagrams

CRC cards

model dynamic behavior:

interaction (object message) diagrams

activity diagrams

state diagrams

sequence diagrams

Using OO & UML in quarter project
uml a language for specifying and designing an oo project

UML: stands for "unified modeling language”

unifies methods of Booch, Rumbaugh (OMT or Object Modeling Technique), and Jacobson (OOSE or Object-Oriented Software Engineering)

mainly a modeling language, not a complete development method

Early versions -- second half of the 90's

Not all methods we will use are officially part of the UML description (e.g., CRC cards)

There exist many versions of UML—syntax may have slight differences among versions—be aware of this as you read and work on homework and projects

UML: a language for specifying and designing an OO project

use cases

USE CASES:

a part of the ”Unified Modeling Language" (UML) which we will use for requirements analysis and specification

each identifies a way the system will be used and the "actors" (people or devices) that will use it (an interaction between the user and the system)

each use case should capture some user-visible function and achieve some discrete goal for the user

an actual user can have many actor roles in these use cases

an instance of a use case is usually called a "scenario”

Use case will typically have graphical & verbal forms

Use cases
example use case

Example: cellular network place and receive calls use case (based on Booch, Rumbaugh, and Jacobson, The Unified Modeling Language User Guide)

Example use case

Text description

--Use case name

(cellular network place

and receive calls)

--Participating actors

(cellular network and

human user)

--Flow of events

(network or user

accesses network to

use its functionality)

--Entry condition(s)

(user accesses

network using device

or password)

--Exit condition(s)

(call completed

lost or network busy)

--Quality requirements

(speed, service quality)

--Open issues

(for future versions, e.g.)

System boundary

Use case diagram—summarizes,

provides system overview

Text description—gives important details

use case
use case

Text description:

Use case name

Participating actors

Flow of events

Entry condition(s)

Exit condition(s)

Quality requirements

slide17

Encounters an

error condition

Arms/disarms

system

Responds to

alarm event

Use case—detailed example (Pressman)

  • Example: “SAFEHOME” system (Pressman)
  • Use case: InitiateMonitoring
  • (Pressman text categories:
    • Primary actor (1)
    • Goal in context (2)
    • Preconditions (3)
    • Trigger (4)
    • Scenario (5)
    • Exceptions (6)
    • Priority (system development) (7)
    • When available (8)
    • Frequency of use (9)
    • Channel to actor (10)
    • Secondary actors (11)
    • Channels to secondary actors (12)
    • Open issues (13) )

Homeowner

Accesses system

via internet

Sensors

System administrator

Reconfigures

sensors

and related

system features

Pressman,

p. 163,

Figure 7.3

slide18

Use case—detailed example (Pressman)

  • Example: “SAFEHOME” system (Pressman)
  • Use case name:InitiateMonitoring
  • Participating actors: homeowner, technicians, sensors
  • Flow of events (homeowner):
    • --Homeowner wants to set the system when the homeowner leaves house or remains in house
    • --Homeowner observes control panel
    • --Homeowner enters password
    • --Homeowner selects “stay” or “away”
    • --Homeowner observes that read alarm light has come on, indicating the system is armed
slide19

Use detailed example (Pressman)--continued

  • Entry condition(s)
  • Homeowner decides to set control panel
  • Exit condition(s)
  • Control panel is not ready; homeowner must check all sensors and reset them if necessary
    • Control panel indicates incorrect password (one beep)—homeowner enters correct password
    • Password not recognized—must contact monitoring and response subsystem to reprogram password
    • Stay selected: control panel beeps twice and lights stay light; perimeter sensors are activated
    • Away selected: control panel beeps three times and lights away light; all sensors are activated
slide20

Use case—detailed example (Pressman)

  • Quality requirements:
  • Control panel may display additional text messages
  • time the homeowner has to enter the password from the time the first key is pressed
  • Ability to activate the system without the use of a password or with an abbreviated password
  • Ability to deactivate the system before it actually activates
slide21

<<include>>

A

C

B

<<include>>

<<extend>>

D

F

E

<<extend>>

Use case additions—simplifications of use case descriptions

  • A. Include: one use case includes another in its flow of events (cases A and B both include case C)
  • Example: report a fire: both “open incident” and “send fire trucks” include the use case “view city map”
  • Extend: extend one use case to include additional behavior (cases D and E are extensions of case F)
  • Example: ConnectionDown between two emergency responders is a “special case” of Reportemergency but it can use the basic functionality of ReportEmergency
slide22

Use case additions

  • C. Inheritance: one use case specializes the more general behavior of another G and H specialize behavior of J)
  • Note: use case inheritance is BEHAVIORAL or FUNCTIONAL inheritance
  • Standard OO inheritance is STRUCTURAL inheritance

G

J

Authenticate with password

authenticate

H

Authenticate with card

slide23

Use case continued

Examples: what would be a use case for:

vending machine user university student management system

(e.g., student changes registration)

Use case name

Participating actors

Flow of events

Entry condition

Exit condition

Quality requirements

system tests
System Tests
  • TESTING at the system level:
  • Use cases can form a basis for system acceptance tests
  • For each use case:
    • Develop one or more system tests to confirm that the use case requirements will be satisfied
    • Add explicit test values as soon as possible during design phase
    • These tests are now specifically tied to the use case and will be used as the top level acceptance tests
    • Do not forget use cases / tests for performance and usability requirements (these may be qualitative as well as quantitative)
