  1. Hytec 1U IOC Darrell Nineham Hytec Electronics Ltd Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

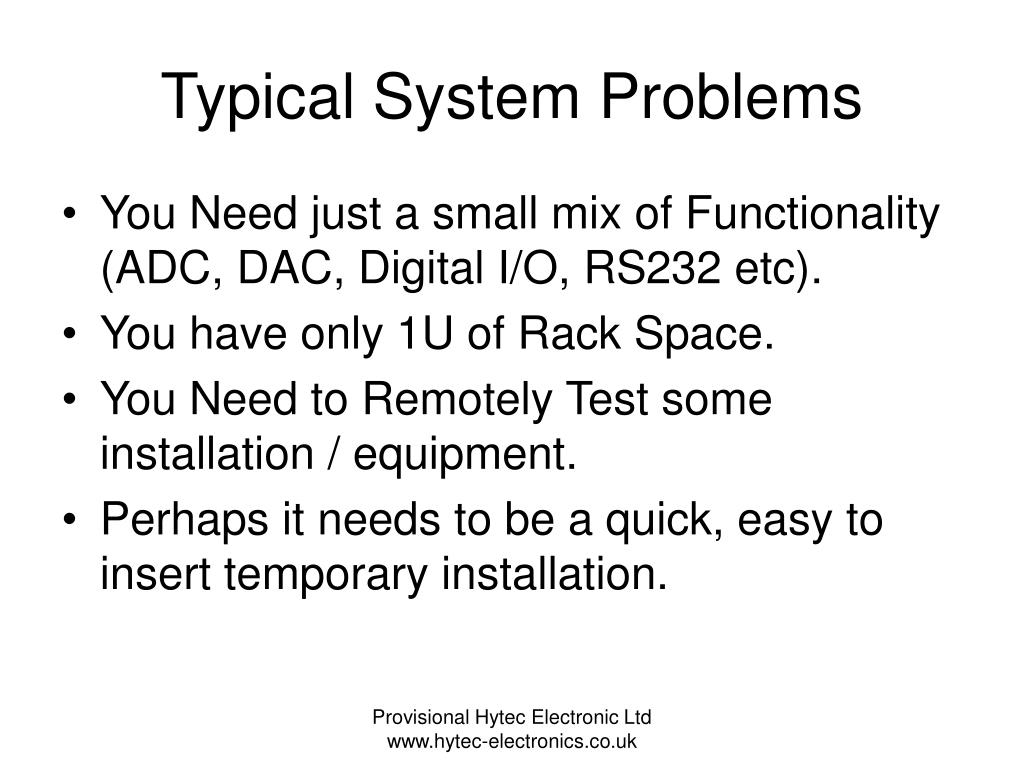

  2. Typical System Problems • You Need just a small mix of Functionality (ADC, DAC, Digital I/O, RS232 etc). • You have only 1U of Rack Space. • You Need to Remotely Test some installation / equipment. • Perhaps it needs to be a quick, easy to insert temporary installation. Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

  3. The Solution • 1U 19” Rack Unit. • With assorted I/O, perhaps using IP Cards for Maximum Functionality. • 10/100 BaseT Ethernet, accessing the I/O via… • HTML Pages. • Simple TCP/IP Commands. • EPICS. Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

  4. Hytec’s Solution ! Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

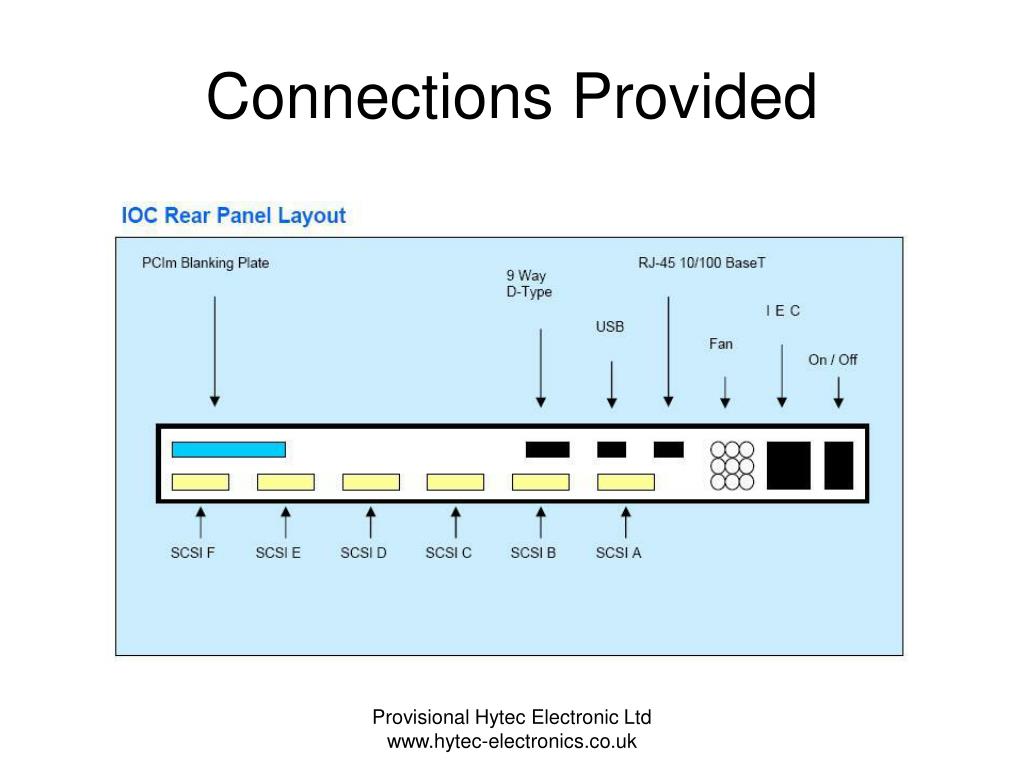

  5. Connections Provided Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

  6. Costing - Present Solution • $2000 - 4 Slot Crate • $4000 - Processor Card • $2600 – 1 or 2 x Hy8002 ($1300 each) Total - $7300 to $8600 Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

  7. Costing - 1U IOC Solution • For 1 off. • Predicted Price. • $4750. • That is Without Volume Discount price. Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

  8. Future Enhancements • More and More EPICS Records support. • USB 2.0 Support. • Assorted PCIm Cards Support. Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk

  9. What we need from You ! • Do you thinks there are any missing Hardware Support or Enhancements ? • Suggestions for a Suitable Name.... ‘The IOC Blade’ is the present trade marked lead contender. Provisional Hytec Electronic Ltd www.hytec-electronics.co.uk
