  1. Group #18 Biometric Padlock

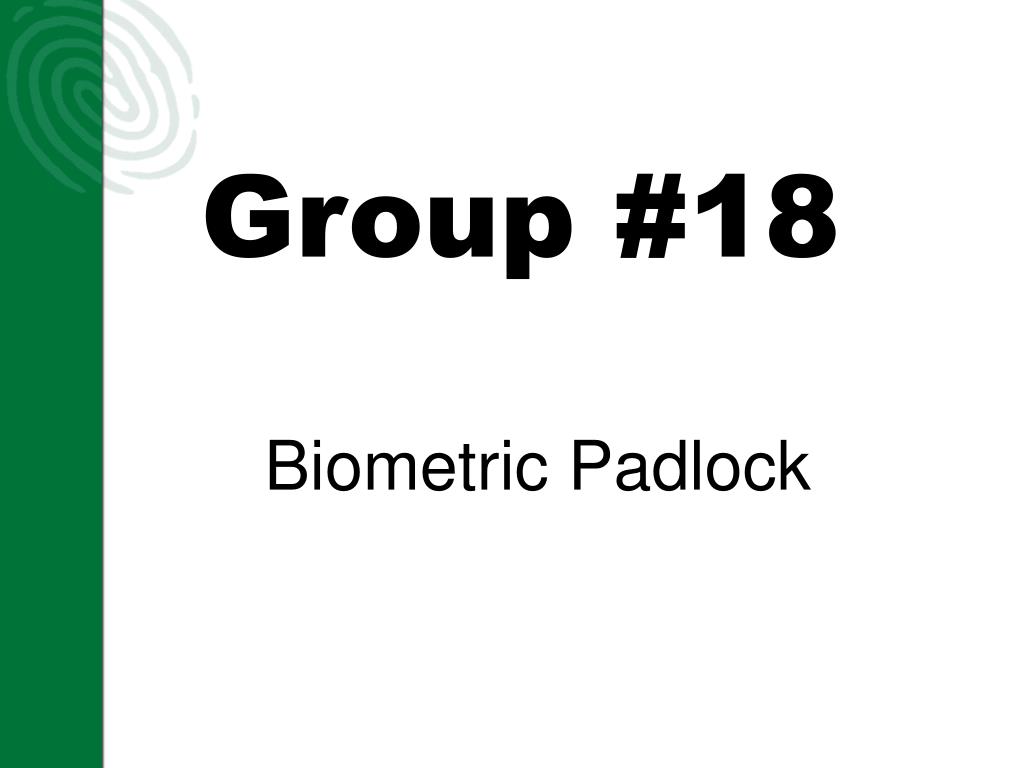

  2. The Biometric Padlock Team Jim Turner Jerry Guzolik Sasant Nuthakki Blaise Kapombe Nathan Harris

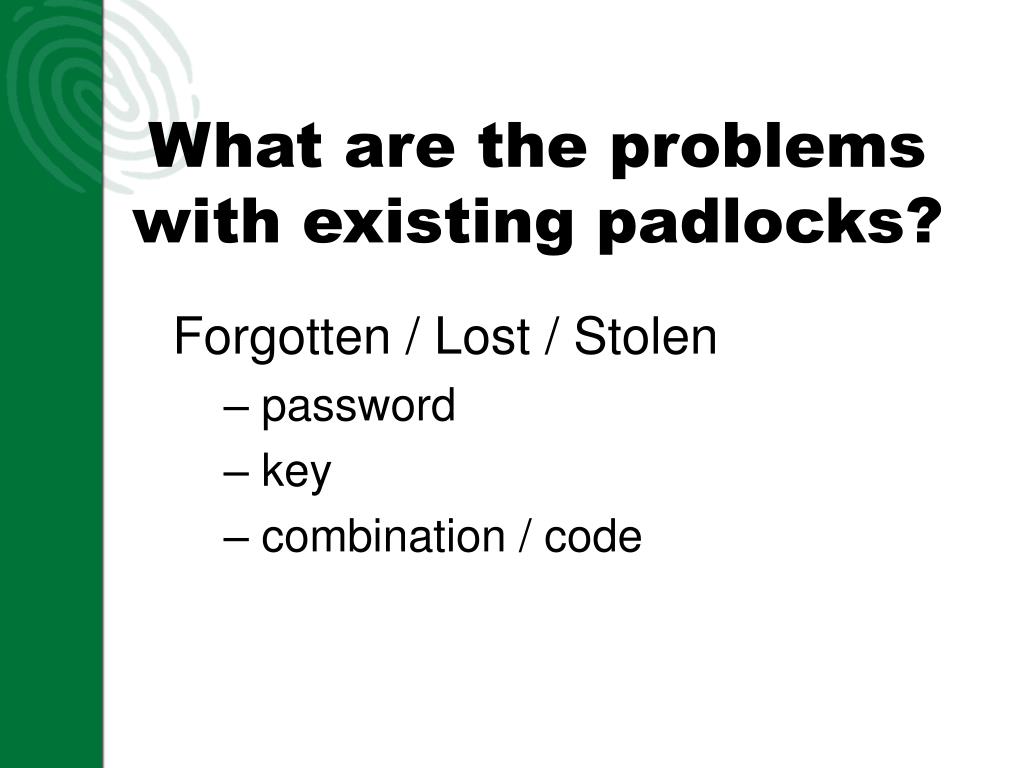

  3. What are the problems with existing padlocks? Forgotten / Lost / Stolen password key combination / code

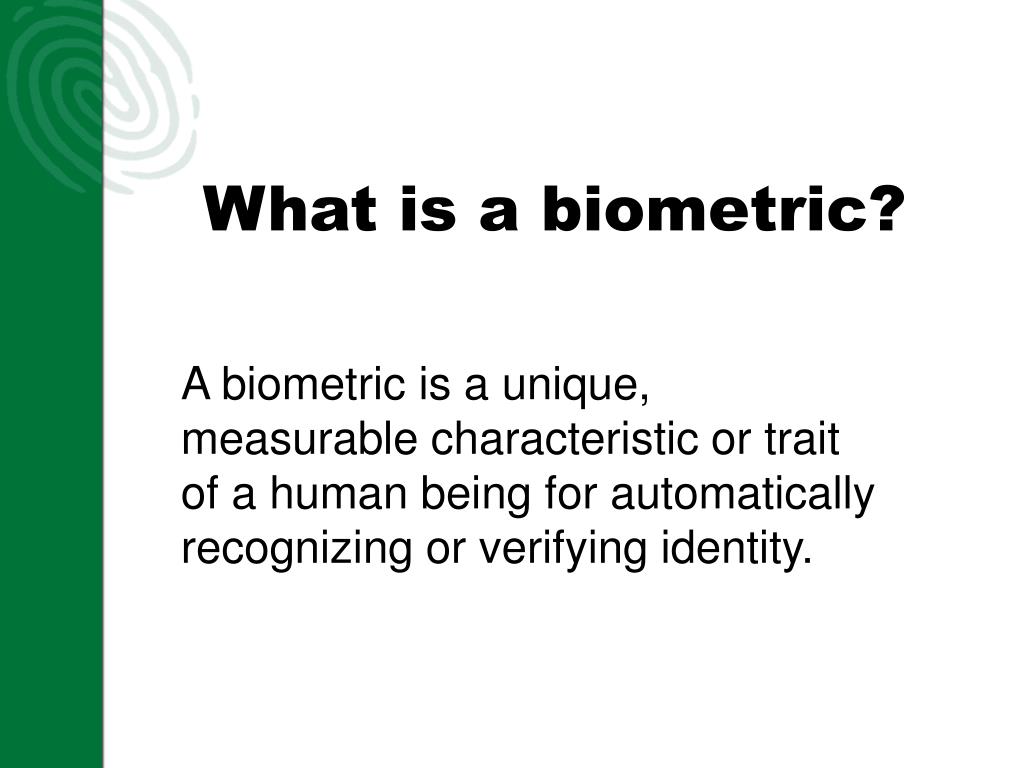

  4. What is a biometric? A biometric is a unique, measurable characteristic or trait of a human being for automatically recognizing or verifying identity.

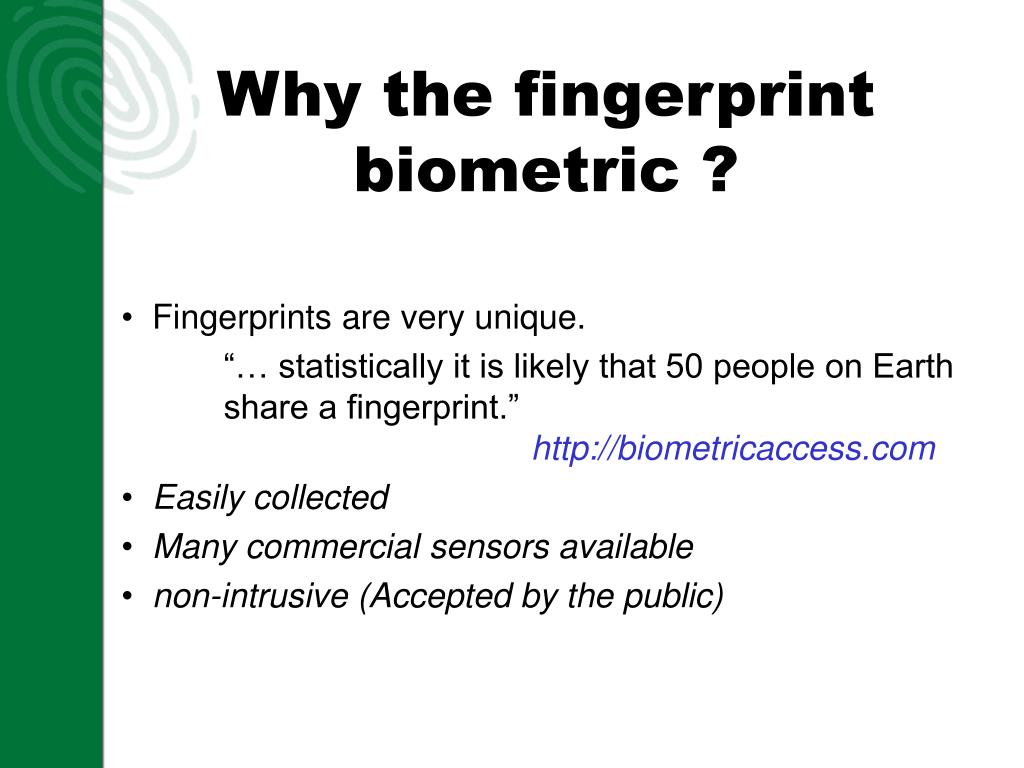

  5. Why the fingerprint biometric ? Fingerprints are very unique. “… statistically it is likely that 50 people on Earth share a fingerprint.” http://biometricaccess.com Easily collected Many commercial sensors available non-intrusive (Accepted by the public)

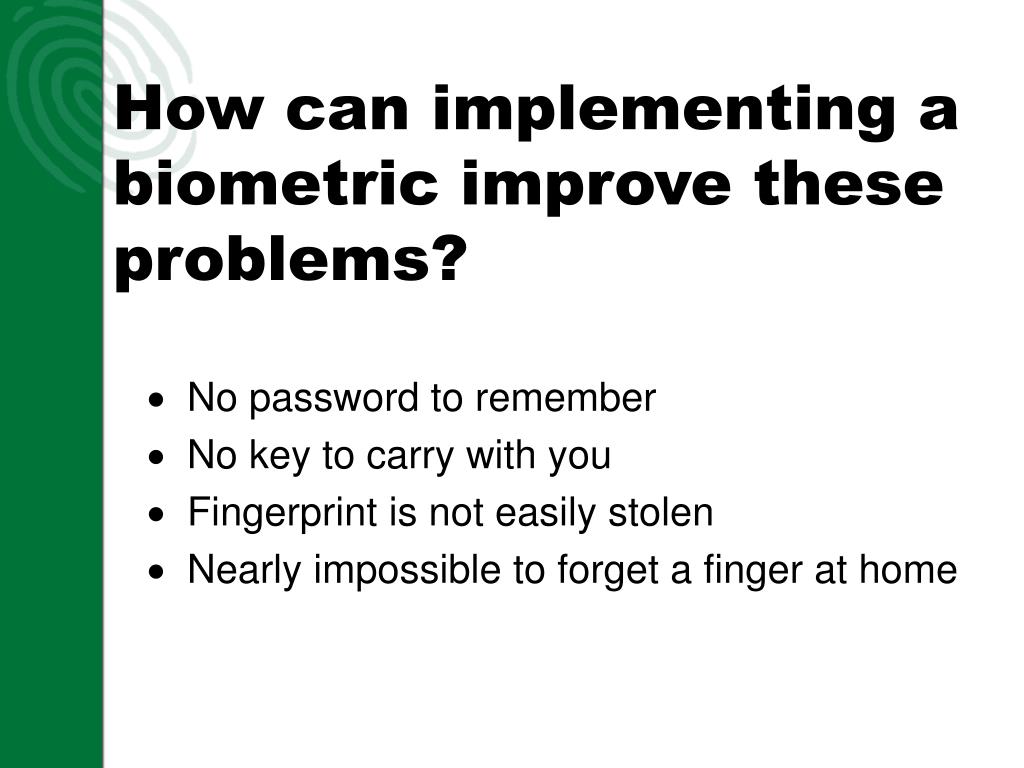

  6. How can implementing a biometric improve these problems? No password to remember No key to carry with you Fingerprint is not easily stolen Nearly impossible to forget a finger at home

  7. Block Diagram

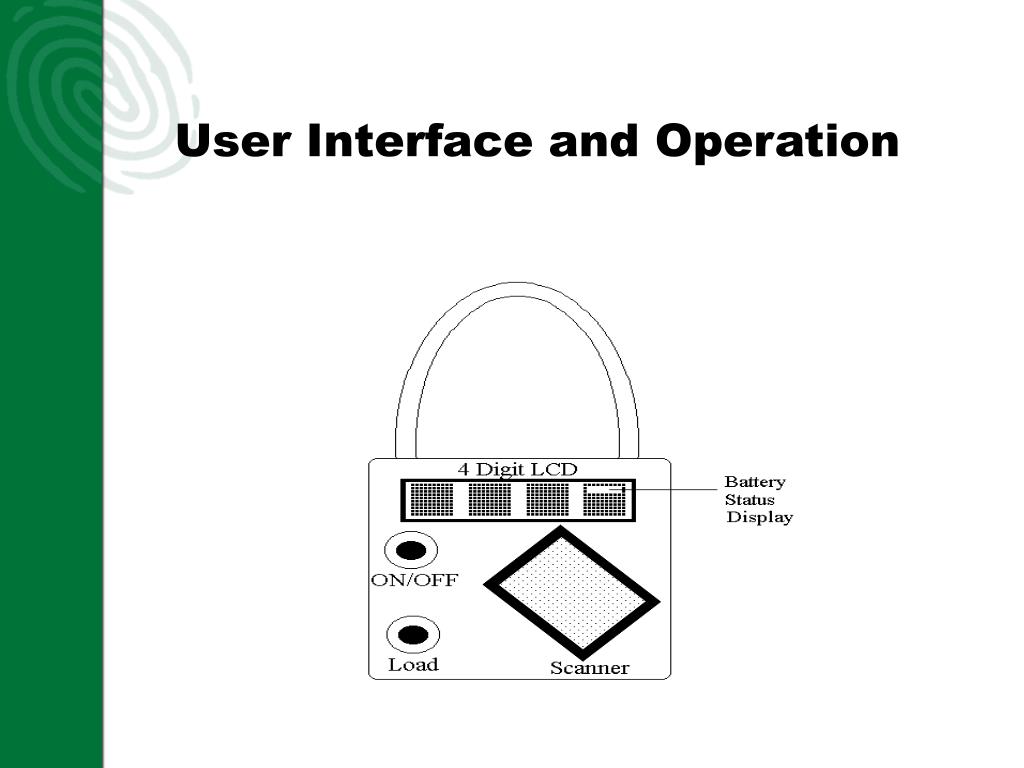

  8. User Interface and Operation

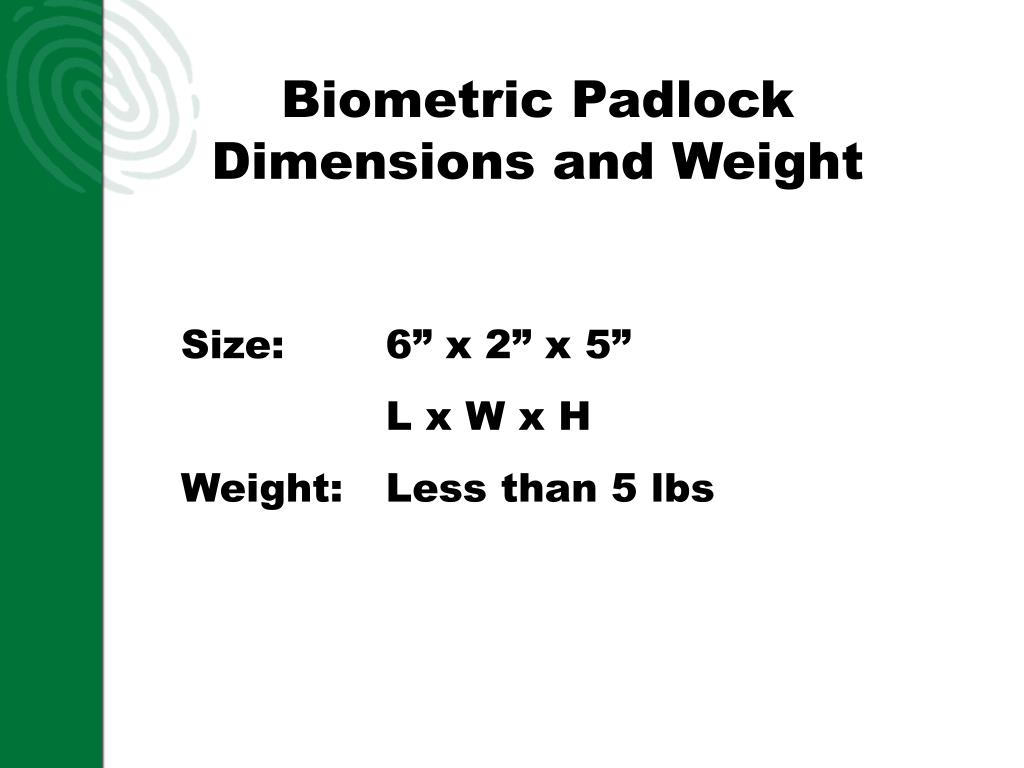

  9. Biometric PadlockDimensions and Weight Size: 6” x 2” x 5” L x W x H Weight: Less than 5 lbs

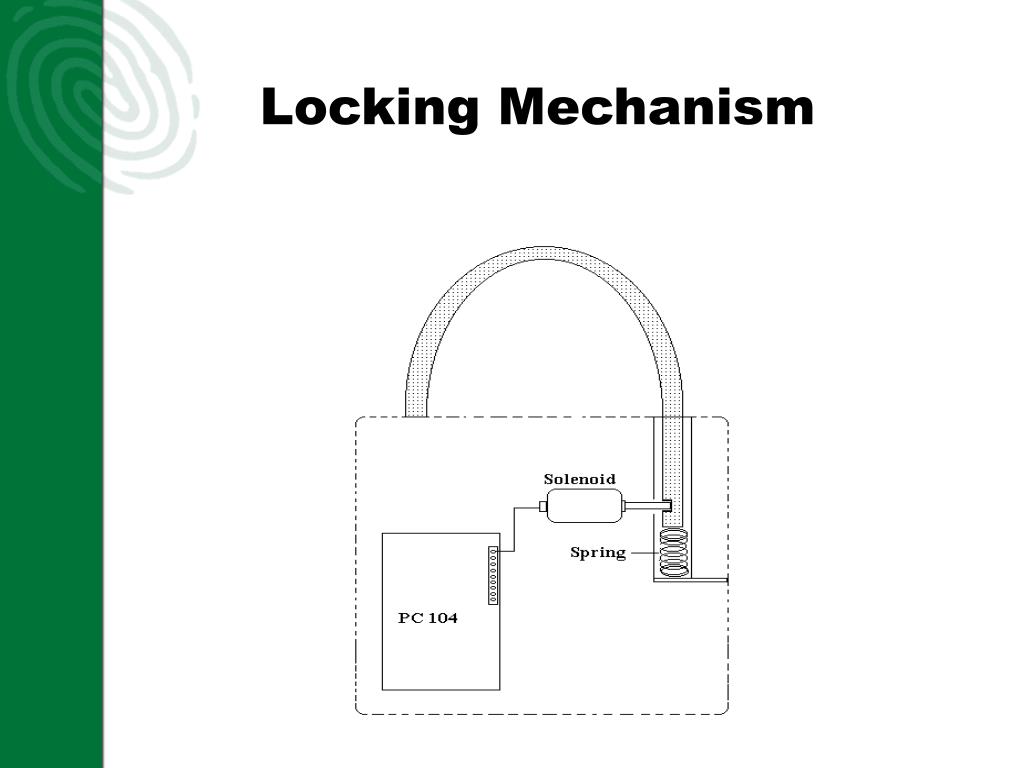

  10. Locking Mechanism

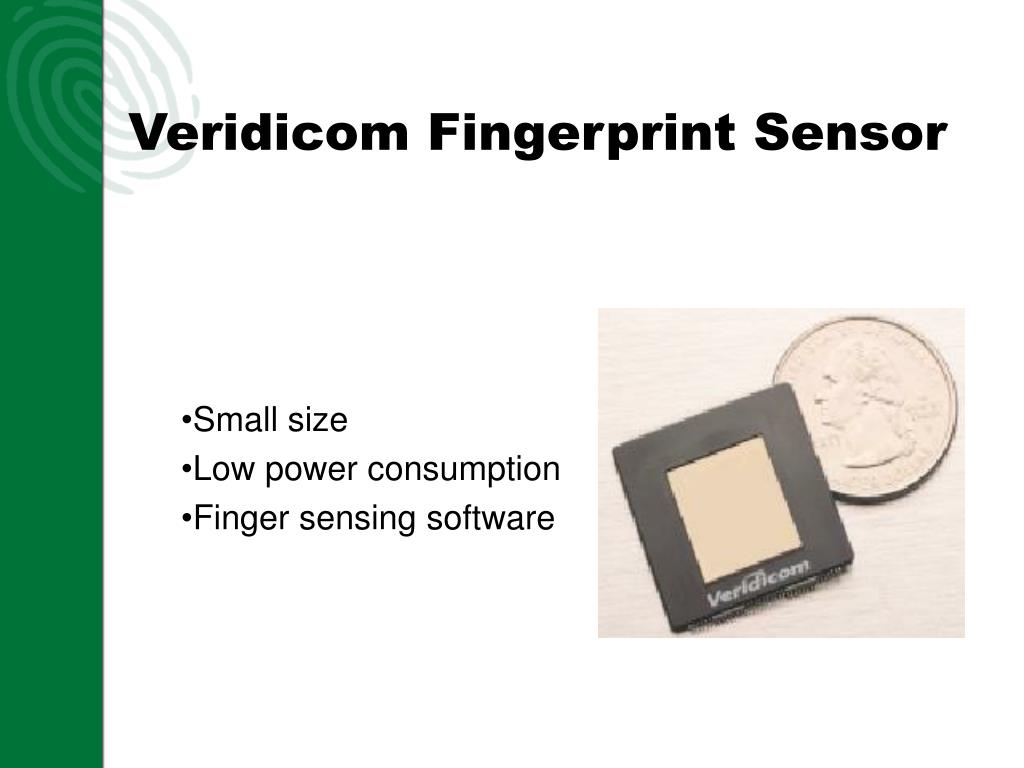

  11. Veridicom Fingerprint Sensor Small size Low power consumption Finger sensing software

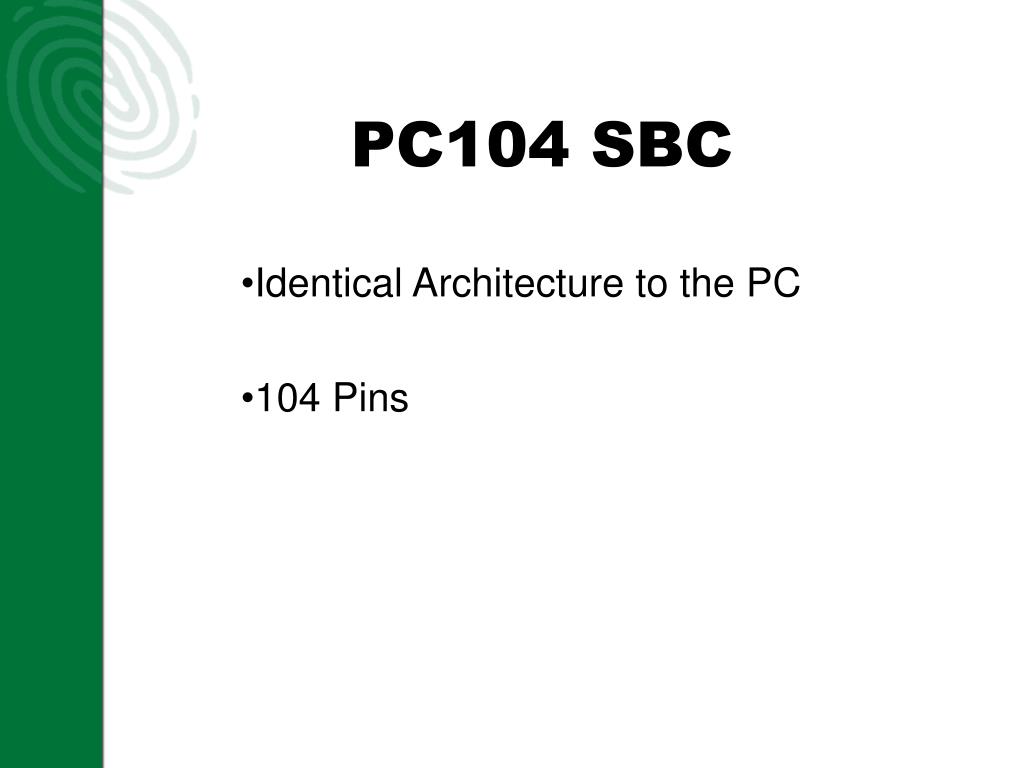

  12. PC104 SBC Identical Architecture to the PC 104 Pins

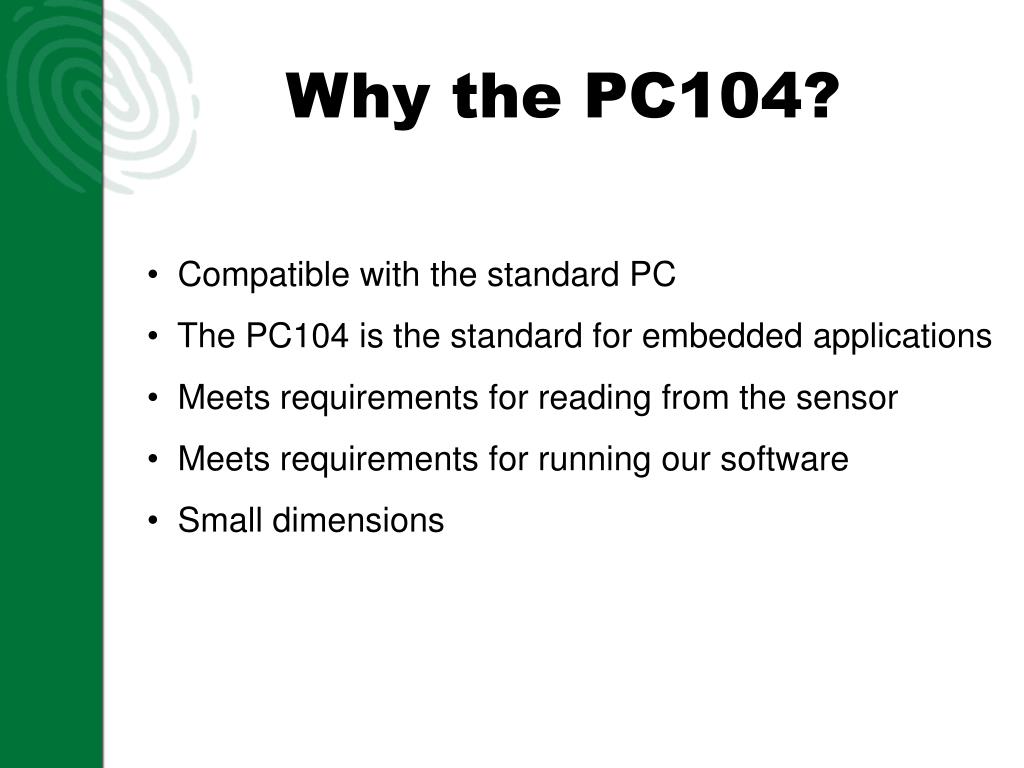

  13. Why the PC104? • Compatible with the standard PC • The PC104 is the standard for embedded applications • Meets requirements for reading from the sensor • Meets requirements for running our software • Small dimensions

  14. PC104 Advantages Has nearly every function of a PC Develop software on PC Easily run DOS executables Can use any Processor Portable because of size

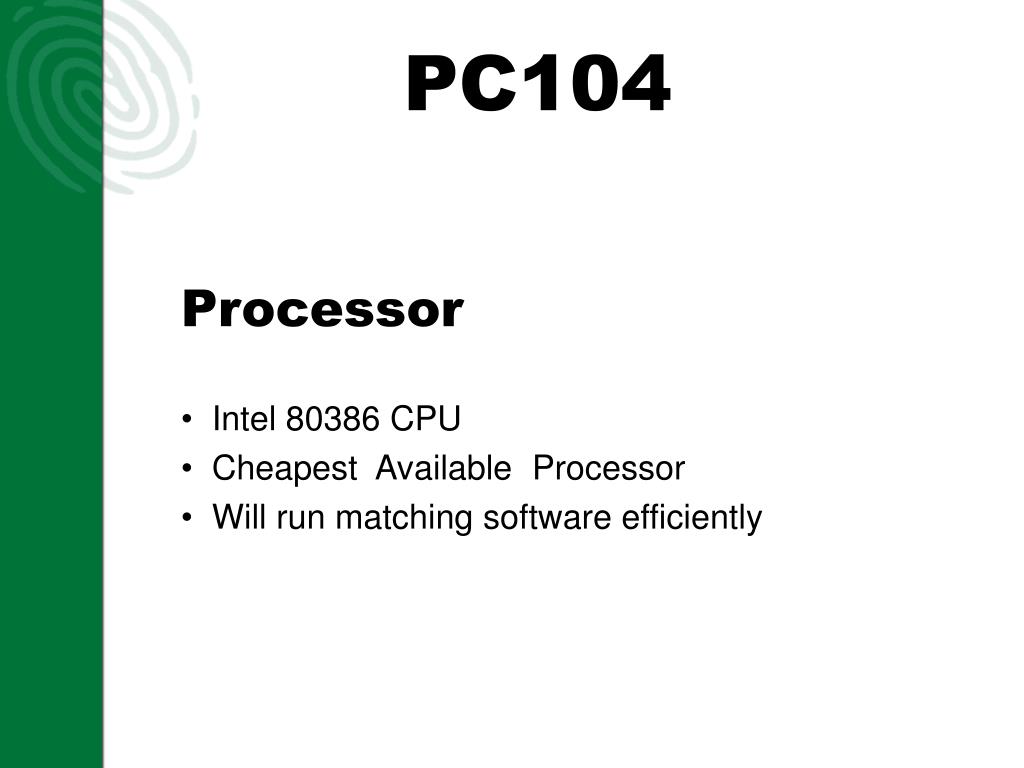

  15. PC104 Processor Intel 80386 CPU Cheapest Available Processor Will run matching software efficiently

  16. PC104 Memory 8MB memory chip sufficient memory for OS, template, and software

  17. PC104 Interfacing Parallel ports used for: input from sensor buttons LCD display

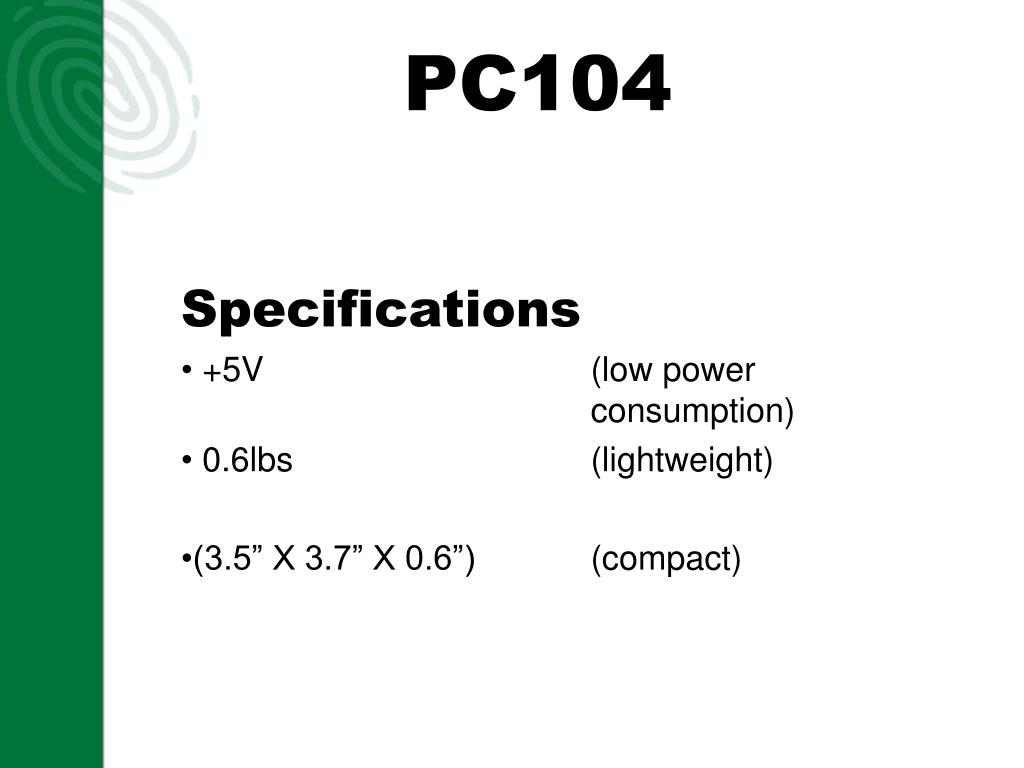

  18. PC104 Specifications +5V (low power consumption) 0.6lbs (lightweight) (3.5” X 3.7” X 0.6”) (compact)

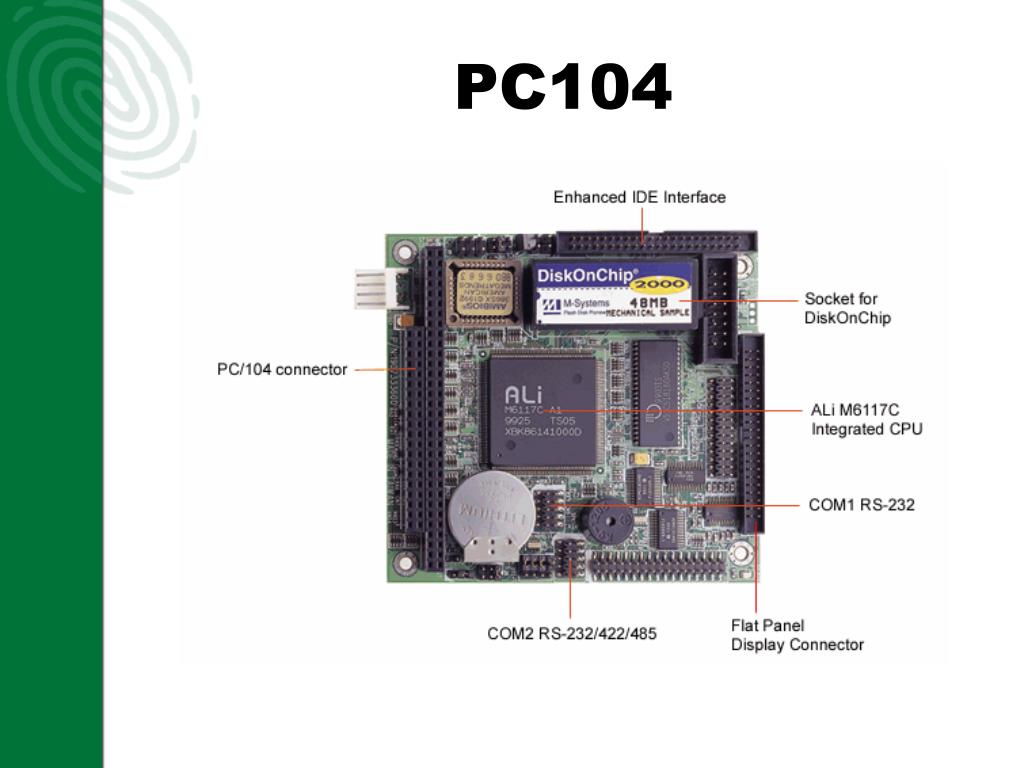

  19. PC104

  20. Battery Selection The following is a list batteries that are available to our design application: NiCd (Nickel Cadmium) NiMH (Nickel Metal Hydride) Li-ion (Lithium Ion) SLA (Sealed Lead Acid)

  21. Battery Selection Battery research has led to two selections currently being considered by the design team. 1) Nickel Cadmium (NiCd) 2) Lithium Ion (Li-ion)

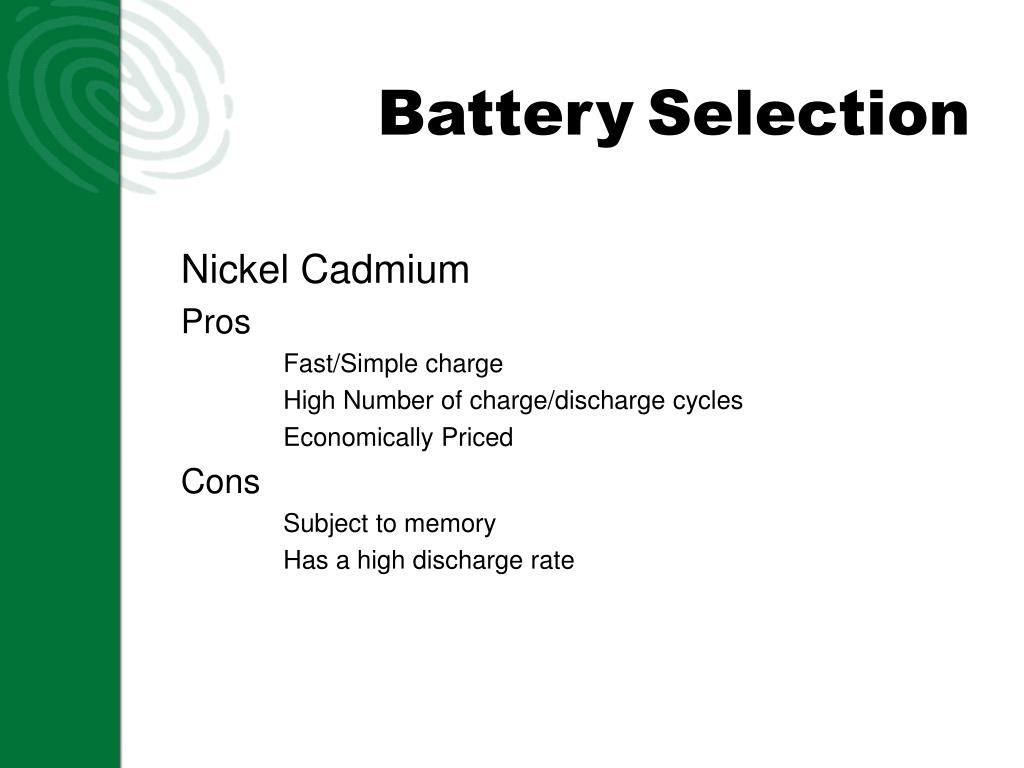

  22. BatterySelection Nickel Cadmium Pros Fast/Simple charge High Number of charge/discharge cycles Economically Priced Cons Subject to memory Has a high discharge rate

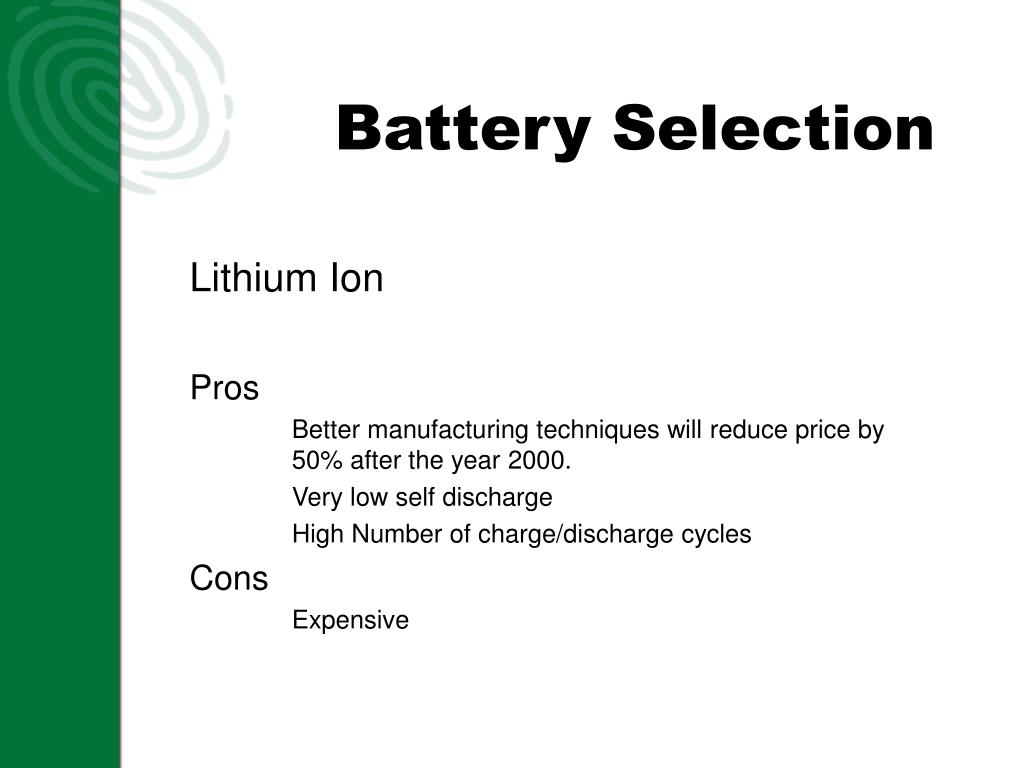

  23. Battery Selection Lithium Ion Pros Better manufacturing techniques will reduce price by 50% after the year 2000. Very low self discharge High Number of charge/discharge cycles Cons Expensive

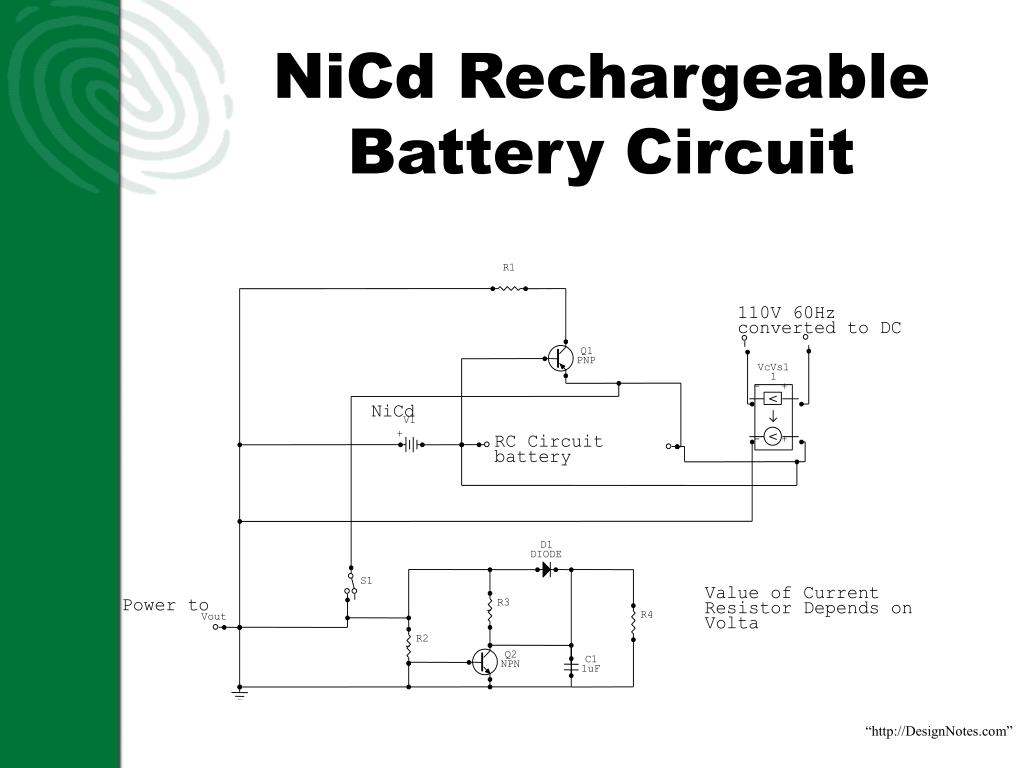

  24. NiCd Rechargeable Battery Circuit “http://DesignNotes.com”

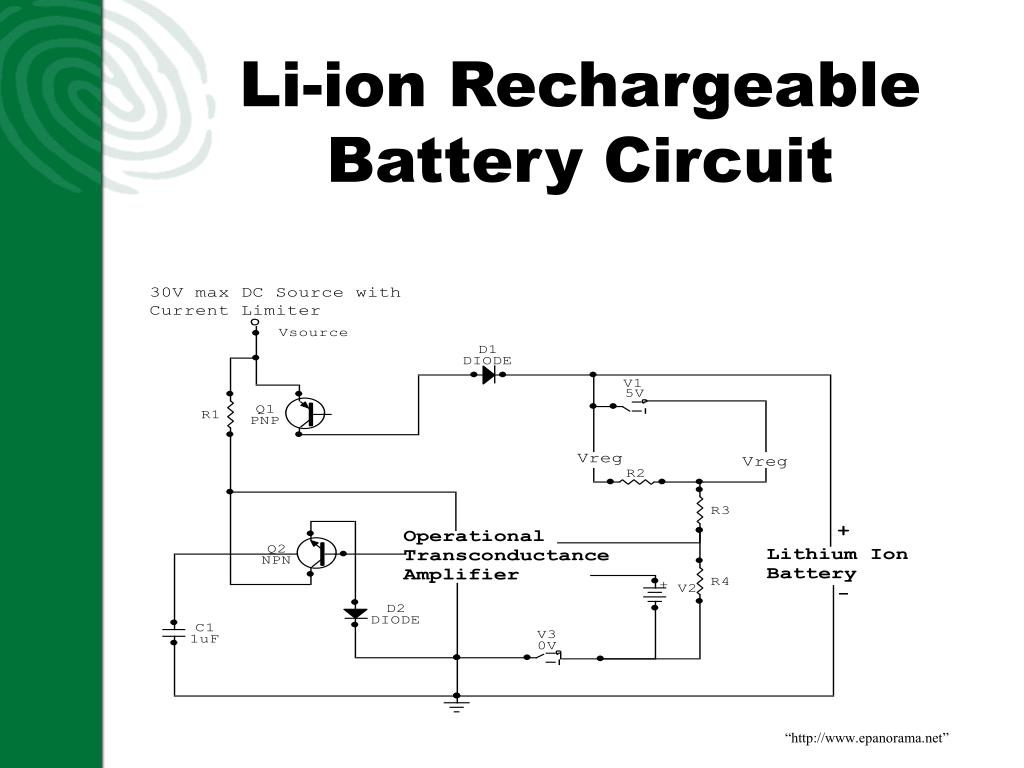

  25. Li-ion Rechargeable Battery Circuit “http://www.epanorama.net”

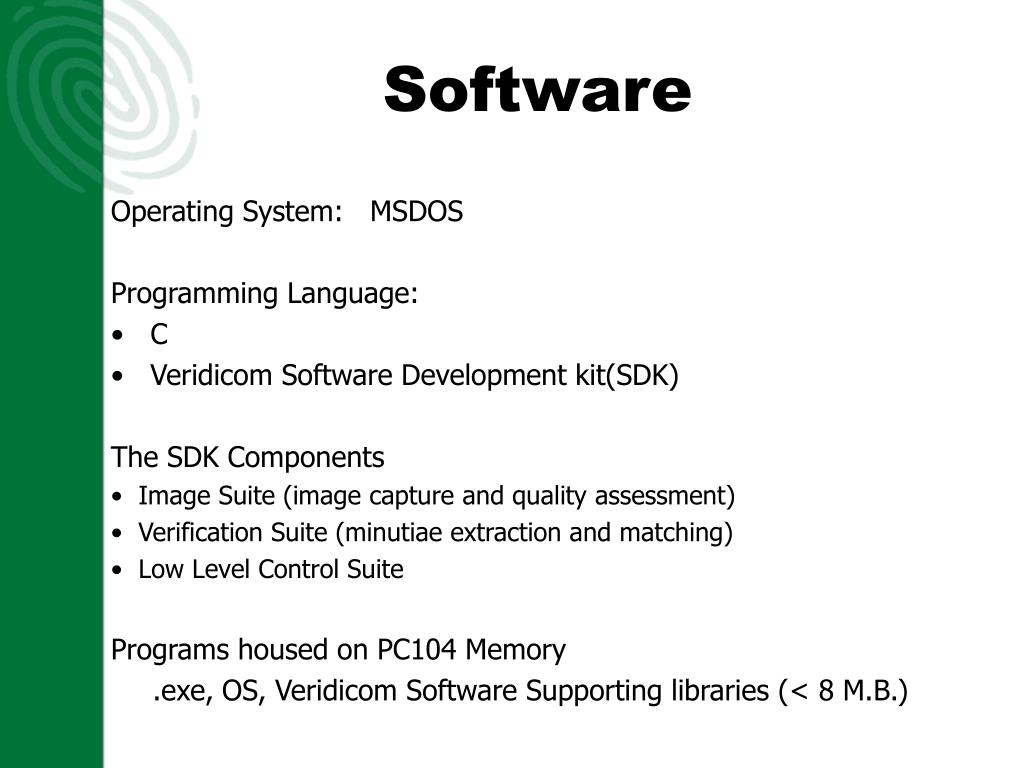

  26. Software • Operating System: MSDOS • Programming Language: • C • Veridicom Software Development kit(SDK) • The SDK Components • Image Suite (image capture and quality assessment) • Verification Suite (minutiae extraction and matching) • Low Level Control Suite • Programs housed on PC104 Memory • .exe, OS, Veridicom Software Supporting libraries (< 8 M.B.)

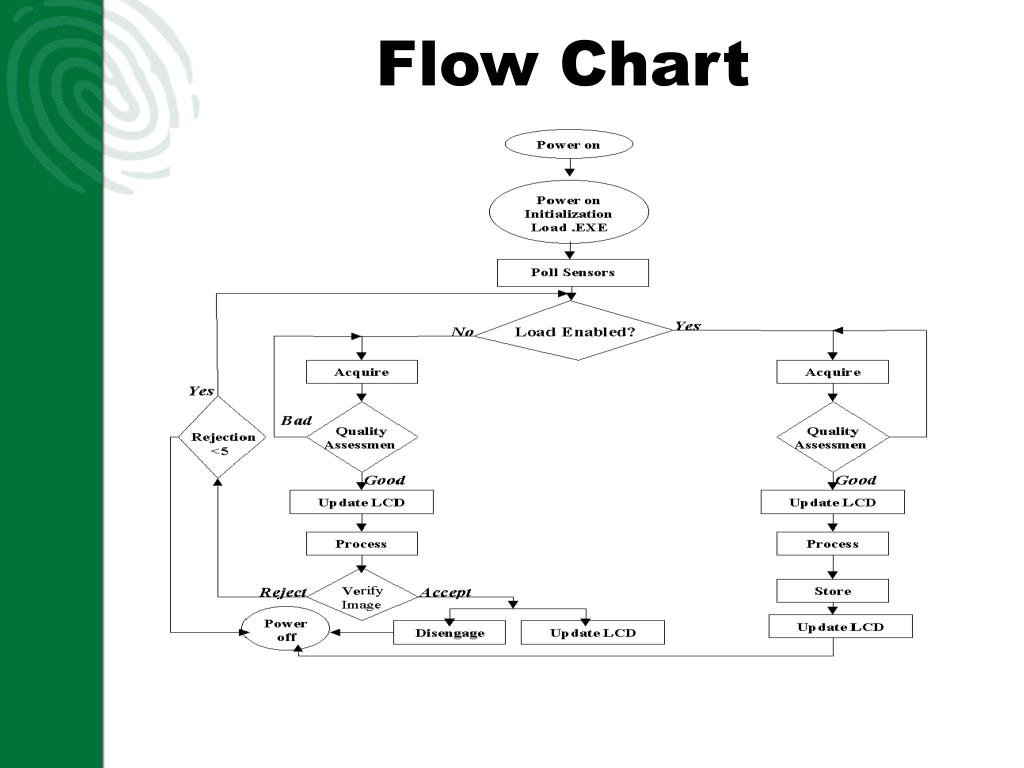

  27. Flow Chart

  28. Q & A

  29. Minutiae Points Termination Bifurcation
