  1. Earth Science, 10e Edward J. Tarbuck & Frederick K. Lutgens

  2. Minerals: Building Blocks of RocksChapter 1 Earth Science, 10e Stan Hatfield and Ken Pinzke Southwestern Illinois College

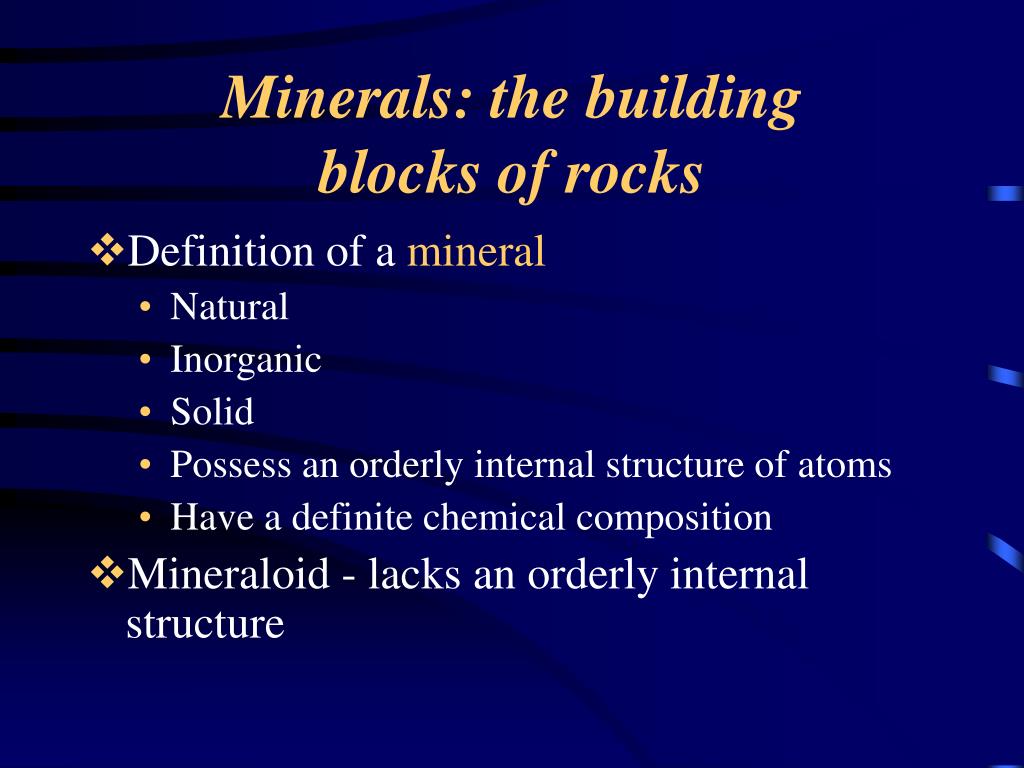

  3. Minerals: the building blocks of rocks • Definition of a mineral • Natural • Inorganic • Solid • Possess an orderly internal structure of atoms • Have a definite chemical composition • Mineraloid - lacks an orderly internal structure

  4. Composition and structure of minerals • Elements • Basic building blocks of minerals • Over 100 are known • Atoms • Smallest particles of matter • Have all the characteristics of an element

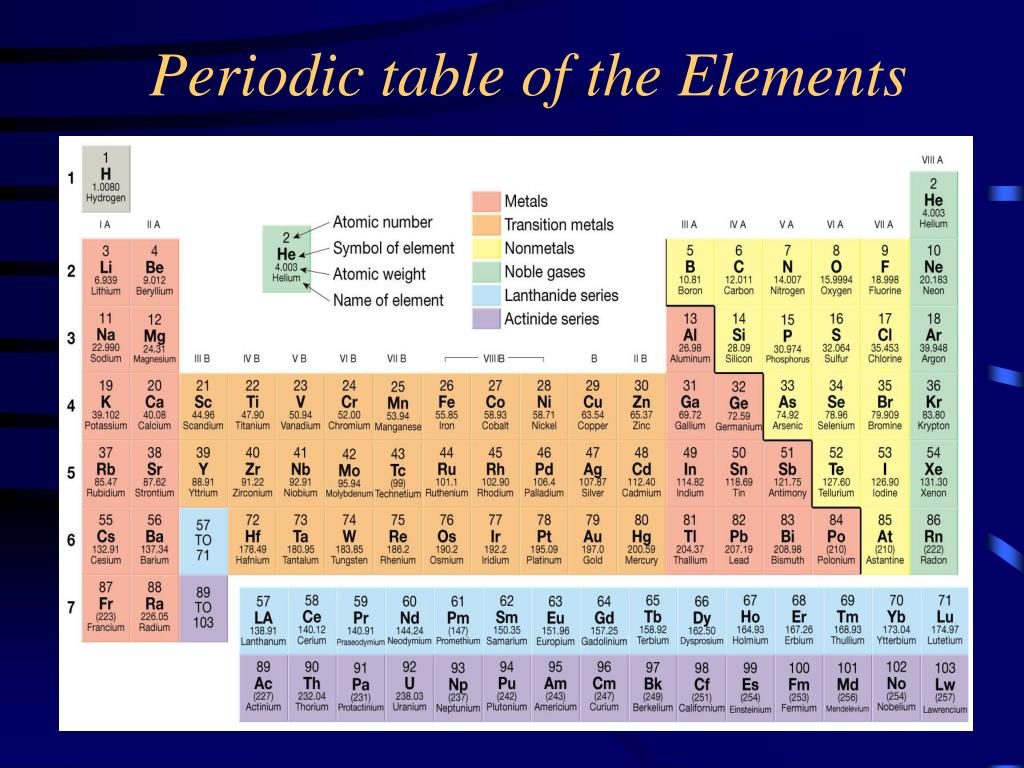

  5. Periodic table of the Elements

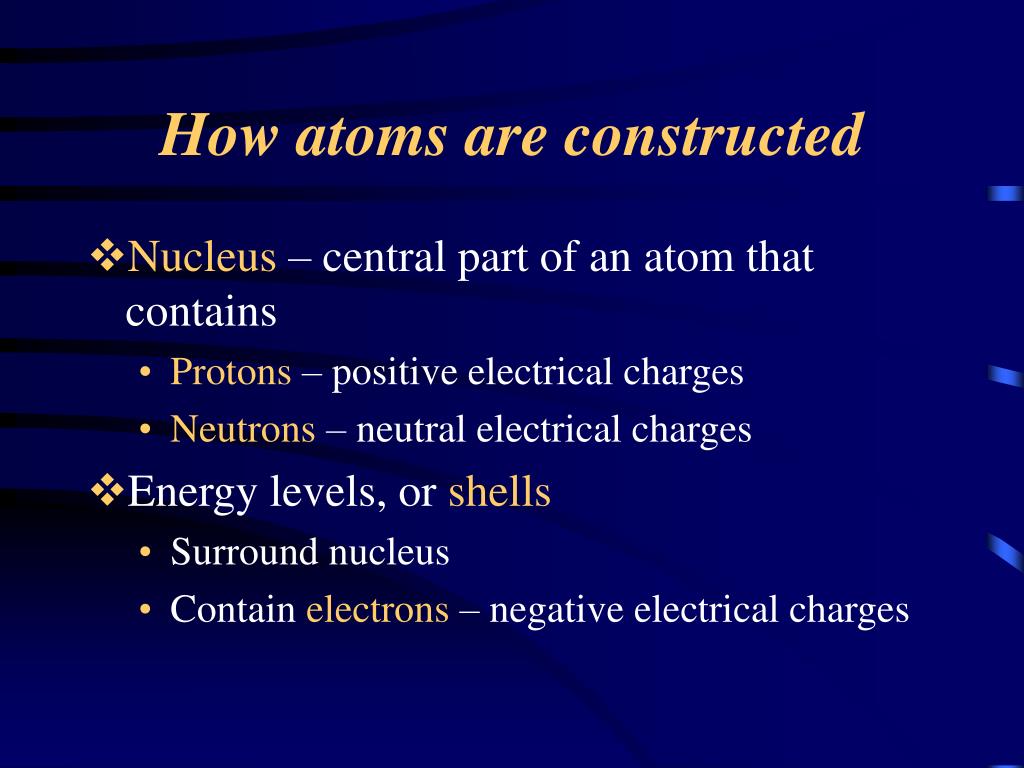

  6. How atoms are constructed • Nucleus – central part of an atom that contains • Protons – positive electrical charges • Neutrons – neutral electrical charges • Energy levels, or shells • Surround nucleus • Contain electrons – negative electrical charges

  7. Simplified view of the atom

  8. How atoms are constructed • Atomic number is the number of protons in an atom's nucleus • Bonding of atoms • Forms a compound with two or more elements • Ions are atoms that gain or lose electrons • Isotopes • Have varying number of neutrons

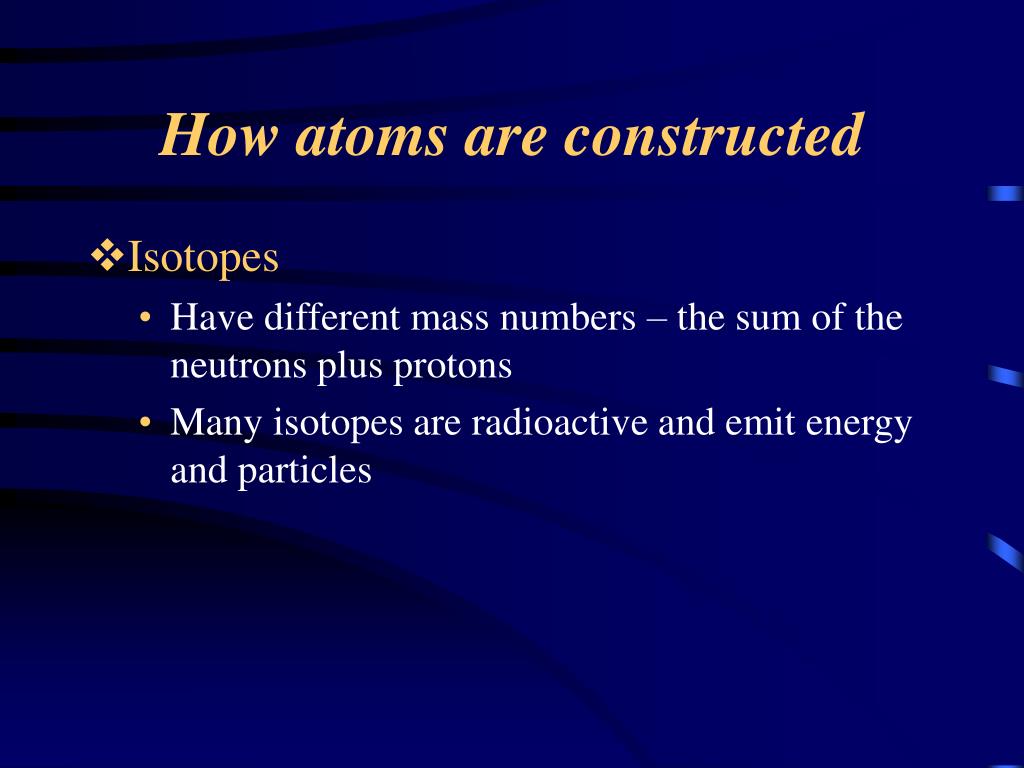

  9. How atoms are constructed • Isotopes • Have different mass numbers – the sum of the neutrons plus protons • Many isotopes are radioactive and emit energy and particles

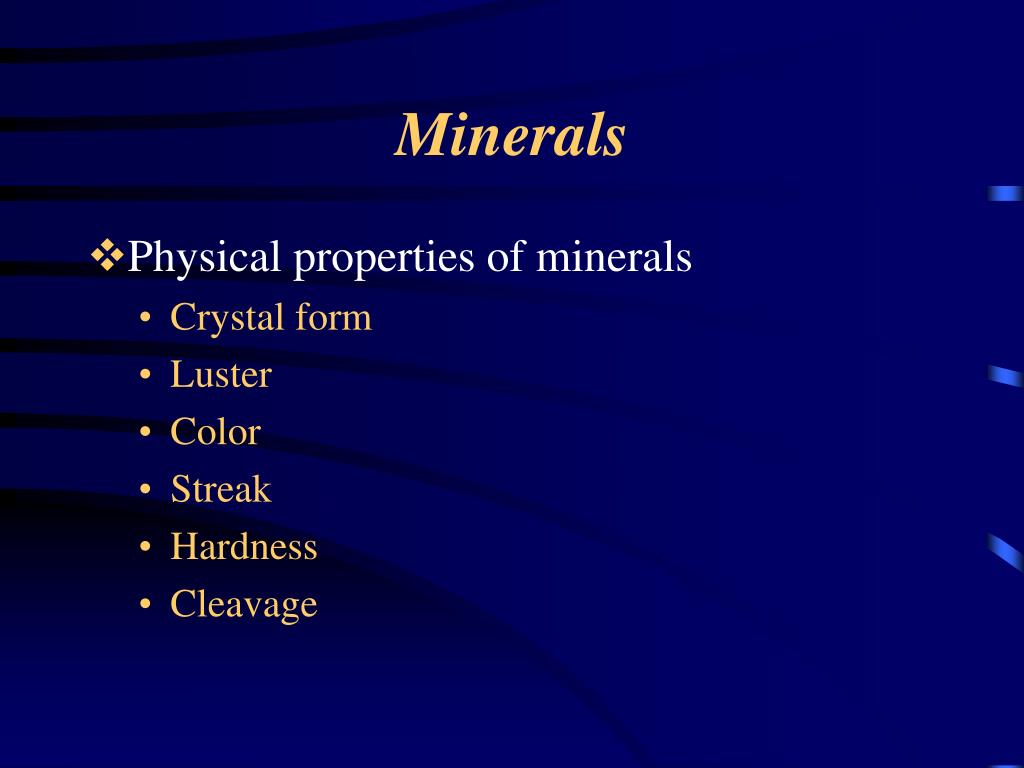

  10. Minerals • Physical properties of minerals • Crystal form • Luster • Color • Streak • Hardness • Cleavage

  11. The mineral quartz often exhibits good crystal form

  12. Pyrite (fool’s gold) displays metallic luster

  13. Three examples of perfect cleavage – fluorite, halite, and calcite

  14. Minerals • Physical properties of minerals • Fracture • Specific gravity • Other properties • Taste • Smell • Elasticity • Malleability

  15. Conchoidal fracture

  16. Minerals • Physical properties of minerals • Other properties • Feel • Magnetism • Double Refraction • Reaction to hydrochloric acid

  17. Minerals • A few dozen minerals are called the rock-forming minerals • The eight elements that compose most rock-forming minerals are oxygen (O), silicon (Si), aluminum (Al), iron (Fe), calcium (Ca), sodium (Na), potassium (K), and magnesium (Mg) • Most abundant atoms in Earth's crust are oxygen (46.6% by weight) and silicon (27.7% by weight)

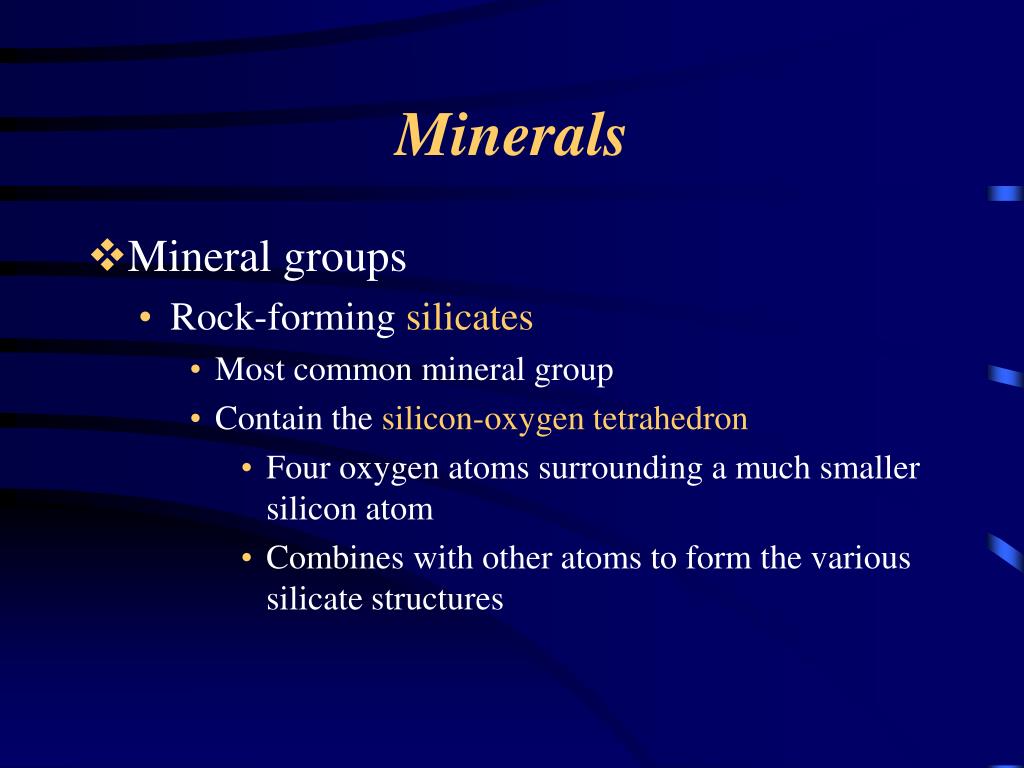

  18. Minerals • Mineral groups • Rock-forming silicates • Most common mineral group • Contain the silicon-oxygen tetrahedron • Four oxygen atoms surrounding a much smaller silicon atom • Combines with other atoms to form the various silicate structures

  19. The silicate (SiO4)-4 molecule

  20. Common silicate minerals

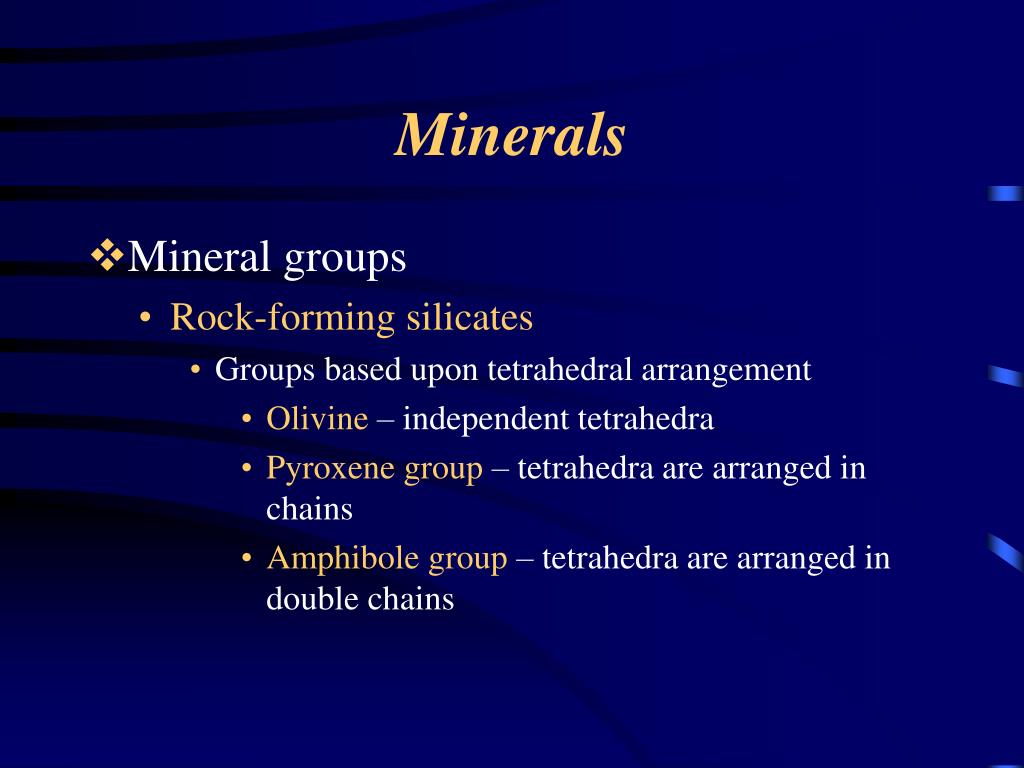

  21. Minerals • Mineral groups • Rock-formingsilicates • Groups based upon tetrahedral arrangement • Olivine – independent tetrahedra • Pyroxene group – tetrahedra are arranged in chains • Amphibole group – tetrahedra are arranged in double chains

  22. Hornblende – a member of the amphibole group

  23. Minerals • Mineral groups • Rock-formingsilicates • Groups based upon tetrahedral arrangement • Micas – tetrahedra are arranged in sheets • Two types of mica are biotite (dark) and muscovite (light) • Feldspars - Three-dimensional network of tetrahedra

  24. Minerals • Mineral groups • Rock-formingsilicates • Groups based upon tetrahedral arrangement • Feldspars • Two types of feldspar are Orthoclase and Plagioclase • Quartz – three-dimensional network of tetrahedra

  25. Potassium feldspar

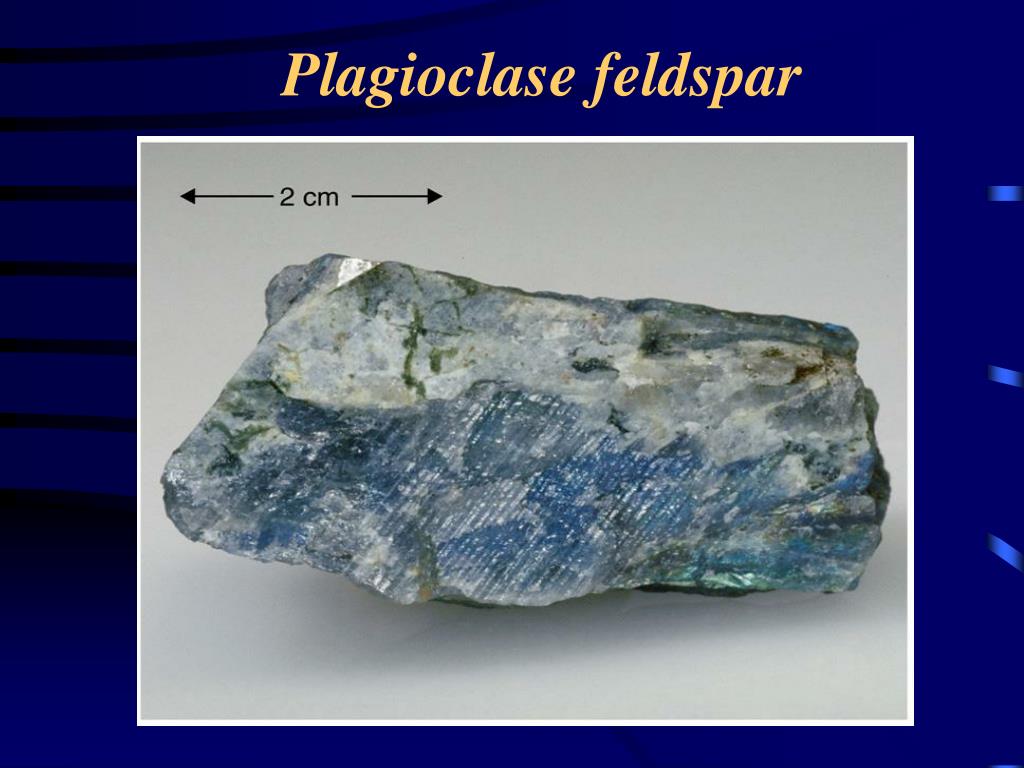

  26. Plagioclase feldspar

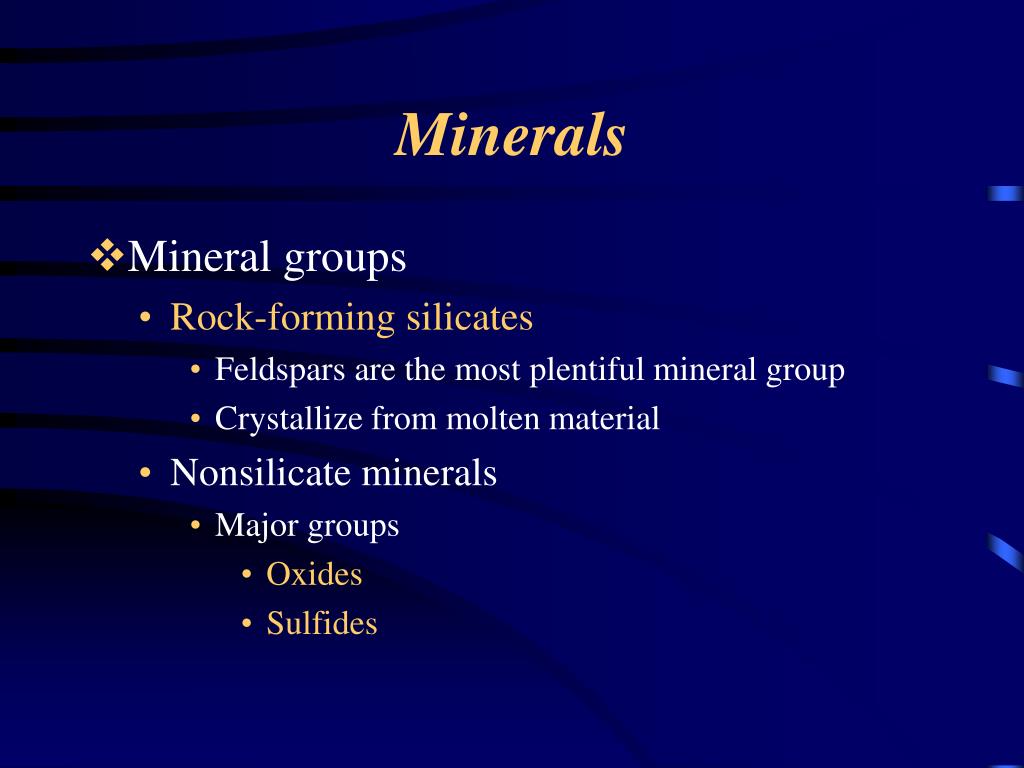

  27. Minerals • Mineral groups • Rock-formingsilicates • Feldspars are the most plentiful mineral group • Crystallize from molten material • Nonsilicate minerals • Major groups • Oxides • Sulfides

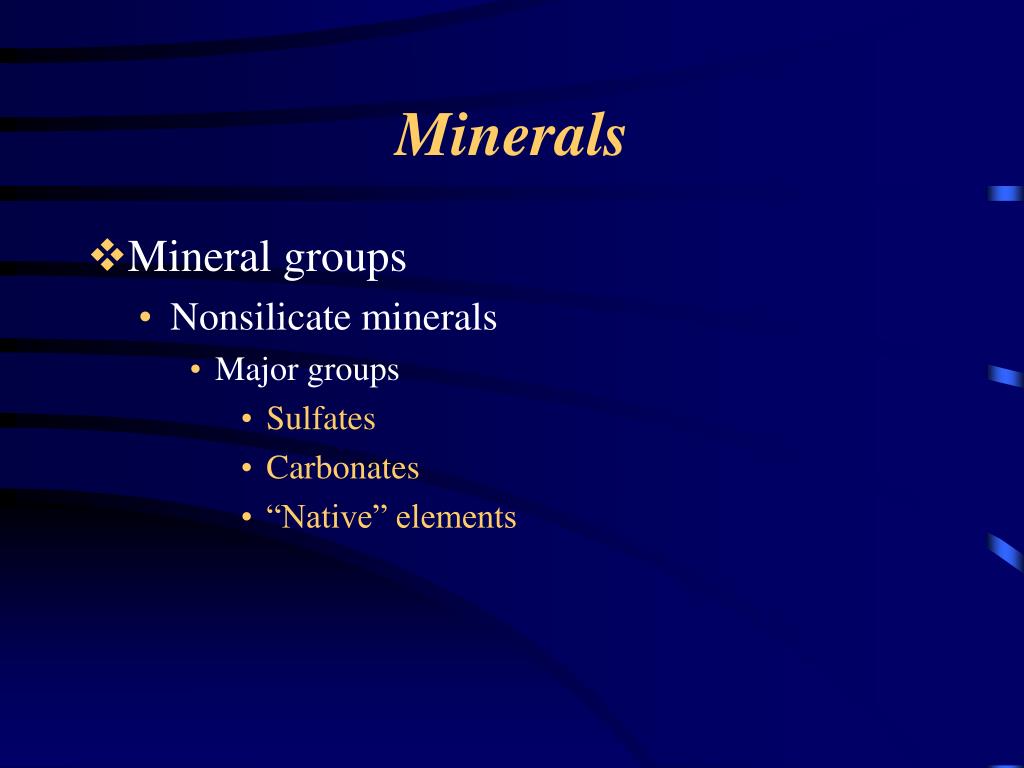

  28. Minerals • Mineral groups • Nonsilicate minerals • Major groups • Sulfates • Carbonates • “Native” elements

  29. Native Copper

  30. Minerals • Mineral groups • Nonsilicate minerals • Carbonates • A major rock-forming group • Found in the rocks limestone and marble • Halite and gypsum are found in sedimentary rocks • Many have economic value

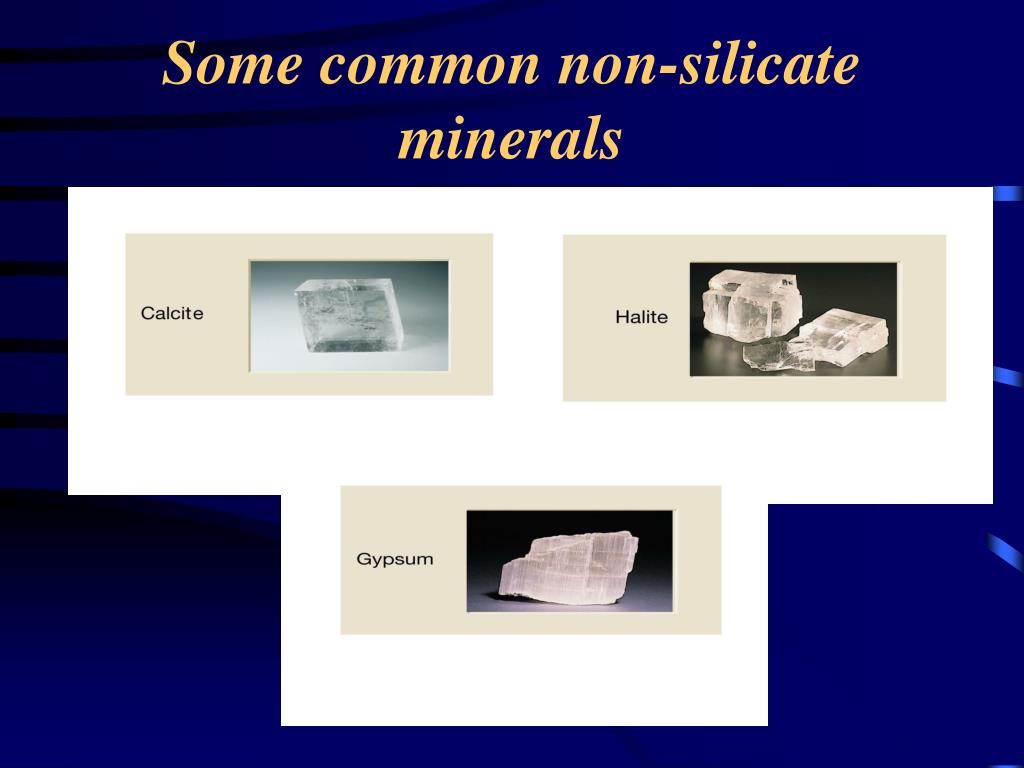

  31. Some common non-silicate minerals

  32. Minerals • Mineral resources • Reserves are already identified deposits • Ores are useful metallic minerals that can be mined at a profit • Economic factors may change and influence a resource

  33. An underground halite (salt) mine

  34. The Bingham copper mine in Utah

  35. End of Chapter 1
