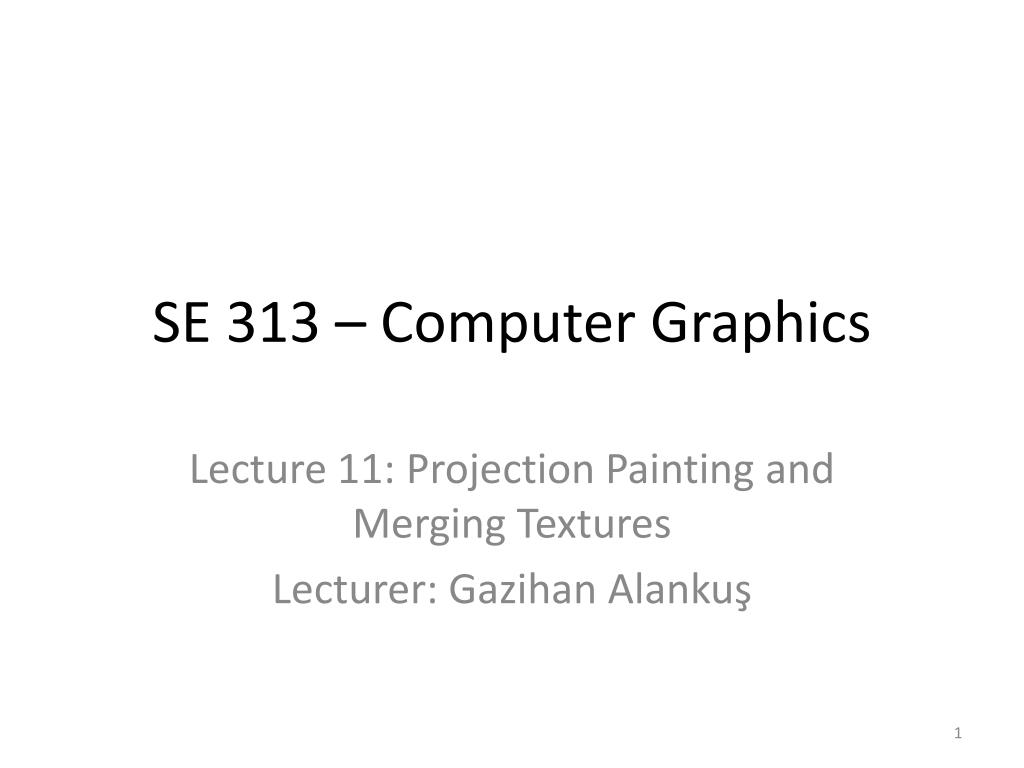

  1. SE 313 – Computer Graphics Lecture 11: Projection Painting and Merging Textures Lecturer: GazihanAlankuş

  2. Quiz • Turn off monitors • Take out a piece of paper and a pen/pencil • 5 minutes

  3. Texture painting with the clone tool • We have seen • Texture painting on 3D objects • Using Bprojection and the clone tool to use parts of images on our models. • Clone tool demonstrated in Gimp Cursor Start drag Copies current location under cursor Cursor mimics drag path

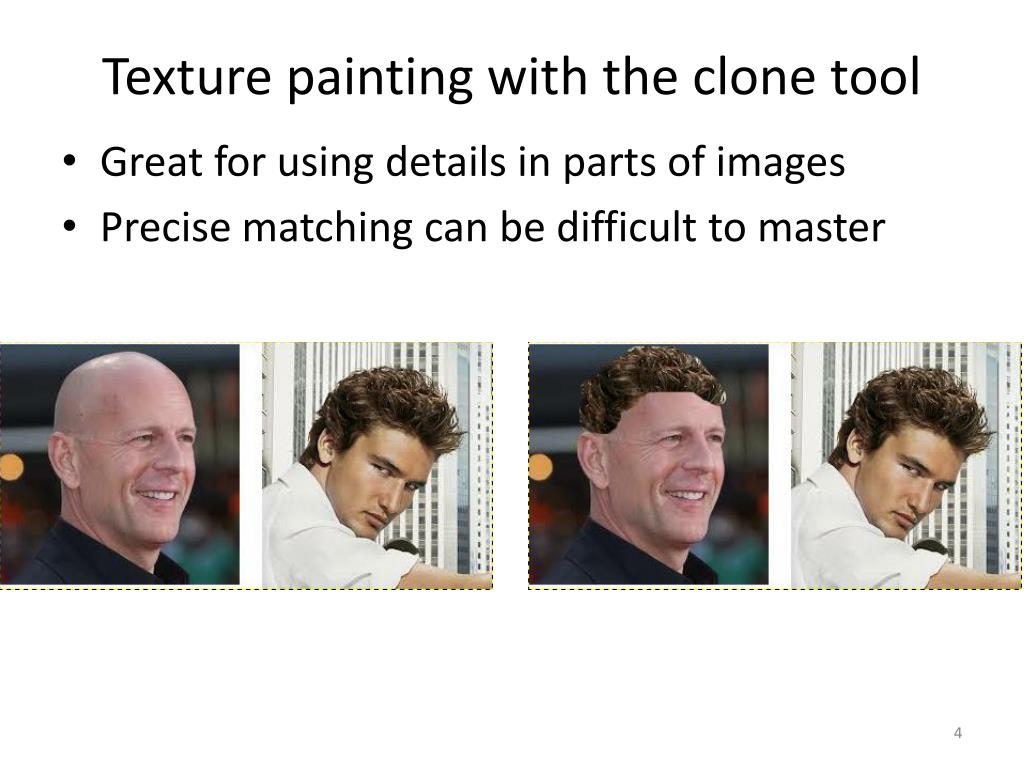

  4. Texture painting with the clone tool • Great for using details in parts of images • Precise matching can be difficult to master

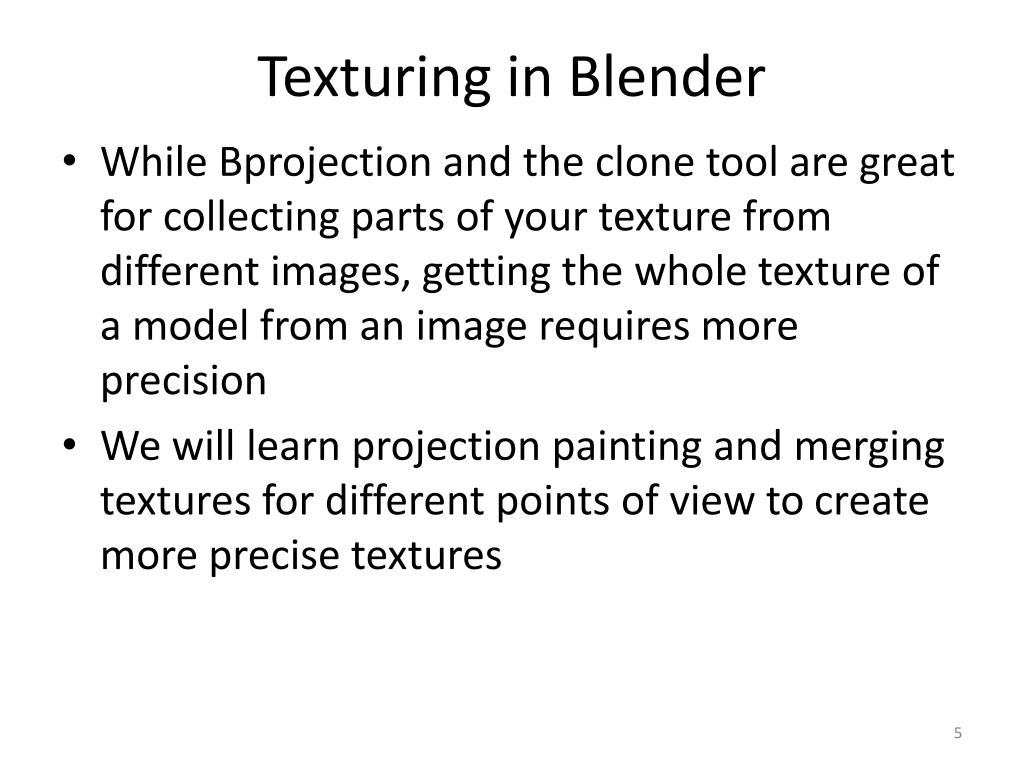

  5. Texturing in Blender • While Bprojectionand the clone tool are great for collecting parts of your texture from different images, getting the whole texture of a model from an image requires more precision • We will learn projection painting and merging textures for different points of view to create more precise textures

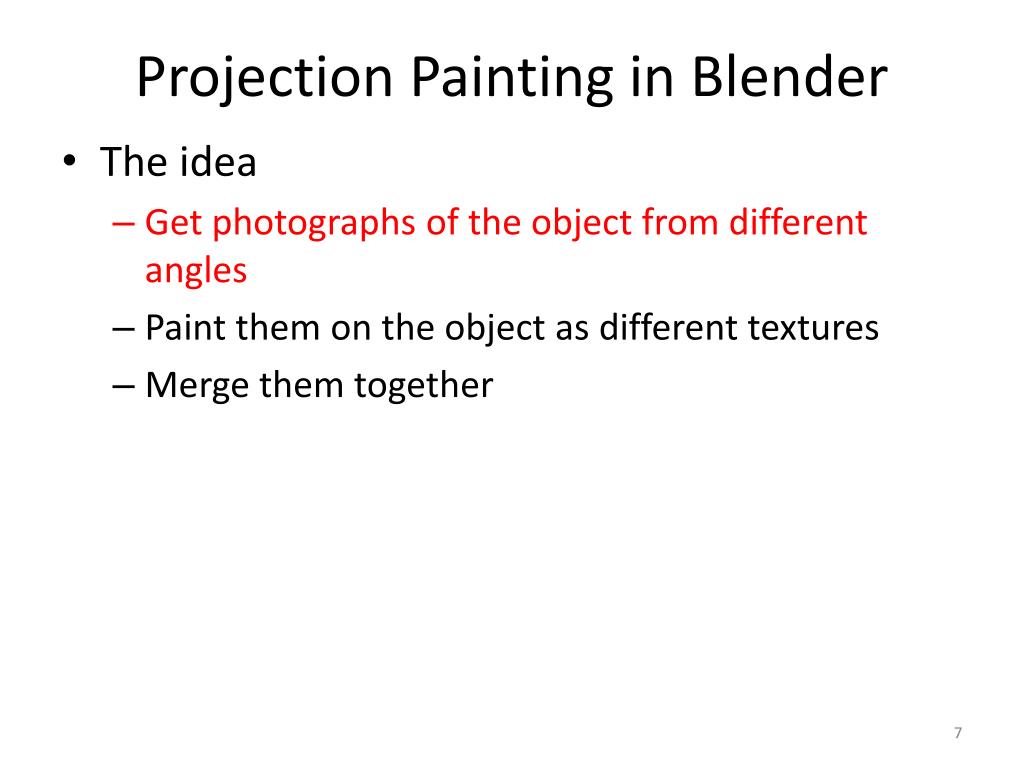

  6. Projection Painting in Blender • The idea • Get photographs of the object from different angles • Paint them on the object as different textures • Merge them together

  7. Projection Painting in Blender • The idea • Get photographs of the object from different angles • Paint them on the object as different textures • Merge them together

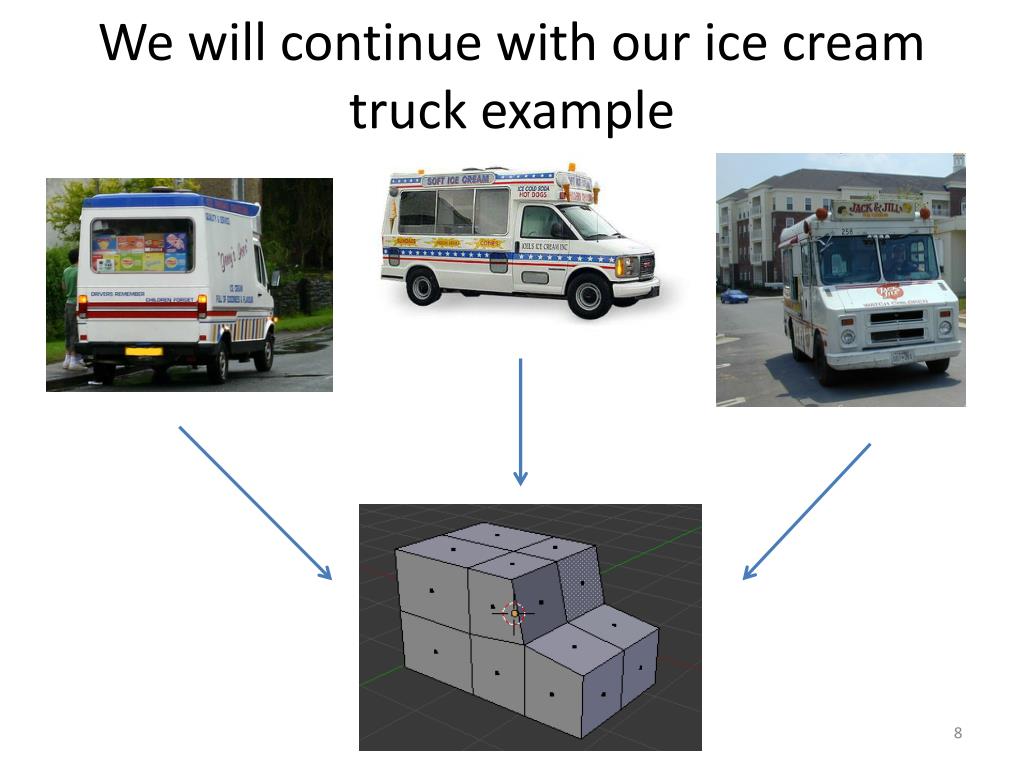

  8. We will continue with our ice cream truck example

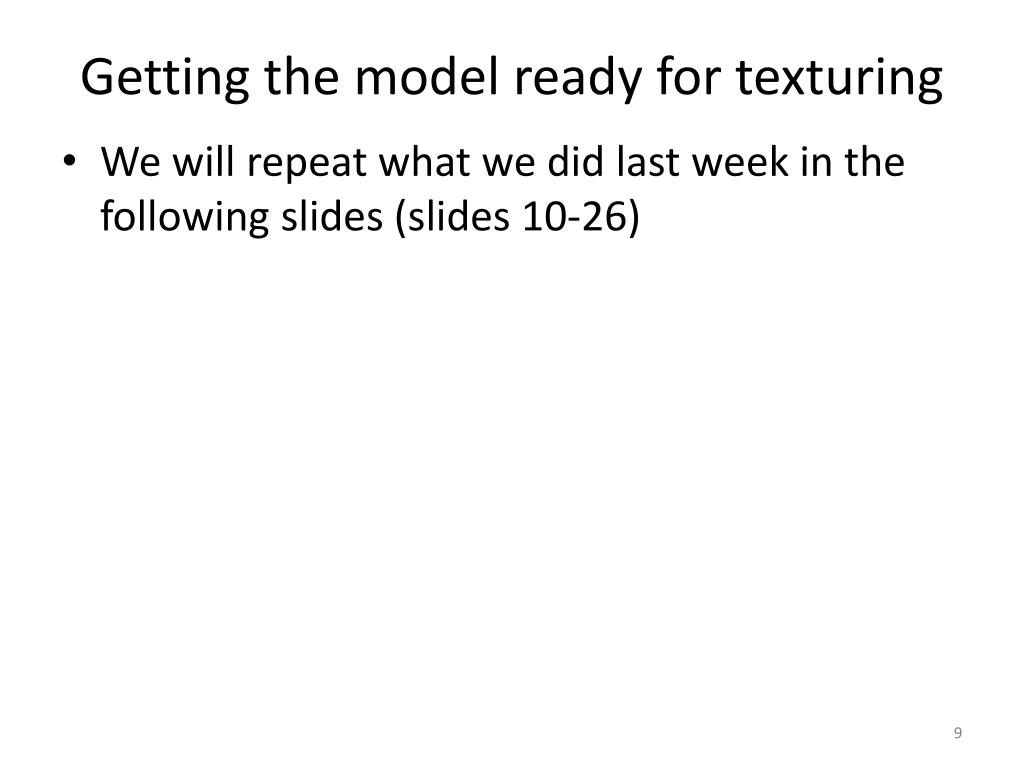

  9. Getting the model ready for texturing • We will repeat what we did last week in the following slides (slides 10-26)

  10. Modeling a truck • The initial cube has material on it, remove it and add a new cube

  11. Modeling a truck • Press tab to go to edit mode. Hit A to select all. • Press subdivide to add more vertices and edges

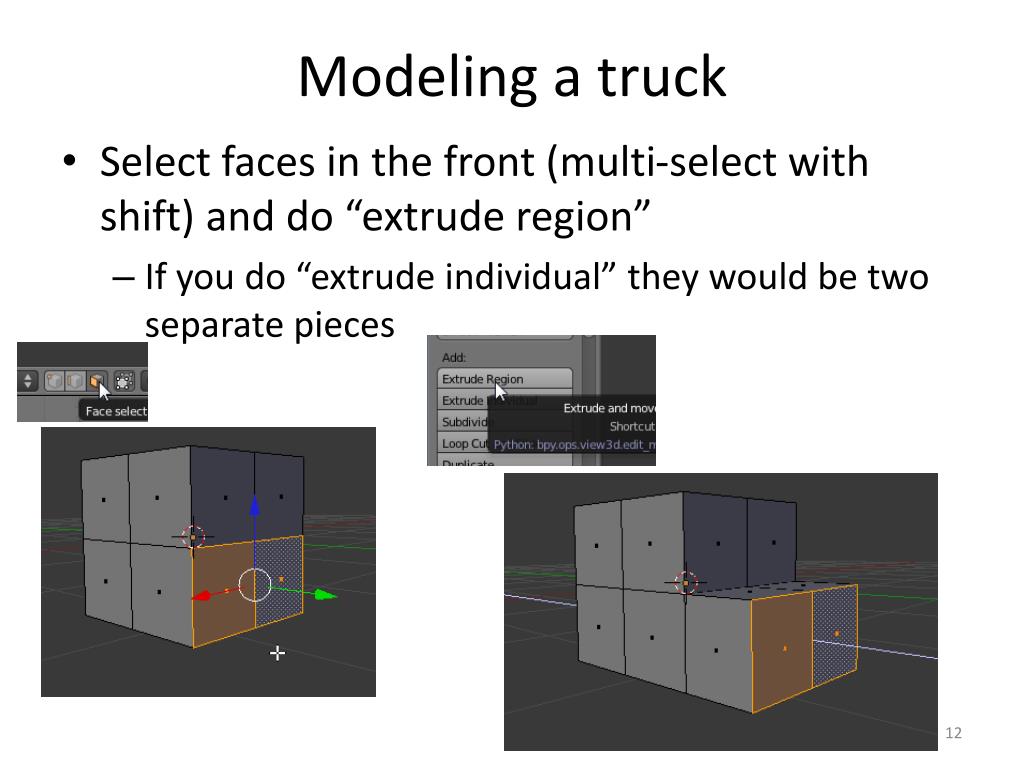

  12. Modeling a truck • Select faces in the front (multi-select with shift) and do “extrude region” • If you do “extrude individual” they would be two separate pieces

  13. Modeling a truck • Select and move around edges and faces to make it look more like a truck • Feel free to play with other mesh tools to make it better-looking

  14. Preparing for texturing • While it’s simple, we’re happy with our model. Now let’s prepare it to be textured. You have to do these steps to put textures on your models.

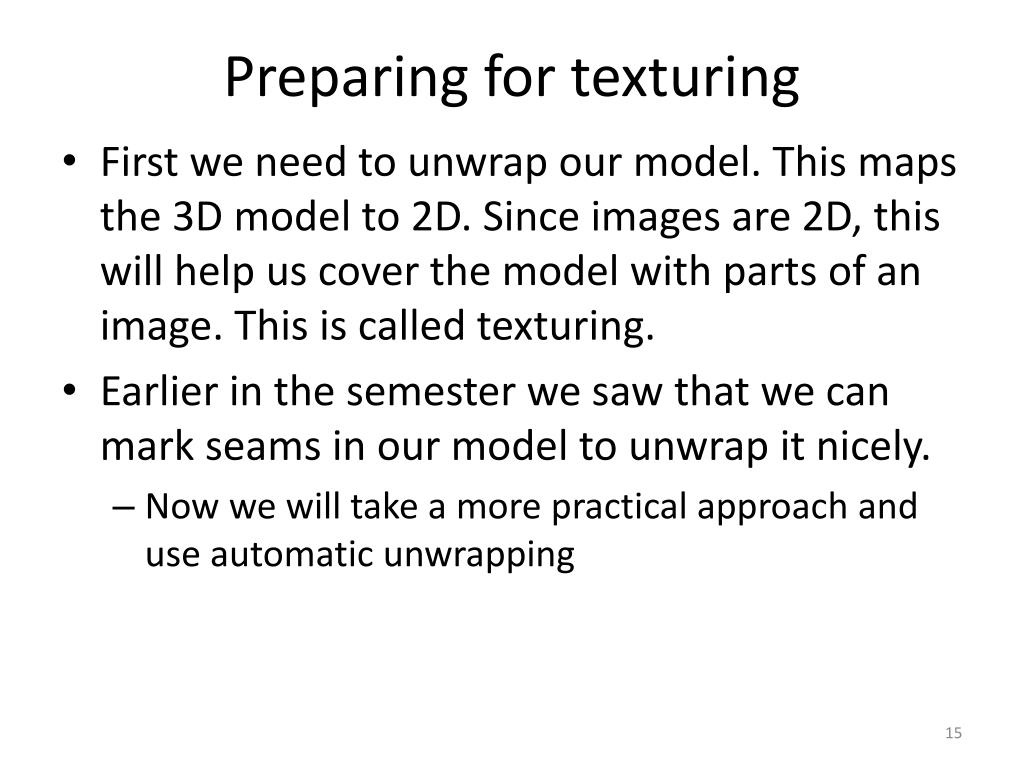

  15. Preparing for texturing • First we need to unwrap our model. This maps the 3D model to 2D. Since images are 2D, this will help us cover the model with parts of an image. This is called texturing. • Earlier in the semester we saw that we can mark seams in our model to unwrap it nicely. • Now we will take a more practical approach and use automatic unwrapping

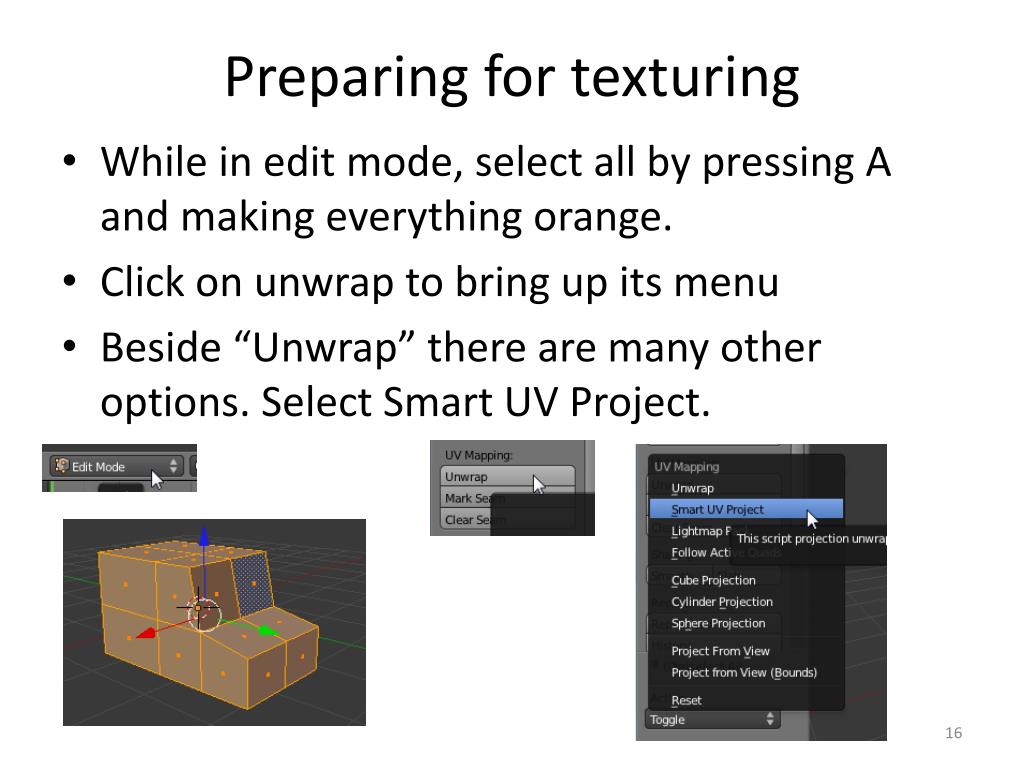

  16. Preparing for texturing • While in edit mode, select all by pressing A and making everything orange. • Click on unwrap to bring up its menu • Beside “Unwrap” there are many other options. Select Smart UV Project.

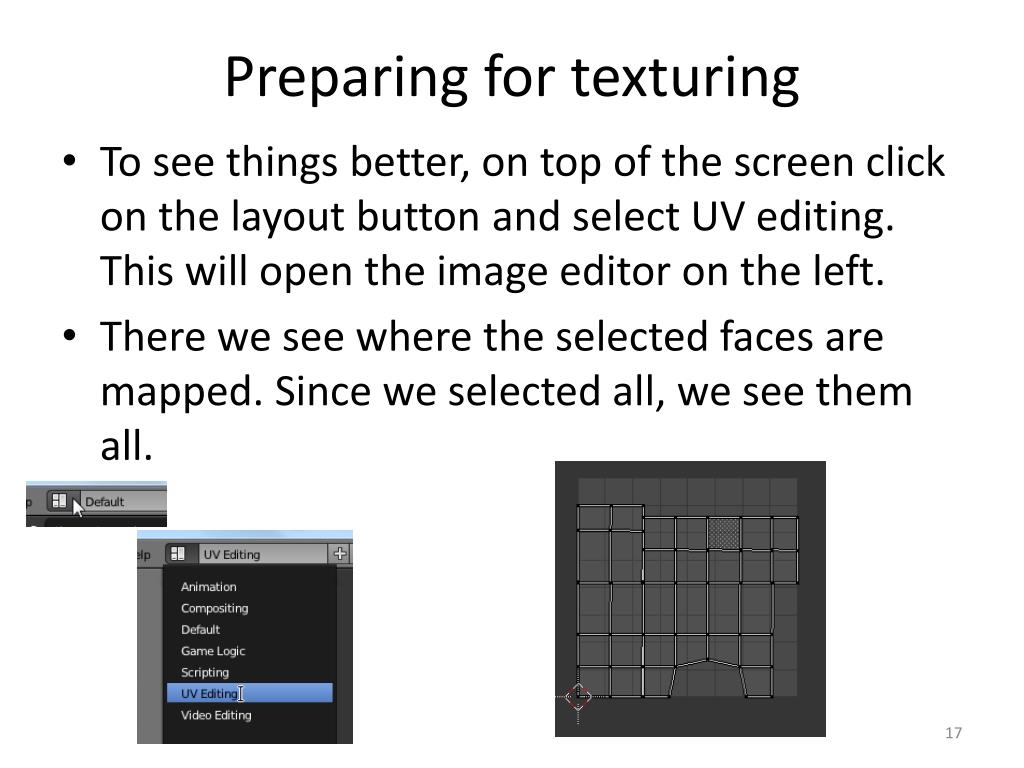

  17. Preparing for texturing • To see things better, on top of the screen click on the layout button and select UV editing. This will open the image editor on the left. • There we see where the selected faces are mapped. Since we selected all, we see them all.

  18. Preparing for texturing • While the unwrapped model is a bit discontinuous, we do not care. We will draw on the model itself and will not care how they are located in the 2D image.

  19. Preparing for texturing • Now add an image. You can choose to initialize it with the UV test grid to understand which parts of the image is mapped to which parts of the model. • Name the image well. “truck texture” is what I wrote.

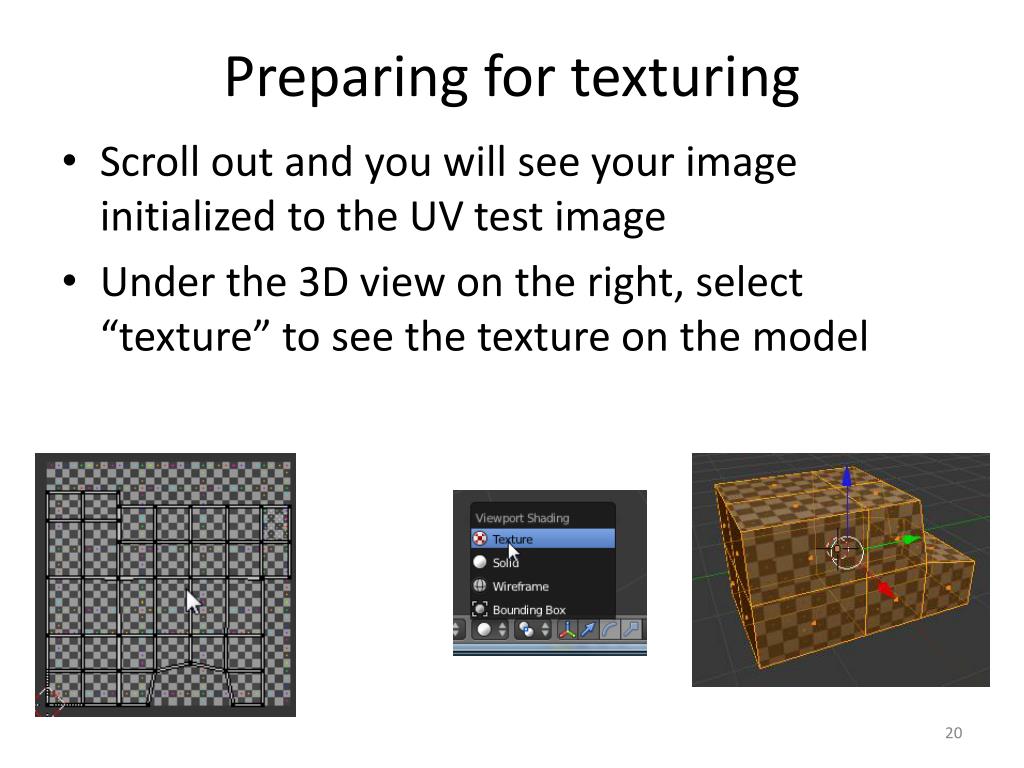

  20. Preparing for texturing • Scroll out and you will see your image initialized to the UV test image • Under the 3D view on the right, select “texture” to see the texture on the model

  21. Preparing for texturing • Go back to the default layout to have more screen area for setting up the material. • Even though we are seeing the texture on our truck, we have to also set the texture as a material on the truck for it to work

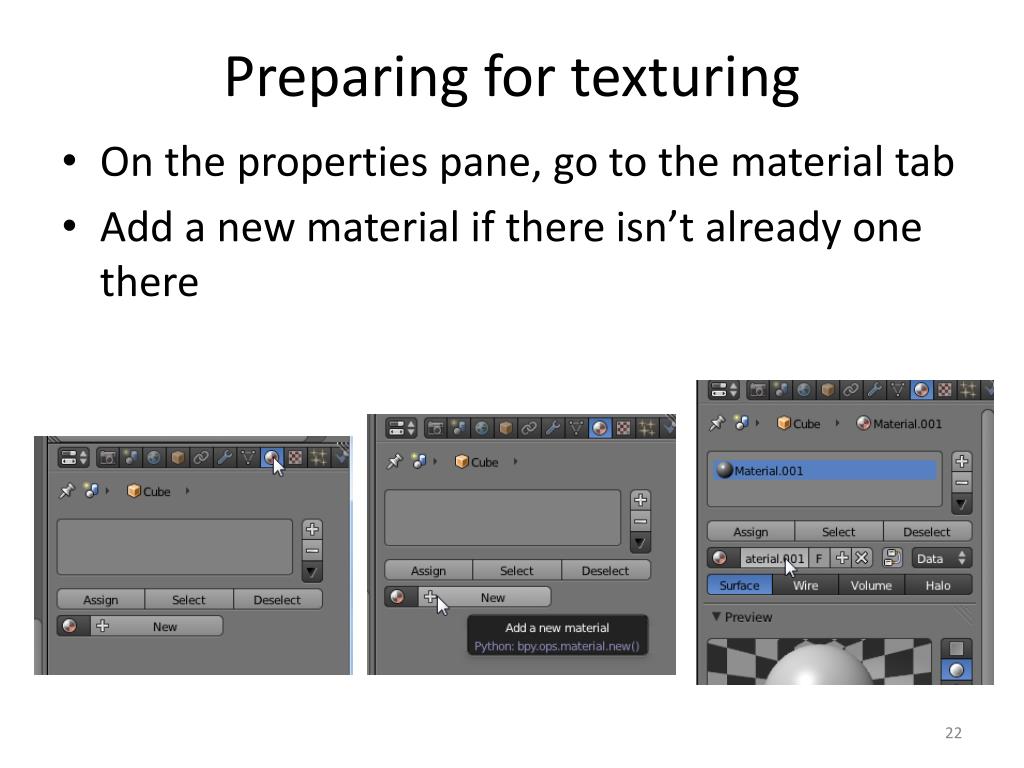

  22. Preparing for texturing • On the properties pane, go to the material tab • Add a new material if there isn’t already one there

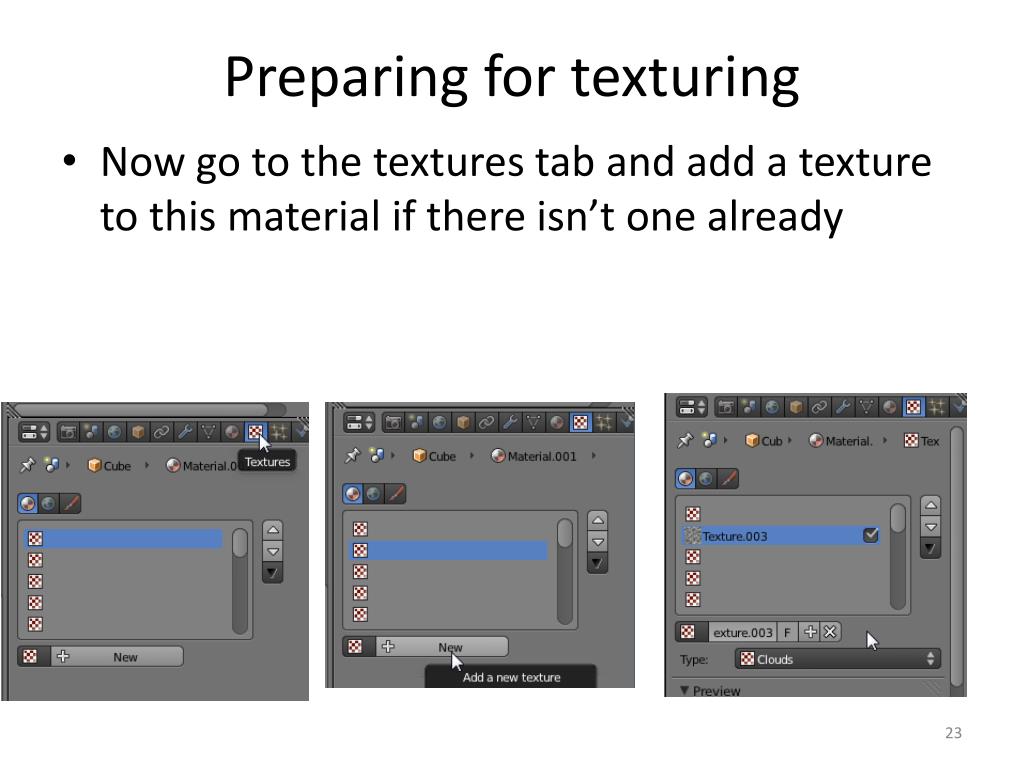

  23. Preparing for texturing • Now go to the textures tab and add a texture to this material if there isn’t one already

  24. Preparing for texturing • Set the type of the texture to “Image or Movie” • Scroll down and browse for the image that we created earlier • Under mapping, select UV for Coordinates

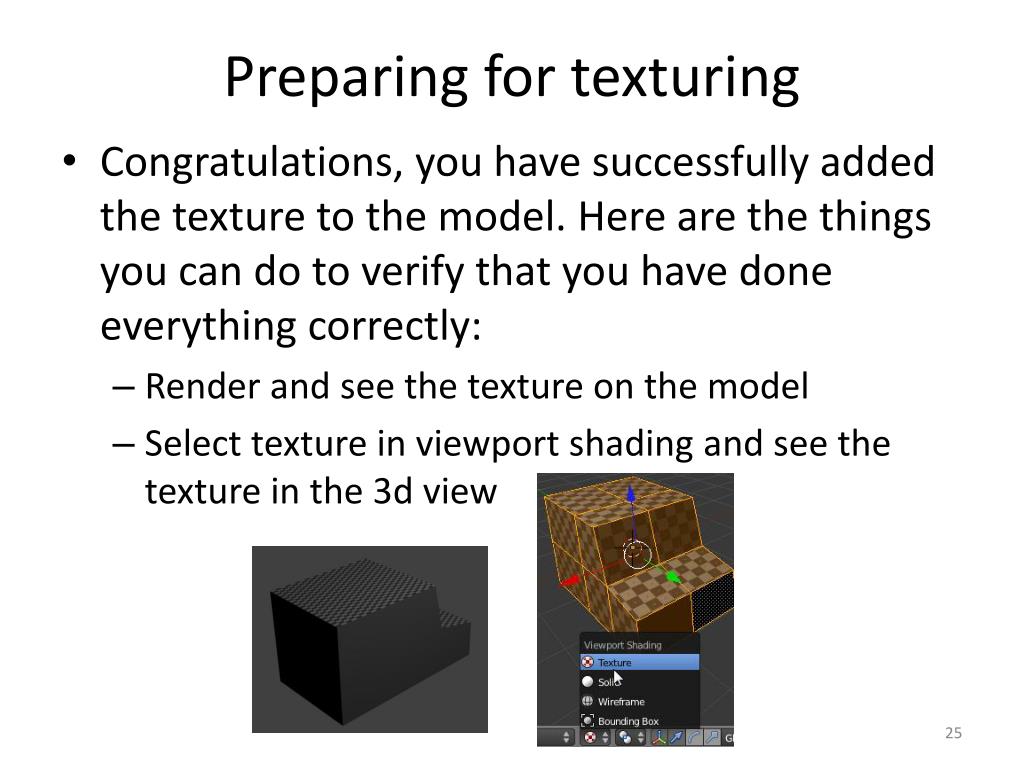

  25. Preparing for texturing • Congratulations, you have successfully added the texture to the model. Here are the things you can do to verify that you have done everything correctly: • Render and see the texture on the model • Select texture in viewport shading and see the texture in the 3d view

  26. Preparing for texturing • Next we will start painting the texture. Before that, we will save the texture image. An early reminder: don’t forget to save the image every time after you paint. File->Save’ing the .blend file is not enough.

  27. Reviewing the model • Now our model is unwrapped nicely and has a simple texture on it • We can remove the light in the environment if some faces of our truck are black • But then when you render it will all be black • Here is how you can fix it:

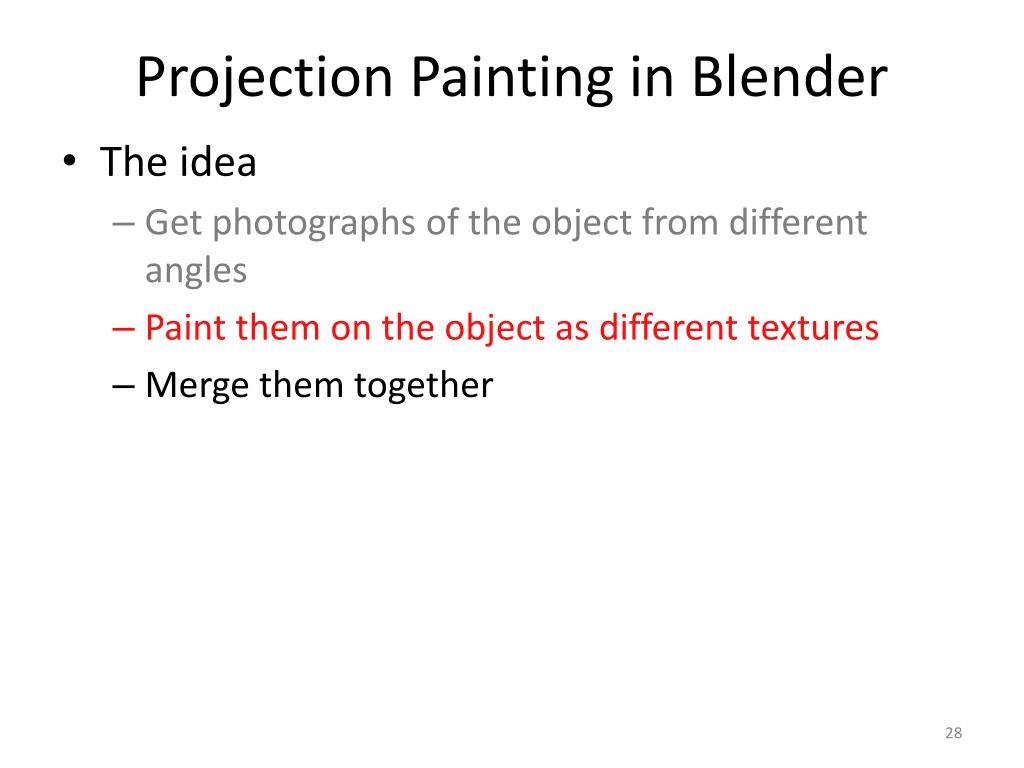

  28. Projection Painting in Blender • The idea • Get photographs of the object from different angles • Paint them on the object as different textures • Merge them together

  29. Reviewing the model • Go to the Object Data tab while the truck is selected • There you see a section called UV Maps • This is where the unwrapped UV coordinates are stored • We will have more than one of these for different angles. • Rename this to “Main UVMap”

  30. Adding a new UV map • Add a new UV map by clicking the plus button • Rename it to Front

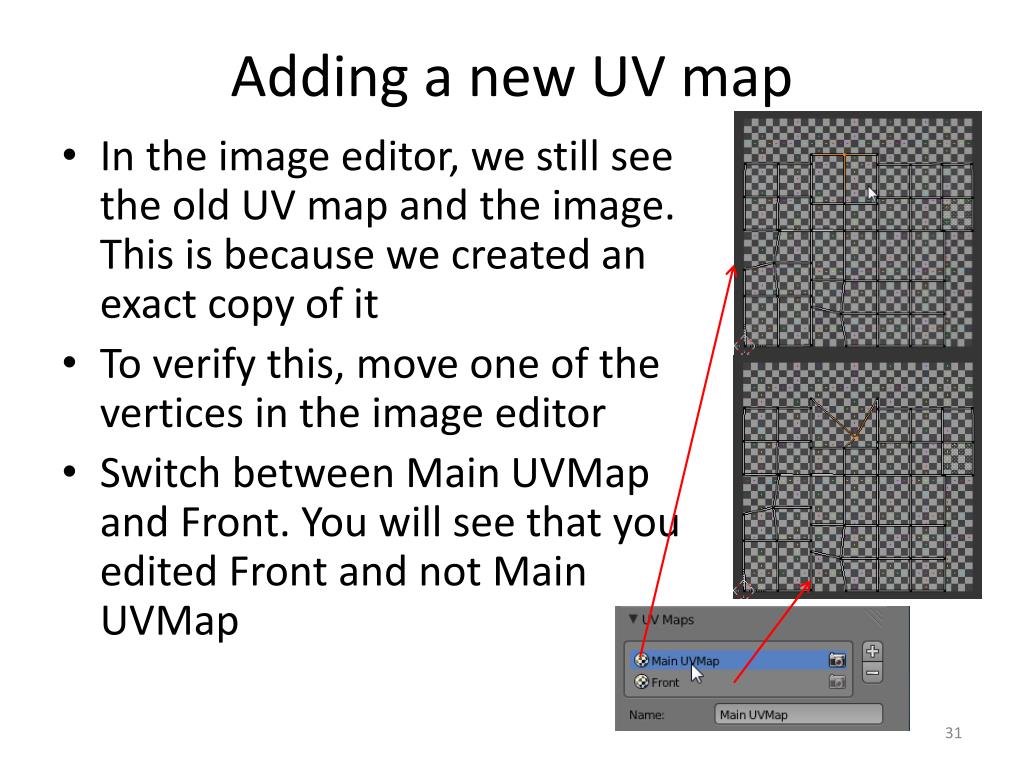

  31. Adding a new UV map • In the image editor, we still see the old UV map and the image. This is because we created an exact copy of it • To verify this, move one of the vertices in the image editor • Switch between Main UVMap and Front. You will see that you edited Front and not Main UVMap

  32. Using a photo as a texture image • Now we want to load the front image for the truck and map it to the front of the truck. • Select Front from UV Maps • Open the image for the front • Now we want to place the vertices in the image editor such that they match the photo

  33. Using a photo as a texture image • In the 3D view, turn the view so that our truck is oriented the same way as the truck in the photo • Now select all, click Unwrap and Project from View

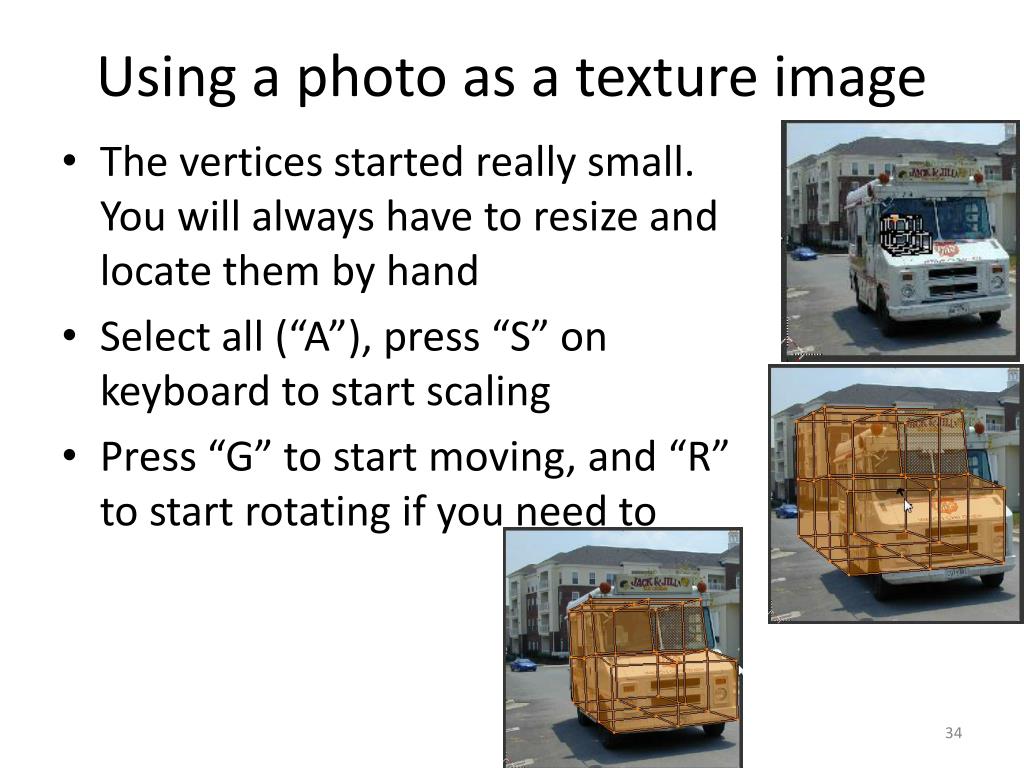

  34. Using a photo as a texture image • The vertices started really small. You will always have to resize and locate them by hand • Select all (“A”), press “S” on keyboard to start scaling • Press “G” to start moving, and “R” to start rotating if you need to

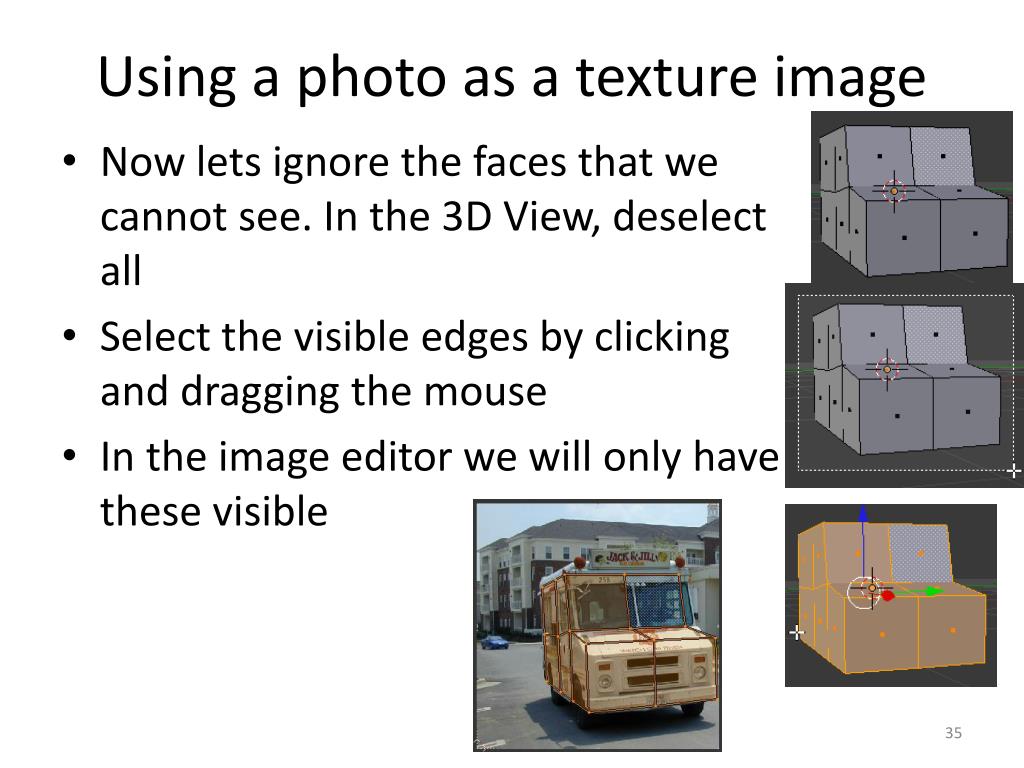

  35. Using a photo as a texture image • Now lets ignore the faces that we cannot see. In the 3D View, deselect all • Select the visible edges by clicking and dragging the mouse • In the image editor we will only have these visible

  36. Using a photo as a texture image • Now move around individual vertices in the image editor so that they match the photo • You don’t have to get everything. Don’t get any background inside the model. • You can view the result as you drag

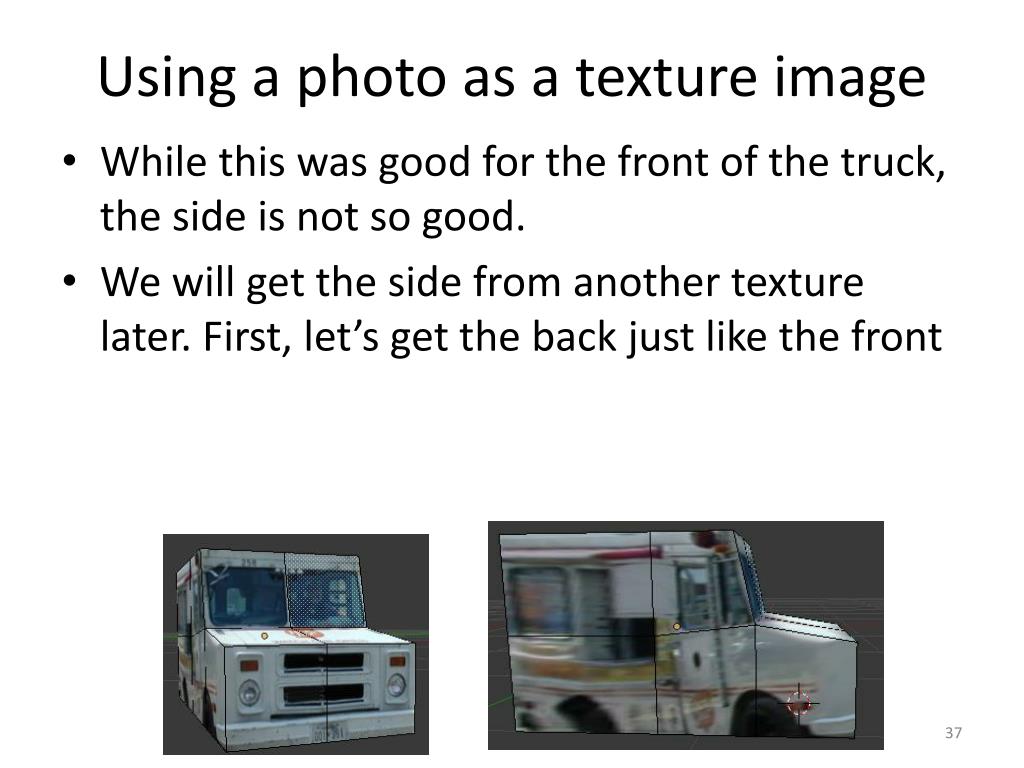

  37. Using a photo as a texture image • While this was good for the front of the truck, the side is not so good. • We will get the side from another texture later. First, let’s get the back just like the front

  38. Using more photos • To get the back of the truck, we will create a new UV Map • Create a new UV Map and rename it to Back. Again, it duplicated the current UV Map. • Load the back image in the image editor. • We will need to do another unwrap for this

  39. Using more photos • Turn the 3D view so that the back of our truck is in a similar orientation as the photo • In the 3D view, in edit mode, select all • Select Unwrap and Project From View

  40. Using more photos • Again select all (A), scale (S), rotate (R), and move (G) the points. • Select only the visible faces of the truck and move individual points to match the photo

  41. Doing the sides from one photo • Now for the sides of the truck, we want to create another UV Map • Load the side photo • Orient the truck and Unwrap, Project From View • Select only the visible faces and adjustthe UV coordinates

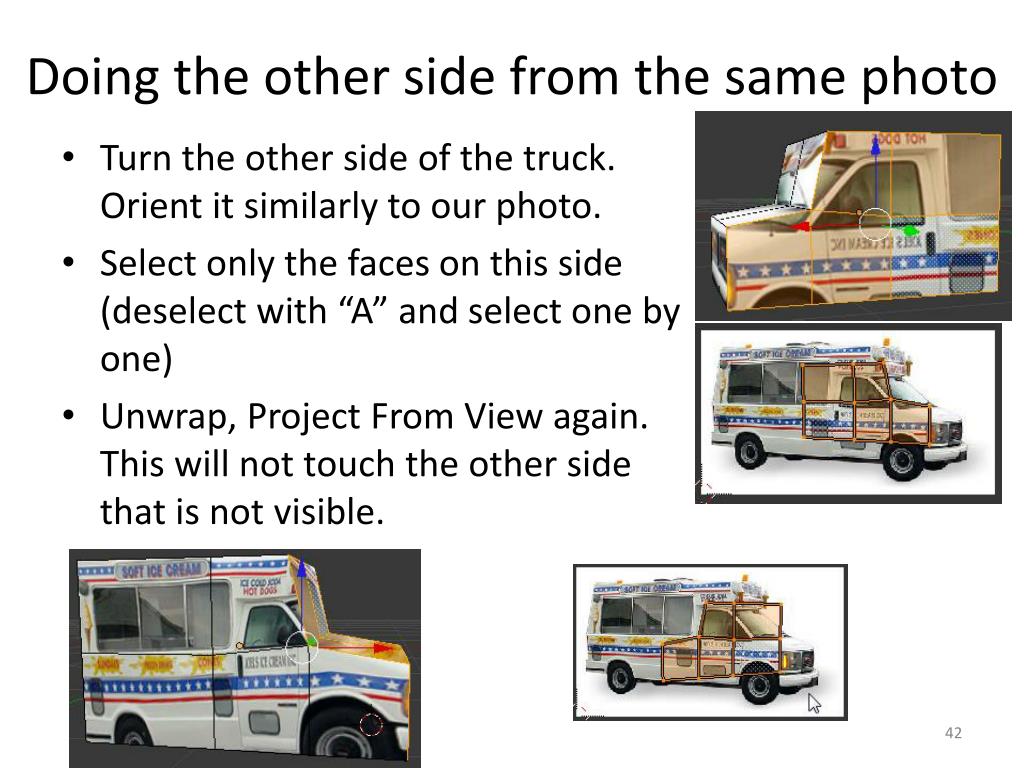

  42. Doing the other side from the same photo • Turn the other side of the truck. Orient it similarly to our photo. • Select only the faces on this side (deselect with “A” and select one by one) • Unwrap, Project From View again. This will not touch the other side that is not visible.

  43. Doing the other side from the same photo • In the image editor select all (A) and mirror these vertices so that they look more like the photo • Adjust and match the photo

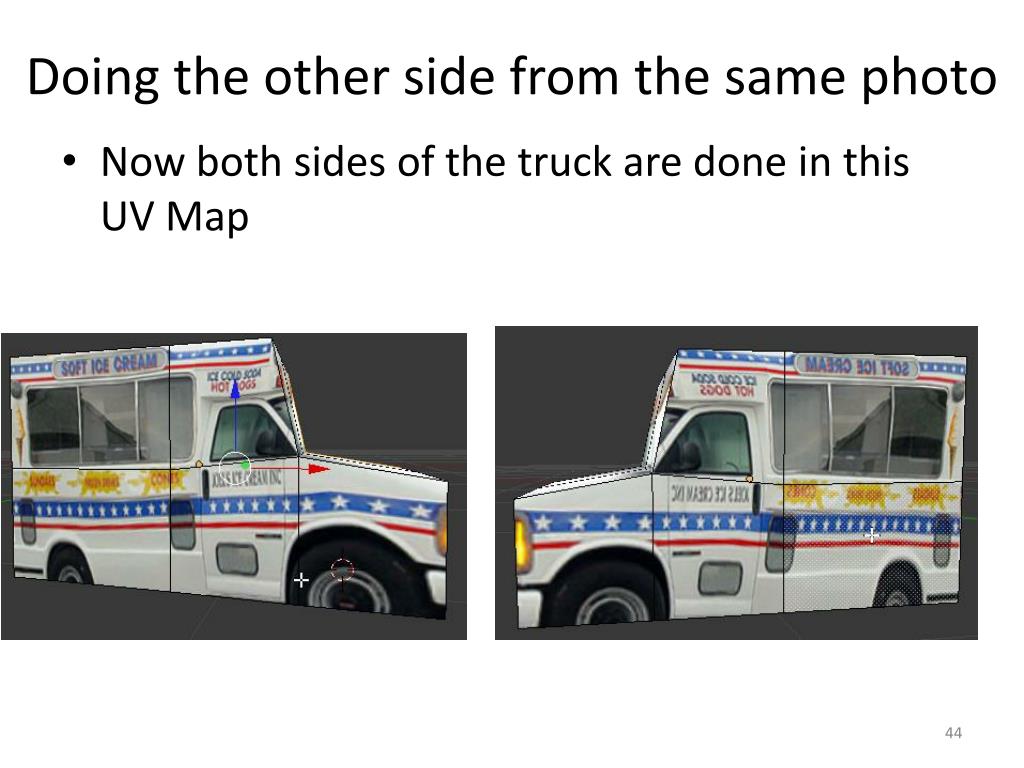

  44. Doing the other side from the same photo • Now both sides of the truck are done in this UV Map

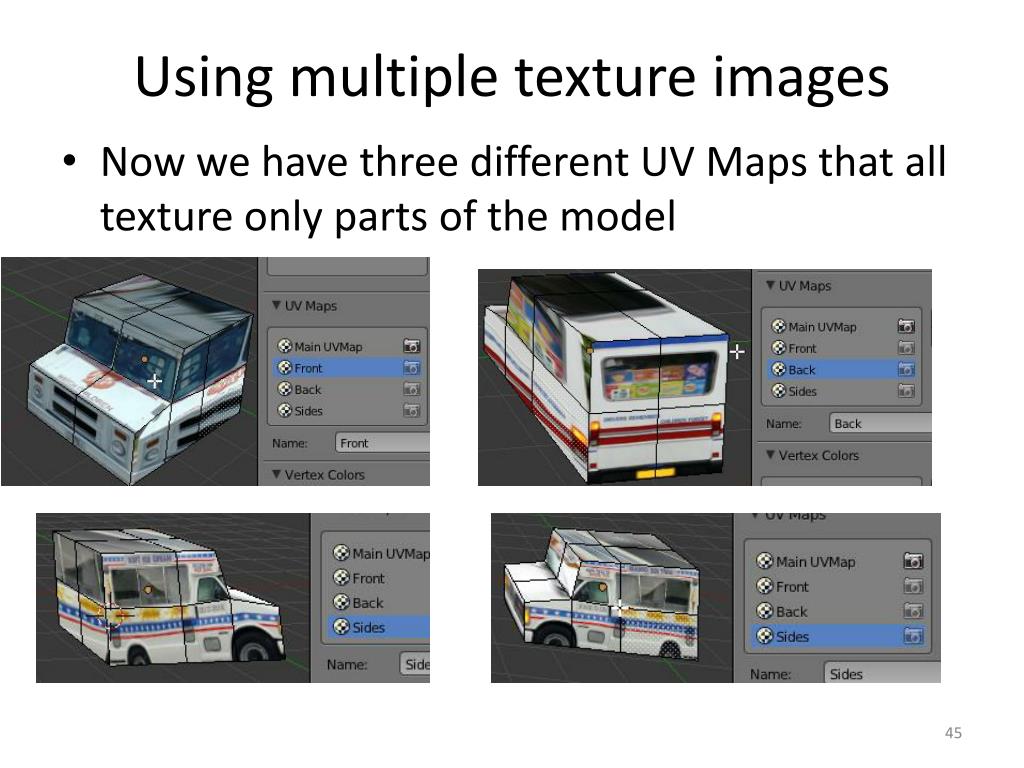

  45. Using multiple texture images • Now we have three different UV Maps that all texture only parts of the model

  46. Projection Painting in Blender • The idea • Get photographs of the object from different angles • Paint them on the object as different textures • Merge them together

  47. Using multiple texture images • Problem is, we need only one texture. • Now we want to merge them into one single texture. • We will copy parts of each texture into the Main UVMap

  48. Merging textures • For this, we will again use texture painting and the clone brush tool. • Select the Main UVMap from UV Maps and switch to texture paint mode • On the left, select the clone brush

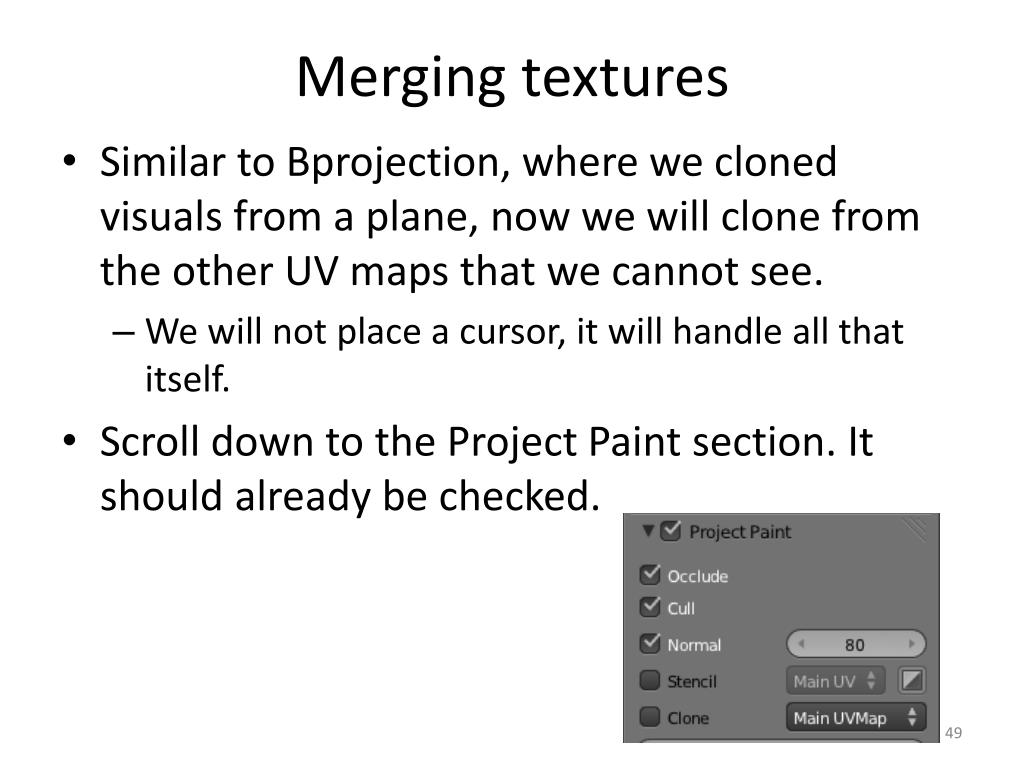

  49. Merging textures • Similar to Bprojection, where we cloned visuals from a plane, now we will clone from the other UV maps that we cannot see. • We will not place a cursor, it will handle all that itself. • Scroll down to the Project Paint section. It should already be checked.

  50. Merging textures • The Clone property here lets us clone from other UV maps • We will start by cloning the front of the truck from the “Front” UV map. • Check Clone and select the “Front” UV map that youcreated earlier. • Also, increase the strength of the brush
