Hydrocarbons

Hydrocarbons. *Compounds with just Hydrogen and Carbon. Reference Tables used with Organic Chemistry. Table P Table Q. Types of Hydrocarbons:. Alkanes *have single bonds between carbons *end in “ ane ” * formula = C n H 2n+2 methane ethane propane.

zack
Download Presentation

Hydrocarbons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

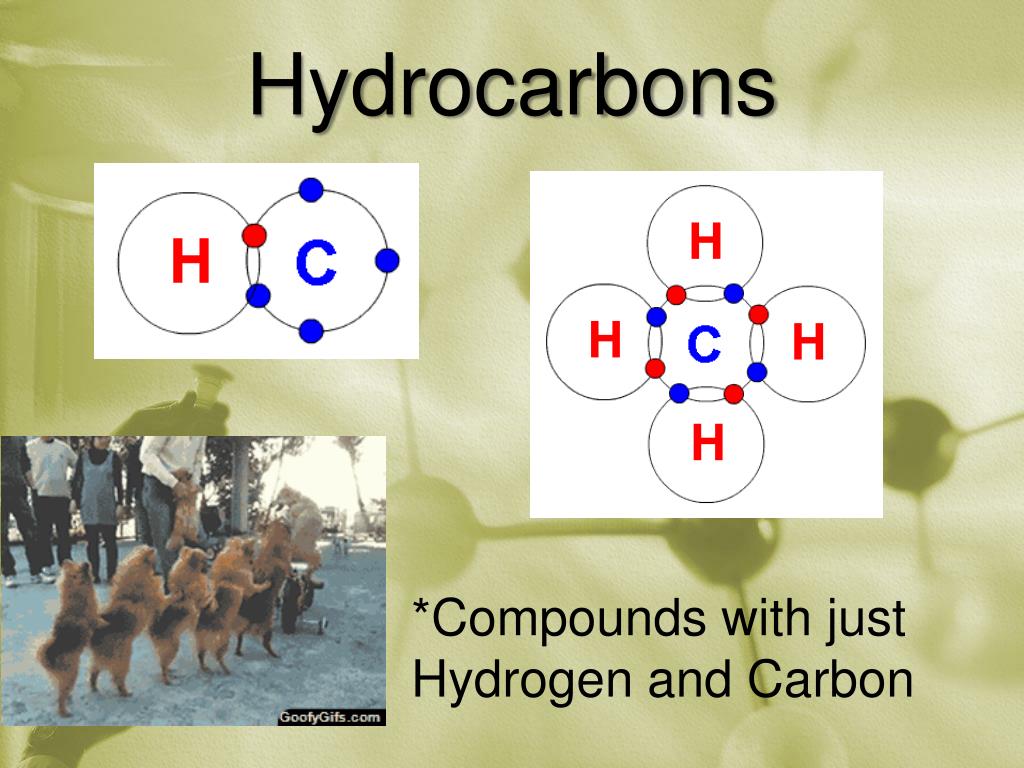

  1. Hydrocarbons *Compounds with just Hydrogen and Carbon

  2. Reference Tables used with Organic Chemistry Table P Table Q

  3. Types of Hydrocarbons: • Alkanes *have single bonds between carbons *end in “ane” * formula = CnH2n+2 methane ethane propane

  4. Branched Chain Alkanes • Need at least 4 carbons • Isomers: same molecular formula but different structural formulas C5H12

  5. Types of Hydrocarbons: • Alkenes: *have one double bond between carbons *end in “ene” * formula = CnH2n ethenepropene 1-butene 2-butene

  6. Types of Hydrocarbons: 3. Alkynes: *have one triple bond between carbons *end in “yne” * formula = CnH2n-2 ethyne propyne

  7. Homologous Series: • A group of compounds that vary by a common increment • Table Q

  8. Derivatives of Hydrocarbons • One or more atoms replace Hydrogen in the hydrocarbon Alkyl Group: *an alkane with a missing Hydrogen Methane CH4 CH3 Ethane C2H6 Ethyl C2H5

  9. 2-methyl propane

  10. Derivatives of Hydrocarbons Functional Group: *a group of elements that determine the type of compound Table R Alcohol - Base – NaOH not a functional group
