Hydrocarbons

1. Hydrocarbons Hydrides of Carbon CxHy

2. Carbon has four valence electrons. Wants to form four bonds. Methane Hydrogen has one valence electron and wants to form one bond

3. Butane Propane Ethane

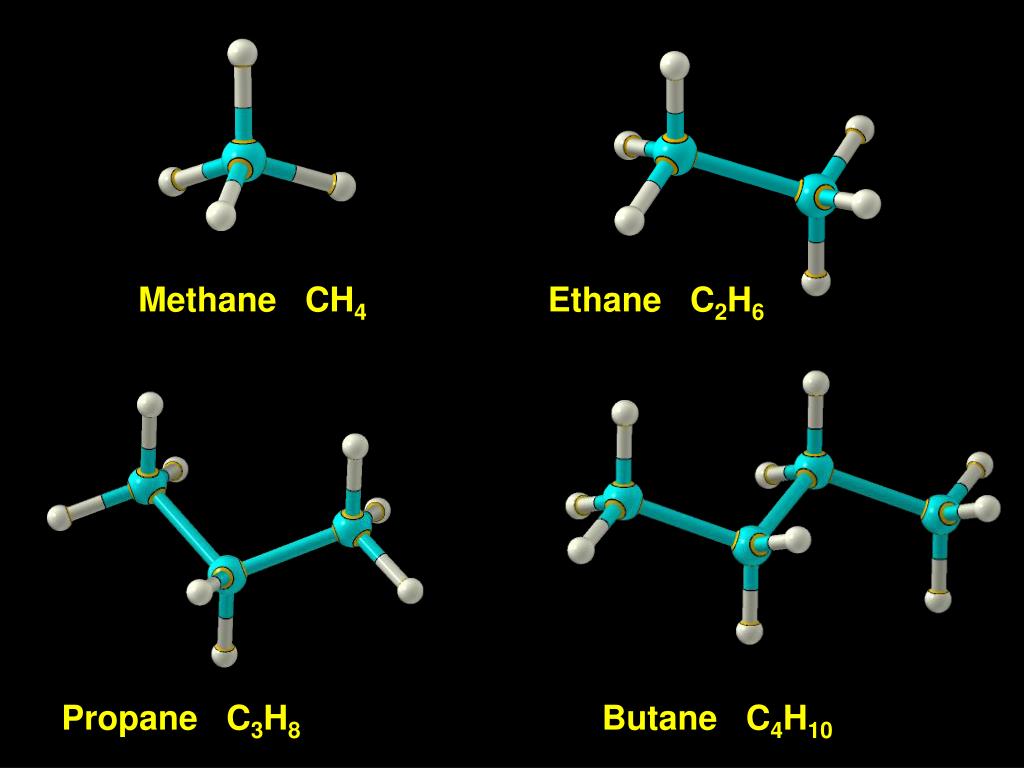

4. Methane CH4 Ethane C2H6 Propane C3H8 Butane C4H10

6. Ethane Conformations Eclipsed Staggered

7. Variation of Energy with Rotation of C-C bond in Ethane 12 kJ 0 60 120 180 240 300 360 Angle of Rotation, degrees

9. 2-methylpropane or isobutane n- Butane C4H10 These two molecules are structural isomers. They differ in the way their atoms are connected They have different chemical and physical properties.

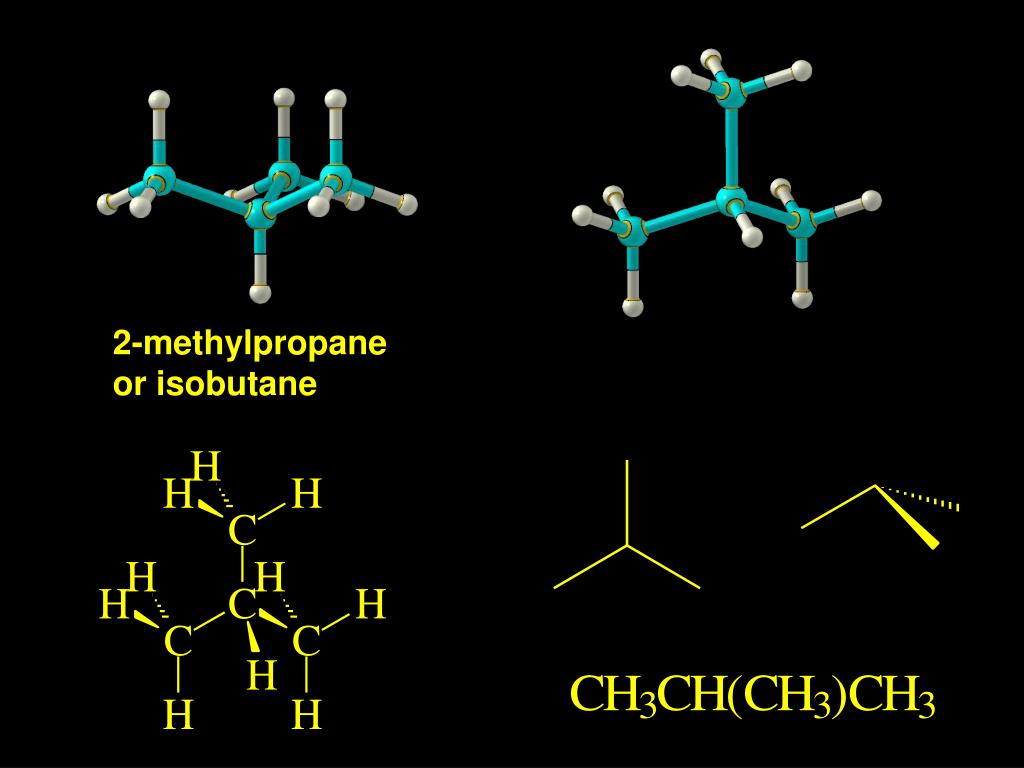

10. 2-methylpropane or isobutane

11. n-hexane These structures represent different conformations of n-hexane, not isomers.

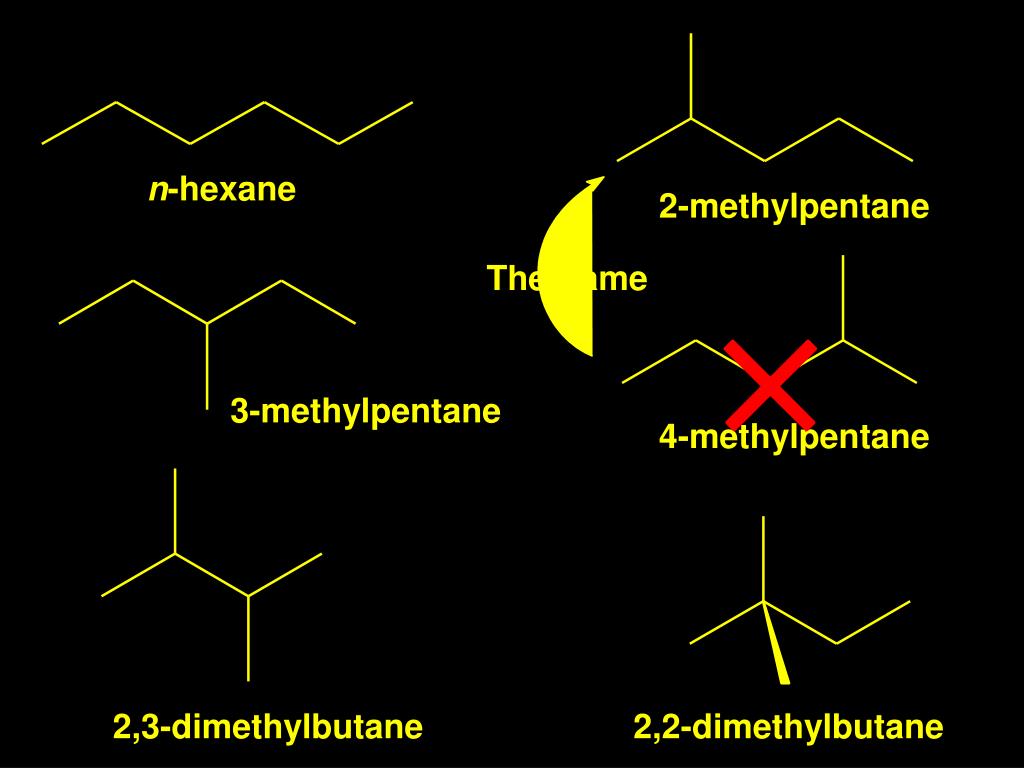

12. n-hexane 2-methylpentane 3-methylpentane 4-methylpentane 2,3-dimethylbutane 2,2-dimethylbutane

13. These are the five isomers of hexane, C6H14

14. Methane becomes Methyl Ethane becomes Ethyl Propane becomes Propyl

15. 1 Methane Methyl 2 Ethane Ethyl 3 Propane Propyl 4 Butane Butyl 5 Pentane Pentyl 6 Hexane Hexyl 7 Heptane Heptyl 8 Octane Octyl 9 Nonane Nonyl 10 Decane Decyl

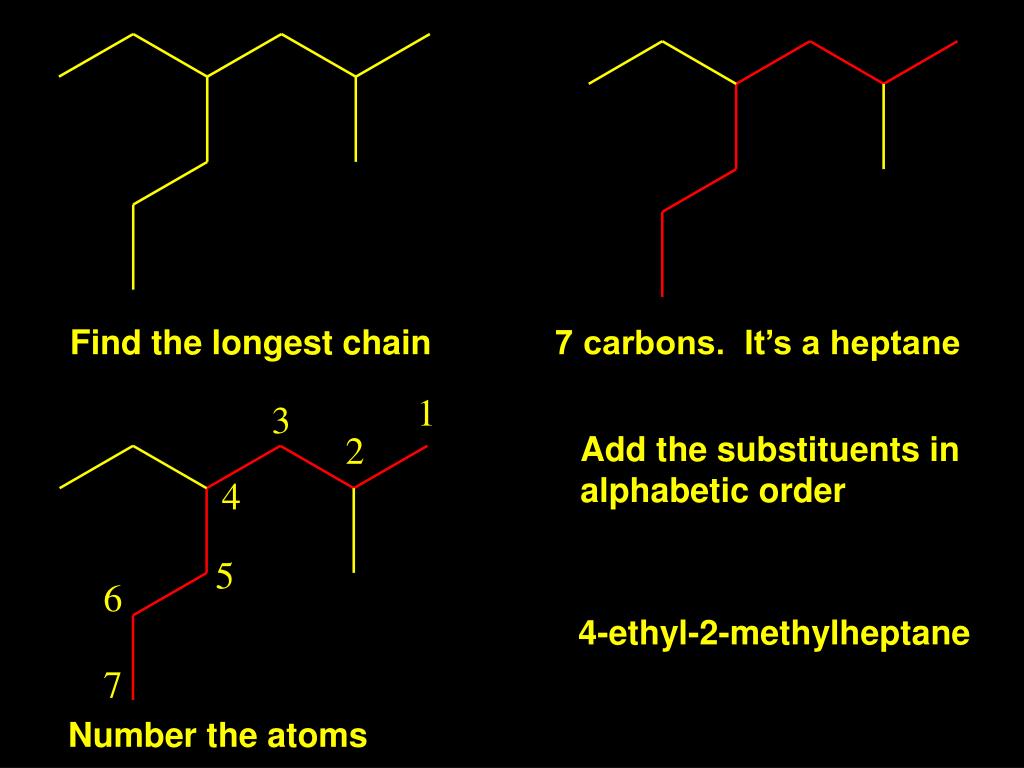

16. Find the longest chain 7 carbons. It’s a heptane Add the substituents in alphabetic order 4-ethyl-2-methylheptane Number the atoms

17. 5 carbon chain. It’s a pentane 3 methyls so use the prefix - tri 2 di- 3 tri- 4 tetra- 5 penta- 6 hexa- 2,2,4-trimethylpentane not 4,4,2-trimethylpentane

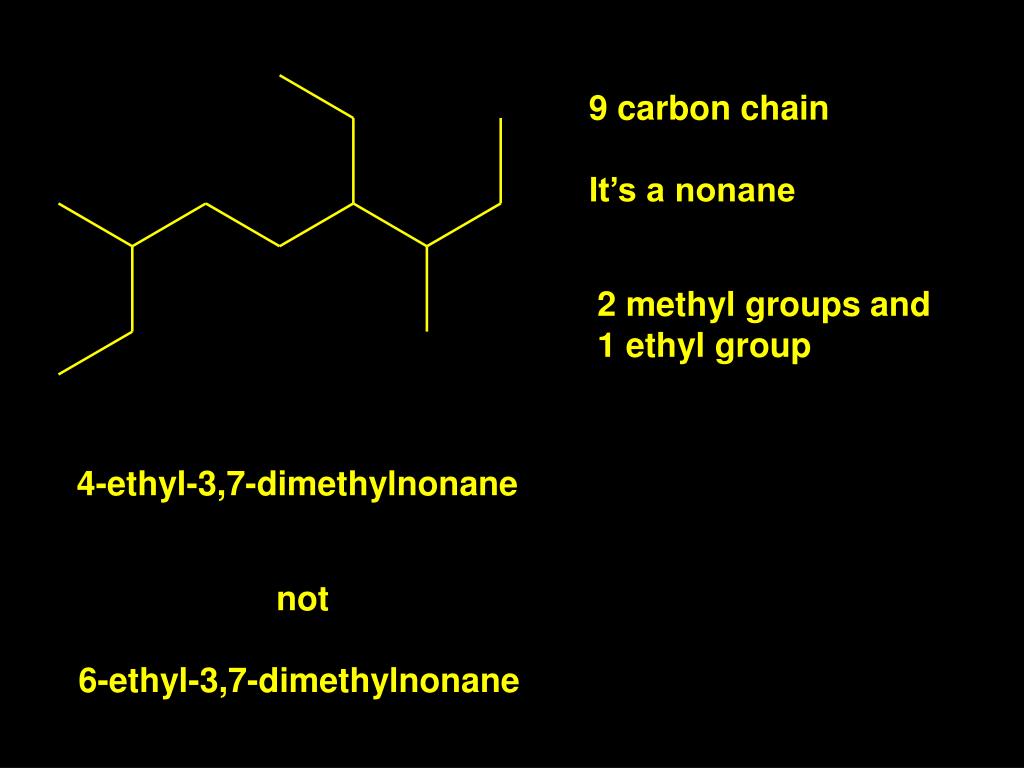

18. 9 carbon chain It’s a nonane 2 methyl groups and 1 ethyl group 4-ethyl-3,7-dimethylnonane not 6-ethyl-3,7-dimethylnonane

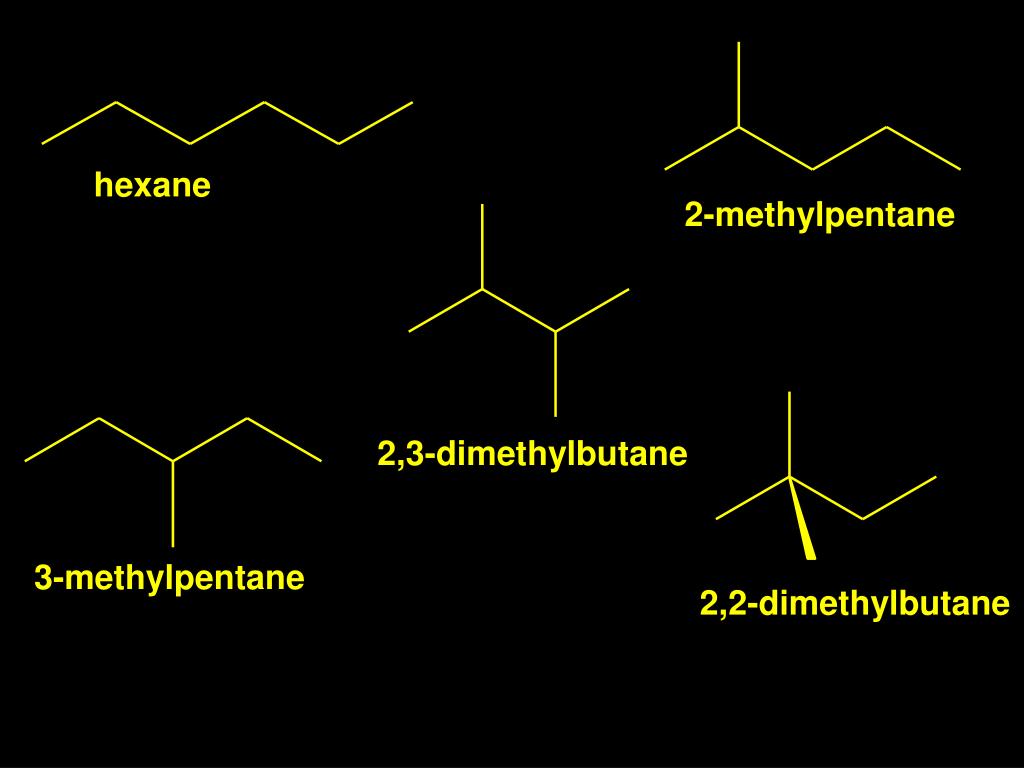

19. hexane 2-methylpentane 2,3-dimethylbutane 3-methylpentane 2,2-dimethylbutane

21. What is special about this compound? 3-methylhexane These two compounds are different. The two compounds are mirror images. One Is left handed and the other is right handed.

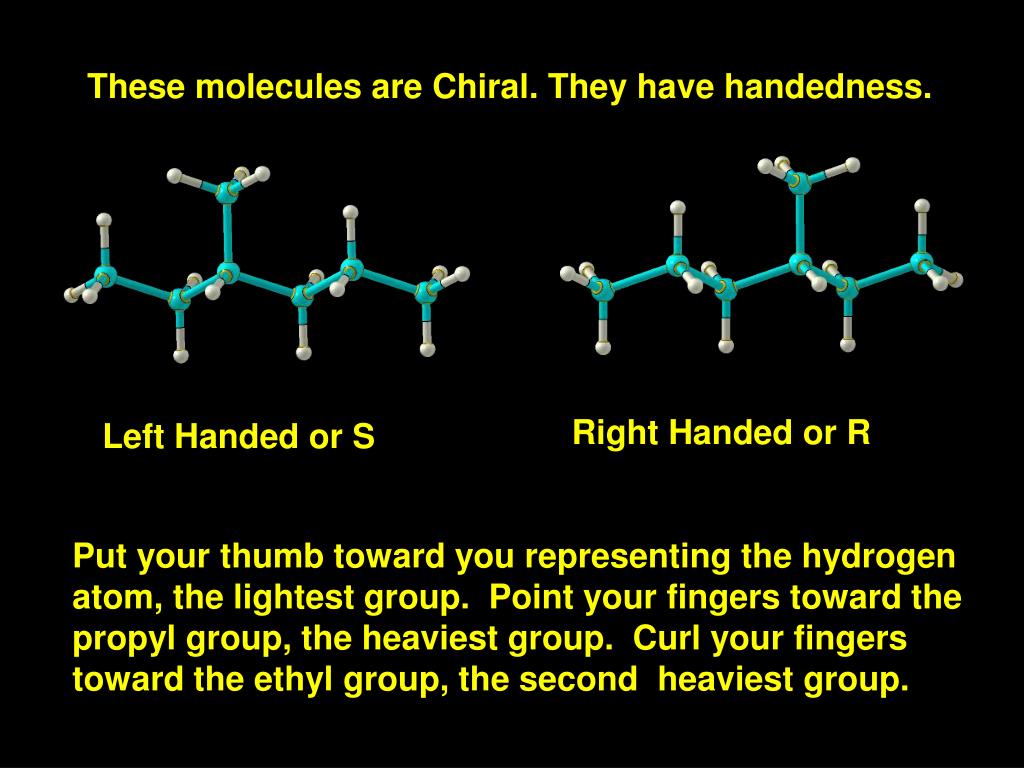

22. These molecules are Chiral. They have handedness. Right Handed or R Left Handed or S Put your thumb toward you representing the hydrogen atom, the lightest group. Point your fingers toward the propyl group, the heaviest group. Curl your fingers toward the ethyl group, the second heaviest group.

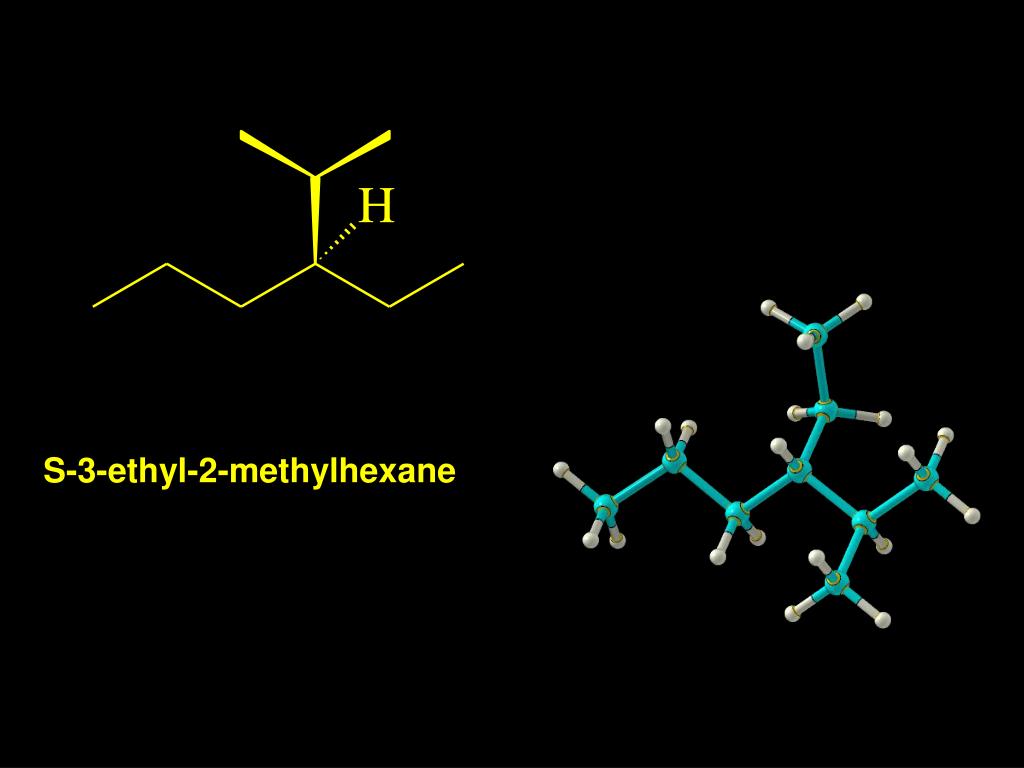

23. S-3-ethyl-2-methylhexane

24. Molecular Formulas for Alkanes are all of the form CnH2n+2 n-octane 2,2,4-trimethylpentane C8H18 n = 8 2n + 2 = 18

25. Molecular Formulas for Alkenes are all of the form CnH2n 2,4,4-trimethyl-2-pentene 1-octene C8H16 n = 8 2n = 16

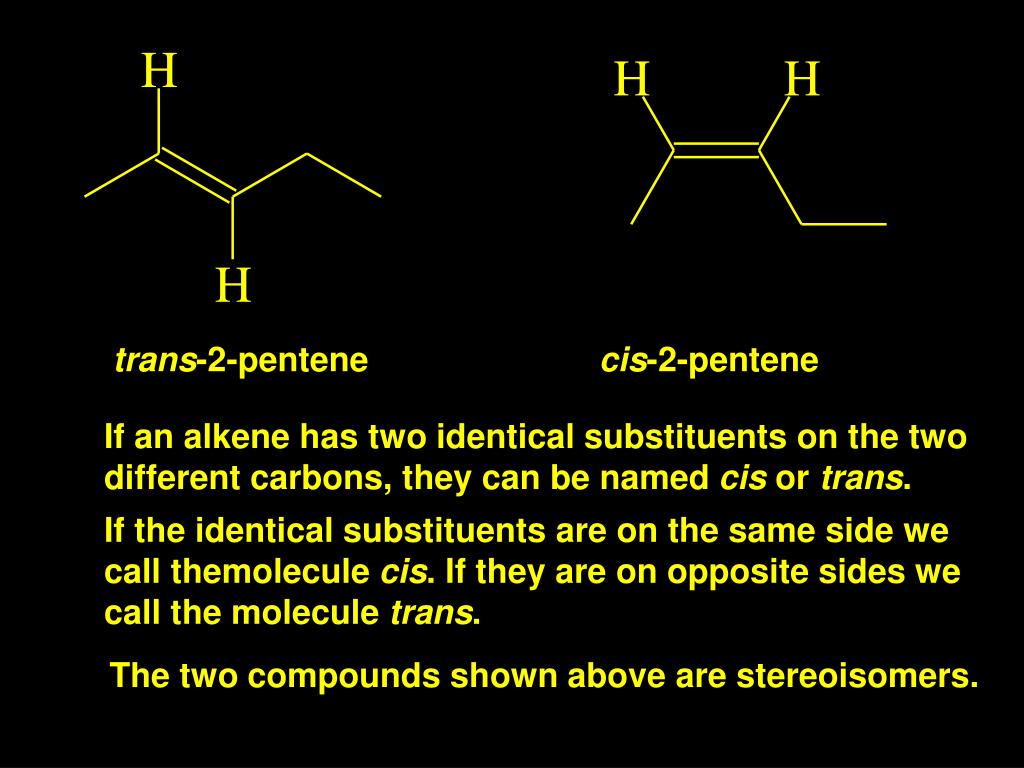

26. trans-2-pentene cis-2-pentene If an alkene has two identical substituents on the two different carbons, they can be named cis or trans. If the identical substituents are on the same side we call themolecule cis. If they are on opposite sides we call the molecule trans. The two compounds shown above are stereoisomers.

27. If two substituents on one carbon are the same cis and trans do not apply But what do we do if all groups are different?

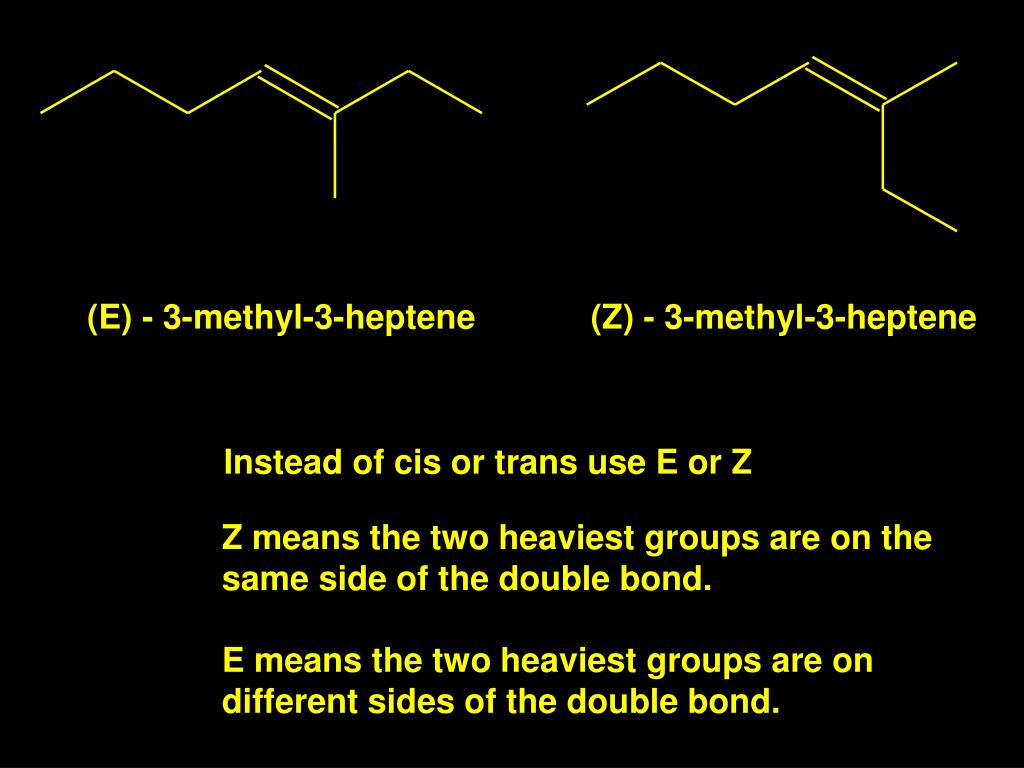

28. (E) - 3-methyl-3-heptene (Z) - 3-methyl-3-heptene Instead of cis or trans use E or Z Z means the two heaviest groups are on the same side of the double bond. E means the two heaviest groups are on different sides of the double bond.

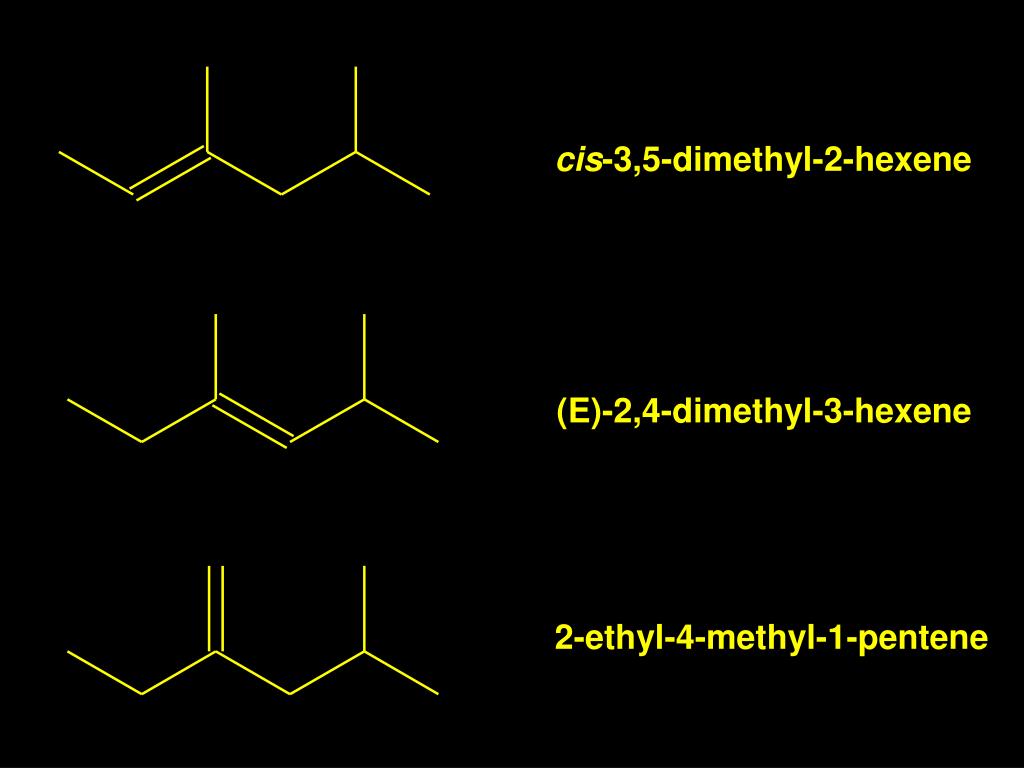

29. cis-3,5-dimethyl-2-hexene (E)-2,4-dimethyl-3-hexene 2-ethyl-4-methyl-1-pentene

30. Molecular Formulas for Alkynes are all of the form CnH2n-2 1-octyne C8H14 n = 8 2n - 2 = 14

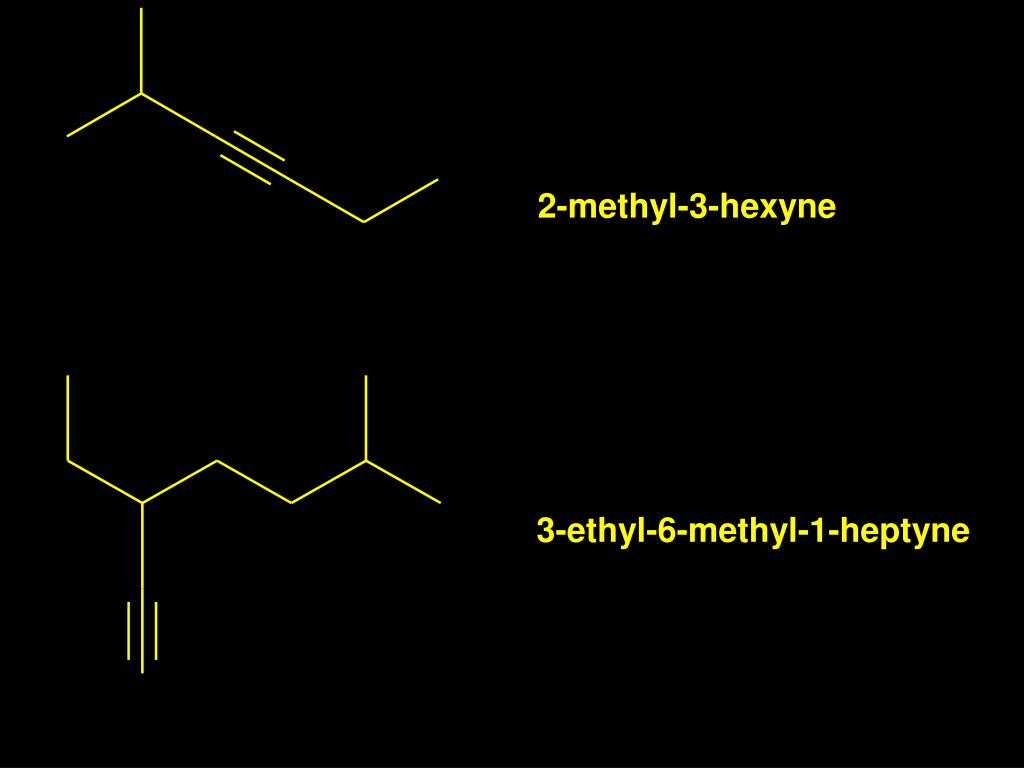

31. 2-methyl-3-hexyne 3-ethyl-6-methyl-1-heptyne

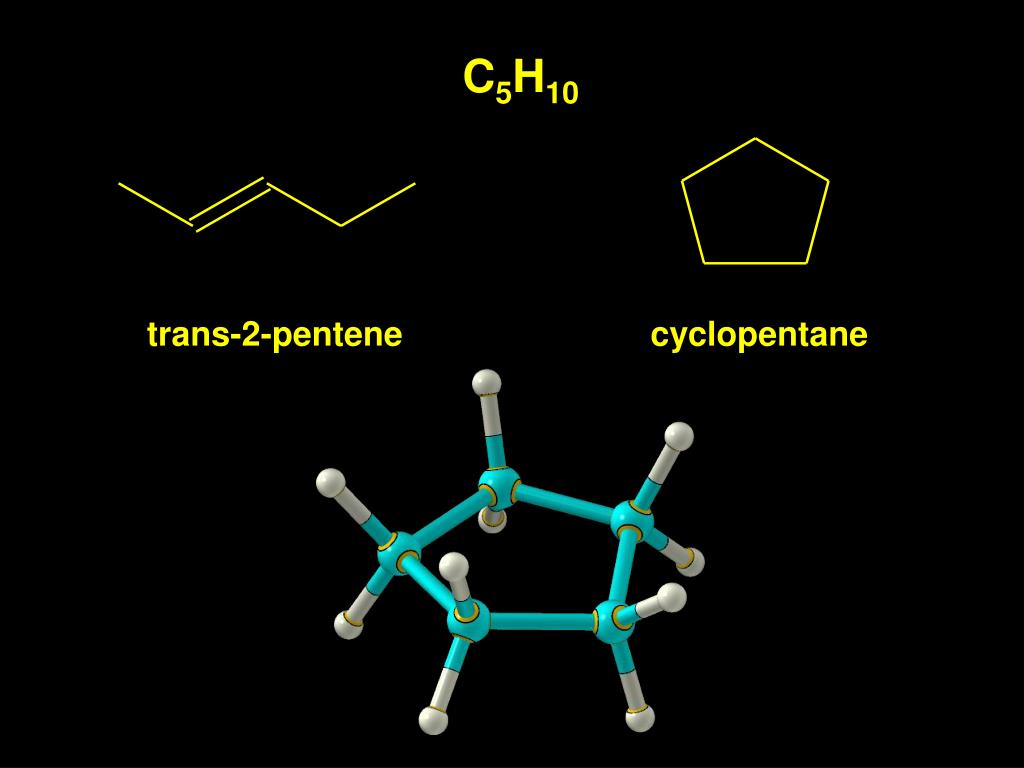

32. C5H10 trans-2-pentene cyclopentane

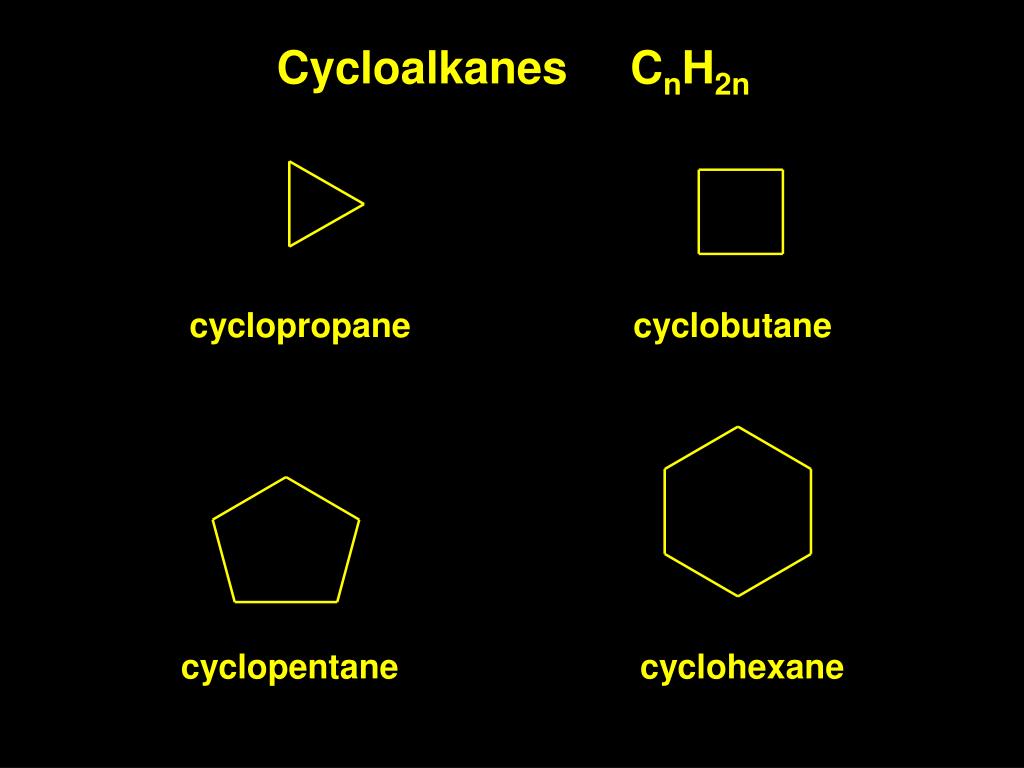

33. Cycloalkanes CnH2n cyclopropane cyclobutane cyclopentane cyclohexane

34. Cyclopropane

35. trans-1,2-dimethylcyclopropane cis-1,2-dimethylcyclopropane

36. trans-1,2-dimethycyclobutane cis-1-ethyl-3-methylcyclobutane

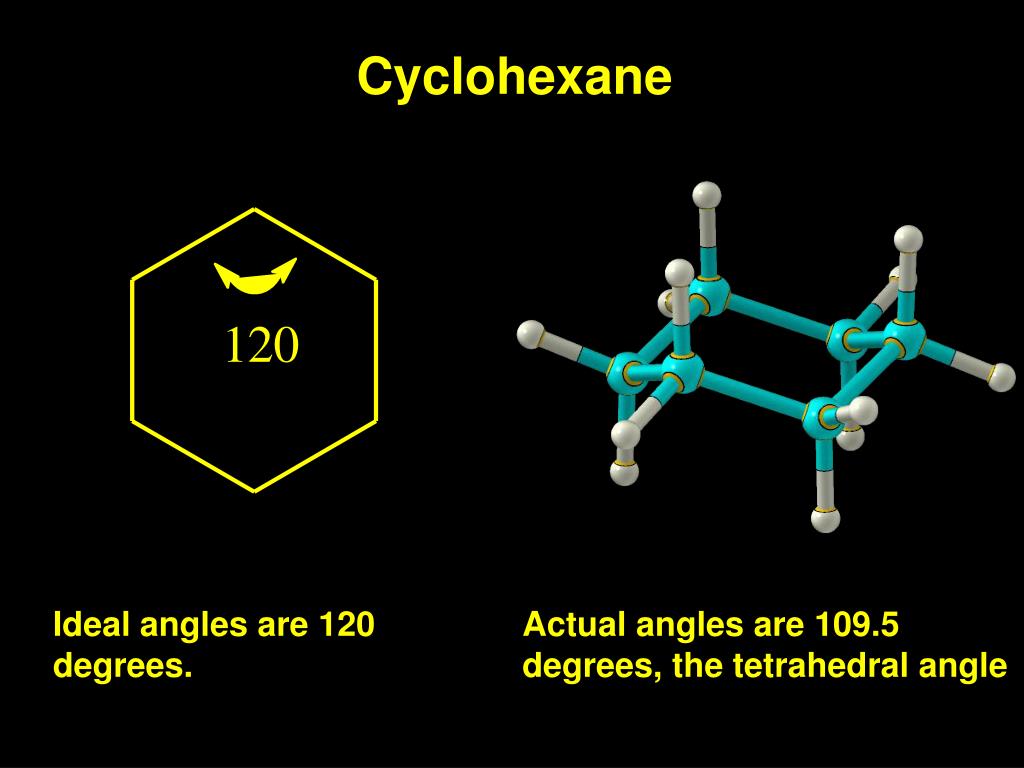

37. Cyclohexane Ideal angles are 120 degrees. Actual angles are 109.5 degrees, the tetrahedral angle

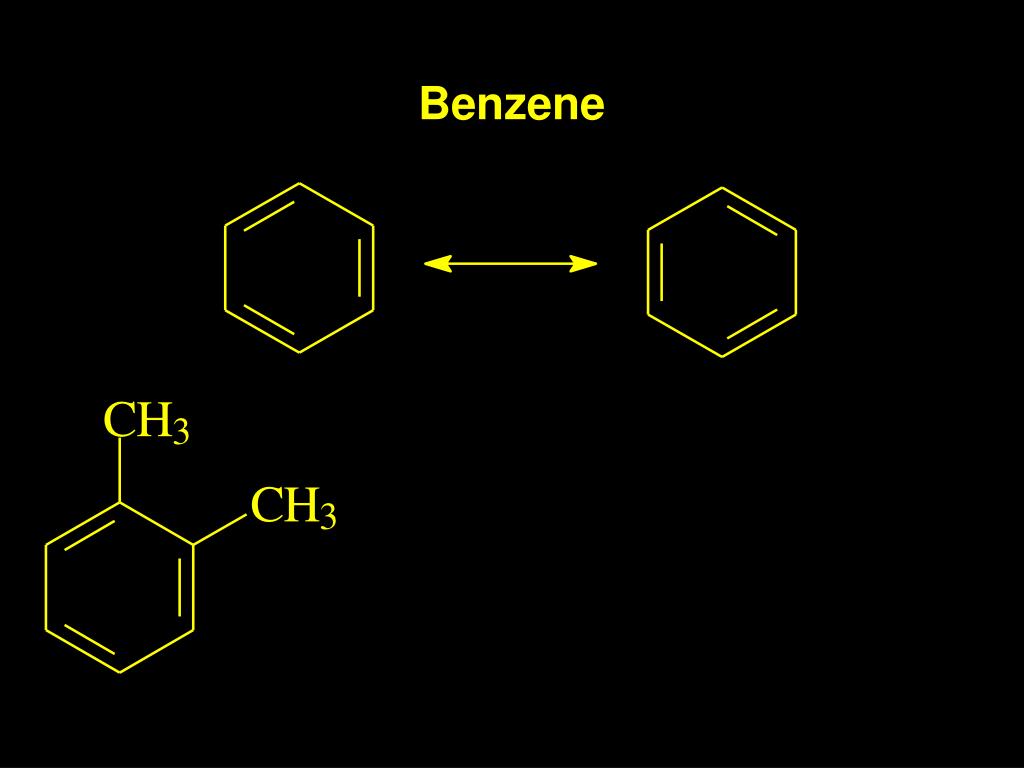

38. Benzene

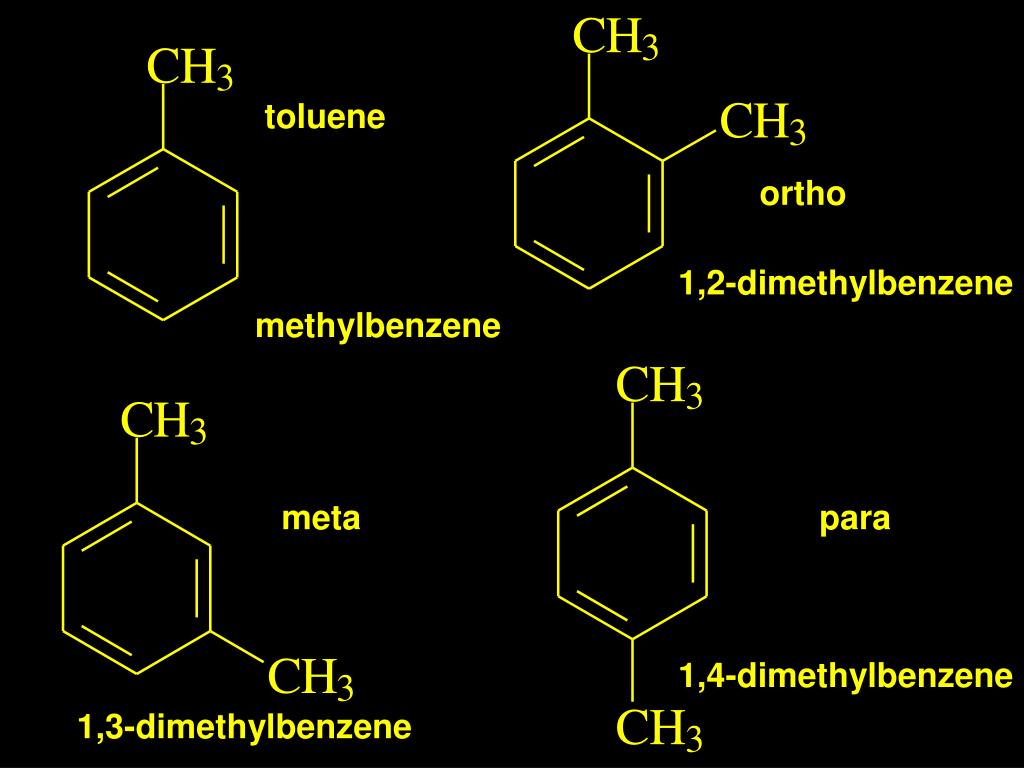

39. toluene ortho 1,2-dimethylbenzene methylbenzene meta para 1,4-dimethylbenzene 1,3-dimethylbenzene

40. Draw all compounds of formula C4H10 Draw all compounds of formula C4H8 Draw all compounds of formula C4H6
