Presentation Transcript
slide1
Distribution Lightning Protection Pilot Projects Reliability Engineering TeamLightning Arrester InitiativePresented byTim Constanzo, PE
where it all started
Where it all started

Corporate initiative to improve reliability

  • Reliability Summit
  • Root cause analysis methodology
    • Relay philosophy/settings
    • Maintenance, allocation of resources
    • Backbone initiative (distribution system design)
    • Lightning arresters (LA’s)
problem statement
Problem Statement

Lightning arresters (LAs) are believed to be the cause of an unacceptable frequency and duration of customer interruptions and outages.

probing questions
Probing Questions
  • How bad is it?
  • Why/how are LA’s failing?
  • How effective is current application of LA’s on system?
how bad is it

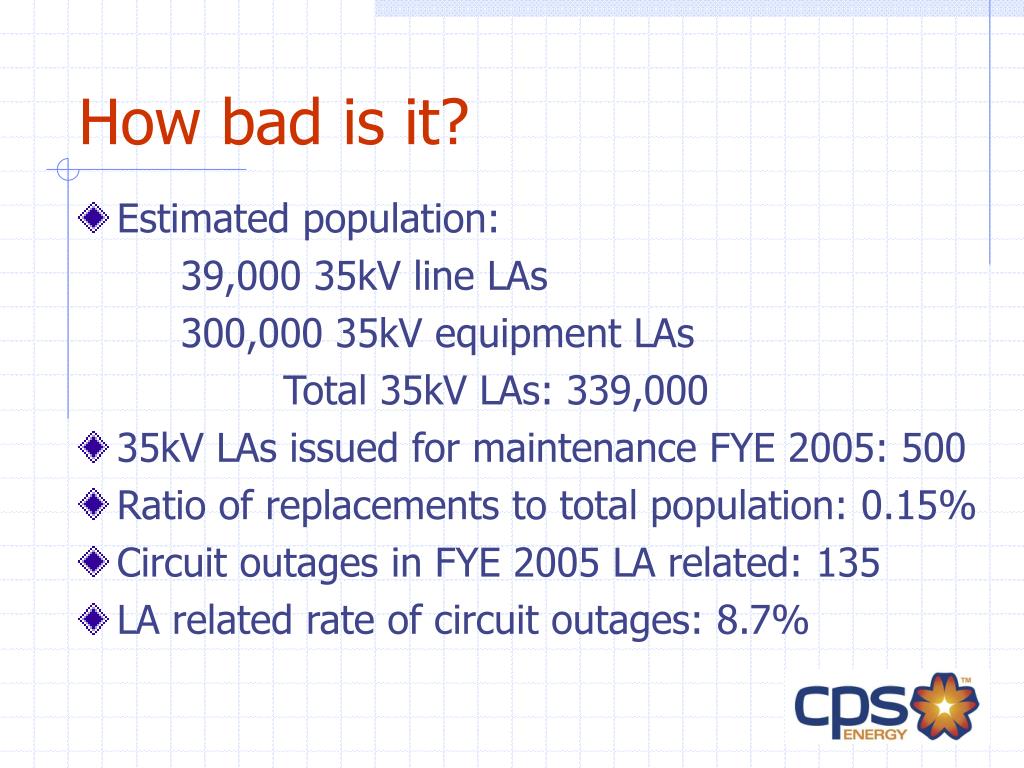

How bad is it?
  • Estimated population:

39,000 35kV line LAs

300,000 35kV equipment LAs

Total 35kV LAs: 339,000

  • 35kV LAs issued for maintenance FYE 2005: 500
  • Ratio of replacements to total population: 0.15%
  • Circuit outages in FYE 2005 LA related: 135
  • LA related rate of circuit outages: 8.7%
how why are la s failing
How/why are LA’s failing?
  • Fishbone and Pareto graphs/Root Cause
    • LA failure categories:
      • Proper isolator operation (not a failure!)
      • Design/Manufacturing defects
      • Installation Design/Practice
      • Thermal Runaway
normal operation
Normal Operation
  • Isolator designed to operate when capacity of LA is exceeded
    • Lightning
    • TOV
  • No outage caused
  • Loss of protection until replaced
  • Reduced BIL/CFO until replaced
la design manufacturing issues
LA Design/Manufacturing Issues
  • Poor design/manufacturing
    • Poor seals
    • Voids under sheds
  • Recommendation: Revise LA standards to eliminate designs with poor seal and voids under sheds.
installation design
Installation Design
  • Current installation design/practice
    • Long leads wrapping around primary
    • Reduced Insulation/BIL after isolator operates
  • Recommendations:
    • Shorter leads
    • Eliminate insulating bracket
thermal runaway
Thermal Runaway
  • Cause:
    • Aging zinc oxide block material
    • Moisture ingress (most common)
  • Effect: High leakage current
    • Marginalized MCOV
    • Elevated temperature
  • Recommendations:
    • IR patrol
    • removal when +10°C/18°F above ambient
current application of la s
Current Application of LA’s
  • Line arresters
    • 27 kV/22 kV MCOV (Heavy Duty)
    • ¼-mile spacing, all phases
  • Equipment arresters
    • 27 kV/22 kV MCOV (Heavy Duty)
    • All equipment
evaluating la application
Evaluating LA Application

TFlash modeling cases:

  • Baseline: no arresters
  • Arresters @ ¼ mile, 3 phases
  • Every pole, center phase only
  • Every pole, raised center phase only
  • Every pole, 3 phases
conclusions recommendations
Conclusions/Recommendations
  • Discontinue current application: “¼-mile”
    • Let attrition remove line LAs
    • Maintain LAs protecting equipment
  • Apply only when/where lightning is an issue
    • Circuits requiring higher reliability
    • High exposure
    • Use higher voltage rated LA (27 -> 30 kV)
lightning arrestor initiative going forward
Lightning Arrestor Initiative Going Forward
  • T&E lightning arrestor installation arrangements
    • Static wire (no arresters)
    • LA’s center phase only, every pole
  • Further modeling in TFlash
  • Evaluate costs of various arrangements
