  1. Mars RT Pro On-Line Series UPS

  2. Content • Introduction of MP Series • System Block Diagram • Product Features • Functions Explanations • Product Specifications • Q&A

  3. Introduction of MP Series Mars – RT Pro Model MP 1K( X/C ) 2K( X/C ) 3K( X/C ) Capacity : 1000VA, 2000VA, 3000VA Servers in Rack / Tower Convertible Networking & VOIP Telecom Equipment Sensitive Electronic Equipment in Industrial Environment

  4. System Block Diagram True Online Double Conversion for Various Applications

  5. Product Features • True On-line Double Conversion Topology • Fully High Performance DSP Control • Flexible Rack/Tower Application • Input Frequency 45-65Hz • Wide Range Input Window from 120~288Vac • High Input Power Factor & Low Current THD • Programmable Receptacles • Versatile Interfaces Options • Hot-Swappable Battery • Bigger Charger & Extended Battery Connector • Galvanic Isolation Transformer Models are Available

  6. 1 2 4 7 6 5 3 13 12 11 10 9 8 Functions Explanations • LED Indicators: • Overload • Fault • Site Wiring Fault • Battery Weak/Bad • Self-test • Programmable Outlet1 • Programmable Outlet2 • Bypass Mode • Battery Mode • Line Mode • Control Keypads: • On Key • Off Key • Test & Alarm Silence Key

  7. LED Indicators: LCD Utility Programmable Outlet1 Programmable Outlet2 Bypass Range Fault Control Keypads: ON Key &Alarm Silence Key OFF Key Function Key Down Key Up Key Enter Key

  8.          Real Panel Explanation (1kVA) Slot for Communications-card option Two Programmable Outlets Outlets Fan USB Comm. Port RS-232 Comm. Port EPO External Battery Connector Socket for connection to AC-power source Input circuit breaker

  9. 7 5 6 1 2 3 9 4 8 10 Real Panel Explanation (2kVA) 1 USB Comm. Port 2 RS-232 Comm. Port 3 EPO 4 External Battery Connector 5 Socket for connection to AC-power source 6 Input circuit breaker 7 Slot for Communications-card option 8 Outlets 9 Two Programmable outlets 10 Fan

  10. 7 5 10 11 6 1 2 3 9 4 8 12 Real Panel Explanation (3kVA) 1 USB Comm. Port 2 RS-232 Comm. Port 3 EPO 4 External Battery Connector 5 Socket for connection to AC-power source 6 Input circuit breaker 7 Slot for Communications-card option 8 Outlets 9 Two Programmable outlets 10 Output Breaker for two Power Programmable outlets 11 Output circuit breakers 12 Fan

  11. External Communication Interface • Standard Unit : RS232 and USB interface • Optional in Slot :1. WEB/SNMP Card2. True Relay Contact Card 3. RS485 Card

  12. Communication Software • Emily • UPSilon 2000

  13. Emergency Power Off (EPO) Emergency shutdown control through the EPO

  14. Hot-Swappable Battery Removable Battery Bank Battery Replacement from Front Panel Without Hazard Risk to Users Backup Time (Full Load):

  15. Large Built-in Charger Fastest Charging Internal Battery to 90% in 3 hours. 1.8A~2.7A Charger Built-in for Immediate Run Time Expansion.

  16. Solutions for Long Runtime Increased Runtime for Critical Applications Extended Runtime Capabilities with Multiple External Battery Bank (Optional)

  17. Battery Run Times

  18. Battery Run Times

  19. Battery Run Times

  20. Front and Rear Panel Descriptions

  21. Optional External Bypass Switch External Bypass Switch Easy Installation with ready-to-go inlets & outlets. Break before Make Switch(3ms)

  22. Operating Illustration

  23. Programmable Receptacles Current Monitoring Output Receptacles Enable/Disable Ablerex own-developed software for Windows Platform Increased runtime for critical applications: Load shedding with programmable outlets.

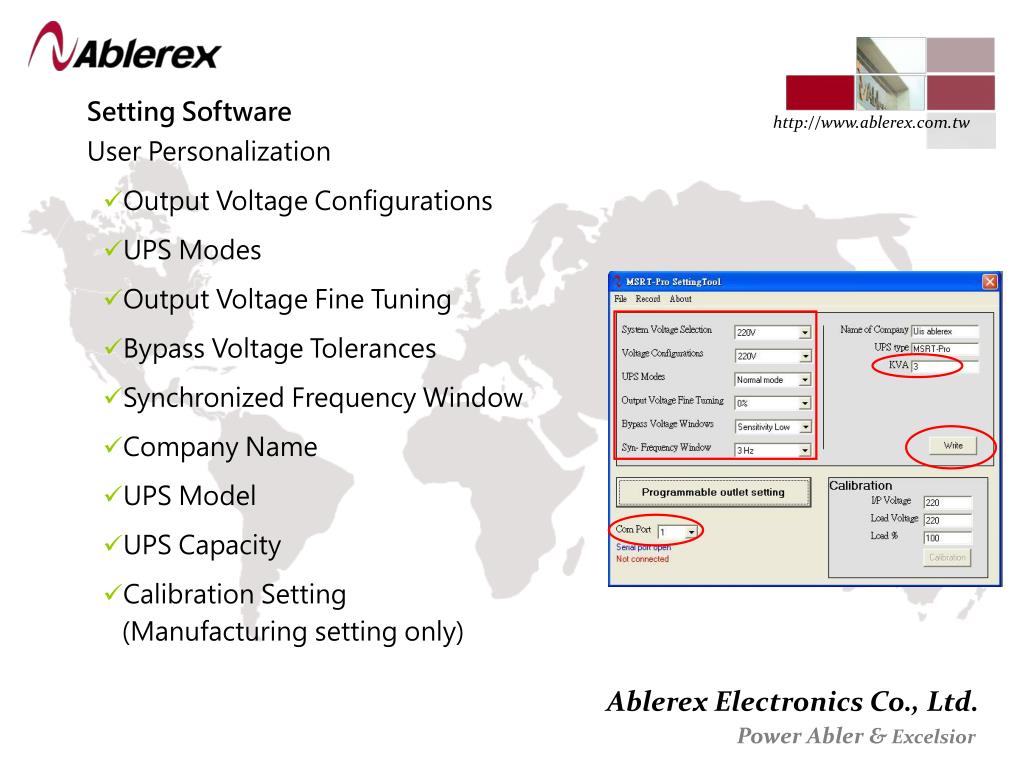

  24. Setting Software User Personalization • Output Voltage Configurations • UPS Modes • Output Voltage Fine Tuning • Bypass Voltage Tolerances • Synchronized Frequency Window • Company Name • UPS Model • UPS Capacity • Calibration Setting (Manufacturing setting only)

  25. Programmable Outlet Setting • Outlet Turn On After Turn on UPS • Outlet Turn Off After AC Failure • Outlet Turn On After AC Recovered • Outlet Turn Off When Battery Lower than • Outlet Turn Off When Overload • Manual Control Switch Programmable Outlet On/Off

  26. [B1]加入 • Internal structure • (2/3kVA) Internal structure(1kVA)

  27. MPAD2XX PCB (1/1.5KVA)

  28. Charger circuit Work power Feedback Relay Inverter IGBT Inverter choke Inverter choke MPCD2XX PCB(2K/3KVA)

  29. PFC choke +BUS PFC IGBT PFC choke +BUS Boost Transformer Boost MOSFET MPCD3XX PCB (2/3KVA -220V System)

  30. Product Specifications

  31. Q & A
